USER MANUAL Nikkor AFS 300mm f2.8G ED VR II NIKON

Technical diagram of a mechanical component with numbered parts labeled 1 through 5

Technical diagram of a Nikon V8.5 camera with numbered parts and labeled function buttons

■ 主な特長

Close-up of a mechanical component with two arrows pointing to features (no visible text or symbols)

Diagram showing a guitar with musical notes and a circular symbol, likely indicating playback or music control.

Close-up of a cylindrical mechanical component with a black arrow pointing to a section (no visible text or symbols)

Diagram of a camera with numbered parts and directional arrow indicating motion or operation

Diagram showing a mechanical or fluidic component with labeled parts and directional arrows indicating motion or flow.

Diagram of a camera control panel with an arrow pointing to the lens and a magnified inset showing the lens's tip.

Illustration of a hand holding a magnifying glass with a circular dial and an arrow indicating rotation (no text or symbols)

Touching the internal parts of the camera or lens could result in injury. Repairs should be performed only by qualified technicians. Should the camera or lens break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection after unplugging the product and/or removing the battery.

Turn off immediately in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or lens, remove the battery immediately, taking care to avoid burns. Continued operation could result in injury.

After removing or disconnecting the power source, take the product to a Nikon-authorized service representative for inspection.

Do not use the camera or lens in the presence of flammable gas

Operating electronic equipment in the presence of flammable gas could result in an explosion or fire.

Do not look at the sun through the lens or viewfinder

Viewing the sun or other strong light sources through the lens or viewfinder could cause permanent visual impairment.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the batteries or other small parts into their mouths.

Observe the following precautions when handling the camera and lens

• Keep the camera and lens unit dry. Failure to do so could result in fire or electric shock.
• Do not handle or touch the camera or lens unit with wet hands. Failure to do so could result in electric shock.
• When shooting with back-lighting, do not point the lens at the sun or allow sunlight to pass directly down the lens as this may cause the camera to overheat and possibly cause a fire.
• When the lens will not be used for an extended period of time, attach both front and rear lens caps and store the lens away from direct sunlight. Failure to do so could result in a fire, as the lens may focus sunlight onto a flammable object.

Notices for Customers in Europe

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol indicates that electrical and electronic equipment is to be collected separately.

The following apply only to users in European countries:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of as household waste.
• Separate collection and recycling helps conserve natural resources and prevent negative consequences for human health and the environment that might result from incorrect disposal.
• For more information, contact the retailer or the local authorities in charge of waste management.

Thank you for purchasing the AF-S NIKKOR 300mm f/2.8G ED VR II lens. Before using this lens, please read these instructions and refer to your camera's user's manual.

En

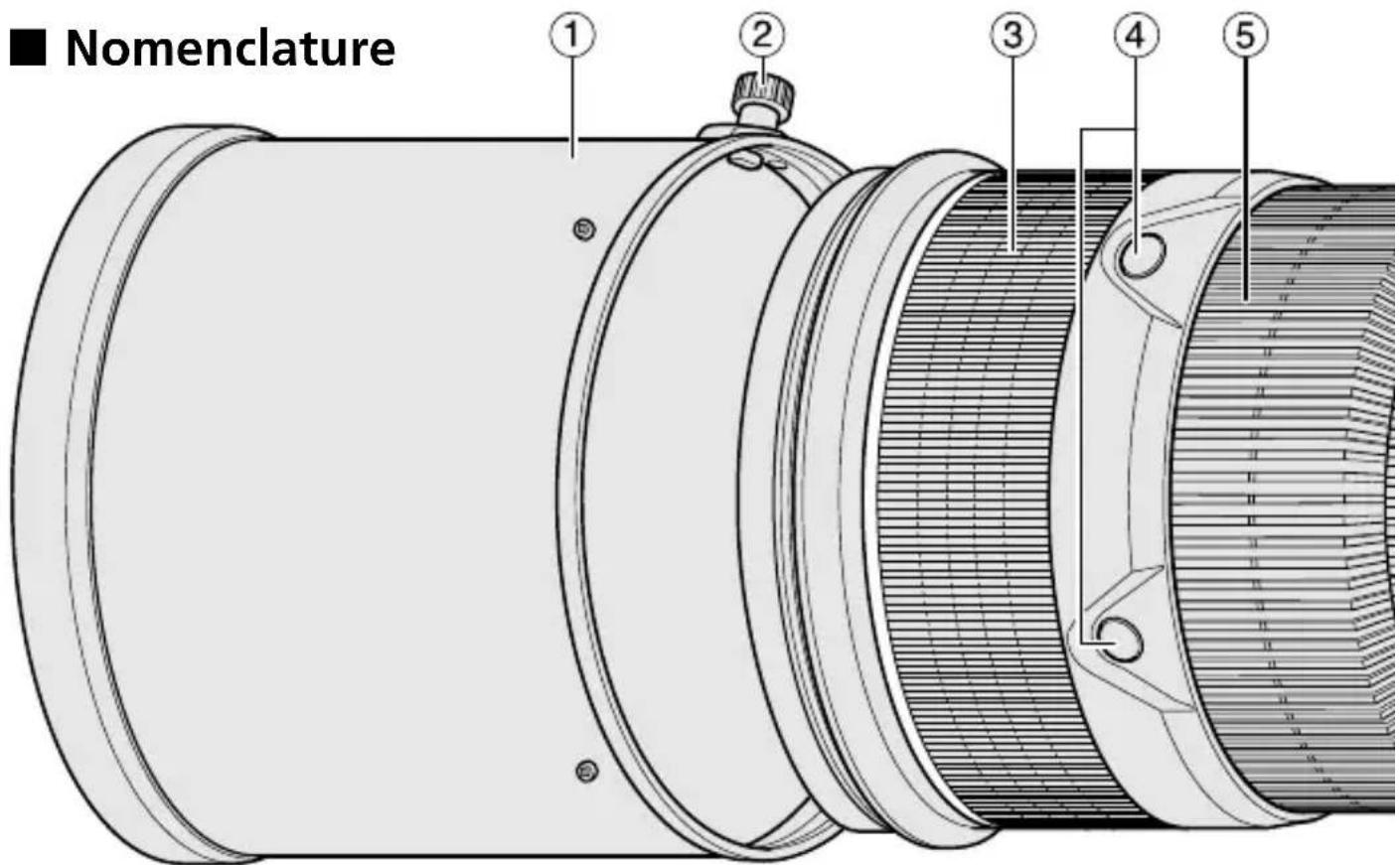

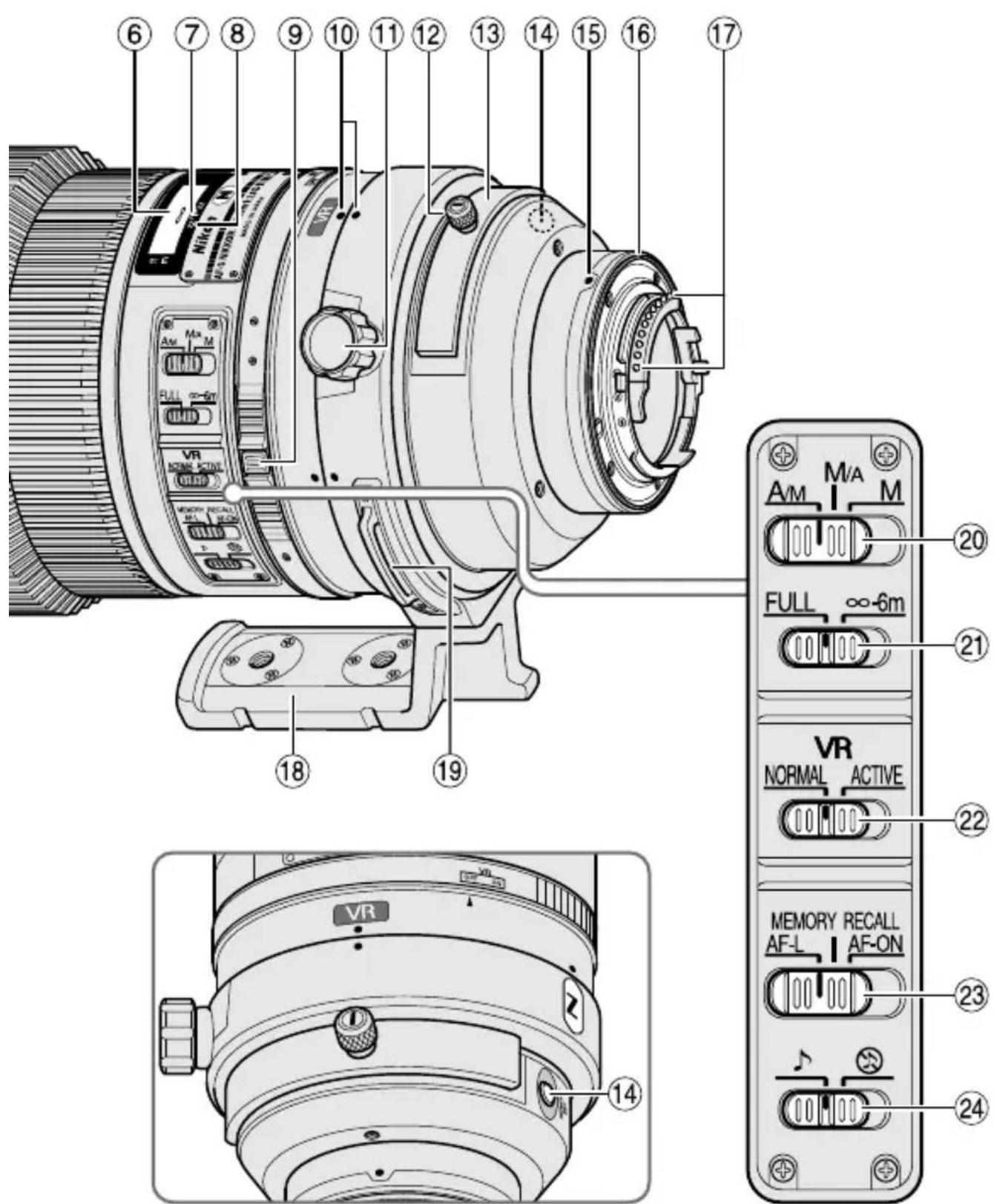

Nomenclature ① ② ③ ④ ⑤

① Lens hood (P. 28)
② Lens hood screw (P. 28)
③ Rubber grip
④ Focus operation button (Focus Lock/Memory recall/AF Start) (P. 23)
⑤ Focus ring (P. 22)
⑥ Distance scale (P. 27)
⑦ Distance index line (P. 27)
⑧ Depth-of-field indicators (P. 27)
⑨ Vibration reduction ON/OFF ring switch (P. 25)
⑩ Lens rotating position index (P. 27)
⑪ Tripod collar ring fastening screw (P. 27)

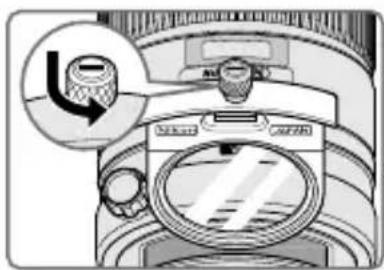

⑫ Slip-in filter holder knob (P. 28)
⑬ Slip-in filter holder (P. 28)
⑭ Memory set button (P. 24)
⑮ Mounting index
⑯ Lens mount rubber gasket (P. 30)
⑰ CPU contacts (P. 30)
⑱ Built-in rotating tripod collar (P. 27)
⑲ Strap eyelet
⑳ Focus mode switch (P. 22)
②1 Focusing limit switch (P. 23)
②2 Vibration reduction mode switch (P. 26)
②3 Focus operation selection switch (AF-L/MEMORY RECALL/AF-ON) (P. 23)
⑳ Sound monitor switch (P. 24)

( ): reference page

Technical diagram of a camera with numbered parts and labeled function keys such as 'FULL', 'NORMAL', and 'MEMORY RECALL'.

En

■ Major features

• The Nano Crystal Coat deposited on some of the lens elements ensures that fine, clear images can be reproduced under various shooting conditions, from the sunny outdoors to spotlighted interior scenes.
• This lens features AF-L, which locks focus during autofocus, AF-ON, which activates autofocus, and MEMORY RECALL, which saves and recalls selected focus distances.
• By enabling vibration reduction, slower shutter speeds (3 stops*) can be used, thus increasing the range of usable shutter speeds, particularly when hand-holding the camera. (*The effects of VR on shutter speed are measured according to Camera and Imaging Products Association (CIPA) standards; FX-format lenses are measured using FX-format digital cameras, DX-format lenses using DX-format cameras. Zoom lenses are measured at maximum zoom.)
• AF-I/AF-S Teleconverters TC-14E/TC-14E II/TC-14E III/TC-17E II/TC-20E/TC-20E II/TC-20E III are usable.

Important

- When mounted on Nikon DX format digital SLR cameras, such as the D300-Series and D7000, the lens' picture angle becomes 5°20' and its 35mm equivalent focal length is approx. 450mm.

■ Usable cameras and available functions

There may be some restrictions or limitation for available functions. Refer to camera's user's manual for details.

√: Possible —: Not possible VR: Vibration reduction AF: Autofocus
* Sold exclusively in the USA
** Sold exclusively in the USA and Canada
*1: P includes AUTO and Vari-Program System.
*2: Manual (M) is not available.
*3: When the focus operation selection switch is set to AF-ON, autofocus begins as soon as the focus operation button is pressed while the shutter-release button pressed halfway.
*4: Press the memory set button or a focus operation button while pressing the shutter release button halfway.
*5: Possible, with limited restrictions

Cameras	Function					Exposure mode
	VR	AF	Focus lock	Memory recall	AF start on the lens	P*1	SAM
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F100, F80-Series/N80-Series*, F75-Series/N75-Series*, F65-Series/N65-Series*	√	√	√	√	√	√	√
Pronea 600i/6i*, Pronea S*2	—	√	√	√	√	√	√
F4-Series, F90X/N90s*, F90-Series/N90*, F70-Series/N70*	—	√*3	√	√*4	√*3*5	√	√	—	—
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-401x / N5005*, F-401s/N4004s*, F-401/N4004*	—	—	—	—		√	√	√
F-801s/N8008s*, F-801/N8008*, F-601 M/N6000*	—	—	—	—		√	√	—	—
F3AF, F-601/N6006*, F-501/N2020**, Nikon MF cameras (except F-601M/N6000*)	—	—	—	—	—

■ Focusing

Set your camera's focus-mode selector according to the chart below:

Cameras	Camera focus mode	Lens' focus mode switch
		A/M M	A M
Nikon digital SLR (Nikon FX/DX format) cameras, F6, F5, F4-Series, F100, F90X/N90s*, F90-Series/N90*, F80-Series/N80-Series*, F75-Series/N75-Series*, F70-Series/N70*, F65-Series/N65-Series*, Pronea 600i/6i*, Pronea S	AF	Autofocus with manual override (AF priority)	Autofocus with manual override (MF priority)	Manual focus (Electronic rangefinder can be used.)
	MF	Manual focus (Electronic rangefinder can be used.)
F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-801s/N8008s*, F-801/N8008*, F-601M/N6000*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*	AF MF	Manual focus (Electronic rangefinder can be used, except with the F-601 M/N6000.*)

* Sold exclusively in the USA
AF: Autofocus MF: Manual focus

A/M (Autofocus with manual override. AF priority) mode and M/A (Autofocus with manual override. MF priority) mode

A/M M/A M

M/A: Autofocus can be overridden by manually focusing with the focus ring.

A/M: Autofocus can be overridden by manually focusing with the focus ring, but focus ring detection sensitivity is lower than in M/A mode. Use this mode to avoid canceling the AF setting by unintentionally moving the focus ring.

1 Set the focus mode switch to A/M or M/A.
2 Autofocus can be manually overridden by rotating the focus ring while pressing the shutter release button halfway, pressing the AF-ON button on the camera or pressing a focus operation button (with focus operation set to AF-ON) on the lens.
3 Pressing the shutter release button halfway, pressing the AF-ON button on the camera again or pressing a focus operation button on the lens again will cancel manual override and return the lens to autofocus mode.

To limit the range of autofocus

This function is only available with autofocus.

FULL ∞-6m

FULL: If the subject is sometimes closer than 6 m (19.7 ft), set the switch to FULL.

∞-6m: If the subject is always 6 m (19.7 ft) or more away, set the switch to ∞-6m to reduce focusing time.

■ Focus operation selection switch and focus operation button (See p. 20 for compatible cameras.)

Use the focus operation selection switch to choose a function of the focus operation buttons.

MEMORY RECALL AF-L | AF-ON

Position of focus operation selection switch	Focus operation button function
AF-L Focus lock
MEMORY RECALL Memory	recall
AF-ON	AF start (AF-ON) on the lens

Close-up of a mechanical component with no visible text or symbols

• Press one of four focus operation buttons to activate each function.
• The focus operation button positions can be changed to suit individual user preferences. For more details on this, contact your nearest Nikon service center or representative office.

Focus lock (AF-L)

This function is only compatible with autofocus.

1 Set the focus mode switch to A/M or M/A.
2 Set the focus operation selection switch to AF-L.
3 During autofocus mode, focus can be locked by pressing one of the focus operation buttons.

- Focus remains locked while a focus operation button is pressed and held down.

- The AF-L function can be engaged either from the camera or from the lens.

Memory recall (MEMORY RECALL)

Diagram showing a musical note and sound symbol with Chinese characters for 'music' and 'sound'

♪: The lens beeps when memory recall is operated.

②: Memory recall operates without the beep sound. The following operation is with the sound monitor switch set to ▶.

Close-up of a mechanical component with a black arrow pointing to a detail (no visible text or symbols)

1 Focus on a subject and press the memory set button to save the focus distance.

• The lens will beep when the focused distance is correctly saved.

• When the focus distance is not correctly saved, the ring will revolve back and forth some 10 times, while emit one short and three long beeps. In this case, repeat to save focus distance.

• Memory set is possible regardless of the setting of the focus mode or focus operation selection switch.

• The focus distance is saved even when the camera is turned off or the lens is detached from the camera.

2 Set the focus operation selection switch to MEMORY RECALL.
3 Press a focus operation button. After the lens beeps twice, fully press the shutter release button to take the picture.

• The saved focus distance is recalled when a focus operation button is pressed even when the shutter release button is pressed halfway.
• To take pictures at the saved focus distance, hold the focus operation button down and fully press the shutter release button.
• The lens reverts from memory recall to autofocus or manual focus when the focus operation button is released.

Autofocus (AF) start on the lens (AF-ON)

1 Set the focus mode switch to A/M or M/A.
2 Set the focus operation selection switch to AF-ON.
3 Press a focus operation button to focus on the subject.

- Autofocus is activated while a focus operation button is pressed and held down.

- The AF-ON function can be engaged either from the camera or from the lens.

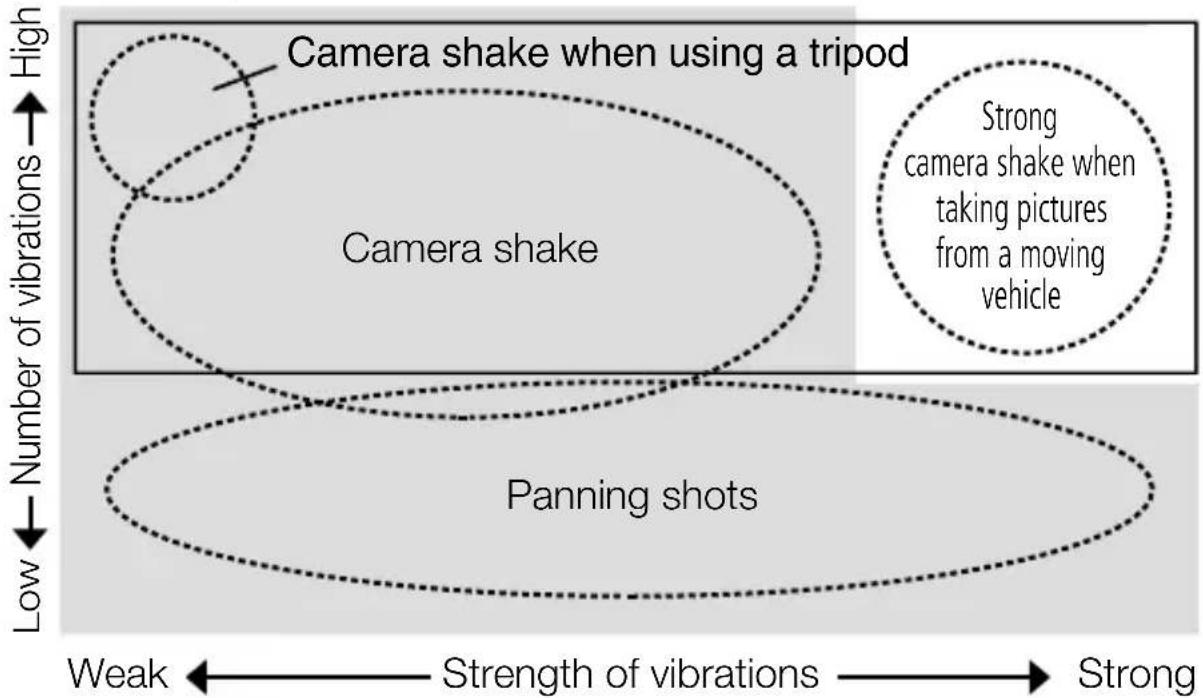

■ Vibration reduction mode Basic concept of vibration reduction


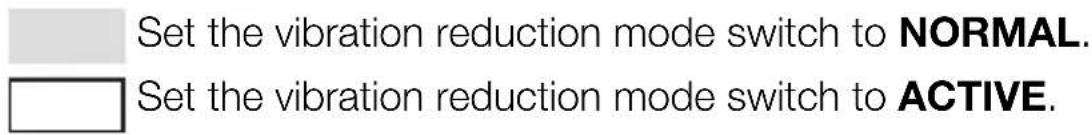

Set the vibration reduction mode switch to NORMAL. Set the vibration reduction mode switch to ACTIVE.

When taking pictures	Set the vibration reduction mode switch to either NORMAL or ACTIVE.
When taking panning shots	Set the vibration reduction mode switch to NORMAL.
When taking pictures from a moving vehicle	Set the vibration reduction mode switch to ACTIVE.
When taking pictures using a tripod	Set the vibration reduction mode switch to either NORMAL or ACTIVE.

Setting the vibration reduction ON/OFF ring switch

① ② VR OFF ON

ON: The effects of camera shake are reduced while the shutter-release button is pressed halfway and also at the instant the shutter is released. Because vibration is reduced in the viewfinder, auto/manual focusing and exact framing of the subject are easier.

OFF: The effects of camera shake are not reduced.

Setting the vibration reduction mode switch

Set the vibration reduction ON/OFF ring switch to ON and choose a vibration reduction mode with the vibration reduction mode switch.

VR NORMAL ACTIVE 00 100

NORMAL: The vibration reduction mechanism primarily reduces the effects of camera shake. The effects of camera shake are also reduced with horizontal and vertical panning.

ACTIVE: The vibration reduction mechanism reduces the effects of camera shake, such as that which occurs when taking pictures from a moving vehicle, whether it be normal or more intense camera shake. In this mode, camera shake is not automatically distinguished from panning motion.

Notes on using vibration reduction

• If this lens is used with cameras that do not have the vibration reduction function (p. 20), set the vibration reduction ON/OFF ring switch to OFF. With the Pronea 600i/6i camera, in particular, battery power may become quickly depleted if this switch is left ON.
• After pressing the shutter-release button halfway, wait until the image in the viewfinder stabilizes before pressing the shutter-release button the rest of the way down.
• Due to the characteristics of the vibration reduction mechanism, the image in the viewfinder may be blurred after the shutter is released. This is not a malfunction.
• When taking panning shots, be sure to set the vibration reduction mode switch to NORMAL. If the camera is panned in a wide arc, compensation for camera shake in the panning direction is not performed. For example, only the effects of vertical camera shake is reduced with horizontal panning.
• Do not turn the camera off or remove the lens from the camera while vibration reduction is operating. Failure to observe this note could result in the lens sounding and feeling as if an internal component is loose or broken when it is shaken. This is not a malfunction. Turn the camera on again to correct this.
• With cameras featuring a built-in flash, vibration reduction does not function while the built-in flash is charging.
• When using a tripod, set the vibration reduction ON/OFF ring switch to ON to reduce the effect of camera shake. Nikon recommends the switch be set to ON when using the camera on an unsecured tripod head or with a monopod. But when camera shake is very slight, the vibration reduction function may conversely increase the effect of camera shake by the movement of the system. In such a case, set the vibration reduction ON/OFF ring switch to OFF.

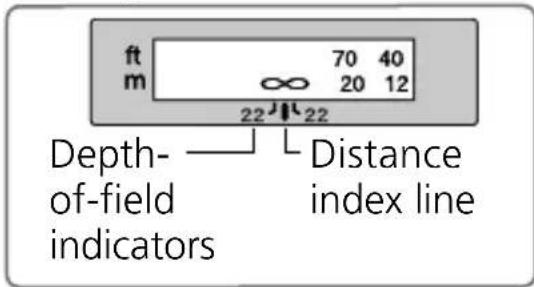

■ Depth of field

ft m ∞ 70 40 20 12 22 J 22 Depth- of-field indicators Distance index line

Approximate depth of field can be determined by checking the depth-of-field indicators.

If your camera has a depth-of field preview (stop-down) button or lever, depth of field can be previewed through the camera viewfinder.

• This lens is equipped with the Internal Focusing (IF) system. As the shooting distance decreases, the focal length also decreases.
• The distance scale does not indicate the precise distance between the subject and the camera. Values are approximate and should be used only as a general guide. When shooting distant landscapes, depth of field may influence operation and the subject may appear in focus at a position that is closer than infinity.
• For more information, see p. 206.

■ Setting the aperture

Use the camera to adjust the aperture setting.

■ Using a built-in rotating tripod collar

When using a tripod, attach it to the lens' tripod collar instead of the camera.

• When holding the camera by its handgrip and rotating the camera with the lens in its tripod collar, your hand may bump into the tripod, depending on the tripod in use.
• It's possible to detach the tripod collar by removing the tripod collar lock screw. For details on this procedure, contact your nearest Nikon service center or representative office.

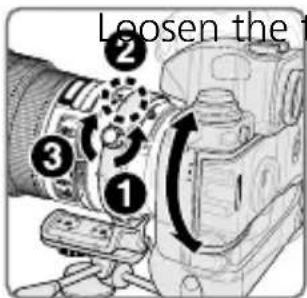

Changing the camera position

Leosen the ① ② ③

tripod collar ring fastening screw

(①). Depending on camera position (vertical or horizontal), turn the lens to an appropriate lens rotating position index (②) and tighten the screw (③).

■ The built-in flash and vignetting

To prevent vignetting, do not use the lens hood.

- For the latest information on vignetting with this lens, see the camera manual.

Cameras	Vignetting occurs at any shooting distance.
F65-Series/N65-Series*, F60-Series/N60*, F55-Series/N55-Series*, F50-Series/N50*, F-601/N6006*, F-401x/N5005*, F-401s/N4004s*, F-401/N4004*, Pronea 600i/6i*, Pronea S

* Sold exclusively in the USA

■ Using the lens hood

Lens hoods minimise stray light and protect the lens.

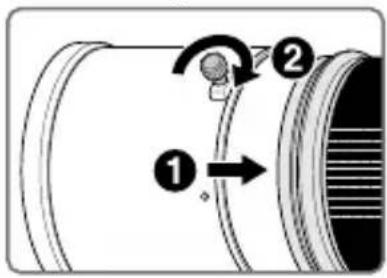

Attaching the hood

Diagram showing a mechanical or fluidic component with labeled parts and directional arrows indicating motion or flow.

• Fully tighten the lens hood screw (②).
• If the lens hood is not correctly attached, vignetting may occur.
• To store the lens hood, attach it in the reverse position.

■ Slip-in filter holder

Always use a (52mm screw-on) filter. A 52mm Screw-on NC Filter is attached to the filter holder when shipped from the factory.

Diagram of a mechanical device with a magnified inset showing a component (no text or symbols visible)

1 Press down on the slip-in filter holder knob, and turn counterclockwise until the white line on the knob is at a right angle to the axis of the lens.
2 Pull the slip-in filter holder from the lens body
3 Detach the attached filter from the filter holder.

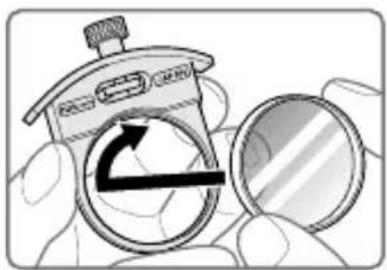

4 Screw a filter onto the side of the filter holder marked with the words "Nikon" and "JAPAN".
- The slip-in filter holder can be attached either facing lens or camera side without having any effect on your pictures.

Illustration of a hand holding a magnifying glass with a circular arrow symbol, next to a circular lens (no text or symbols present)

Slip-in Circular Polarizing Filter C-PL1L (optional)

• Blocks reflections from nonmetallic surfaces such as glass and water.
• The focus point of a Slip-in Circular Polarizing Filter C-PL1L differs from that of a 52mm screw-on filter. The distance scale is shifted from the correct position. The closest focused distance is extended slightly.
• The memory set position may change slightly when using focus preset. Attach the C-PL1L filter before using the memory set function.

■ Recommended focusing screens

Various interchangeable focusing screens are available for certain Nikon SLR cameras to suit any picture-taking situation. The ones recommended for use with this lens are:

ScreenCamera

A B

C E

EC-BEC-E

F

G1G2

G3

G4

J K

L M P U

F6

◎

◎

—

◎ —

—

—

—

—

◎ —

◎

—

◎

—

F5+DP-30

◎

◎

○

◎ ◎

—

○(+0.5)

◎

— ◎

—

◎

F5+DA-30

◎(+0.5)

◎

○

◎ ◎

—

○(+0.5)

◎

— ◎(+0.5)

—

◎

◎: Excellent focusing
O: Acceptable focusing

Slight vignetting or moiré patterns appear in the viewfinder, but not on the film.

- : Not available

( ) : Indicates degree of exposure compensation needed (center-weighted metering only). For F6 cameras, compensate by selecting "Other screen" in Custom Setting "b6: Screen comp." and setting the EV level to -2.0 to +2.0 in 0.5 EV steps. When using screens other than type B or E, "Other screen" must be selected even when the required compensation value is "0" (no compensation required). For F5 cameras, compensate using Custom Setting #18 on the camera body. See user's manual of the camera body for more details.

Blank box means not applicable. Since type M screen can be used for both macrophotography at a magnification ratio of 1:1 or above and for photomicrography, it has different applications than other screens.

Important

- For F5 cameras, only EC-B, EC-E, B, E, J, A, L focusing screens are usable in Matrix Metering.

Lens care

• Be careful not to hold the camera body when the lens is attached, as this may cause damage to the camera (lens mount). Be sure to hold both the lens and camera when carrying.
• Be careful not to allow the CPU contacts to become dirty or damaged.
• If the lens mount rubber gasket is damaged, be sure to visit the nearest Nikon-authorized service representative for repair.
• Clean lens surfaces with a blower brush. To remove dirt and smudges, use a soft, clean cotton cloth or lens tissue moistened with ethanol (alcohol) or lens cleaner. Wipe in a circular motion from the center to outer edge, taking care not to leave traces or touch other parts of the lens.
• Never use organic solvent such as thinner or benzene to clean the lens.
• When storing the lens in its case, attach both the front and rear lens caps.
• When the lens is mounted on a camera, do not pick up or hold the camera and lens by the lens hood.
• When the lens will not be used for an extended period of time, store it in a cool, dry place to prevent mold and rust. Be sure to store the lens away from direct sunlight or chemicals such as camphor or naphthalene.
• Do not get water on the lens or drop it in water as this will cause it to rust and malfunction.
• Reinforced plastic is used for certain parts of the lens. To avoid damage, never leave the lens in an excessively hot place.
• Rapid changes in temperature may cause damaging condensation inside and outside the lens. Before taking the lens from a warm to a cold environment or vice versa, place it in a bag or plastic case to slow the change in temperature.

■ Standard accessories

• Slip-on front lens cap
• Rear Lens Cap
• Lens Hood HK-30
• Semi-soft Case CL-L1

• Dedicated filter holder
- 52mm Screw-on NC Filter
- Strap LN-1

Important

- The slip-in filter holder, with a 52mm screw-on filter attached, should be inserted in the lens at all times.

■ Optional accessories

• 52mm screw-on filters (except circular polarizing filter II)
• Slip-in Circular Polarizing Filter C-PL1L
  • AF-S Teleconverters (TC-14EⅡ/TC-14 E Ⅲ/TC-17E Ⅱ/TC-20 E Ⅲ)

Specifications

Type of lens: G-type AF-S NIKKOR lens with built-in CPU and Nikon bayonet mount

Focal length: 300mm

Maximum aperture: f/2.8

Lens construction: 11 elements in 8 groups (3 ED and some Nano Crystal Coat-deposited lens elements), as well as 1 protective glass

Picture angle: 8°10' with 35mm (135) format Nikon film SLR cameras and Nikon FX format digital SLR cameras 5°20' with Nikon DX format digital SLR cameras 6°40' with IX240 system cameras

Distance information: Output to camera

Focusing: Nikon Internal Focusing (IF) system, autofocus using a Silent Wave Motor; manually via separate focus ring

Vibration reduction: Lens-shift method using voice coil motors (VCMs)

Shooting distance scale: Graduated in meters and feet from 2.2 m (8 ft) to infinity ( )

Closest focusing distance: 2.3 m (7.5 ft) from focal plane (with autofocus) 2.2 m (7.2 ft) from focal plane (with manual focus)

No. of diaphragm 9 pcs. (rounded) blades:

Diaphragm: Fully automatic

Aperture range: f/2.8 to f/22

Exposure measurement: Via full-aperture method with cameras with CPU interface system

Focusing limit switch: Provided; two ranges available: FULL ( -2.3m ), or -6m

Tripod collar: Rotatable through 360°, lens rotating position index at 90°, only tripod collar detachable

Dimensions: Approx. 124 mm dia. x 267.5 mm (extension from the camera's lens-mount flange)

Weight: Approx. 2,900 g (6.4 lbs)

Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.

⚠️ ACHTUNG

Keinesfalls zerlegen.

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys

De

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

Diagram of a camera with numbered parts and directional arrow indicating motion or movement

Diagram showing a mechanical or fluidic component with labeled parts and directional arrows indicating motion or flow.

Diagram of a camera lens system with labeled components including 'Tikker' and 'markit'

Illustration of a hand holding a magnifying glass with a circular arrow symbol, next to an open circle (no text or symbols present)

C-PL1L zirkularer Einsteck-Polfilter (optional)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Fr ① ② ③ ④ ⑤

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys for virtual measurement.

Close-up of a mechanical component with no visible text or symbols

Diagram of a camera with numbered parts and directional arrow indicating motion or movement

Diagram of a camera lens system with labeled components and a magnified inset showing the lens's internal structure.

Illustration of a hand holding a magnifying glass with an arrow indicating rotation (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical diagram of a mechanical component with numbered parts labeled 1 through 5

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Diagram of a camera with numbered parts and directional arrow indicating motion or operation

Diagram of a camera control panel with labeled buttons and a magnified inset showing a circular component with a curved arrow.

Illustration of a hand holding a magnifying glass with an arrow indicating rotation (no text or symbols present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Technical diagram of a cylindrical mechanical component with numbered parts labeled 1 through 5

① Motljusskydd (s. 84)
② Skruv för motljusskydd (s. 84)
③ Gummigrepp
④ Knapp för fokusfunktion (Fokuslås/Minnesåterkallning/AF-start) (s. 80)
⑤ Fokusring (s. 79)
⑥ Avständsskala (s. 83)
⑦ Distansindikeringslinje (s. 83)
⑧ Indikatorer för skärpedjup (s. 83)
⑨ Vibrationsreducing ON/OFF ringbrytare (s. 82)
⑩ Markering för objektivrotationsläge (s. 83)
⑪ Fästskruv till stativring (s. 81)
⑫ Knapp på instickshållare för filter (s. 84)

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys

Sv

■ Huvudfunktioner

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Diagram of a camera with numbered parts and directional arrow indicating rotation or movement

Diagram of a camera control panel with labeled parts and an inset showing a magnified view of the lens component.

Illustration of a hand holding a magnifying glass over a circular dial with an arrow symbol (no text or labels)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Technical diagram of a cylindrical mechanical component with numbered parts labeled 1 through 5

Technical diagram of a Nikon V8.12 precision camera with numbered parts and labeled function keys

Close-up of a mechanical component with no visible text or symbols

Diagram showing a guitar with musical notes and sound symbol, likely indicating audio or music device status.

Close-up of a mechanical component with a black arrow pointing to a detail (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Diagram of a camera with numbered parts indicating mechanical components and directional arrows

Close-up of a mechanical device with a magnified inset showing a circular component (no visible text or symbols)

Illustration of a hand holding a magnifying glass with a circular arrow symbol (no text or labels)

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Technical diagram of a mechanical component with numbered parts labeled 1 through 5

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys

Close-up of a mechanical component with arrows pointing to features (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Diagram of a camera with numbered parts and directional arrows indicating motion or movement

Diagram of a car air intake system with labeled components and a magnified inset showing airflow direction.

Illustration of a hand holding a magnifying glass over a circular object with an arrow symbol (no text or labels)

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Technical diagram of a mechanical component with numbered parts labeled 1 through 5

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

Diagram showing a stylized electronic device with music notes and a circular symbol, likely representing a sound or audio component.

Diagram of a cylindrical device with a black arrow pointing to a component (no text or symbols present)

Diagram of a camera with numbered parts and directional arrow indicating motion or movement

Diagram of a camera lens system with labeled parts and an inset showing a circular component with a curved arrow.

Illustration of a hand holding a magnifying glass with an arrow indicating rotation (no text or symbols present)

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Technical diagram of a mechanical component with numbered parts labeled 1 through 5

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys for virtual measurement.

■ Hlavní funkce

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical component with a black arrow pointing to a detail (no visible text or symbols)

VR NORMAL ACTIVE 00 100

NORMAL (Normální):

Diagram of a camera with numbered parts and directional arrow indicating motion or movement

Diagram showing a mechanical or fluidic component with labeled parts and directional arrows indicating motion or flow.

Diagram of a washing machine control panel with labeled buttons and a magnified inset showing the brush tip.

Illustration of a hand holding a magnifying glass over a circular dial with an arrow symbol (no text or labels)

Symbol of a trash bin crossed with two crossed arms, no text or labels present

Technical diagram of a mechanical component with numbered parts labeled 1 through 5

① Slnečná clona objektívu (str. 154)
② Skrutka slnečnej clony objektívu (str. 154)
③ Gumené držadlo
④ Funkčné tlačidlo zaostrovania (Blokovanie zaostrovania [AF-L]/Vyvolanie zaostrenej vzdialenosti z pamäti [Memory recall]/Aktivácia autofokusu [AF-ON]) (str. 150)
⑤ Zaostrovací krúžok (str. 149)
⑥ Stupnica vzdialeností (str. 153)
⑦ Značka pre odčítanie zaostrenej vzdialenosti (str. 153)
⑧ Stupnica híbky ostrosti (str. 153)
⑨ Prstencový prepínač stabilizácie obrazu (str. 152)
⑩ Značka pre odčítanie natočenia objektívu
⑪ Upevňovacia skrutka krúžka statívovej objímky (str. 153)
⑫ Skrutka zasúvacieho držiaka filtra (str. 154)

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys for display and control.

Sk

■ Hlavné funkcie

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Diagram of a camera with numbered parts and directional arrow indicating motion or movement

Diagram of a camera lens system with labeled components including 'Pakar' and 'Meats', showing a circular inset highlighting the component.

Illustration of a hand holding a magnifying glass with a circular arrow symbol (no text or labels)

Technical diagram of a Nikon V8 camera with numbered parts and labeled function buttons

Sc

■ 主要特色

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Diagram of a camera with numbered parts and directional arrows indicating motion or movement

Diagram of a camera lens system with labeled components and an inset showing a curved lens component.

Illustration of a magnifying glass inspecting a circular object with an arrow, held by hands (no text or symbols)

C-PL1L插入式圆形偏振滤镜（另购）

照相机\对焦屏

A B C E

EC-B EC-E

F

G1 G2

G3 G4 J K L M P U

F6

◎

◎

—

◎

—

—

—

—

—

◎

—

◎

—

◎

F5+DP-30

◎

◎

○

◎

◎

—

( +0.5)

◎

—

◎

—

—

F5+DA-30

(+0.5)

◎

○

◎

◎

—

( +0.5)

◎

—

( +0.5)

—

◎

◎：对焦效果良好
○：对焦效果一般

Technical diagram of a cylindrical mechanical component with numbered parts labeled 1 through 5.

① 鏡頭遮光罩(P. 188)
② 鏡頭遮光罩螺絲(P. 188)
③ 橡膠握把
④ 對焦操作按鍵（對焦鎖定/記憶回復/AF啟用）(P.184)
⑤ 對焦環(P. 183)
⑥ 距離尺(P. 187)
⑦ 距離標記線(P. 187)
⑧ 景深指示器(P. 187)
⑨ 減震 ON/OFF 環開關(P. 186)
⑩ 鏡頭旋轉位置指標(P. 187)
⑪ 三腳架軛具環鎖定螺絲(P.187)
⑫ 插入式濾鏡架鍵(P. 188)
⑬ 插入式濾鏡架(P. 188)
⑭ 記憶按鍵(P. 184)
⑮ 接環標誌
⑯ 鏡頭接環橡膠墊圈(P. 190)
⑰ CPU接點(P. 190)
⑱ 內置旋轉三腳架軛具(P. 187)
⑲ 背帶孔
⑳ 對焦模式開關(P. 183)
②1 對焦限制開關(P. 183)
② 减震模式開關(P. 186)
②3 對焦操作選擇開關（AF-L/MEMORY RECALL/AF-ON）(P.184)
⑳ 聲音監控開關(P. 184)

( )：參考頁

Technical diagram of a Nikon V8 camera with numbered parts and labeled function keys for virtual measurement.

■ 主要特色

Close-up of a mechanical component with arrows pointing to features (no visible text or symbols)

Close-up of a mechanical component with a black arrow pointing to a detail (no visible text or symbols)

VR NORMAL ACTIVE 00 100

Technical diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Diagram of a camera control panel with labeled buttons and a magnified inset showing a device's left-side adjustment.

Illustration of a hand holding a magnifying glass with an arrow indicating rotation (no text or symbols present)

Technical diagram of a cylindrical mechanical component with numbered parts labeled 1 through 5.

Technical diagram of a Nikon AM/VR camera with numbered parts and labeled function keys

Kr

■주요 기능

Close-up of a mechanical component with arrows indicating features (no visible text or symbols)

Diagram of a mechanical or electrical component with Chinese characters and an arrow pointing to a specific feature.

Diagram of a camera with numbered parts and directional arrows indicating motion or movement

Diagram showing a mechanical or fluidic component with labeled parts and directional arrows indicating motion or flow.

Diagram of a camera with labeled parts and an inset showing a circular component with a curved arrow pointing to a device.

Illustration of a hand holding a magnifying glass with an arrow indicating rotation (no text or symbols present)

스크린카메라

A B C E

EC-BEC-E

F

G1G2

G3 G4 J K L M P U

F6

◎

◎

—

◎

—

—

—

—

◎

—

◎

F5+DP-30

◎◎

○

◎◎

—

(+0.5)

◎

—

◎

F5+ DA-30

◎(+0.5)

◎

○◎◎

—

(+0.5)

◎

—

◎(+0.5)

◎:매우 적합한 포커싱

○:적합한 포커싱

- With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also

decreases.

■ Depth of field (ft)

Shooting distance		Depth of field					Reproduction ratio
	f/2.8 f/4	f/5.6		f/8	f/11 f/16	f/22
8	7 ft 11-12/16 in.8 ft 4/16 in.	7 ft 11-12/16 in.8 ft 4/16 in.	7 ft 11-10/16 in.8 ft 6/16 in.	7 ft 11-6/16 in.8 ft 10/16 in.	7 ft 11-3/16 in.8 ft 13/16 in.	7 ft 10-15/16 in.8 ft 1-3/16 in.	7 ft 10-7/16 in.8 ft 1-11/16 in.
9	8 ft 11-12/16 in.9 ft 4/16 in.	8 ft 11-10/16 in.9 ft 6/16 in.	8 ft 11-8/16 in.9 ft 8/16 in.	8 ft 11-4/16 in.9 ft 12/16 in.	8 ft 10-15/16 in.9 ft 1-1/16 in.	8 ft 10-9/16 in.9 ft 1-7/16 in.	8 ft 9-15/16 in.9 ft 2-3/16 in.
10	9 ft 11-10/16 in.10 ft 6/16 in.	9 ft 11-8/16 in.10 ft 8/16 in.	9 ft 11-6/16 in.10 ft 10/16 in.	9 ft 11-1/16 in.10 ft 15/16 in.	9 ft 10-11/16 in.10 ft 1-5/16 in.	9 ft 10-3/16 in.10 ft 1-15/16 in.	9 ft 9-8/16 in.10 ft 2-10/16 in.
12	11 ft 11-8/16 in.12 ft 8/16 in.	11 ft 11-4/16 in.12 ft 12/16 in.	11 ft 11-1/16 in.12 ft 15/16 in.	11 ft 10-11/16 in.12 ft 1-7/16 in.	11 ft 10-1/16 in.12 ft 2-1/16 in.	11 ft 9-6/16 in.12 ft 2-14/16 in.	11 ft 8-3/16 in.12 ft 4-1/16 in.
15	14 ft 11-3/16 in.15 ft 13/16 in.	14 ft 10-15/16 in.15 ft 1-1/16 in.	14 ft 10-7/16 in.15 ft 1-9/16 in.	14 ft 9-13/16 in.15 ft 2-4/16 in.	14 ft 8-14/16 in.15 ft 3-4/16 in.	14 ft 7-11/16 in.15 ft 4-9/16 in.	14 ft 6 in.15 ft 6-10/16 in.
20	19 ft 10-9/16 in.20 ft 1-7/16 in.	19 ft 9-15/16 in.20 ft 2-1/16 in.	19 ft 9-2/16 in.20 ft 2-14/16 in.	19 ft 8-1/16 in.20 ft 4-3/16 in.	19 ft 6-6/16 in.20 ft 5-14/16 in.	19 ft 4-1/16 in.20 ft 8-8/16 in.	19 ft 1-1/16 in.21 ft 4/16 in.

	f/2.8 f/4	f/5.6		f/8	f/11 f/16	f/22
25	24 ft 9-10/16 in. —25 ft 2-6/16 in.	24 ft 8-12/16 in. —25 ft 3-4/16 in.	24 ft 7-7/16 in. —25 ft 4-11/16 in.	24 ft 5-10/16 in. —25 ft 6-10/16 in.	24 ft 3-2/16 in. —25 ft 9-8/16 in.	23 ft 11-8/16 in. —26 ft 1-11/16 in.	23 ft 6-12/16 in. —26 ft 7-11/16 in.	1/24.5
40	39 ft 5-14/16 in. —40 ft 6-6/16 in.	39 ft 3-10/16 in. —40 ft 8-12/16 in.	39 ft 4/16 in. —41 ft 8/16 in.	38 ft 7-7/16 in. —41 ft 5-12/16 in.	38 ft 15/16 in. —42 ft 1-9/16 in.	37 ft 4-1/16 in. —43 ft 15/16 in.	36 ft 4-3/16 in. —44 ft 6-2/16 in.	1/40.1
70	68 ft 5-1/16 in. —71 ft 7-15/16 in.	67 ft 10-1/16 in. —72 ft 3-10/16 in.	66 ft 11-14/16 in. —73 ft 3-10/16 in.	65 ft 9-13/16 in. —74 ft 9-2/16 in.	64 ft 2-12/16 in. —76 ft 11-4/16 in.	62 ft 1-7/16 in. —80 ft 2-14/16 in.	59 ft 4-5/16 in. —85 ft 5-4/16 in.	1/71.2
∞	2952 ft 9-13/16 in. —∞	2147 ft —∞	1518 ft 8-6/16 in. —∞	1074 ft 3-8/16 in. —∞	760 ft 1-11/16 in. —∞	537 ft 11-8/16 in. —∞	380 ft 10-3/16 in. —∞	1/∞

• With the Nikon Internal Focusing (IF) system, as the shooting distance decreases, the focal length also decreases.

No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.
