IAN 276687 - Binoculars AURIOL - Free user manual and instructions

Product type	Binoculars
Brand	Auriol
Model	IAN 276687
Magnification	10x to 30x (zoom)
Objective lens diameter	60 mm
Focusing	Central wheel
Diopter adjustment	Yes, on right eyepiece
Eyecups	Foldable for glasses wearers
Tripod thread	Yes, at center
Strap	Included, adjustable
Carrying case	Shoulder bag included
Delivery contents	Binoculars, shoulder bag, lanyard, cloth, instruction manual
Power	None (works without batteries)
Use	Outdoor observation, non-professional
Storage temperature	Max. 60°C
Cleaning	Soft cloth, pure alcohol for dust residues
Safety	Do not look at the sun, keep out of reach of children
Warranty	5 years, covers material and manufacturing defects
Spare parts / repairability	Not user-serviceable, repair by professional
Recycling	Packaging recyclable, product to be recycled according to local regulations

Frequently Asked Questions - IAN 276687 AURIOL

How to adjust focus on Auriol IAN 276687 binoculars?

Close your right eye and turn the central focus wheel until the image is sharp for your left eye. Then open your right eye and close your left eye, then adjust the diopter ring on the right eyepiece to fine-tune sharpness. Remember this setting for subsequent observations.

Can I use these binoculars with glasses?

Yes, the rubber eyecups are foldable. Fold them down to bring your eyes closer to the lenses and enjoy a wider field of view, even with glasses.

How to adjust zoom on the binoculars?

Turn the zoom lever located between the two eyepieces. The magnification varies from 10x to 30x and is displayed on the scale visible on the side.

Can I mount these binoculars on a tripod?

Yes, they have a tripod thread at the center. Use a tripod adapter (not included) that you screw into the thread, then attach the tripod. Remove the adapter after use by unscrewing in the opposite direction.

How to clean the lenses properly?

Use the provided soft cloth. For stubborn dust, lightly moisten the cloth with pure alcohol (spirit) and clean without pressing hard. Never disassemble the binoculars for cleaning.

What safety precautions should be followed?

Never look directly at the sun through binoculars, risk of retinal damage. Keep them out of reach of children. Protect them from moisture and temperatures above 60°C. Store them in the provided case.

How to attach the neck strap?

Thread the ends of the strap through the loops on the binocular body, then through the guides and finally through the tightening loops. Pull firmly on both sides to lock the desired length.

What to do if the image is double?

Double image indicates that the interpupillary distance is not adjusted to your face. Hold the binoculars with both hands and bend the central hinge until the two circles merge into a single circle of vision.

What is the warranty for Auriol IAN 276687 binoculars?

The warranty is 5 years from the date of purchase, covering material and manufacturing defects. Normal wear (e.g., batteries not included) and damage due to improper use are excluded. Keep the receipt as proof of purchase.

Can I use these binoculars in the rain?

No, they are not water-resistant. Heavy rain can damage them. Use them in a sheltered place and store them immediately after use if the weather is humid.

USER MANUAL IAN 276687 AURIOL

Operation and Safety Notes

NL BE

ZOOM-VERREKIJKER

GB/IEOperation and Safety Notes Page 8

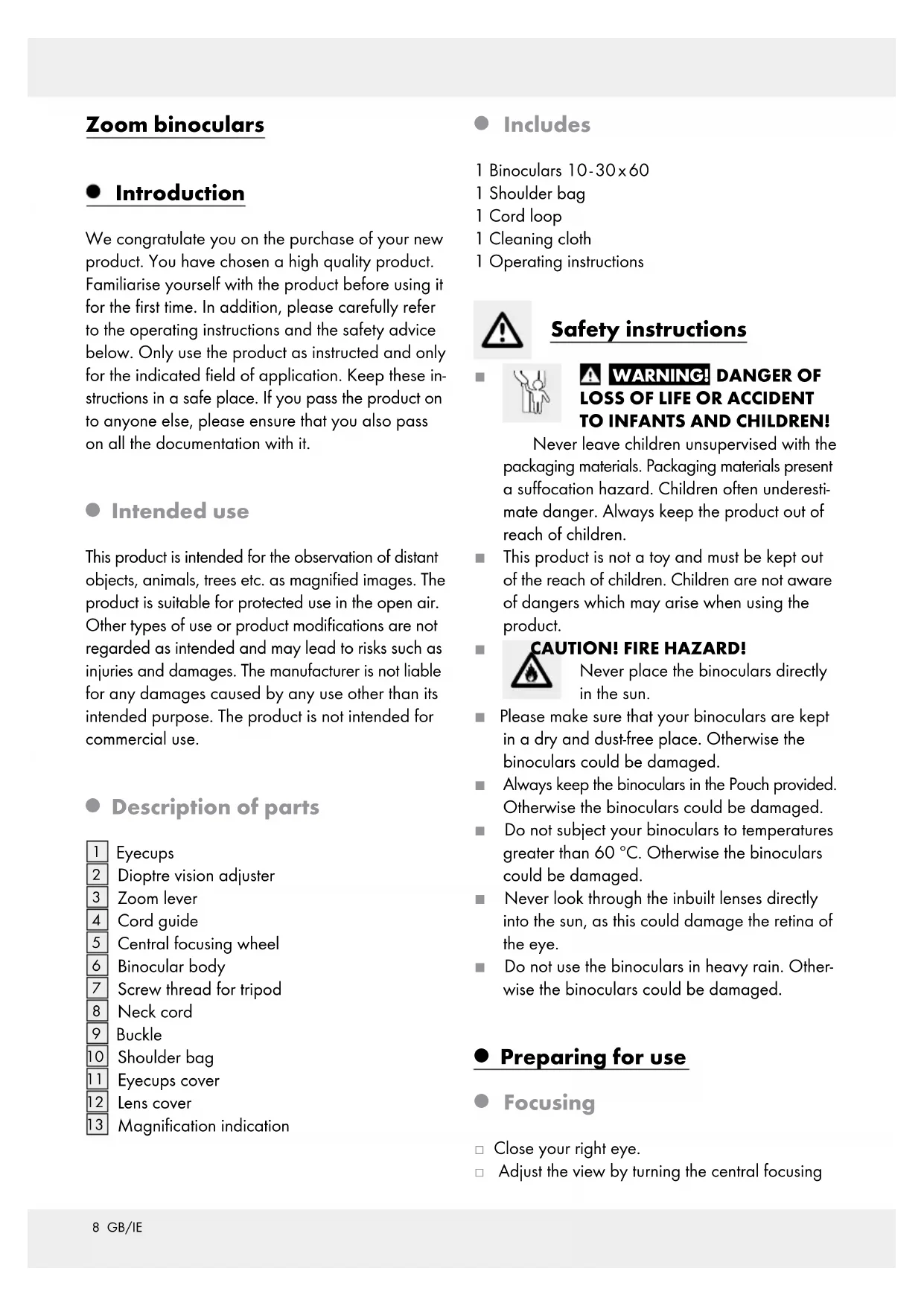

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is intended for the observation of distant objects, animals, trees etc. as magnified images. The product is suitable for protected use in the open air. Other types of use or product modifications are not regarded as intended and may lead to risks such as injuries and damages. The manufacturer is not liable for any damages caused by any use other than its intended purpose. The product is not intended for commercial use.

Description of parts

Eyecups
Dioptre vision adjuster
Zoom lever
Cord guide
Central focusing wheel
Binocular body
Screw thread for tripod
Neck cord
Buckle
Shoulder bag
Eyecups cover
Lens cover
Magnification indication

- Includes

1 Binoculars 10-30x60
1 Shoulder bag
1 Cord loop
1 Cleaning cloth
1 Operating instructions

Safety instructions

WARNING! DANGER OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN

Never leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep the product out of reach of children.

This product is not a toy and must be kept out of the reach of children. Children are not aware of dangers which may arise when using the product.

CAUTION! FIRE HAZARD!

Never place the binoculars directly in the sun.

Please make sure that your binoculars are kept in a dry and dust-free place. Otherwise the binoculars could be damaged.
Always keep the binoculars in the Pouch provided. Otherwise the binoculars could be damaged.
Do not subject your binoculars to temperatures greater than 60^ . Otherwise the binoculars could be damaged.
Never look through the inbuilt lenses directly into the sun, as this could damage the retina of the eye.
Do not use the binoculars in heavy rain. Otherwise the binoculars could be damaged.

Preparing for use

- Focusing

Close your right eye.
Adjust the view by turning the central focusing

wheel 5 so that the view for the left eye is sharp and clear.

- Dioptre vision adjuster

Open your right eye and close your left eye.
Turn the dioptre vision adjuster 2 until the object is sharp and clear. Retain this position for later use.

- Adjustment for eye positions

Hold your binoculars with both hands and move the binocular body (see Fig. B) until the two circles are superimposed to form one full circle (see Fig. C).

Adjusting the zoom

Turn the zoom lever 3 to adjust the zoom factor.
The zoomfactor (10 - 30) is indicated by the magnification indication [13].

- Plasticeyecups (for spectacle wearers)

• Fold back the eyepiece cups 1. This enlarges the field of vision and makes using the binoculars easier for spectacle wearers.

Adjusting the neck cord

Thread the ends of the neck cord through the buckles 9.
Thread the ends of the neck cord through the cord guides (see Fig. D).
Then thread the ends of the neck cord through the buckles as shown in Fig. E.
Pull the neck cord 8 tight on both sides of the buckle 9. This fixes the neck cord 8 on the buckles 9.

Use with a tripod

Note:The tripod and the tripod adapter are not included with the product. They can be purchased separately from your specialist dealer.

Observe the operating instructions supplied with your tripod during its assembly and use.
- Screw the threaded connector of the tripod adapter clockwise into the threaded tripod mount socket 7 on the binoculars. Then connect the tripod to the attached tripod adapter.
□ After use, separate the tripod from the tripod adapter. Then unscrew the threaded connector of the tripod adapter anticlockwise out of the threaded tripod mount socket 7 on the binoculars.

- Cleaning and care

• Never take your binoculars apart for cleaning.
  Use the cleaning cloth provided or a soft cloth without threads to clean the binoculars.
  Do not press hard when cleaning the delicate lens surface.
  If the lenses are still dirty, dampen the cloth with a little clear alcohol (methylated spirit).

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights

are not limited in any way by our warranty detailed below.

The warranty for this product is 5 years from the date of purchase. Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
