USER MANUAL MY 7119 SEVERIN

DE Multicyclone Bodenstaubsauger Gebrauchsanleitung 3
GB Multicyclone vacuum cleaner Instruction manual 12
FR Aspirateur traineau multicyclonique Mode d'emploi 21
NL Multicycloonstofzuiger Bedieningshandleiding 30
ES Aspirador multiciclón Manual de instrucciones 39
IT Aspirapolvero multiciclonico Istruzioni per l'uso 48
SE Multicyclone-golvdammsugare Bruksanvising 57
PL Odkuracz Multicyclone Instrukcja obslugi 66

Technische Daten

We wish you great joy with your high-quality SEVERIN product and we thank you for placing your trust in us.

About this instruction manual

This instruction manual includes important tips for your safety and the use of the appliance. If the instruction manual is not heeded, there can be injuries to people of damage to the appliance. Keep the instruction manual safe. If you give or sell the appliance to somebody else, give this person the instruction manual.

Read the instruction manual completely before using the appliance for the first time.

Table of Contents

Thank you very much 12

Safety Instructions 13

Assembling 15

Vacuum cleaning 16

Maintaining and cleaning 17

Troubleshooting by yourself 18

Spare parts, warranty and disposal 20

Quick Start Guide with pictures included

This instruction manual comes with a Quick Start Guide with pictures, which provides you with additional tips for the use and care of the appliance. Both sets of instructions are available for download at www.severin.com.

Safety Instructions

Connecting the appliance safely

Since the appliance is operated with electrical current, there is a danger of electric shock. Therefore:

• Only connect and start up the vacuum cleaner according to the details on the name plate (underside of the appliance).
• Check the appliance and power cable for possible damage before use. Never operate a defective appliance or an appliance with a defective power cable.
• Never try to repair the appliance or its power cable yourself. To prevent hazards, repairs to the appliance and the power cable may only be made by our customer service. Give a defective appliance to a dealer or make contact with SEVERIN customer service.
• Do not immerse appliance in water or other liquids or treat it with liquids. Do not operate the appliance outdoors or in rooms with high humidity. Do not handle the plug with wet hands.
• Make sure that the power cable is not kinked, crushed or run over and that it does not come into contact with sources of heat, humidity and sharp edges. Make sure that the power cable does not become a stumbling hazard.
• Do not pull or transport the appliance using the power cable. When unplugging the plug from the outlet, always pull directly on the plug.
• If possible, do not use an extension cable. If this is unavoidable, only use GS-tested, simple extension cables (no multi-outlet adapters) that are designed for the appliance's power consumption.
• Before cleaning or maintaining the appliance, as well as before changing accessories, switch off the appliance and unplug the plug from the outlet.

Safety of particular groups of people

• This appliance may only be used by children over the age of 8 and by persons with reduced physical, sensory or mental capacities or a lack of experience and/or knowledge when they are supervised or if they have been instructed about the safe use of the appliance and have understood the risks resulting from the use of the appliance.
• Children may not play with the appliance or stand or sit on the appliance. Cleaning and user maintenance may not be performed by children without supervision.
• Keep children younger than 8 away from the appliance and power cable.
• Keep packaging materials out of the reach of children and dispose of them. Otherwise they present a suffocation risk.

Intended use

The appliance may only be used in households. Only vacuum dry, normally-soiled floors or, depending on the accessories, also furniture and upholstery. Any other use is improper and is forbidden.

In order to prevent injuries, fires and damage, the appliance may not be used to vacuum:

• People, animals and plants. Always keep nozzles and vacuum openings away from all body parts, hair and clothing. Do not vacuum near your head.
• Glowing or burning particles (such as ash, coals, charcoal, cigarettes, matches).
• Explosively or flammable materials or toner.
  Water and other liquids, e.g. damp carpet cleaners.
• Pointy objects such as glass splinters, needles or construction waste.

Assembling

• Only assemble appliance parts when the plug has been disconnected from the mains socket.
• Fit the hose and the telescopic tube illustrated quick start guide (page 1).
• Only use undamaged nozzles. Damaged nozzles can scratch surfaces.
• Select the appropriate nozzle for the surface being vacuum-cleaned:

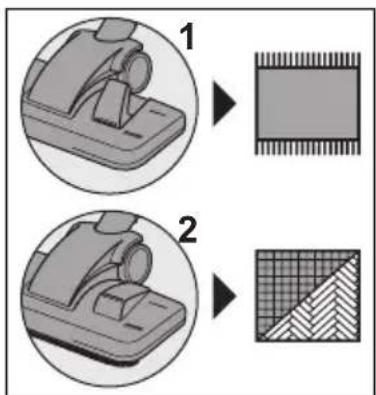

The switchable floor nozzle has 2 settings:

• Position 1 is excellently suited to cleaning dirt and fibres from carpets, rugs etc. and for deep cleaning of these surfaces.
• Position 2 is ideal for all kinds of smooth hard floors.

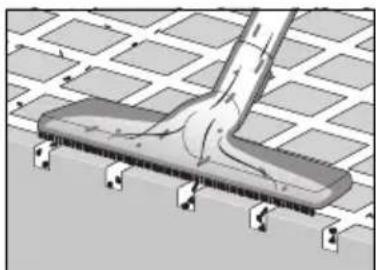

The hard floor nozzle is excellently suited for cleaning hard floors with crevices and joints. In order to clean crevices and joints most effectively, the nozzle must rest completely on the surface. To clean coarse soiling, it may be helpfully to angle the nozzle slightly.

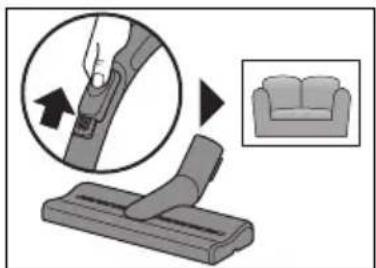

The upholstery nozzle is excellently suited for upholstered furniture, upholstery and mattresses. Caution: to prevent the upholstery nozzle from becoming stuck to the surface, we recommend that you open the bypass vent on the handle a little (more if required).

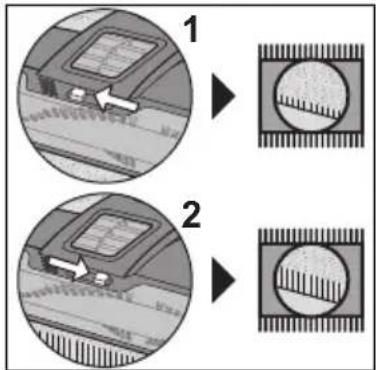

The turbo brush is ideal for cleaning animal hairs and straightening the carpet pile. Caution: only clean non-delicate surfaces with the turbo nozzle. Otherwise there is a risk of damage. The speed of the rotating brush roller can be adjusted with the slider:

• Position 1 for carpets with a low pile
• Position 2 for carpets with a high pile

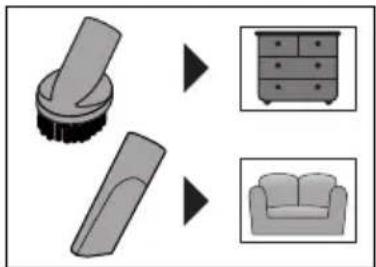

The furniture brush is excellently suited for gently cleaning furniture, skirting boards and similar items.

The crevice nozzle is perfectly suited for cracks in sofas and other spaces which are hard to reach.

Vacuum cleaning

• Especially when vacuuming stairs, make sure that you are always above the appliance. Otherwise the appliance may fall down and cause injuries.
• When using of a brush with rotating bristles, keep it away from people, animals, plants, cables and lines at all times.
• Only use the appliance if the dust container and the filters have been correctly inserted.
• Follow the cleaning and maintenance instructions of the floor covering, carpet or furniture manufacturer!
• When pulling in the power cable, hold the plug in your hand and slide it in the direction in which the cable is winding. Otherwise the power cable can whip around, injure persons nearby, become a stumbling hazard or take objects along with it.

If curtains or other objects are accidentally suctioned, quickly open the slide vent to release the objects again.

In addition, always make sure that the appropriate suction power for the surface has been set page 16, "Adjusting the suction power".

For additional tips, see also illustrated quick start guide (page 2).

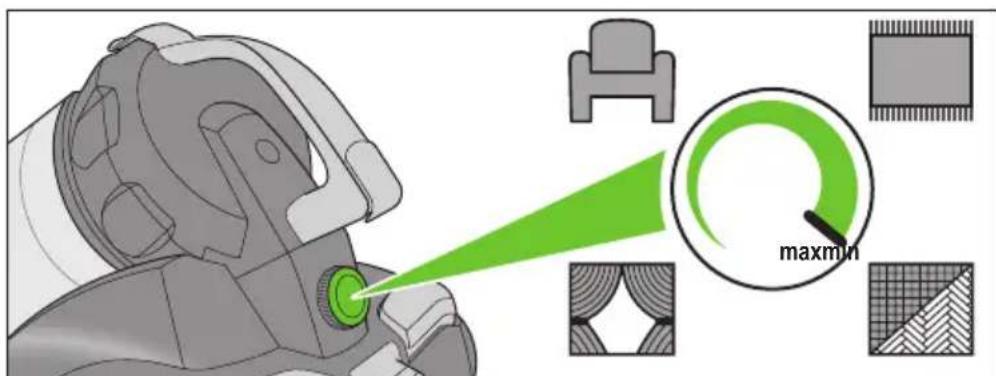

Adjusting the suction power

The power controller (see above) can be set infinitely variably. You should adjust the power regulator position with respect to the floor to be cleaned:

Maximum power: for hard floors with crevices, heavily soiled carpets
High power: for carpets, rugs and similar
Moderate power: for upholstered furniture, upholstery and mattresses
- Minimum power: for curtains, drapes and the like

Emptying the dust container

• Before changing the dust container, switch off the appliance and disconnect the plug from the outlet.

• Empty the dust container at the latest:

• before longer storage or

• before shipping.

The contents of the dust container can be disposed of in normal household garbage unless it contains dirt that is forbidden in the household garbage.

To empty the dust container, see also Illustrated Quick Start Guide (page 3).

Cleaning or replacing the filter

• Before changing the filter or filter cleaning, switch off the appliance and disconnect the plug from the outlet.
• The motor filter can be washed, however it cannot be washed in the dishwasher or washing machine. Rinse the motor filter out thoroughly under running water (Illustrated Quick Start Guide, page 3). Let the motor filter dry for approx. 24 hours at room temperature after cleaning. Only insert the motor filter when it is completely dry.
• First knock out the exhaust filter for cleaning, then brush with a soft brush (▶illustrated Quick Start Guide, page 4).

For the filter cleaning, see also illustrated Quick Start Guide.

Cleaning

• Before cleaning, switch off the appliance and disconnect the plug from the outlet.
• The housing and power cable may not be handled with liquids or immersed in liquids for reasons of electrical safety. Rub housing with a slightly damp cloth and then dry.
• For cleaning, do not use any sharp or scouring cleansers or hard brushes.

Troubleshooting by yourself

So that as few problems as possible arise, it is important to empty the dust container regularly and take this opportunity to check the filters and clean them if they are dirty.

Before contacting our customer service, check with the help of below table whether you can correct the problem yourself.

Problem Solution

The appliance stops suddenly

The integrated overheating protection has tripped (possibly due to a full dust bag or the like)

In this case, clear the problem as follows:

1. Switch off the appliance.
   2.Pull plug from main socket.
2. Remove the cause of overheating (either by emptying the dust container page 17, "Emptying the dust container", cleaning the filters page 17, "Cleaning or replacing the filter" or disassembling telescopic tube and suction hose to remove blockages that might have built up).
3. Be sure to also check hose, nozzles and telescopic tube when searching for the cause of overheating.
4. Close the cover and re-fit all accessory.
5. Wait another 45 minutes.

After the appliance has cooled off, you may switch it on again.

Troubleshooting by yourself

Problem Solution
The appliance hardly picks up any dust and/or the suction power drops	Empty and clean the dust container ▷ page 17, "Emptying the dust container".It is recommended to service the filters at this occasion as well ▷page 17, "Cleaning or replacing the filter".
	Attached nozzle is unsuitable for the floor to be cleaned.Change the nozzle, ▷ illustrated Quick Start Guide, page 1.
	With the switchable floor nozzle attached, the switch is not in a position appropriate to the type of floor.Adjust the position of the floor nozzle switch, ▷ illustrated Quick Start Guide, page 1.
The dust container looses itself while carrying	You possibly triggered the dust container release accidentally while carrying the appliance.Make sure not to push the dust container release while carrying.
Odours spread or even dust escapes from the appliance	Parts that were removed for servicing or changing of accessories have possibly not been re-installed or closed correctly.Check all parts for proper installation, ▷ illustrated Quick Start Guide.

If this does not help, contact our customer service (▶ page 75).

The contact data is in the appendix to this instruction manual or on our home page.

Spare parts, warranty and disposal

Ordering spare parts and accessories

The following spare parts and accessories can be ordered at www.severin.com by using the "Service / Spare Parts Shop" menu or by contacting our hotline (▶page 75):

1560048:

1 exhaust filter +

1 motor filter

PB7217:

1 parquet brush

TB7216:

1 turbo brush

ZB7214:

1 long, flexible crevice nozzle

Warranty

The legal warranty rights with respect to the seller and any seller warranties are unaffected by the following warranty conditions.

If repair should be necessary, contact our customer service via telephone or mail. The contact data is in the appendix to this instruction manual. In case of warranty claim, you may also contact the dealer directly. In addition, SEVERIN grants a manufacturer's warranty of two years from the purchase date. In this period, we will eliminate all defects due to material or manufacturing errors and which compromise the function. Other claims are excluded.

Excepted from the warranty are: Damage that is due to non-observation of the instruction manual, improper handling or normal wear; also easily-breakable parts such as glass, plastic or light bulbs. Intervention of people not authorised by SEVERIN voids the warranty.

Disposal

Appliances that are marked with this symbol must be disposed of separately from household garbage. These appliances contain valuable raw materials that can be recycled. Proper disposal protects the environment and the health of your fellow men. Your community government or your dealer can provide information about proper disposal.
