USER MANUAL RS 840 ECG

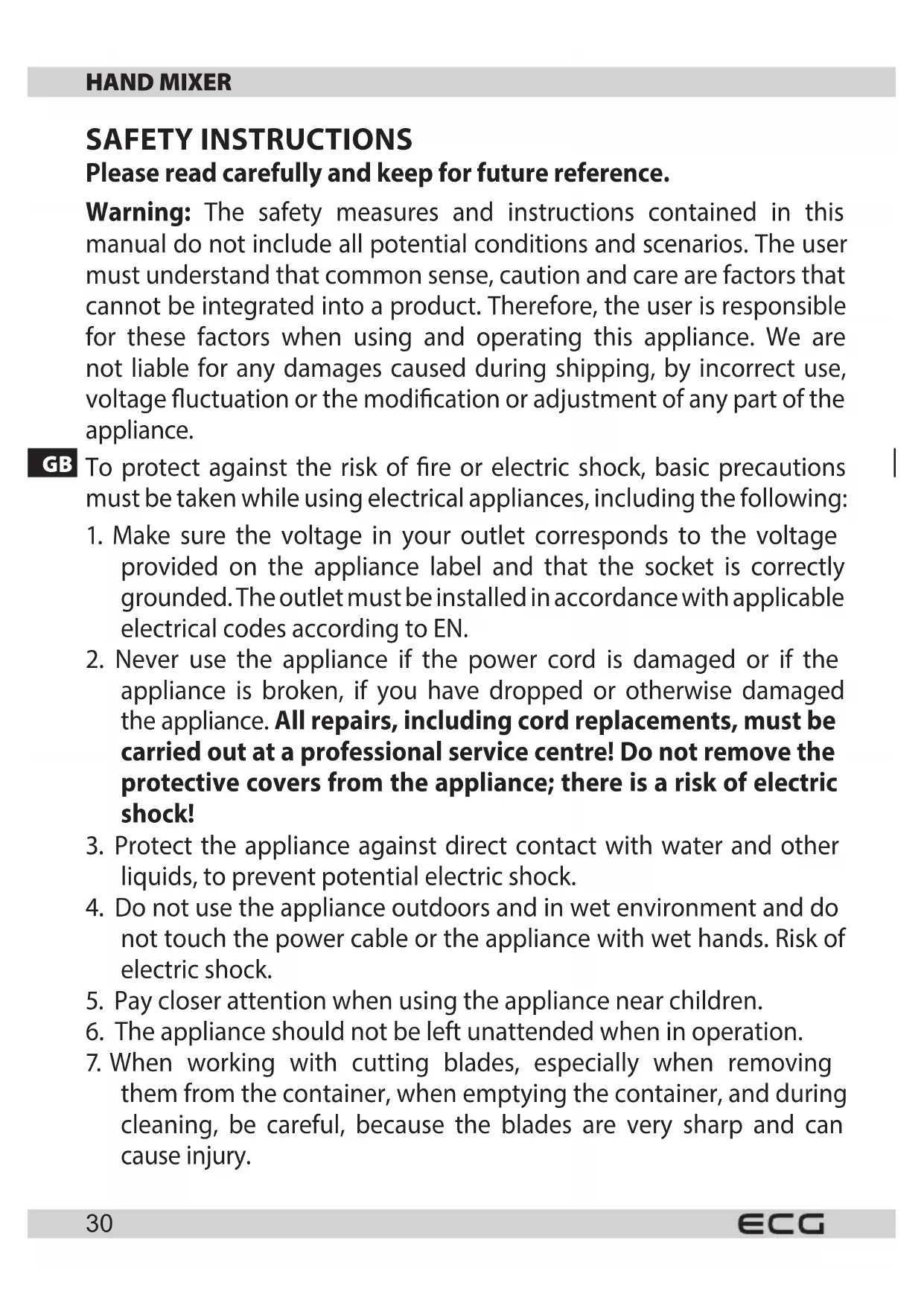

SAFETY INSTRUCTIONS Please read carefully and keep for future reference.

Warning: The safety measures and instructions contained in this

manual do not include all potential conditions and scenarios. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, the user is responsible for these factors when using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage uctuation or the modication or adjustment of any part of the appliance. To protect against the risk of re or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage

provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.

2. Never use the appliance if the power cord is damaged or if the

appliance is broken, if you have dropped or otherwise damaged the appliance. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!

3. Protect the appliance against direct contact with water and other

liquids, to prevent potential electric shock.

4. Do not use the appliance outdoors and in wet environment and do

not touch the power cable or the appliance with wet hands. Risk of electric shock.

5. Pay closer attention when using the appliance near children.

6. The appliance should not be left unattended when in operation.

7. When working with cutting blades, especially when removing

them from the container, when emptying the container, and during cleaning, be careful, because the blades are very sharp and can cause injury.GB

8. Do not use the device for any other purpose than the stated one. Use

for processing food only. Do not use it to stir hot foods and liquids! Always add liquid to the blended ingredients.

9. Do not leave the appliance with the power cable plugged in

unattended. Prior to maintenance, installation, assembly and disassembly of parts or cleaning, unplug the power cord from the power outlet. Do not remove the power cord from the outlet by yanking the cord. Unplug the power cord from the outlet by grasping the plug.

10. Do not use the appliance close to a source of heat, e. g. oven. Protect

it against direct sunlight.

11. Never cover the appliance during operation and do not use it close

to ammable materials, e. g. curtains, etc.

12. Do not insert large pieces of food into the appliance. Never put in

materials like paper, metal, cardboard, plastics, etc.

13. Before starting the device, set the bowl in its proper position, attach

the blade to the motor and then plug the cord into the outlet. This reduces the risk of injury.

14. Do not touch the moving parts.

15. Hair, ngers or parts of clothing shall be kept far enough from the

moving parts of the appliance. Do not place any tools or hands into the bowl while blending, risk of injury or damaging the appliance. Spatula may be used only when the appliance is o.

16. Always use the appliance on an even and stable surface.

17. Do not allow the power cord to touch hot surfaces or run the cord

18. Use accessories only advised by the manufacturer, otherwise you

risk losing the warranty.

19. Prior to replacing accessories and accessible parts, or before

approaching the moving parts during operation, switch o the device and disconnect it from the power supply.

20. Always unplug from outlet immediately after use.

21. Use this appliance only in accordance with the instructions in this

manual. Incorrect use may result in injury. This appliance is designedGB

for domestic use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.

22. This appliance should not be used by children. Keep the appliance

and its power supply out of reach of children. The appliance can be used by the physically and mentally impaired or by individuals with insucient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children must not play with the appliance. Do not immerse in water! DANGER for children: Children must not play with the packaging material. Do not let children play with the plastic bags. Risk of suocation. BEFORE YOU PUT THE MIXER INTO OPERATION Before using a hand mixer, make sure the power supply plug is pulled out of the socket and the speed selector is set to 0.

1. Select the desired accessory – it depends on the desired type of mixing:

Beaters are designed for processing sponge cake batter, egg whites, whipped cream, mayonnaise and puree. They are also very suitable for the mixing/stirring sauces and custard powder. Kneading hooks are used for preparing yeast dough or pu pastry dough. Use the hook to prepare easily and quickly potato dough for dumplings and potato pancakes as well. A) Hook with washer located higher above the kneading spiral insert into the larger hole and hook with the washer positioned closer to the kneading hooks into the smaller hole. B) The beater with washer insert into the bigger hole, without washer into the smaller hole. NOTE: Make sure that the whisks or hooks are fully inserted into the correct openings, otherwise the mixing results could be aected. NOTE: You can always only use a single accessory at a time.

INSTRUCTIONS FOR SETTING THE SPEED

Speed Functions Application 1 Mixing Mixing of liquids, mixing of dry ingredients, milk whites and cream. 2 Stirring Preparing sauces, puddings, muns or pastry. 3 Mixing Preparation of batter and mixes 4 Churning Churning of butter with sugar. Biscuit and cake dough, and sugar icing. 5 Whipping Whipping of lighter and puy mixes, creams, eggs (whites, yolks, whole eggs) and mashed potatoes.

OPERATION OF THE HAND MIXER

1. Set the speed selection to the whisk release position and insert the appropriate accessories. Connect the

power plug into the power socket.

2. Switch the speed selection to the required speed and start to mix.GB

The mixer will run at the highest speed, if you press the TURBO button. Tip: First insert the whisks or the hooks into the foods and then start mixing and gradually increase the speed so as to avoid splashing out the bowl contents. When adding dry ingredients use the slowest speed to avoid the “snow storm” eect.

3. Operation at maximum should not exceed 3 minutes and between two such consecutive cycles must be

a break of at least 10 minutes. When kneading yeast dough set the speed selection at 1 or 2, and then set it to maximum – in this way you will achieve better results. As soon as the mix is complete, turn the speed selection to the whisk release position and pull out the power plug from the power socket.

4. Use a spatula to wipe o the remaining dough or mix on the whisks or hooks.

5. Removal of beaters/hooks: loosely grip the beaters or hooks and rmly press the beaters eject button.

EXAMPLE OF MIXER APPLICATIONS

Food Amount Recommended speed Operating time Children's soup 0.5 litres Speed 2 40–60 s Vegetables: dill One bundle Speed 1 30 s Pancake dough 0.5 litres Speed 3 90–120 s Mashed potatoes 0.25 kg Speed 5 120 s Cottage cheese with additions 0.25 kg Speed 4 180 s Fruit cocktail 0,15 kg of fruit

CLEANING AND MAINTENANCE

1. Before cleaning the product remove the power plug from the power socket and allow it to fully cool

2. Wipe the external parts of the product using a damp cloth and wipe until dry.

3. Remove food remains from the power cord.

4. Wash the whisks and hooks in warm soapy water and wipe dry. You can wash the whisks and hooks in

adishwasher. USAGE TIPS

1. Refrigerated ingredients e.g. butter and eggs should be at room temperature before mixing. Therefore

take these ingredients out of the fridge a sucient time before their processing.

2. Prepare all the ingredients and needs near the mixer.

3. To prevent egg shells or rotten eggs from getting into the mix, rst break the egg into a separate

container and only then add to the other ingredients.

4. When whipping egg white make sure that the bowl and the whisks are clean and dry. Even a small

amount of fat on the whisks or in the bowl can prevent the whites from frothing.

5. Always start whipping slowly. Gradually increase the speed to that recommended in the recipe.

6. Do not over whip. Make sure to only whip the ingredients that you have in the recipe. Mix in dry

ingredients carefully. Always use the lowest speed. At any stage in the mixing process over whipping can cause hardening, prevent rising or shrinkage of the mix. Climatic conditions, seasonal temperature changes, temperature of ingredients or their structure – all this plays a role in setting the whipping duration and achieving the desired results.GB

7. While mixing, ingredients may run out of the bowl.

Scrape out the bowl using a plastic or rubber spatula after taking out the whisks. NEVER USE A KNIFE, METAL SPOON OR FORK, in this way you could damage the whisks or the bowl. Intermittent scraping of the ingredients from the walls of the bowl during mixing, after adding additional ingredients, will help to ensure a better result. USE ONLY WITH THE ACCESSORIES SUPPLIED WITH THE PRODUCT. TECHNICAL SPECIFICATIONS: Rated voltage: 220–240 V Nominal frequency: 50/60 Hz Rated power: 400 W Noise level: ≤ 87 dB WARRANTY: The following situations void the warranty: Incorrect or inappropriate handling of the device, failure to observe safety measures applicable to the device, the use of force, alterations or repairs made by a party other than authorized service center. Components subject to normal wear and tear are not covered under warranty.

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers. DISPOSAL OF PRODUCTS AT THE END OF LIFETIME Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system) The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specied location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product. This product complies with EU directive requirements on electromagnetic compatibility and electrical safety. The instruction manual is available at website www.ecg-electro.eu. Changes in text and technical parameters reserved. 08/05HR/BIH
