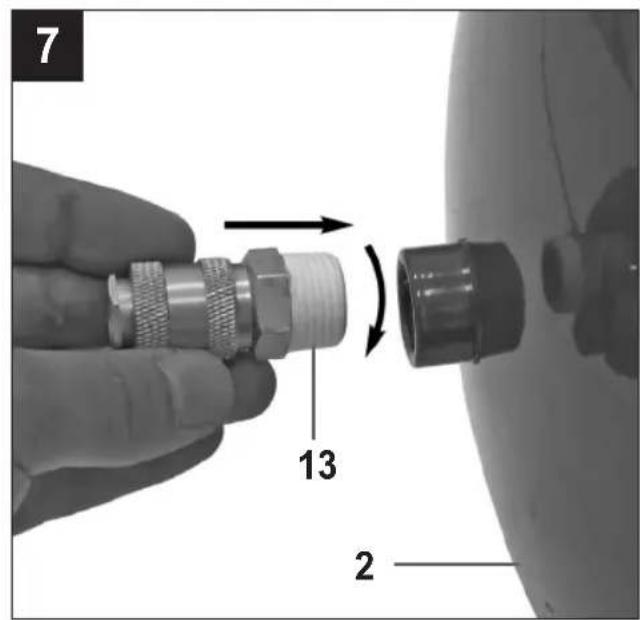

| Product Type | Air Compressor |
| Brand | Stanley |
| Model | B 48010150 |
| Power Supply | 230 V ~ 50 Hz (single-phase) or 400 V ~ 50 Hz (three-phase) |
| Tank Capacity | 50 L |
| Cut-out Pressure | 10 bar |
| Cut-in Pressure | 8 bar |
| Duty Cycle | S3-50 (5 min operation / 5 min rest) |
| Recommended Oil Type | SAE 15W/40 or equivalent |
| Thermal Protection | Yes, automatic shut-off in case of overheating |
| Safety Valve | Yes, set to maximum tank pressure |
| Check Valve | Yes, with delayed closing drain valve |
| Intake Air Filter | Clean every 100 hours |
| Oil Change | First oil change after 100 h, then every 300 h |
| Condensate Drain | Daily via drain valve |
| Belt Tension | Periodic check, deflection of 1-2 cm |
| Quick Couplers | 2 outlets: regulated pressure and tank pressure |
| Pressure Gauges | 2: regulated pressure and tank pressure |
| On/Off Switch | Red button (single-phase) or green/red (three-phase) |
| Intended Use | Inflation, pneumatic tools, painting, aqueous cleaning |
| Working Ambient Temperature | +5°C to +40°C |
| Safety Distance | At least 3 meters from the work area |
| Cleaning | Damp cloth and mild soap, no solvents |
Frequently Asked Questions - B 48010150 STANLEY

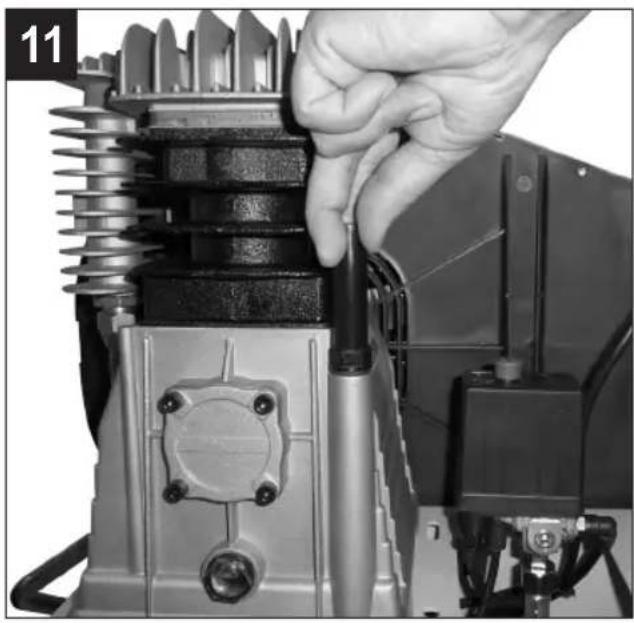

How to drain the compressor oil?

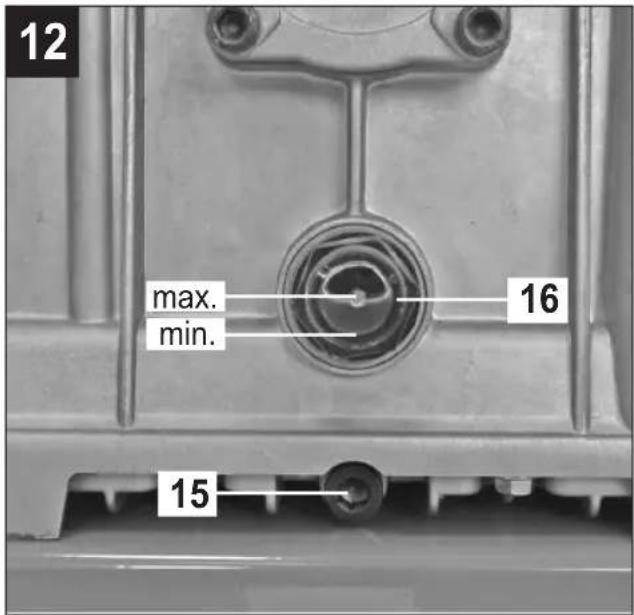

Switch off the motor and unplug the unit. Release the pressure, then unscrew the drain plug (ref. 15) under the pump. Collect the oil in a container. Replace the plug and refill through the opening (ref. 14) with SAE 15W/40 oil up to the MAX level on the sight glass.
How often should the air filter be cleaned?

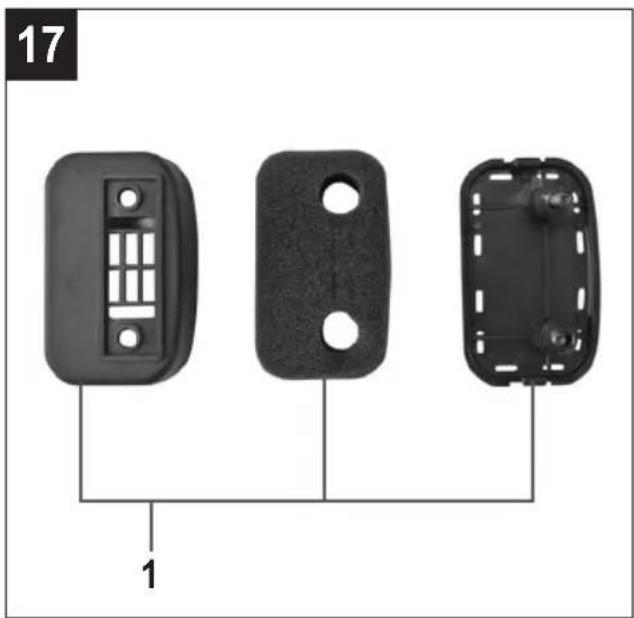

The air filter must be cleaned at least every 100 hours of operation. A dirty filter reduces compressor power. To clean it, loosen the two bolts, remove the housing, tap it, and blow it out with low-pressure compressed air (about 3 bar).

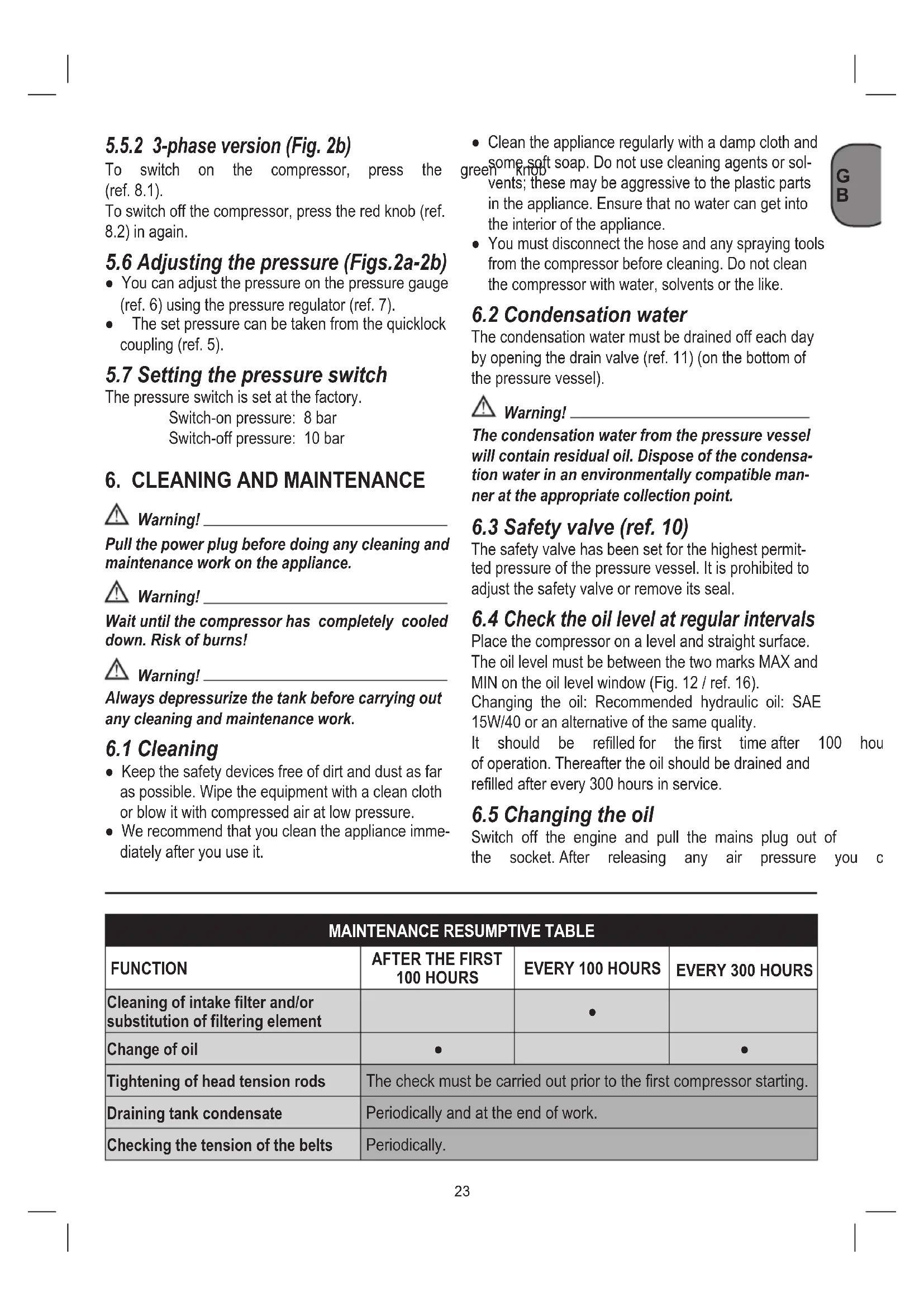

How to adjust the outlet pressure?
Use the pressure regulator (ref. 7) to adjust the pressure displayed on the pressure gauge (ref. 6). The regulated pressure is available at the quick coupler (ref. 5). The pressure switch is factory preset: cut-in at 8 bar, cut-out at 10 bar.
What to do if the compressor does not start?
Check the power supply and fuses. If the thermal protection has tripped, let it cool down then manually reset (button on the pressure switch or motor terminal box). Make sure the ambient temperature is above +5°C and the mains voltage is correct.
How to drain condensed water from the tank?
Open the drain valve (ref. 11) at the bottom of the tank daily. The condensed water contains oil residues; dispose of it at an appropriate collection point.
What are the essential safety precautions?
Always wear hearing, eye, and respiratory protection. Never direct the air jet at people or animals. Use the compressor in a ventilated, dry room, away from dust and flammable gases. Keep a safety distance of at least 3 meters.
How to tension the V-belt?

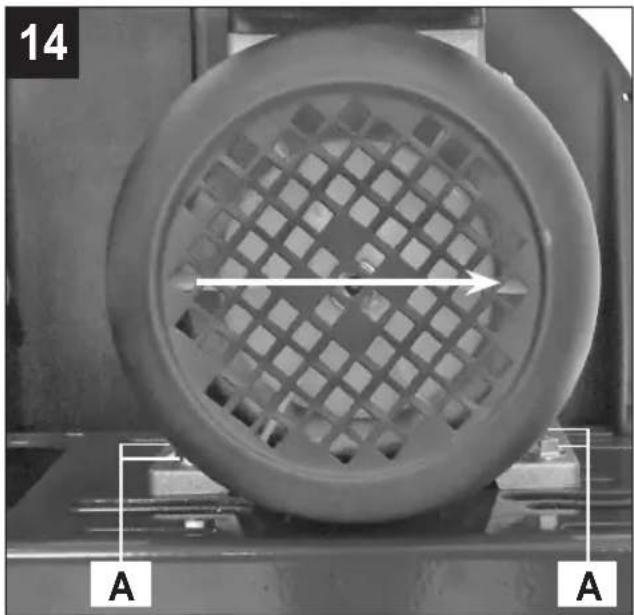

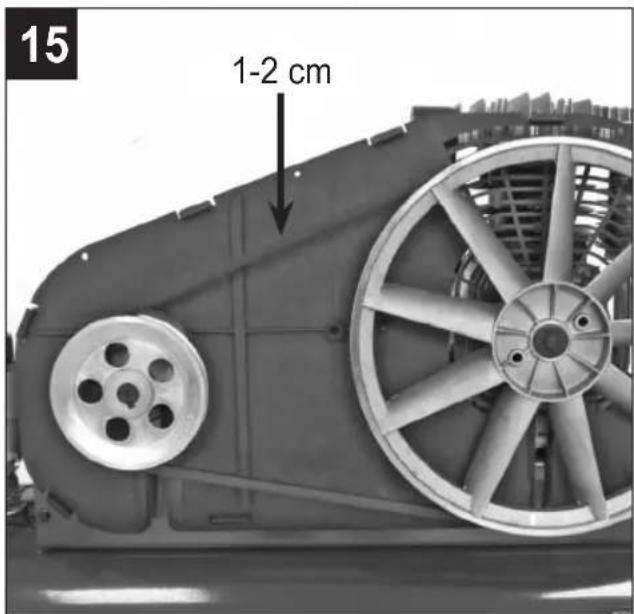

Unplug the unit and remove the protective cover. Loosen the four motor fixing screws (A), move the motor until the belt can be depressed 1 to 2 cm at its loosest point, then retighten the screws.
Can the compressor be used for diving or food?
No, the compressed air produced is not suitable for pharmaceutical, food, hospital use, or for filling scuba tanks. It is strictly intended for compressing air for pneumatic tools, inflation, painting, and aqueous cleaning.
What does the duty cycle S3-50 mean?
It means the compressor can run for 5 minutes, then must be stopped for 5 minutes to cool down. Failure to respect this cycle may trigger the thermal protection. Wait for the motor to cool before restarting.
How to replace the check valve in case of leakage?
Unscrew the hex head of the check valve, clean the housing and the rubber disc. Replace the disc if worn. Reassemble and tighten carefully. If the leak persists, contact after-sales service.
