USER MANUAL IBD 263 A IBERNA
DOPPIA PORTA INCASSO
QUADRO COMANDI

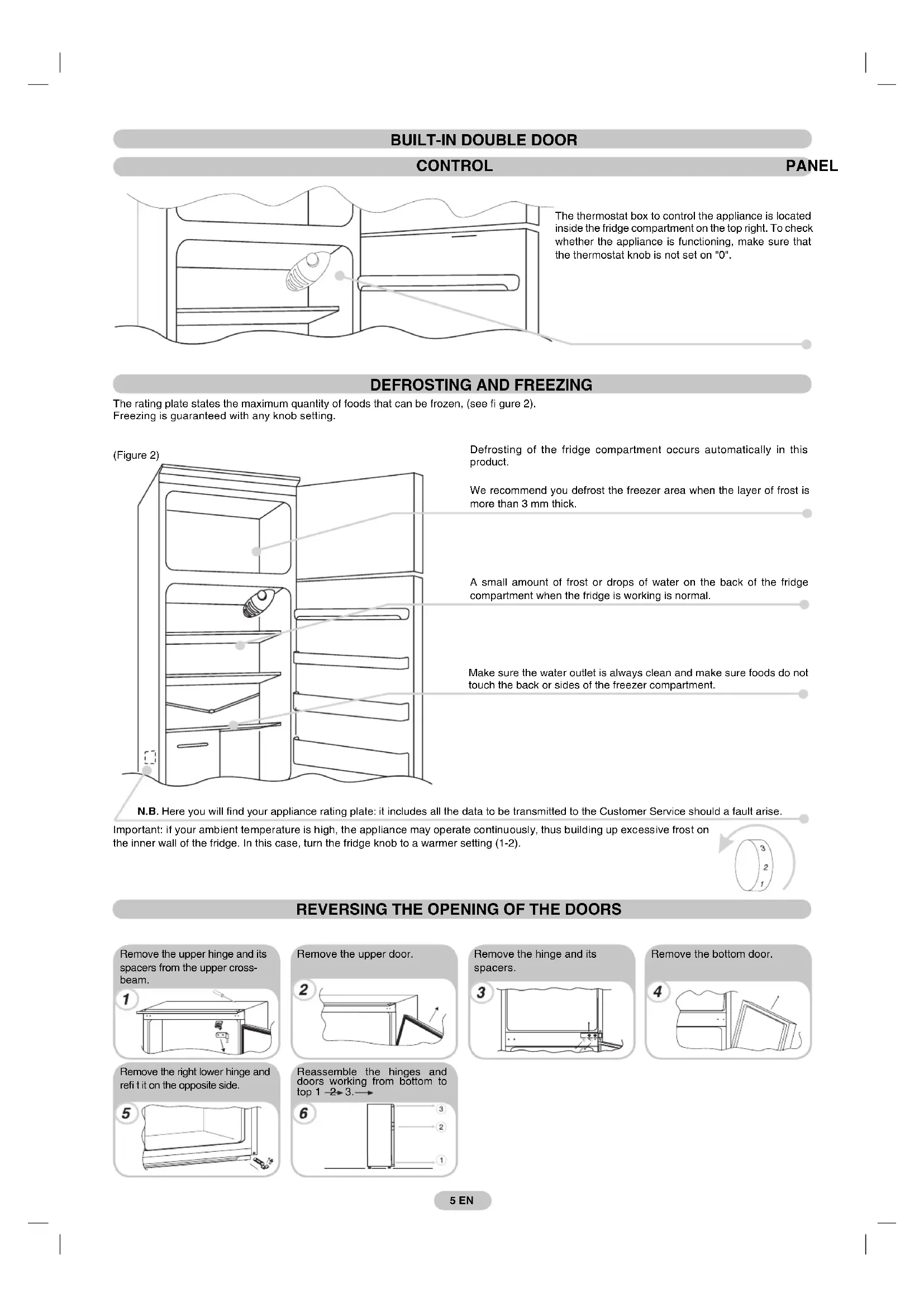

BUILT-IN DOUBLE DOOR

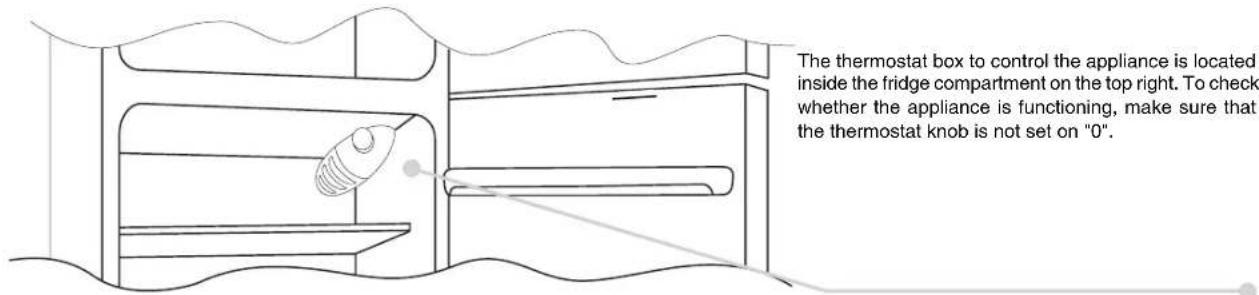

CONTROL
PANEL

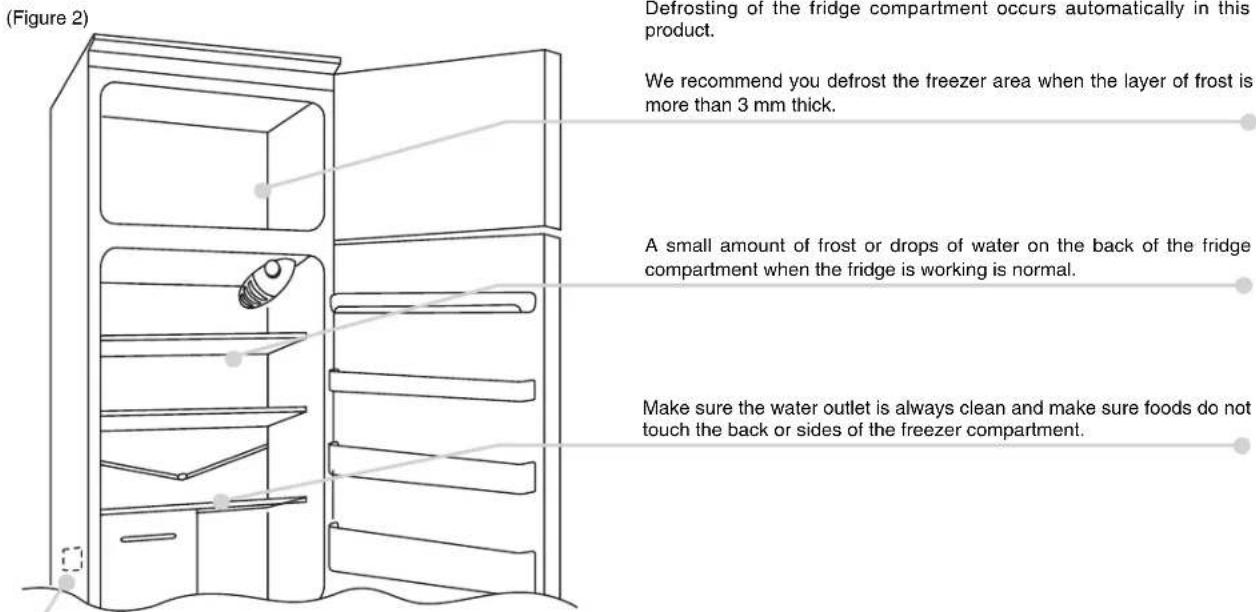

DEFROSTING AND FREEZING
The rating plate states the maximum quantity of foods that can be frozen, (see figure 2). Freezing is guaranteed with any knob setting.
N.B. Here you will find your appliance rating plate: it includes all the data to be transmitted to the Customer Service should a fault arise. Important: if your ambient temperature is high, the appliance may operate continuously, thus building up excessive frost on the inner wall of the fridge. In this case, turn the fridge knob to a warmer setting (1-2).

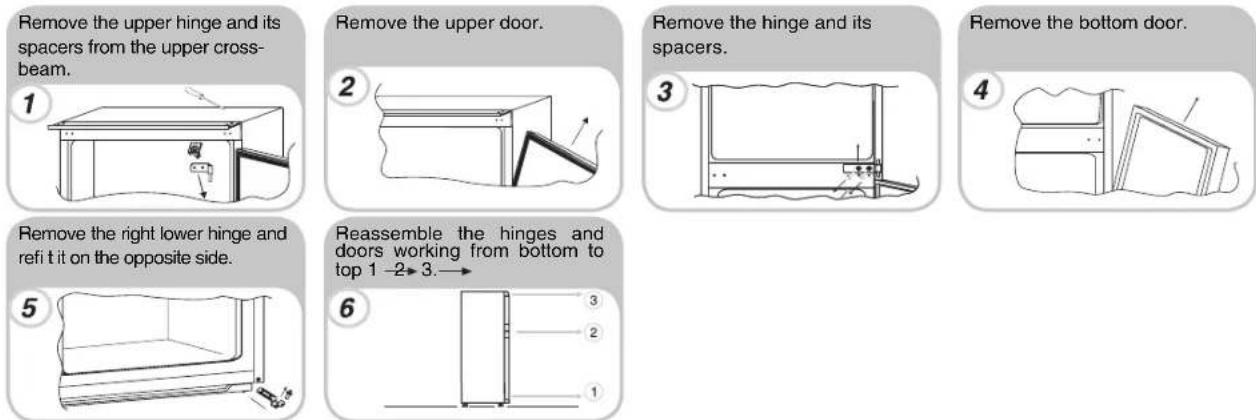

REVERSING THE OPENING OF THE DOORS

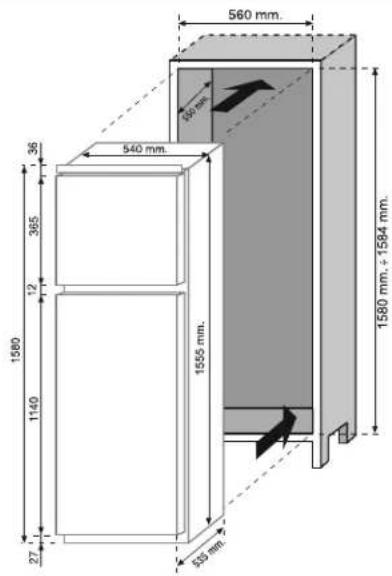

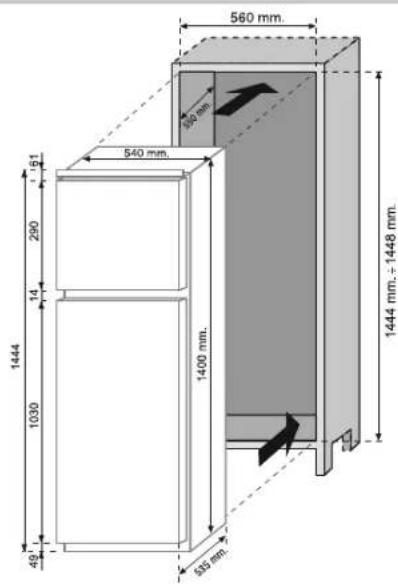

PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT
INSTALLATION OF THE APPLIANCE IN THE COLUMN
Secure the seal (supplied) to the appliance, on the opposite side from the hinges.
1
Insert the appliance in the column, placing it on the opposite side of the hinges.
2
Make sure the top connecting plate of the cabinet fits perfectly.
3
Secure the appliance upper part to the cabinet, using the supplied screws.
4
Secure the appliance lower part using the supplied screws.
5
Click the ventilation grill.
6
COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS
The appliance is equipped with coupling devices for the appliance doors with the column panels (loader slide).

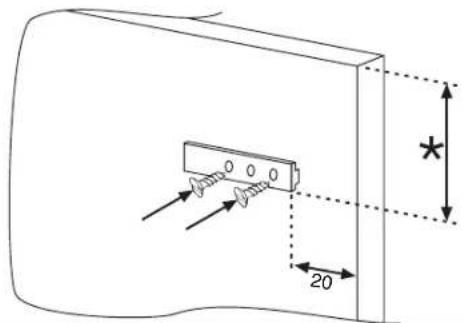

Secure the slide in the inner part of the panel of the built-in column at the desired height and at approx. 20mm . From the outer wire of the door.
Open the doors of the built-in column and the fridge. Position the built-in loader in the slide, then fi it into the fridge door.

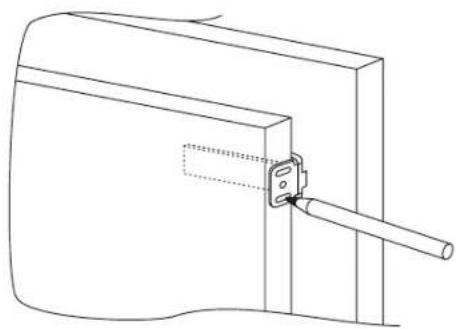

Mark the fixing points for the screws and drill with a bit of a diameter of 2.5.
Connect the appliance door to the cabinet panel keeping the loader slots as guidelines.
PRECAUTIONS FOR THE CORRECT OPERATION
Once the product has been embedded, place the rear part of the column in contact with the wall so as to prevent access to the compressor compartment.
For the product to operate correctly it is essential to allow adequate air circulation so as to cool down the condenser located in the rear part of the appliance.
For this reason, the column must be equipped with a rear chimney, whose upper opening must not be blocked and with a front slot which will be covered with a ventilation grill.
Dimensions of the column lock-pickings.

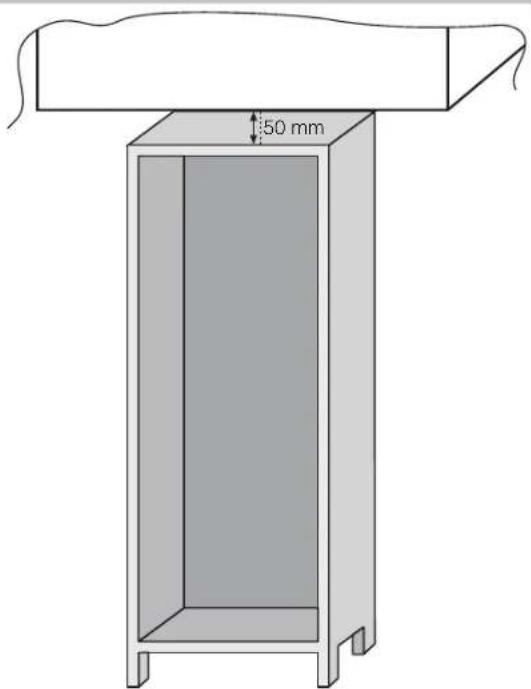

Dimensions of the gap to be left between the column and the ceiling.
DOUBLE PORTE ENCASTRABLE

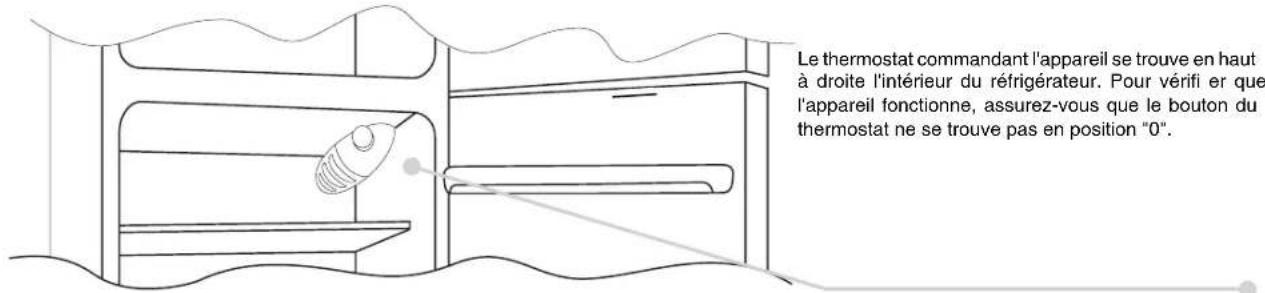

PANNEAU DE COMMANDE

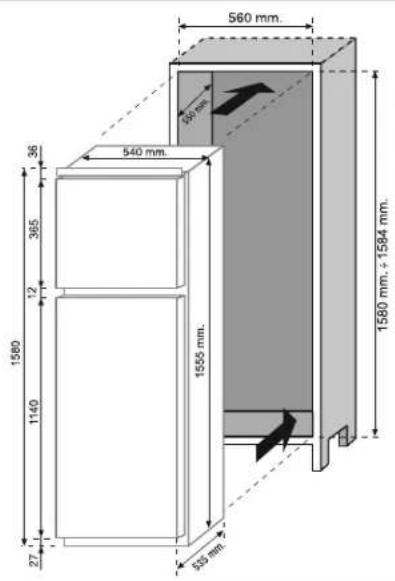

DIMENSIONS DU PRODUIT ET COMPARTIMENT D'ENCASTREMENT
INSTALLATION DE L'APPAREIL DANS UNE COLONNE
VOORZORGSGMAATREGELEN VOOR EEN JUISTE WERKING
INSTALLERING AV APPARATET I SKAPET
TILKOPLING AV SKAPVEGGENE TIL APPARATETS DORER

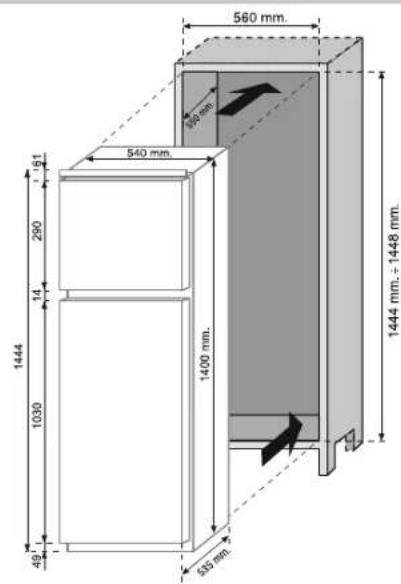

PRODUKTENS DIMENSIONER OCH INBYGGT UTRYMME
