Product Type	Refrigerator with freezer compartment
Brand	Iberna
Model	ITOP 130 S
Total Net Capacity	130 L
Refrigerator Capacity	110 L
Freezer Capacity	20 L
Energy Class	A
Power Supply	220-240 V~, 50 Hz; 230 V~, 60 Hz
Annual Energy Consumption	100 kWh
Climate Class	N-ST
Noise Level	42 dB
Defrosting Type	Manual (freezer)
Door Reversibility	Yes (right to left)
Number of Shelves	3
Crisper Drawer	Yes
Door Balconies	3
Refrigerant	R600a
Dimensions (H x W x D)	850 x 550 x 550 mm
Weight	30 kg
Installation Clearance	Back 100 mm, sides 100 mm, top 200 mm
Adjustable Legs	Yes

Frequently Asked Questions - ITOP 130 S IBERNA

How do I defrost the freezer compartment?

When frost is more than 2 mm thick, set the temperature regulator to '0' (compressor stops). Remove food and shelf, leave door open until frost melts. You may place a bowl of warm water (about 50°C) inside to speed up defrosting. Do not use sharp tools or hair dryers. Wipe dry with a soft cloth.

How do I reverse the door opening direction?

Remove plastic cover and screws from the worktop. Remove upper hinge screws and lift door. Remove lower hinge and transfer left front leg to right side. Reverse the lower hinge pin direction, then install lower hinge on left side. Place door on lower hinge, secure upper hinge on left side, then install worktop and handle on right side. Refer to diagrams in manual.

What should I do if the refrigerator is not cooling enough?

Check if food is packed too tightly blocking air flow. Ensure door is closed properly and gaskets are undamaged. Verify adequate ventilation (clearances of 100 mm back/sides, 200 mm top). Adjust temperature control dial if needed. Also check if a large amount of warm food was added recently.

Why is there condensation on the outside of the refrigerator?

Condensation forms when humidity is high (e.g., rainy season). This is normal and similar to condensation on a cold glass. Wipe dry with a dry cloth. It does not indicate a malfunction.

How should I clean the refrigerator?

Switch off and unplug the appliance before cleaning. Do not use sharp instruments to remove ice. Use a soft cloth with mild detergent. Do not use abrasive cleaners or mechanical devices for defrosting. Ensure no water enters the electrical components.

What temperature setting should I use?

The temperature control dial has positions 0 (off) to maximum. For normal operation, a medium setting is recommended. Adjust according to ambient temperature and food load. Avoid setting too high as it may freeze items excessively.

Why does the side panel get hot?

The side panel heats up during frequent door openings, initial startup, or in high ambient temperatures. This is heat dissipation from inside the cabinet and is normal. Do not touch the panel; it does not indicate a fault.

Can I change the door hinge direction myself?

Yes, the door is reversible. Follow the step-by-step instructions in the manual. You will need a screwdriver. Ensure the door is properly aligned before tightening screws. If unsure, contact an authorized service.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by a special cord available from your local Service Force Centre or a qualified technician. Do not attempt to repair it yourself.

How should I transport the refrigerator safely?

Do not tilt the refrigerator more than 45° from vertical or place it upside-down. Keep it upright during transport. After moving, let it stand for 2 hours before plugging in to allow refrigerant to settle.

USER MANUAL ITOP 130 S IBERNA

Simple line drawing of a cabinet or enclosure with a handle and side legs (no text or symbols)

INSTRUCTION MANUAL

BEFORE USING THE APPLIANCE

. Your new appliance is designed exclusively for domestic use.

To ensure best use of your appliance, carefully read the operating instructions which contain a description of the appliance and advice on storing and preserving food. Keep this handbook for future reference.

1. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
2. Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.
3. Make sure installation and the electrical connection are carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.
4. Clean the inside of the appliance before using it.

BEFORE USING THE APPLIANCE

1. Packing

The packing material is 100% recyclable and bears the recycling symbol. Comply with the local regulations for disposal. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct scrapping of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol ☒ on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a suitable collection centre for the recycling of electrical and electronic equipment. When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside. Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this appliance, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFC (the refrigerant circuit contains R134a) or HFC (the refrigerant circuit contains R600a) (refer to the rating plate inside the appliance).

Appliances with isobutane (R600a): Isobutane is a natural gas without environmental impact but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

Declaration of conformity

. This appliance is intended for storing food and is manufactured in conformity with European regulation (EC) No. 1935/2004.

CE

. This product has been designed, manufactured and marketed in compliance with:
- the safety objectives of Low Voltage Directive 73/23/EEC;
- the protection requirements of EMC "Directive 89/336/EEC, amended by Directive 93/68/EEC.
. Electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system.

Simple black-and-white sketch of a four-leaf clover tree on a hill, enclosed in a square frame (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them all before installing or using this appliance. Your safety is of paramount importance. If you are unsure about any of the meanings or these warnings contact the Customer Care Department.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• Ensure that the appliance does not stand on the electrical supply cable. If the supply cord is damaged, it must be replaced by a special cord available from your local Service Force Centre.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Parts which heat up should not be exposed. Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.
• The appliance should be left for 2 hours after installation before it is turned on, in order to allow the refrigerant to settle.

CAUTION: You must keep the appliance stand in the place where is ventilative anytime.

Child Safety

• This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely.
• Yong children should be supervised to ensure that they do not play with the appliance.

During Use

• This appliance is designed for domestic use only, specifically for the storage of edible foodstuffs only.
• Frozen food should not be refrozen once it has thawed out.
• Do not place carbonated or fizzy drinks in the freezer.
• Ice lollies can cause 'frost/freezer burns' if consumed straight from the freezer.
• Do not remove items from the freezer if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

Maintenance and Cleaning

- Switch off, and unplug the appliance before carrying out any cleaning or maintenance work.

- Do not use sharp instruments to scrape off frost or ice. (See defrosting instructions).

CAUTION: You must not use any mechanical equipment or other way that quicken up the defrosting process to defrost the appliance.

Do not damage the refrigerant circuit.

You must not use any electric appliance inside the appliance except that are commended by the manufacturer.

Servicing

This product should be serviced by an authorised engineer, and only genuine spare parts should be used.

- Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.

At the End of the Appliance Life

NOTE: Before discarding an old wine cooler, switch off and disconnect it from the power supply. Cut off and render any plug useless. Ensure that the door cannot jam (removing it is best), regardless of whether or not it can be pushed open from inside.

AN OLD WINE COOLER CAN BE A DEADLY PLAYTHING FOR CHILDREN!

CAUTION: At the end of the function life of the appliance it must be disposed in accordance with the W.E.E.E directive (See below). You appliance contains R600a refrigerant and inflammable gas in the insulating foam.

• Before discarding your wine cooler, switch it off and disconnect it from the power supply. Cut off and render any plug useless.
• Ensure that the door cannot shut completely, regardless of whether or not it can be pushed open from the inside (removing the door is best).

Please read this instruction book carefully before use and retain for future reference.

PARTS AND FEATURES

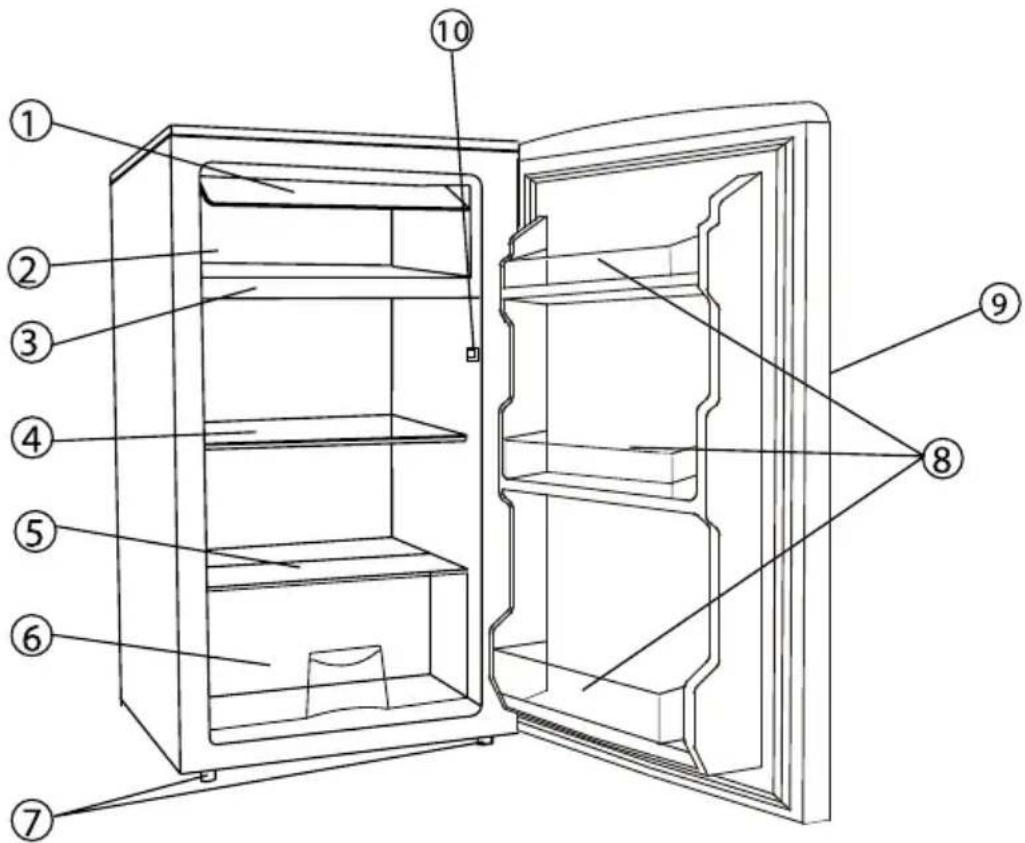

① Negative temperature compartment door
② Negative temperature compartment
③ Drip Tray
④ Shelves of refrigerator chamber
⑤ Glass cover
⑥ Crisper box
⑦ Leveling Legs
⑧ Door Balconies
⑨ Handle
⑩ Door switch

Well Ventilating

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160 ^4

Cartoon illustration of a book character with arms and legs, expressing distress (no text or symbols)

Power Supply

The refrigerator is only applied with power supply of single phase alternating current of (220-240)V\~/50Hz;230V\~/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Cartoon illustration of a book character with arms and legs, accompanied by a thought bubble showing electrical circuit symbols (no text or labels)

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Cartoon illustration of a document character with arms and legs, holding an umbrella and splashing water (no text or symbols)

2. Correctly Positioning

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Cartoon illustration of a smiling pot with steam rising from its side (no text or symbols)

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. The refrigerator should not be placed near anything which may echo.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

Cartoon illustration of a smiling rectangular character with arms and legs, holding a small container (no text or symbols)

Moving

When fixed or moved, the refrigerator can not be set horizontally or declined to more than 45 ^♦ or upside-down.

Cartoon illustration of a person carrying a large rectangular object with arms and legs, holding a vertical pole, with a 45° angle标注 (no text or symbols on the object itself)

Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator when the frost is thick, while it is more than 2mm thick, you should defrost.
★ Defrosting in freezer chamber is operated manually. Before defrosting, take the food, the ice tray and the shelf out into the cold storing chamber temporarily then set the knob of the temperature regulator to position "0" (where the compressor will stop working) and leave the door open until ice and frost dissolve thoroughly deposited at the bottom of the freezer chamber, wipe off the water with soft cloth., In the case of speeding up the defrosting, you may put a bowl of warm water (about 50°C) into the freezer chamber, and be sure to set the knob of the temperature regulator to original position after defrosting.
It's inadvisable to heat the freezer chamber directly with hot water or hair dryer while defrosting to prevent deformation of the inner case.
It's also inadvisable to scrape of ice and frost or separate food from the containers which have been congealed together with the food with sharp tool or wooden bars, so as not to damage the inner casing or the surface of the evaporator.
If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

4. Changing the reversible door

This refrigerator has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1. Remove the small plastic cover (7) and the screws (6) which fix the worktop to disassembly the worktop.
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).

3. Lift the door and place it on a padded surface to prevent scratching it.

4. Remove the two screws(8) that hold the lower hinge(2) and Make sure to Remove the lower hinge(2).

5. Remove the left front leg (4) and transfer it to the right side.

6. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).

7. Insert the bolt-pin(9) to the lower hinge (2).

8. Set the door to its place making sure the door seat at the lower hinge(2)

9..While holding the door in the closed position secure the upper hinge (5) in the top frame of left side with two screws (1). Please remember that do not tighten the two screws(1) until the top of the door is levelled with the counter top.

1. Install the worktop onto the top of the cabinet with screws(6) and cover the small plastic cover(7)

2. Remove the door handle (10) from the left side to the right side.

4. Changing the reversible door

FIGURE 1

FIGURE 2

FIGURE 1 - REPRESENTS POSITION OF COMPONENTS PRIOR TO DOOR REVERSAL.

FIGURE 2 - REPRESENTS POSITION OF COMPONENTS AFTER DOOR REVERSAL.

5. Troubleshooting

1. When the refrigerator does not work

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

1. When the refrigerator is cooling excessively

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily. This does not indicate a malfunction.

1. When the refrigerator is not cooling sufficiently

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces. Immediately both sides and above.

The temperature control dial may not be set properly.

1. When the defrosting water overflows inside the refrigerator and onto the floor.

Check that the drain pipe and the drain hose are not clogged.

Check that the drain pan is housed properly.

1. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

1. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not Indicate a malfunction.

1. When the cabinet's side panel heats up

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature, In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

6.Technical specifications

*For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator..
*Specifications are subject to change without prior notice.
