Product type	Canister vacuum cleaner
Brand	Hoover
Model	Capture TCP2120 011
Power supply	220-240 V ~ 50/60 Hz
Suction power	Variable with adjuster
Filtration system	HEPA bag (ref. H63), washable pre-motor and exhaust filters
Tank capacity	Disposable dust bag (not specified)
Cord length	Automatic rewinding (length not specified)
Operating radius	Not specified
Noise level	Not specified
Weight	Approximately 5 kg
Dimensions (L x W x H)	Not specified
Main functions	Hard floor and carpet vacuuming, power adjustment, suction control, bag full indicator
Included accessories	Hard floor and carpet brush, 2-in-1 accessory (crevice tool/upholstery brush), mini turbo brush for pet hair, super turbo brush, Caresse brush
Maintenance	Bag replacement, filter cleaning (washable in lukewarm water), manual unclogging
Safety	Double insulation, thermal cut-out (automatic reset after 30 min)
Available spare parts	HEPA bag H63, filter kit (pre-motor + exhaust), brushes, flexible hose
Warranty	Varies by country, contact the retailer
Certifications	ISO 9001, WEEE compliance (2002/96/EC)

Frequently Asked Questions - Capture TCP2120 011 HOOVER

How to replace the dust bag?

Lift the hatch release latch to open the hood. Pull the bag holder and then the cardboard tab to remove the bag. Apply the adhesive strip over the bag opening and discard it. Insert a new bag into the bag holder, replace the bag holder, and close the hood. Important: the hood will not close without a bag and bag holder.

How to clean the filters?

For the pre-motor filter: open the hood, remove the bag holder, then the filter frame and filter. Hand wash in lukewarm water, dry completely before replacing. For the exhaust filter: unclip the exhaust filter cover, remove the filter set, wash in lukewarm water, and dry. Do not use hot water or detergents.

What to do if the bag full indicator is red?

First check if the bag is full; if so, replace it. If the bag is not full, clean the filters. Then check for a blockage in the wand or hose. If the indicator remains red after using the vacuum for a long time, a thermal cut-out may have activated; turn off the vacuum, unplug it, and wait 30 minutes for automatic reset.

How to unclog the wand or hose?

Unplug the vacuum. Check the telescopic wand and hose. Use a rod or handle to remove the blockage. Ensure there is no obstruction before restarting.

Can I use the vacuum to pick up liquids?

No, never use the vacuum to pick up liquids or on damp surfaces. This could damage the appliance and pose a fire or electric shock hazard.

What accessories are included with the vacuum?

The included accessories are: a hard floor and carpet brush, a 2-in-1 accessory (crevice tool and upholstery brush), a mini turbo brush for pet hair, a super turbo brush, and a Caresse brush for parquet.

How to adjust the suction power?

Turn the power adjuster located on the vacuum body (depending on model) or use the suction control on the handle to adjust the desired suction level.

The vacuum does not turn on, what to do?

Check that the vacuum is plugged in and that the outlet works (test with another appliance). Make sure the bag is not full and the filters are not clogged. If the vacuum has overheated, wait 30 minutes for it to reset. If the problem persists, contact Hoover service.

How to maintain the mini turbo brushes?

Do not use the mini turbo brushes on long-fringe rugs, animal skins, or carpets with pile over 15 mm. Do not let the brush spin in place. Clean hair and threads wrapped around the brush regularly.

Where to buy spare parts for this vacuum?

Hoover spare parts are available from authorized dealers. Consumable references: HEPA bag H63 (35600536), filter kit U63 (35601193), and for parts: carpet/hard floor brush G130 (35601195), parquet Caresse brush G131 PC (35601196), super turbo brush JS4 (35601197), mini turbo brush J46 (35601116), flexible hose D128 (35601194). Always specify the model number when ordering.

USER MANUAL Capture TCP2120 011 HOOVER

INTERACTON OF SURFACE C1-C2-C3-C4-C5-C6-C7-C8-C9-C10-C11-C12-C13-C14-C15-C16-C17-C18-C19-C20-C21-C22-C23-C24-C25-C26-C27-C28-C29-C30-C31-C32-C33-C34-C35-C36-C37-C38-C39-C40-C41-C42-C43-C44-C45-C46-C47-C48-C49-C50-C51-C52-C53-C54-C55-C56-C57-C58

"Oe 1

IMPORTANT SAFETY REMINDERS

This cleaner should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance. Use only attachments recommended or supplied by Hoover.

WARNING: Electricity can be extremely dangerous. This appliance is double insulated and must not be earthed. This plug is fitted with a 13 amp fuse (UK only).

IMPORTANT: The wires in the mains power lead are coloured in accordance with the following code:

Blue-Neutral Brown-Live

STATIC ELECTRICITY: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

AFTER USE: Switch the cleaner off and remove the plug from the electricity supply. Always switch off and remove the plug before cleaning the appliance or attempting any maintenance task.

SAFETY WITH CHILDREN, ELDERLY OR THE INFIRM: Do not let children play with the appliance or its controls. Please supervise the use of the appliance by older children, the elderly or the infirm.

HOOVER SERVICE: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised Hoover service engineer.

IT IS IMPORTANT THAT YOU DO NOT:

Position the cleaner above you when cleaning the stairs.
Use your cleaner out of doors or on any wet surface or for wet pick up.
Pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.
- Spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours as this may cause risk of fire / explosion.
Run over the supply cord when using your cleaner or remove the plug by pulling on the supply cord.
Stand on or wrap the power cord around arms or legs when using the cleaner.
Use the appliance to clean people or animals.
Continue to use your cleaner if it appears to be faulty. If the supply cord is damaged -
stop using the cleaner IMMEDIATELY. To avoid a safety hazard, an authorised Hoover service engineer must replace the supply cord.

"Certain models only

**Nozzle design may vary according to model

1

GB

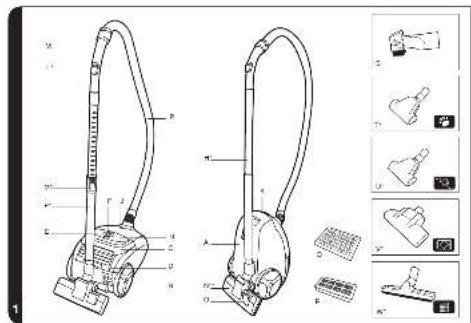

GETTING TO KNOW YOUR CLEANER

A. Main Cleaner

B. Cord Rewind Pedal
C. Carry Handle
D. Exhaust Filter Cover
E. On/Off Pedal
F. Telescopic Tube
G. Telescopic Tube Release Button
H. Standard Tube
Variable Power Control Roller*
J. Bag Check Indicator
K. Bag Door Release Latch

L. Suction Regulator
M. Handle
N. Carpet and Floor Nozzle
O. Surface selector Pedal
P. Hose
Q. Pre motor filter
B.Exhaust filter
S. 2 in 1 Tool
T. Pet Hair Remover Mini Turbo Nozzle
U. Allergen Remover Mini Turbo Nozzle
V. Grand Turbo Nozzle
W. Hard Floor Caresse Nozzle

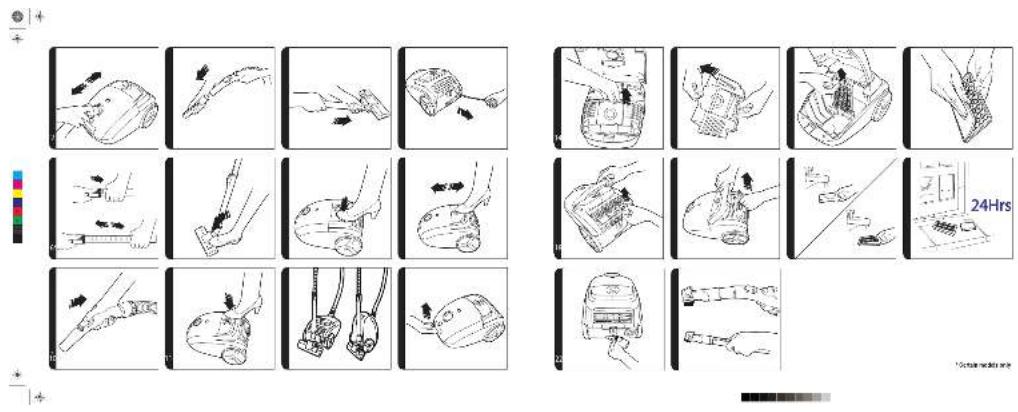

ASSEMBLING YOUR CLEANER

Remove all components from the packaging.

Connect the hose to the cleaner main body, ensuring it clips and locks into position. To 1.
release: simply press the two buttons on the hose end and pull [2].
2. Connect the tube upper end to the handle. [3].
3. Connect the tube lower end to the carpet and floor nozzle [4].

USING YOUR CLEANER

Extract power cord and plug it into the power supply. Do not pull the cord beyond the red 1.
marker [5].
Adjust the length of the telescopic tube* by moving the telescopic release button up and 2.
raise or lower the handle to the most comfortable cleaning position [6].
3. Carpet & Floor Nozzle, Press the pedal on the nozzle [7] to select the ideal cleaning mode
for the floor type.
Hard Floor: The brushes are lowered to protect the floor
Carpet: With lifted brushes for the deepest clean
4. Switch the cleaner on by pressing the On/Off pedal on the cleaner main body. [8]
5. Adjust the power level by rotating the variable power control roller.[9]
6. Adjust the suction regulator to the desired level. [10].
Switch off at the end of use by pressing the On/Off pedal. Unplug and press the cord rewind 7. pedal to wind the power cord back into the cleaner [11].
- Parking and Storage - The tube can be parked for temporary storage while in use, or in the 8. storage position when not in use [12].

1

CLEANER MAINTENANCE

Replacing The Dust Bag

If the bag check indicator is red please check and, if necessary, replace the bag.

1. Lift the bag door release latch [13] to open the cover, pull the bag holder [14] and pull the bag collar to remove the bag [15].
2. Apply the peel and seal sticker, located on the bag collar, to the bag inlet. The full dust bag should be disposed of correctly and carefully.
   Fold a new bag as shown on the bag and fit by inserting the collar into the bag holder.3.
   Refit the bag holder and close the bag door.4.

Warning - The bag door will NOT close if the dust bag and/or the bag holder are not assembled to the cleaner. Always ensure the bag and bag holder are present when closing the bag door.

Remember: The bag check indicator may also be red if an obstruction has occurred. In this case refer to 'Removing A Blockage From the System'.

Cleaning the Filters

To maintain optimum performance of your cleaner, please wash the filters after each 5 bag changes.

Cleaning the pre-motor filter:

Lift the bag door release latch 1. [13] to open the cover and remove the bag holder.

To remove the pre-motor filter slide the pre-motor filter frame from the cleaner. 2. [16] Remove the filter from the holder.3. [17]

1. Wash it in hand warm water, [20] and allow it to dry thoroughly before replacing to the cleaner [21].

Cleaning the exhaust filter:

1. To remove the exhaust filter, unclip the exhaust filter cover [18] and remove the filter pack. [19]
2. Wash the filter in hand warm water [20] and allow it to dry thoroughly before replacing to the cleaner. [21].

Remember: Do not use hot water or detergents. In the unlikely event of the filters becoming damaged, fit a Genuine Hoover replacement. Do not try and use the product without a dust bag or filter fitted.

Cleaning the permanent cloth dust bag*

To maintain optimum performance we recommend that you wash the permanent cloth dust bag under hand warm water after every 5 full bags. Remove excess water and leave to dry fully before replacing.

GB

Removing a Blockage From The System

1. Check if the bag is full. If so refer to 'Replacing The Dus

2. If it is not full, then:

A. Do the filters need cleaning? If so refer to 'Cleaning the Filter'.
B. Check if there is any other blockage in the system - Use a rod or a pole to remove any blockage from the Teletube or flexible hose.

Warning - The bag check indicator will turn red if the cleaner is used when full, if there is a blockage or if the filters are dirty. If the cleaner is used for a significant period of time with the bag check indicator is red, a thermal cut out will switch the cleaner off to prevent overheating. The bag check indicator turn green once the cleaner has switched off to signal that the thermal cut out has been activated. If this should happen, switch the cleaner off, unplug and correct the fault. It will take about 30 minutes for the cut out to automatically reset.

ACCESSORIES AND NOZZLES

All accessories can be fitted to the end of the handle or the end of the tube. [23]

2 In 1 tool - Combines two functions in one, the 2 In 1 tool can be connected as a crevice tool. By rotating the end piece converts to a dusting brush. The 2 in 1 tool can be stored neatly at the rear of the cleaner. [22]

Crevice Tool - For corners and hard to reach areas.

Dusting Brush - For bookshelves, frames, keyboards and other delicate areas. To extend the brushes push the button on the body of the tool.

Pet Hair Remover Mini Turbo Nozzle* Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas [1T].

Allergen Remover Mini Turbo Nozzle ^ 念 Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. [1U]

Grand Turbo Nozzle* - Use the turbo nozzle for deep cleaning on carpets. [1V]

Hard Floor Caresse Nozzle* For wooden floors and other delicate floors. [1W]

IMPORTANT: Do not use the grand turbo nozzle or mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm . Do not keep the nozzle stationary while the brush is rotating.

*Certain models only

2

CaptureManual1-5_uniinindd 2

1844/2011 12.34.15

USER CHECKLIST

Should you have a problem with the product, complete this simple user checklist before calling your local Hoover service.

• Is there a working electricity supply to the cleaner? Please check with another electrical appliance
  Is the dust bag over-filled? Please refer to 'Cleaner Maintenance'.
  Is the Filter blocked? Please refer to 'Cleaning the filter'
  Is the hose or nozzle blocked? Please refer to 'Removing a blockage from the system'
• Has the cleaner overheated? If so, it will take approximately 30 minutes to automatically reset

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Consumables:

PAPER BAG: H64, 35600637

HEPA BAG: H63, 35600536

FILTER KIT (pre-motor and exhaust): U63, 35601193

Spares:

CARPET & FLOOR NOZZLE: G130, 35601195

PARQUET CARESSE NOZZLE:
GRAND TURBO NOZZLE
PET HAIR MINI TURBO NOZZLE:
COMPLETE FLEXIBLE HOSE:

G131PC,35601196

J54.35601197

J46.35601116

D128,35601194

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Quality

BSIISO9001

Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

3

GB

The Environment:

This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with the local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
