USER MANUAL ALTSS8775 Sogo

REPETIR REPRODUCTION

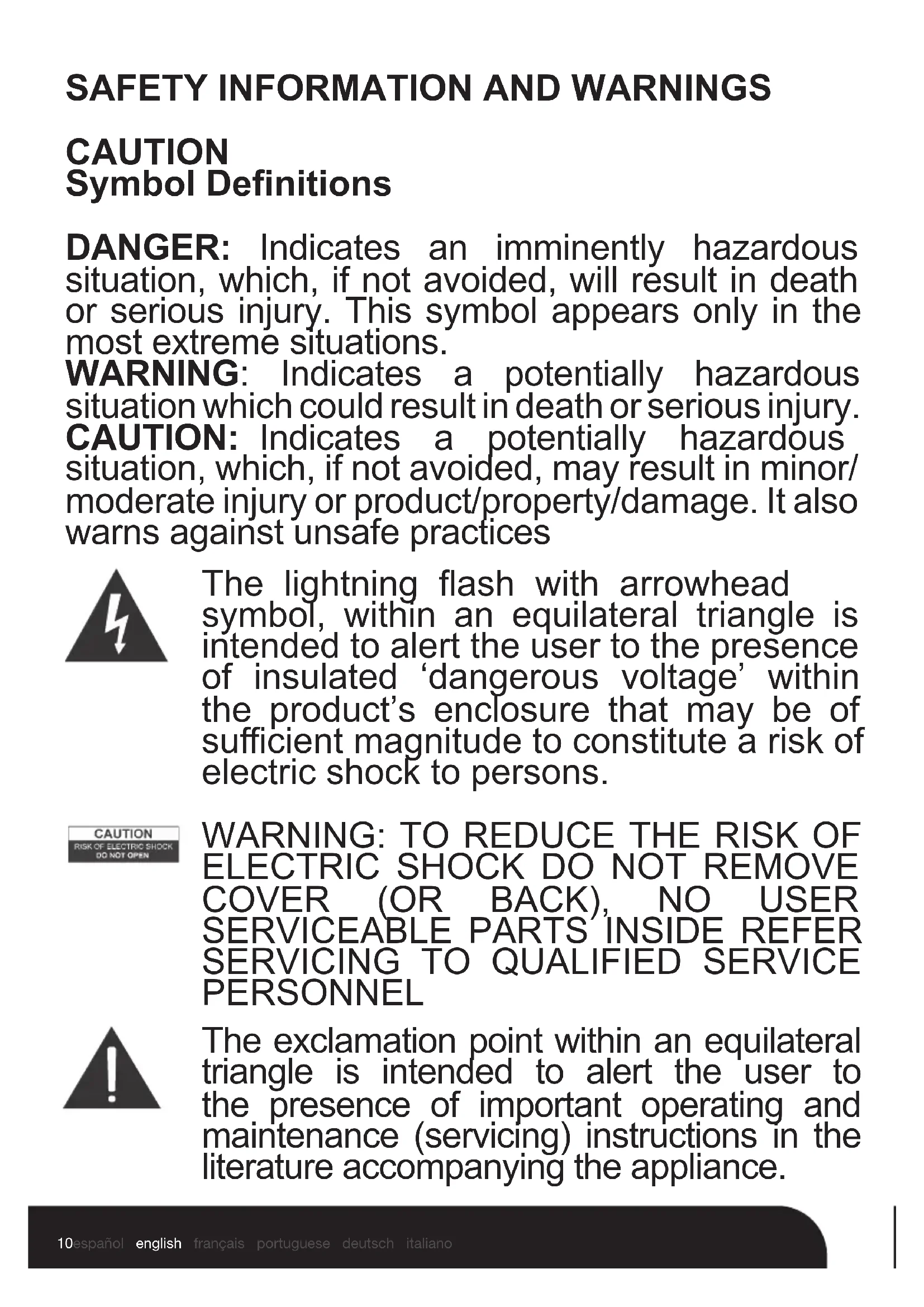

SAFETY INFORMATION AND WARNINGS

CAUTION

Symbol Definitions

DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. This symbol appears only in the most extreme situations.

WARNING: Indicates a potentially hazardous situation which could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in minor/ moderate injury or product/property/damage. It also warns against unsafe practices

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of insulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

READ ALL INSTRUCTIONS BEFORE USE

Always follow basic safety precautions when using this Bluetooth speaker system, especially when children are present.

SAFETY INSTRUCTIONS

1. Read this Instruction Manual before you attempt to connect or operate the appliance.
2. Keep these instructions in good condition. Heed all warnings. Follow all instructions.
3. Save this Instruction Manual for future reference.
4. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the product. Dry location use only.
5. No naked flame source, such as candles, should be placed on the product.
6. Children should be supervised to ensure that they do not play with the appliance.
7. Ventilation should not be impeded by covering the ventilation openings.
8. Ensure that the unit is plugged into 100-240V~50/60Hz power outlet. Using higher voltage may cause the unit to malfunction or even fire catching. Turn off the unit before unplugging it from power source to completely switch it off.
9. Do not plug/ unplug the power plug into/from an electrical outlet with wet hands.
10. If the power plug does not fit into your outlet, do not force the plug into an electrical socket if it does not fit.
11. Use replacement parts, which are specified by

the manufacturer.

1. Install the unit in accordance with the manufacturer's instructions.
2. Place the unit where there is good ventilation. Place the system on a flat, hard and stable surface. Do not expose to temperatures above 40^ . Allow at least 30 cm clearance from the rear and the top of the unit and 5 cm from each side.
3. Press the buttons of the unit gently. Pressing them too hard can damage the unit.
4. Always ensure that the product is unplugged from the electrical outlet before moving or cleaning. Clean it with dry cloth only.
5. Unplug the product during lightning, storms or when it will not be used for long periods of time.
6. This product has no user-serviceable parts. Do not attempt to repair this product yourself. Only qualified service personnel should perform servicing. Take the product to the electronics repair shop of your choice for inspection and repair.
7. NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit's casing as this could result in a fatal electric shock.
8. Don't mount this product on a wall or ceiling.
9. Do not place the unit near TVs, speakers and other objects that generate strong magnetic fields.
10. Do not leave the unit unattended when it is in use. NOTE: To disconnect the system completely if it not to be used for a long time, remove the AC power plug from the wall outlet.

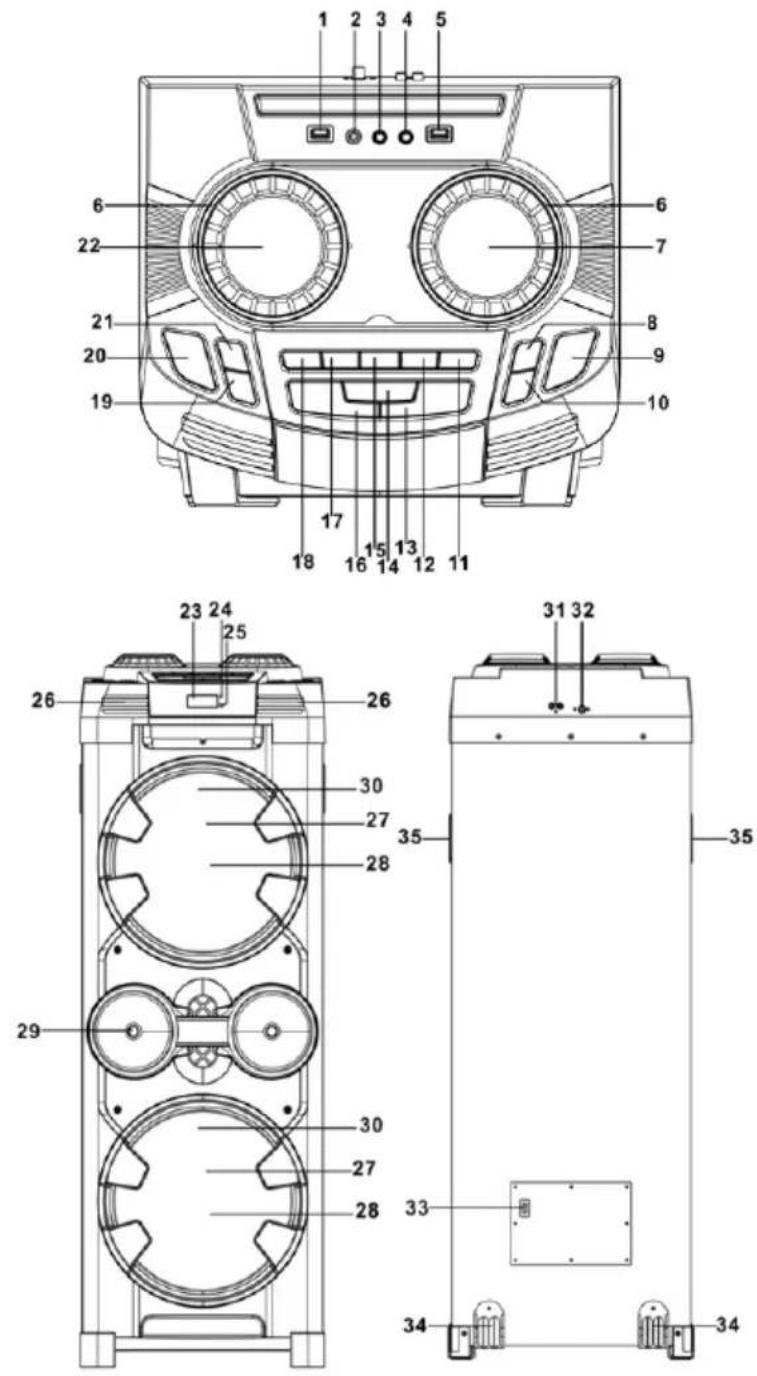

GUIDE TO THE APPLIANCE

Top View

1. USB PORT (5V = 200mA)

2. 3.5mm AUX IN JACK

3.6.3 mm MIC JAC

4.6.3 mm MIC JACK 2

1. USB CHARGING PORT

(5V=1000mA)

1. LIGHT RINGS

2. VOLUME CONTROL

3. FUNC.BUTION

4. BUTTON

5. MUTE BUTTON

6. ECHO BUTTON

7. 10/ FOLD/ M.+ BUTTON

8. TUNE+ BUTTON

9. VSCAN BUTTON

10. PAIR/TWS BUTTON

11. TUNE-B BUTTON

12. 10/FOLD/M. - BUTTON

13. P-MODE/MEM.BUTION

14. LIGHT BUTTON

15. SUPER BASS BUTTON

16. EQ BUTTON

17. MIC VOL. KNOB

Front and Back view

1. LCD DISPLAY
2. STANDBY INDICATOR
3. PAIR INDICATOR
4. LED FLASHING LIGHT
5. SPEAKERS
6. SPEAKER GRILLES
7. TWEETER
8. DISCO LED LIGHT
9. LINE IN (AUDIO IN)
   L/R RCA JACK
10. FM SOCKET AND FM
    WIRED ANTENNA
11. AC SOCKET
    34.WHEELS
12. HANDLE

Getting Started

POWER SOURCE

This unit is AC operation.

After connecting the power, the standby indicator will turn to red, press the button to switch the unit on/off. NOTE: When the unit is not providing the main function for 15 minutes, the unit will automatically switch into standby mode. To turn on the unit again, press button.

ESD hints - The product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again.

SETTING THE FUNCTION MODE

To change the function modes, press the FUNC. button repeatedly to choose RADIO/USB/BLUETOOTH/ AUX/LINE IN function.

ADJUSTING THE VOLUME

1. Rotate the VOLUME knob on the unit to increase or decrease the music volume.
2. Rotate the MIC VOLUME knob on the unit to increase or decrease the microphone volume.

BASS ADJUSTMENT

Press the SUPER BASS button on unit to increase the bass effect.

This unit has a built-in equalizer system, press the EQ button on unit to select a setting that best matches the music style:FLAT, POP, CLASSIC, JAZZ and ROCK preset.

USB CHARGING

This unit provides a 5V 1A USB charging port for charging your smart phone. Connect the USB cable of your smart phone to the USB CHARGE port for charging.

MICROPHONE ECHO ADJUSTMENT

Press the ECHO button on unit turn on or off the microphone echo effect.

FLASHING LIGHT

There are 5 modes for the DISCO LED lighting around the speakers. Press the LIGHT button to choose the light modes.

Mode 1 - Blue light stays on

Mode 2 - Red light stays on

Mode 3 - Green light stays on

Mode 4 - 7 color light flashing follow the music

Mode 5 - 7 color light flashing smoothly preset

L OFF - all the speaker lights off.

There are some blue LED light bars on the two sides of the LCD display, the blue light will flash to the music beat in all disco LED light modes. And around the volume knobs on the top panel, there're two LED light rings. Press and hold the LIGHT button to turn these lights on or off.

RADIO OPERATION

Listen to FM radio broadcasts. Press the FUNC. button on the unit, the display reads the radio frequency.

Note: The wired antenna is packed with the user manual as a separated accessory, insert the wired antenna into the FM socket on the rear cabinet when listening to the radio, and extend the wired antenna to its full length in order to get the best reception.

TUNING TO A RADIO STATION

If you know the station frequency that you want to tune to directly:

• Tune to a station by pressing the /TUNE+ or /TUNE- button repeatedly. The station frequency is shown on the display.

To tune to a preset station:

To tune to the next preset station, press the 10/FOLD/M. + button.

• To tune to the previous preset, press the 10/FOLD/M. - button.

AUTO PRESET MEMORY / SCAN

To scan for stations within reception range and save them to preset memory automatically, press and hold the /SCAN button. After the unit is finished scanning, the unit will automatically tune to preset number 1 (P01).

Choose which stations to save in preset memory instead of scanning automatically.

1. Use the /TUNE+ or /TUNE- button to tune to the station that you want to save as a preset (e.g., 93.1).
2. Press the P-MODE/MEM. Button, "P01" will flash on the display to indicate that you are saving the station as Preset Memory 01. (To change the preset memory number, press the 10/FOLD/M.+ or 10/FOLD/M.- buttons.)
3. Press the P-MODE/MEM. button to finish saving the station (e.g., P01 is now set to 93.1).
4. To save another station, repeat steps 1 to 3. You may save up to 30 FM stations.

USB OPERATION

This unit provides one USB port for music playback.

1. Press the FUNC. button on unit to select USB mode.
2. Plug the USB memory stick to the USB port on top of the unit. Playback will start automatically from Track 1.
3. To pause playback, press the /SCAN button on unit. The playing time will flash on the display.
4. To resume playback, press the HSCAN button again.
5. To select a desired track, press the TUNE+ or TUNE- button respectively during playing until the desired track appears on the display. The unit will start play automatically.
6. To search for a particular passage during playback, press and hold the TUNE+ or TUNE- button to

scan the current playing track at high speed until desired point (passage) appears, then release the button for normal playback mode.

1. To select a song which track number exceeds 10, press the 10/FOLD/M.+ or 10/FOLD/M.- button each time to skip forward/backward 10 tracks, then press the /TUNE+ or /TUNE- button to select desired track.

2. To select a desired folder (if the USB contains more than one folder), press and hold the 10/FOLD/M.+ or 10/FOLD/M. - button each time to skip forward/backward a folder, then press the /TUNE+ or /TUNE- button to select desired track.

playing track at high speed until desired point (passage) appears, then release the button for normal playback mode.

Important: The USB port is intended for data transfer only, other devices cannot be used with this USB connection. The use of USB extension cords is not recommended. Don't plug the USB from the unit when playing or reading the USB device.

REPEAT PLAY

You can play one track or all tracks on the USB repeatedly.

To Repeat a Single Track

1. Press P-MODE/MEM. button on unit during play, the display will show “ ” and the current track will be played over and over again.
2. To cancel repeat play, press P-MODE/MEM. button on unit until " 一 " disappears from the display.

To repeat all the Tracks

1. Press P-MODE/MEM. button on unit until the “ ALL” shows on the display, all tracks on the USB will be played over and over again.
2. To cancel repeat play, press the P-MODE/MEM. button on unit until "ALL" disappears from the display.

To repeat the folder (only for USB which contains more than one folder)

1. Press the P-MODE/MEM. button on unit until “DIR” shows on the display, the current folder will be repeated over and over again.
2. To cancel repeat play, press the P-MODE/MEM. button on unit until "DIR" disappears from the display.

RANDOM PLAY

Press the P-MODE/MEM. button on unit in play mode till the "RAN" shows on the display, the random play will start from next track automatically. Press the P-MODE/MEM. button on unit again until the "RAN" disappears from the display to cancel.

BLUETOOTH OPERATION

1. Press the FUNC. button on unit to switch to BLUETOOTH function, the LCD will display "BT" and the pain indicator will flash at high speed.
2. Turn on the Bluetooth function on the device, scan the unit "SS-8775" and connect, then input the password 0000 if required, the pair indicator keep light up to indicate connection done, and the display will show "BT". Press Play to start playback.
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Press the PAIR/TWS button to disconnect Bluetooth.
   Note: The Bluetooth works best within 10 meters in open air.

TWS OPERATION

If you have two units of this model, you can connect the two units by TWS function to become stereo output.

1. Connect the device to one of the units by Bluetooth function, this unit will become the master unit.
2. Turn on the second unit and switch to Bluetooth mode, press and hold the PAIR/TWS button on the second unit, then these two units will connect automatically with a sound indicated that the connection is done. The master unit will show "TWS R" and the second unit will show "TWS L", then these two units will become stereo output.
3. Control of play, pause, next track and previous track can be done by both units. Rotate the volume knob on each unit to adjust the volume individually.
4. To quit the TWS, press and hold the PAIR/TWS button on the second unit to disconnect.

AUX-IN OPERATION

1. Press the FUNC. button on unit to select the "AUX" mode.
2. Connect your audio device to the AUX IN jack on the top panel of the unit with an AUX IN cable.(audio cable is not included)
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.

1. Press the FUNC. button on unit to select the "LINE" mode.
2. Connect your audio device to the RCA jack L/R on the back panel of the unit with RCA cable (cable is not included).
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.

Technical Specifications

GENERAL

Power Requirements: 100-240V~ 50/60Hz

Power consumption: 250W

MAX output Power: 150W

FM frequency: FM 87.5-108MHz

AUX IN jack: 3.5mm

Microphone jack: 6.3mm

Work temperature: +5^ + + 35^

Bluetooth

Communication system: Bluetooth Standard version 4.2

Reception Range: 10 meter (line-of-sight distance)

Compatible Bluetooth profiles: Advanced Audio Distribution Profile (A2DP)

ACCESSIONS

Instruction Manual x 1pc

AC Cord x 1pc

FM Wire Antenna x 1pc

Wired Microphone x 2pc

Note: Specifications are subject to change for continuous improvement without prior notice.
