USER MANUAL IAN 277584 AURIOL

Usage and safety instructions

FR BE

CHRONOGRAPHE

GB Usage and safety instructions

Table of contents

Table of contents -10

Introduction -11-

Intended use -11

Important safety information important.safety.informatidri -

User 11

Batteries -11

Features 12

Setting the time -12-

Setting the date -12-

Stopwatch feature -13

Lap time measurement 13

Speed setting -13

Adjusting the stopwatch hands -13

Water resistance. 13

Replacement of battery (SR920SW) - 14 -

Cleaning instructions 14

Disposal of the watch -14

Disposal of the batteries 14

digi-tech gmbh warranty -14

Warranty conditions - 15

Warranty period and defects liability -15

Scope of the warranty 15

Warranty claim procedure -16

Service. 16

Supplier -17

-10-

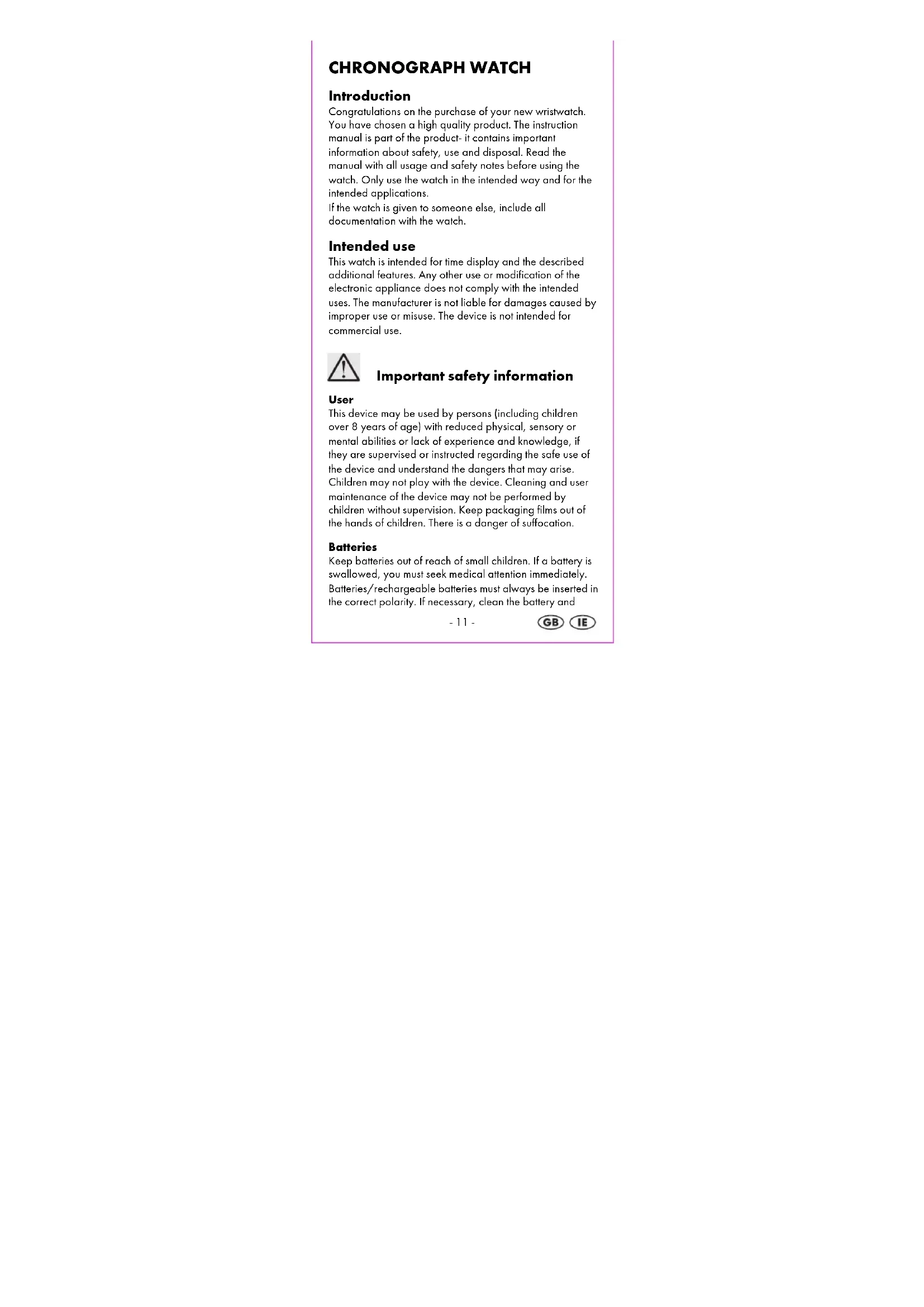

CHRONOGRAPH WATCH

Introduction

Congratulations on the purchase of your new wristwatch. You have chosen a high quality product. The instruction manual is part of the product-it contains important information about safety, use and disposal. Read the manual with all usage and safety notes before using the watch. Only use the watch in the intended way and for the intended applications. If the watch is given to someone else, include all documentation with the watch.

Intended use

This watch is intended for time display and the described additional features. Any other use or modification of the electronic appliance does not comply with the intended uses. The manufacturer is not liable for damages caused by improper use or misuse. The device is not intended for commercial use.

Important safety information

User

This device may be used by persons (including children over 8 years of age) with reduced physical, sensory or mental abilities or lack of experience and knowledge, if they are supervised or instructed regarding the safe use of the device and understand the dangers that may arise. Children may not play with the device. Cleaning and user maintenance of the device may not be performed by children without supervision. Keep packaging films out of the hands of children. There is a danger of suffocation.

Batteries

Keep batteries out of reach of small children. If a battery is swallowed, you must seek medical attention immediately. Batteries/rechargeable batteries must always be inserted in the correct polarity. If necessary, clean the battery and

-11

device contacts. Never attempt to recharge nonrechargeable batteries. Never short-circuit or attempt to open batteries. Never throw batteries into fire as they may explode. If the device will not be used for an extended time period, remove the battery and store the device in a dry and dust-free area. Improper use of the battery can lead to explosion or leakage.

If the battery leaks, avoid contact with skin, eyes and mucous membranes. Use gloves. If you are exposed to battery acid, rinse the affected areas with plenty of clean water and immediately seek medical attention. Remove discharged batteries from the device as they present an increased risk of leakage.

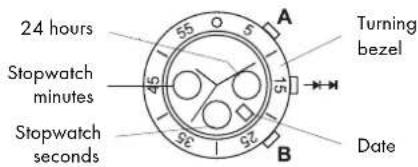

Features

Setting the time

Before setting the time, ensure that all stopwatch hands are at the "60" (12 o'clock position) and do not push the buttons as this will change the position of the stopwatch hands. Pull the crown out to the 2^nd stop when the second hand reaches the "60" (12 o'clock position). Set the time by turning the crown clockwise. Press the crown back to the initial position.

Setting the date

Pull the crown out to the 1^st stop- turn the crown clockwise to set the correct date. Press the crown back to the initial position. The date will change between 23:30 and 24:00. If the date changes between 11:30 and 12:00, adjust the time by 12 hours.

-12-

Stopwatch feature

Press button A to start the stopwatch- press Button A again to stop the stopwatch. You can now read the stopped time. Press Button B to reset the hands to the "60" (12 o'clock position). The stopwatch can measure a time span of up to 60 minutes.

Lap time measurement

Press button A to start the stopwatch- press button B to stop the stopwatch and read the lap time, the stopwatch will continue to count internally. Press button B again to show the running stopwatch time. This process can be repeated as often as desired. Press A to stop the stopwatch and read the stopped time.

Speed setting

When setting press and hold A or B to use the speed setting feature.

Adjusting the stopwatch hands

If the small stopwatch hands are not exactly in the "60" (12 o'clock position) they must be adjusted manually. Carefully pull the crown out to the stop. Repeatedly press button A to set the hands counter-clockwise to "60" (12 o'clock position). Repeatedly press button B to set the hands clockwise to "60" (12 o'clock position). Press the crown back to the initial position.

Water resistance

Water resistant up to 10 bar. The bar value specifies the atmospheric overpressure which is applied during testing (DIN 8310).

-13-

3 BAR	✓	×	×	×
5 BAR	✓	✓	×	×
10 BAR	✓	✓	✓	×
20 BAR	✓	✓	✓	✓

Replacement of battery (SR9205W)

Battery replacements must be performed by an expert to avoid damaging the case or gaskets.

Cleaning instructions

Clean the wristwatch with a soft, dry and lint-free cloth. A glasses cleaning cloth is ideal.

Disposal of the watch

This wristwatch may not be disposed of with normal household waste. Dispose of the wristwatch at an approved disposal facility or at your local recycling centre. Please observe the current rules and regulations when disposing of the watch. Contact the disposal system if in doubt.

Disposal of the batteries

Please dispose of your batteries properly in containers especially set up at retailers. Batteries do not belong in household waste. Dispse of the batteries at an approved disposal facility or at your local recycling centre. Contact the disposal system if in doubt.

digi-tech gmbh warranty

This wristwatch includes a 3 year warranty starting on the day of purchase. In case of defects of this wristwatch you have, by law, certain rights regarding the vendor of the watch. These rights are not changed by the warranty which is described in the following paragraphs.

-14-

Warranty conditions

The warranty duration starts on the date of purchase. Please keep the original receipt in a safe place. The receipt is needed as a proof of purchase. If a defect occurs in the wristwatch within 3 years, the wristwatch will be repaired or replaced (according to our choice) free of charge. This warranty requires that, within the 3 year warranty period, the wristwatch and the receipt can be made available to us along with a short written description of the defect and when it occurred. If the defect is covered by the warranty, you will receive the repaired wristwatch or a new watch. Repair or replacement does not cause the warranty period to restart.

Warranty period and defects liability

The warranty period is not increased by the defect liability. This also applies to repaired or replaced parts. If defects are noticed at the time of purchase they must be reported immediately upon unpacking the item. Paid repair may be available after the end of the warranty period.

Scope of the warranty

The wristwatch was manufactured according to strict quality guidelines and was carefully inspected before delivery. The warranty does not include parts that experience normal wear and tear and can thus be seen as wear parts or fragile parts that are damaged. Examples include Switches, Batteries or parts made of glass. This warranty becomes void if the wristwatch is damaged, is not used in the recommended way or is improperly repaired. For proper use of the wristwatch all instructions in this manual must be adhered to exactly. Use of the wristwatch in a way that is discouraged in the manual must be avoided. The wristwatch is not intended for commercial use. Abusive or improper use, excessive force and changes that are made by non-authorized repair centers will void the warranty.

-15-

Warranty claim procedure

To ensure that your call is processed in a fast and efficient manner please note the following directions:

• Have your receipt (as proof of purchase) and the article number (277584) handy.
• The article number can be found on the type label, an engraving, the front page of the manual (bottom left) or a sticker on the back side or bottom side of the case.
  In case defects occur, please first contact the service center (see below) by phone or email.

Visit www.lidl-service.com to download this and many other manuals, product videos and software.

Service

Please note that the following address is not a service address.

Please first contact the service address (see above).

Name: digi-tech gmbh

Street: Valterweg 27A

Town: Eppstein 65817

Country: German

-17

3 BAR	✓	X	X	X
5 BAR	✓	✓	X	X
10 BAR	✓	✓	✓	X
20 BAR	✓	✓	✓	✓

Batterij verrangen (SR9205W)

3 BAR	✓	×	×	×
5 BAR	✓	✓	×	×
10 BAR	✓	✓	✓	×
20 BAR	✓	✓	✓	✓

Vymena baterie (SR9205W)

Vymenu baterie musi provest hodinar. Takhle zabrinite poskozeni pouzdra hodinek a tesnicio hkruzku.

Pokyny pro cistěné

Cistete pristroj pouze suchym hladkym hadikem, ktery se hodi napriklad na cisteni brlovych skel.

3 BAR	✓	X	X	X
5 BAR	✓	✓	X	X
10 BAR	✓	✓	✓	X
20 BAR	✓	✓	✓	✓
