Warning! Read these instructions carefully, be familiar with the controls and the proper use of the lawnmower.

Explanation of symbols on the lawnmower

General hazard safety alert.

Read instruction manual.

Beware of thrown or flying objects to bystanders.

Keep bystanders a safe distance away from the machine.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the lawnmower unattended for any period. Keep the supply flexible cord away from the cutting blade.

Sharp blade(s). Beware of severing toes or fingers.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Do not mow in the rain or leave the lawn-mower outdoors whilst it is raining.

■ Never allow children or people unfamiliar with these instructions to use the lawnmower. Local regulations may restrict the age of the operator.
■ Never mow while people, especially children or pets, are nearby.
■ The operator or user is responsible for accidents or hazards occurring to other people or their property.
■ Do not operate the lawnmower when barefoot or wearing open sandals, always wear substantial footwear and long trousers.
■ Thoroughly inspect the area where the lawn-mower is to be used and remove all stones, sticks, wires, bones and other foreign objects.
■ Before using, always visually inspect to see that the blade, blade bolt and cutter assembly are not worn or damaged or loose.
■ Replace worn or damaged blades and bolts in sets to preserve balance.
■ Mow only in daylight or in good artificial light.
■ Avoid operating the lawnmower in wet grass, where feasible.

■ Walk, never run.
■ Mowing on banks can be dangerous:
- Do not mow excessively steep slopes.
- Always be sure of your footing on slopes or wet grass.
- Mow across the face of slopes - never up and down.
- Exercise extreme caution when changing direction on slopes.
- Use extreme caution when stepping back or pulling the lawnmower towards you. Never cut grass by pulling the mower towards you.
■ Stop the blades if the lawnmower has to be tilted for transportation when crossing surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
■ Do not tilt the lawnmower when starting or switching on the motor, except if the lawnmower has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely necessary and lift only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the mower to the ground.
■ Switch on the lawnmower with feet well away from the blades.
■ Do not put hands or feet near or under rotating parts.
■ Never pick up or carry the lawnmower while the motor is running.
■ Remove the plug from the socket:
- whenever you leave the machine
- before clearing a blockage
— before checking, cleaning or working on the lawn-mower
- after striking a foreign object. Inspect the lawnmower for damage and make repairs as necessary
- if the lawnmower starts to vibrate abnormally (check immediately).
- Keep all nuts, bolts and screws tight to be sure that the lawnmower is in safe working condition.
■ Replace worn or damaged parts for safety.
■ Ensure replacement parts fitted are Bosch approved.

Product Specification

Quiet Lawn Mower ALM 34

Part number 0 600 887 1..

Rated power [W] 1 150

Blade width [cm] 34

Height of cut [mm] 10/32

Positions 4

Weight [kg] 6.5

Protection class

Serial Number

□/II

See rating details on machine

Operating Controls

1 Switch lever
2 Safety button
3 Handle top
4 Mains plug**
5 Cable restraint**
6 Handle bottom

**Country specific

Not all of the accessories illustrated or described are included as standard delivery.

Intended Use

This product is intended for domestic lawn mowing.

Introduction

This manual gives instructions on the correct assembly and safe use of your machine. It is important that you read these instructions carefully.

When fully assembled the machine weighs approximately 6.5 kg. If necessary, obtain assistance to remove from packaging.

Take care when carrying the mower to the lawn, as the blades are sharp.

Delivered Items

Carefully remove the machine from its packaging and check that you have all the following items:

– Lawnmower with handle assembly
- 1 Handle bottom
-2 Bolts
-2 Wing nuts
- 2 Pivot pins
-2 Cable clips
- Spanner/scraper
- Operating instructions
- Spare parts list

When parts are missing or damaged, please contact your dealer.

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

The blades continue to rotate for a few seconds after the machine is switched off.

Caution - do not touch rotating blades.

Electrical Safety

Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz. Only use approved extension cables. Contact your service agent for details.

Extension cords/leads should only be used if they comply with H05VV-F or H05RN-F types.

It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it.

For products not sold in GB: WARNING: For safety, it is essential that the mains plug 4 attached to the machine is fitted to the power supply cable 11. (see figure B)

The couplings of connection leads must be protected against splashes and the coupling sockets on the leads must be made of rubber or coated with rubber.

Fixing means for the connection leads must be used.

The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition.

If the supply cord is damaged, it must be replaced by a Bosch Service Center.

Products sold in GB only: Your mower is fitted with an approved 13 A (BS 1363/A) electric plug and is protected by a 13 A fuse (ASTA Approved to BS 1362).

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a 13 A socket elsewhere.

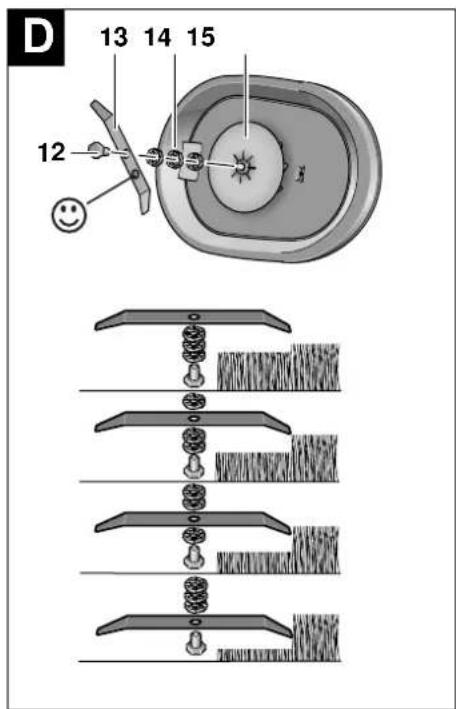

Fit the blade 13, rearrange the spacers 14 to obtain desired setting (figure D) and fit the blade nut 12.

Ensure that the blade 13 is the correct way up (so that this ⚙ symbol can be seen located as in figure D) and tighten the blade nut 12 firmly.

Always fit the three spacers 14. Do not fit extra spacers.

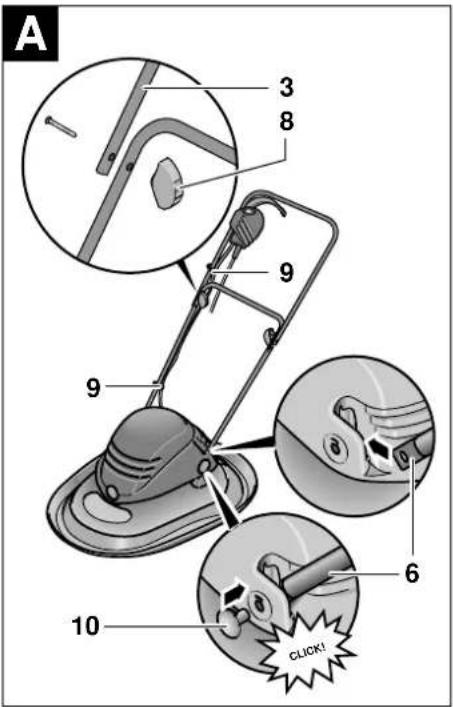

Assembly (see figure A)

① Position the handle bottom 6 at the rear of the motor cover.
② Line up the holes and secure with the pivot pins 10 provided.
③ Attach the handle top 3 with the bolts and wing nuts 8 to the handle bottom 6.

Note: Ensure that the cable clips supplied are used to fix the cable to the handle.

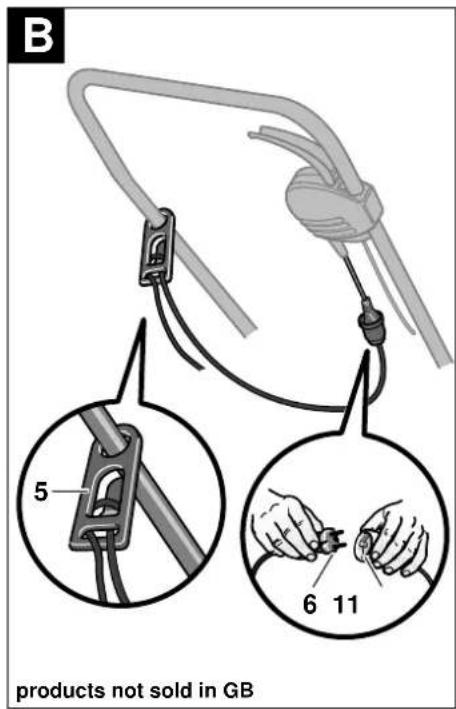

Attach cable to cable restraint 5 ensuring that sufficient cable slack is available. (see figure B)

Handle Adjustment

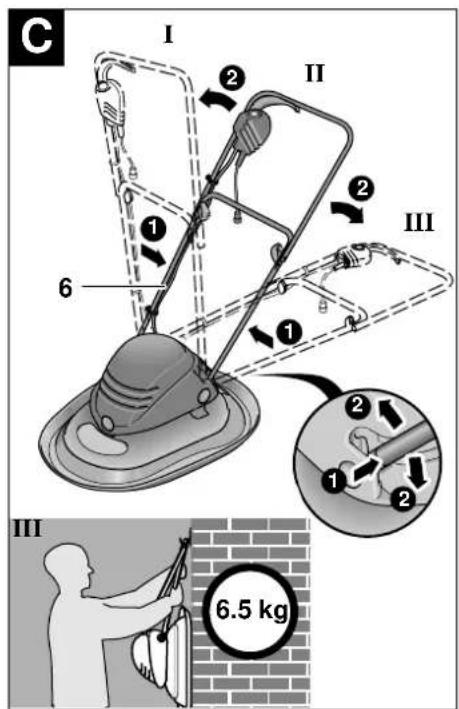

The handle can be set in three positions, as in figure C:

I Park position

II Handle location for mowing

III Handle location to enable mower to be hung on walls.

To move the handle from location I or III to mowing location II press together the tubes of the handle bottom 6.

Adjusting the Cutting Height

Stop, release switch lever, wait until the motor stops and remove the plug before adjusting height. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Your machine has four settings which adjust the height of cut between 10-32 mm (figure D):

For the first cutting of the season, a high cutting adjustment should be selected.

Changing height of cut is achieved by rearranging the position of the spacers 14:

Place the handle in vertical position and turn the mower on its side. Inspect the blade 13 and fan 15, if blunt or damaged replace.

Hold the blade 13 using gardening gloves (not provided) use the spanner/scaper provided to remove the blade nut 12, spacers 14 and blade 13.

Starting and Stopping

The blade continues to rotate for a few seconds after the machine is switched off. Allow the motor/blade to stop rotating before switching "on" again. Do not rapidly switch off and on.

To aid starting tilt mower to side.

Starting:

Press and hold the safety button 2. (Figure E)

Squeeze the switch lever 1 towards the handle.

Release the safety button 2.

Stopping:

Release the switch lever 1.

Mowing

The motor cover is designed with a flexible mounting and tilts to improve directional control.

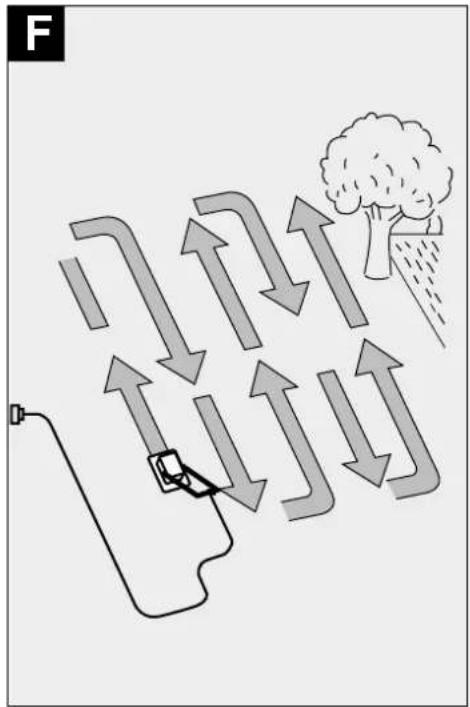

Place the lawnmower on the edge of the lawn, as close to the power point as possible. Work away from the power point as in figure F. Then at right angles.

Position the cable to opposite side (already cut) at the end of each turn.

When mowing do not allow the motor to labour particularly in heavy conditions.

When the motor labours the speed of the motor drops and you will hear a change in the motor sound, when this occurs stop mowing, release switch lever and raise the height of cut. Failure to do so could damage the machine.

Maintenance Blade Maintenance

Stop and remove plug from the power supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as a loose, dislodged or damaged blade, loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

If the mower should happen to fail despite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden products.

For all correspondence and spare parts orders, always include the 10-digit part number from the nameplate of the machine!

See "Height of Cut Adjustment".

After Mowing/Storage

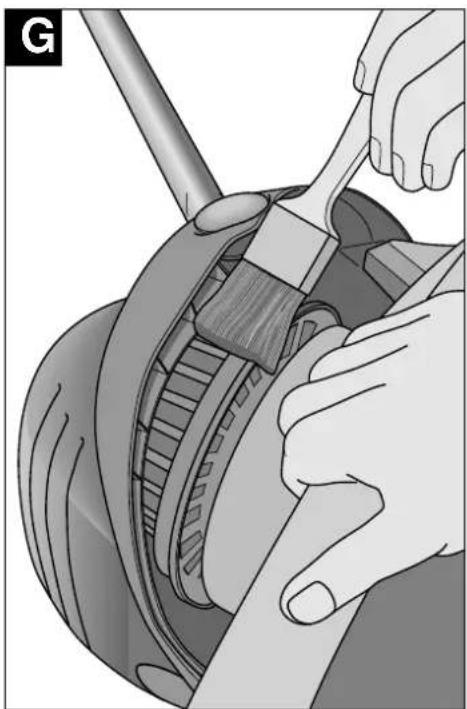

Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the air filter as in figure G.

Turn the machine on its right side and clean the blade area. If grass cuttings are compacted in the blade area, remove with a wooden or plastic implement such as the plastic spanner/scaper provided.

Store the machine in a dry place. Do not place other objects on top of the machine.

To aid storage loosen the wing nuts 8 and fold the handles.

Ensure cables are not trapped when folding/unfolding top handles, do not drop the handles.

Fault Finding

The following table gives checks and actions that you can perform if your machine does not operate correctly. If these do not identify/remedy the problem, contact your service agent.

Warning: Switch off and remove plug from mains before investigating fault.

Symptom Possible Cause	Remedy
Machine fails to operate P	Power turned offMains socket faultyExtension cable damagedFuse faulty/blownMower in long grass	Turn power onUse another socketInspect cable, replace if damagedReplace fuseIncrease height of cut and tilt mower
Machine functions intermittently	Extension cable damagedMachines internal wiring damaged	Inspect cable, replace if damagedContact Service Agent
Machine leaves ragged finishormotor labours	Height of cut too lowCutting blade(s) bluntUnderside of machine badly cloggedBlade fitted upside down	Increase height of cut (see “Height of Cut Adjustment”)Replace blade(s)(see “Blade Maintenance”)Clean machine(see “After Mowing/Storage”)Refit blade correctly(see “Blade Maintenance”)
Cutting blades not rotating	Cutting blade obstructedBlade nut/bolt loose	Clear obstructionTighten blade nut/bolt
Excessive vibration/noise	Blade nut/bolt looseCutting blades damagedFan damaged.	Tighten blade nut/boltReplace blade.Replace fan (contact service agent)
Poor hovering Blocked air	filterUnderside of machine badly clogged	Clean air filter (see “After Mowing/Storage”)Clean machine(see “After Mowing/Storage”)

Guarantee

We guarantee Bosch appliances in accordance with statutory/country-specific regulations (proof of purchase by invoice or delivery note).

Damage attributable to normal wear and tear, overload or improper handling will be excluded from the guarantee.

In case of complaint please send the machine, un- dismantled, to your dealer or the Bosch Service Centre for lawn and garden products.

Environmental Protection

The machine minimizes environmental impact because it runs at a low noise level.

The machine has been assembled in an environmentally responsible way.

Recycle raw materials instead of disposing as waste.

Machine, accessories and packaging should be sorted for environment-friendly recycling.

These instructions are printed on recycled paper manufactured without chlorine.

The plastic components are labelled for categorized recycling.

When the time comes to dispose of this product, please consider the environment and take it to a recognized recycling facility (please contact your local authority for location information).

Service

www.bosch-pt.com

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham-Uxbridge

GB-Middlesex UB 9 5HJ

© Service....+44 (0) 18 95 / 83 87 82

Fax Service....+44 (0)18 95 / 83 87 89

© Advice line.... +44 (0) 14 49 / 83 87 82

Fax [phone] / 83 87 89

Ireland

Beaver Distribution Ltd.

Greenhills Road

IRL-Tallaght-Dublin 24

© Service....+353 (0)1 / 45 15 211

Fax +353 (0)1 / 45 17 127

Australia

Robert Bosch Australia L.t.d.

RBAU/SPT2

1555 Centre Road

P.O. Box 66 Clayton

AUS-3168 Clayton/Victoria

C +61 (0)1 / 800 804 777

Fax +61 (0)1 / 800 819 520

www.bosch.com.au

E-Mail: [e-mail]

New Zealand

Robert Bosch Limited

14-16 Constellation Drive

Mairangi Bay

Auckland

New Zealand

Declaration of Conformity

Measured values determined according to

2000/14/EC (1.60 m height, 1 m distance away) and EN 25 349.

Typically the A-weighted noise level of the product is: sound pressure level 85 dB (A); sound power level 95 dB (A).

The typical weighted acceleration is 2.5 m/s ^4 .

We declare under our sole responsibility, that this product is in conformity with the following standards or standardization documents:

EN 60 335, EN 836 according to the provisions of the directives 89/336/EEC, 98/37/EC, 2000/14/EC.

2000/14/EC: The guaranteed sound power level L_WA is lower than 96. Conformity assessment procedure according to Annex VI.

Leinfelden, 01.02.2002.

Notified body: SRL Sudbury, England

Dr. Gerhard Felten Dr. Eckerhard Strötgen

ppa. Feisen

i.v. Puoyen

Subject to change without notice

After Sales Service Outillage

Rue Henri Genesse 1

BE-1070 Bruxelles

© +32 (0)2 / 525.50.29

Fax +32 (0)2 / 525.54.30

© Service conseil client.....+32 (0)2 / 525.53.07

E-Mail : [e-mail]

Suisse

Robert Bosch AG

Robert Bosch France S.A.

Service Après-vente/Outillage

© +54 (0)810 / 555 2020

E-Mail: [e-mail]

Peru

Autorex Peruana S.A.

© +39 02 / 3 69 66 63

Fax +39 02 / 3 69 66 62

I Parkeringsposition

'Υψοσ κοπήσ [mm] 10/32

Θέσεισ ρύθμισησ 4

Bápoo [kg] 6,5

Mòvωση

Αριθμόσ σειράσ

回 / Ⅱ

βλέπε τα δεδομένα

απόδοσησ που

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

TR-80670 Maslak/Istanbul

© +90 (0)212 / 335 06 00

Faks....+90 (0)212 / 346 00 48-49

Çevre koruma
