USER MANUAL AdvancedRotak 36V-40-650 BOSCH

3D rendered image of a lawn mower (no text or symbols visible)

English ...... Page 11

Français......Page 18

www.bosch-pt.com/serviceaddresses

Transport

Explanation of symbols - lawnmower

General hazard safety alert.

Read instruction manual.

Make sure that bystanders are not injured by foreign

objects being thrown away.

WARNING: Keep bystanders away.

WARNING: Keep hands and feet away from the blades.

WARNING: Disconnect battery before maintenance.

WARNING: Remove the disabling device before maintenance.

Not applicable.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Do not expose to rain.

Not applicable.

Not applicable.

Battery charger contains a safety transformer.

Only use the battery charger indoors.

Do not use a high-pressure washer or a garden hose to clean the machine.

Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the machine is in operation. Thoroughly check the working area and

tones, sticks, wires, bones and foreign objects. The machine, ensure that no wildlife, pets or amps are hidden in the dense grass.

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

12 | English

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.

Shorting the battery terminals together may cause burns or a fire.

▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Lawnmower safety warnings

▶ Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
▶ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
▶ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones, and other foreign objects. Thrown objects can cause personal injury.
Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.

▶ Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
▶ Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
▶ Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
▶ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
▶ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
▶ Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
▶ Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
▶ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
▶ Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.

Additional safety warning

When adjusting the machine, make sure not to pinch your fingers between the moving blades and fixed parts of the machine.
▶ Always allow the product to cool down before storing.
▶ Empty the grassbox before storing.

Operation

▶ We would advise you to wear ear protection for your own convenience.
▶ Wait until the blades stop if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.

14 | English

▶ Do not tilt the machine when starting or switching on the motor.
▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.
When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor.
▶ Only lift the garden tool with the carrying handle. Use the carrying handle with care.

Remove Isolator key:

• Whenever you leave the machine.
• Before clearing a blockage.
• Before checking, cleaning or working on the machine.
• After striking a foreign object. Inspect the machine for damage and change the blade as necessary.
• If the machine starts to vibrate abnormally (check immediately).

Leaf Collect

The leaf collect blade has been designed to allow you to pick up autumn leaves from your lawn. In order for this functionality to work within optimal parameters, please note the following:

• Only collect leaves with the machine set at maximum cutting height.
• Collect leaves from your lawn only.
• Before collecting leaves inspect the area where the machine is to be used and keep people, pets, glass structures and cars away from use.

Recommendations for Optimal Handling of the Battery Pack

▶ Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.

▶ When not using the machine detach the battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause bridging of the terminals. Shorting the battery terminals together may cause burns or a fire.
In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.

The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Do not short-circuit the battery. There is a risk of explosion.
▶ Occasionally clean the venting slots of the battery using a soft, clean and dry brush.
▶ Charge the machine only with the supplied battery charger.

Symbols

The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol Meaning
	Movement direction
	Reaction direction
	Wear protective gloves
	Weight
	Switching on
[5GB4]	Switching off
	Permitted action
	Prohibited action
CLICK	Audible noise
	Accessories/Spare Parts

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the end of this operating manual.

Intended Use

The garden product is intended for domestic lawn mowing.

The garden product is not intended for hedge cutting, trimming, shredding, etc.

The garden product is intended for lawn mowing at ground level.

Technical Data

Lawnmower AdvancedRotak 36V-40-650 AdvancedRotak 36V-44-750
Article number	3 600 HB9 F.. 3 600 HB9 G..
Rated voltage V 36 36
Cutting width cm 40 44
Height of cut mm 25 - 80 25 - 80
Capacity, grass bag l 50 50
Weight according to IEC 62841-1 / IEC 62841-4-3	kg 16.7 16.6
Recommended ambient temperature during charging	°C 0... +35 0... +35
Permitted ambient temperature during operation and storage	°C -20... +50 -20... +50
Battery type GBA 36V 2.0 Ah, 4.0 Ah,	6.0 Ah	GBA 36V 4.0 Ah, 6.0 Ah

All values in this manual are measured for usage below or equal to 2000 meters above nominal sea level.

Noise/Vibration Information

AdvancedRotak 36V-40-650 AdvancedRotak 36V-44-750
3 600 HB9 F.. 3 600 HB9 G..
Noise emission values determined according to EN IEC 62841-4-3:2021
Typically the A-weighted noise levels of the product are:
– Sound pressure level dB(A)		73 76
– Sound power level dB(A)		89 92
– Uncertainty K dB		= 3.0	= 3.0
Vibration total values ah (triax vector sum) and uncertainty K determined according to EN IEC 62841-4-3:2021
– Vibration emission value a _h	m/s ^2	2.5	3.0
– Uncertainty K	m/s ^2	1.5	1.5

The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one machine with another.

That the declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.

That the vibration and noise emissions during actual use of the machine can differ from the declared total value depending on the ways in which the machine is used; and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the machine is switched off and when it is running idle in addition to the trigger time).

Mounting and Operation

Action	Figure	Page

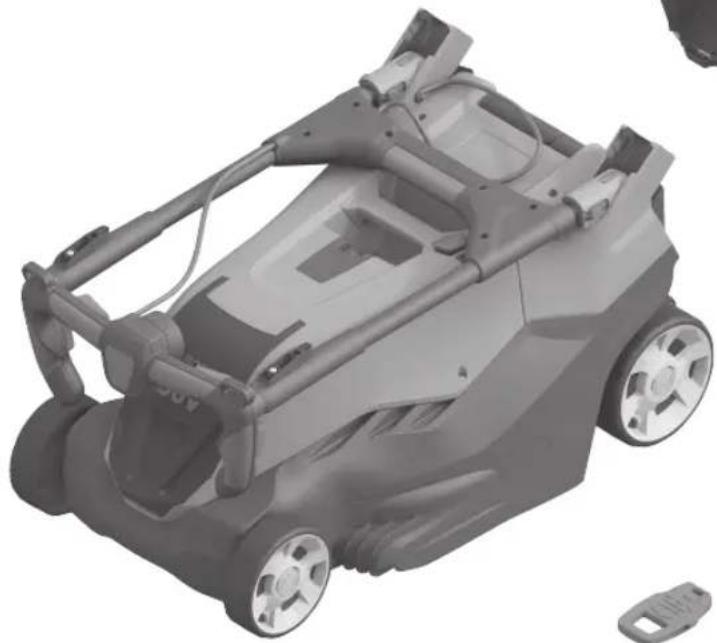

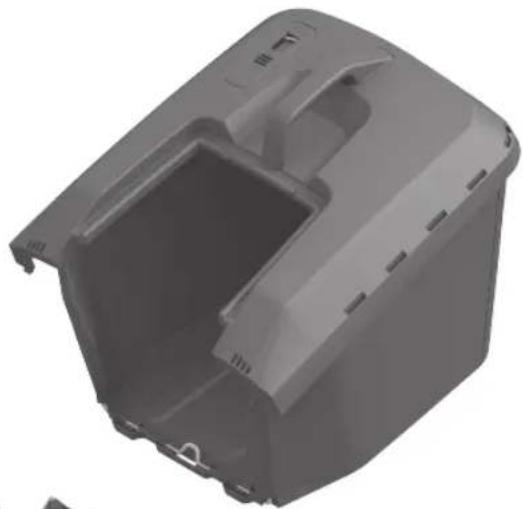

Delivery scope^A)	A	249

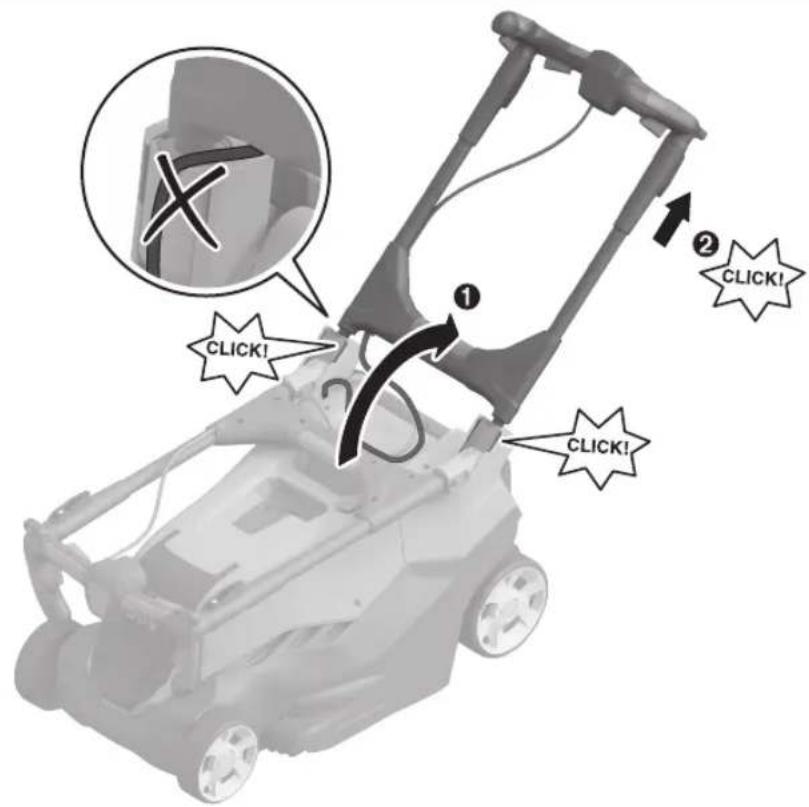

Mounting the handle	B	250

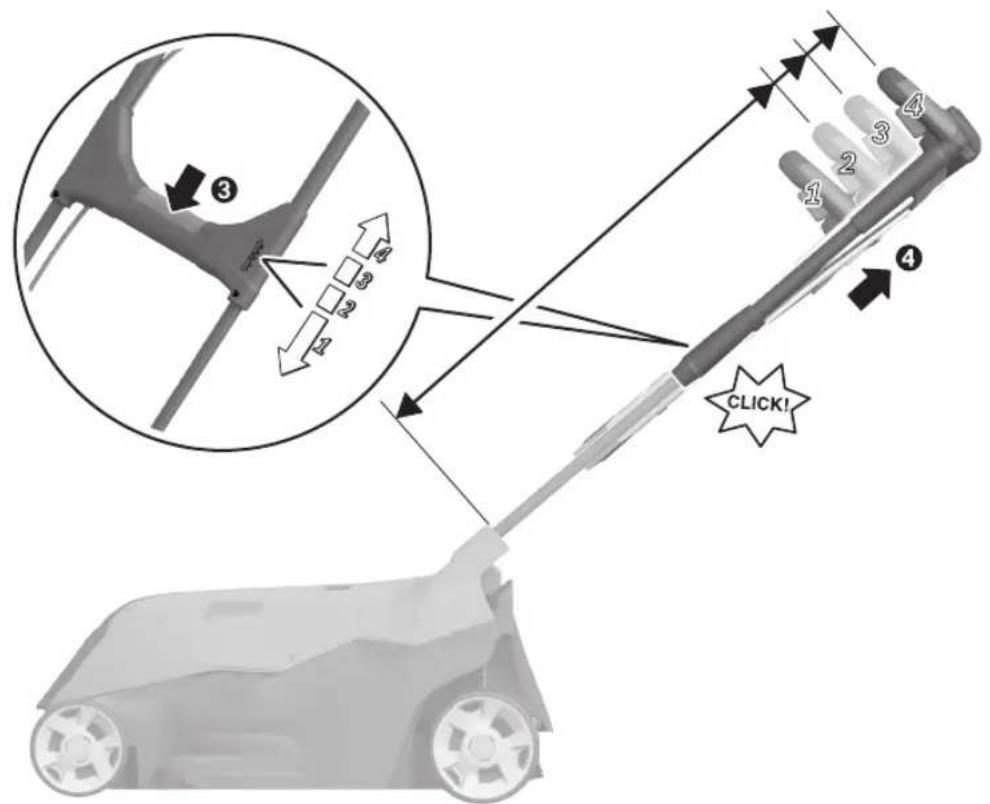

Adjusting the working height

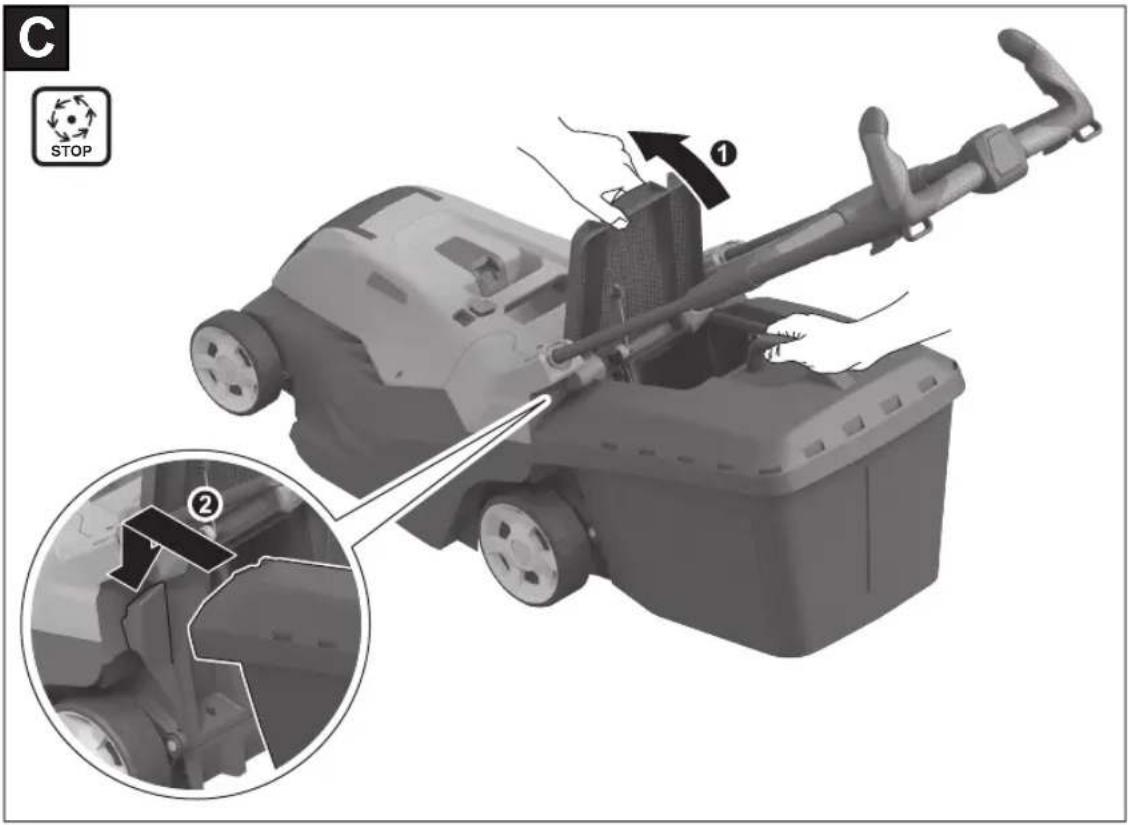

Fitting/removing the grassbox	C	251

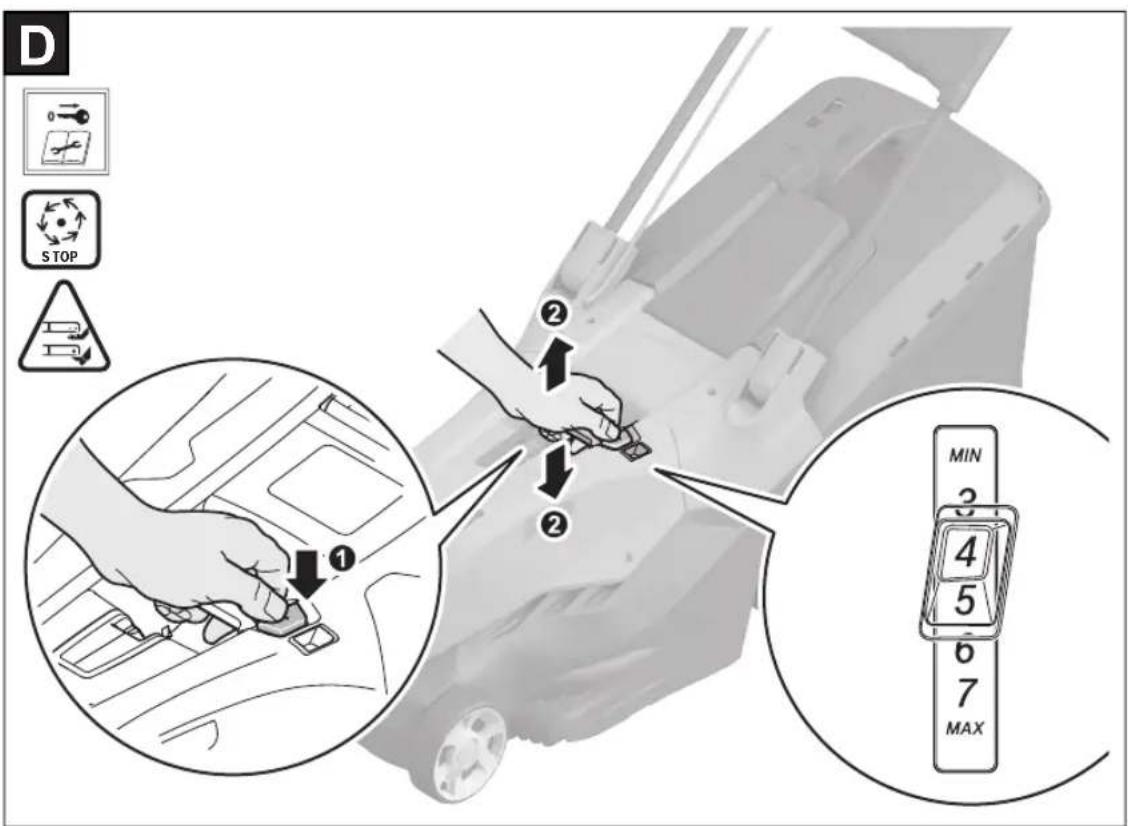

Setting the height of cut	D	251

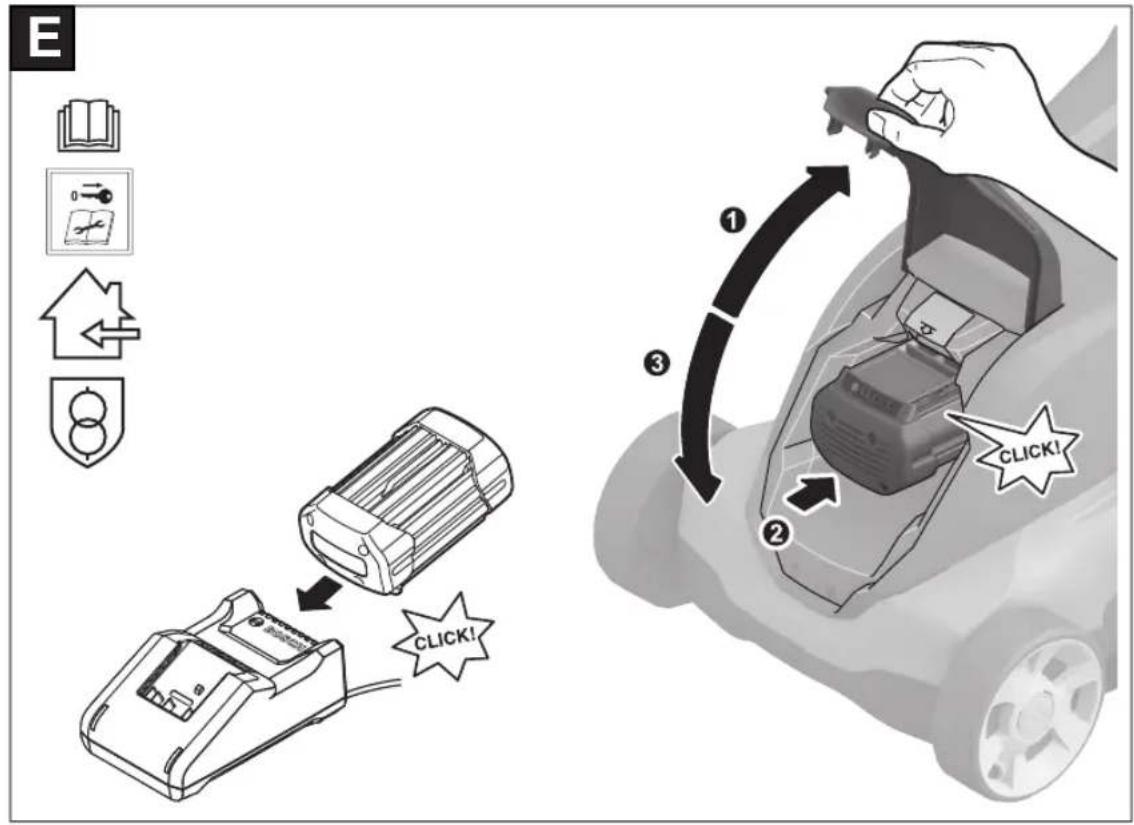

Inserting the battery	E	252

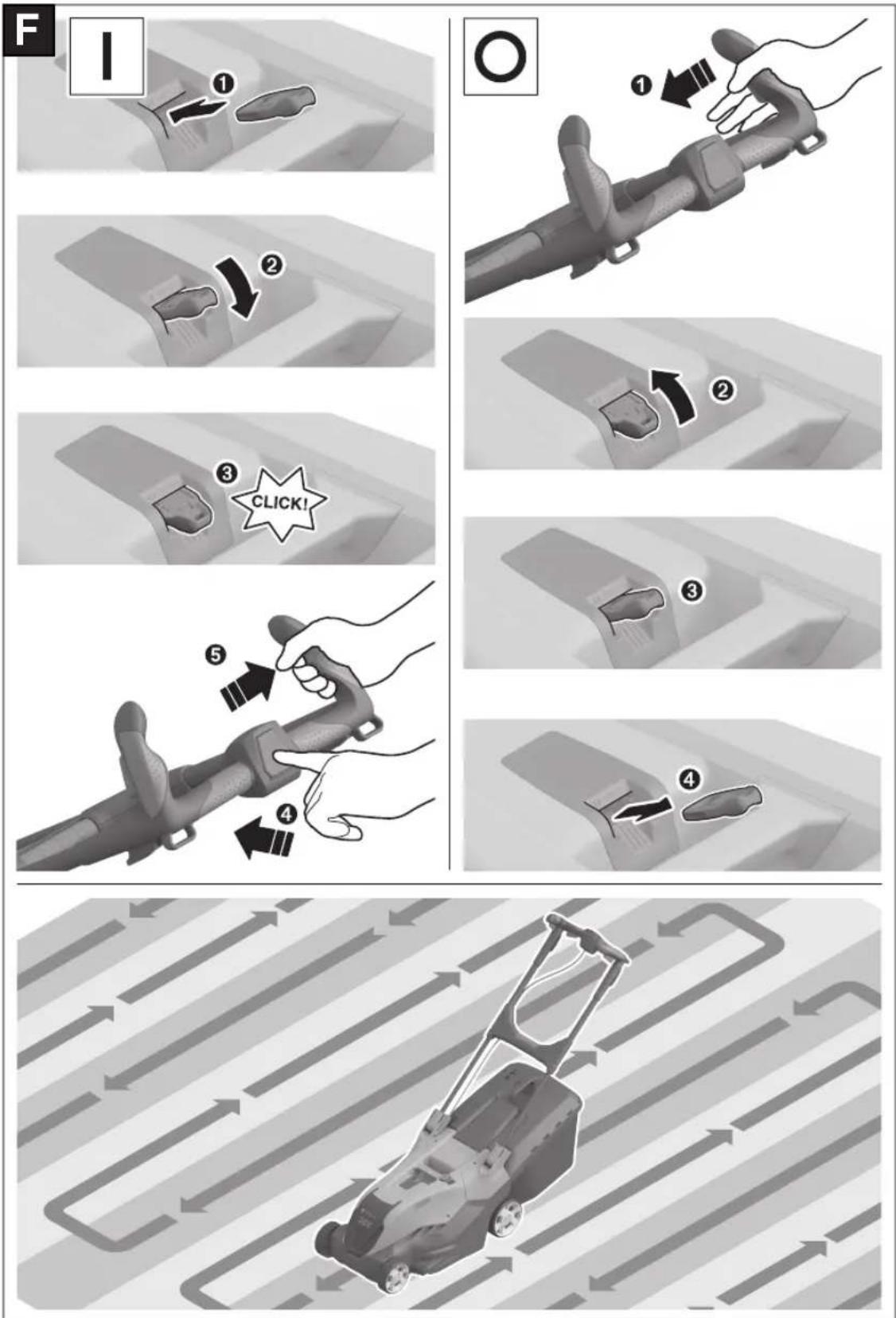

Operation- Inserting the isolator switch- Switching on- Mowing- Switching off- Removing the isolator switch	F	253

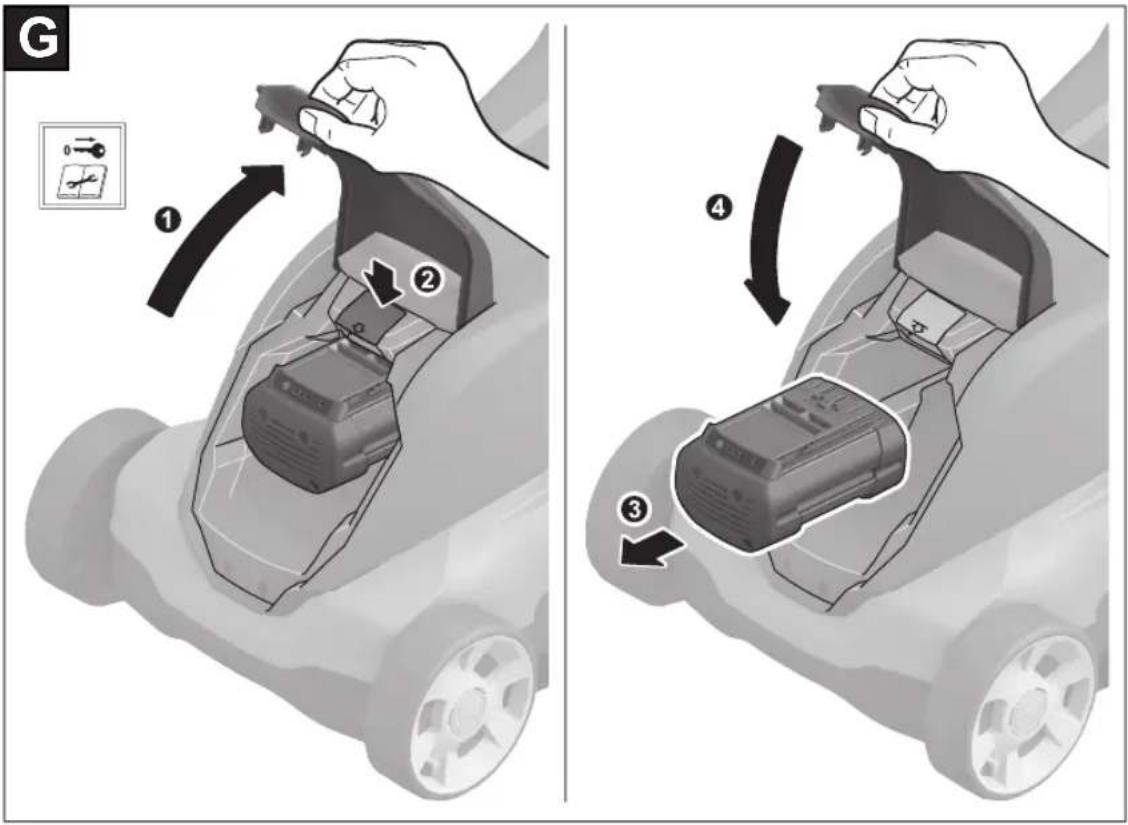

Removing the battery	G	254

16 | English

Action Figure Page

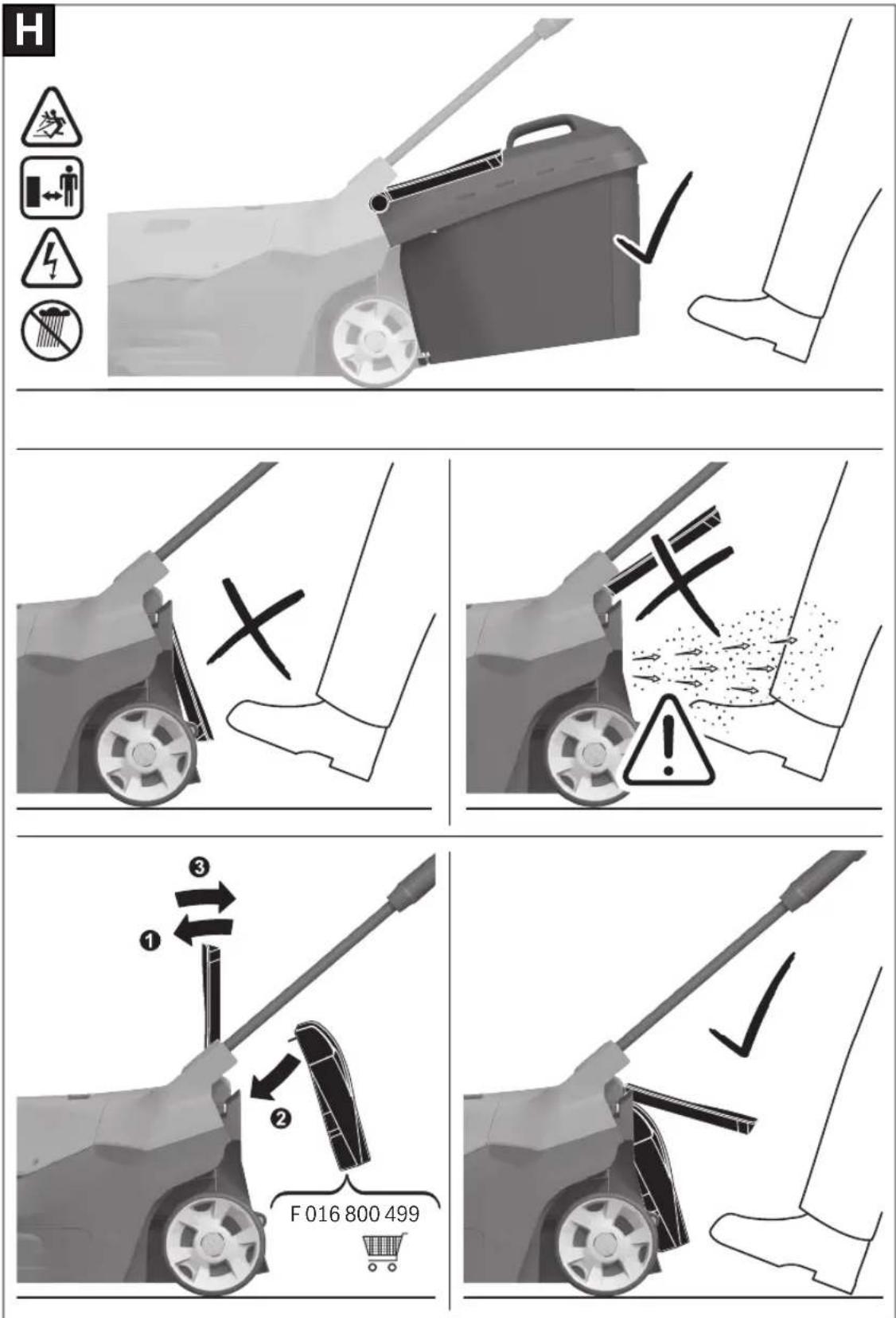

Working advice “mowing”	H	255

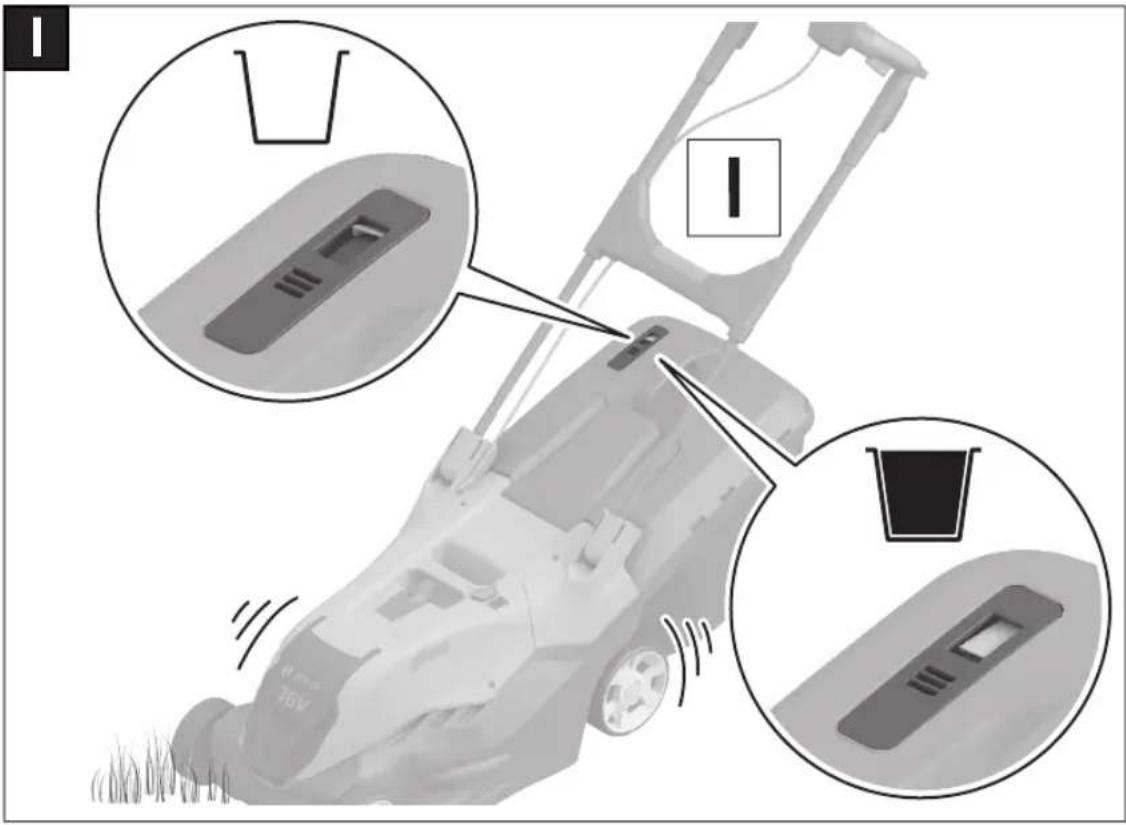

Level indicator, grassbox empty/full	I	256

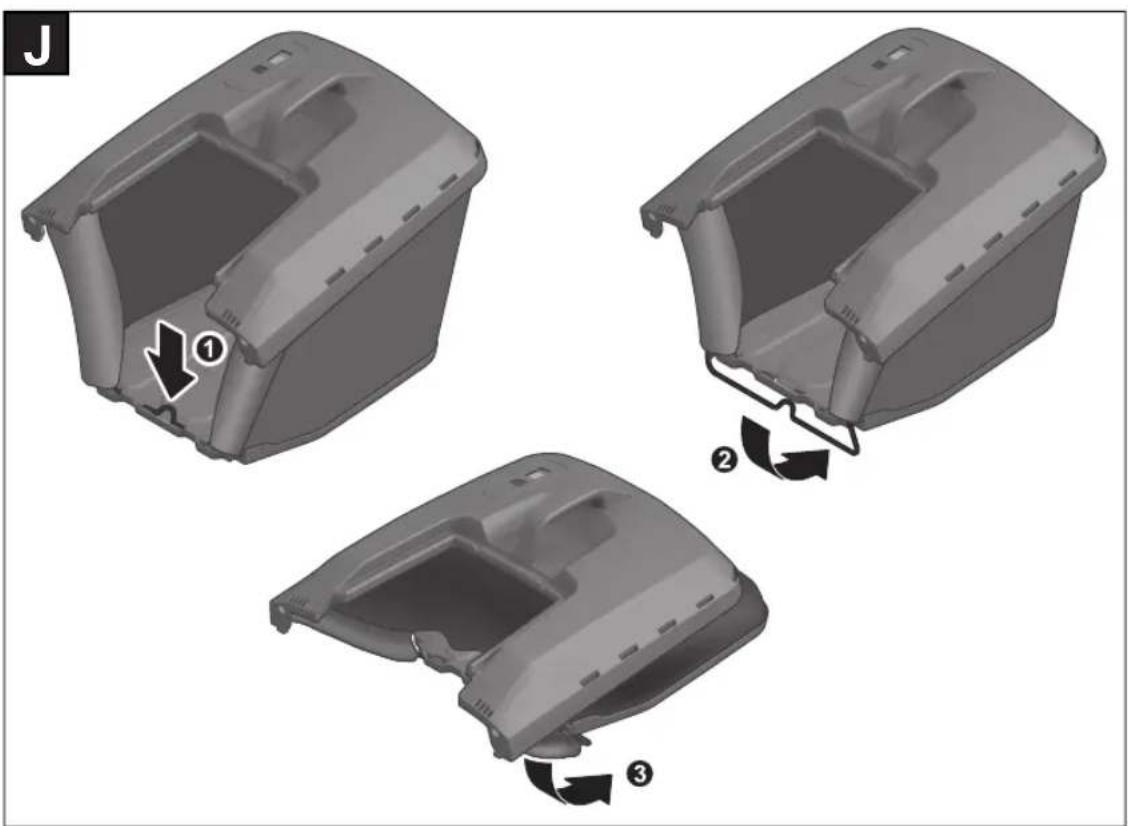

Folding the grassbox	J	256

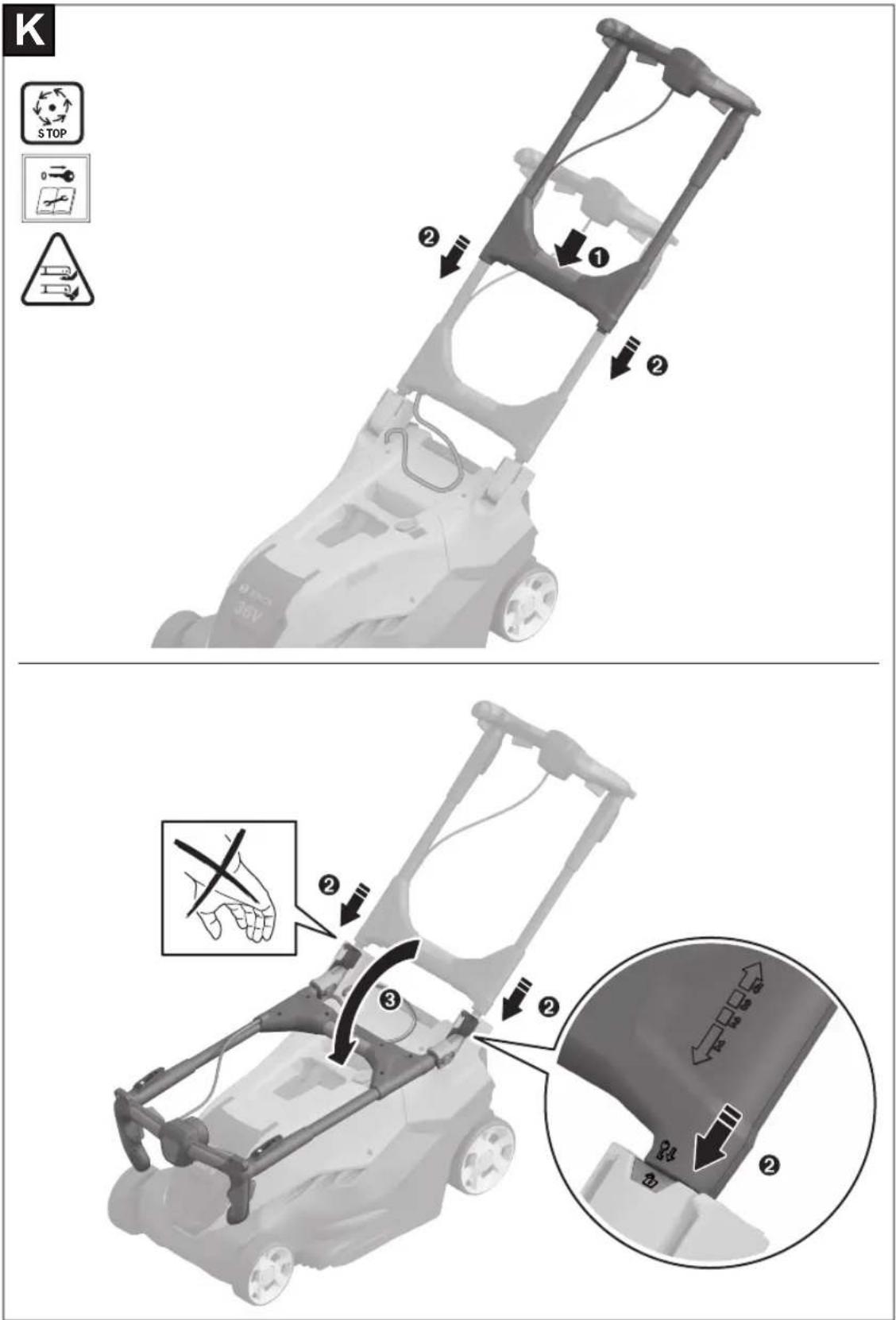

Fold down handle	K	257

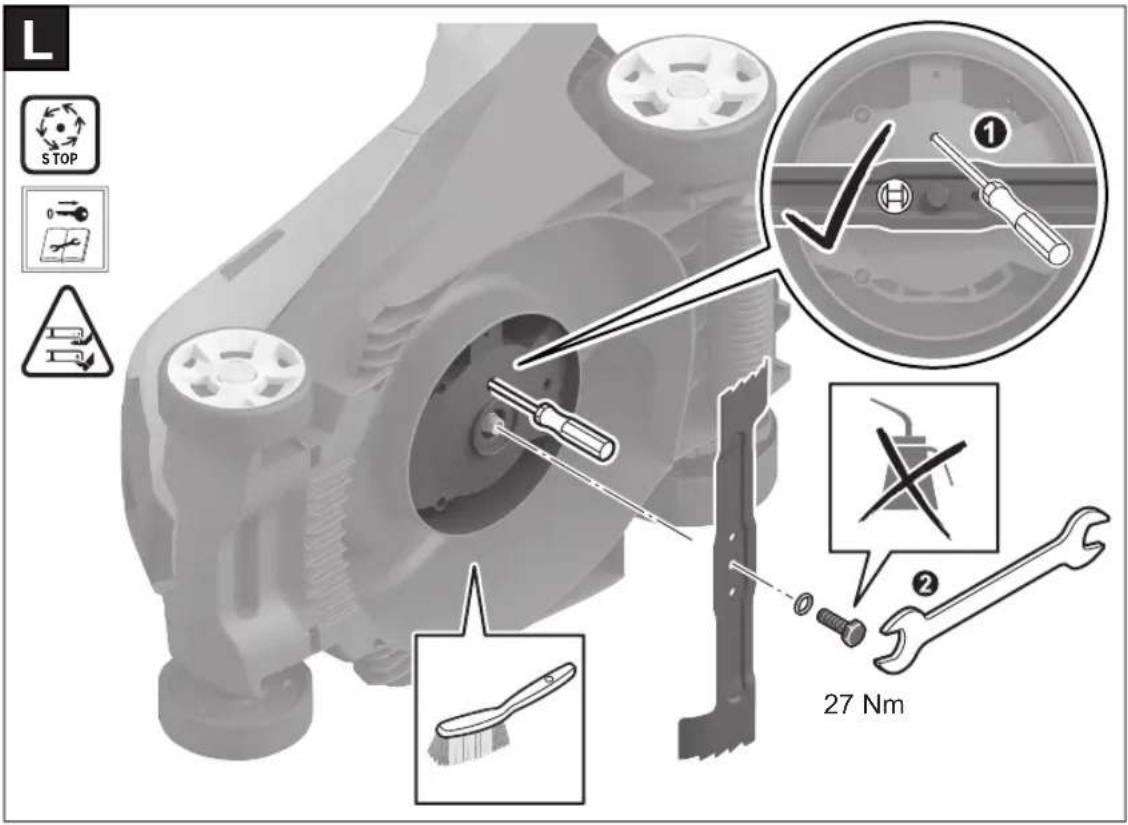

Blade maintenance/Blade replacement	L	258
Selecting accessories	M	258

A) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Starting Operation

For Your Safety

▶ Warning! Switch off, remove the isolator key and the battery before adjusting or cleaning. The same applies when the cable to the switch in the handle is damaged, cut or entangled.
The blade continues to rotate for a few seconds after the machine is switched off.
▶ Caution: Do not touch the rotating blade.
▶ Use only the chargers listed in the technical data. Only these battery chargers are matched to the lithium-ion batteries of your product.

Charging the Battery

The battery is equipped with temperature monitoring that allows charging only in the temperature range between 0 °C and 35 °C. In this manner, a high battery service life is achieved.

Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not cause damage to the battery.

The "Electronic Cell Protection (ECP)" protects the lithium-ion battery against deep discharging. When the battery is empty, the product is switched off by means of a protective circuit: The product no longer operates.

Do not continue to press the On/Off switch after an automatic shut-off of the product. The battery could become damaged.

Observe the notes for disposal of the battery.

Inserting/Removing the Battery

Note: Using unsuitable batteries can lead to malfunctions or damage the machine.

Insert the charged battery. Make sure that the battery is fully fitted.

To remove the battery from the machine, press the battery unlocking button and pull the battery out.

Working Advice

Cutting Capacity (Battery Operating Duration)

The cutting capacity (battery operating duration) depends on lawn properties, such as grass density, moisture content, grass length and height of cut.

Switching the machine on and off frequently during cutting will also reduce the cutting capacity (battery operating duration).

To improve the cutting capacity (battery operating duration), it is recommended to cut more frequently, increase the cutting height and walk at an appropriate pace.

The example below shows the connection between cutting height and cutting capacity with regard to three batteries.

Cutting Conditions

Very thin, dry grass

Cutting capacity

Battery with 2.0 Ah up to 250 m	^2
Battery with 4.0 Ah up to 500 m	^2
Battery with 6.0 Ah up to 750 m	^2

To increase the run time an additional battery can be purchased from an authorised customer service agent for Bosch garden products.

Troubleshooting

Problem Possible Cause Corrective Action

Motor refuses to start Internal wiring of garden tool defective Contact Bosch customer service agent

Battery discharged Recharge battery

Battery too hot/cold Allow to cool/warm

Grass too long Max. allowed grass height 30cm on highest

height-of-cut setting

Problem Possible Cause Corrective Action

	Motor protector has activated Allow motor to cool and increase height of cut
	Isolator switch not inserted correctly/fully Fit correctly
Garden tool functions intermittently	Internal wiring of garden tool defective Contact Bosch customer service agent
	Motor protector has activated Allow motor to cool and increase height of cut
Machine leaves ragged finishand/orMotor labours	Height of cut too low Increase height of cut
	Cutting blade blunt	Replace cutting blade (see figure L)
	Possible clogging Switch garden tool off and disengage isolatorswitchCheck underneath the garden product and clear out as necessary (always wear protective gloves)
	Blade fitted upside down Refit blade correctly
Blade not rotating while garden product switched on	Cutting blade obstructed Switch garden tool off and disengage isolatorswitchClear obstruction (always wear protective gloves)
	Blade nut/bolt loose Tighten blade nut/bolt (27 Nm)
Excessive vibrations/noise	Blade nut/bolt loose Tighten blade nut/bolt (27 Nm)
	Cutting blade damaged	Replace cutting blade (see figure L)

Maintenance and Service

Maintenance, Cleaning and Storage

Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the On/Off switch.

▶ For safe and proper working, always keep the product clean.

Do not place other objects on the garden product.

To ensure safe and efficient operation, always keep the product and the ventilation slots clean.

Never spray the product with water.

Never immerse the product in water.

Store the product in a secure, dry place, out of the reach of children.

Do not place other objects on the product.

Keep all nuts, bolts and screws tight to ensure safe working with the product.

Inspect the product and replace worn or damaged parts for safety.

Ensure replacement parts fitted are Bosch-approved.

When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor.

Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased risk of injury.

Battery Maintenance

Use the following procedures to enable optimum usage of the battery:

- Protect the battery against moisture and water.

• Store the machine and battery only within a temperature range between -20^ and 50^ . As an example, do not leave the battery in the car in summer.
• The battery must not be stored within the product but stored separately.
• Do not leave the battery in the product in direct sunlight.
• The ideal storage condition for the battery is 5^ .
• Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 95HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

18 | Français

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When shipping by third parties (e.g.: by air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Products, rechargeable batteries, accessories and packaging are to be recycled in an environmentally friendly manner.

Do not dispose of rechargeable batteries/batteries into household waste!

Only for EU countries:

According to European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed must be collected separately and be disposed of in an environmentally friendly manner. According to European Directive 2006/66/EG rechargeable batteries that are defect or no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Rechargeable batteries/batteries:

Li-Ion:

Please refer to the notice in section Transport (see "Transport", page 18).

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transporte

www.bosch-pt.com/serviceaddresses

Trasporto

www.bosch-pt.com/serviceaddresses

Vervoer

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Kuljetus

www.bosch-pt.com/serviceaddresses

Μεταφορά

Akü tipi GBA 36V2,0 Ah, 4,0 Ah,

6,0 Ah

GBA 36V4,0 Ah, 6,0 Ah

www.bosch-pt.com/serviceaddresses

Nakliye

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Přeprava

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Szállítás

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Транспортування

www.bosch-pt.com/serviceaddresses

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Transport

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Транспортиране

www.bosch-pt.com/serviceaddresses

Транспорт

– Nivo snage zvuka	dB(A)	73 76
– Nivo snage zvuka	dB(A)	89 92
– Nesigurnost K	dB	= 3,0	= 3,0

192 | Srpski

AdvancedRotak 36V-40-650 AdvancedRotak 36V-44-750
3 600 HB9 F.. 3 600 HB9 G..

Ukupne vrednosti vibracija ah (zbir vektora triju pravaca) i nesigurnost K su utvrđeni prema EN IEC 62841-4-3:2021
– Vrednost emisije vibracija ah	m/s ^2	2,5 3,0
– Nesigurnost K m/s	^2	1,5 1,5

Navedene ukupne vrednosti vibracija i navedene vrednosti emisije buke su izmerene prema normiranom postupku testiranja i mogu da se koriste za uporedivanje jednog električnog alata sa drugim.

www.bosch-pt.com/serviceaddresses

Transport

Preporučeni litijum-jonski akumulatori podležu zahtevima propisa o opasnim materijama. Korisnik može bez dodatnih uslova transportovati akumulatore na drumu.

Kod slanja preko trećih lica (na primer vazdušnih transportom ili špedicijom) mora se obratiti pažnja na posebne zahteve u pogledu pakovanja i označavanja. Tada se kod pripreme paketa za slanje mora pozvati stručnjak za opasne materije.

Akumulatorske baterije šaljite samo ako kućište nije oštećeno. Odlepite otvorene kontakte i upakujte akumulatorsku bateriju tako, da se ne pokreće u paketu.

Molimo da obratite pažnju na eventualne dalje nationalne propise.

Uklanjanje dubreta

Proizvode, akumulatore, pribor i pakovanja treba odvesti na ekološki savesno recikliranje.

Proizvode i akumulatore/baterije ne bacajte u kućni otpad!

Samo za EU-zemlje:

Prema Evropskoj direktivi 2012/19/EU proizvodi koji nisu više upotrebljivi, a prema Evropskoj direktivi 2006/66/EZ akumulatori/baterije koje su neispravne ili istrošene moraju da se odvojeno sakupe i podvrgnu ekološkoj daljnjoj obradi. Ukoliko se elektronski i električni uređaji otklone u otpad na neispravan način, moguće opasne materije mogu da imaju štetno dejstvo na životnu sredinu i zdravlje ljudi.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transportēšana

www.bosch-pt.com/serviceaddresses

Transportavimas

"Electronic Cell Protection/(ECP)"

Robert Bosch Morocco SARL

www.bosch-pt.com/serviceaddresses

النقل

www.bosch-pt.com/serviceaddresses

جمل دستگاه

Diagram showing a box with an arrow and a document labeled 'i+' (i+), likely illustrating a concept or concept related to information or information.

3D rendered image of a gray plastic container with internal compartments and mounting holes (no text or symbols)

3D rendered image of a lawn mower with visible wheels and structural components (no text or symbols)

Illustration of a handheld electronic device with labeled components (A) and 1x speed indicator (no text or symbols on the device itself)

AdvancedRotak 36V-40-650

(2x)

2.0 Ah36

AdvancedRotak 36V-40-650 AdvancedRotak 36V-44-750

4.0 Ah36

4.0 Ah36

AdvancedRotak 36V-44-750

6.0 Ah36

250

B

1 2 CLICK! CLICK!

Diagram illustrating the working principle of a lawn mower, showing parts numbered 1 to 4 and a click button.

C STOP ① ②

D STOP ① ② ② MIN 3 4 5 6 7 MAX

Bosch Power Tools F 016 L94 486 | (07.09.2023)

252

E 1 3 2 CLICK!

254

G ① ② ③ ④

256

Diagram illustrating the use of a lawn mower with labeled components and motion arrows, including a shopping cart and a bucket.

J ① ② ③

K STOP 0 2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84

258

L STOP 27 Nm

M

Metal bracket with bolt and nut, no visible text or symbols

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a handheld electronic device with a cable (no text or symbols)

AL36V-20

2.0 Ah
2607336913/
1 607 A35 02V/
1 607 A35 0PZ

Line drawing of a portable electronic device with ventilation grilles and control panel (no text or symbols)

4.0 Ah
2607336915/
2607337047/
1 607 A35 OR2

Line drawing of a portable electronic device with ventilation grilles and control panel (no text or symbols)

6.0 Ah
1 607 A35 058/
1 607 A35 ORC
