USER MANUAL ZHT611N ZANUSSI

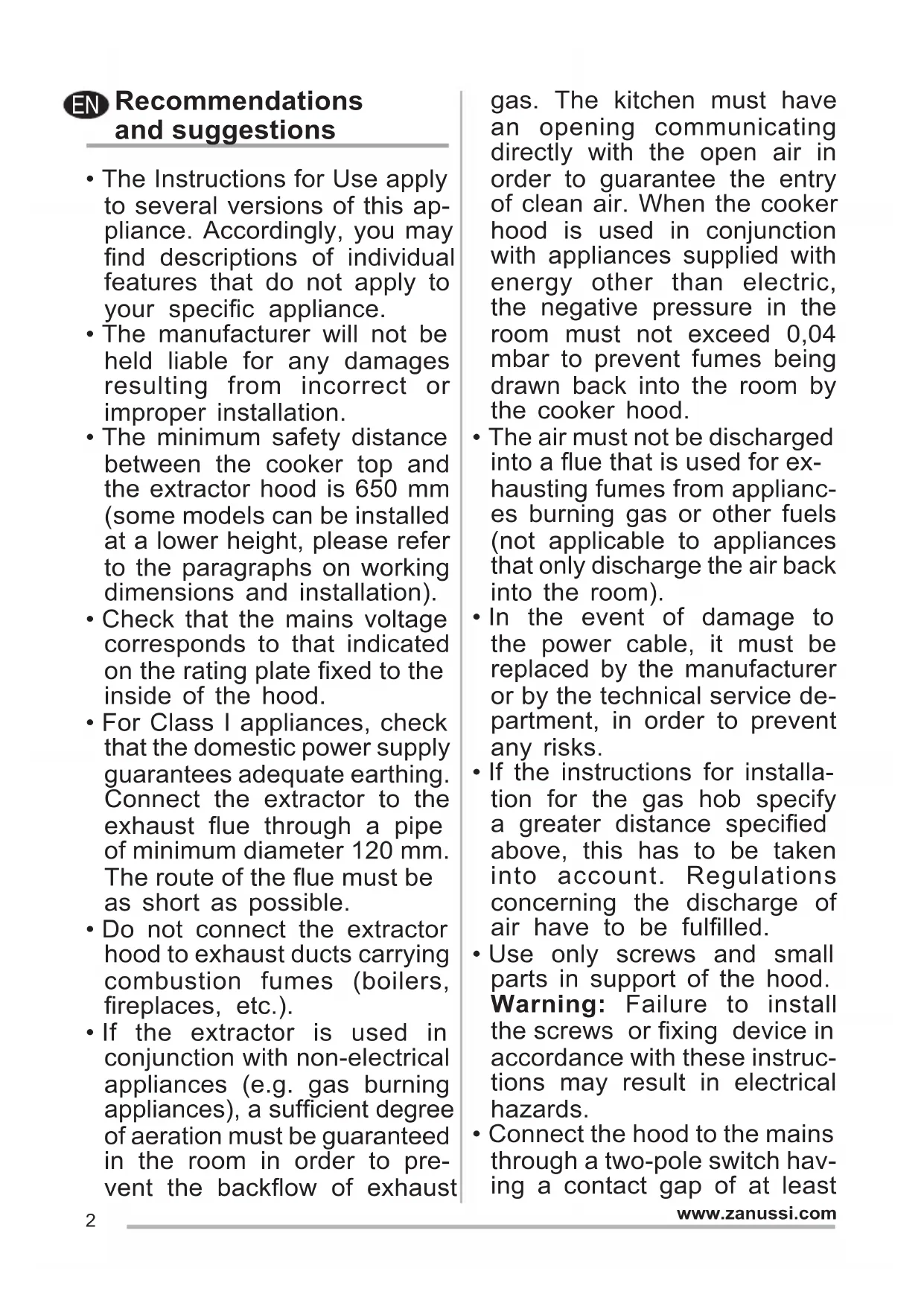

Recommendations and suggestions

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust

gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.

- If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

- Use only screws and small parts in support of the hood. Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Connect the hood to the mains through a two-pole switch having a contact gap of at least

3 mm.

Use

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capa-

bilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- "CAUTION: Accessible parts may become hot when used with cooking appliances."

Maintenance

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

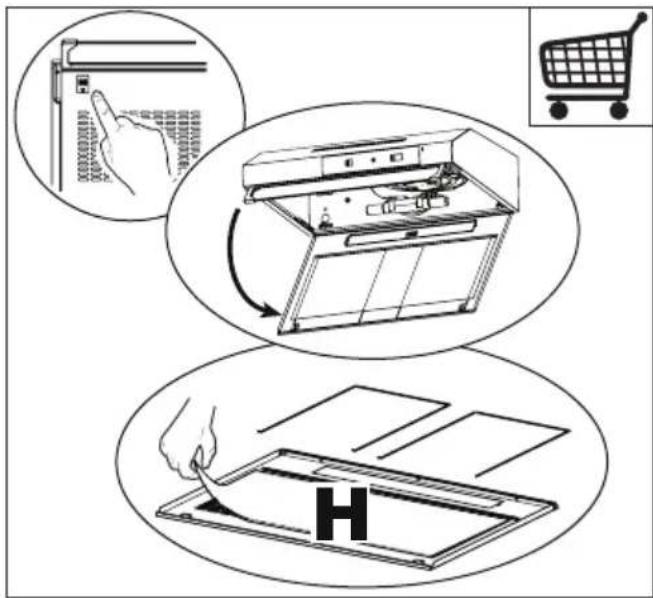

• Clean and/or replace the Filters after the specified time period (Fire hazard).

- This filter cannot be washed

and should be replaced every 2 months (H).

Diagram illustrating a hand using a computer to interact with an oven, showing steps to store and change the interior space.

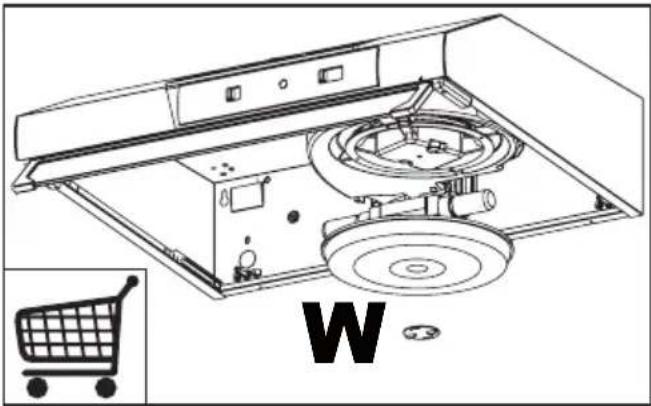

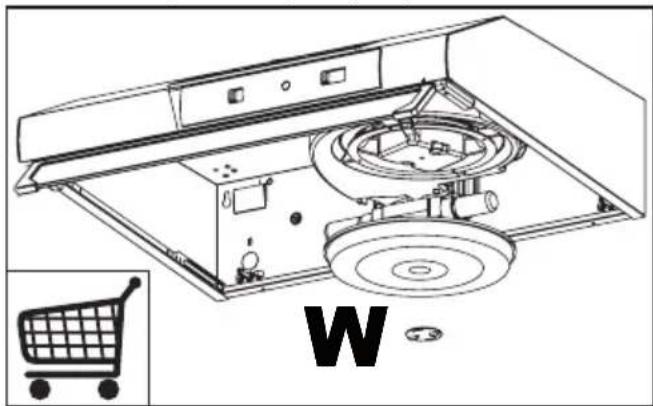

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

- Clean the hood using a damp cloth and a neutral liquid detergent.

Controls

L 0 1 V 0 1 2 3

L	Light Switches	the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

Lighting

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Lamp Power (W) Socket	Voltage (V)	Dimension (mm) ILCOS Code
[2TAA]	4 E14 220 – 240 107	x 37 DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand using a refrigerator to interact with an outdoor kitchen appliance, showing steps to store and clean the window.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

L 0 1 V 0 1 2 3

Diagram illustrating three steps of a device operation: adding a door panel, adjusting the interior panel, and using a tool.

Diagram illustrating three steps of a kitchen appliance: adding a door panel, moving the oven, and inserting a tablet with letter 'H' to form a paper.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of a device operation: adding a control panel, adjusting the interior shelf, and using a tool.

Ampoule Absorption (W) Culot Voltage (V) Dimensions (mm) Code ILCOS
[18CW]	4 E14 220	-240 107 x	37 DRBB/F-4-220-240-E14-35/100

NL Adviezen en suggesties

Diagram illustrating a hand inserting a device into an oven, with a shopping cart and a hand holding the screen.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Lamp Stroomopname (W) Aansluiting Voltage (V) Afmeting (mm) ILCOS-code
[TKTC] 4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100

Diagram illustrating a kitchen appliance operation with hand, hand gesture, and shopping cart icon

Technical line drawing of an open refrigerator with internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of a door switch operation: opening, rotating, and adjusting a tool.

Diagram illustrating steps to store a refrigerator, showing hand gesture, recycling, and packaging with 'H' label

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

L 杂 0 1 V ⊕ 0 1 2 3

Diagram illustrating three steps of a door opening process: hand press, folding, and using a tool.

Diagram illustrating a hand using a computer to interact with an open refrigerator, showing steps to store and print.

Technical line drawing of an open refrigerator with internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of a door opening process: hand press, folding, and using a tool.

Lampada Assorbimento (W) Attacco	Voltaggio (V)	Dimensione (mm)	Codice ILCOS
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

SV

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to press or adjust the refrigerator.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

L 0 1 V 0 1 2 3

Diagram illustrating three steps of a hand operating a refrigerator, showing hand positioning, folding, and tooling.

Lampa Förbrukning (W) Sockel Spänning (V) Mätt (mm) ILCOS art.nr
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

NO Anbefalinger og forslag

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to press or adjust the refrigerator.

Technical line drawing of an open kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Lampa Förbrukning (W) Sockel Spänning (V) Mätt (mm) ILCOS art.nr
[kboc]	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand using a computer to interact with an open refrigerator, showing steps to store and change the refrigerator.

Technical line drawing of a kitchen appliance with visible internal components and a shopping cart icon (no text or symbols)

L 0 1 V 0 1 2 3

Diagram illustrating three steps of appliance cleaning: opening a door, moving the oven, and adjusting a tool.

Lamppu Ottoteho (W) Kanta Jännite (V) Koko (mm) ILCOS-koodi
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

DA

Råd og anvisninger

Diagram illustrating a food delivery or storage procedure with hand, shopping cart, and paper handling steps

Technical line drawing of an open refrigerator with internal components and a shopping cart icon (no text or symbols)

L 0 1 V 0 1 2 3

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Diagram illustrating three steps of a refrigerator interior: opening, moving, and cutting the door panel with a hand using a tool.

Technical line drawing of a kitchen appliance with visible internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of a door opening process: hand press, folding, and using a tool.

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to press, rotate, and open the refrigerator.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Pirn Võimsus (W) Pesa Pinge (V)	Mõõtmed (mm) ILCOS kood
(ZDCK)	4 E14 220 – 240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to press or adjust the refrigerator interior.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: door opening, switch press application, and tooling a tool.

Lampa Jauda (W) Ligzda Spriegums (V) Gabariti (mm) ILCOS kods
[XSW]	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

LT

Diagram illustrating a kitchen appliance operation with hand gesture, battery panel, and shopping cart icon

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

L 0 1 V 0 1 2 3

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tooling a tool.

Lemputė Galingumas (W) Lizdas |tampa (V) Matmenys (mm) ILCOS kodas
[YZH]	4 E14 220 –	240	107 x 37	DRBB/F-4-220-240-E14-	35/100

UK

Diagram illustrating a food storage procedure with hand gesture, battery, recycling, and packaging steps

Technical line drawing of an open refrigerator with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, switch operation, and tool application.

Diagram illustrating a kitchen appliance installation process with hand, hand gesture, and hand-drawn sketch of the tray.

Technical line drawing of an open refrigerator with internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of appliance cleaning: adding a door panel, adjusting the interior shelf, and using a tool to adjust the floor.

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to press or adjust the refrigerator.

Technical line drawing of a refrigerator interior with wheels and control panel, showing no text or symbols

Diagram illustrating three steps of installing a door panel, showing hand positioning, assembly, and tool application.

Diagram illustrating three steps of a kitchen appliance installation: hand press, oven with cooling unit, and screen setup with letter H.

Technical line drawing of an open refrigerator with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Žiarovka	Príkon (W) Prípojka Napätie (V) Rozmer (mm) Kód ILCOS
	4 E14 220 – 240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand using a computer to interact with a kitchen appliance, showing steps from receipt to packaging and recycling.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of a door switch installation: pointing, rotating, and adjusting a tool.

Bec Putere absorbită (W) Dulie Tensiune (V) Dimensiune (mm) Cod ILCOS
[docet]	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100

PL

Uwagi i sugestie

Diagram illustrating home appliance repair steps with hand, battery, door switch, and hand holding a letter H

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tooling a tool.

Diagram illustrating a hand using a computer to interact with an open refrigerator, showing steps from phone scanning to screen editing.

- Filtar s aktivnim ugljenom nije periv i nije obnovljiv i mora se zamijeniti otprilike svaka 4 mjeseca rada ili češće u slučaju vrlo intenzivnog korištenja (W).

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

- Očistite napu koristeći vlažnu krpu i neutralni tekući deterdžent.

Komande

L 素 0 1 V ⊕ 0 1 2 3

L $vjetla Pali i gasi rasvjetni uređaj.
V Brzina Određuje brzinu rada:
	0. Motor Off1. Najmanja brzina, prikladna za stalnu izmjenu zraka, posebno tiha, kod male prisutnosti isparavanja od kuhanja.2. Srednja brzina, prikladna za jnajveći dio uvjeta korištenja, budući da ima izvrstan odnos između dometa obrađenog zraka i zvučne razine.3. Najveća brzina, prikladna za suočavanje s maksimalnim emisijama para od kuhanja, također na dulje vrijeme.

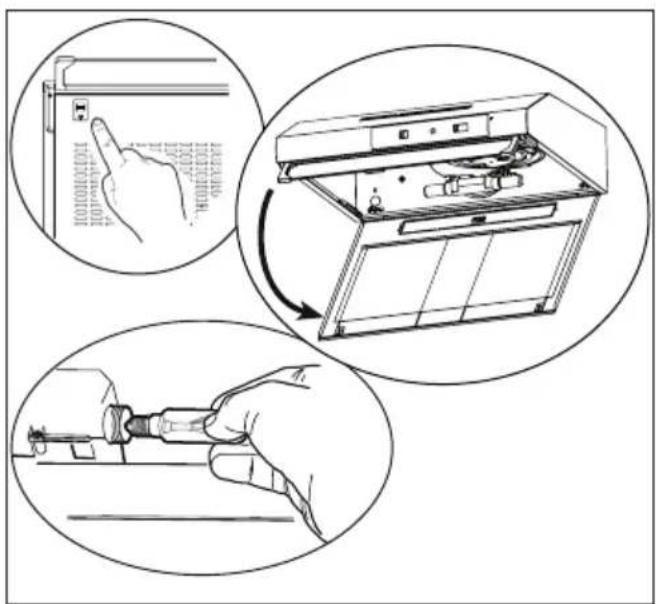

Rasvjeta

Diagram illustrating three steps of a door switch installation: pointing, rotating, and using a tool.

Žarulja	Apsorpcija (W)	Grlo žarulje	Voltaža (V)	Dimenzije (mm)	Sustav označavanja ILCOS
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing step-by-step instructions for cleaning and packaging.

Technical line drawing of an open refrigerator with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, switch, and tool application with labeled parts.

Svetilka Absorpcija (W) Vtičnica	Napetost (V)	Mere (mm) Koda ILCOS
^[142W]	4 E14 220 –	240 107 x 37 DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand using a computer to interact with an oven, showing steps to store and print.

Technical line drawing of a refrigerator interior with visible door, wheels, and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of a door opening process: pointing, rotating, and adjusting a tool.

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to switch from phone to screen and change.

Technical line drawing of an open refrigerator with internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of a door opening process: hand press, folding, and using a tool.

Ampul Ampul Gücü (W) Duy/Soket	Ampul Voltajı (V) Boyut (mm) ILCOS	Kodu
	4 E14 220 – 240 107 x 37	DRBB/F-4-220-240-E14-35/100

BG Съвети и трикове

Diagram illustrating a hand inserting a device into an oven, with a shopping cart and a labeled panel marked 'H'.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: door panel, open refrigerator with scroll, and tool application.

Крушка Мощност (W) Фасунга Напрежение (V) Размери (mm) Код по LCOS
[25HT]	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand inserting a device into an air conditioner unit, with a shopping cart and a hand inserting a tablet labeled 'H'.

Technical line drawing of a kitchen appliance with visible internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of a door opening process: hand press, folding, and using a tool.

Diagram illustrating a hand using a computer to interact with a laptop, showing steps from menu to screen and tablet display.

Technical line drawing of a refrigerator interior with visible wheels and control panel (no text or symbols)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tool application.

Diagram illustrating a home appliance repair process with hand, hand gesture, and hand holding a paper labeled 'H'

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: hand press, washing machine, and tooling a tool.

Llamba Absorbimi (W) Spina Voltazhi (V) Përmasa (mm) Kodi ILCOS
[2017]	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to press or install.

Technical line drawing of a kitchen appliance with a shopping cart icon and 'W' label (no text or symbols on the diagram itself)

Diagram illustrating three steps of appliance cleaning: door opening, washing machine, and tool application.

Diagram illustrating a hand operating a refrigerator with a shopping cart icon, showing steps to switch from the refrigerator to screen and then to a laptop.

Diagram of a kitchen appliance with visible internal components and a shopping cart icon (no text or symbols)

Diagram illustrating three steps of appliance cleaning: adding a switch, opening the oven, and using a tool.

www.zanussi.com/shop
