USER MANUAL TRT180 H.KOENIG

Keep this manual for future use.

Please read this manual since it contains important information on the safety, use and maintenance of your appliance. Keep it in a safe place for future reference.

• This appliance may be used by persons with reduced physical, sensory or mental capabilities or lack of experience or knowledge, provided that they are supervised or instructed in the safe use of the appliance and that they fully understand the potential hazards. Children should not play with the device.
• Do not let children play with the appliance or use it without surveillance.
• Once unpacked, make sure the product comes complete with all its accessories. Should this is not the case, do not use the appliance and contact the maker.
• Do not leave the packaging material, specially the plastic bags within children's reach.
  The electrical safety of this appliance can only be guaranteed if your home's electrical installation's voltage is compatible with its requirements. The maker cannot be held responsible for any damage caused by an electric shock. If in doubt, contact a qualified professional.
• Should the appliance be damaged or out of order, send it for repair through the after sales services available in your town. In case of damage or malfunction, unplug the appliance and never try to fix it. Contact a qualified professional for all repairs.

This appliance is designed for domestic use only.
Using the appliance for any other purpose than the ones described in this manual could cause a risk of injury or damage. The maker cannot be hold responsible for any damage or injury due to the misuse of the appliance.
- To avoid any risk of electrocution, never immerse the appliance, power cord or plug into water or any other liquid.
- Some parts of the appliance can heat up during usage, make sure you use the handle to avoid any risks of burns.
Attention: When the appliance is running, it can reach very high temperatures. Precautions must be taken to avoid the risk of burns, fire or any other damage that may be caused to its immediate surroundings or to any other appliance in the proximity. Use the handle to open and close the tray while in use and after cooling down.
After using the appliance, be careful not to put your head above the appliance or too close to it when you open the tray as steam may be released and cause severe burns.
- Always unplug the appliance and allow it to cool down completely before removing the accessories, cleaning or storing it.
- Do not let the power cord of the appliance hang from the surface on which it rests or be in contact with a hot surface.
- Do not place the appliance on or near a gas burner, an oven or a running microwave.
- Do not use abrasive cleansers.

• Leave enough space around the appliance for proper air circulation. Do not let the machine get in contact with curtains, wallpaper, towels or any other flammable materials during use.

Attention: On surfaces that cannot withstand heat, it is recommended to use a trivet.

. Do not use the appliance if the power cord or the plug is damaged as this could cause injuries. Get it checked and / or repaired by a qualified professional.
- The usage of accessories not recommended by the maker may damage the unit.
- This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
- Keep the appliance and its power cord out of reach of children under 8 years of age.
- When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.
- Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

• Never leave the unit unattended while in operation.
• Your appliance has been designed for domestic use only. It is not intended for use in the following situations which are not covered by the warranty:
• • in staff kitchen areas in shops, offices and other professional environments,

• in farm hostels,

• by guests in hotels, motels and other residential environments,

• • in bed and breakfast type environments.
• Never open the appliance from the front, always position yourself slightly to the side to avoid burning yourself with steam.

The appliance is not intended to be operated by an external timer or by a separate remote control system.

MAIN CHARACTERISTICS

• Non-stick plates for easy cleaning.
• Double power indicators: "power" and "ready".
• A tilting amplitude going from 105^ to 180^ for multiple uses.
• A temperature selection button and a timer for perfect cooking.

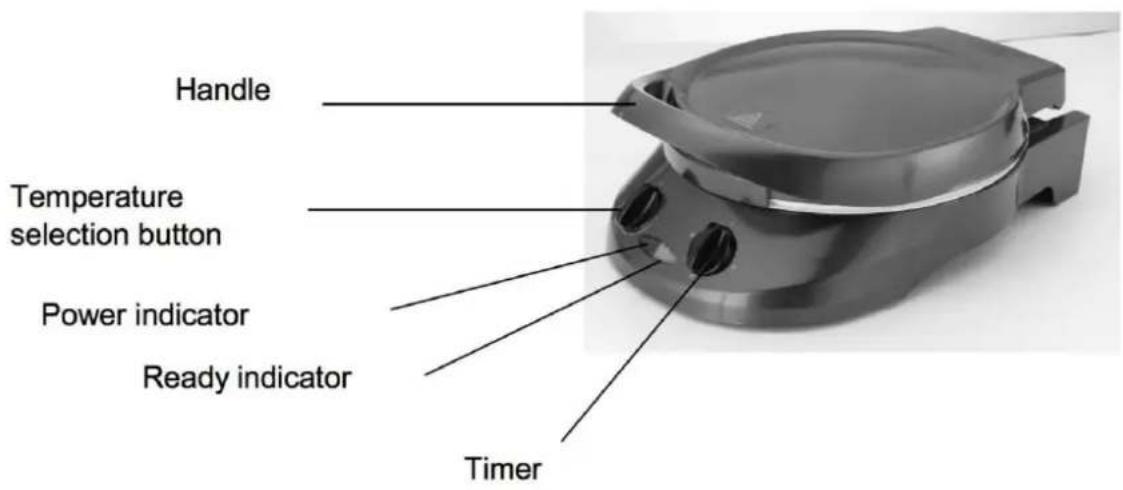

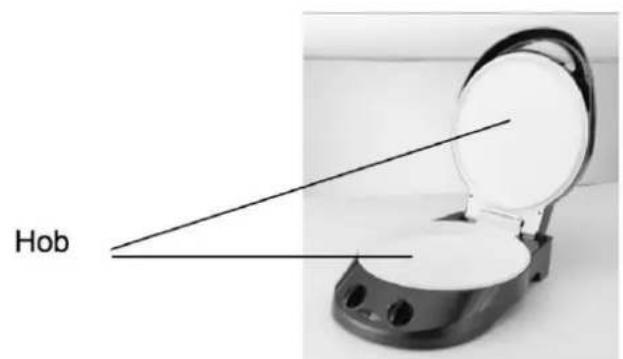

COMPONENTS

BEFORE USE

1. Remove all packaging and labels.
2. Clean the tray with a wet cloth or sponge to remove any dirt. Wipe it with a soft cloth or paper.
3. Choose a place where the appliance can be used with enough space between the appliance and the wall to allow the heat to circulate without damaging your furniture or walls.
4. Plug the appliance and turn the temperature button clockwise to the desired temperature. Preheat the appliance for 3-5 minutes before use. Preheating is complete when the green indicator turns off. For the first use, it is recommended to put a little oil or grease on the hobs. For pizza : 12 to 15 minutes depending on the thickness of the dough.

For frozen pizza : 15 to 20 minutes depending on the thickness of the dough. When the timer reaches zero, it's ready!

If the timer and the temperature buttons are set to zero, the dishes will not heat.

Do not use metal utensils to remove the hob as they may damage the non-stick coating. Always use a wooden or a heat resistant silicone spatula.

1. When you cook, try to avoid any spillage in the gap between the heating plates and the appliance's main body as thin can be really hard to clean.

Important : Steam can escape between the plates, be careful with your hands and face.

1. After usage, unplug the appliance and let it cool before cleaning and storing it.

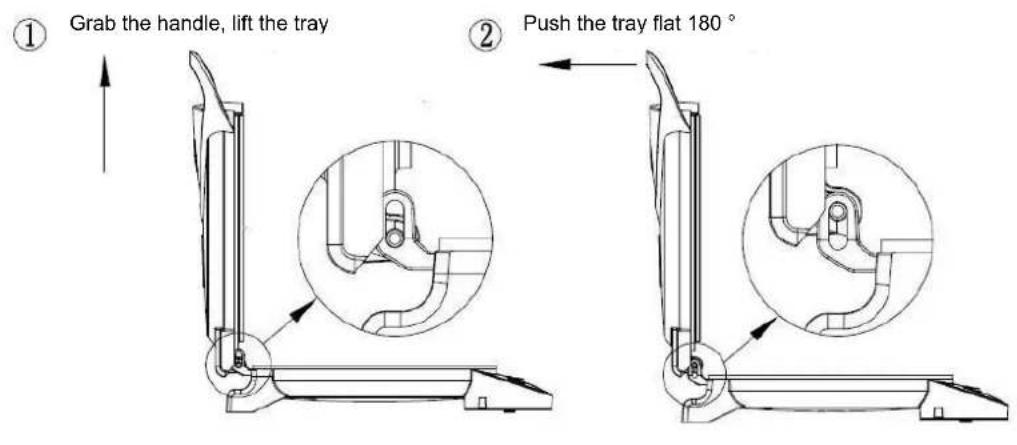

How to open the grill to 180 degrees

When the appliance is open to 105^ , lift the tray with both hands to make it slide into the hinge and set it to open at 180^ . (See pictures below).

CLEANING

Important: unplug the appliance and let it cool down completely before cleaning. Never immerse the machine into water or any other liquid.

1. Wipe the lid, base and hob with a wet cloth and a non-abrasive soap or dishwashing detergent.
   Wipe with a clean with a soft wet cloth. Dry with a soft towel.
2. Store the appliance in a clean and dry place.
3. Never store the appliance when it's hot or still plugged.
4. Never wrap the cord around the appliance. Do not exert pressure on the cord connection as this may damage it.

Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.

COOKING TIME

• Pizza (frozen dough for baking) 370 grams : 9 min
• Pizza (precooked frozen dough) 400 grams : 9 min
• Pizza (unfrozen dough) 550 grams : 13 min
  Pie (frozen dough) 295 grams : 8 min
• Flammenkueche (frozen raw) 260 grams : 8 min
  Apple pie (unfrozen dough) 700 grams : 25 min
• Quiche Lorraine (unfrozen dough) 360 grams : 18 min
• Cake : approximately 3-5 min

Temperatures buttons are graduated from 1 to 3 corresponding to the following temperatures:

1-100°C 2-155°C 3-210°C

SPECIFICATIONS

Voltage:220-240V

Frequency:50/60Hz

Power:1800W

CAUTION :

the button behind the appliance only controls the superior hot plate. To turn theappliance off you have to fullyunplug it.

WARRANTY

The warranty period for our products is 2 years.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION :

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local

authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be

recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com - [e-mail] - [e-mail] - Tel: [phone]
