USER MANUAL Perfect Air ZV2000 Concept

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

Technical specifications
Voltage 220-240 V~, 50-60 Hz
Input 30 W (cold vapour), 110 W (warm vapour)
Water tank capacity 5 l
Humidifier's power output 400 ml/h

IMPORTANT SAFETY INFORMATION

• Do not use the appliance in any other way than as described in this manual.
• Remove all the packaging and marketing materials before first use.
• Make sure the mains voltage corresponds to the values on the rating plate of the device.
• Place the appliance on a flat stable surface aside from any heat sources.
• Do not leave the appliance unattended when it is switched on or plugged into an electrical outlet.
• When plugging in and unplugging the appliance from an electrical outlet, the on/off button must be turned off.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.
• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.
• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions.
• Pay extra attention if the appliance is used near children.
• Do not allow the appliance to be used as a toy.

EN

concept

concept

• Never put your fingers or any other objects into the openings of the appliance.
• Never use the appliance without cover grilles.
• Do not let small children and sick persons to be exposed to direct air flow.
• Do not cover the appliance with any objects.
• Do not place any objects on the top or in front of the appliance.
• The appliance must be used in the upright position only.
• Do not use the appliance near a shower, bathtub, sink or swimming pool.
• Do not use the appliance in a damp or dusty environment.
• Do not use the appliance in an environment where explosive gases and flammable substances (solvents, varnishes, adhesives, etc.) are present.
• Place the humidifier next to the inner wall near the electrical outlet. To achieve the highest possible efficiency, the humidifier should be placed at least 10cm from the wall.
• Do not fill the humidifier with water if it is plugged into the socket, always disconnect it from the mains first.
• Place the humidifier on a stable, flat surface, at least 60~cm above floor level.
• Do not point the vapour outlet directly against the wall.
• When it is not being used, always disconnect it from the mains.
• Do not tilt, empty or move the appliance, when it is being used.
• Remove the appliance from the mains before moving the appliance and handling the water tank.
• Do not pour the water into any other openings of the appliance, pour it into the water tank only.
• Excessive humidity may cause condensation of water on windows and furniture. If this happens, turn the humidifier off.
• Before assembly and disassembly, disconnect the appliance from the mains.
• Before cleaning and after use of the appliance, switch off the appliance and disconnected from the mains.

• Keep the appliance clean, do not allow foreign objects to penetrate the grille openings. It could cause serious injury, short circuit, damage to the appliance or cause fire.

• Do not use coarse and chemically aggressive substances to clean the appliance.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.
• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.
• Do not use the appliance outside.
• The appliance is only suitable for home use and is not intended for commercial use.
• Do not touch the appliance with wet hands.
• Do not immerse the power cord or the plug in water or any other liquid.
• Do not repair the appliance yourself. Contact an authorized service centre.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Children under the age of 8 must be kept away from the appliance and its power cord. Children shall not play with the appliance.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

SAFETY INFORMATION

Note: The humidifier, as an electrical appliance, requires attention during operation.

Note: If moisture is formed on the walls or windows, switch off the humidifier. Excessive humidity in the room may cause damage. Do not block the air inlet or outlet.

concept

concept

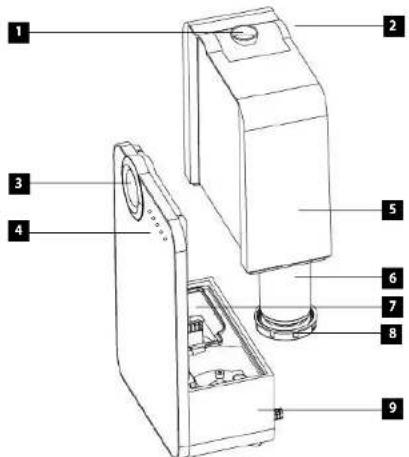

PRODUCT DESCRIPTION

1 Steam output
2 Handle
3 Night lightening
4 Control panel
5 Water tanl
6 Additional filter
7 Converter
8 Water tank lid
9 Base

USE

BEFORE FIRST USE

1. Make sure the appliance is switched off and disconnected from the mains.
2. Place the humidifier on a flat surface at least 60~cm above the floor level and 10~cm from the wall. We do not recommend placing the humidifier on expensive furniture.

3. Instructions for filling the water tank

4. Lift the tank from the base upwards and remove it (see figure above).

5. Turn the tank upside down, unscrew the container lid on the bottom by turning it counterclockwise and fill the tank with fresh cold water.
   DO NOT FILL THE TANK WITH HOT WATER, IT MAY DAMAGE THE DEVICE.

6. After filling the tank, screw the cover clockwise and place the tank back on the stand. Water automatically starts flowing itself into the base.

7. Connect the power cord into the wall outlet.

WARNING!

The handle on the rear wall of the container serves only to remove the tank from the device, not for holding the entire device. Careless handling can cause the appliance to tip over and spill water from the base.

OPERATION MANUAL

Power

65% 55% 45%

HML

A

B

C

D

E

A) Main switch

Press the A button to turn the device on/off.

B) Hot steam switch

Press the B button to turn the hot steam function on/off.

C) Humidity level setting

Press the C button to set low (45 %), medium (55 %) or high (65 %) humidity.

D) Night lightening

Press the D button to turn the lightening on/off.

E) Mist level setting

Press the E button to set low (L), medium (M) or high (H) steam level.

CAUTION! If condensed water appears on windows or walls, switch the appliance off.

CLEANING AND MAINTENANCE

In winter, lack of humidity can cause dry skin and cause irritation of the nose, frequent colds, sore throat, etc. Humidifiers produce relative humidity and protect our health. Use the following maintenance instructions in order to get the most out of the humidifier without damaging it. If you do not follow these guidelines, unwanted microorganisms can grow in the appliance.

DAILY MAINTENANCE

Prior to cleaning, switch the appliance off and disconnect it from the mains.
Take off the water tank and the top of the humidifier.
- Rinse the tank thoroughly and remove any deposits and dirt. Clean and dry it using a clean soft cloth or paper cloth.
- Fill the tank with fresh cold tap water as described in the water filling instructions.

WEEKLY MAINTENANCE

• Repeat the three above mentioned daily maintenance points.
• Pour about 200ml of vinegar into the water tank and leave it for 15 minutes. After that remove a limescale from the water tank and the converter using a fine brush (Fig. 1).
• Finally wipe any limescale and vinegar residue with a clean soft cloth.

concept

concept

MAINTENANCEWARNINGS

NEVER submerge the appliance main unit into water.
- Do not use any solvents or other aggressive substances to clean the humidifier.
Clean the inside of the appliance with a soft cloth.
Clean the converter with a soft brush only. Clean it once a week.
- Use a brush with fine bristles.
If water remains in the reservoir, replace it at least once a week.

REPLACING THE FILTER PATRON (OPTIONAL)

Change the filter patron once every 6 months according to the following instructions:
- Always disconnect the appliance from the mains before handling with the water tank. Do not touch the water in the base of the appliance during operation.
- Turn the water tank upside down and unscrew the lid. The filter patron is screwed into the inner part of the lid (Fig. 2).
- Unscrew the old filter patron from the lid.
- Screw the new filter patron into the lid and screw it back into the water tank.

Note: The filter patron is made of an ion-exchange resin.

STORAGE

Clean and dry the humidifier according to instructions described above.
It is recommended to store the appliance in its original packaging.
- Do not expose it to high temperatures.

Fig. 2Fig. 1

TROUBLESHOOTING

If your humidifier does not work properly, check the following possible causes:

Problem Cause Solution
The humidifier does not operate.	The power cord is not plugged in. Connect the alliance to the mains.
The indicator is on, but no steam is coming out of the appliance.	There is no water in the tank. Fill the tank with water.
Steam smells unpleasantly.	The appliance is new.	Open the water tank and place it in a dark and cool place for 12 hours.
	Water is too dirty or has been in the tank for too long.	Clean the tank and fill with fresh water.
The indicator is on, but the appliance does not work.	There is too much water in the drain.	Pour a little water out of the drain.
The humidifier produces too little steam.	The converter is clogged.	Clean the converter with a soft brush.
	Water is too dirty or has been in the tank for too long.	Clean the tank and fill with fresh water.
The appliance generates unusual noise.	The noise in the tank is caused by a low water content.	Fill the tank with water.
	The appliance does not stand on a flat surface.	Place the appliance to a stable flat surface.
The water tank lid cannot be unscrewed.	The lid has been tightened too much.	Apply liquid soap to the seal of the lid.

EN

concept

concept

DE

SERVICE CENTRE

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified specialist or the service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

The product meets all the necessary requirements of the EU directives applicable to the specific product.

Changes in text, design, and technical specifications are subject to change without notice and we reserve the right to change them.

DANKSAGUNG

The manufacturer (or Importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to.
  to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation.
  to malfunctions caused by an inexpert third-party intervention,
  to malfunctions caused by natural disaster,
  to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments.
  to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner.
  to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments.
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filling a complaint

A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint filing date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindrich Valenta-Concept

Vysokomytska 1800,56501 Chocen

Czech Republic

tel.:[phone]

fax[phone]

Company ID No.13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:
