USER MANUAL PR2700 LENCO

controls or adjustments or performance o

procedures other than those specifi e d herein may result in hazardous radiation exposure. This unit should not be adjusted or repaired by anyone except qualified service personnel.

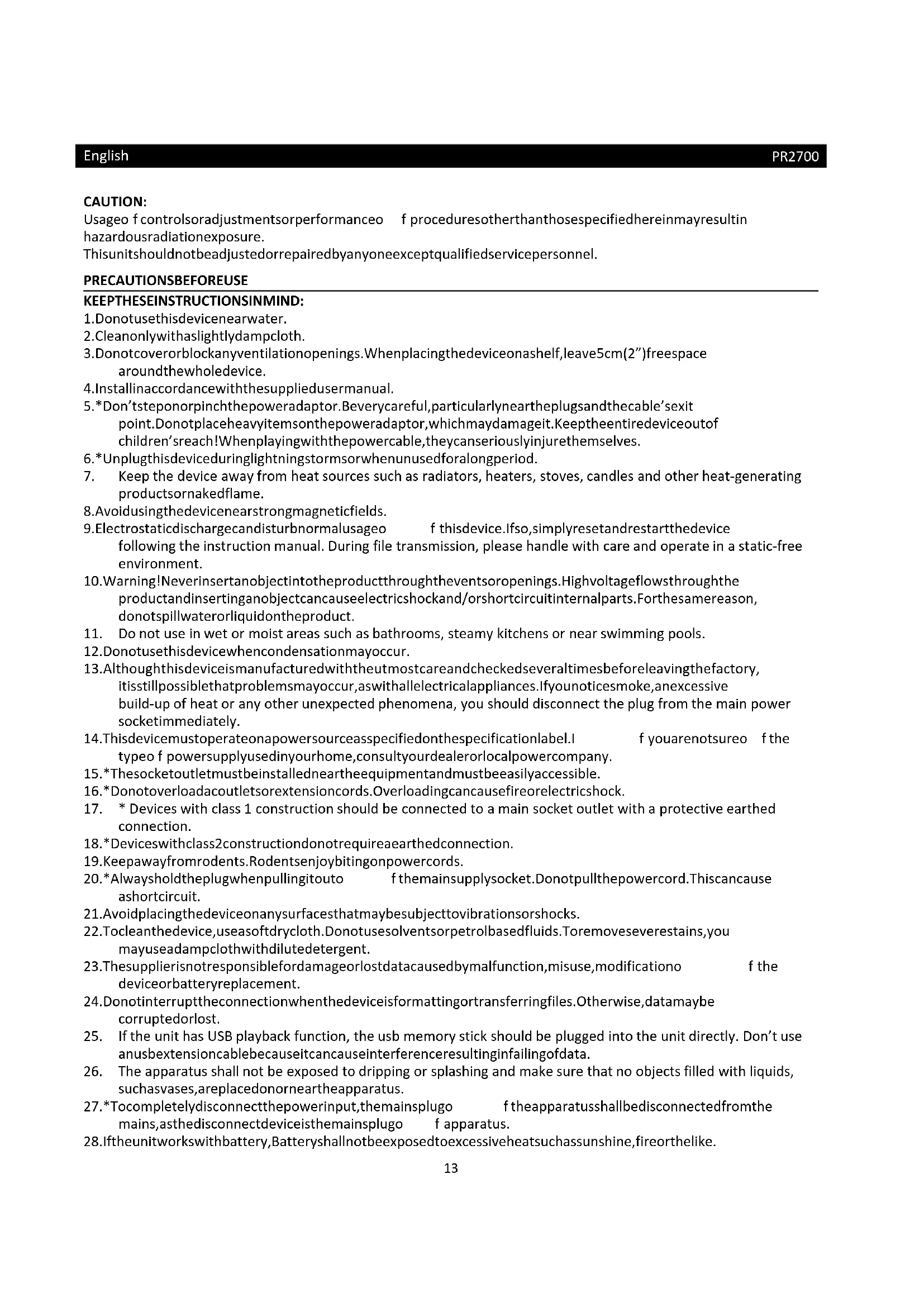

PRECAUTIONS BEFORE USE

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.

2. Clean only with a slightly damp cloth.

3. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”) free space

around the whole device.

4. Install in accordance with the supplied user manual.

5. * Don’t step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable’s exit

point. Do not place heavy items on the power adaptor, which may damage it. Keep the entire device out of children’s reach! When playing with the power cable, they can seriously injure themselves.

6. * Unplug this device during lightning storms or when unused for a long period.

7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat‐generating

products or naked flame.

8. Avoid using the device near strong magnetic fields.

this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static‐free environment.

10. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the

product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.

11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.

12. Do not use this device when condensation may occur.

13. Although this device is manufactured with the utmost care and checked several times before leaving the factory,

it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build‐up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.

14. This device must operate on a power source as specified on the specification label. I

power supply used in your home, consult your dealer or local power company.

15. * The socket outlet must be installed near the equipment and must be easily accessible.

16. * Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

17. * Devices with class 1 construction should be connected t o a main socket outlet with a protective earthed

18. * Devices with class 2 construction do not require a earthed connection.

19. Keep away from rodents. Rodents enjoy biting on power cords.

the main supply socket. Do not pull the power cord. This can cause a short circuit.

21. Avoid pla cing the device on any surfaces that may be subject to vibrations or shocks.

22. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you

may use a damp cloth with dilute detergent.

23. The supplier is not responsible for damage or lost data caused by malfunction, misuse, modification o

the device or battery replacement.

24. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be

25. If the unit has USB playback function, the usb memory stick should be plugged into the unit directly. Don’t u se

an usb extension cable because it can cause interference resulting in failing of data.

26. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids,

such as vases, are placed on or near the apparatus.

27. * To completely disconnect the power input, t he mains plug o

the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug o

28. If the unit works with battery, Battery shall not be exposed to excessive heat such as sunshine, fire or the like.14

29. Attention should be drawn to the environmental aspects o

30. The apparatus can only be used in moderate extremely cold or climates warm environments should be avoided.

32. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or

experience and knowledge, unless they’re under s upervision or have received instructions about the correct use o

the device by the person who is responsible for their safety.

33. This product is intended for non professional use only and not for commercial or industrial use.

34. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position

or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

35. Never remove the casing of this apparatus.

36. Never place this apparatus on other electrical equipment.

37. Do not use or store this product in a place where it is subject to direct sunlight, heat, exc essive dust or vibration.

38. Do not allow children access to plastic bags.

39. Only use attachments/accessories specified by the manufacturer.

40. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in

any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

41. *Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

42. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing

• *Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made. *Those instruction are related only to products using power cable or AC power adaptor.15 USB

16. Battery compartment

Functions LCD Layout

2.1. Switching on the system In standby mode, press the FUNCTION button to turn on the unit with the last selected source (Default is tuner) 2.2. Switching off the system Press and hold the FUNCTION button for 2 seconds to switch to standby mode. The display will show the time Note: t he dim and alarm setting are still functional in the standby mode.

When the unit is on, Press the FUNCTION button to select the desired music source (Tuner

AUX…) Tuner: When TUNER mode is selected, `TUNER´ will be displayed for a few seconds. Then the display will show the FM frequency. USB: When USB mode is selected, `USB´ will be displayed for a few seconds. Then the display will show the track number and play time. Aux: When AUX mode is selected, `AUX´ will be displayed. The device connected to the AUX connection will be heard.

If powered on for the first time, the clock display will show “0:00” Setting the clock:

1. The Clock can be set in Standby only. Press and hold MEMORY button for 2 seconds. 24H or 12H clock mode

Press “CLOCK” button.

4. Press “CLOCK” button again to adjust the minutes with the SKIP+/SKIP ‐ buttons

5. Press “CLOCK” button again to adjust the YEAR with the SKIP+/SKIP ‐ buttons

6. Press “CLOCK” button again to adjust the MONTH with the SKIP+/SKIP ‐ buttons

7. Press “CLOCK” button again to adjust the DAY with the SKIP+/SKIP ‐ buttons

8. Press “CLOCK” button again to adjust the CT (Central Time) on/off function with the SKIP+/SKIP ‐ buttons

9. Press “CLOCK” again t o store the clock settings.

10. NOTE: When during clock setting no buttons are pressed within 10 seconds, the system will exit clock setting

mode without storing any adjustments.

Configuring t he sleep mode. a) You can press the SLEEP button in standby or when powered on. b) Press FUNCTION button to select the desired source.18 c) Multiple press the “SLEEP” button to select how many minutes the unit will play music before it will go into standby mode: 5

OFF (Default is OFF.) after selecting the desired time, wait to select automatically. The display will show ‘SLEEP’ to indicate the sleepmode is active. d) When sleepmode is activated, you can display the sleeptime by pressing t he “SLEEP” button. e) The sleep function can be turned off by long press on the “FUNCTION” button or s electing “OFF” by pressing the “SLEEP” button. Remark:

1. If sleep time is ended, the unit will go to standby. when an alarm arrives at the same time as sleep ends,

sleep will terminate and alarm goes o n. If sleep ends earlier then the alarm, the alarm will turn on the set; if the alarm is earlier then the sleep ends, sleep will terminate and alarm switches on.

2. There is a one‐minute sleep countdown where the volume drops down gradually. If power on again, the unit

will return to the previous gradually drop down volume setting.

Follow these steps to set the alarm: In standby mode, press and hold the MEMORY/ALARM button for 2 seconds. The alarm time will be shown on the display and the hours will start blinking. a) AdjustthehourtimewiththeSKIP+/SKIP‐ buttons. b) Press the MEMORY/ALARM button again. The minutes will start to blink. c) Adjust the minutes with the SKIP+/SKIP‐ buttons and press the MEMORY/ALARM button. Now you can select the desired SOURCE (BUZZER, USB or TUNER) and press the MEMORY/ALARM button t o confirm the selected source. Press the MEMORY/ALARM button again. Select to the desired SOURCE (1.BUZZER, 2.TUNER or 3.USB) d) The weekday(s) will start to blink. Press SKIP+/SKIP‐ buttons to select the alarm frequency among “ DAILY”, WEEKDAYS”,“WEEKENDS”, “ONCE” and “VOLUME”. Then press the MEMORY/ALARM button t o store the setting. Remark:

1. When no buttons are pressed within 10 seconds, during alarm setting, the unit will exit the alarm setting mode

without storing changes.

2. Alarm1 time Default is 0:00

3. WEEKENDS: The alarm is activated only on weekends

4. WEEKDAYS: The alarm is activated only on weekdays

5. ONE DAY: The alarm is activated only on that day

6. DAILY: The alarm is activated everyday

Alarm On/Off: If no alarm is active, press the MEMORY/ALARM button to make the ALARM active. The corresponding alarm icon will show on the display. (You can only d o this when the unit is in standby mode). Pressing the MEMORY/ALARM button again will turn the alarm off and the alarm icon on the display will disappear.19 The Alarm is activated:

1. The alarm on will only work in standby mode

2. When the alarm is sounding, the ALARM Symbol on the display will flash.

3. When the alarm is sounding, Pressing the MEMORY/ALARM button will stop the alarm.

When the alarm is activated, press the SNOOZE/DIMMER to stop the alarm for 9 minutes. (the snooze function can be active for 1 hour). Remark: Alarm volume value is last power off

7. System display Backlight:

The brightness of the display can be changed. Dimmer:

press the SNOOZE/DIMMER button repeatedly to select different brightness of the display screen: Dim 1 Dim 2Dim 3

Use the VOL+/VOL‐ buttons to adjust the volume between 0 and 32 (Default value is 15). The volume level setting will be stored when the unit is powered off. When powered on again the last known volume level will be used.

9. RADIO FREQUENCY TUNING

For tuning you can use the SKIP+/SKIP‐ buttons. Radio preset programming A total of 20 FM stations can be stored in the system memory.

1. In Tuner mode you can use SKIP+/SKIP‐ buttons to scan for your favorite station. To save it as preset, press the

MEMORY button for 2 seconds. “P01” will be blinking on the display. Use the SKIP+/SKIP‐ keys to select the desired preset number (max 20) and press the MEMORY button again to store the preset.

3. Retrieving the preset stations press Memory to access a preset station.

RDS information display TheRadioDataSystem(RDS)isabroadcastingservicewhich allows stations to send additional information along with the regular radio programmed signal. (RDS works on the in FM waveband only).

1. Tune to an FM RDS station, The Programmed Service name (station’s name) appears on the display.

2. Each time the RDS button is pressed, the RDS mode is changed as PS (Programmed Service name) → PTY

(Programmed Type) → RT (Radio Text) Remark:

1. PS (Programmed Service name):When you select PS, the frequency will be displayed for 3 seconds, and then

PS (station’s name) will be displayed. If there is no PS data, “NO PS” will be displayed.

2. PTY (Programmed Type): When you select PTY, the programmed type will be displayed. If there is no PTY

data, “NO PTY” will be displayed.

3. RT (Radio Text): When you select RT, the new of stations composed of up to 64 symbols will be displayed. If

there is no RT data, “NO RT” will be displayed.20

Actual PRESS and HOLD RDS/PLAY buon has FM auto search and store funcon. Icon The blinking clock on the RDS symbol means that Th is automa cally updated eac it blinks.

2. Press PLAY to pause the playback, press it again to resume playback.

ons SKIP+/SKIP- to select next or previous track.

4. Press and hold SKIP+/SKIP- to

d/backward. When released normal playback will resume. Programming The device allow you to create a playlist of up to 20 tracks.

1. When USB playback is stopped press the MEMORY/ALARM b

. The display memory n flashes P01

2. When the playback stops, press the bu n Memory, The display flashes memory and P01 Appears.

3. Use the SKIP+/SKIP- bu

ns to selec desired track.

4. Press the MEMORY/ALAR n to store the selected track on the current n. The display will show P02.

5. You can create a program of up to 20 tracks by repea

6. Press the RDS/PLAY bu

n to start playback programmed list NOTE: - Compa ble storage device (up to 32GB). - Please do NOT use a USB extension cable to connect your USB flash drive. Such cable can pick up addi nal interference which can corrup data flow. - Due to some USB drive manufacturer’s non-compliance with the full USB 1.1/2.0 standard. A small percentage (about 5%) of US B flash drive might not be

This allows you to connect an external player’s sound through your unit.

1. Plug a 3.5mm audio cable (

cluded) into your external player’s line out and the other end into the AUX IN Jack a e right o e unit.

3. Start your external player to play music, The unit will outpu

sound. Note: when no sound can be heard, check the volume level oth units.

4. To return to another mode,

e audio cable from the unit

Due to ErP stage two requirement and p nv ironment, the unit will switch to the standby mode

cally once no music has been playing over 15 minutes.

10. USING AN USB STICK PLAY21

Specifications FM Frequency range FM 87.5‐108MHz Input connector 3.5mm Aux‐in socket Output connector 3.5mm earphone socket USB Compatible storage device (up to 32GB) Aerial Telescopic antenna Mains Power AC 230V 50Hz Output power 1 W RMS Battery Backup 6V 4 x AA (not included) Guarantee Lenco offers service and warranty in accordance with the European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non‐official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warra nty obligations of the manufacturer will be voided. Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and maynotapplytoparticularsituation.Nolegalrightor entitlements may be obtained from the description made in this manual. Disposal of the Old Device This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive). Service For more information and helpdesk support, please visit www.lenco.com Lenco Benelux BV, Thermiekstraat 1a, 6361 HB, Nuth, The Netherlands.22 Nederlands PR2700 LET OP: Gebruik van bedieningen of afstellingen of uitvoer van procedures anders dan gespecificeerd in deze documentatie kan leiden tot blootstelling aan schadelijke straling. Dit apparaat dient uitsluitend te worden aangepast of gerepareerd door gekwalificeerd onderhoudspersoneel.
