TR01 - Food Processor GIRMI - Free user manual and instructions

USER MANUAL TR01 GIRMI

Technical model: GM-C022C

Tritatutto

Chopper

ITA: INDICE

Simbologia. p. 2

General instructions. p. 9

TR01 p. 10

Operating the unit. p. 10

First use. p. 10

Grinding p. 10

Cleaning. p. 11

Technical features. p. 11

Waste of electric and electronic equipment (WEEE Directive) p. 30

PORTUGUES: p. 11

ESPAÑOL p. 16

DEUTSCH p. 20

FRANCAIS p. 24

SLOVENSKO p. 28

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect

installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance cannot be used by children, even if they're more than 8 years old.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Children must not play with the appliance.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

• This appliance is intended to be used in household as similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.
• Do not use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INSTRUCTIONS

Before using the appliance, wash the set designed to be in contact with food as the container, the lid and the blade.

Caution: close the lid before turning on the unit.

Unplug the unit from the electrical outlet before touching any attachments and/or accessory, especially the blade set.

Do not insert large pieces in the container, especially hard food. It is advisable to pre-chop the food.

Do not use the appliance running continuously for more than 20 seconds, in then interval with at least 2 minutes of rest. Never leave it unattended while it is running.

Unplug the appliance from the electrical outletimmediately after using and / or before touching any

accessory, especially the blades. If some food stops the blades before removing it, unplug the unit from the electrical outlet.

Do not insert hot food (maximum temperature 40C ).

Not exceed the maximum capacity for ingredients as indicated in the Operating section.

At the end of processing, wait for the blade to completely stops before removing the food from the glass container.

When finished using the unit, it is advisable to wrap the power cord so as to ensure a better cleaning, avoiding any risk of damage.

When mincing fruits, remove pit and/or any tough rind. For cleaning, we recommend using warm water only, limiting the use of detergents. In this case, rinse the part profusely. Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

Caution: blades are very sharp; pay attention not to cut yourself while removing the attachment or during cleaning operations.

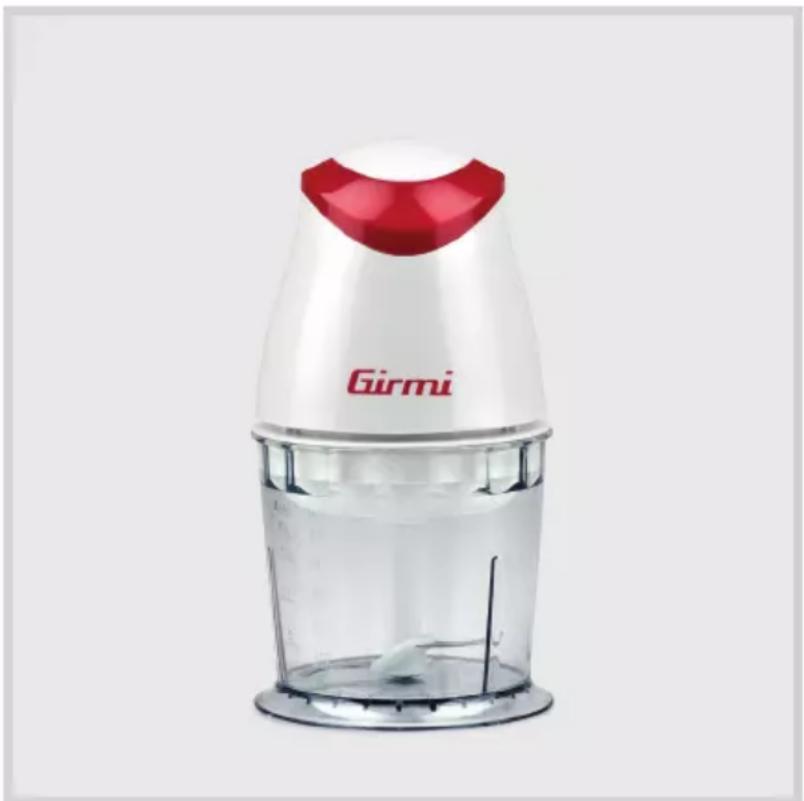

DESCRIPTION TR01

1. Main body

2. ON/OFF button

3. Support

4. Transparent container

5. Power cord

6. Rostrum with blades

OPERATING THE UNIT

Assembling the unit by following the steps as shown besides.

1) Insert the rostrum (6) in the container (4) without touching the blades.
2) Insert the food without exceeding the maximum capacity.
3) Fit the support (3) on the glass container properly.
4) Fit main body (1) properly over the support (5).
(5) Plug the unit and push the head of the appliance (2) to turn it on.

The use is safe, because as soon as the main body is removed from container, blades will stop turning.

FIRSTUSE

Removing and assembling the glass container a few times without plugging it or adding any fruits or vegetables. Follow this step to practice with the appliance. Wash the lid and the jug with warm water and dishwashing liquid. Other accessories made of electrical parts, such as the motor block and the main body must be cleaned with a damp cloth and dry immediately.

GRINDING

The blade set consists of two blades that can chop and shred fruits, vegetables and meat; by adding liquids, it's easy to prepare baby meals and homogenized food. For a correct use follow the next steps:

• Pre-chop fruits and vegetables in small pieces and put them inside the container.
• If you want to prepare baby food or homogenized, add some water or milk not exceeding the maximum capacity of the glass.
• Push and hold the power button until you reach the desired consistency of the food. At the end of the process, power off the device and unplug it.

This food processor is not suitable for crushing ice, frozen foods, cereals, rice and coffee; these operations may damage the blades.

Meat	Cut in pieces of 1.5cm, add 3 spoons of water	150g max	15sec.
Fish	Remove fishbone and cut in pieces of 2cm	150g max	10sec.
Cheese	Cut in pieces of 1.5cm	80g max	15sec.
Almonds	Or nuts, hazelnuts, ecc..	80g max	15sec.
Onion	Peel off and cut in pieces of 2-3 cm	200g max	8 impulsi
Garlic	Peel off	6 spicchi	5-10sec.
Fruits	Peel off, remove pit and cut in pieces of 2 cm	150g max	10sec.
Carrot	Peel off and cut in pieces of 2 cm	150g max	15sec.
Tomato	Cut 4 pieces	200g max	10-15sec.

CLEANING - Unplug the unit from the electrical outlet.

• Do not immerse the main body in water, but wash it with a damp cloth and non-abrasive detergent. Try to avoid any infiltration of water into the motor housing.

• Container, blades and lid can be washed as everyday crockery with non-abrasive sponge and mild detergent. Dry them thoroughly before assembling them to the main body.

• The unit and the accessories are not dishwasher-safe.

For a fast cleaning of blades, fill the container halfway with water and operate few seconds.

TECHNICAL FEATURES

Power supply: AC 230V~50Hz. Power 350W - KB 20 sec
PULSE function
- Container capacity 500cc

PORTUGUES: ADVERTÉNCIAS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RESÍDUOS DE APARELHIOS ÉLECTRICOS E ÉLECTRONICOS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.girmi.it TREVIDEA S.r.l.
