RB90 - Food Processor GIRMI - Free user manual and instructions

Product type	Food processor
Brand	Girmi
Model	RB90
Power supply	220-240 V ~ 50/60 Hz
Power	600 W
Speeds	2 speeds + Pulse function
Main functions	Chopping, mixing, slicing, grating, whisking, emulsifying
Supplied accessories	Chopping blade, plastic blade, 2 reversible stainless steel discs, whisk, jar blender, food press
Bowl capacity	Not specified (estimated: about 1.5 L)
Safety	Double safety: bowl and lid locking
Maximum food temperature	60 °C
Maximum continuous operation time	1 minute, then 5-minute break
Maintenance and cleaning	Accessories and bowl washable with hot water; motor cleaned with a damp cloth
Spare parts and repairability	Use original parts; repairs by manufacturer or authorized center
General information	Domestic use; do not immerse motor; do not use with hard foods (ice, bones)

Frequently Asked Questions - RB90 GIRMI

How to use the appliance safely?

Before each use, make sure the bowl and lid are properly locked. Only plug in the appliance when the speed selector is on 0. Never put your hand in the bowl during operation. Always unplug after use.

Which foods should not be processed with the food processor?

Avoid hard foods such as ice, bones, fish bones, cheese rind, or frozen foods. Do not exceed 60 °C for hot foods.

How to clean the blades and accessories?

Unplug the appliance. Wash the blades, bowl, and accessories with hot water and mild detergent. Dry thoroughly before reassembling. The blades are very sharp: handle with care.

What is the maximum capacity of the bowl?

The exact capacity is not specified in the manual. For best results, do not overfill and follow the recommended quantities in the table (e.g., 500 g of onions).

Can I use accessories not provided?

No, use only the original accessories supplied with the appliance or available from the manufacturer. Using other accessories may be dangerous.

How to install the chopping blade?

Make sure the appliance is unplugged. Place the transmission part (6) on the motor gear (7). Mount the bowl (5) and turn it clockwise. Insert the support (4) then the chopping blade (10) by snapping it in correctly.

What to do if the appliance does not start?

Check that the bowl and lid are properly locked (double safety). Ensure the selector is on a speed and not on 0. If the problem persists, contact after-sales service.

Can I cut food into large pieces?

It is recommended to pre-cut foods into small pieces, especially hard foods like carrots or celery, to avoid blocking the blades.

How to use the whisk?

Replace the chopping blade with the whisking accessory (3) or the whisk (12). Use at high speed to whip cream or eggs. For best results, start at low speed and increase gradually.

How to store the appliance after use?

Unplug and clean the appliance. Wrap the power cord. Store all accessories inside the bowl. Keep in a dry place out of reach of children.

USER MANUAL RB90 GIRMI

Red and black Girmi kitchen blender with clear glass lid (no visible text or symbols on body)

MastroChef

Robot Multifunzione

Food processor

ITA: INDICE

Simbologia....p. 2

Waste of electric and electronic equipment (WEEE

Directive)....p. 21

FRANCAIS p. 14

CLASSI DI PROTEZIONE / PROTECTION CLASSES

ATTENZIONE RISCHIO DI SCOSSE ELETTRICHE NON ESPORRE A PIOGGIA E UMIDITA'

WARNING ELECTRIC SHOCK RISK DO NOT EXPOSE TO RAIN OR MOISTURE

ATTENZIONE: NON APRITE L'APPARECCHIO. ALL'INTERNO NON VI SONO COMANDI MANIPOLABILI DALL'UTENTE NE' PARTI DI RICAMBIO. PER TUTTE LE OPERAZIONI DI SERVIZIO RIVOLGERSI AD UN CENTRO DI ASSISTENZA AUTORIZZATO.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class II Appliance symbol. The double insulated electrical appliance is one which has been designed in such a way that it does not require a safety connection to electrical earth/ground.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DI SICUREZZA

NOMENCLATURA RB90

Close-up of a black mechanical component with a cylindrical shaft and flange (no visible text or symbols)

Line drawing of a mechanical device with a handle and control knob (no text or symbols)

Diagram of a spacecraft or spacecraft with internal components and no visible text or symbols

Illustration of a cartoon astronaut with a helmet and open arms (no text or symbols)

Line drawing of a blender with a handle and spout, no text or symbols present

Line drawing of a blender with handle and spout (no text or symbols)

Circular metallic object with perforated surface and central hole (no text or symbols)

Circular metallic object with evenly spaced white dots arranged radially, resembling a fan or filter (no text or symbols visible)

Two white product photos: a black blender with a wire and a white teacup (no text or symbols visible)

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always

disconnect from power supply if you leave it unattended.

Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.
• This appliance cannot be used by children, even if they're more than 8 years old.
• Children must not play with the appliance.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
  If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.
• Before every use, unroll the power cord.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in

hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.

• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result.

GENERAL INFORMATION

At first use, wash carefully all the parts that will be in touch with food such as containers, lids and blades.

Warning: always assemble the container and close the lid before operating the product. Disconnect the plug from the socket before touching any accessory, especially the blades.

Do not insert large pieces, especially hard foods such as carrots, celery etc... It is recommended to pre-chop food. Never leave the appliance unattended while it is running. Always use the appliance on a flat and stable surface.

Do not use the appliance running continuously for more than one minute, then wait for at least 5 minutes before restarting. Do not use the appliance while it's empty and with the accessories already assembled.

Before connecting the power cord, ensure that the speed selector is switched to "0" and that the accessory is correctly assembled.

Never put your hand inside the container when the appliance is connected to the power supply.

Use only the food presser to introduce food. Do not insert food too hot (maximum temperature 60 C).

Never exceed the maximum capacity. When processing fruits, remove pit and tough peel. In addition, the product is not suitable to work hard foods such as ice, frozen food, cheese rind, bones or fish bones.

At the end of the process, wait for the blade to completely

stop before removing the food from the glass container. Do not immerse the motor unit in water or other liquids; clean it with a damp cloth.

Disconnect the plug from the electrical outlet immediately after using and / or touching any accessory, especially the blades. Also, if some food stops the blades, before removing it, unplug the appliance.

To clean the appliance, it is recommended only using warm tap water. In case of using detergents, rinse thoroughly. Once finished using the unit, it is recommended to wrap the power cord so as to ensure a better cleaning avoiding any risk of damage.

The blades are very sharp: be careful not to cut yourself when cleaning or while removing food from the container.

DESCRIPTION RB90

1. Food presser

2. Lid

3. Whipping accessory

4. Support

5. Container

6. Transmission piece

7. Motor gear

8. Motor unit with speed knob

9. Plastic blade for kneading

10. Chopping blade

11. Stainless steel slicing disc

12. Whisk

SAFETY MODE

This appliance features a double safety device: the unit only works if the container (5) (or the blender jar) is correctly assembled and stuck on the motor unit (8) and the lid (2) is correctly stuck on top of the container.

FIRST USE

Remove and install the container a few times without plugging it or adding any fruits or vegetables. Follow these steps to make practice with the object. Wash lid, container and accessories in hot water and detergent. Parts with electrical parts, such as motor unit, must be cleant with damp cloth and dry immediately.

CHOPPING

The knife, consisting of 2 blades, allows to chop and shred fruits, vegetables, meat and, after having add some liquids, to prepare baby food.

For a correct use, follow the steps below:

- Chop fruits and vegetables in pieces before putting them in the glass.

- Prepare baby food adding water or milk as you prefer, without exceeding the maximum capacity of the container. Check that the plug is disconnected from the electrical outlet.

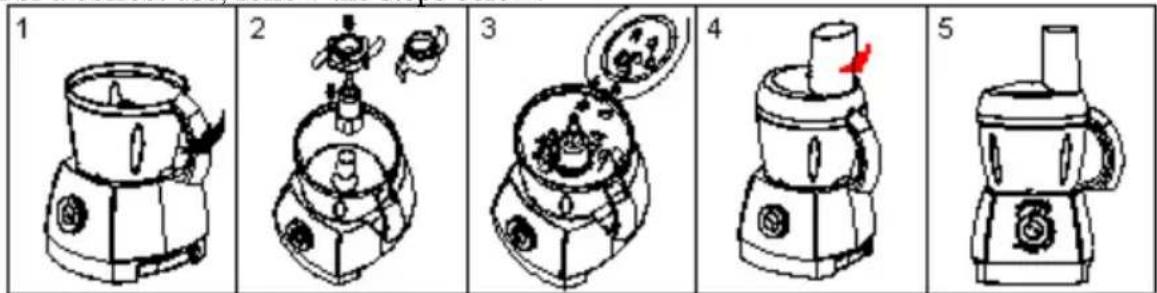

- Connect the transmission piece (6) to the motor geat (7)

- Place the container (5) on top of the motor unit (8) and lock it by turning it clockwise (Fig.1).

- Insert the support (4) by pushing it to the bottom (Fig. 2).

- Insert the chopping blade (10) on the support (Fig. 2). On the support there are 2 plastic locks, pay attention that the blade is correctly linked to the support.

- Place the food in container without exceeding maximum capacity and close the lid (Fig. 3 and 4).

- Plug the appliance. Move the control knob to select the speed; the unit turns on.

- Be careful not to use appliance for a long time continuously. Correct timing is shown in following table.

- Once finished, turn off the device and remove the power plug from the electrical outlet.

Ingredients	Quantity (max)	Operation time max
Onions	500 g	30 seconds
Ham	400 g	30 seconds
Strawberries	300 g	20 seconds
Walnuts	200 g	30 seconds
Almonds	200 g	30 seconds
Cheese	200 g	30 seconds
Eggs	10 eggs	40 seconds
Meat	500 g	40 seconds

Note: be careful not to exceed either the weights or the time shown in the table. In any case, do not operate for more than 1 minute continuously.

For best results, it is recommended to start from the low speed and move to the high, removing with a spatula food from the container walls. Do not operate with your hands.

KNEADING/ MIXING

Black plastic mechanical component with two curved blades (no text or symbols visible)

Use the plastic blades (9) shown in the figure.

Follow the instructions of "Chopping/Blending" paragraph, assembling (9) the plastic blades instead of the chopper blades (10). Use plastic blades with low speed.

SLICING

The unit is equipped with reversible stainless steel disc for slicing and for julienne vegetables. Use these accessories with low speed.

- Check the unit is unplugged.

- Connect the transmission piece (6) to the motor geat (7)

Circular metallic object with perforated surface and central cylindrical component (no text or symbols)

• Place the container (5) on top of the motor unit (8) and lock it by turning it clockwise. (Fig. 1).

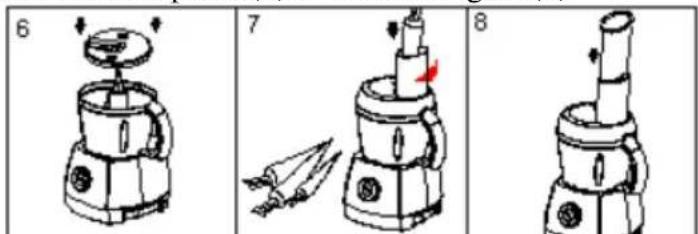

• Install the disc (11) on the top of transmission (6) as shown in Figure 6.
• Close the lid (Figure 7) and Plug the appliance to the power outlet.
• Insert food through the hole in the lid (2) using the food presser (Figure 8).

GRATING / POTATO MASHER

Circular metallic object with radial dotted pattern and central hub (no text or symbols)

The unit is equipped with reversible stainless steel disc for grating and potato mashing.

Follow the instructions of "Slicing" paragraph, assembling the proper disc. Use these

accessories with low speed. WARNING: do not use to grate too hard foods, and don't press too much the food against the disc.

WHIPPING / EMULSIFY

Use the accessory (3) shown in the figure for whipping eggs, or for emulsifying. Follow the instructions on "Slicing" paragraph, assembling the whipping accessory (3) instead of the chopper blades (10). Use at high speed. To mount cream, or eggs you can also use the planetary metal whisk (12). Follow the instructions on "Slicing" paragraph, assembling the whisk accessory (12) instead of the chopper blades (10). Can be used at low or high speed.

Two white objects: a small cup above and a black appliance with a whisk (no text or symbols visible)

CLEANING - CAUTION: Cleaning and removing accessories only when the unit is disconnected from the power outlet.

The accessories, container, lid and blades can be treated like normal dishes and washed with hot water. Before assembling them again on the motor unit, dry them all completely.

The motor cannot be placed in water. Avoid any splashing of liquids. Clean it with a damp cloth and mild detergent. Store it in a dry place and out of the reach of children.

TECHNICAL FEATURES

• Power supply: AC 220-240V\~50-60Hz. 600 Watt power
- Adjustable speed
- Accessories: chopping blade, plastic blade, 2 reversible stainless steel discs, whipping accessory, metal whisk, food presser.

FRANÇAIS: AVERTISSEMENT

Mechanical component with a cylindrical shaft and flange (no visible text or symbols)

COUPER

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with gears and housing (no text or symbols)

Line drawing of a kitchen blender with handle and side panel (no text or symbols)

Line drawing of a blender with handle and spout (no text or symbols)

Black plastic mechanical component with two curved blades (no text or symbols visible)

PÉTRISSAGE / MÉLANGE

Line drawing of a kitchen blender with a lid and handle (no text or symbols)

Illustration of a kitchen blender with a knife and handle, no text or symbols present

Line drawing of a laboratory instrument with a cylindrical body and a handle (no text or symbols)

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

RÉSIDUS D'APPAREILS ELÉCTRIQUES ET ELÉCTRONIQUES

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation

and is therefore marked with the CE mark.
