Product Type	Rechargeable oral irrigator (domestic)
Brand	Panasonic
Model	EW1511
Dimensions (main unit)	210 (H) x 75 (W) x 85 (D) mm
Dimensions (charging base)	40 (H) x 90 (W) x 100 (D) mm
Weight (main unit)	Approx. 270 g (nozzle included)
Weight (charging base)	Approx. 115 g
Power supply	AC adapter RE7-87 (automatic voltage conversion)
Charging time	Approx. 1 hour
Operating time after full charge	Approx. 10 minutes (level 5)
Reservoir capacity	Approx. 200 ml (approx. 60 seconds of use)
Maximum water pressure	Approx. 647 kPa (level 5)
Water pressure levels	5 levels (1 low to 5 high)
Pump frequency (max)	Approx. 1600 pulses/minute (level 5)
Sound level	71 dB (A)
Recommended water temperature	Cold or lukewarm water up to 40 °C
Maintenance	Clean the filter with a soft brush; rinse the nozzle after each use; do not use benzene or alcohol
Spare parts	Replacement nozzle WEW0983 (replace approximately every 6 months)
Battery life	Approx. 3 years (built-in lithium-ion battery, replacement by authorized service center)
Intended use	Oral hygiene: interdental cleaning and gum care
Wall mounting	Possible with screws (nominal diameter 2.7-3.1 mm, center distance 29 mm)

Frequently Asked Questions - EW1511 PANASONIC

How long does it take to fully charge the EW1511?

Full charge takes approximately 1 hour. The charging status indicator (red) turns off when charging is complete.

What is the operating time of the oral irrigator after a full charge?

At maximum power (level 5), the operating time is approximately 10 minutes. With a full reservoir (200 ml), you have about 60 seconds of continuous use.

Can I use mouthwash or salt in the reservoir?

No. Do not put salt, mouthwash, or other chemicals in the reservoir, as this may cause malfunction. Use only tap water or clean lukewarm water (max 40 °C).

What should I do if no water comes out or the jet is weak?

Check that the main unit is held upright (do not tilt too much). If the jet is weak, clean the filter at the end of the suction tube with a soft brush. If the nozzle is clogged, replace it.

How often should I replace the nozzle?

It is recommended to replace the nozzle every 6 months for hygiene reasons, or sooner if the tip is deformed. The replacement nozzle is part number WEW0983.

Can I share the device with my family?

It is not recommended to share the same nozzle. Each user should have their own nozzle (sold separately) to avoid the risk of infection. The supplied nozzles have an identification ring to distinguish them.

What should I do if my gums bleed during the first uses?

Mild bleeding is normal at first, as the gums receive new stimulation. It should stop after one to two weeks. If bleeding persists, consult a dentist.

How do I clean the device after use?

Empty any remaining water, run the device for a few seconds to expel excess water. Remove the nozzle and rinse it with water. Clean the inside of the reservoir with lukewarm water (max 50 °C) and a mild detergent. Wipe the device and store it upright on the base.

Is the device waterproof? Can I use it in the shower?

The main unit is waterproof and can be used in the bathtub (as indicated in the manual). However, avoid immersing the charging base or adapter in water. After use, wipe the device before placing it on the base.

How do I replace the built-in battery?

The lithium-ion battery has a lifespan of approximately 3 years. It can only be replaced by an authorized service center. Do not attempt to disassemble it yourself except during disposal, following the instructions in the manual (page 60) to remove the battery safely.

USER MANUAL EW1511 PANASONIC

Operating Instructions

(Household) Rechargeable Oral Irrigator

Model No. EW1511

Line drawing of a handheld electric toothbrush with a conical base (no text or symbols)

English	3
Deutsch	23
Français	43
Italiano	63
Español	83
Nederlands	103

Português	123
Svenska	143
Dansk	163
Norsk 183
Suomi	203
Polski 223

Česky	245
Slovensky	265
Magyar	285
Română	305
Türkçe	325

Panasonic

Operating Instructions

(Household) Rechargeable Oral Irrigator

Model No. EW1511

Contents

Safety precautions 6

Intended use....9

Parts identification....10

Charging....10

How to use....12

After use 15

Wall mounting....17

Frequently asked questions......17

Troubleshooting....18

Battery life....20

Removing the built-in rechargeable

battery....20

Specifications 21

Changing the nozzle (Sold separately)...21

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Warning

• Do not immerse the AC adaptor and the charging stand in water or wash it with water.
  Doing so may cause electric shock or fire due to a short circuit.
  • Always unplug the adaptor from a household outlet when cleaning the AC adaptor and the charging stand.
  Failure to do so may cause electric shock or injury.
• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.
  Failure to do so may cause an accident or injury.
• Oral irrigators can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge under supervision.

4

• Oral irrigators shall be used only with cold or warm water, or specific solutions as defined in the manufacturer's instructions.
  • Children shall not play with the appliance.
• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the AC adaptor. (See page 10.)

Doing so may cause burn or fire due to a short circuit.

- The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe types of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

▶ Preventing accidents

Do not store within the reach of children or infants. Do not let them use it.

- Doing so may cause an accident or injury due to accidental ingestion of removable parts.

▶ Power supply

Do not connect or disconnect the adaptor or the appliance plug to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not place the AC adaptor and the charging stand over or near water filled sink or bathtub.

Do not use when the AC adaptor is damaged or when the fitting into the household outlet is loose.

Do not damage, modify, forcefully bend, pull, twist, or bundle the cord. Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many power plugs to one household outlet may cause fire due to overheating.

WARNING

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor. Fully insert the adaptor.

- Failure to do so may cause fire or electric shock.

▶ In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit, adaptor, charging stand or cord is deformed or abnormally hot.
• The main unit, adaptor, charging stand or cord smells of burning.
• There is abnormal sound during use or charging of the main unit, adaptor, charging stand or cord.
• Immediately request inspection or repair at an authorized service centre.

This product

This product has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.
- Doing so may cause overheating, ignition, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury.
  →Contact an authorized service centre for repair (battery change, etc.).

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

▶ Cleaning

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the adaptor and wipe with a dry cloth.

CAUTION

▶ Preventing damage to teeth and gums

People who are unable to operate should not use this appliance.

People with weak oral senses should not use this appliance.

- Doing so may cause injury or damage to teeth and gums.

CAUTION

People who may have periodontal disease, have teeth being treated, or concerned about symptoms within their mouth should consult a dentist before use.

- Failure to do so may cause injury or damage to teeth and gums.

This product

Never use for a purpose other than oral cleaning.

- Doing so may cause an accident or injury when the stream of water is pointed toward the eyes, nose, ears, tongue, or throat.

Do not fill the tank with water warmer than 40 °C.

- Doing so may cause burns.

Do not share nozzle with your family or other people.

- Doing so may cause infection or inflammation.

Do not place a metallic object such as a coin or a clip on top of the charging stand.

- Doing so may cause burns due to excessive heat.

▶ Note the following precautions

Do not allow metal objects or trash to adhere to the charging plug, the power plug or the appliance plug.

- Doing so may cause electric shock or fire due to a short circuit.

Do not drop or subject to shock.

- Doing so may cause injury.

Do not wrap the cord around the adaptor or the charging stand when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Disconnect the adaptor from the household outlet when not charging.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto it instead of the cord.

- Failure to do so may cause electric shock or fire due to a short circuit.

After use, clean the main unit and the nozzle and dry them. (See page 15.)

- Failure to do so may cause damage to your health due to propagation of mold and bacteria.

Handling of the removed battery when disposing

DANGER

The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.

Do not charge the battery after it has been removed from the product.

Do not throw into fire or apply heat.

Do not hit, disassemble, modify, or puncture with a nail.

Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.

Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.

Do not use or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat. Never peel off the tube.

- Doing so may cause overheating, ignition, or explosion.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

- The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

If the battery fluid leaks out and comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

- Failure to do so may cause eye injury. Consult a physician immediately.

CAUTION

If the battery fluid leaks out and comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

- Failure to do so may cause inflammation.

Intended use

• When you first begin using the oral irrigator, you may experience slight bleeding of the gums even though your gums may be healthy. This is because your gums are receiving stimulation by the oral irrigator for the first time. The bleeding should stop after one or two weeks of use. Bleeding that persists for more than two weeks may be indication of an abnormal condition of your gums, such as periodontal disease. In this case, stop using the oral irrigator and consult your dentist.
• Do not put salt, mouthwash or other chemicals into the water tank. Doing so may cause malfunction.
• Do not dry the main unit with a dryer or a fan heater. Doing so may cause malfunction or deformation of the parts.
• Store the appliance in a place with low humidity after use. Leaving the appliance in a bathroom may cause malfunction.

Parts identifi cation

A Front Back

B

©

D

A Main unit

① Power switch (①)
② Level switch
③ Water pressure level LED indicator (1\~5 levels)
④ Low battery indicator (blue)
⑤ Charge status indicator (red)
⑥ Nozzle release button
⑦ Water tank (Inside)
⑧ Water tank cap
⑨ Suction hose
⑩ Filter
⑪ Bottom cover release button
⑫ Bottom cover

B AC adaptor (RE7-87)

(The shape of the power plug differs depending on the area. One of the power supply units specified is provided with

this appliance.)

⑬ Adaptor
⑭ Power plug
⑮ Cord
⑯ Appliance plug

© Charging stand (RC8-4)

⑰ Charging plug
⑱ Nozzle stand
⑲ Screw holes for wall mounting The charger can be mounted on a wall using two wood screws.
20 Stand socket

D Nozzle (×2)

• The nozzle is a consumable.
②1 Nozzle
②2 Nozzle Handle
②3 Identifi cation ring

Accessory

2 screws

Note

There may be moisture inside the main unit (water tank and suction hose) left from the distilled water used for product testing.

Charging

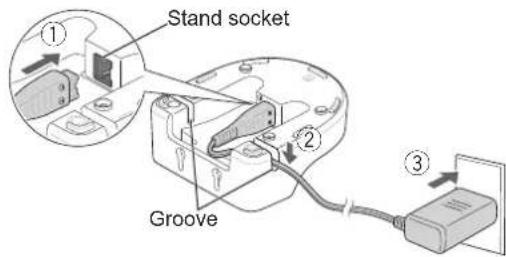

1 Connect the AC adaptor.

① Insert the appliance plug firmly to the stand socket.
② Press the cord into either the left or right groove, depending on where it will be placed.

- Place the charging stand on a flat and stable surface.

③ Insert the adaptor into a household outlet.

▶ About the charging time

• Charging is required when the low battery indicator (blue) fl ashes.
• Turning off the power switch "①" when the battery has little remaining charge, the low battery indicator will light off after 5 seconds.

2 Insert the main unit straight into the charging plug with the front facing outward.

▶ Indicator display during charging

Charging in progress	Charging complete

(Lights on • Lights off ○)

Chargingabnormal(Flashing in redtwice a second)

(Flashing

▶ How to check if charging is completed

- After charging is completed, if you connect and then disconnect the main unit to and from the charging stand, (the charge status indicator) lights on and then lights off after 5 seconds.

3 For safety and energy saving, disconnect the power plug.

English

• Charging the battery for more than 1 hour will not cause any damage to the main unit.
  ▶ Operating time after a full charge Approx. 10 minutes*

(When the water pressure level is set to 5)

* It varies with the ambient temperature and usage conditions.
- Charging is completed after approx. 1 hour. (The charging time may vary with the remaining battery capacity.)

Notes

• The charging time may differ when the appliance is used for the first time, or if it has not been used for more than 6 months. In addition, (the charge status indicator) may not light on in the first several minutes of charging, but it will light on as the charging proceeds.
• The battery will deteriorate if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.
• The recommended ambient temperature for charging is 10 °C - 35 °C. It may take longer to charge, or will flash rapidly and the battery may fail to charge properly in extremely high or low temperatures.
• To keep charging the battery will not affect battery performance.

How to use

1 Fill the water tank with water.

① Open the water supply cover.
② Add water while keeping the main unit level.

③ Close the water supply cover securely.

• Always use new tap water or lukewarm water.
- If the water feels cold, use lukewarm water with a temperature of 40 °C or less.

▶ If the water supply cover comes off

① Align the washer of the water supply cover with the water supply port.
⑥ Press in until a "click" is heard.

2 Install the nozzle.

Press in firmly

3 Press the level switch, and select the water pressure level.

- When you press the level switch, the water pressure level that was used last time is selected. Then each time you press the level switch, the water pressure level is switched as follows: 1 (weak) → 2 → 3 → 4 → 5 (strong) → 1...

▶ About the water pressure level memory function. The last selected water pressure level will be remembered, from which the appliance will start next time.
- When the appliance has not been used for a long time or when the battery is used up, the water pressure level will return to 1.

4 Clean inside your mouth with water jet.

① Place the nozzle in your mouth.
② Close your mouth gently.
③ Turn on the power switch "①".
- You can switch the water pressure level by pressing the level switch, even while using the appliance.
- If the main unit is tilted too much, the water does not come out from the nozzle.
▶ Operation time with full water Approx. 60 seconds.

(When the water pressure level is set to 5)

\ Point 1 /
Keep your face over the basin.

※ It can also be used in a bath.

▶ To adjust the orientation of the nozzle

You can adjust the direction of water jet by rotating the nozzle handle.

Notes

• When using the appliance for the first time, please press the power switch "①" and check the water pressure level while water is coming out. (Please start using the appliance from water pressure level.)
• The appliance may not operate in an ambient temperature approximately 5 °C or lower.

The appliance may not work outside the recommended temperature range.

• Do not push the tip of the nozzle too hard against the teeth or gums.
• When you feel that the irritation is strong, turn off the power switch "①" and use the appliance from water pressure level.
• Do not turn on the power switch “①” when the water tank is empty unless you are drying the moisture inside the main unit. (Doing so may cause malfunction.)

English

Tips of use

▶ Interdental cleaning

• Direct the water jet onto the space between the teeth.
• Direct from the front and rear sides of the teeth.
  With the water jet, the space between the teeth that cannot be reached with a toothbrush is cleaned thoroughly, and the dirt trapped in periodontal pockets is removed completely. In addition, effective care is provided for the gums by comfortable intermittent stimulation.

▶ Periodontal pocket cleaning

• Aim the water jet at the space between teeth and gums.
• Slowly shift the water jet along the gums.
• Clean the front and back of the teeth and behind the molars as well.
• If you are concerned about sensitive gums, clean with a gentle water jet setting.

Close-up of a white ceramic or ceramic tool welding with sparks flying (no visible text or symbols)

Close-up of a hand pouring liquid into a white bowl with a small container (no text or symbols visible)

▶ Gums care

• Stimulate the gums with the water jet.
- If you are concerned about sensitive gums, stimulate with a gentle water jet setting.
Since plaque adhering to the surface of teeth cannot be removed only with water jet, brushing is always necessary. It is recommended to clean inside your mouth with the water jet after brushing your teeth.

Close-up of three spherical objects with a central rod, possibly food items or biological samples (no visible text or symbols)

Afteruse

Please clean the appliance after each use.

1 To prevent the water from splashing about, turn off the power switch "①" while keeping the nozzle in your mouth.

2 Throw away the remaining water, and wash the nozzle with water.

① Pour out the remaining water. Change the water every time you use the appliance.

② Turn on the power switch “①” to remove the remaining water. Keep it on until no water comes out.

③ Remove the nozzle, and wash it with water.

Pull it out while pressing.

Nozzle release button

3 Remove the bottom cover, and wash the main unit (as a whole) and inside of the tank.

▶ How to remove the bottom cover

Bottom cover release button

Lift it up while pressing.

4 After drying, put the main unit upright on the charging stand.

① Wipe any water away from the nozzle and the main unit with a towel or the like, and dry them in a well-ventilated shade.

② Store it in the upright position · Attach the bottom cover, and put the main unit upright on the charging stand.

▶ How to attach the bottom cover

① Insert the claws (2 places) on the front of the bottom cover into the main unit.
⑥ Press in the hooks (2 places) on the back.

Notes

• Do not wash with lukewarm water exceeding 50^ .
• Use neutral kitchen detergent and rinse well with water to ensure no detergent remains after cleaning.
• Never use thinners, benzine, or alcohol. (Doing so may cause malfunction, or cracking or discolouration of the parts.)

▶ If the identification ring comes off

Align the nozzle with the identification ring (in any direction) to install it.
- Even if the identification ring is not attached, the performance of the nozzle is not affected.

▶ When the water jet is poor

Remove the dirt from the filter (the tip of the suction hose).

Filter

Rub it gently with a soft brush.

▶ When dirt is a concern

Wipe with a dry cloth. (Do not rinse it with water.)

Charging stand AC adaptor

Wall mounting

Be sure to choose a solid wall or a crosspiece to install the charging stand.

① Tighten two commercially available round wood screws (nominal diameter: 2.7 - 3.1 mm) at intervals of 29 mm so that the screw head can float about
3.0 mm from the wall.
② Hook the wall-mounting screw holes on the back of the charging stand on the screws, and fix them.
① Lift the charging stand.
b Pull it forward.

Approx. Wall-mounting 3.0 mm screw holes

Frequently asked questions

Quesiton Answer

Battery

Will the battery be exhausted after a long period of disuse?

Can the battery be charged before every use?

Please charge it once every 6 months if you have not used it for over 6 months since the battery may deteriorate.
The service life of the battery will not be affected thanks to the use of a lithium ion battery.

English

Troubleshooting
If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Problem Possible cause Action
While charging	The charge status indicator does not light on.	The appliance was just purchased or it has not been used for a while.	Although the indicator may not light on in the first several minutes of charging, it will light on as the charging proceeds. If it does not light on after a while, please request a repair at your dealer or Service Centre.
		The main unit is not properly plugged in the charging stand.	Check to see that the main unit stands upright so that its bottom comes in contact with the charging plug of the charging stand, and that the charge status indicator is on. (See page 11.)
	The charge status indicator flashes rapidly (twice a second).	The ambient temperature is too low or too high during charging.	Please charge within the recommended temperature range of 10 °C to 35 °C. If the indicator flashes even when you charge it within the recommended temperature range, contact your dealer or Service Centre for repair.
	The appliance can be used for just several minutes even after a full charge.	The main unit is not properly plugged in the charging stand.	Check to see that the main unit stands upright so that its bottom comes in contact with the charging plug of the charging stand, and that the charge status indicator is on. (See page 11.)
	The low battery indicator does not flash, but the appliance stops working.	The battery has reached the end of its life (approx. 3 years).	Replace it with a new one. (See page 20.) Please contact your dealer or Service Centre.
While using	The appliance does not operate.	The battery has reached the end of its life (approx.3 years).	Please remove the built-in rechargeable battery.(See page 20.)Please contact your dealer or Service Centre.
		The appliance is used with approximately 5 °C or lower.	Do not use the appliance with approximately 5 °C or lower.
	The water jet is poor.	The nozzle is clogged. The outlet of nozzle is squashed.	Replace the nozzle with a new one.
		The filter is clogged.	Remove the dirt from the filter.(See page 16.)
	No water comes out.	The main unit is tilted too much.	Please use the appliance with the main unit upright. (See page 13.)
		It may take some time to suck up water.	Please wait until water comes out.
	Water leaks from the bottom cover.	Dirt is accumulated on the rubber part of the bottom cover.	Please remove the dirt.(See page 16.)

Battery life

English

Approximately 3 years. The battery may have reached its operating life if the usage frequency decreases drastically, even after a full charge.

(The operating life of the battery may differ depending on usage or storage conditions.)

Have the battery replaced by an authorized service centre.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the appliance.

The battery must be disposed of safely.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the appliance form the charging stand and adaptor, press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Remove the bottom cover.
• Perform steps ① to ⑤ to disassemble the main unit and remove the battery with a screwdriver.
• Insulate the and terminals by applying tape to them. (To prevent short circuit of terminals).

For environmental protection and recycling of materials

This appliance contains a Lithium-ion battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the product (Automatic voltage conversion)
Charging time Approx. 1 hours
Pump frequency	Approx. 1600 pulses/minute (level 5) Approx. 960 pulses/minute (level 1)
Water pressure	LEVEL 5: Approx. 647 kPa (approx. 6.6 kgf/cm2) LEVEL 1: Approx. 196 kPa (approx. 2.0 kgf/cm2)
Operating time	LEVEL 5: Approx. 10 minutes* (at 20 °C when fully charged)
Tank volume Approx. 200 ml (approx. 60 seconds*)
Dimensions	Main unit: 210 (H) x 75 (W) x 85 (D) mm (Not including nozzle) Charging stand: 40 (H) x 90 (W) x 100 (D) mm
Mass	Main unit: Approx. 270 g (Including nozzle) Charging stand: Approx. 115 g
Airborne Acoustical Noise	71 (dB (A) re 1 pW)

This product is intended for household use only.

Changing the nozzle (Sold separately)

• If the tip of the nozzle gets deformed, please replace the nozzle with a new one.
  • The nozzle should be replaced once every 6 months or so due to hygiene reasons, even if it is not deformed.
• Optional nozzles with identification ring to allow several persons to share the main unit.

New nozzle (tip) Deformed (worn) nozzle (tip)

Part number Replacement Nozzle for EW1511
WEW0983 Nozzle

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol)

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Close-up of a white ceramic spoon spraying water with sparklers (no text or symbols visible)

Close-up of a dental tool tip with teeth and jaw (no visible text or symbols)

Nach dem Gebrauch

Illustration of two hand tools: a wrench and a tool with a handle, both without any text or symbols.

▶ Prévention des accidents

A Appareil principal

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

▶ Nettoyage des poches parodontales

Close-up of dental crowns with toothbrush (no text or symbols visible)

Après utilisation

Illustration of two hand gestures: one applying a tool to a handle, the other holding a tool with motion lines (no text or symbols)

B

©

D

A Unità principale

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Close-up of a toothbrush with teeth and surrounding bone structure (no text or symbols visible)

Dopo l'uso

Illustration of two hands holding different tools, one spraying water and the other holding a tool (no text or symbols present)

B

A Unidad principal

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Close-up of a dental tool tip with teeth and jaw (no visible text or symbols)

Tras el uso

Illustration of two hand tools: a lever and a spray gun, both without any text or symbols.

B

©

D

F

A Hoofdapparaat

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Nederlands

Close-up of dental crowns with toothbrush and jaw (no text or symbols visible)

Na gebruik

Illustration of a hand holding a tool and a spray bottle, both without any text or symbols

Close-up of a white ceramic or ceramic object with a bright light beam, emitting sparks (no text or symbols visible)

Close-up of dental crowns with a toothbrush touching them (no text or symbols visible)

Após a utilização

B

©

D

A Huvudenheten

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

▶ Vård av tandkött

Close-up of a textured, organic object with no visible text or symbols

Efteranvändning

B

©

D

F

A Hoveddel

Close-up of a tooth being sprayed with a tool, no visible text or symbols

▶ Rensning af parodontale lommer

Close-up of a hand holding three white, textured objects resembling flasks or wires (no visible text or symbols)

After brug

© Ladestativ (RC8-4)

⑰ Ladekontakt
⑱ Dysestativ
⑲ Skruehull for

veggmontering Laderen
kan monteres på en vegg
med to treskruer.
20 Stativkontakt

D Dyse (×2)

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

▶ Tannkjøttpleie

Close-up of a dental tool tip with teeth and jaw (no visible text or symbols)

Etter bruk

B

©

A Päälaite

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Close-up of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Käytönjälkeen

B

A Jednostka główna

Close-up of a tooth being digested with water, showing white powder and surrounding particles (no text or symbols)

Close-up of a hand holding a small object with textured surfaces, possibly a tool or tool tip (no visible text or symbols)

Po użyciu

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

B

©

D

A Hlavná jednotka

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Close-up of dental crowns and teeth (no text or symbols visible)

Po použití

B

©

D

A Föegység

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Magyar

Close-up of a textured, curved object with no visible text or symbols

Illustration of two hand gestures: one spraying a tool, the other holding a spray bottle (no text or symbols)

B

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Close-up of a hand holding a small object, possibly a tool or tool, with no visible text or symbols.

Romana

După utilizare

B

©

D

A Ana ünite

Close-up of a tooth being cut with visible teeth and surrounding bone (no text or symbols)

Close-up of a dental tool interacting with teeth (no visible text or symbols)

Kullanımdan sonra

33, Wanbao North Street, Wanbao Industry

Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China

YETKILI TEMSILCI

İthalatçı Firma:

Tesan İletişim A.Ş.

© Panasonic Corporation 2019

EN, GE, FR, IT, SP, DU, PT, SW, DA, NW, FI, PL, CZ, SK, HU, RO, TK

Printed in China

EW970015111503 S0319-0
