T1700G28TQ - Switch TP-LINK - Free user manual and instructions

Product Type	Managed Gigabit Network Switch
Brand	TP-Link
Model	T1700G28TQ
Number of Ports	28 Gigabit RJ45 ports + 4 SFP+ slots (10 Gigabit)
Console Port	1 RJ45 console port for command line management
Management Interface	Web Interface (HTTP/HTTPS), CLI (console and Telnet/SSH), Windows utility
Switching Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.1Q, 802.1p, 802.1d, 802.1w, 802.1s
Switching Capacity	128 Gbit/s
Dimensions (W x D x H)	440 x 220 x 44 mm (1U rack format)
Weight	Approximately 4.5 kg
Power Supply	100-240 V AC, 50/60 Hz, maximum power consumption 30 W
Cooling	Integrated internal fans
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % non-condensing
Mounting	Desktop (rubber feet) or 19-inch rack mounting with included brackets
Maintenance and Cleaning	Unplug the device, clean with a soft dry cloth. Do not use chemical products.
Safety	Do not disassemble, do not expose to water, unplug before cleaning. Power cord must be accessible.
Spare Parts and Repairability	No spare parts provided. Repairs must be carried out by a TP-Link authorized service center.
Warranty	TP-Link Limited Warranty (duration varies by country, refer to packaging)
Management Software	Easy Smart Configuration utility (for Easy Smart switches)

Frequently Asked Questions - T1700G28TQ TP-LINK

How to access the management interface of the T1700G28TQ switch?

Connect your computer to a port on the switch. Set a static IP address on your computer in the same subnet (e.g., 192.168.0.x). Open a web browser and enter the default address http://192.168.0.1. Log in with username admin and password admin (lowercase).

How to reset the switch to factory defaults?

Press and hold the Reset button on the front panel for about 10 seconds, then release. The switch will restart with default settings (IP address 192.168.0.1, login admin/admin).

What type of cable should be used to connect devices?

Use Category 5e or higher Ethernet cables for Gigabit ports. For fiber connections, insert compatible SFP+ modules (10G) into the SFP+ slots.

Can the switch be rack-mounted?

Yes, the T1700G28TQ is designed for 19-inch rack mounting. Attach the included mounting brackets to each side of the switch using the supplied screws, then screw the switch into the rack using appropriate bolts (not supplied).

How to configure a VLAN on the T1700G28TQ?

Log into the web interface (via your browser). Go to the VLAN section then 802.1Q VLAN. Create a new VLAN by assigning an ID and name. Add the desired ports as tagged or untagged according to your needs.

Does the switch have a console port?

Yes, the T1700G28TQ is equipped with an RJ45 console port. Connect it to your computer using the provided console cable (or a USB-RJ45 serial cable). Use a terminal emulator (e.g., PuTTY) with the following settings: 115200 baud, 8 data bits, 1 stop bit, no parity.

How to power on the switch?

Plug the provided power cord into the connector on the back of the switch, then plug the other end into a grounded electrical outlet. The switch will start automatically. No power switch is present: to power off, unplug the cord.

What are the front panel LEDs and what do they indicate?

The front panel has LEDs for each port (link/activity), typically green: solid on indicates a link established, blinking indicates network activity. The PWR LED (green) indicates the switch is powered on, SYS blinks during startup and then stays solid.

How to update the switch firmware?

Download the latest firmware file from the official TP-Link website. Log into the web interface, go to System Tools > Firmware Upgrade. Select the .bin file and click Upgrade. Do not disconnect the device during the upgrade.

What to do if I cannot access the web interface?

Check that your computer is in the same subnet (IP address 192.168.0.x). Temporarily disable proxy and firewall. Make sure you are using the correct protocol (http, not https). If necessary, reset the switch using the Reset button (see corresponding question).

USER MANUAL T1700G28TQ TP-LINK

Easy Smart&Smart&Managed Rackmount Switch

CONTENTS

Deutsch. 01
English. 06
Espanol. 11
Elambdaviká. 16
François. 21
Italiano 26
Portugues. 31
Suomi. 36
Nederlands. 41
Svenska. 46
Norsk. 51
Dansk 56
Türkge. 61

Installation

- Tischmontage

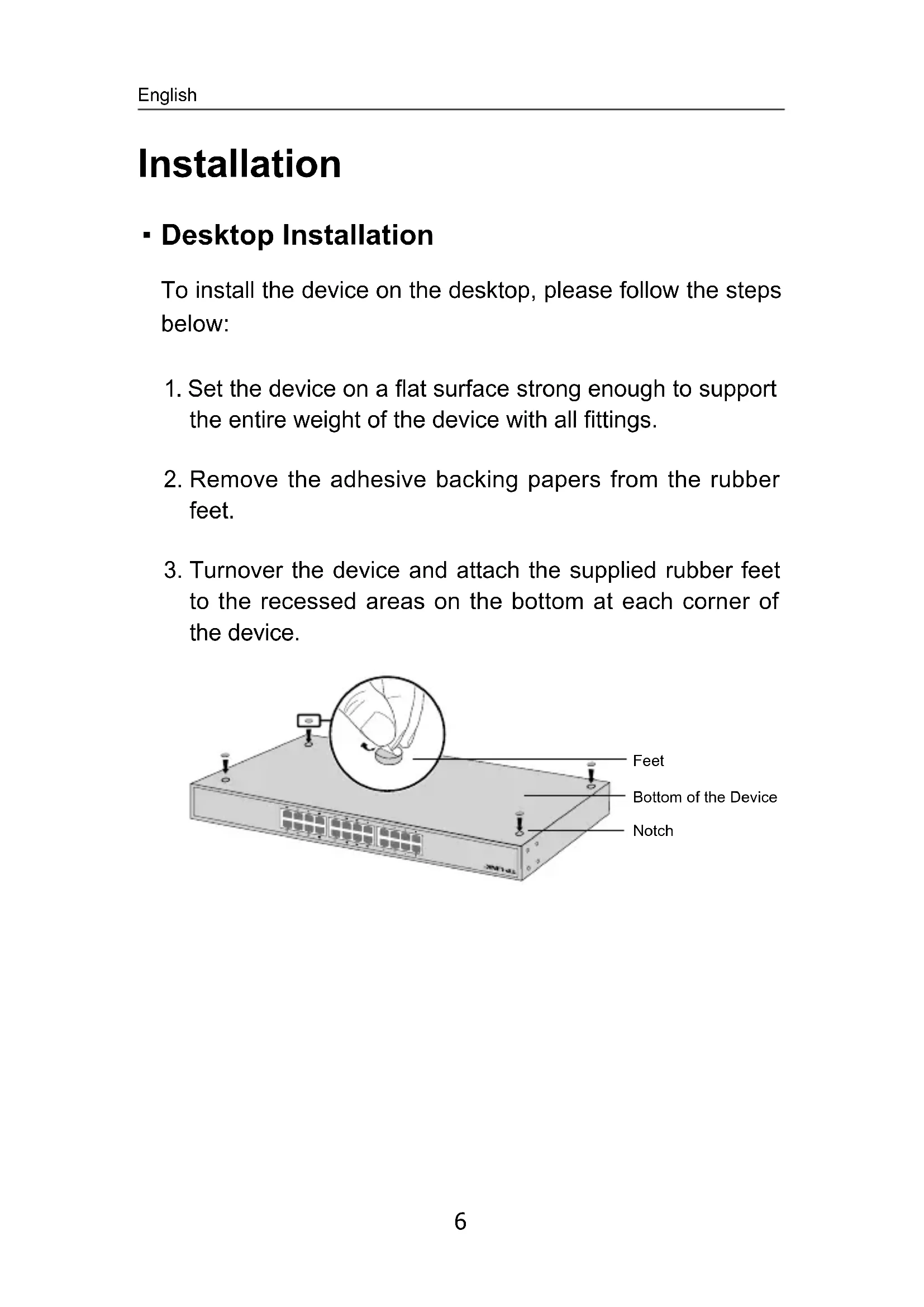

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

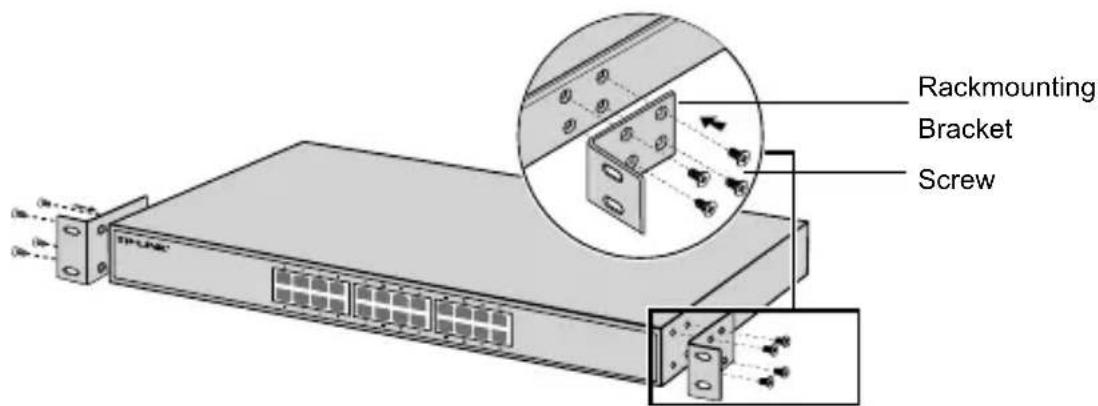

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

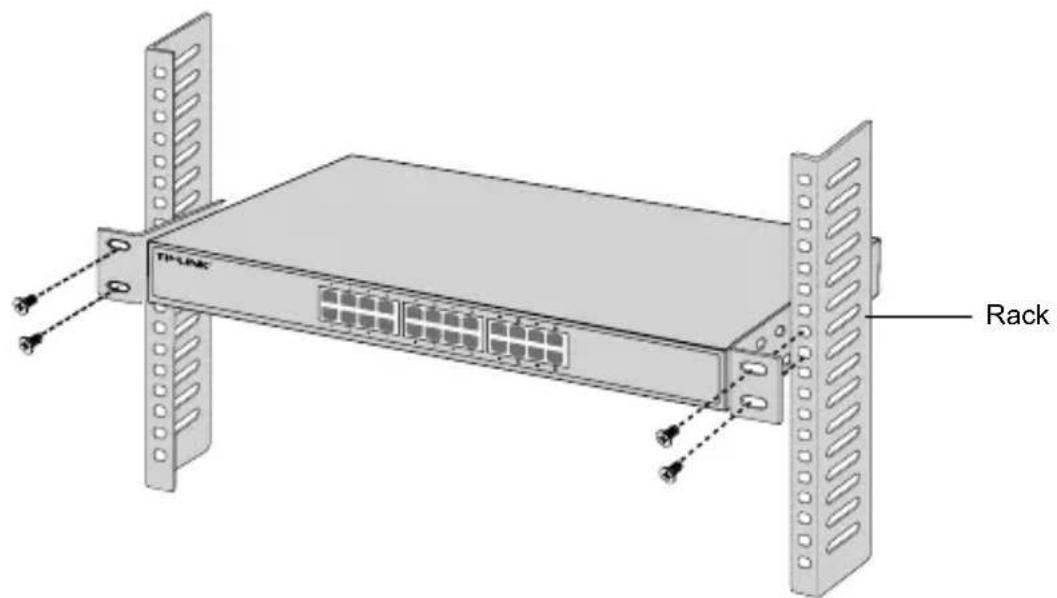

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

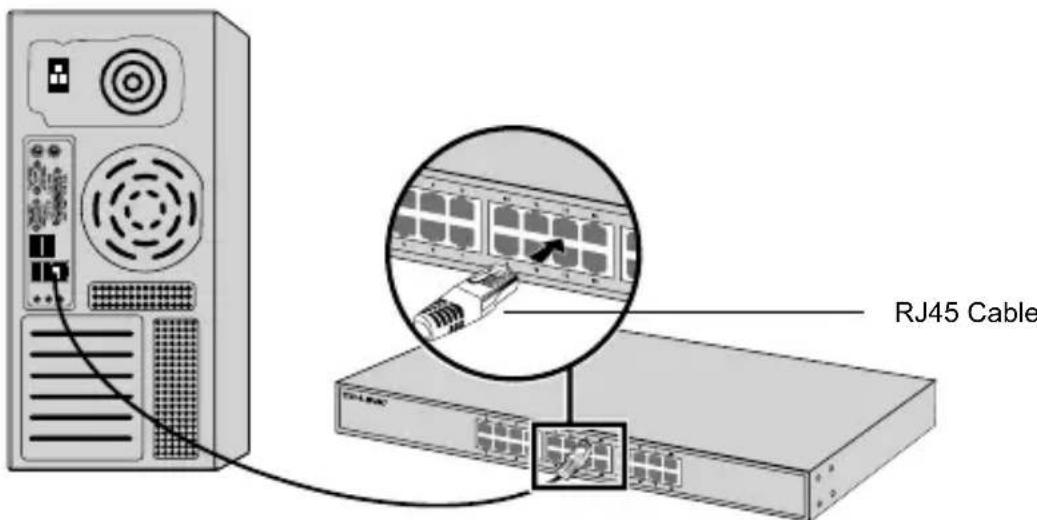

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

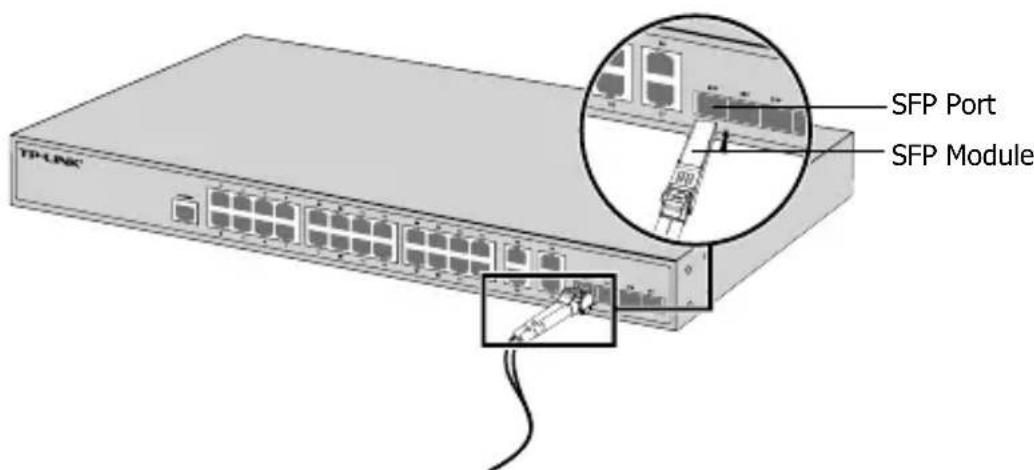

- SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

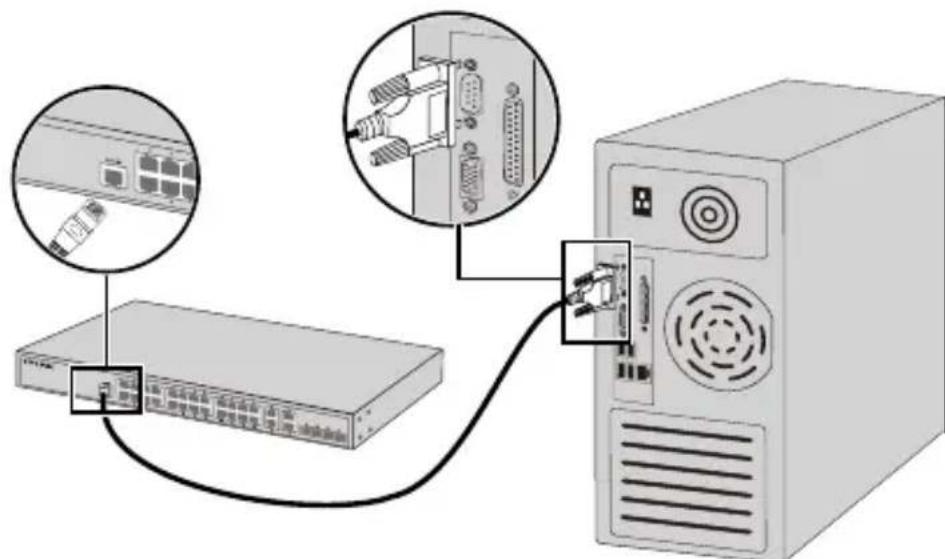

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

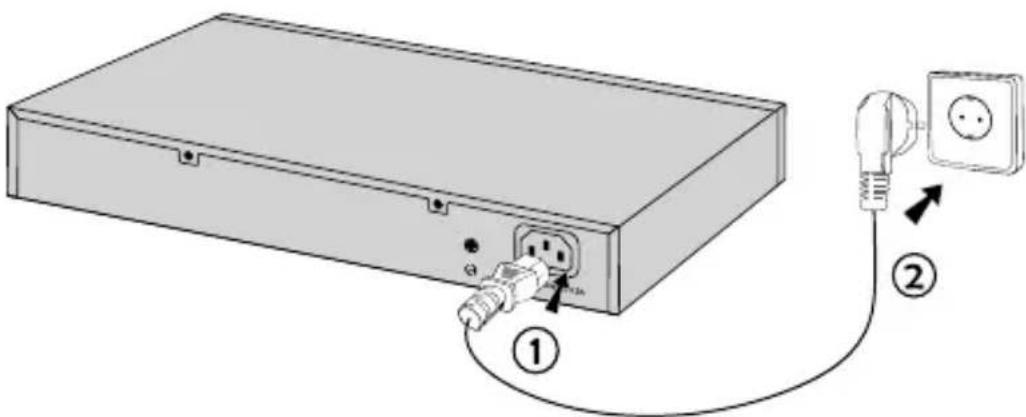

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.
2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.
3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.
4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the CLI (Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility (Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage entire networks of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

- Desktop-installation

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.
