Brand	Roadstar
Model	HRA1782D+BT
Category	Radio
Power supply	100-240 V, 50/60 Hz
Frequency ranges	FM 87.5-108 MHz, DAB Band III
Main functions	DAB, FM, Bluetooth, CD, USB, AUX-IN, alarm, timer, equalizer, USB recording
Number of presets	20 (DAB/FM)
Media type	Audio CD, USB devices, Bluetooth devices
Auxiliary input	3.5 mm jack socket
Equalizer	Flat, Pop, Classic, Rock, Jazz
Sleep timer	15/30/45/60/90 minutes
Alarm	Yes, adjustable with source selection (DAB/FM/CD/USB)
Display	LCD screen with information (time, date, station, etc.)
Remote control	Yes, included
Recording	Via USB from Bluetooth, AUX, DAB, CD
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not open the casing. Do not expose to moisture or rain. Maintain adequate ventilation.
Spare parts and repairability	No user-serviceable parts. Contact a qualified technician for any repairs.
Disposal	Do not dispose of with household waste. Recycle in accordance with local regulations.

Frequently Asked Questions - HRA1782D+BT ROADSTAR

How to set the time on the Roadstar HRA1782D+BT?

In standby mode, press and hold the STOP button (12) (or 6 on the remote control). Use SKIP +/- to set the 12/24 hour format, then confirm with STOP. Then set hours, minutes, year, month and day in the same way.

How to program an alarm?

In standby mode, press and hold the TIMER button (20 on the remote control). Set the hours and minutes with SKIP +/- and confirm with TIMER. Then choose the alarm source (DAB, FM, CD, USB) and activate it by pressing TIMER again. The alarm icon appears on the screen.

How to connect a device via Bluetooth?

Select BT mode with the SOURCE button. On your mobile device, search for the device 'HRA-1782D+BT' and connect. Once connected, you can stream music to the radio.

Can I listen to DAB radio?

Yes, select DAB mode with SOURCE. Perform a full scan via the menu or the SCAN button to find available stations. Use SKIP +/- to navigate between stations.

How to use the AUX input?

Connect an audio cable (3.5 mm jack) from your external device to the AUX input (socket 18) of the radio. Select AUX mode with SOURCE. The music from the external device will be played through the radio's speakers.

How to record music to a USB flash drive?

Insert a USB flash drive into the USB port. While playing a source (Bluetooth, AUX, DAB, CD), press REC (11 or 3 on the remote control). The screen displays 'REC'. To stop, press STOP. Files are saved in a folder created on the drive.

How to adjust the equalizer?

Press and hold the EQ button (16 on the remote control), then press briefly several times to choose between presets: Flat, Pop, Classic, Rock, Jazz.

What to do if the screen displays nothing?

Check that the device is plugged into a working power outlet (100-240V) and that the power switch is on. If the problem persists, refer to the manual for a factory reset via the system menu.

How to reset the device?

In FM or DAB mode, press MENU/PROG, select 'System', then 'Factory Reset'. Confirm to restore factory settings.

Can I use the remote control for all functions?

Yes, the remote control allows you to control most functions: power on/off, source selection, navigation, volume, equalizer, alarm, etc. Refer to the numbers indicated in the manual for each button.

USER MANUAL HRA1782D+BT ROADSTAR

Press (4) (5 on remote) repeatedly to select DAB / FM / BT / CD / USB / AUX mode.

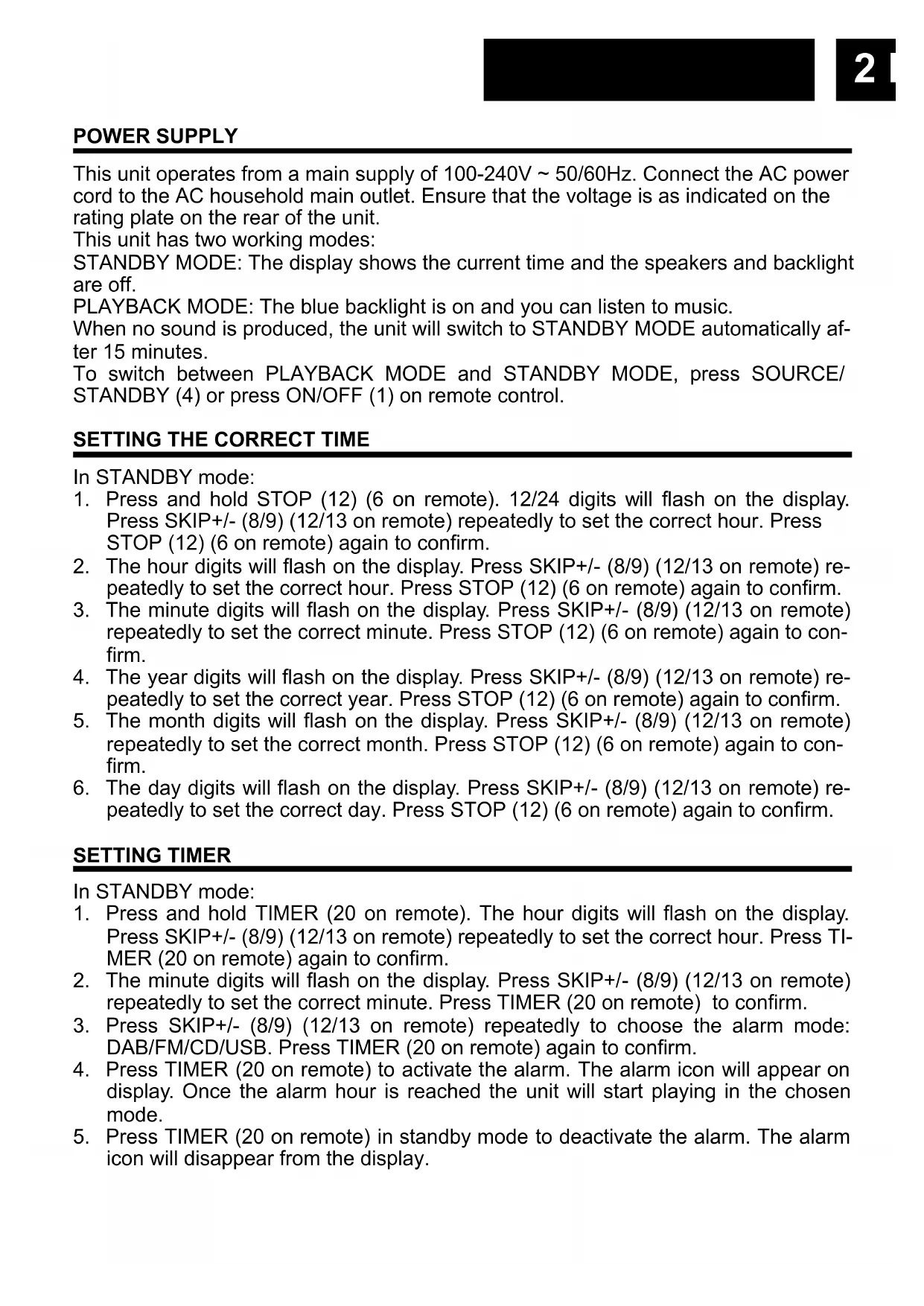

POWER SUPPLY

This unit operates from a main supply of 100 - 240V 50 / 60Hz . Connect the AC power cord to the AC household main outlet. Ensure that the voltage is as indicated on the rating plate on the rear of the unit.

This unit has two working modes:

STANDBY MODE: The display shows the current time and the speakers and backlight are off.

PLAYBACK MODE: The blue backlight is on and you can listen to music.

When no sound is produced, the unit will switch to STANDBY MODE automatically after 15 minutes.

To switch between PLAYBACK MODE and STANDBY MODE, press SOURCE/STANDBY (4) or press ON/OFF (1) on remote control.

SETTING THE CORRECT TIME

In STANDBY mode:

1. Press and hold STOP (12) (6 on remote). 12/24 digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct hour. Press STOP (12) (6 on remote) again to confirm.
2. The hour digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct hour. Press STOP (12) (6 on remote) again to confirm.
3. The minute digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct minute. Press STOP (12) (6 on remote) again to confirm.
4. The year digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct year. Press STOP (12) (6 on remote) again to confirm.
5. The month digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct month. Press STOP (12) (6 on remote) again to confirm.
6. The day digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct day. Press STOP (12) (6 on remote) again to confirm.

SETTING TIMER

In STANDBY mode:

1. Press and hold TIMER (20 on remote). The hour digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct hour. Press TIMER (20 on remote) again to confirm.
2. The minute digits will flash on the display. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to set the correct minute. Press TIMER (20 on remote) to confirm.
3. Press SKIP+/- (8/9) (12/13 on remote) repeatedly to choose the alarm mode: DAB/FM/CD/USB. Press TIMER (20 on remote) again to confirm.
4. Press TIMER (20 on remote) to activate the alarm. The alarm icon will appear on display. Once the alarm hour is reached the unit will start playing in the chosen mode.
5. Press TIMER (20 on remote) in standby mode to deactivate the alarm. The alarm icon will disappear from the display.

SLEEP

This function enables you to go to sleep listening to the Radio.

1. While listening to music, press TIMER (20 on remote) repeatedly to select between OFF/15/30/45/60/90.
2. The Radio turns on and will turn off automatically after the selected sleep timer.

NAVIGATE THE MENU

In FM/DAB mode there is an option menu.

1. Press MENU/PROG (7) (17 on remote) to access to the options.
2. Press SKIP + / - (8/9) (12/13 on remote) to search the options.
3. Press ENTER (12) (16 on remote) to select the options.
4. Press MENU/PROG (7) (17 on remote) to exit the menu.

SYSTEM SETTINGS

In FM/DAB mode, press MENU/PROG (7) (17 on remote) and select SYSTEM:

• Language: select this option to change the system language.
  Factory Reset: select this option to reset the device to factory settings.
• Software Upgrade: select this option if a new software version is released.
• SW version: select this oprion to see the current software version.

DAB MODE

Rotate SOURCE (4) (5 on remote) to select DAB mode.

Press SKIP+/- (8/9) (12/13 on remote) to search the program.

DAB MENU

Press MENU/PROG (7) (17 on remote) to access to the options.

• Full Scan: select this option to perform a full scan of the available DAB programs. You can press SCAN (10) (9 on remote) to perform the same action.
• Manual Tune: select this option to select manually the DAB frequency.
• DRC: select this option to choose between DRC low, DRC high and DRC off.
• Prune: select this option to choose between PRUNE stations on or off.

DAB PRESET

You can program a maximum of 20 preset radio stations.
- Press and hold PRESET (13) (19 on remote). PRESET STORE will appear on display. Press SKIP+/- (8/9) (12/13 on remote) to select the preset number. Press ENTER (12) (16 on remote) to confirm.
- Press PRESET (13) (19 on remote) to navigate through the presets.

DABINFO

Repeatedly press INFO (6) (18 on remote) to see the following informations: NAME / KBPS / DATE / TIME.

FM MODE

Rotate SOURCE (4) (5 on remote) to select FM mode. Select a station using one of the following methods:

• AUTO: Long pressing SKIP+/- (8/9) (12/13 on remote) for 2 seconds or more, the frequency changes down or up automatically until a station is found.
• MANUAL: Repeatedly press SKIP+/- (8/9) (12/13 on remote) to change the frequency until you find the station you want.

FM MENU

Press MENU/PROG (7) (17 on remote) to access to the options.

• Scan Setting: select this option to choose between scanning all stations or only the strong stations.
• Audio Setting: select this option to choose between forcing mono audio or allowing stereo sound.

FM PRESET

See DAB PRESET instructions.

FMINFO

Repeatedly press INFO (6) (18 on remote) to see the following informations: KIND OF PROGRAM / FREQUENCY / AUDIO / DATE / TIME.

PLAYING COMPACT DISC

1. Press SOURCE (4) (5 on remote) repeatedly to select CD mode.

2. Press CD DOOR OPEN/CLOSE BUTTON (3) (2 on remote) to open the cd door. Place a cd with the printed side facing up inside the tray, then close the cd door. The first track will start playback.

3. Press SKIP -/+ (8/9) (12/13 on remote) to select your favorite tunes. If you hold SKIP -/+ (8/9) (12/13 on remote), the playing track will go fast backward or forward until you release the button.

4. Press PLAY/PAUSE (10) (9 on remote) to pause the playback. The track number will start blinking. Press PLAY/PAUSE (10) (9 on remote) again to resume the playback.
5. Press STOP (12) (6 on remote) to stop the playback.

REPEAT MODE

During playback, repeatedly press REPEAT (6) (7 on the remote control) to select:

• Repeat1: The current track is played repeatedly.
• RepeatFolder: The current folder is played repeatedly.
• RepeatAll: All tracks are played repeatedly.

CD PROGRAMMING

You can program up to 99 tracks to play in any desired order.

1. Insert a disc and press STOP (12) (6 on remote) when it starts playing.
2. Press PROG (7) (8 on remote). "P01" will be shown on the display.
3. Press SKIP -/+ (8/9) (12/13 on remote) to select your favorite tunes.
4. Press PROG (7) (8 on remote) to store the track in the program memory. "P02"

will be shown on the display.

1. Repeat steps 3-4 to select and store all desired tracks.
2. Press PLAY/PAUSE (10) (9 on remote) to start program play.
3. Press STOP (12) (6 on remote) once to stop the program play. Press STOP (12) (6 on remote) twice to clear programme.

AUX-IN

This unit provides an auxiliary audio input jack for connecting external audio device like MP3 players, CD players and allow playback of your external source through the system speakers.

1. Use an audio cable (not included) with a RCA stereo plugs on one end of the cable. Plug one end into the AUX-IN (18) on the main unit and plug the other end of the cable into the LINE OUT or HEADPHONE Jack of your external audio device.
2. Turn ON the unit and your external audio device. Rotate SOURCE (4) (5 on remote) to select CD mode.
3. Start to play the external device (see the user manual of the external device).

BLUETOOTH OPERATION

1. Rotate SOURCE (4) (5 on remote) to select BT mode.
2. Select from your portable device (Smartphone, Tablet...) the ID Bluetooth tagged as HRA-1782D+BT, then confirm connection.
3. When the pairing is successful the LED will stop blinking.
4. Now you can transfer the music to the HRA-1782D+BT and all operations can only be operated from your mobile device.

PLAYBACK FROM USB

1. Insert the USB device's plug into the USB socket (5).
2. Rotate SOURCE (4) (5 on remote) to select USB mode.
3. The unit will start reading the device automatically after the connection.
4. Use the same procedure as CD to listen to your USB device.

DELETE USB

1. During playback, press and hold DEL (11) (4 on remote). "DEL" will be shown on the display.
2. Press SKIP -/+ (8/9) (12/13 on remote) repeatedly to select between ONE/FOLDER/ALL.
3. Press DEL (11) (4 on remote) again to confirm.

RECORDING FUNCTION

While listening to BLUETOOTH/AUX-IN/DAB:

1. Press REC (11) (3 on remote). "REC" will be shown on the display. The REC indicator will light up. Encoding is performing now. (encoding speed is 1:1).
2. Press STOP (12) (6 on remote) to stop recording.
3. The unit will create a folder in the USB device, that contain all recorded tracks.

While listening to CD:

1. Press REC (11) (3 on remote).
2. Press SKIP -/+ (8/9) (12/13 on remote) repeatedly to select between ONE/FOLDER/ALL.
3. Press REC (11) (3 on remote) once more to start recording.

EQ OPERATIONS

In any mode, you may press & hold EQ button (16 on remote), then shortly press it repeatedly to select between FLAT / POP / CLASSIC / ROCK / JAZZ.

SPECIFICATIONS

AC: 100-240V ~ 50/60Hz

FM: 87.5 - 108 MHz

DAB: Band III

Specifications and the design are subject to possible modifications without notice due to improvement.

.WARNINGS

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 100 - 240V 50 / 60Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.

Ensure all connections are properly made before operating the unit.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

7 Deutsch

LAGE DER BEDIENELEMENTE

1. LCD-DISPLAY
2. CD-FACH
3. TASTE ZUM ÖFFNEN/SCHLIESSEN DES CD-FACHS
4. SOURCE/STANDBY
5. USB-EINGANG
6. INFO
7. MENU/PROG
8. SKIP -
9. SKIP+
10. SCAN/PLAY/PAUSE
11. AUFNAHMETASTE
12. STOP-TASTE
13. PRESET
14. LAUTSTÄRKEREGLER
15. ON/OFF
16. NETZKABEL
17. FM-ANTENNE
18. ZUSATZEINGANG
19. KOPFHÖRERAUSGANG

FERNBEDIENUNG

Viz DAB PRESETPokyny.

FM INFO

Hereby, Roadstar Management SA declares that the radio equipment type HRA-1782D+BT is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://roadstar.com/images/ce/HRA-1782D+BT.pdf

VER.2

Roadstar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)
