Product type	Universal USB car adapter
Brand	Philips
Model	SCM4480
Dimensions (H x W x D)	70.3 x 55.5 x 35.5 mm
Weight	70 g
Input power	110-240 V AC (60/50 Hz)
Output power	5.6 V DC, 450 mA max.
Operating temperature	0°C to 45°C
Light indicator	PHILIPS logo lit when charging, flashes when fully charged
Ports	1 USB port (5V output)
Package contents	Adapter, detachable USB cable, connector tips, tip holder, carrying case, user manual, compatibility card
Main functions	Charging of 5V DC devices (phones, MP3 players, etc.)
Care and cleaning	Use a soft, lint-free cloth; avoid harsh chemicals
Safety	Do not expose to moisture or rain; do not disassemble; use only provided accessories
Spare parts and repairability	USB cable and tips replaceable; do not repair yourself, contact distributor
General information	Designed for vehicle use; compatible with most 5V devices

Frequently Asked Questions - SCM4480 PHILIPS

How do I charge a device with the USB adapter?

Insert the USB cable plug into the adapter's USB port. Attach the appropriate connector tip to the USB cable. Connect the tip to your device. The PHILIPS logo lights up during charging and flashes once charging is complete.

What types of devices can I charge?

The adapter is designed for devices operating at 5V DC, such as mobile phones and MP3 players. Check your device's voltage before use.

Why isn't my device charging?

Possible causes: incompatible device voltage, wrong tip, damaged cable, or incorrect connection. Check compatibility and use the provided accessories.

What if the PHILIPS light does not turn on?

Make sure the adapter is properly plugged into the cigarette lighter socket. Check that the USB cable and tip are correctly connected. If the problem persists, the adapter may be defective; contact your distributor.

Can I use a USB cable not provided?

It is recommended to use only the USB cable and tips provided with the adapter to avoid any damage.

How do I clean the USB adapter?

Use a soft, lint-free cloth. Do not use solvents or strong detergents.

Can the adapter be used outdoors?

No, the adapter should not be exposed to rain or excessive humidity. Use it only in a dry, weather-protected environment.

What to do in case of overheating?

Unplug the adapter immediately and let it cool down. Check that the connected device's consumption does not exceed 450 mA. If the problem persists, contact customer service.

How to dispose of the adapter at end of life?

Do not dispose of the adapter with household waste. Take it to a collection point for electrical and electronic equipment in accordance with local regulations.

Where to find the tip compatibility card?

The compatibility card is provided in the package. You can also consult the user manual or visit the Philips website for more information.

USER MANUAL SCM4480 PHILIPS

Register your product and get support at www.philips.com/welcome

SCM4480

EN universal USB adapter 3
FR adaptateur USB universal 6
ES adaptor USB universal 9
DE universeller USB-Adapter 12
NL universe USB-adapter 15
IT adattatore universal USB 18
PT adaptor USB universal 21
GR npoapouoyea USB 24
TR USB adaptorünüz 27
DK universal-USB-adapter 30
SV universell USB-adapter 33
FI USB-yleissovitin 36
PL uniwersalnyadapterUSB 39
CZ univerzální adaptér USB 42
SK univerzálnyadapter USB 45
HU univerzális USB-csatlakozó 48
RU yHnBepcaaHbI aAaTep USB 51

A

B

1 Your universal USB adapter

Congratulations on your purchase and welcome to Philips!

This universal USB adapter provides instant power to most devices with a service voltage of 5V DC (mobile telephones, MP3 players, etc.).

Carefully read and save this user manual for it contains important safety and operating instructions for this USB adapter. Before using the USB adapter read all instructions and cautionary markings on the USB adapter itself and the device to be charged.

To fully benefit from the support that Philips offers, register your product at: www.philips.com/welcome

Note:

For several portable devices (5V), a USB cable is supplied with the original device (e.g. most MP3 players). In this case, you can also use this cable to charge your device.

2 What's in the box?

universal USB adapter
- connector tips for 5V DC devices (mobile telephones, MP3 players, etc.)
- retractable USB cable
- connector tip holder
- travel bag
-user manual
compatibility sheet

3 Important safety instructions

• Read and observe all warnings on the USB adapter and in this user manual.
• Power consumption of the connected device must not exceed 5.8V, 450mA .
• Never use the USB adapter in moist places or close to water.
• Do not expose the USB adapter to rain or excessive moisture.
• Do not place inflammable, explosive or hazardous objects near the USB adapter.
• Only use the supplied USB cable and connector tips. Use of other types of cords and tips may damage the USB adapter and/or your device.
• Only use the USB adapter in an environment with the proper temperature (0^ - 45^) .
• Keep the USB adapter away from children.
• Do not disassemble or try to repair the USB adapter yourself. You might get injured or the USB adapter may be damaged.
• Store the USB adapter in a dry place with the proper ambient temperature (0^ - 45^) .
• Do not operate the USB adapter if it has been subjected to shock or damage.
• To avoid risk of electric shock, unplug the USB adapter from the AC power supply and disconnect devices before cleaning or when not in use.
• Allow a sufficient amount of free space all around the USB adapter for adequate ventilation.
• Do not throw or shake the USB adapter.

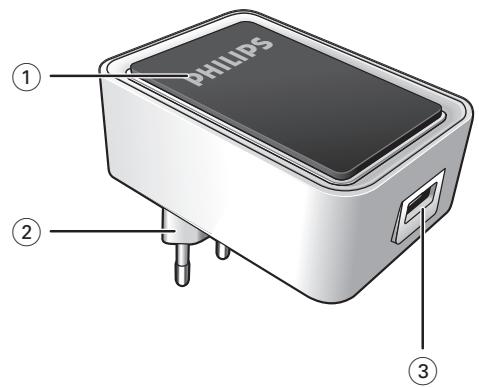

4 Functional overview (fig.A)

① PHILIPS

• Lights up when a 5V device is charging (when no device is connected, the PHILIPS logo will flash).
• Flashes when the device is fully charged.

② Foldable power plug

Connects to the wall outlet.

③ USB port

Connects to 5V DC devices (mobile telephones, MP3 players, etc.).

5 Operation

Charging devices - preparation

1 Check the maximum input voltage (V DC) of the device you wish to connect. For this see the user manual that came with the device.
2 Make sure the device does not consume more current (mA) than 450mA .
3 Check what connector tip is required for your device. See the compatibility sheet for the proper tip for your device.

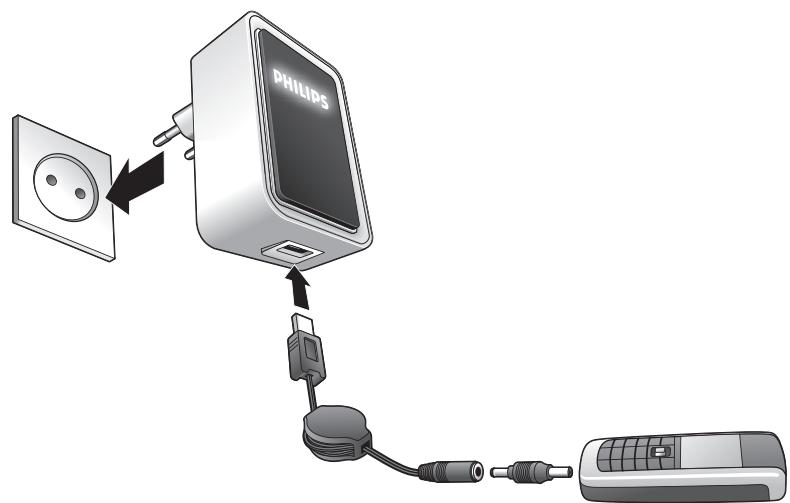

Charging 5V devices (fig. B)

1 Insert the plug of the USB cable into the USB port (3).
2 Connect the connector tip to the USB cable.
3 Insert the connector tip into the power supply jack of the device.

PHILIPS lights up when a device is charging.
PHILIPS will flash when the device is fully charged.
4 Disconnect the device from the USB adapter.

6 Technical specifications

• Rated input: 110V - 240V AC (60/50Hz)
• Rated output: 5.6V DC, max. 450 mA
• Operating temperature: 0^ - 45^
  Size: 70.3 × 55.5 × 35.5 ~mm (h × w × d)
  Weight: 70g

7 Troubleshooting

Problem

• Possible cause
  Solution

USB adapter does not charge connected device

Voltage of device does not correspond with that of USB adapter.
Refer to the user manual that came with the device.
- Improper connection between device and USB adapter.
- Make sure that the USB cable is properly inserted into the device and the USB adapter.
- Damaged USB cable or connector tip.
- Replace USB cable and/or connector tip.
- Wrong connector tip used.
- Check connector tip and replace if necessary.
- Non supplied USB cable / connector tip used.
- Replace with supplied USB cable/connector tip.
- Problems with electrical circuit of USB adapter.
- Take the USB adapter to your local distributor.

8 Maintenance

• Use a soft, lint-free cloth to clean the USB adapter exterior. Do not use harsh chemicals, cleaning solvents or strong detergents.
• When any problems occur with the USB adapter or the accessories, take the adapter and accessories to your local distributor.

9 Need help?

Online help: www.philips.com/welcome

For interactive help and frequently asked questions.

4 Perspective functional (fig.A)

① PHILIPS

3apAhbIe yctpoCTBa - noAroTOBka

1 Ipeea nOaKaIoueHEm npOBepbTe MaKcImaIbHoe BxOaHoe HapPjaKeHne (B NoctoHHoro Toka) yCTpoiCTBa. AIA INHΦOpMauCm. pYKOBoCTBO IOnb3ObaTeA, BXoJaUee B KOMIaEKr YCTPOICTBa.
2 Y6eAnTeCb,HTO NtPe6AЯMaB EanuHa ToKa (MA) Aa DaHHoro yCTpoiCTBa He npeBbIwaet 450 mA.
3Поберьт，КакneHaacaknДЯПОАнIOUHeyN Tpe6yIOTcAЯBaWero yCTpoIcTBa.ДЯВbI6opa COOTBETCTBYIOSeHacaknCM.ANTCOBMECTIMOCHTN.

3apAka yctpoiCtB c HnprjKeHHem 5 B (pnc.B)

1 BCTaBtBe BnAky Ka6eAa USB B nOpT USB (3).

2 POnCoeAnHnTe HacaKy AaI PoKaIOueHnK Ka6eAIO USB.

BCTaBbTe HacaKy DAA IIOKAIOUeHnB pa3beM nctOuHHka pNTaHnY cTpoiCTBa.

PHILIPS 3aropaetc BO BpeMa 3apAKN yCTpoiCTBa.
PHILIPS 3aMnraet, KOrDa yCTpoiCtBO 6yAeT NOAHOCtBIO 3apJxHeO.

4 OToeAnHHe yctpoCTBO oT aanTepa USB.

6 TexHHueckne xapaKTepeNCTIKN

-ПOTpe6laemmaMOUHocTB:110V-240VAC(60/50Hz)
HOMHaBHa BbIXoHa MaHocTb:5,6BIOCToHHoro TOka,MaKc.450MA
Pa6oay TempepaTpya: 0^ - 45^
Pa3mep:70,3x55,5x35,5MM(BxuXr)
Bec:70 rpaMM

7 YcTaPaHeHne HeuCnpaBHoCTe

PpO6Aema

-Bo3MOxHn npuHa
- Peшени

AganTp USB He 3apjkaet nogkauyehnoe yctpoiCTBO

• HanpajkeHne ycmpoJcmba He coombemcmyem HanpajkeHIO aganmepa USB.
• CπpαBKN CM. pyKOBOaCTBO ΠΟλb3OBaTeλ, BXOaIuee B KOMΠaEkτ γCTPoičTBA.
• HenpabnAbhoe nogKluoyehne Mexkgy ycmpoYcmbom ananmepom USB.
• Y6eAnTeCb, yTo Ka6eAusb USB COOTBETCTBYHouNIM 06pa3OM BCTaBHeB yCTpoiCTBO n aAanTep USB.
  -Повбжgesнbl Ka6eAusb USNnHacagka gna nogKIOUeynna.
  3aMeHnte Ka6eAb USB n/nn HacaAky AAnnoDkAIOUOHeHn.
  Icnoa3yemcHenpaBnBnaHaaHacagka gA noqKluOeHnA.
• PioBoepe Te HacaKdy AIAI NOAIOUOeHn I, pni Heo6xoAnMOCTn, 3aMeHnte.
• Icnoa3yemcr He BxograB IN KOMnAekm Ka6eAB USB Hacagka gna nogkauoehna.
• 3aMeHnTe Ha BXoAaIeN B KOMIIeKr Ka6eAusb Hacaky AIOKaIIOeHn.
• Henoanagkn c 3Aekmpnueckon uenbvo aganmepa USB.
• OTHecnte aaantep USB B MeCTHoe TOPROBOE npeaCTaBHTeAbCTBO.

8 06cayxKINBaHne

• AЯ чтки BWEшнй NOBepxHOCTH aДanTepa USB Ncno3yIte MryKyo, 6eBOPCBOYIO TkaHB. He nCno3yIte arpeccnBhIe xMnKAtbI, pactBOPHTeAN MAN CnMbHIE YNCTAJIne cpeAdTBA.
• Пи возноковени Альбix HeпоадOK саадпетром USB виakceccуapamn, оразаиТecь В мстhoe ToproBOE пeДСТавИТЕltBO.

9 HyxHa nOMoUb?

HHTepaKTbHaNoAePka:

www.philips.com/welcome

AHTepaKTbHOI NOAdepKIN HaCTO 3aDaBaEMbIX BONPOCOB.

EN Information to the consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

September 2007
