105 - Speaker BRAVEN - Free user manual and instructions

Product Type	Bluetooth Speaker
Brand	Braven
Model	105
Connectivity	Bluetooth with A2DP and HFP profiles (hands-free)
Battery	Lithium-ion rechargeable via Micro-USB port
Charge indicator	Flashing red LED (battery ≤10%), solid during charging, off when fully charged
Water resistance	IPX7 (immersion up to 1 meter) if flap closed
Mounting	Integrated strap, GoPro-compatible mount, 1/4-20 tripod insert, stand included
Functions	Hands-free, volume/skip controls, auto-off after 30 min without connection
Power	USB 5V via wall adapter (not included) or computer port
Box contents	Speaker, Micro-USB cable, stand, mounting mechanism
Compatibility	Smartphones, tablets, and other Bluetooth devices
Repairability	Not user-serviceable (opening voids warranty)
Charging temperature	0 to 40 °C
Warnings	Do not expose to rain during charging; close waterproof flap for water resistance

Frequently Asked Questions - 105 BRAVEN

How to pair the Braven 105 with my phone?

To pair, press and hold the power button O until the LED flashes rapidly. Enable Bluetooth on your phone and select « BRAVEN 105 » from the list. If a password is requested, enter « 0000 ». A beep confirms pairing.

How to reset pairing for a new device?

Turn off the speaker by pressing and holding O. Then, press and hold O again until you hear the power-on beep and the pairing sound. Then follow the standard pairing steps.

How to answer a hands-free call?

Press the O button once to answer a call. Press again to end the call. Music automatically pauses during the call.

How to know when the battery is low?

The red LED flashes once per second when the battery is at or below 10%. During charging, the LED stays on and turns off when fully charged.

Is the speaker waterproof? Can it be submerged?

Yes, the Braven 105 is certified IPX7, meaning it can be submerged up to 1 meter for 30 minutes. Make sure the silicone flap covering the charging port is securely closed before any exposure to water.

How long does it take to fully charge?

The charging time is not specified in the manual, but it is recommended to charge until the light turns off. Use a wall adapter (not included) or a computer USB port.

What to do if the speaker does not turn on?

First check the battery charge. Plug in the USB cable and let it charge for a few minutes. If the speaker still does not turn on, press and hold O for 2-3 seconds to restart it.

Can I connect the speaker to a computer?

Yes, the Braven 105 connects via Bluetooth to any compatible computer. Enable Bluetooth on the computer and select « BRAVEN 105 » from the device list.

How to attach the speaker to a backpack?

Use the integrated strap to attach the speaker to a backpack or a bar. You can also use the mounting mechanism provided, compatible with GoPro mounts.

The speaker turns off by itself, is that normal?

Yes, the Braven 105 automatically turns off after 30 minutes without an active Bluetooth connection to save battery. To turn it back on, press and hold O for 2-3 seconds.

USER MANUAL 105 BRAVEN

-Full battery = light off -Red LED flashes 1x every second at ≤10%

-LED remains solid red when charging, then turns off

+ VOLUME UP / SKIP TRACK (press and hold)

O PAIRING / ANSWER-END CALL / PAUSE-RESUME MUSIC

- VOLUME DOWN / SKIP BACK (press and hold)

BRAVEN

Technical line drawing of a mechanical component with no visible text or symbols

STRAP

14 -20 THREADED MOUNTING INSERT

BRAVEN CHARGING PORT

RESET BUTTON

3.5 MM AUDIO-IN JACK

SILICONE FLAP PULLS BACK

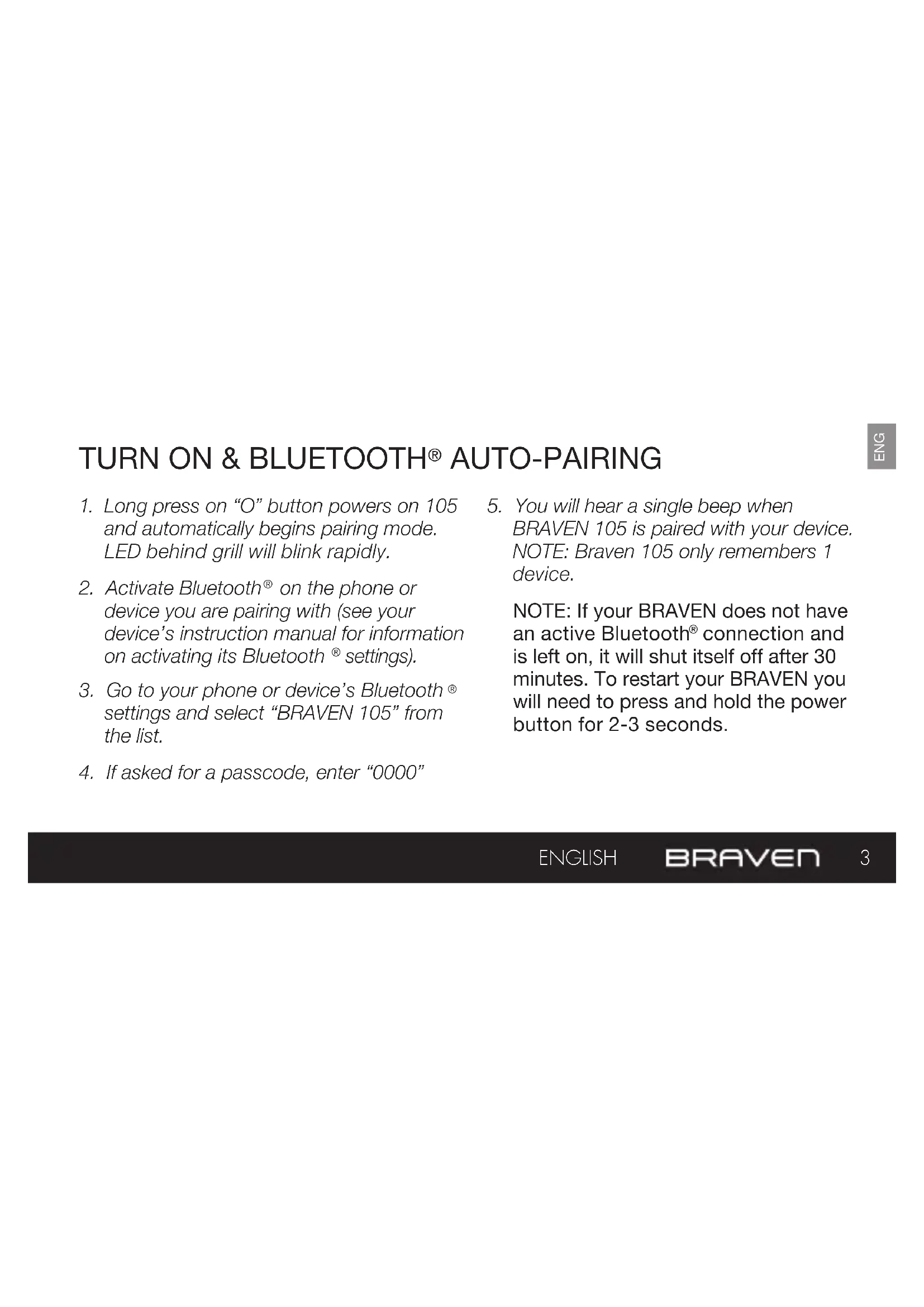

TURN ON & BLUETOOTH® AUTO-PAIRING

1. Long press on "O" button powers on 105 and automatically begins pairing mode. LED behind grill will blink rapidly.
2. Activate Bluetooth® on the phone or device you are pairing with (see your device's instruction manual for information on activating its Bluetooth® settings).
3. Go to your phone or device's Bluetooth® settings and select "BRAVEN 105" from the list.

4. If asked for a passcode, enter "0000"

5. You will hear a single beep when BRAVEN 105 is paired with your device. NOTE: Braven 105 only remembers 1 device.

NOTE: If your BRAVEN does not have an active Bluetooth® connection and is left on, it will shut itself off after 30 minutes. To restart your BRAVEN you will need to press and hold the power button for 2-3 seconds.

ENGLISH

BRAVEN

NEW DEVICE PAIRING

1. If you'd like to pair BRAVEN 105 to a new device, long press "O" to turn off speaker. Once speaker is off, long press "O" until you hear the speaker power on and hear the pairing sound.
2. Activate Bluetooth® on the phone or device you are pairing with (see your device's instruction manual for information on activating its Bluetooth® settings).

NOTE: Speaker can ONLY go into paring mode or be put into pairing mode when the speaker is first turned on.

1. Go to your phone or device's Bluetooth® settings and select "BRAVEN 105" from the list.
2. If asked for a passcode, enter "0000"
3. You will hear a single beep when BRAVEN 105 is paired with you device.

SPEAKERPHONE

- Press the "O" button to answer a call over the speaker. Press the "O" button again to end the call.

CHARGING YOUR BRAVEN WATERPROOF FEATURES

• Before using your BRAVEN for the first time, charge the unit until the LED battery indicator light behind the grill turns off.

• To charge your BRAVEN, plug the included USB-to-Micro-USB cable into a wall power adapter (not included) or into a powered USB port on a computer. Plug the Micro-USB connector end of the cable into the BRAVEN charging port.

• The BRAVEN 105 is IPX7 waterproof, and is designed to withstand rainfall, waterjets, water splashing, and dunk in the pool.

• IMPORTANT To ensure your BRAVEN 105 speaker is prepared for use in a wet environment, remove all cable connections and tightly close the silicone flap which guards the charging port and AUX input on the back of the speaker. If this flap is not securely fastened to the speaker, BRAVEN 105 will not be waterproof.

ENGLISH

BRAVEN

ATTACHING AND MOUNTING YOUR BRAVEN

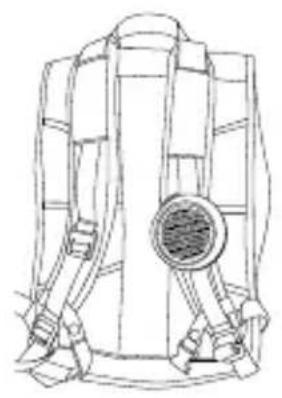

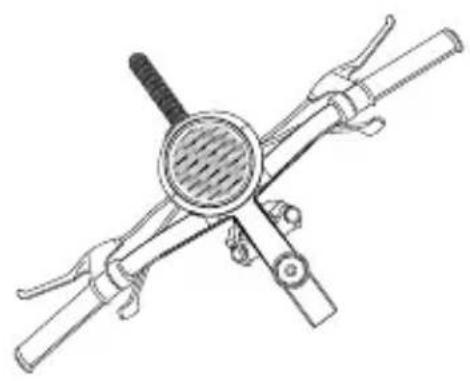

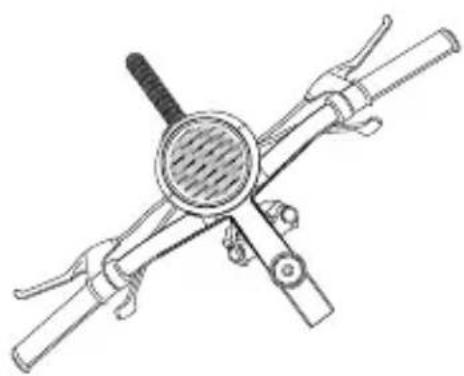

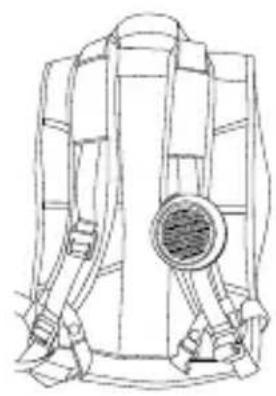

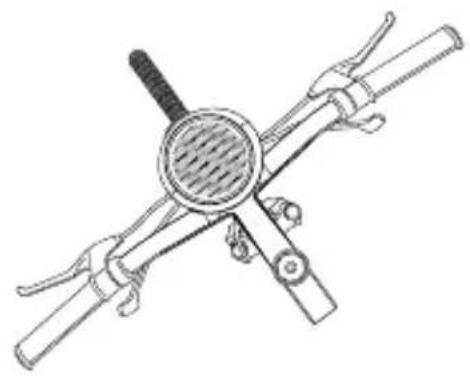

- Integrated strap allows you to attach your BRAVEN 105 to a backpack, or bar.

Line drawing of a backpack with straps and a circular vent (no text or symbols)

- Included Action Mount allows you to attach BRAVEN 105 to most GoPro* mounting systems.

Technical line drawing of a mechanical tool or bracket with multiple arms and a central circular component (no text or symbols)

- 14 -20 threaded mounting insert is compatible with tripods, and other mounts with 14 -20 posts.

Pure technical diagram of a circular mechanical component with internal vertical slots and a top handle (no text or symbols)

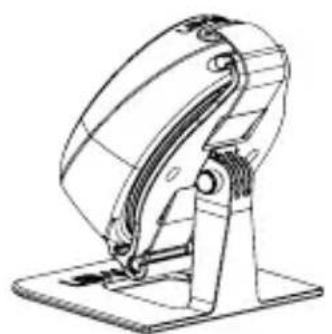

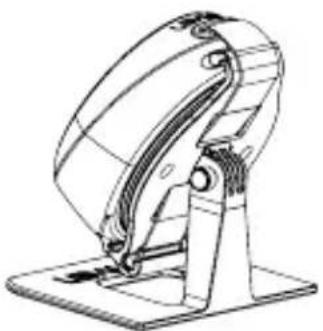

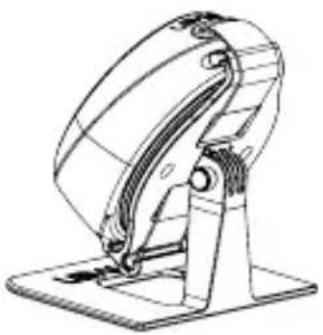

- Use included desk stand at the office, dorm, or next to the kitchen sink.

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

*GoPro is a registered trademark or registered trademark of GoPro, Inc.

ENGLISH

BRAVEN

REMOVING 105 FROM STAND

Technical line drawing of a mechanical device with no visible text or symbols

1. Locate pin

Technical line drawing of a mechanical device with no visible text or symbols

1. Remove pin

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

1. Separate from stand
   Note: Store stand in safe place

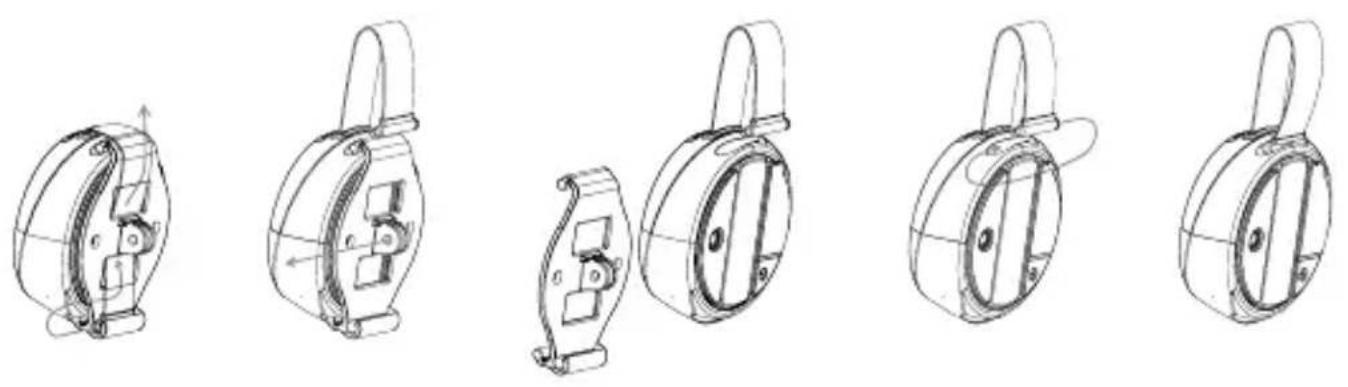

REMOVING ACTION MOUNT FROM 105

Technical line drawing of a mechanical component with no visible text or symbols

1. Slide out strap end and thread through action mount

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

1. Slide out action mount

Technical line drawing of two mechanical components with no visible text or symbols

1. Store action mount safely

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. Slide in strap end

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. Enjoy!

ENGLISH

BRAVEN

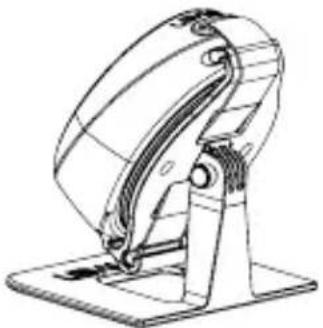

ATTACHING 105/ACTION MOUNT TO STAND

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

1. Select preferred angle

Technical line drawing of a mechanical component with no visible text or symbols

1. Line action mount with stand

Technical line drawing of a mechanical device with no visible text or symbols

1. Insert pin to secure to stand

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

1. Rock out!

WARNINGS, CAUTION & LEGAL INFORMATION

To reduce the risk of fire or electric shock, do not expose the BRAVEN to rain or moisture while charging. The BRAVEN should not be exposed to dripping or splashing, and objects filled with liquids, such as vases, should not be placed on or near it while being charged or charging other devices. As with any electronic products, use care not to spill liquids into any part of the product. Liquids can cause a failure and/or a fire hazard. The power supply must be used indoors only. Make no modifications to the product or accessories. Unauthorized alterations may compromise safety, regulatory compliance, and system performance, and will void the warranty. Do not place any flame sources, such as lighted candles, on or near the BRAVEN. The BRAVEN contains small parts that may be a choking hazard and is not suitable for children under age 3. Do not continue charging the battery if it does not reach full charge within the specified charging time. Overcharging may cause the battery to become hot, rupture, or ignite. If you see any heat deformation or leakage, properly dispose of the battery. Do not attempt to charge the battery in temperatures outside the range of 32^-104^ ( 0^-40^ ). If the battery begins to leak, do not allow the liquid to come in contact with your skin or eyes. If contact has been made, wash the affected area with plenty of water and seek medical attention immediately. Do not expose the product or battery to excessive heat, including direct sunlight or fire and storage or use inside cars in hot weather, where it can be exposed to temperatures in excess of 115^ ( 60^ ). Doing so may cause the battery and power supply to generate heat, rupture, or ignite. Using the product in this manner also may result in a loss of performance and a shortened life expectancy. Extended exposure to direct sunlight may damage the external appearance and material qualities. Do not step on, throw, or drop batteries or the power supply or device, or expose them to a strong shock. Do not pierce, crush, dent, or deform the batteries or power supply in any way. If either becomes deformed, properly dispose of it. Do not short-circuit batteries. Do not attempt to service the BRAVEN yourself. Opening or removing covers may expose you to dangerous voltages or other hazards and will void the manufacturer's warranty. To prevent risk of fire or electric shock, avoid overloading wall outlets,

ENGLISH

BRAVEN

WARNINGS, CAUTION & LEGAL INFORMATION (CONT)

extension cords, or integral convenience receptacles. Your Bluetooth device (mobile phone, music player, tablet, laptop, etc.) must support the A2DP Bluetooth profile in order to work wirelessly with your new BRAVEN speaker. The A2DP profile is supported by most recent mobile products with built-in Bluetooth capability. Please refer to your device's user manual for details and instruction regarding the Bluetooth profiles it supports. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RADIATION EXPOSURE STATEMENT: This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

WARNINGS, CAUTION & LEGAL INFORMATION (CONT)

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Lithium Battery installed is not intended to be replaced by the USER.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Where the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

This product complies with California Energy Commission efficiency standards for consumer battery chargers.

ENGLISH

BRAVEN

CONOZCA SU BRAVEN

Technical line drawing of a mechanical component with no visible text or symbols

CORREA

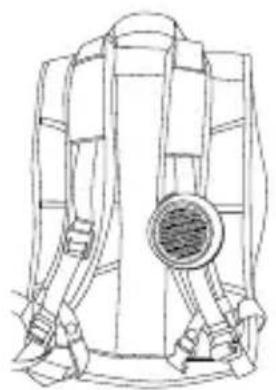

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or plunger assembly (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1. Ubique la clavija.

Technical line drawing of a mechanical device with no visible text or symbols

1. Retire la clavija.

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

1. Separe de la base.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. ¡Disfrútelo!

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1. ¡A rockear!

Technical line drawing of a mechanical component with no visible text or symbols

SANGLE

INSERT DE FIXATION FILETÉ DE ¼-20

PORT DE CHARGE BRAVEN

BOUTON DE RÉINITIALISATION

PRISE D'ENTRÉE AUDIO DE 3,5 MM

RABAT DE SILICONE

MISE EN MARCHE ET AUTO-JUMELAGE BLUETOOTH®

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or bracket with multiple arms and a central circular component (no text or symbols)

Pure technical diagram of a circular mechanical component with internal vertical slots and a base, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1. Retirez la goupille

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. Amusez-vous!

FIXATION DU 105 / MÉCANISME DE FIXATION AU STAND

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

CINGHIETTA

FORO DI FISSAGGIO FILETTATO 5,27 mm

PRESA DI RICARICA BRAVEN

PULSANTE DI RESET

JACK INGRESSO AUDIO DA 3,5 MM

ALETTA DI SILICONE CHIUDIBILE

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or plunger assembly (no text or symbols)

Pure technical diagram of a circular mechanical component with internal vertical slots and a base, no text or symbols present.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1. Trovare il perno

Technical line drawing of a mechanical device with no visible text or symbols

1. Staccare il perno

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

DISTACCO DELL'ACCESSORIO ACTION MOUNT DAL 105

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Line drawing of a mechanical padlock with a circular housing and handle (no text or symbols)

Line drawing of a mechanical component with a circular handle and central hub (no text or symbols)

1. Buon ascolto!

FISSAGGIO DEL 105/ACCESSORIO ACTION MOUNT SULLA BASE

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

1. Allineare l'accessorio Action Mount con la base

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a curved component mounted on a base (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

ARMBAND

14 -20 GEWINDE-EINSCHRAUBTEIL

BRAVEN LADEANSCHLUSS

RÜCKSETZTASTE

3,5 MM AUDIO- EINGANG

SILIKONLASCHE, RÜCKZIEHBAR

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or bracket with multiple arms and a central circular component (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1. Stift suchen

Technical line drawing of a mechanical device with no visible text or symbols

1. Stift herausziehen

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. Riemen einschieben

Line drawing of a mechanical component with a handle and circular body (no text or symbols)

1. Viel Spaß!

DEUTSCH

BRAVEN

DAS 105/AKTIV-BEFESTIGUNGSSYSTEM AM STÄNDER ANBRINGEN

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

1. Abrocken!

Technical line drawing of a mechanical component with no visible text or symbols

ALÇA

INSERÇÃO DE

MONTAGEM ROSCADA

DE 1/4-20

PORTA DE

CARREGAMENTO

BRAVEN

BOTÃO DE RESET

CONECTOR AUDIO-IN

DE 3,5 MM

ABA DE SILICONE

REBATÍVEL

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or plunger assembly (no text or symbols)

Technical line drawing of a circular mechanical component with internal vertical slots and a top handle (no text or symbols)

Technical line drawing of a mechanical device with curved and straight components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1. Localize o pino

Technical line drawing of a mechanical device with no visible text or symbols

1. Remova o pino

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

1. Separe do suporte
   Nota: Guarde o suporte num local seguro

REMOVER O SUPORTE DESPORTIVO DO 105

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

1. Guarde o suporte desportivo num local seguro

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. Encaixe a extremidade da alça

Line drawing of a mechanical component with a circular housing and handle (no text or symbols)

1. Desfrute!

FIXAR O 105/SUPORTE DESPORTIVO AO SUPORTE

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

1. Curta o som!

AVISOS E ADVERTÊNCIAS / INFORMAÇÕES LEGAIS

Technical diagram of a brake hood with labeled components and parts

Technical line drawing of a mechanical component with no visible text or symbols

74 BRAVEN

BRAVEN

76 BRAVEN

BRAVEN

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or plunger assembly (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Technical line drawing of a mechanical device with curved and flat components (no text or symbols)

BRAVEN

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

BRAVEN

BRAVEN

BRAVEN

Technical line drawing of a mechanical component with no visible text or symbols

BRAVEN

BRAVEN

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool with four arms and a central circular component (no text or symbols)

Pure technical diagram of a circular mechanical component with internal vertical slots and a rectangular top (no text or symbols)

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

BRAVEN

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

94 BRAVEN

BRAVEN

BRAVEN

Technical diagram of a brake hood with labeled components and parts

Technical line drawing of a mechanical component with no visible text or symbols

BRAVEN

100 BRAVEN

BRAVEN

Line drawing of a backpack with straps and a circular vent (no text or symbols)

Technical line drawing of a mechanical tool or bracket with four arms and a central circular component (no text or symbols)

102 BRAVEN

Pure technical diagram of a circular mechanical component with internal vertical slots and a base, no text or symbols present.

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a circular component and a base mount (no text or symbols)

104 BRAVEN

Technical line drawing of a mechanical device with rotating components and a base mount (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket device (no text or symbols)

106 BRAVEN

BRAVEN

108 BRAVEN

BRAVEN

BRAVEN

QR code image containing encoded data, no visible human-readable text

ONLINE: www.braven.com

MANUAL: www.braven.com/manuals

SUPPORT: www.braven.com/support

EMAIL: [e-mail]

PHONE: 1-877-9 BRAVEN (1-877-927-2836)

TUTORIALS: www.braven.com/tutorials
