SPKBT06GR - Speaker Gembird - Free user manual and instructions

Product Type	Bluetooth speaker
Brand	Gembird
Model	SPKBT06GR
Dimensions (L x l x H)	150 x 80 x 80 mm
Weight	300 g
Power supply	Rechargeable Li-ion battery 3.7 V / 600 mAh
Battery life	Up to 6 hours
Charging time	2 hours
Connectivity	Bluetooth 5.0
Bluetooth range	Up to 10 meters
Output power	5 W
Auxiliary input	3.5 mm jack socket
Charging port	Micro USB

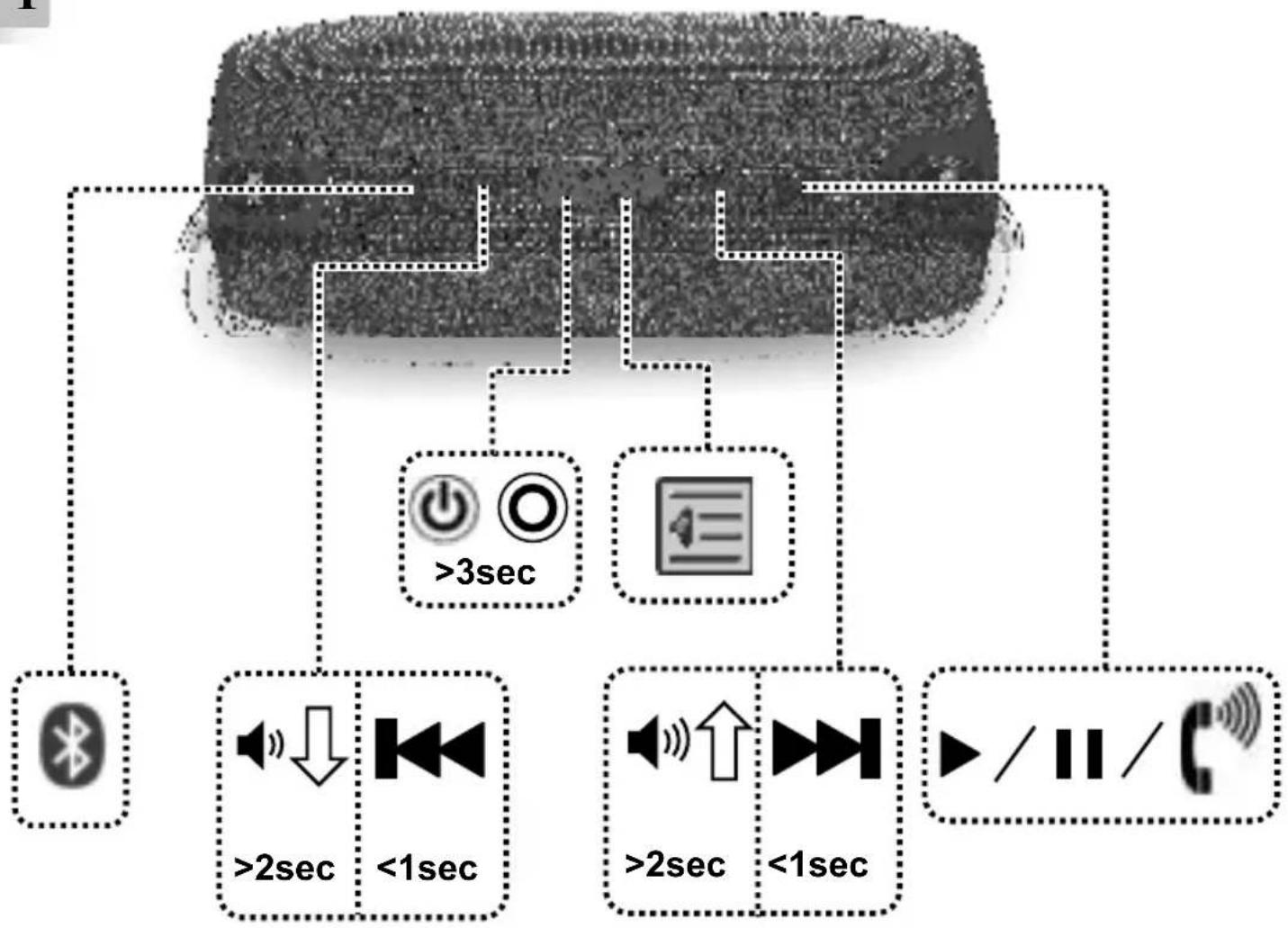

Main functions	Play/pause, volume, track skip, hands-free calling
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water, humidity, or extreme temperatures.
Spare parts and repairability	USB charging cable included. No user-serviceable parts.
General information	Compliant with RED and RoHS directives. 2-year warranty.

Frequently Asked Questions - SPKBT06GR Gembird

How to turn the speaker on and off?

Press and hold the power button (Power) on the top of the device until the indicator light turns on or off.

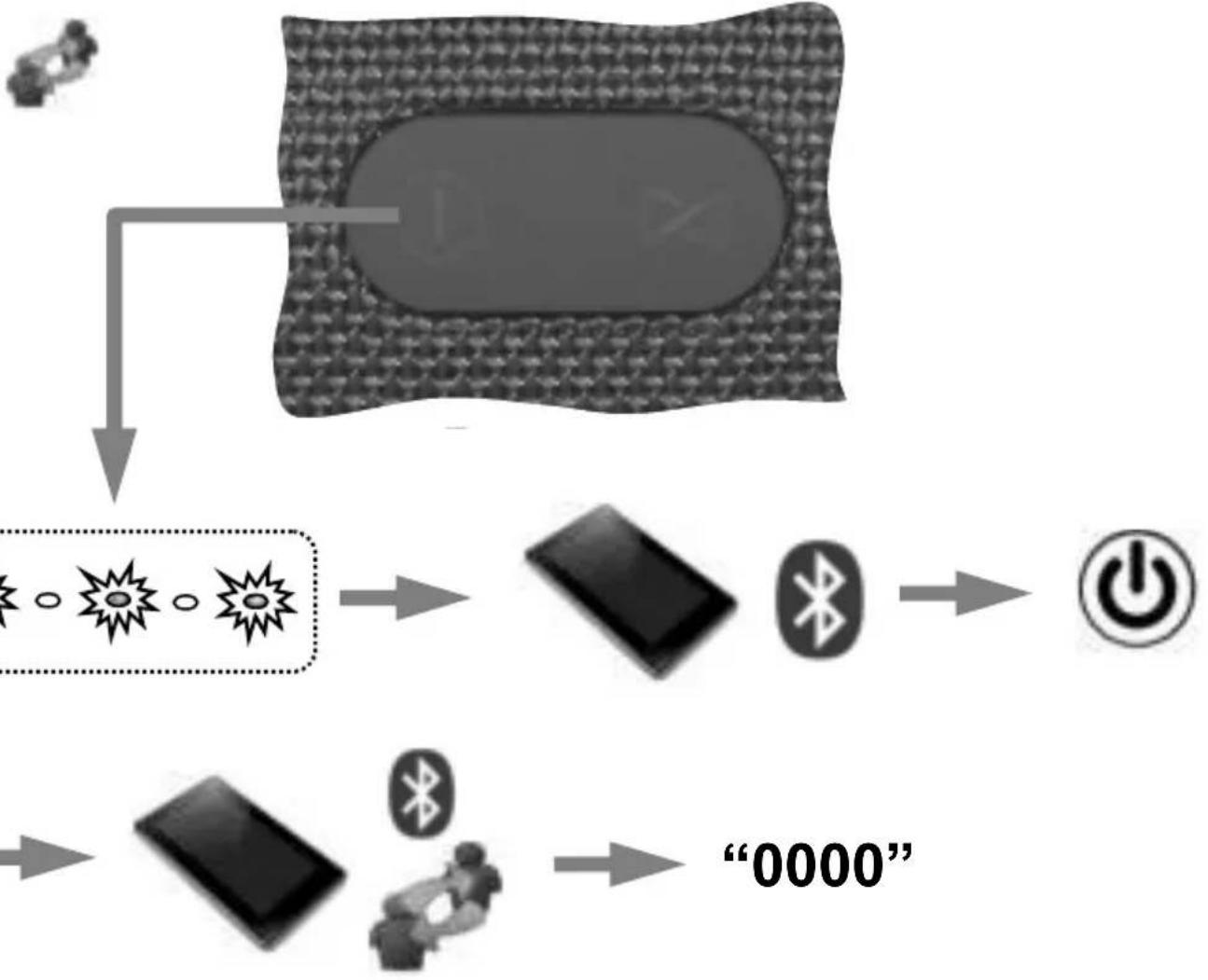

How to connect the SPKBT06GR to my phone?

Enable Bluetooth on your phone and search for devices. Select SPKBT06GR from the list. If a PIN is requested, enter 0000.

What to do if the speaker does not turn on?

Check that the battery is charged by plugging the included USB cable into a power source. If the indicator does not light up while charging, the cable or port may be defective.

How to recharge the speaker?

Use the provided Micro USB cable and plug it into a power adapter (5V/1A) or a computer USB port. The indicator turns red during charging and turns off when fully charged.

What is the battery life?

The battery life is approximately 6 hours at moderate volume. Charging time is about 2 hours.

How to make a hands-free call?

When the speaker is connected to your phone, press the Play/Call button to answer or hang up. To reject a call, hold the button for 2 seconds.

Is the speaker water-resistant?

No, the SPKBT06GR is not designed to be water-resistant. Avoid any contact with liquids.

How to reset the speaker?

To reset, turn off the device, then simultaneously press and hold the Volume + and Power buttons for 5 seconds until the indicator flashes quickly.

Can I connect the speaker to a TV?

Yes, if your TV has Bluetooth or a 3.5 mm audio jack output. Use an auxiliary audio cable (not included) for a wired connection.

What to do if the sound is distorted?

Lower the volume on both the speaker and your audio source. Ensure the distance between devices does not exceed 10 meters and that no obstacles block the signal.

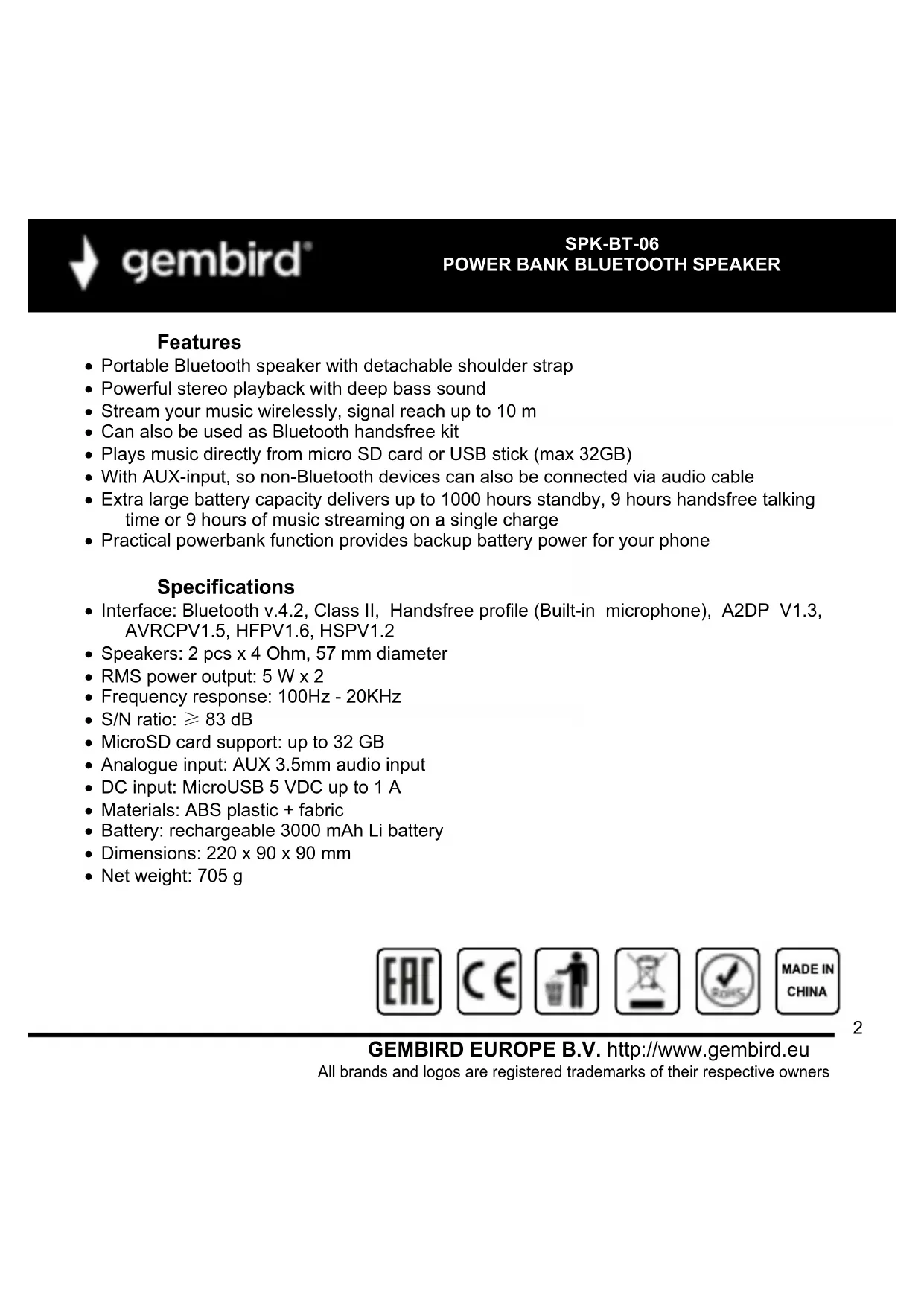

USER MANUAL SPKBT06GR Gembird

• Portable Bluetooth speaker with detachable shoulder strap
• Powerful stereo playback with deep bass sound
• Stream your music wirelessly, signal reach up to 10m
• Can also be used as Bluetooth handsfree kit
• Plays music directly from micro SD card or USB stick (max 32GB)
• With AUX-input, so non-Bluetooth devices can also be connected via audio cable
• Extra large battery capacity delivers up to 1000 hours standby, 9 hours handsfree talking time or 9 hours of music streaming on a single charge
• Practical powerbank function provides backup battery power for your phone

Specifications

• Interface: Bluetooth v.4.2, Class II, Handsfree profile (Built-in microphone), A2DP V1.3, AVRCPV1.5, HFPV1.6, HSPV1.2
• Speakers: 2 pcs x 4 Ohm, 57 mm diameter
  RMS power output: 5W× 2
  Frequency response: 100Hz - 20KHz
  S/N ratio: ≥ 83 dB

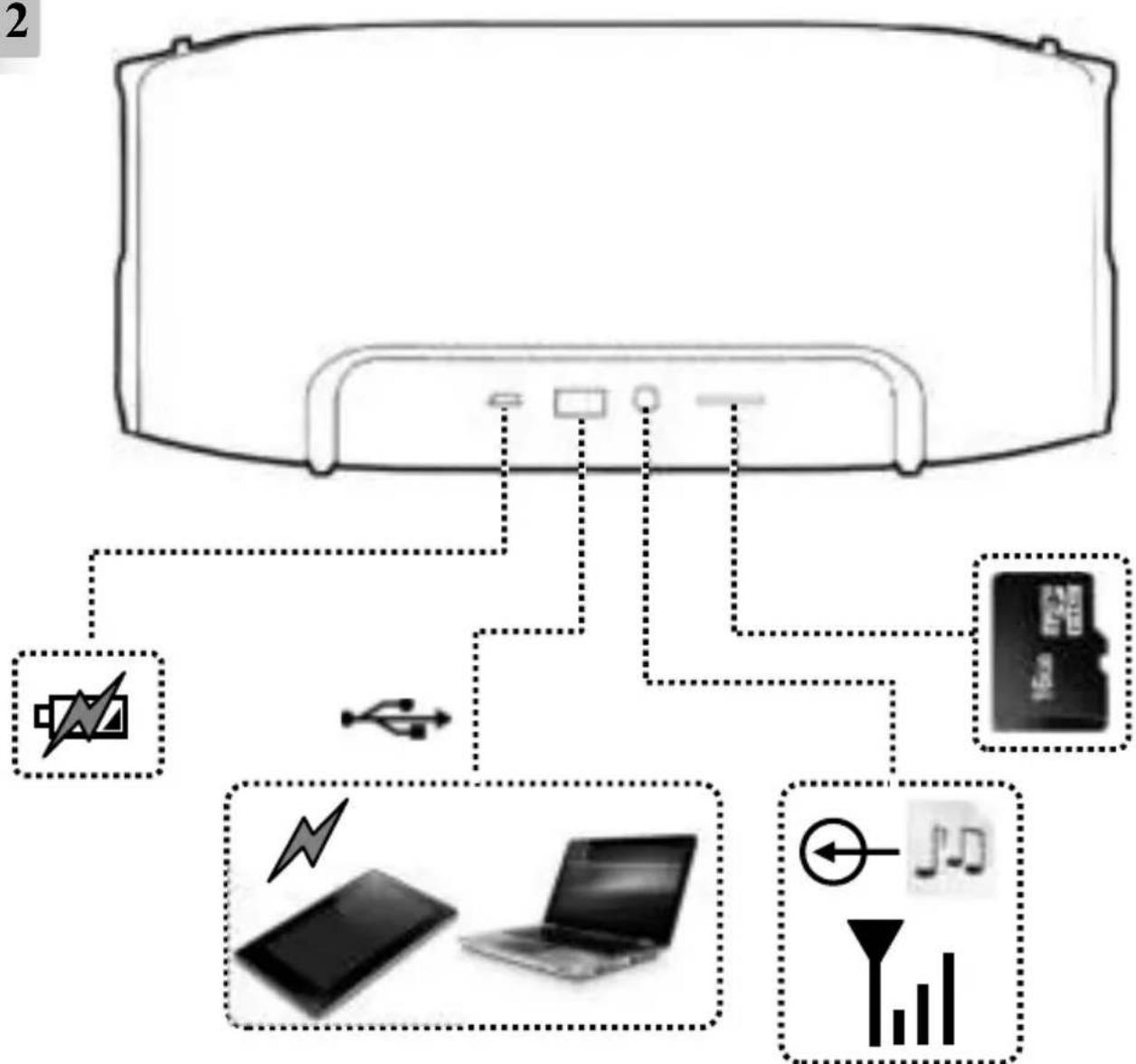

• MicroSD card support: up to 32 GB

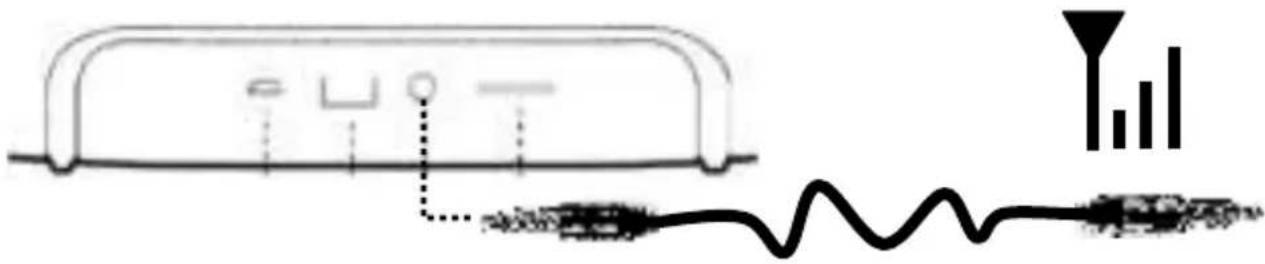

• Analogue input: AUX 3.5mm audio input
• DC input: MicroUSB 5 VDC up to 1 A
• Materials: ABS plastic + fabric
• Battery: rechargeable 3000 mAh Li battery
• Dimensions: 220 × 90 × 90 mm
  Net weight: 705 g

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

1

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

2

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

3

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

4

5

<1sec

K

<1sec

6

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

M.I. C yCNoBnA M rapaHTn O3HaKoMJIeH n corIaceH:

IpoaBeu: Pokynatelb:

YMOBNI TAPAHINTINHO OBCNTOBOYBAHH

1. rapaHTiHe 06cnyroByBaHHaHaacb8pnoTepmiHy rapaHTi, npn HaraBHOCTI rapaHTiHoro TaIOHy, 3anOBHeHOro HAeKHM uHOM, Ta Bnpo6y B NOBHi KOMnNeKtAciJl.
   2.「apantiHe 6cnyoByaHn He nItpmyeTbCBA pasi npuyenHH npabn EKcnNyatau,36epirAHn ABO nepeBe3eHH BInpo6y，0o 3aHaehi BInctpykui no EKnNyaTaUu BInpo6y.
2. rapaHTiHHe o6cIpyROyBaHH cKACOBYeTBcR y BnuaKax: -HaBHOCTi MExaHiHNx N0UKOJKeHb a6o CJIiIB CTOpOHbOrO BTPuAHHH;

3. NOUKOJKeHHB NKNIKahi CTNXIHUM NIXOM a6o HeuacHIM BnnaKom, BKJIouaHOni 6NcKaBky, noTpannnHnM y BnpiO CTOpOHHX INpeMetIb, piINH, KOMax, ToIO;

4. NOUKOxHHe BKNKnKaH3acTOcyBaHHaM a6o NiKIOuOeHHaM HeCTaHapTHHX a6o HecnpabHnx nepupepiHHx npucTpoB, akcecyapib;

5. rapaHTiHa HnOuHPOeTbCra Ha BnTPaTHi MaTePiAn Ta DoaTKoBi akcecyap;
   3 rapaHTiHmmyMOBaMn 3roJeH.

Piinncnokynpu:

TAPAHNTIINHNI TAIOH N2

Tobap/Moienb

CepiHn Homep

Tepmin rapaHii

Дата п的对象

ПpoДаБeць (Ha3Ba, TeJelEФОн)

Peyatka Ta niiinnc npoadau

3 rapaHTiHnX nITaHb 3BepTaITeCb Do cepBICHx ueHtpiB Gembird. Ipo aDpeCn Ta KOHTaKTH Bu MoKeTe DiHaTncb Ha caTi www.gembird.ua a6o no TelefoHy 044-4510213.

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

WARUNKI GWARANCJI
