SPKDU02 - Speaker Gembird - Free user manual and instructions

Product type	Portable stereo speaker
Brand	Gembird
Model	SPKDU02
Dimensions (approx.)	8 x 8 x 10 cm
Weight	Approximately 200 g
Power supply	USB 5V (cable included)
Connectivity	Audio jack 3.5 mm
Power	2 x 3 W RMS
Frequency response	100 Hz - 20 kHz
Signal-to-noise ratio	≥ 70 dB
Main functions	Audio playback, volume control, on/off switch
Maintenance and cleaning	Clean with a soft dry cloth. Do not use abrasive products.
Safety	Do not expose to water or moisture. Disconnect before cleaning.
Spare parts and repairability	No user-serviceable parts. Contact after-sales service.
General information	Compliant with EU directives (EMC, RoHS). Do not dispose with household waste.

Frequently Asked Questions - SPKDU02 Gembird

How do I connect my phone to the SPKDU02 speaker?

Use the provided 3.5 mm audio cable. Plug one end into the speaker jack and the other into the headphone output of your device.

The speaker does not turn on, what should I do?

Check that the USB cable is properly connected to a 5V power source. Make sure the on/off switch is in the ON position.

Can I use the speaker with a computer?

Yes, plug the audio cable into your computer's headphone output. Power is supplied via USB.

How do I clean the speaker?

Use a soft dry cloth. Do not use chemicals or liquids as they may damage the components.

The sound is low or distorted, how to improve?

Increase the volume on your audio source and the speaker. Avoid saturating the volume of your source device.

Can I repair the speaker myself?

The device contains no user-serviceable parts. In case of failure, contact Gembird after-sales service.

What to do in case of overheating?

Immediately turn off the device, unplug it, and let it cool down in a dry place. Avoid exposing it to direct sunlight.

How to recycle the speaker at end of life?

Do not throw it in the trash. Drop it off at an electronic waste collection point or return it to the store.

Does the speaker have a built-in battery?

No, the SPKDU02 operates only on USB power. There is no built-in rechargeable battery.

Where can I find the full manual?

The manual is available for free download in PDF format at notice-facile.com. You can also request a translation by email.

USER MANUAL SPKDU02 Gembird

STEREO SPEAKER SET, "TORNADO"

DESKTOP STEREO-LAUTSPRECHER-SYSTEM

2.0 STEREO LUIDSPREKERS

HP STÉREO

HACTOJIbHAr CTEPEO CnCTEMA

HACTIJIbHA CTEPEO CNTCTEMA

GLOŚNIKI STEREO 2.0, ZASILANE Z USB

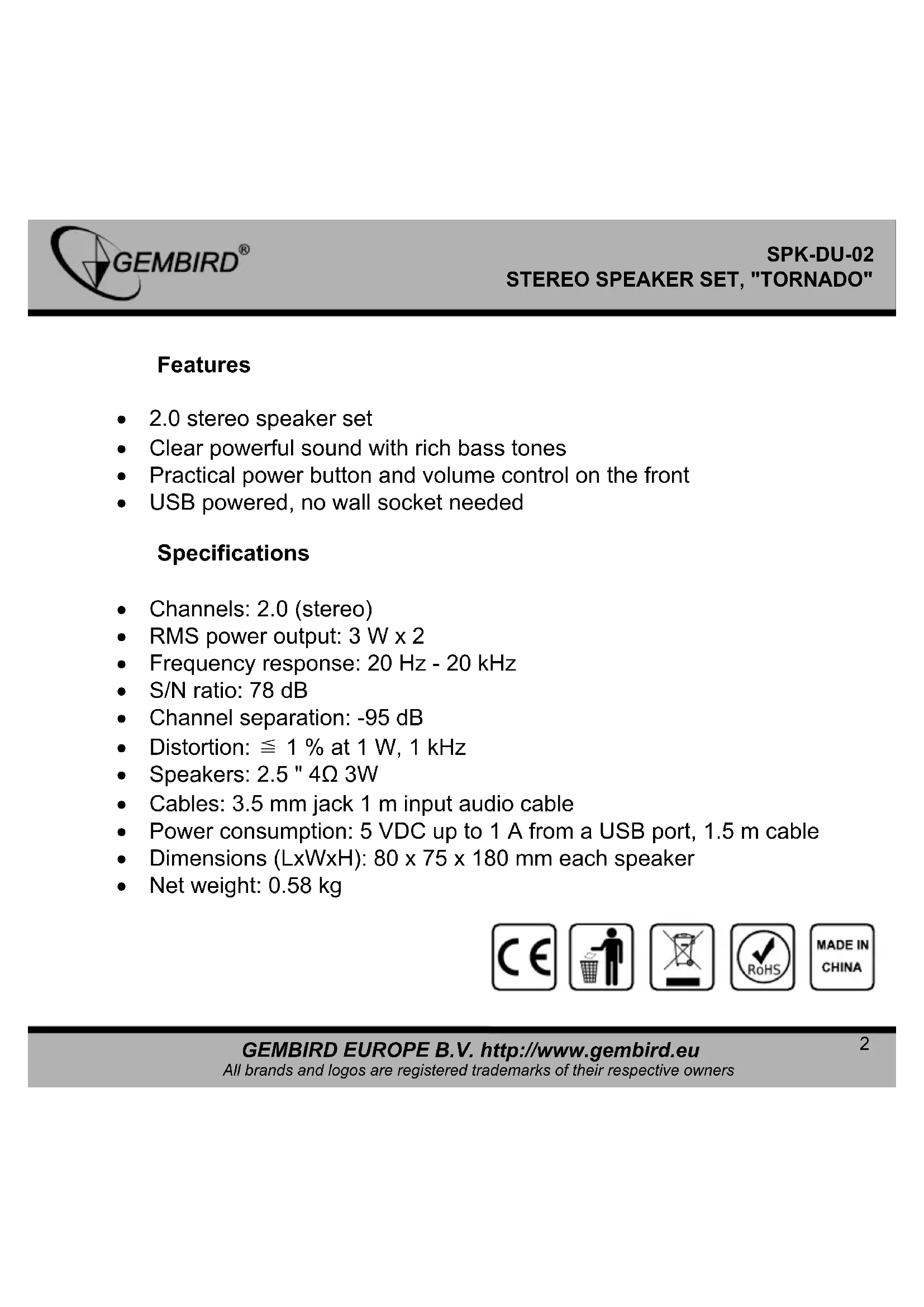

Features

2.0 stereo speaker set
- Clear powerful sound with rich bass tones
- Practical power button and volume control on the front

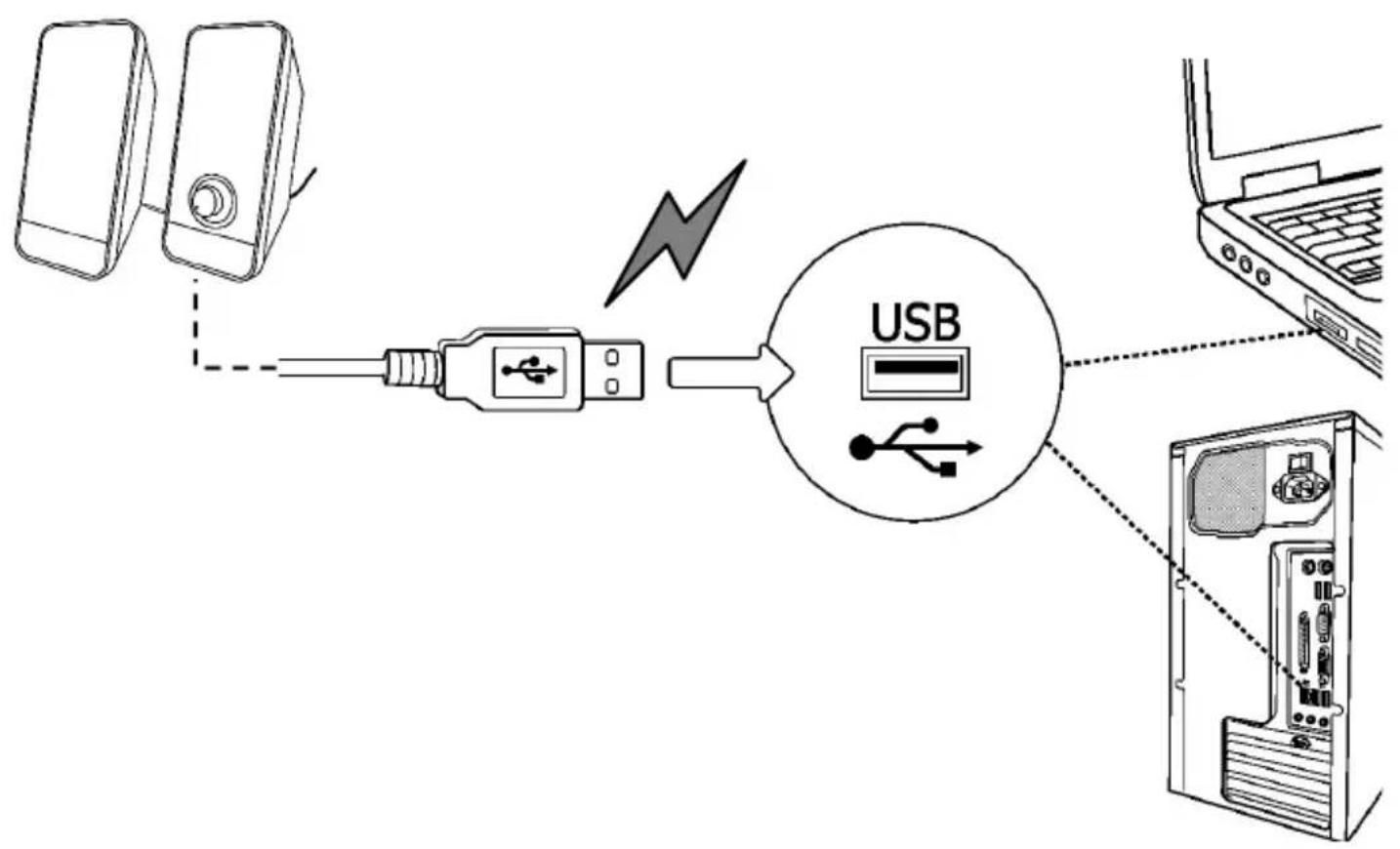

- USB powered, no wall socket needed

Specifications

Channels: 2.0 (stereo)
RMS power output: 3W× 2
- Frequency response: 20 Hz - 20kHz
S/N ratio: 78 dB
- Channel separation: -95 dB
Distortion: ≤ 1% at 1W,1kHz
- Speakers: 2.5 " 4Ω 3W
- Cables: 3.5 mm jack 1 m input audio cable
- Power consumption: 5 VDC up to 1 A from a USB port, 1.5m cable
- Dimensions (LxWxH): 80 × 75 × 180 ~mm each speaker
Net weight: 0.58kg

1

2

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning EMC(2014/30/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
