Product Type	Portable Bluetooth Speaker
Brand	Gembird
Model	SPKBT002
Approximate Dimensions	10 x 10 x 5 cm
Approximate Weight	200 g
Power Supply	Rechargeable Li-ion battery 3.7 V, 500 mAh
Approximate Battery Life	Up to 6 hours of continuous playback
Connectivity	Bluetooth 5.0 (range up to 10 m)
Main Functions	Wireless audio playback, hands-free calling, volume control, pause/play
Auxiliary Input	3.5 mm jack socket (cable included)
Built-in Microphone	Yes, for hands-free calls
Care and Cleaning	Clean with a soft, dry cloth. Do not immerse in water.
Safety	Do not expose to moisture or extreme temperatures. Do not open.
Spare Parts and Repairability	Not available separately. In case of failure, contact customer service.
Warranty	24 months (excluding wear parts)
Box Contents	Speaker, USB charging cable, 3.5 mm audio cable, user manual
General Information	Manufacturer: Gembird Europe B.V., Wittevrouwen 56, 1358CD Almere, Netherlands

Frequently Asked Questions - SPKBT002 Gembird

How to turn the speaker on and off?

Press the Power button located on the side of the device. An LED indicates the device status.

How to pair the speaker with my phone?

Put the speaker in pairing mode by holding down the Bluetooth button until the LED flashes. Turn on Bluetooth on your phone and select SPKBT002 from the list.

What to do if the speaker does not turn on?

Make sure the battery is charged. Connect the provided USB cable to a power source (power adapter or computer) and charge for at least 2 hours.

How to recharge the battery?

Use the provided USB cable to connect the speaker to a standard USB charger (5V). The LED light turns red during charging and turns off when fully charged.

What is the battery life?

The average battery life is approximately 6 hours of continuous playback at moderate volume. This may vary depending on volume and audio content.

Can I use the speaker while charging?

Yes, you can use the speaker while it is charging. Plug in the USB cable and continue playback.

How to use the hands-free function?

During an incoming call, press the Play/Pause button to answer. Press again to hang up. The built-in microphone picks up your voice.

What to do in case of distortion or poor sound quality?

Reduce the volume of the source device and the speaker. Ensure that the distance between devices does not exceed 10 meters and that there are no metal obstacles.

Is the speaker water resistant?

No, it is not designed to be water resistant. Avoid any contact with liquids to prevent damage to the device.

How to clean the speaker?

Use a soft, dry cloth to wipe the surface. Do not use chemical or abrasive products. Never immerse the device in water.

USER MANUAL SPKBT002 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

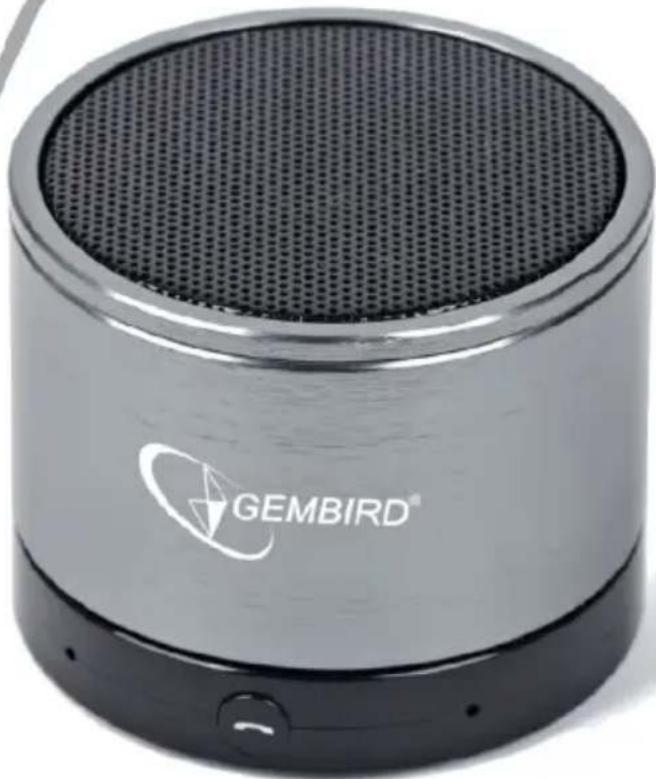

Close-up of a GEMBIRD-branded audio device with mesh grille and black base (no visible text or symbols on body)

BLUETOOTH SPEAKER

PORTABLER BLUETOOTH-LAUTSPRECHER

BLUETOOTH LUIDSPREKER

BLUETOOTH HAUT-PARLEUR

BLUETOOTH ДИНАМИК

BLUETOOTH ДИНАМИК

Features

• Portable Bluetooth speaker with microphone
  • Durable aluminum cylindrical body
  • Signal reach up to 10 m
  • Works on built-in rechargeable battery
• Up to 400 hours standby, 12 hours handsfree talking time or 3 hours of music streaming on a single charge
  • Non-Bluetooth devices can also be connected via audio cable

Specifications

• Interface: Bluetooth v.3.0, Class II, Handsfree profile
- Chipset: CSR BC6145
- Bluetooth frequency range: 2.402 GHz – 2.480 GHz
• Speaker: 40 mm magnet-free, 4 Ohm
• RMS power output: 3 W
• Frequency response: 20Hz - 20KHz
• S/N ratio: 80 dB
• DC input: MicroUSB 5 VDC up to 0.5 A
- Battery: rechargeable 400 mAh Li-Polymer
• USB cable length: 0.65 m
• Audio cable length: 1 m
• Dimensions: D62 x H51 mm
• Net weight: 175 g

CE RoHS MADE IN CHINA

②

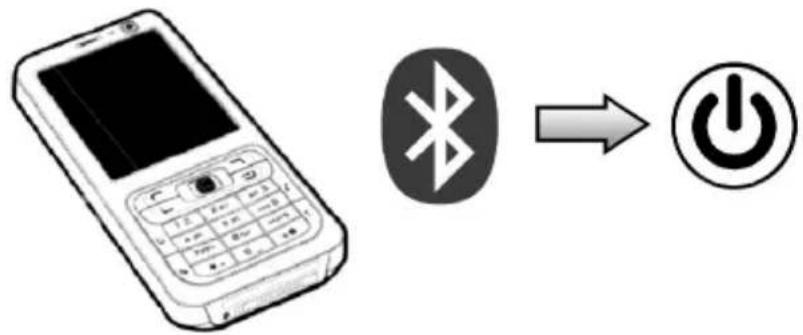

Diagram showing a mobile phone connected to a Bluetooth symbol and an icon representing power output.

③

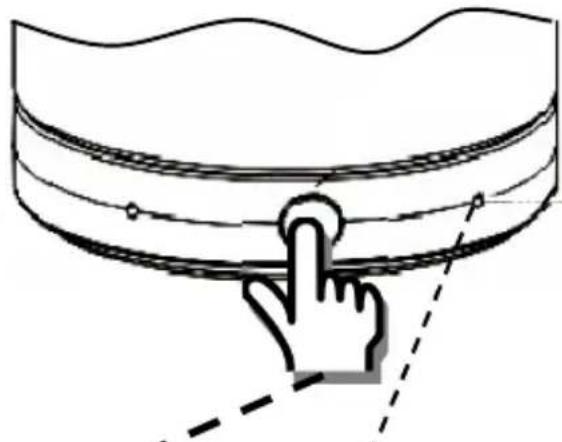

Simple line drawing of a hand pressing down on a curved surface with dashed lines indicating alignment (no text or symbols)

(○+

6 s

Sequence of five starburst icons in a row, each containing a small circle (no text or symbols)

XXXX

④

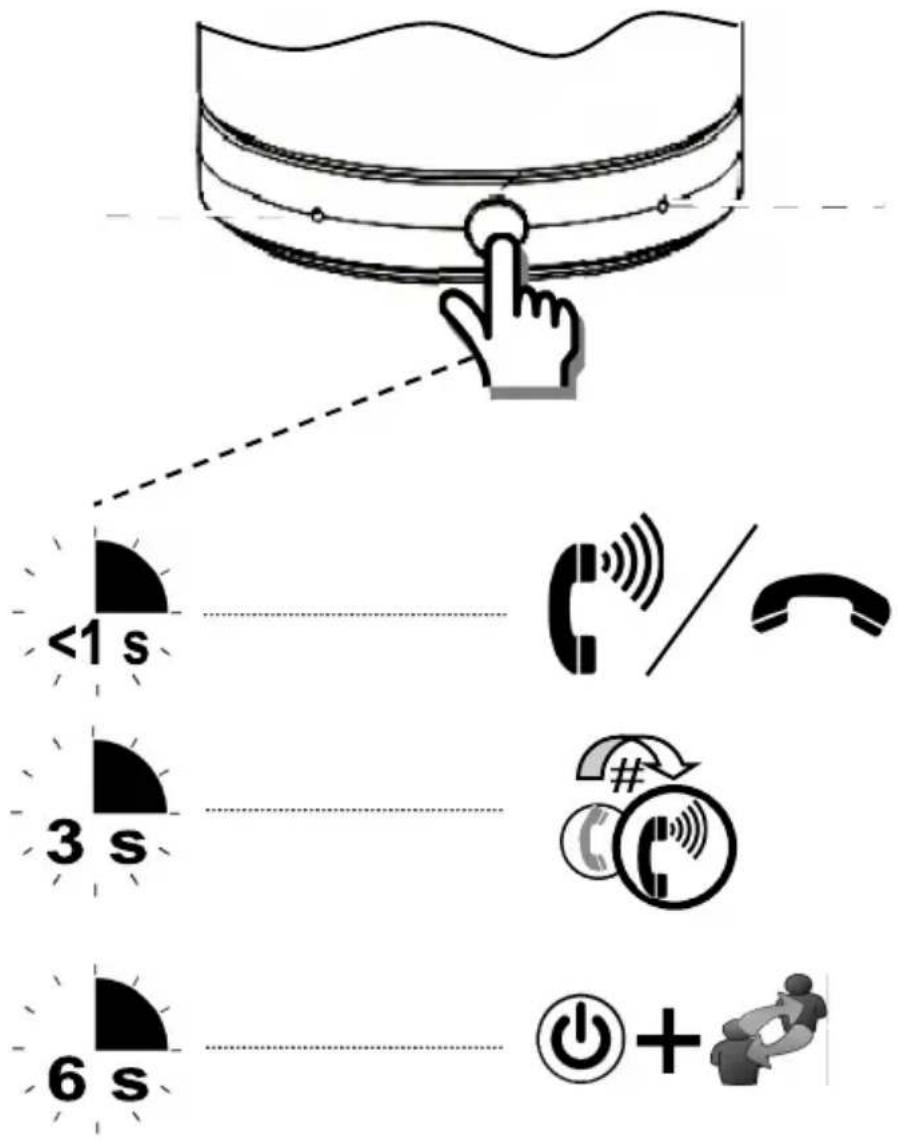

<1 s 3 s 6 s

Black circular icon with an exclamation mark symbol (no text or numbers)

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Safety warning sign showing sun and a person with fever, crossed by a diagonal line

Simple line drawing of a hand using a screwdriver to cut a screw and loose bolts (no text or symbols)

Simple line drawing of a device with a crossed-out arrow and abstract shapes, no text or symbols present.

Declaration of Conformity

We,

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

declare under our own responsibility that the product :

Model :

SPK-BT-002

Product description:

SPK-BT-002 Bluetooth speaker

to which this declaration refers conforms with the relevant standards :

European directive(s):

R&TTE(1999/5/EC)

European standards:

Safety: EN 60950-1:2006+A11:2009+A1:2010+AC:2011+A12:2011

EMC: EN 301 489-1 V1.9.2 (2011-09) EN 301 489-17 V2.1.1 (2009-05)

Radio: EN 300 328 V1.7.1 (2006-10)

Health: EN 62479:2010

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
