SPKBT06R - Speaker Gembird - Free user manual and instructions

Product type	Bluetooth speaker with built-in battery and power bank function
Brand	Gembird
Model	SPKBT06R
Connectivity	Wireless Bluetooth
Power bank function	Yes, allows charging external devices
Hands-free kit	Yes, with built-in microphone
Power supply	Built-in rechargeable battery, charges via micro USB port
Battery capacity	Approximately 3000 mAh
Battery life	Up to 8 hours of playback
Output power	5 W RMS
Approximate dimensions	20 x 7 x 7 cm
Approximate weight	500 g
Material	Plastic with metal grille
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or excessive heat. Disconnect before cleaning.
Spare parts and repairability	Battery not user-replaceable. Contact customer service.
General information	Compliant with RED and RoHS directives. Do not dispose of with household waste.
Warranty	2 years, subject to the warranty conditions described in the manual.
Customer service	Gembird Europe BV - [e-mail]

Frequently Asked Questions - SPKBT06R Gembird

How to turn on and off the Gembird SPKBT06R speaker?

Press and hold the power button (usually located on the top or side) for 2-3 seconds until you hear a sound or see a light indicator. To turn off, repeat the operation.

How to connect the speaker to my phone via Bluetooth?

Turn on the speaker. It will automatically enter pairing mode (rapid flashing of the indicator). On your phone, enable Bluetooth and search for 'SPKBT06R' or 'Gembird SPK-BT-06' in the device list. Select it to connect.

What is the battery life and how long does it take to charge?

The battery life is approximately 8 hours of continuous playback. Full charging via the micro USB port (cable included) takes about 3 hours.

Can I use the speaker as a power bank to charge my phone?

Yes, the SPKBT06R has a power bank function. Plug your device into the speaker's USB output port using a suitable cable. The speaker's battery will discharge to charge your device.

Is the speaker water-resistant?

No, the Gembird SPKBT06R is not designed to be water-resistant. Avoid any contact with liquids to prevent damage.

How to make a hands-free call with this speaker?

When the speaker is connected to your phone via Bluetooth, you can answer a call by pressing the multifunction button. The built-in microphone allows you to speak. To hang up, press the same button again.

What to do if the speaker does not turn on or does not charge?

Check that the charging cable is properly plugged in and that the power source is working. Try another micro USB cable. If the problem persists, contact Gembird customer service.

How to clean the speaker?

Use a soft, slightly damp cloth (not soaked) to wipe the surface. Do not use chemical or abrasive products. Make sure the device is turned off and unplugged before cleaning.

Is there a warranty on this product?

Yes, the Gembird SPKBT06R is covered by a 2-year warranty. Keep your receipt. The warranty covers manufacturing defects, but not damage caused by misuse or normal wear and tear.

Where can I find the complete user manual?

The complete user manual is available for free download in PDF format on the site notice-facile.com or directly from Gembird.

USER MANUAL SPKBT06R Gembird

USER MANUAL • HANDBUCH • HANDLEIDING • MANUEL DESCRIPTIF • PYKOBODCTBO NOJB3OBATEJI• KEPIBHNI TBO KOPNCTYBAU A • INSTRUKCJA OBSLUG

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER BLUETOOTH-LAUTSPRECHER BLUETOOTH SPEAKER 'LONG PLAY' HP GRANDE AUTONOMIE BT ДОЛГОНТРАЮШNI BLUETOOTH ДИНAMIK BLUETOOTH ДИНAMIK PRZENOSNY GŁOSNIK BLUETOOTH Z WBUDOWANYM MIKROFONEM

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

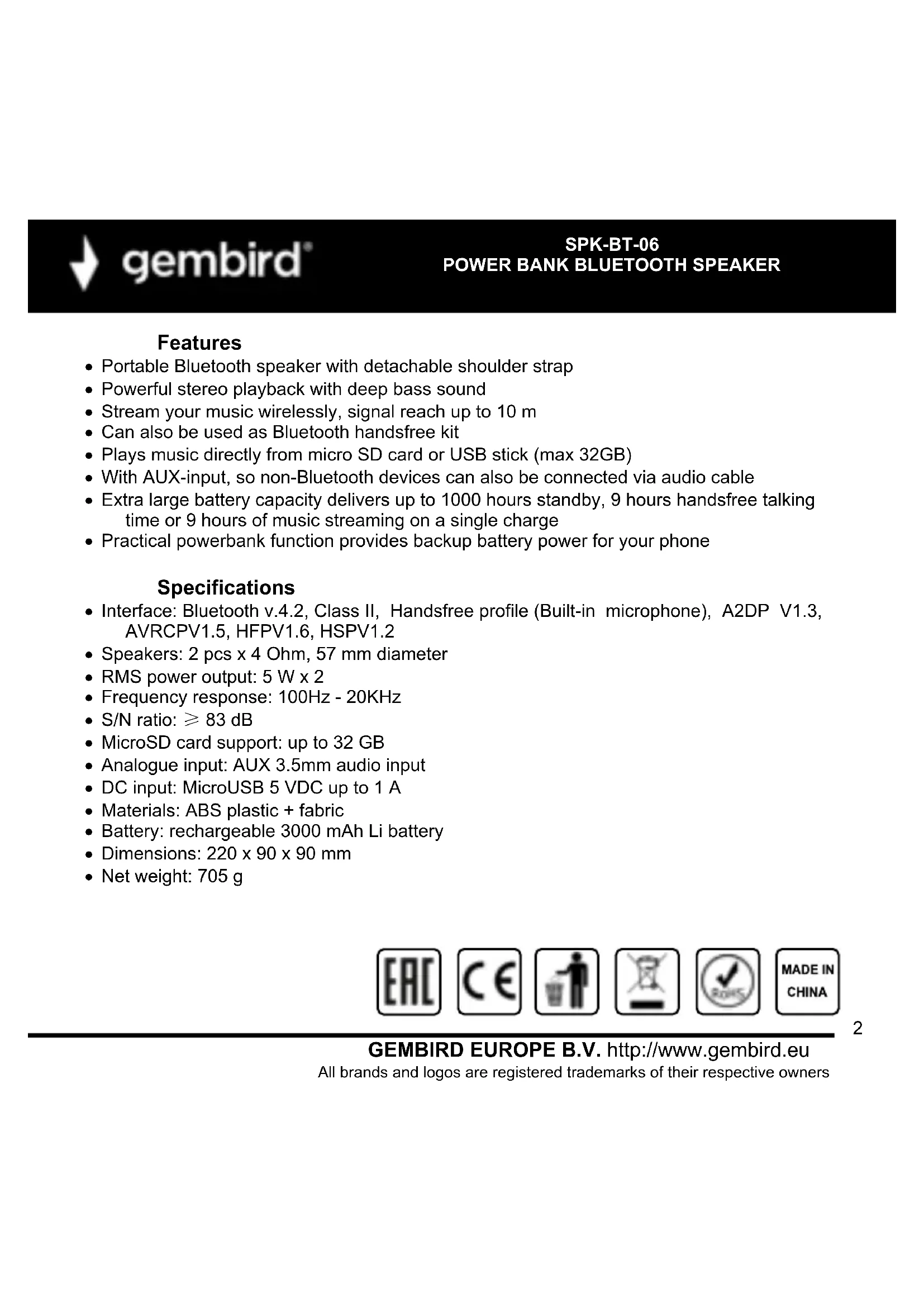

Features

• Portable Bluetooth speaker with detachable shoulder strap
• Powerful stereo playback with deep bass sound
• Stream your music wirelessly, signal reach up to 10m
• Can also be used as Bluetooth handsfree kit
• Plays music directly from micro SD card or USB stick (max 32GB)
• With AUX-input, so non-Bluetooth devices can also be connected via audio cable
• Extra large battery capacity delivers up to 1000 hours standby, 9 hours handsfree talking time or 9 hours of music streaming on a single charge
• Practical powerbank function provides backup battery power for your phone

Specifications

• Interface: Bluetooth v.4.2, Class II, Handsfree profile (Built-in microphone), A2DP V1.3, AVRCPV1.5, HFPV1.6, HSPV1.2
• Speakers: 2 pcs x 4 Ohm, 57 mm diameter
  RMS power output: 5W× 2
  Frequency response: 100Hz - 20KHz
  S/N ratio: ≥ 83 dB
• MicroSD card support: up to 32 GB
• Analogue input: AUX 3.5mm audio input
• DC input: MicroUSB 5 VDC up to 1 A
• Materials: ABS plastic + fabric
• Battery: rechargeable 3000 mAh Li battery
• Dimensions: 220 × 90 × 90 mm
  Net weight: 705 g

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

1

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

2

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

3

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

4

5

<1sec

K

<1sec

6

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

(ENG) Declaration of conformity

This product is tested and complies with the essential requirements of the laws of member states concerning RED (2014/53/EU), RoHS (2011/65/EU). The CE declaration can be found under www.gembird.eu

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

M.I. C yCNoBnA M rapaHTn O3HaKoMJIeH n corIaceH:

IpoaBeu: Noknatel:

YMOBNI TAPAHINHOO OBCNIOYBOYBAHH

1. rapahtiHne 06cnyroByBaHHHaHaCtBcra npoTAROM TepmiHy rapaHTi, npn HaraBHocTi rapaHTiHoro TaIHOy, 3anOBHeHOro HAleKHM uHOM, Ta BnPo6y B NOBHi KOMNKeKtaJI.
2. TapaHTIHe 06cnyoByBaHH He nITpMpyeTbCBA pasi npuyenHn npabn EKcnNyatau, 36epirAHn ABO nepeBe3EHn BInpo6y, 10 3a3Naehi B INCTpykui no EKnNpyatauBInpo6y.
3. rapaHTiHHe o6cIpyROByBaHH cKACOByEbC8 y BnuaKax: - HABHOCTi MEXAHINX NOUKoJKeHb a60 cIIIB CTOPOHbOBOBTPuyAHH;

4. NOUKOJKeHHB NKNIKahi CTNXIHUM NIXOM a6o HeuacHIM BnnaKom, BKJIouaHOni 6NcKaBky, noTpannnHnM y BnpiO CTOpOHHX INpeMetIb, piINH, KOMax, ToIO;

5. NOUKOxHHe BKNKnKaH3acTOcyBaHHaM a6o NIKIOueHHaM HeCTaHapTHnx a6o HecnpabHnx nepupepiHnx npucTpoB, akcecyapib;

6. rapaHTiHa HnOuHPOeTbCra Ha BnTpAHi MaTePiAn Ta DoaTkOBi akcecyap;
   3 rapaHTiHmmyMOBaMn 3roJeH.

Piinncnokynpu:

TAPAHNTIINHNI TAIOH N2

Tobap/Moienb

CepiHn Homep

Tepmin rapahii

Дата п的对象

ПpoДаБeць (Ha3Ba, TeJelEФОн)

Peyatka Ta niiinnc npoadau

3 rapaHTiHnX nITaHb 3BepTaITeCb Do cepBICHx ueHtpiB Gembird. Ipo aDpeCn Ta KOHTaKTH Bu MoKeTe DiHaTncb Ha caTi www.gembird.ua a6o no TelefoHy 044-4510213.

gembird

SPK-BT-06

POWER BANK BLUETOOTH SPEAKER

WARUNKI GWARANCJI
