USER MANUAL APPEB06G Aqprox

Digital ink E-book Reader 4.3"

Guía de usuario

User Guide

Thank you for choosing eBook APPEB06G

Product description.

E-Book Digital ink 4.3" in which you can read over 2800 books, view images at a resolution of 800x480 pixels.

Its compact and elegant design provides a nice look and robust at the same time, also with its shortcut keys, everything is at within your reach.

Rockchip processor is optimized for multitasking and fast reading and charging.

This E-Book has an internal memory of 4GB flash and also includes a Micro SD card reader that allows you to expand your storage capabilities up to 32GB.

APPROX bet for the ideal solution for the good reader. Read your books as if it were of paper!

Package Contents

APPEB06G

Quick Install Guide

• Micro USB cable.

Note: Make sure your pack contains the elements described above. If you find something is missing or damaged, please contact your dealer.

System Requirements

• 1 USB 2.0 Port

• Windows Operating System or superior.

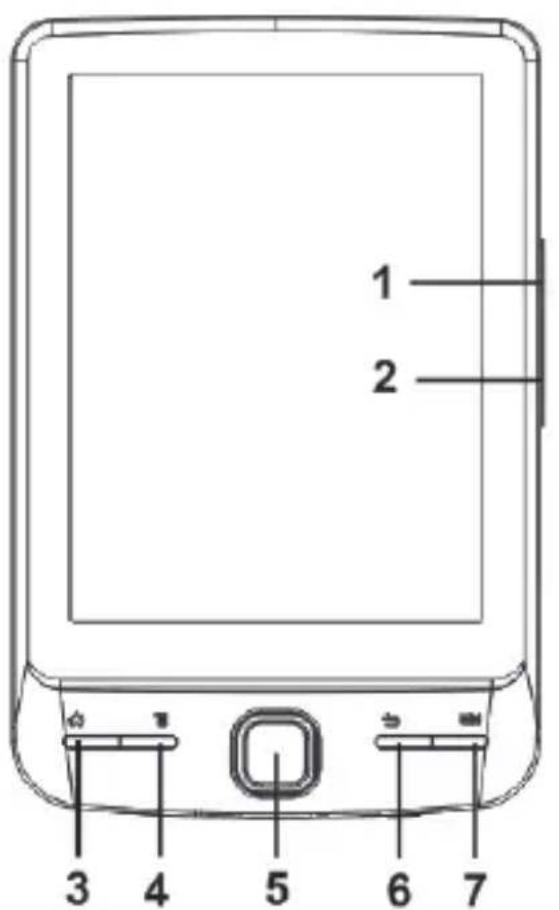

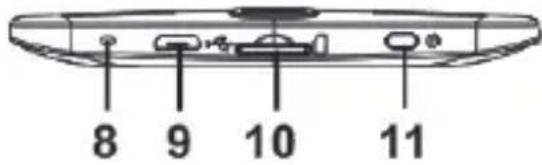

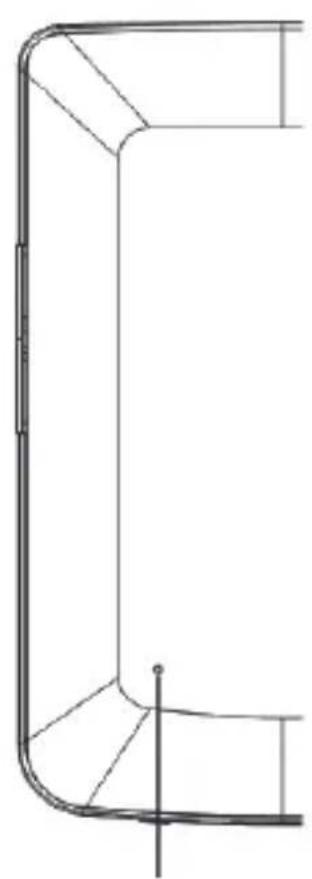

Description of the parts

12

1. Page up button
2. Page down button
3. Home button- press to return to home screen.
4. Menu button- press to display option menu.
5. Directional buttons/Enter button

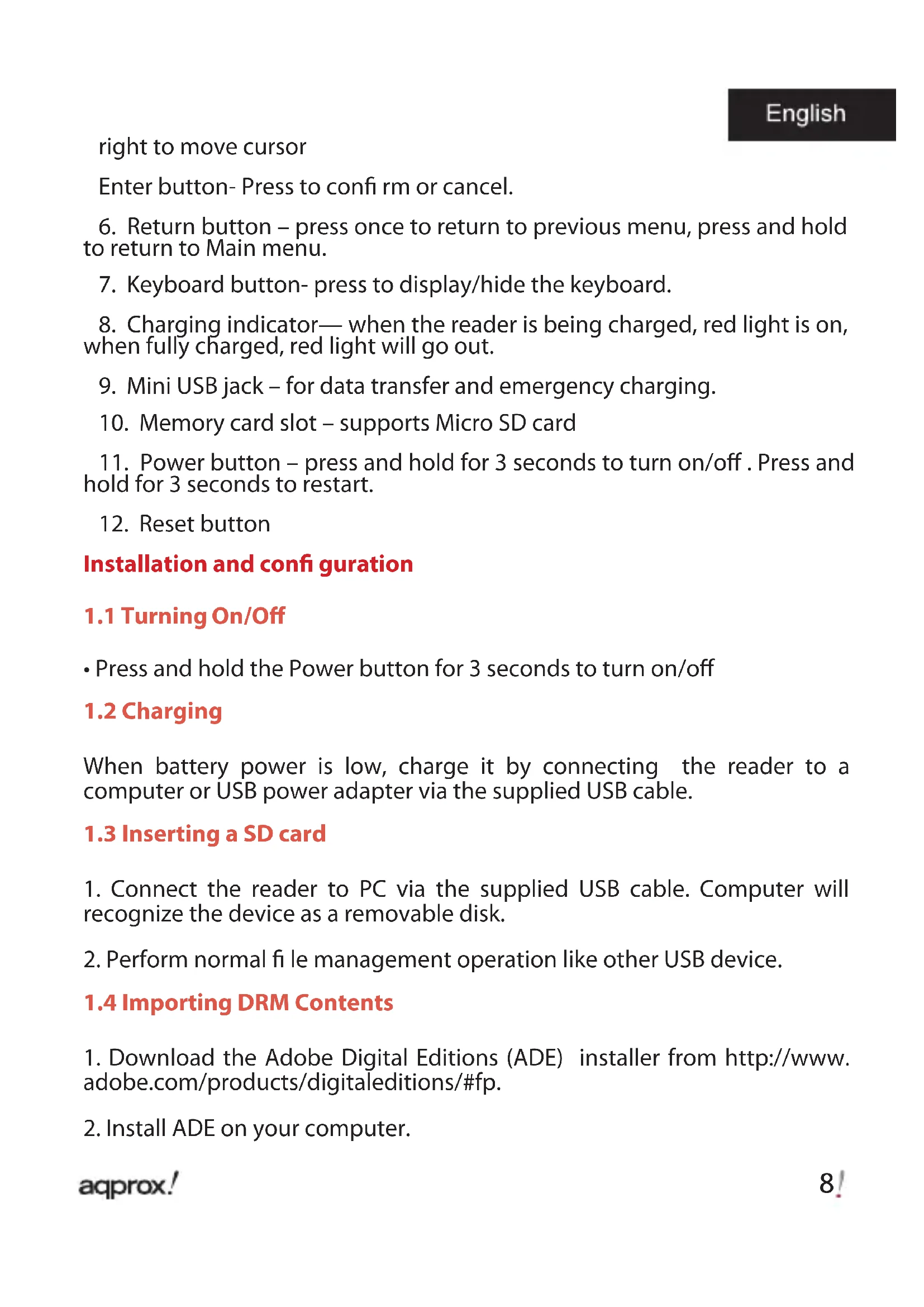

-Directional buttons - press the button up/ down/ left/

right to move cursor

Enter button- Press to confirm or cancel.

1. Return button - press once to return to previous menu, press and hold to return to Main menu.
2. Keyboard button- press to display/hide the keyboard.
3. Charging indicator—when the reader is being charged, red light is on, when fully charged, red light will go out.
4. Mini USB jack – for data transfer and emergency charging.
5. Memory card slot - supports Micro SD card
6. Power button - press and hold for 3 seconds to turn on/off. Press and hold for 3 seconds to restart.
7. Reset button

Installation and configuration

1.1 Turning On/Off

• Press and hold the Power button for 3 seconds to turn on/off

1.2 Charging

When battery power is low, charge it by connecting the reader to a computer or USB power adapter via the supplied USB cable.

1.3 Inserting a SD card

1. Connect the reader to PC via the supplied USB cable. Computer will recognize the device as a removable disk.
2. Perform normal file management operation like other USB device.

1.4 Importing DRM Contents

1. Download the Adobe Digital Editions (ADE) installer from http://www.adobe.com/products/digital Editions/#fp.

2. Install ADE on your computer.

3. For first time user, you are required to register a ADE account.

4. Enter the user name and password to activate your Adobe account, then connect the Reader to PC.

5. Run ADE to authorize PC and Reader.

6. Download or buy eBooks from online ebook stores.

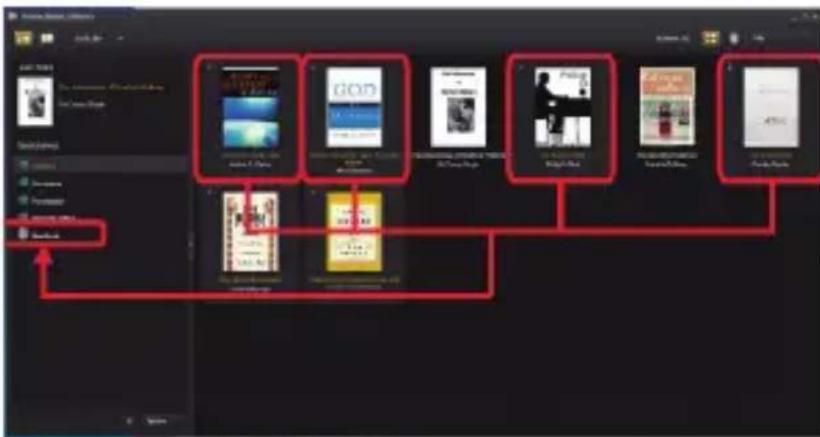

7. Drag and drop the selected item(s) into the Reader's Drive to transfer DRM eBooks as illustrated below.

1.5 Basics

Use the Directional buttons to move the cursor to the desired item from the list.

Press the Enter button to confirm the selection.

Press the Menu button to display option menu.

Press the Return button to cancel selection or return to previous menu, press and hold to return to Main Menu.

Press the Keyboard button to display/hide the keyboard.

1.6 Settings

From Main menu, select Settings and press the Enter button.

Use the Directional/Enter buttons to set system language and time.

1.7 Reading Books

From the Main menu, select Library and press the Enter button to enter book library.

• From home screen or book library, use the Directional buttons to select a book and press the Enter button to open.
• When reading, press Page up/down or Directional buttons to turn page.
• In reading page, press the Menu button to use the Option Menu.

1.8 Viewing photos

From Main menu, Select Photo and press the Enter button to enter photo viewer.

Select a photo and press the Enter button to full screen view.

Press the Menu button to use the option Menu.

1.9 File Explorer

From Main menu, select File Explorer and press the Enter button to enter fi le explorer.

• Select a folder or file to open.
• Press the Menu button to use the option Menu...

Support.

Please for more information on installing and config guring this product go to our web www.approx.es support section and download the complete guide or write an email to the following address: [e-mail]

Introduction.

Français

1.9 to File Explorer

Ano to kupio uevou, epiEeFile Explorer kaatnoTo pntkpo Enter yia va eayte To apxio epuvntnc.

1.3 Introducerea unui card SD

The content of this guide is subject to typographical errors
