Product Type	Indoor Radio Siren
Brand	ABUS
Model	ACTP00003
Dimensions (W x H x D)	135 x 225 x 55 mm
Weight	984 g (with batteries)
Power Supply	4.5 V or 12 V DC, or 3 D alkaline batteries (1.5 V each)
Standby Consumption	55 mA (±5%)
Alarm Consumption	600 mA
Operating Frequency	868.6625 MHz
Radio Range	Up to 100 m (depending on environment)
Sound Level	Up to 90 dB(A) at 1 m (internal piezo emitter)
Operating Temperature	-10 °C to +50 °C
Protection Rating	IP54
Environmental Class	II
Security Level	2 (EN50131-1)
Allowable Relative Humidity	75 %
Main Functions	Sound reinforcement of alarm and information tones from the Secvest control panel; emission of warning and information tones; radio learning; partition selection; volume adjustment
Installation	Indoor wall mounting; requires signal measurement with FU3801 tester
Maintenance and Cleaning	Clean with a dry cloth; do not use abrasive products or solvents
Safety	Tamper monitoring not integrated; mandatory proper use; observe battery instructions
Spare Parts and Repairability	Replaceable batteries (3 x D); no spare parts supplied; repair only by a professional
General Information	Compliant with Directive 2014/53/EU; declaration of conformity available at www.abus.com

Frequently Asked Questions - ACTP00003 ABUS

How to install the ABUS ACTP00003 siren?

The siren must be mounted flat on an indoor wall at an appropriate height. Use the base as a template to drill holes. Power it with 4.5 V or 12 V DC, or with 3 D batteries. Measure the signal strength with the FU3801 test box before final fixing.

How to pair the siren with the Secvest control panel?

Plug in the LEARN jumper to activate learning mode (LED1 flashes). On the control panel, go to Devices → Module_info/Indoor siren → Component learning and press Coding. A double tone confirms success. Remove the LEARN jumper.

What is the radio range of the siren?

The range can reach 100 meters in open field. It heavily depends on the environment: thick walls, metal structures or electronic equipment can reduce the range. Measure the signal with a radio tester before installation.

What do the different tones emitted by the siren mean?

A brief tone (beep) indicates a malfunction. An intermittent tone (beep...beep...beep) signals an open zone during exit. A long continuous tone (beeeeep) is emitted during exit delay. Rapid beeps (beepbeep) on entry, and a high-pitched tone confirms activation or successful learning.

How to adjust the alarm volume?

Use the FORCE LOW VOL jumper on the electronic board. When plugged in, warning tones are emitted at reduced volume. In 12 V mode, the ALARM ONLY jumper allows only warning tones to be emitted.

What type of batteries to use and how to replace them?

Use 3 alkaline batteries type D (LR20), 1.5 V each. To replace, open the housing, remove the old batteries and insert new ones respecting polarity. Do not use rechargeable batteries.

Does the siren have tamper protection?

No, tamper monitoring is not integrated in this model. The installation must be carried out in a secure location to prevent unauthorized access.

How to clean the siren?

Disconnect the power supply. Clean the housing with a soft, dry cloth. Do not use chemicals, solvents, or damp cloths that could damage the electronics.

What to do in case of malfunction or false alarm?

First check the batteries or power supply. Make sure the siren is correctly paired with the control panel. If the problem persists, consult the full manual or contact your specialized dealer.

Where to find the declaration of conformity for this device?

The EU declaration of conformity is available for download on the website www.abus.com by searching for the reference FUSG50010 in the Downloads section. You can also request it by mail from ABUS Security-Center GmbH & Co. KG.

USER MANUAL ACTP00003 ABUS

[EN] Installation instructions

© ABUS Security-Center GmbH & Co. KG, June 2017

Installation instructions

Secvest Funk-Innensirene

[EN] Installation instructions

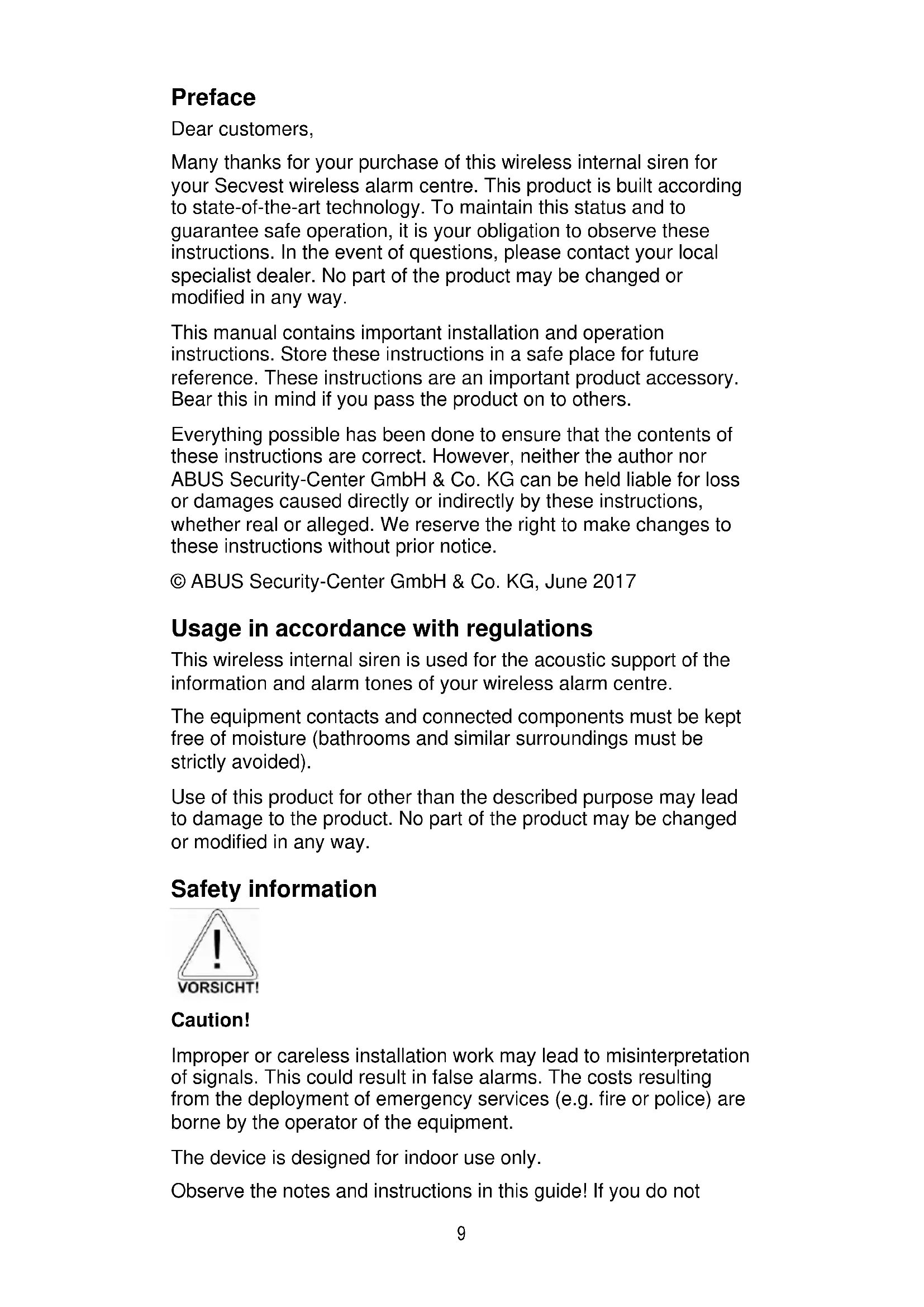

Many thanks for your purchase of this wireless internal siren for your Secvest wireless alarm centre. This product is built according to state-of-the-art technology. To maintain this status and to guarantee safe operation, it is your obligation to observe these instructions. In the event of questions, please contact your local specialist dealer. No part of the product may be changed or modified in any way.

This manual contains important installation and operation instructions. Store these instructions in a safe place for future reference. These instructions are an important product accessory. Bear this in mind if you pass the product on to others.

Everything possible has been done to ensure that the contents of these instructions are correct. However, neither the author nor ABUS Security-Center GmbH & Co. KG can be held liable for loss or damages caused directly or indirectly by these instructions, whether real or alleged. We reserve the right to make changes to these instructions without prior notice.

© ABUS Security-Center GmbH & Co. KG, June 2017

Usage in accordance with regulations

This wireless internal siren is used for the acoustic support of the information and alarm tones of your wireless alarm centre.

The equipment contacts and connected components must be kept free of moisture (bathrooms and similar surroundings must be strictly avoided).

Use of this product for other than the described purpose may lead to damage to the product. No part of the product may be changed or modified in any way.

Safety information

Caution!

Improper or careless installation work may lead to misinterpretation of signals. This could result in false alarms. The costs resulting from the deployment of emergency services (e.g. fire or police) are borne by the operator of the equipment.

The device is designed for indoor use only.

Observe the notes and instructions in this guide! If you do not

follow these instructions, your guarantee claim becomes invalid! Use of this product for other than the described purpose may lead to damage to the product. The electronic part of the product must not be changed or modified in any way. No liability can be accepted for resulting damages!

Battery warning!

The device is supplied with direct current from three 1.5 V batteries (type "D"). To guarantee a long working life and avoid fire and injury, please note the following:

• Do not dispose of the battery in domestic waste.
• The battery must not be directly exposed to heat or sunlight, and must not be stored in a place with a very high temperature.
• The battery must not be burned.
• The battery must not come into contact with water.
• The battery must not be dismantled, pierced or otherwise damaged.
• The battery contacts must not be short-circuited.
• The battery must be kept away from small children.
• The battery cannot be recharged.

Installation

The siren should be attached flush to the wall at a practical height for the operator. Ensure that a suitable power supply is available (12 V DC or 3 x 1.5 V batteries (type "D"), or both). The internal siren can be installed up to 100 metres from your wireless alarm centre. The reception range is strongly dependent on the structural characteristics of the building.

Location check

The incoming signal strength should be measured at the planned installation location for the internal siren. The FU3801 wireless testing box from our product range can be used for this purpose.

Avoid installation in the following locations:

Next to or on large metal structures. Less than one metre away from power lines and metal, water and gas pipes. Inside steel cases. Next to electrical devices, especially computers, photocopiers or communication devices.

To attach the base plate to the wall, loosen the screw on the bottom of the housing and lift the front part carefully from the base

plate.

Interior view

1. Jumper connections for selecting the partition, learning in the alarm centre, defining the emitted tones and adjusting the alarm tone volume
2. Screw terminal block for 4.5 and 12V connections
3. Screw terminal block for internal piezo signaller
4. Wireless reception module
5. LED
6. Piezo signaller

Attaching the rear housing wall

1. Using the base plate as a drilling template, mark the drill holes on the wall. Drill the holes and insert wall plugs if necessary.
2. Feed the connection cable of the PSU into the device and screw the rear housing side onto the wall (optional).
3. Supply the internal siren with power (either 4.5V or 12V , or both - the polarity of the terminal block is printed on the PCB).

Assigning the Secvest to the wireless internal siren

1. Set the "LEARN" jumper. LED1 starts to flash. Learning mode is now active.
2. In the installer menu of the wireless alarm centre, select

the "Other Devices Info Module/Int Siren Teach Device" menu point.

1. Press "Send" on the wireless alarm centre. The centre sends the learn signal to the internal siren.

After successful learning of the wireless alarm centre:

• The internal siren emits a double tone.

• LED1 goes out.

• Remove the "LEARN" jumper. The ID of the alarm centre is saved in the internal siren. The internal siren emits a double tone.

• Confirm the successful learning procedure on the wireless alarm centre.
• Define which partition should be used by the internal siren. Select the partition using the jumper.

Acoustic signal tones

The internal siren can generate a whole series of acoustic signal tones. These are similar to the signal tones of the wireless alarm centre. In the event of an alarm, the internal piezo signaller of the internal siren is activated simultaneously.

The following table gives an overview of the signal tones and their meaning.

Signal tone	Meaning
Short beep (beep)	The system is faulty and the centre cannot be activated.
Interrupted beeps (beep...beep...beep)	A zone was opened during the exit delay time. This must be closed before the delay time expires.
Long, continuous beep (beeeeeeeeeeep)	The exit delay time is active. All zones are closed, the centre is activated after the delay time expires.
Short, interrupted beeps (beepbeepbeepbeep)	The entry delay time is active.

Beeps at different pitch

The centre was successfully activated.
- The learn signal was received and stored.
- When exiting the installer menu.
- Door chime (when selected under zone attributes).

Jumper connections

"ALARM ONLY": When this jumper is attached in 12 V operation, then only the alarm tones of the internal siren are emitted. When this jumper is not attached, then the information tones of the alarm centre are also emitted.

Note: Only alarm tones are emitted in stand-alone battery operation, regardless of the jumper setting.

"FORCE LOW VOL": When this jumper is attached, the alarm tones of the internal siren are emitted at low volume.

Technical data

Environment class	II
Security level	2 (EN50131-1)
Protection class	IP 54
Operating temperature	-10 °C to +50 °C
Humidity	75% relative humidity
Dimensions	135 x 225 x 55 mm (WxHxD)
Weight	984 g (inkl batteries)
Power supply	Nominal 4.5 V or 12 V DC
Power consumption	55±5% mA (standby) 600 mA (alarm)
Frequency	868.6625 MHz
Signals	Internal piezo signaller (max. 90 dB(A) @ 1 m)
Tamper monitoring	No

Subject to alterations and errors.

Information on device disposal

The EU Directive 2012/19/EU regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental

protection the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Disposing of used devices can be done at official re-cycling centers in your country. Obey local regulations when disposing of material. Further details on returns (also for non-European countries) can be obtained at your local authority. Separate collection and recycling saves natural resources and ensures that all the pro-visions for protecting health and environment are observed when recycling the product.

Declaration of Conformity

Hereby, ABUS Security-Center GmbH & Co. KG declares that the radio equipment type FUSG50010 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.abus.com >> Search >> FUSG50010 >> Downloads

The Declaration of Conformity can also be obtained from the following address:

ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5, 86444 Affing, GERMANY
