Product Type	Air Purifier / Ultrasonic Humidifier with Essential Oil Diffuser and Bluetooth Speaker
Brand	Olimpia Splendid
Model	Astomi Sound
Tank Capacity	Approximately 400 ml
Mist Output	2 adjustable levels (High/Low)
Timer	2h / 4h / 6h
Power Supply	Mains adapter (included): see voltage on rating plate
Power Consumption	Check product rating plate
Misting Technology	Ultrasonic (piezoelectric transducer)
Essential Oil Diffusion	Yes, 5 to 10 drops max in water
Connectivity	Bluetooth (device named "9960")
Speaker Function	Yes, for playing music from an external device
Tank Material	Anti-oil treated plastic
Safety	Automatic shut-off in case of insufficient water; do not open the body; use only the supplied adapter
Cleaning	Clean the tank with clean water; descale with diluted white vinegar; do not use detergents
Transducer Maintenance	Soft-bristle brush for the ultrasonic disc
Recommended Water	Drinking water or distilled water (avoid very hard water)
Placement	Stable, horizontal surface, at least 60 cm from the floor, 10 cm from walls
Repairability	Do not disassemble yourself; contact the manufacturer

Frequently Asked Questions - Astomi Sound OLIMPIA SPLENDID

How to use essential oils with the Astomi Sound?

Add 5 to 10 drops of 100% natural essential oil to the water tank (400 ml max). Do not exceed this amount. Thoroughly wash the tank after each use to avoid residues.

What should I do if the appliance does not produce mist?

Check that the tank contains enough water (below the MAX level). Clean the ultrasonic disc with a soft brush. If the water is very hard, use distilled water.

How to connect my phone via Bluetooth?

Turn on the appliance (POWER LED on). Enable Bluetooth on your phone. Look for the device named '9960' and connect. A beep confirms connection. Use the + and - buttons to adjust volume.

Why does white powder form around the appliance?

This is due to hard water leaving mineral deposits. Use distilled water to reduce this. Clean the tank and transducer regularly.

How to set the timer?

Press the timer button multiple times to select 2h, 4h or 6h. The corresponding LED lights up. For continuous operation, turn off the timer (all LEDs off).

The appliance beeps three times and turns off: what to do?

This is the signal for insufficient water. Fill the tank to the MAX mark (about 400 ml). Do not exceed this level.

Can I use the appliance without water to only play music?

No, the appliance must contain water to operate. Without water, it turns off automatically. To listen to music, ensure the tank is filled.

How to clean the ultrasonic transducer?

Use a soft-bristle brush to gently clean the ultrasonic disc. Do not scrub and do not use chemicals. Rinse with clean water.

Can I add essential oil directly to the tank without water?

No, the oil must be diluted in water. Always add water first, then the oil drops. Undiluted oil can damage the appliance.

What if an unpleasant odor is released?

Empty and thoroughly clean the tank with clean water. Rinse it. If you have changed oil, make sure no residue remains. Let it dry before reuse.

USER MANUAL Astomi Sound OLIMPIA SPLENDID

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE EN

INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN FR

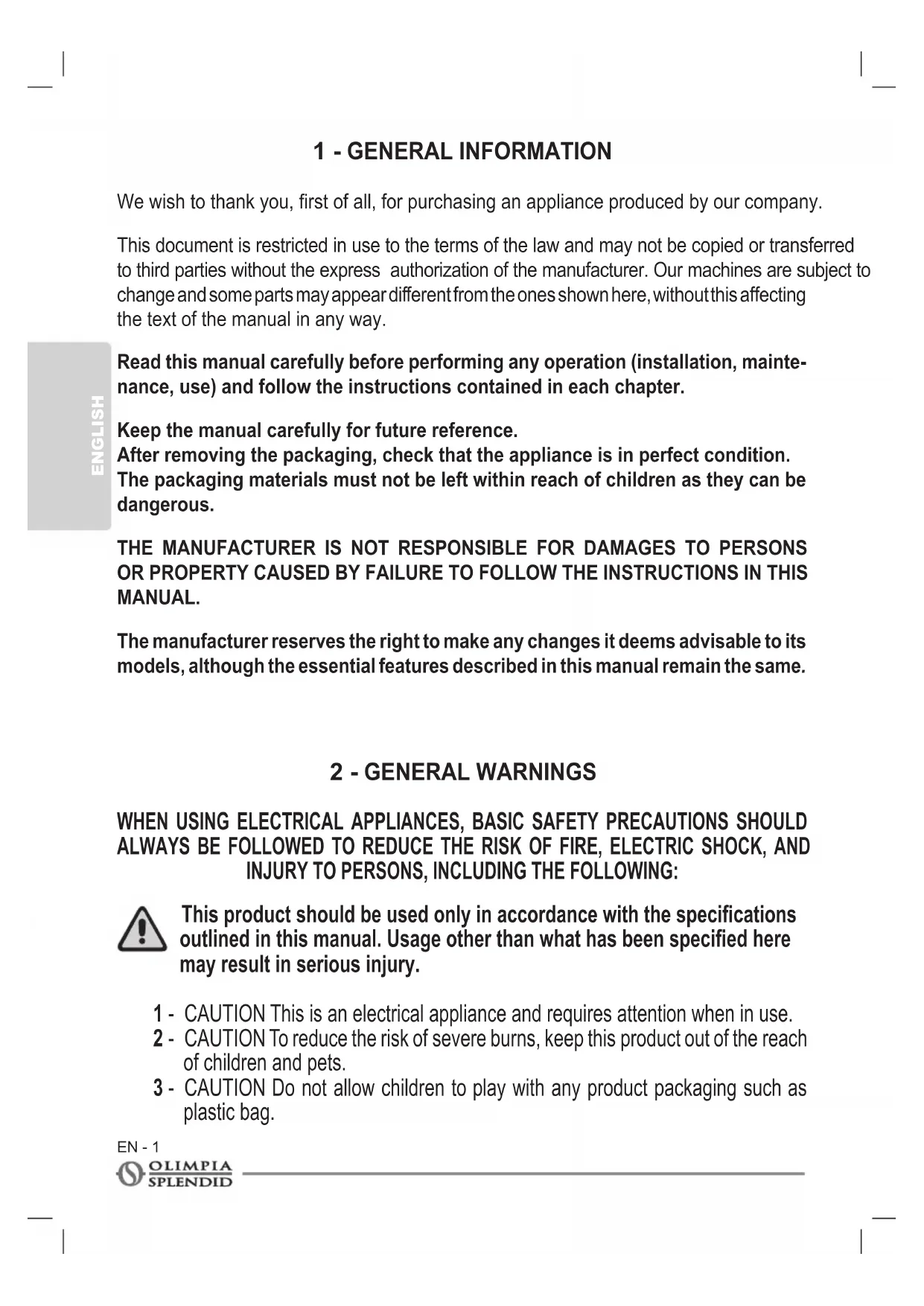

We wish to thank you, first of all, for purchasing an appliance produced by our company.

This document is restricted in use to the terms of the law and may not be copied or transferred to third parties without the express authorization of the manufacturer. Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

Read this manual carefully before performing any operation (installation, maintenance, use) and follow the instructions contained in each chapter.

Keep the manual carefully for future reference.

After removing the packaging, check that the appliance is in perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.

THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

The manufacturer reserves the right to make any changes it deems advisable to its models, although the essential features described in this manual remain the same.

2 - GENERAL WARNINGS

WHEN USING ELECTRICAL APPLIANCES, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

1 - CAUTION This is an electrical appliance and requires attention when in use.
2 - CAUTION To reduce the risk of severe burns, keep this product out of the reach of children and pets.
3 - CAUTION Do not allow children to play with any product packaging such as plastic bag.

EN-1

4 - Disassembly, repair or remodelling by an unauthorized person may result in serious harm and will void the manufactures warranty.
5 - Do not activate the appliance if the cable or plug is damaged, after a malfunction, or if the appliance has been dropped or damaged in any way. Return the appliance to the manufacturer for examination or repairs.
6 - Always place the appliance on a stable surface, flat and levelled, at least 60~cm from the floor and at least 10~cm from the walls. This humidifier may not work properly if placed on an irregular surface.
7 - Do not block air inlet or outlet.
8 - Do not place the appliance on surfaces lined with fabric, on carpets/rugs, or on absorbing surfaces. This may obstruct the air inlet.
9 - Never place the appliance near sources of heat, such as heaters, radiators etc.
10 - Do not place the appliance near a power outlet.
11 - Place the appliance in a free space, to allow the mist to spread freely: Keep the appliance away from any other appliance or object, in particular those sensitive to water, to avoid damaging them.
12 - This product releases a mist. Do not place the appliance directly on wooden furniture, floor or any other surface that may be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
13 - Before filling or cleaning the appliance, make sure it is unplugged from the power outlet.
14 - Once the humidifier has been plugged in, do not tilt or move the unit.
15 - Do not remove the cover from the body of the appliance while it is working.
16 - Do not handle the plug with wet hands.
17 - Do not excessively bend, twist, pull or damage the power cord.
18 - Avoid placing the appliance in such a manner that the humidity nozzle points directly to an object or person.
19 - Do not inhale the mist/steam released from the appliance and do not drink water from the reservoir.
20 - Do NOT fill the reservoir above the "MAX" marking on the inner wall. Overfilling will cause the appliance not to work.
21 - Do not fill the water reservoir with hot or boiling water.
22 - Do not use the appliance under direct sunlight or close to sources of heat, such as heaters or radiators.
23 - Do not use the appliance if its body or cover present fissures or damages.
24 - Do not leave the appliance running for a long period of time.
25 - Unplug the appliance when not in use for a long period of time and/or when there is no one home.

26 - Do not leave water in the reservoir if you do not plan to use the appliance for a long period of time.
27 - Empty and clean the reservoir when the appliance is not in use.
28 - Do not clean the body of the appliance, the reservoir and the cover with detergents or chemical substances of any kind.
29 - Do not use the appliance near any other electronic devices.
30 - Never cover the mist nozzle during use. Never place anything on or within the appliance.
31 - Do not place the power cable on objects.
32 - Do not get water in or on the power cord or where it connects to the product.
33 - Do not use the appliance near sinks.
34 - Do not immerse the appliance in water or other liquids. Do not pour water on the appliance.
35 - When emptying the reservoir, pour the water from the side.
36 - Do not cover the lid with a cloth or with your hand. Do not cover the appliance without its lid.
37 - Use drinkable or distilled water in the reservoir. Using particularly hard water (rich in lime) means the appliance must be cleaned more often.
38 - If you notice humidity forming on the walls or on the window of the room, switch the appliance off.

The room already has plenty of humidity and additional moisture may cause damage.

39 - Keep the power cable from dangling from the surface on which the appliance is resting, to avoid people from tripping or pulling on it involuntarily, causing the appliance to fall.
40 - Do not open the body of the appliance, for any reason. Electric shock hazard!
41 - Do not add too many drops of oil.
42 - The appliance must be regularly topped up with water when in use. Switch off the appliance and unplug it from the power outlet before filling it.

For domestic use only

3 - INFORMATION ON THE USE OF ESSENTIAL OILS

Follow these instructions for the proper use of essential oils to avoid malfunctions or damages to the product, or cause damage to users.

• Use 100% natural essential oils, suitable for use with electric ultrasound diffusers.
• Add 5 ÷ 10 drops of essential oil to 400 ml of water. Do not use more than this amount.
• Wash the reservoir very carefully after each use, to remove residues.
• Some types of aromatic oils are not very soluble in water, and tend to remain in the reservoir. Regularly clean the water reservoir.
• Clean the reservoir every time you change oil. If the oil you used before has not been completely removed, the aromatic mixture may release an unpleasant smell and/or form residues.
• Some types of oil may stain the inner parts of the reservoir. This is absolutely normal.
• Do not apply undiluted oil directly on the skin; do not ingest it. Seek medical help immediately in the event of ingestion of the oil.
• Do not allow oil to come into contact with skin. If this happens, rinse it off immediately.
• Do not allow oil to come into contact with the eyes. If this happens, rinse immediately with water. If necessary, seek medical help.
• If you feel ill while using the product, switch the appliance off immediately.
• Pregnant women, elderly subjects, small children and people with chronic health conditions can be more sensitive to the smell. Immediately stop using if anyone feels ill.
• The reservoir and the lid are made of anti-oil materials. Other parts of the appliance may be damaged by contact with the oil. Be careful not to drip oil outside of the reservoir.
• Store your essential oils in a dark, cool place, well capped and away from the reach of children and pets.
• Do not use the essential oil after its expiry date.

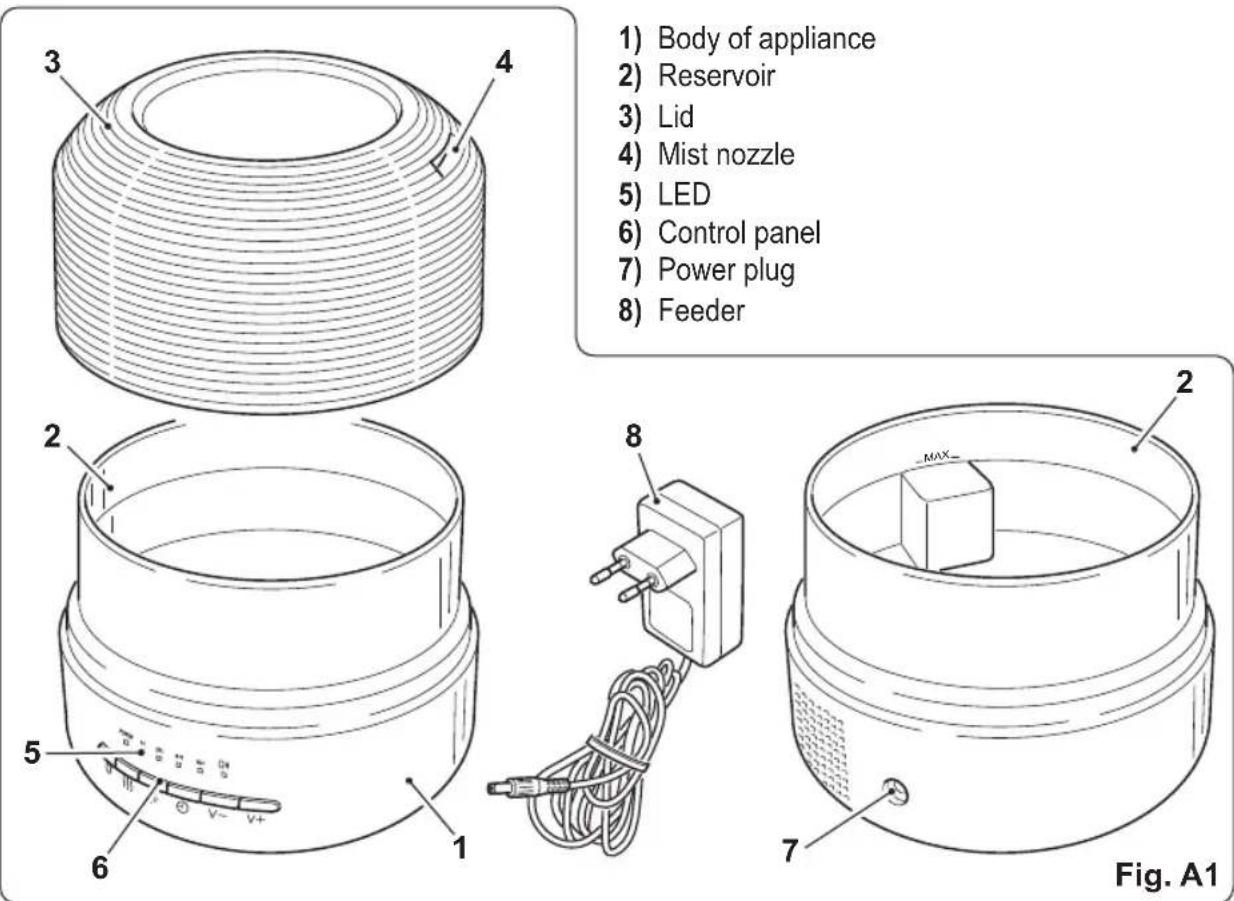

4 - DESCRIPTION OF THE APPLIANCE

5 - OPERATIONS

a. Remove the cover (3) (Fig. B).
b. Add water to the reservoir (2) (approximately 400ml ) (Fig. C).

Do not fill the reservoir over the "MAX" marking (2), or the appliance will not work.

Do not use hot water.

c. Add to the reservoir (2) 5-10 drops of essential oil (Fig. D).
d. Place the cover (2) over the body of the appliance (1) (Fig. E).
e. Connect the feeder (8) to the power input and the plug (8a) to the power outlet (7) on the body of the appliance. The "POWER" LED will light up (Fig. F).

EN-5

OLIMPIA SPLENDID

• Make sure the power mains voltage corresponds to the information on the feeder (8).

• Only use the feeder (8) included with the product.

f. Press the button

to start the appliance. Press it again to switch it off.

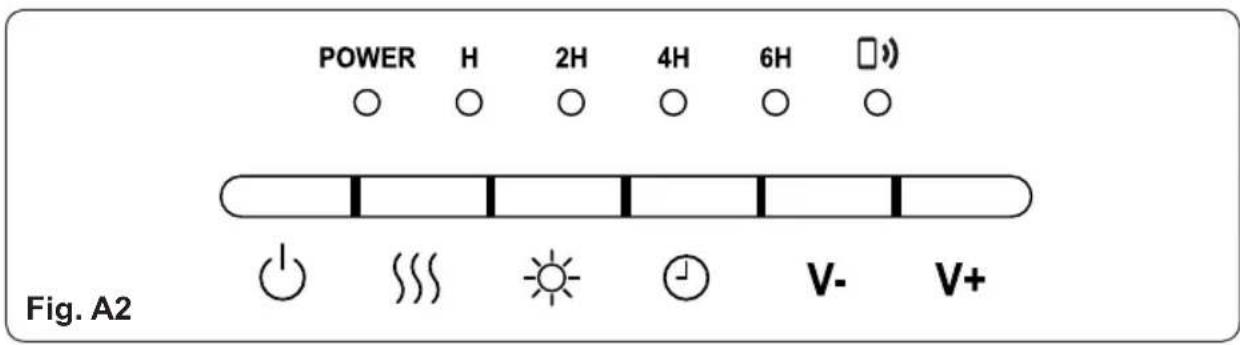

NOTES:

• The buttons on the appliance beep whenever they are pressed.
• If there is no water in the reservoir (2), when button is pressed it will beep 3 times and switch off.

g. With the appliance running, press button set the volume of mist released:

• LED “H” on = maximum volume
• LED "H" of = minimum volume

h. With the appliance running, press the button once or more times to set how long the appliance will run; the relative LED will go on.

• 2H (2 hours) > 4H (4 hours) > 6H (6 hours) > LED OFF (manual switch off).

i. Even when the appliance is off, pressing button once or more times will cause the LED of the appliance to light up in sequence.

6 - WIRELESS BT FUNCTION

When the appliance is being supplied with electricity ("POWER" LED on), it is possible to connect another device (smartphone, tablet etc) to play music.

a. Place the device near the appliance.
b. Activate the WIRELESS BT function in the device.
c. Select device "9960" and pair it; a beep will sound to indicate the pairing has been successful.

You can now play music from the appliance using your device. Adjust the volume on the appliance using the "+" and "-" buttons.

The LED light up during reproduction.

NOTE:

• To connect the appliance to another device, first disconnect any other device that had been connected before.

7a - CLEANING AFTER USE

After each use, and if you wish to use another oil, proceed as follows:

a. Switch off the appliance and unplug it from the power outlet.
b. Remove the cover (3).
c. Empty the reservoir (2) carefully so it does not come into contact with the air outlet (Fig. G).
d. Rinse the reservoir and dry it carefully with a soft cloth or a paper towel to remove all residues. Carefully clean and dry the ultrasound transducer (1a), if necessary, using a soft brush (Fig. H).

• Use only water to clean. Do not use detergents or chemical substances.

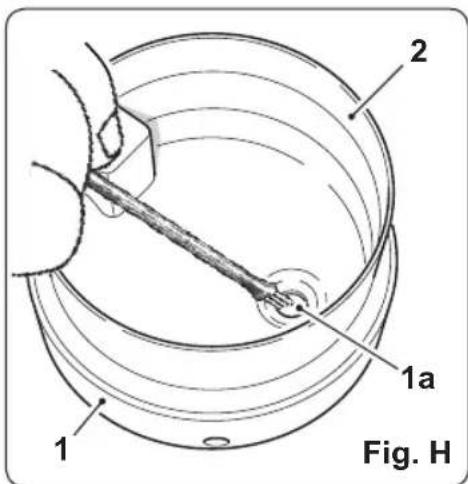

• Do not rub or scrub the ultrasound disc (1a).

e. Wash and dry the cover (2).

f. Clean the outer part of the body of the appliance (1) with a soft cloth, slightly damp if necessary.

Do not immerse the appliance (1) or the transformer (8) in water or other liquids.

Do not leave the appliance with water in the reservoir, especially if you do not intend to use it now.

EN-7

OLIMPIA SPLENDID

7b - DECALCIFICATION

• It is advised to use distilled water, especially if water in your geographical area is particularly hard. This helps reduce the precipitation of minerals and white powder.

- If lime becomes difficult to remove with the brush:

1. Fill the reservoir (2) with a mixture of 1 teaspoon of white vinegar and 1 teaspoon of water.
2. Let it work for 5 minutes.
3. With the vinegar in the reservoir, clean all the inner surfaces with a soft cloth or a soft brush to help remove lime scale.
4. Rinse with water and dry carefully to remove the lime scale and the vinegar solution.

DO NOT ATTEMPT TO OPEN THE MOTOR COMPARTMENT IF YOU DETECT A PROBLEM. THIS MAY ANNULL THE WARRANTY AND CAUSE DAMAGES TO THE APPLIANCE OR PERSONAL INJURIES.

8 - TECHNICAL DATA

Check the data plate on the product for the technical data listed below:

• Power supply voltage
• Power absorbed

DISPOSAL

This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances.

Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal.

Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product.

This regulation is valid only in EU member states.

9 - TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE SOLUTION
The appliance does not work. Power plug: Disconnect it from the power outlet and plug it in again. Power Failure: When the power is returned, try again.
Air blows but water vapor is not produced.	There may be oil residues in the reservoir; wash the reservoir and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk (Fig. H). If you use hard water, replace with softer water.
Humidity level is low. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk (Fig. H). The water in the unit is too cold: Replace with cool, but not cold water.
The humidity has a bad smell.	Poor maintenance or dirty water: Accurately clean the reservoir and fill it up with clean water.
White powder is formed near the appliance.	Hard water may deposit a certain of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
The appliance has stopped working.	Little or no water. Unplug the appliance and fill up the reservoir.
Water accumulates outside the appliance or around it.	Humidity saturation. Lower the mist control setting (H LED off). Point the nozzle away from objects. Lift the appliance onto a water-resistant lev-elled surface at least 60 cm above the floor.
The appliance will not start. Too much water in the reservoir. Do not exceed the MAX marking.
The appliance does not play music.	·WIRELESS BT function not enabled on your smart device. ·Smart device disconnected. ·Smart device and appliance are too far from each other.
