USER MANUAL Caldorad digital OLIMPIA SPLENDID

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE

azi one 2000W - Ri scal dam ent

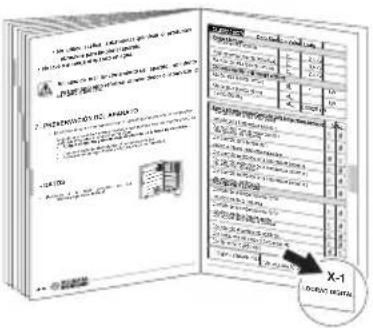

8 - TECHNICAL DATA ..................................................................................................... 16 ILLUSTRATIONS The pictures are grouped in the second page of the manual DISPOSAL This symbol on the product or its packaging indicates that the appliance cannot be treated as normal domestic trash, but must be handed in at a collection point for recycling electric and electronic appliances. Your contribution to the correct disposal of this product protects the environment and the health of your fellow men. Health and the environment are endangered by incorrect disposal. Further information about the recycling of this product can be obtained from your local town hall, your refuse collection service, or in the store at which you bought the product. This regulation is valid only in EU member states.ENGLISH EN- 2

First of all, we would like to thank you for choosing our appliance.

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

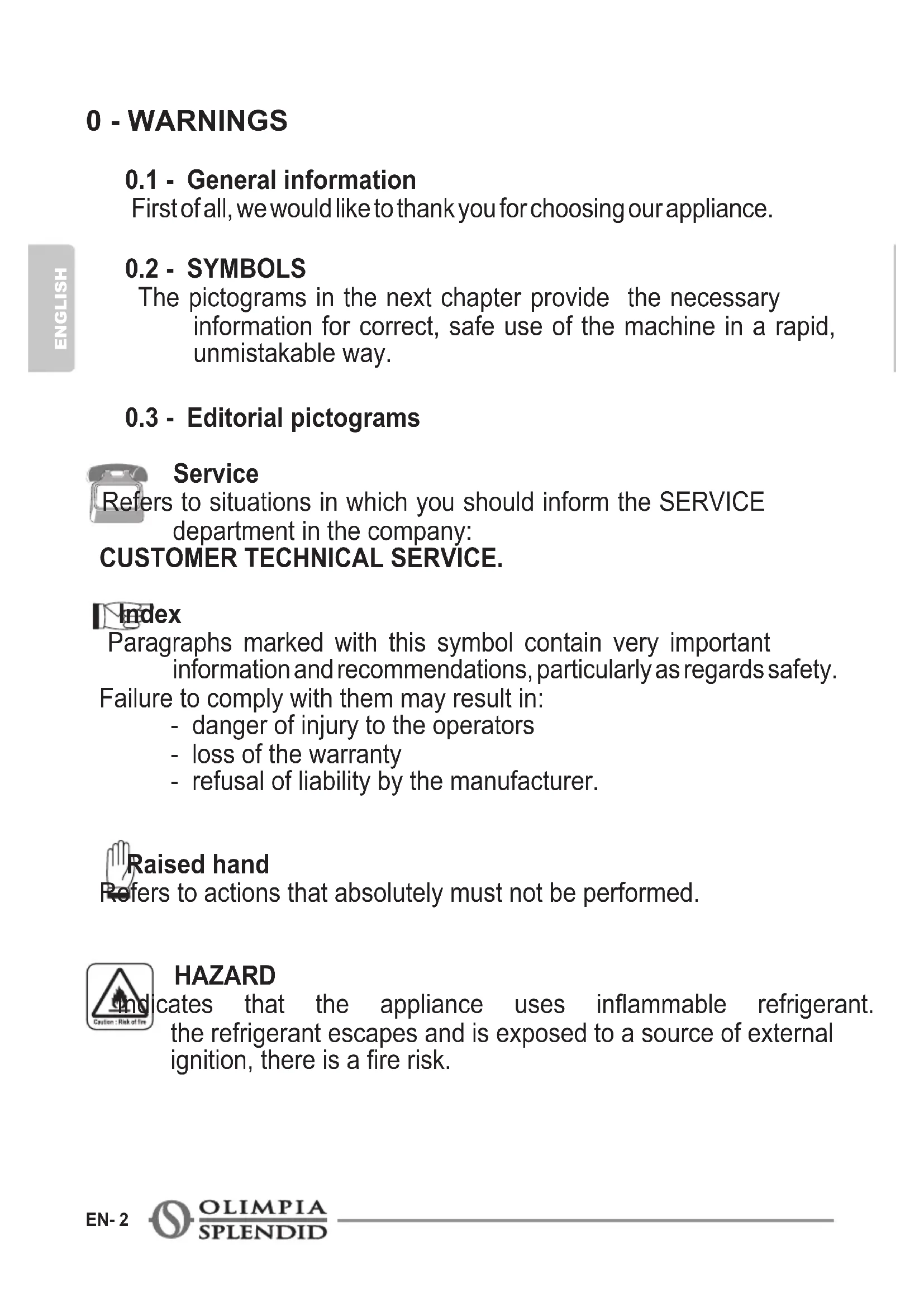

0.3 - Editorial pictograms

Service Refers to situations in which you should inform the SERVICE department in the company: CUSTOMER TECHNICAL SERVICE. Index Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety. Failure to comply with them may result in: - danger of injury to the operators - loss of the warranty - refusal of liability by the manufacturer. Raised hand Refers to actions that absolutely must not be performed. HAZARD Indicates that the appliance uses inammable refrigerant. If the refrigerant escapes and is exposed to a source of external ignition,thereisarerisk.CALDORAD DIGITAL ENGLISH EN- 3

DANGER OF HIGH VOLTAGE

Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

Indicates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating. ATTENTION

• Indicates that this document must be read carefully before installing and/or using the appliance.

• Indicates that the assistance personnel must handle the appliance following the installation manual. ATTENTION

• Indicates that there may be additional information in attached manuals.

• Indicates that information is available in the user manual or in the installation manual. ATTENTION Indicates that the assistance personnel must handle the appliance following the installation manual.ENGLISH EN- 4

0.4 - GENERAL WARNINGS

1. This document is restricted in use to the terms of the law and

may not be copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID. Our appliances are subject to change and some parts may appear di󰀨erent from the ones shown here, without this a󰀨ecting the text of the manual in any way.

2. Read this manual carefully before performing any operation

(installation, maintenance, use) and follow the instructions contained in each chapter.

3. Keep the manual carefully for future reference.

4. After removing the packaging, check that the appliance is in

perfect condition. The packaging materials must not be left within reach of children as they can be dangerous.

5. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES

TO PERSONS OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

6. The manufacturer reserves the right to make any changes it

deems advisable to its models, although the essential features described in this manual remain the same.

7. Before connecting, make sure that the plate data corresponds

with the mains electrical supply. Connect the appliance to a single-phase power supply in AC at the voltage indicated on the nameplate located on the appliance. WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING:CALDORAD DIGITAL ENGLISH EN- 5

8. Install it according to the manufacturer’s instructions An

incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

9. Use the appliance on a horizontal and stable surface or secure

it to the wall, depending on the cases.

10. Always unreel the cable completely during use.

11. The appliance is equipped with a power cord with plug (Y-type

connection). If the power cord is damaged, it must be replaced by the manufacturer, his technical service or a similarly qualied person in order to eliminate all possible risks.

12. Install it in such a way that the switches and other controls

cannot be reached by persons using the bath or shower.

13. Do not use extensions, if not with particular care.

14. Keep the appliance at a distance of at least 1 m from any

object, fabric or ammable material (g. 1).

15. Do not place appliance close to a radiant heat source.

16. Do not use the appliance to dry clothes.

17. Do not insert or allow foreign objects to enter any ventilation

or exhaust opening, as this may cause an electric shock, re or damage to the appliance.

18. Do not allow cord to come in contact with heated surfaces

19. Do not run cord under carpeting, throw rugs or runners etc.

Arrange cord away from tra󰀩c areas so that it will not be tripped over.

20. Do not twist, kink or wrap the cord around the appliance, as

this may cause the insulation to weaken and split.ENGLISH EN- 6

21. Do not store appliance while it is still hot.

22. Do not use this appliance outdoors, or on wet surfaces. Avoid

spilling liquid on the appliance.

23. The appliance must not be used in rooms whose oor area is

24. This heater is intended for oor use only. Do not mount on

25. Do not operate the heater near curtains, as the material could

be sucked into the air vents. (g. 3).

26. It is forbidden to dispose of or leave in the reach of children

the packaging materials which could become a source of danger.

27. It is forbidden for the appliance to be used by children or

unassisted disabled persons.

28. The appliance may be used by children over 8 years of age

and by persons with reduced physical, sensorial or mental capacities, or without the required experience or knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.

29. Children must not play with equipment. Children must not be

allowed to clean the appliance or perform user maintenance without proper supervision.

30. Children of less than 3 years should be kept away unless

continuously supervised.

31. Children aged from 3 years and less than 8 years shall only

switch on/o󰀨 the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.CALDORAD DIGITAL ENGLISH EN- 7

32. Children aged from 3 years and less than 8 years shall not

plug in, regulate and clean the appliance or perform user maintenance.

33. Do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool.

34. Some parts of this product may become very hot and could

cause burns. Be very careful when children or vulnerable adults are nearby.

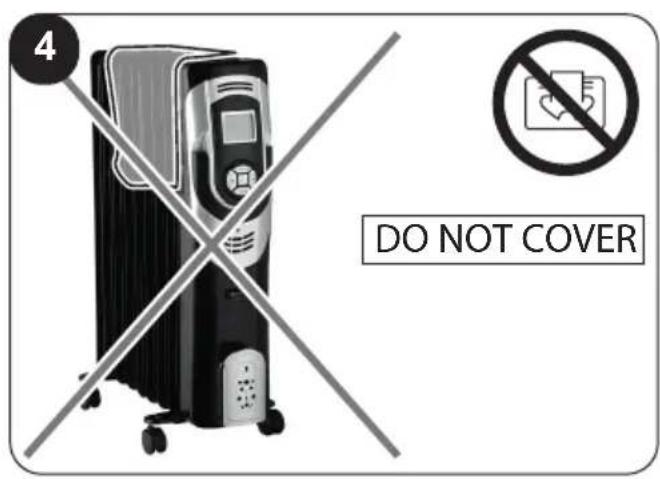

35. WARNING: in order to avoid overheating, do not cover the

a. Place it immediately underneath a mains wall socket. b. Pull the power cable or the appliance itself to remove the plug from the mains socket. c. Leave it expose to atmospheric agents (rain, sun, etc.). d. Leave it plugged in when not in use. e. Touch it with wet or damp hands.

37. Use this appliance only as described in this manual. Any other

use is not recommended by the manufacturer and may cause re, electric shock or injury.

38. The most common cause of overheating is deposits of dust

or u󰀨 in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning air vents and grilles.

39. Do not use abrasive cleaning products on this appliance.

Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.ENGLISH EN- 8

40. Do not connect the appliance to the mains voltage until

completely assembled and adjusted.

41. Switch o󰀨 and use handles where provided when moving.

42. Do not immerse the appliance in water or in other liquids.

Short circuits or res may occur.

43. Do not let the appliance work in enclosed areas such as a

cabinet since it could cause a re.

44. If the appliance’s plug is incompatible with the socket, have the

socket replaced with a suitable one by a qualied technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.

45. Do not use the appliance in case of malfunctioning or faults,

if the cord or plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance o󰀨, disconnect the plug from the socket and let it be checked by professionally qualied personnel.

46. Disassembly, repair or reconversion performed by an

unauthorized person could cause heavy damages and will cancel the manufacturer warranty.

47. Neither disassemble nor modify the appliance.

48. Repairing the appliance by yourself is extremely dangerous.

49. Do not use this appliance in small rooms occupied by persons

which are not able to leave it autonomously unless constant supervision is supplied.CALDORAD DIGITAL ENGLISH EN- 9

50. Do not remove plug from power socket until the appliance has

51. After removing the packing, make sure that the appliance is

complete, without visible damage that could have been caused during transport. In case of doubt, do not use the appliance and contact the authorised Technical Assistance centres.

52. When left unattended, always disconnect from the power

53. If you no longer wish to use this appliance, it must be made

inoperative by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.

54. At rst use and after a long period of inactivity of the appliance,

a slight noise may be heard and a slight odour may be smelled. It is a normal phenomenon which will disappear after a few minutes of operation.

55. The appliance is lled with a precise quantity of special oil.

56. Repair requiring opening of the oil container are only to be

made by the manufacturer or his service agent who should be contacted if there is an oil leakage.

57. Regulations concerning the disposal of oil when scrapping

the appliance have to be followed.ENGLISH EN- 10

58. The appliance must be used exclusively as an electrical

radiator with the only purpose of making the room where you are staying comfortable.

59. This appliance is only designed for domestic use or similar,

not for commercial or industrial use.

60. An improper use of the appliance with possible damages

caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

0.6 - UNINTENDED AND POTENTIALLY DANGEROUS USE

61. Do not use the appliance in areas in which are used or stored

petrol, varnishes or other ammable liquids or in environments with the presence of ammable or explosive gases.

62. Do not use the appliance if insecticide gas has just been

sprayed in the room or in the presence of burning incenses, chemical vapours or oily residues.

This product must be used exclusively according to the specications indicated in this manual. Use di󰀨erent to that specied, could cause serious inju- ries. THE MANUFACTURER IS NOT LIABLE FOR INJU-

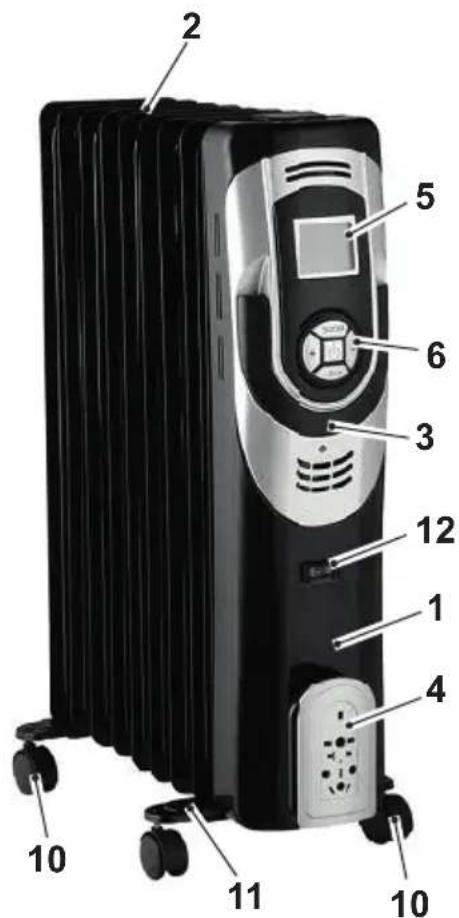

7. Use and maintenance booklet

After removing the packaging, check that the appliance is in perfect condition; in caseofdoubtsdonotuseitandrefertoprofessionallyqualiedpersonnel.

Rotate the appliance upside down.ENGLISH EN- 12 Place the appliance on a at and stable surface, making sure it cannot be damaged or fall. Protect the support surface.

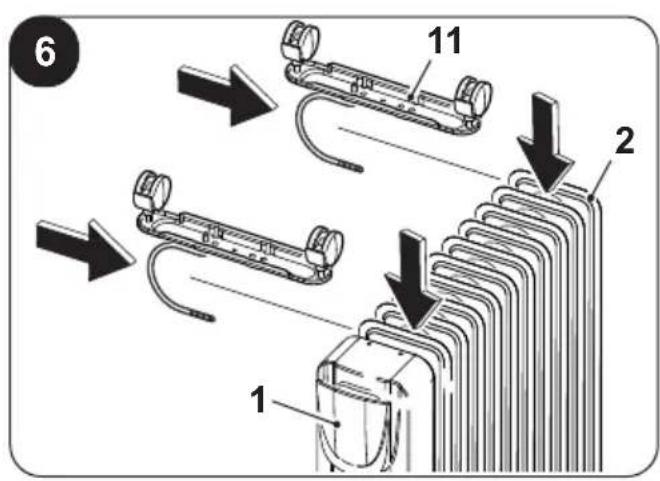

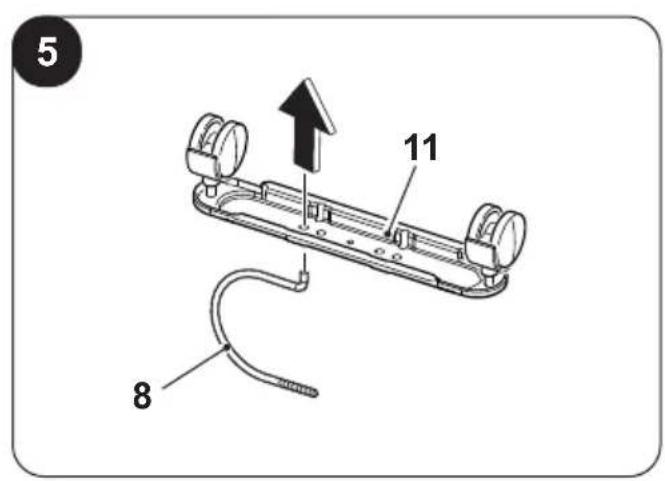

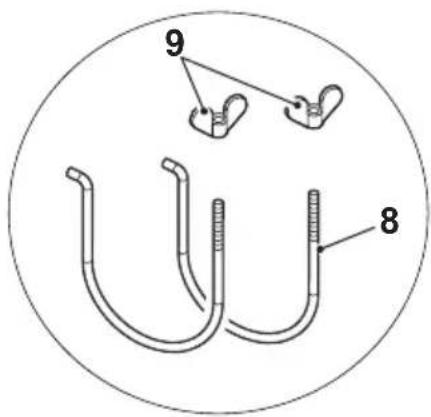

Position the supports (11) between the most external radiant wings (2) of the appliance(1)(g.6).

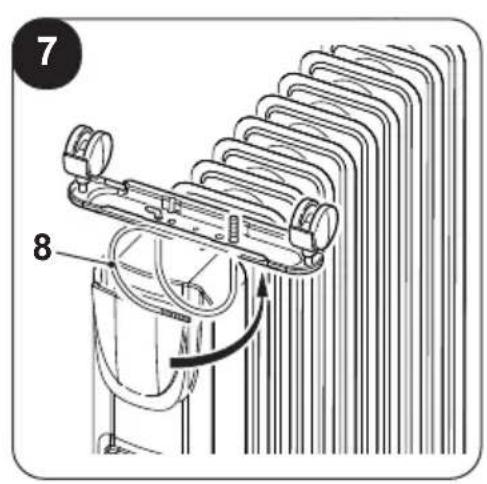

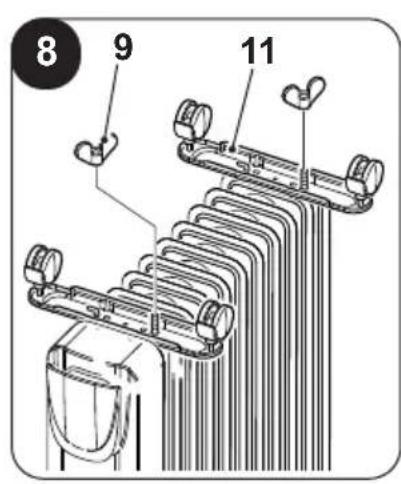

• L ockthesupports(11)byscrewingthewingnuts(9)(g.8). Do not tighten the wing nuts (9) excessively.

• Do not use the appliance without having mounted the supports and the wheels rst.

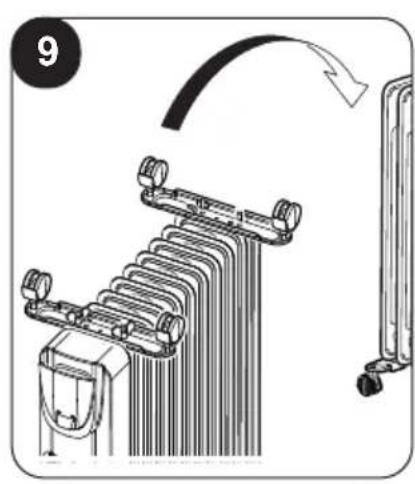

• Only use the appliance in vertical position (handle “3” above); every other position may create a dangerous situation.

• Entirely straighten the power cord.

• Place the appliance in an appropriate environment and on a stable and at surface.

• Makesurethatcurtainsorotherobjectsdonotobstructtheairow(g.3).

• Leave at least 1 m of free space on the sides, behind the appliance and above it(g.1).

Make sure there is not any ammable or sensitive-to-heat object within 1 meter from the appliance.

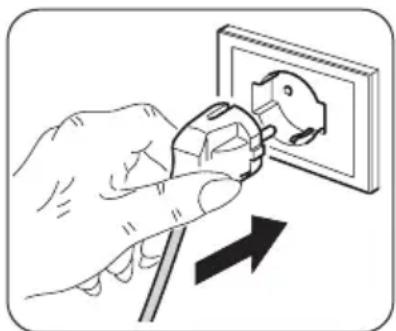

• Connect the plug to the power socket.

• Make sure the mains data correspond to what is described on the data plate of the appliance.

• Arrange cord away from tra󰀩c areas so that it will not be tripped over.CALDORAD DIGITAL ENGLISH EN- 13

Press the power key “ ”, located on the control panel (6), to activate the “continuous operation” and the symbol “ ” will appear on the display:

• If the key “ ” is pressed once, the appliance activates at maximum power (

• If the key “ ” is pressed twice, the appliance activates at minimum power ( ).

• If the key “ ” is pressed a third time, the appliance switches off. To switch off the appliance completely, press the ON/OFF switch (12).

• After pressing the key “ ” to switch on the appliance, a few functions can be selected:

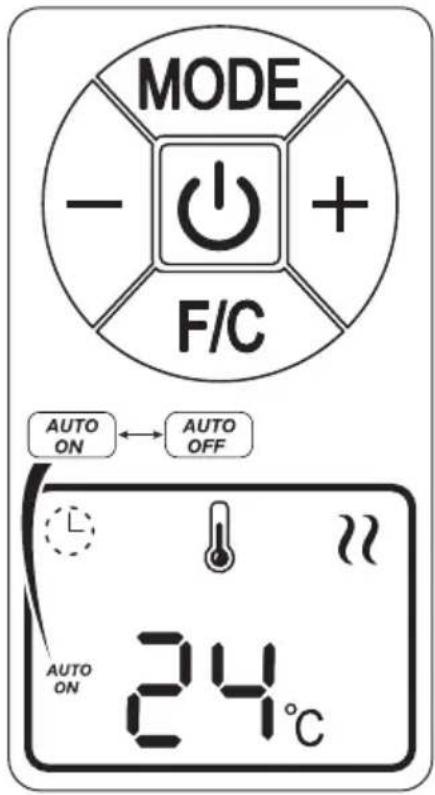

4.1 - TEMPERATURE SETTING

• Press the key “MODE” and wait until when the temperaturesymbolashesonthedisplay. - Press the keys “+” or “-” to select the desired temperature. - When the temperature symbol stops ashing,thevalueisset. The display shows ambient temperature.

• At this point the appliance will reactivate automatically whenever the temperature of the room will lower under the set threshold (the temperature symbol stops ashing) and will switch on again once ambient temperature reaches the set value(thetemperaturesymbolstartstoash).

4.2 - “AUTOMATIC SWITCHING OFF” MODE

• This function is set to switch off the appliance automatically after a desired period of time (1-24 hours).ENGLISH EN- 14

• It is advised to select the desired temperature before setting the function. - Press the key “MODE” and wait until the symbols “AUTO OFF” and “ ” ashonthedisplay. - Press the keys “+” or “-” to select the desired delay time. - When the symbol “ ”stopsashing,thevalueisset.

• The appliance will switch off after reaching the set switching off time.

• To disable this function, press the key “MODE” and wait until the display shows the symbol “ ”:

4.3 - “AUTOMATIC SWITCHING ON” MODE

• This function is set to switch on the appliance automatically after a desired period of time (1-24 hours).

• It is advised to select the desired temperature before setting the function. - Press the key “MODE” and wait until the symbols “AUTO ON” and “ ” ashonthedisplay. - Press the keys “+” or “-” to select the desired delay time. - When the symbol “ ”stopsashing,thevalueisset.

• The appliance will switch off after reaching the set switching on time.

• To disable this function, press the key “MODE” and wait until the display shows the symbol “ ”: When continuous operation “ ” is on, the modes “Automatic switching on/off” and “Temperature setting” are disabled.

This heater is protected with overheat protection that switches off the appliance automatically in case of severe overheating In this case: - unplug the appliance; - wait about 10 minutes for it to cool; - check for damage to the appliance, the cord and the plug. If there is no damage: - plug the unit back in; - switch it on as described above. If the heater still does not turn on, please contact Customer Service for assistance.

Before performing any cleaning or maintenance intervention on the appliance, disconnect the plug from the power socket and wait for the fan to stop completely.

• Use a dry cloth to clean the appliance.

• If the appliance is very dirty, it is possible to use a cloth dampened with warm water (max 50°C) and a mild detergent to clean its external parts. Dry with a dry cloth.

• Use a brush or a vacuum cleaner to remove dust from the radiant wings (2).

• Make sure the appliance is completely dry before reconnecting the plug to the power socket.

• Do not use a chemically treated or antistatic cloth to clean the appliance.

• Do not use petrol, solvents, polishing pastes or similar. These products could break or deform the plastic surface.FUTURA X - 1 Dato

azi one 2000W - Ri scal dam ent

• Do not use oils, chemical substances or abrasive products to clean the appliance.

• Neither wash nor immerse the appliance with/in water.

In case of an appliance malfunction, do not try to disassemble it but instead refer to the retailer or to the technical assistance service.

7 - PRESERVATION OF THE APPLIANCE

• If you do not intend to use the appliance for a particularly long period of time or if operations which could produce a lot of dust must be performed, it is advised to store the appliance as follows:

• Switch the appliance o󰀨 and disconnect the plug from the power socket.

• Wrap the power cord (6) around the support (4).

• Store in a fresh and dry place away from humidity.

azi one 2000W - Ri scal dam ent

azi one 2000W - Ri scal dam ent

azi one 2000W - Ri scal dam ent

azi one 2000W - Ri scal dam ent

max,c 1,5/2,0 kW Auxiliary electricity consumption At nominal heat output

0,0015 kW Type of heat output/room temperature control Yes No Single stage heat output and no room temperature control Two or more manual stages, no room temperature control With mechanic thermostat room temperature control With electronic room temperature control Electronic room temperature control plus day timer Electronic room temperature control plus week timer Other control options Room temperature control, with presence detection Room temperature control, with open window detection With distance control option With adaptive start control With working time limitation With black bulb sensor info@olimpiasplendid.it Olimpia Splendid SpA Via Industriale 1/3, 25060 Cellatica, Brescia, Italy
