USER MANUAL MIA 2 7.5 OLIMPIA SPLENDID

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE

INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN

Carefully read the precautions and follow the procedures correctly.

WARNING!

WARNING!

In case of breakage or poor functioning contact the Authorized Assistance Centre; any attempt to remove parts or perform maintenance on the device can expose the user to electrical shock danger.

The stove contains parts whose maintenance must be done by qualified personnel.

The stove is a heating device; its parts reach extreme temperatures and contact without adequate protection can provoke burns of various degrees.

Pay particular attention to children.

Do not insert fingers or other objects in the air flow exit slits.

Inside the device there is a high speed fan that could cause grave personal injury.

Pay particular attention to children.

Do not remain for long periods directly exposed to the flow of hot air. Direct and prolonged exposition to the cold air could be hazardous to health.

Pay particular attention in rooms where there are children, the elderly or the ill. In case the stove functions poorly, shut down the device immediately and contact the Authorized Assistance Centre.

The continued use of the device in said conditions can cause fires or flashes.

Failure to carry out maintenance or maintenance not carried out as stated in this manual may cause danger and harm to persons or property.

During the stove installation operation, keep children out of the work area to avoid unforeseen accidents.

Do not block or cover in any way the body of the stove or obstruct the slits placed on the upperside.

Obstructing said slits can cause fires.

Do not use the stove in areas containing precision devices or works of art.

The quality of the conserved objects may deteriorate.

Do not expose animals or plants to direct air flow from the unit.

Prolonged direct exposition to the flow of air from the stove can have negative effects on plants and animals.

Occasionally ventilate the room during the use of the device.

Insufficient ventilation can be the origin of insufficient oxygen in the room.

Do not expose the stove to contact with water.

The electrical insulation could be damaged, with the consequent possibilities of electrocution and breakage due to the thermal extremes.

Verify the installation conditions to locate eventual damage.

After the stove has completed 900 hours of operation (the lower screen will read "SErV"), contact the Authorized Assistance Centre for cleaning and ordinary maintenance.

Do not use inflammable gas near the stove.

Unhook the automatic switch if the device will not be used for long periods of time.

We check the start up of all our stoves.

Norms and conformity declarations

• Our company declares that the stove conforms to the following norms for EC European Directive marking.
  2014/30/EU, Electromagnetic Compatibility Directive (EMCD)
  2014/35/EU, Low Voltage Directive (LVD)
• 2011/65/EU, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS Directive)
  Regulation of the CPR (EU 305/2011).
• For installation in Italy refer to the UNI 10683/98 or successive modifications; the technician installing the hydrothermal sanitary system will issue the declaration of conformity according to L. 37/2008. The installation of appliance has to be in accordance with local and national laws and with European norms.
• EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3; EN 60335-1;

EN 60335-2-102; EN 62233; EN 50581; EN14785

Generic danger

• Signals to personnel that if the operation described is not performed strictly according to the safety regulations, it could cause the risk of personal injury.

Responsibility

The manufacturer declines every direct or indirect, civil or penal responsibility due to:
- Poor maintenance.
- Failure to observe the instructions contained in the manuals.
- Use in non-conformity with the safety directives.
- Installation in non-conformity with the norms in force in the country.
- Installation by unqualified or untrained personnel.
- Modifications and repairs not authorized by the manufacturer.
- Use of non-original replacement parts.
- Exceptional events.
- Use of unsuitable pellets

Installation

Flue

The fue must meet the following requirements:
- No other type of chimney, stove, boiler or hood vent must be connected (fig.1).
- It must be adequately distanced from combustible or inflammable material by means of an air cavity or opportune insulation.
- The internal section must be uniform, preferably circular: the square or rectangular sections must have rounded corners with a radius of no less than 20mm , a maximum relationship between the sides of 1.5; the walls as smooth as possible with no narrowed sections, regular curves and no discontinuities, with deviations from the axis not more than 45^ .
- Every device must have its own flue with a diameter equal to or larger than the stove's smoke clearing tube and a height not less than that declared.
- Never use two stoves, a chimney and a stove, a stove and a wood kitchen, etc in the same environment, since the draught of one could damage the draught of the other.
- Collective type ventilation ducts that can lower the atmospheric pressure in the in

stallation environment are not permitted, even if installed in environments that are adjacent to and communicating with the locale of the installation.

• It is forbidden to make fixed or mobile openings in the flue to connect devices different from that for which it is originally intended.
• It is forbidden to pass other air feeding channels or tubes for electrical system usage through the flue, even if oversized.
• It is advisable that the flue be furnished with a chamber which collects solid material and eventual condensation situated below the vertical entrance to the flue so that it

Fig.1: methods for installing the rue

GB

is easily opened and inspected through the air-tight door.

• Whenever flues with parallel exits are used it is advisable to raise the upwind chamber by one element.
• The chimney tube must never pass across a combustible surface.

The Chimney Cap

The chimney cap must respect the following requirements:
It must have the equivalent diameter and internal form of the flue.
It must have a useful outlet diameter of not less than double that of the flue.
- The chimney cap on the roof or that remains in contact with the outside (for example, in case of open loft or attics), must be covered with elements in brick or tile and must, in any case, be well insulated.
- It must be constructed to prevent rain, snow, and extraneous bodies from entering the flue and so that the discharge of the products of combustion is not inhibited by wind from any quarter or strength (windproof chimney cap).
- The chimney cap must be positioned in such a way as to guarantee the adequate dispersion and dilution of the products of combustion and in any case, must be out of the reflux zone. This zone has different dimensions and forms according to the angle of inclination of the roof so it is necessary to adopt minimum heights (Fig. 2).
- The chimney cap must be a wind-proof type and must be above the ridge.
- Eventual structures or other obstacles that are higher than the chimney cap must not be too close to the chimney cap itself.

Fig.2: characteristics of the chimney cap

Sizing

Smoke discharge

The discharge system must be for the stove only (it is not permissible to discharge into flues in common with other devices). The smoke discharge takes place through the 8 cm diameter tube placed at the back. A "T" with a condensation collection cap should be provided. The smoke discharge of the stove must be connected with the outside using a steel or black tube (resistant up to 450^ ) without obstructions.

The tube must be hermetically sealed. To make the tubes airtight and for their eventual insulation, it is necessary to use material resistant up to at least 300^ (silicone or putty for high temperatures). The horizontal sections can be up to 2m long. It is possible to have up to three 90^ curves.

If the smoke duct is outside it must be insulated (Fig.4).

If the smoke duct is inserted in a flue (Fig.3), this must be certified for solid combustibles and if it is larger than 150mm in diameter, modification is necessary by inserting a tube and sealing the discharge with respect to the parts in brickwork.

It must be possible to inspect all the sections of the smoke duct. If it is a fixed duct it must have openings for inspection and cleaning.

The adjacent locale must not be used as a garage or be a space without ventilation or air exchange, a storage area for combustible material or used for an activity that has a fire hazard. According to the norm UNI 10683/98, the stove must not be in the same environment where extractors, type B gas devices or in any case, devices that create lower atmospheric pressure in the locale are found.

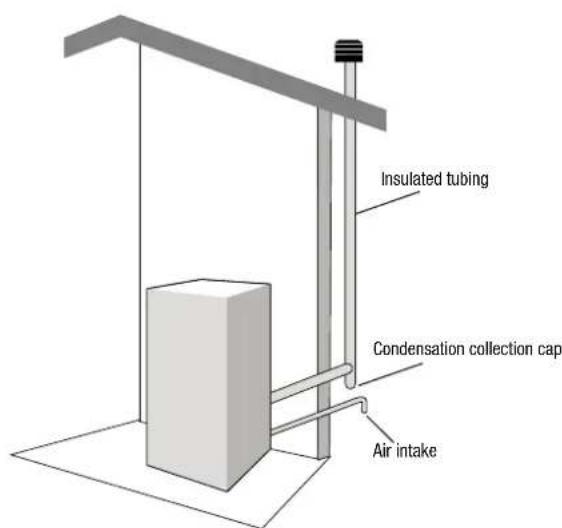

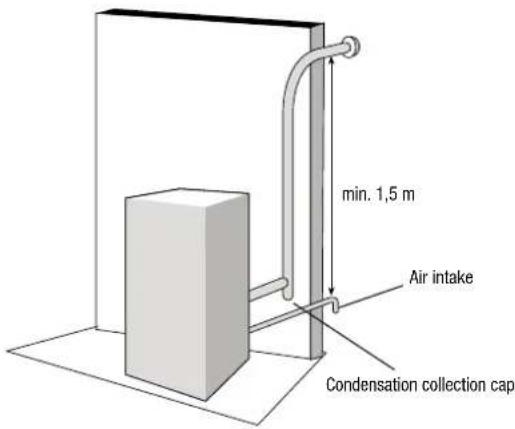

External air intake

The stove must be furnished with the air necessary to guarantee the regular functioning of the combustion and an environmental well being.

• Be sure that the room where the stove is installed has sufficient aeration and, if necessary, install an air intake duct with a minimum recommended diameter of 50mm to bring in air from the outside.
• The external air intake must communicate with the stove and positioned so that it is not obstructed. It must be protected with a permanent non-closable grill or other suitable protection provided that the minimum diameter is not reduced.
• The arrow can also be acquired from a locale adjacent to where the stove is installed as long as that flow can freely cross the permanent non-closable openings that communicate with the outside.
• The presence in the local adjacent to where the stove is installed, of other devices in use or of suction devices that cause a contrary draught effect must not create a lower air pressure in the locale than in the outside environment.
• In the adjacent locale the permanent openings must respond to the requisites which are listed in the points above.

Fig.3: internal flue installation to do according to norms

Fig.4: external flue installation

Positioning

The stove is furnished with an electrical cable to connect to a 230V 50Hz socket, preferably with a thermal-magnetic switch. Variations in tension of more than 10% can compromise the stove (if not already present, an adequate differential switch should be provided). The electrical system must comply with the norms; verify in particular the efficiency of the ground circuit. The electrical feed cable must be of a diameter adequate to the power of the device. The stove must be completely level. Verify the weight bearing capacity of the flooring.

The placement of the stove within the living environment is determined so that the environment is heated in a uniform manner.

Before deciding where to place the stove, keep in mind that:

• The air used for combustion must not come from a garage or a space without ventilation or air exchange, but from a free space or the outside;
• The stove should not be installed in a bedroom;
• Rather it is preferable to install the stove in a large, central room of the house to insure the maximum heat circulation; sicurare la massima circolazione del calorie;
• A grounded electrical connection is obligatory (if the cable issued with the stove is not long enough to reach the closet socket, use an extension cable along the floor).

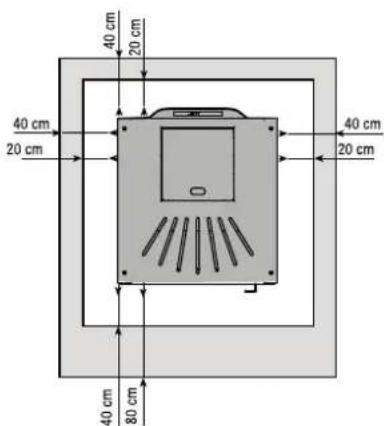

Fire Safety Distance

The stove must be installed respecting the following safety conditions:
- Minimum distance from the sides and the back must be 40cm from moderately in-flammable material;
- Easily inflammable material must not be place closer than 80~cm in front of the stove;
- If the stove is installed on an inflammable pavement the stove must be placed on a slab of material that insulates it from the heat that is wider at the sides by 20cm and in the front by 40cm ;

• Do not place objects in inflammable material or any material that can compromise the operation of the stove on the stove or within the safety distance;
• In addition, it is advisable to keep all elements of combustible or inflammable material such as beams, wooden furniture, drapes, inflammable liquids, etc. outside the radiance area of the stove, and in any case at least 1m from the heating block (Fig. 8);
• In case of connection to wooden walls or other inflammable material, it is necessary to insulate the smoke discharge tube with ceramic fibre or another material with the same characteristics.

Fig. 8: minimum distance of objects

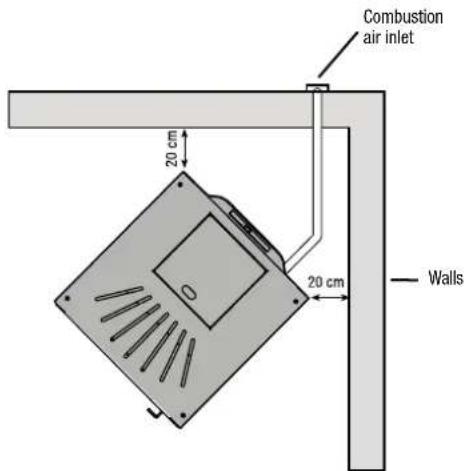

Minimum aeration for comburant air intake

For a correct and safe placement of the air intake all the measures and prescriptions (Fig. 9) must be respected.

There are distances to respect to prevent the combustant air from being subtracted from another source: for example the opening of a window could cause eddies in the outside air subtracting it from the stove.

Fig. 9: distance from walls

Lighting

• Before lighting the stove, carefully read the use and maintenance manual.
• Remove from the tank all the tools that were inserted during packaging and be sure that the tank is free of eventual extraneous bodies.

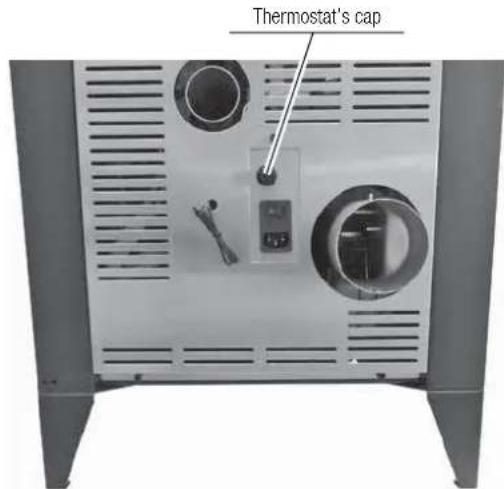

• Unroll the environmental probe placed on the rear of the stove, without placing it on the heated parts of the stove.
• Correctly connect the pellet stove to the flue.
• Fill the tank with 6mm diameter pellets.
• Open the door and check that the basket is properly inserted in its slot and that the flame trap is located in the upper part of the combustion chamber.
• Close the door. Never open the door while the pellet stove is operating.
• Connect the stove to an outlet with the appropriate cable received with the stove.
• Place the switch on the rear of the stove at the "1" position.
• Press the ON/OFF key for 2 seconds and the gearcase will begin its lighting cycle

ATTENTION:

During the first lighting it is necessary to ventilate the environment well, since during the first hours of operation unpleasant odours could develop due to fumes from the paint and the grease in the tuyere wrapping.

If during the normal operation of the stove, the temperature of the smoke reaches 220^ (parameter which can be modified by a technician) the smoke is modulated as follows:

• Smoke removal motor set at the maximum speed;
• Pellet loading gear motor at the minimum speed;
• Tangential heat exchange fan at the maximum speed.
  This procedure functions to lower the temperature of the smoke. When this returns below the level of 220^ the stove will restore the speed of the three motors returning them to the settings before the level was passed.
  If the electrical current cuts out, once it is restored, the display will indicate a state of anomaly and will read "Fire cool" (flame present). The suction will be increased to expel the residual smoke.

Operations to be performed by the Authorized Assistance Centre every season before the lighting

A general cleaning inside and outside.
A careful cleaning of the tubes.
- A careful cleaning and disincrustation of the crucible and the relative cavity.
- Clean the motors, checking the play and fastenings of the mechanisms.
- Clean the smoke channel (substitute the tube gaskets) and smoke extractor fan cavity.
- Clean pressure switch, sostitute silicone tube.
- Check the probe.
- Clean, inspect and disincrust the lighting resistor compartment, replacing it if necessary.
- Clean/check the synoptic panel.
- Visually inspect the electrical cables, the connections and the electrical power cable.
- Clean the pellet container and verify the play with the screw feeder gear motor.
- Replace the door seals.
- Test functions, loading the screw feeder, lighting, 10 minutes of operation and shut down.
- Check the electrical parts and the electronic components.

WARNING

• Use of this device is subject to all local and national regulations as well as European regulations.
• The installation of this device is subject to all local and national regulations as well as European regulations.
• Do not pour the Pellets directly into the brazier
• To load the Pellets, open the tank lid positioned on the upper part of the stove and carefully empty the Pellets' package inside.
• Before pouring the Pellets inside the tank, please make sure that the stove is turned off.
• Should the stove overheat, a safety device will engage and block the feeder mechanism. After the stove's cool-down cycle has been completed, re-engage the thermostat placed at the back of the stove, by removing the thermostat's cap and pressing the button underneath. In case of repeated malfunctions, please contact authorized technical support.
• The device is not intended for users (children included) whose physical or mental abilities are reduced or by users who lack the proper knowledge or experience, unless they have been instructed by a person responsible of their safety on the proper use of this device and all the security measures. Children have to be supervised so that they do not play with the device.
• Use only Pellets recommended by the manufacturer, of a diameter not exceeding 6mm and a length not exceeding 30mm.
• Please store the Pellet in a dry environment.

Instructions

Dear Client,

We thank you for having chosen one of our products, the fruit of technological experience and of continual research for a superior quality product in terms of safety, dependability, and service.
In this manual you will find all the information and useful suggestions to use your product with the maximum safety and efficiency.
- Incorrect installation, incorrectly performed maintenance, improper use of the product release the manufacturer from every eventual damage derived from the use of the stove.
- The unit cannot be used as an incinerator. Do not use fuels other than pellets.
- This manual has been realized by the manufacturer and constitutes an integral part of the product and must remain with it during its entire lifetime. If the product is sold or transferred, be sure that the booklet is present since the information contained in it are addressed to the buyer, and to all those persons of various titles who complete the installation, use and maintenance.
- Carefully read the instructions and the technical information contained in this manual, before proceeding with the installation, use, and any operation on the product.
- The observance of the indications contained in the present manual guarantees the safety of people and the product, the economy of use and a longer functioning life-time.
- Although the carefully studied design and the risk analysis done by our company has permitted the realization of a safe product, in any case, before effecting any operation on the stove, it is recommended to keep said manual available and pay scrupulous attention to the instructions written therein.
- Be very careful when moving the ceramic details where present.
- Check the precise flatness of the pavement where the product will be installed
- The wall where the product will be placed must not be constructed in wood, or in any case, made of an inflammable material, and in addition it is necessary to maintain a safety distance.
- While the stove is in operation, several parts of the stove (door, handle, sides) can reach high temperatures. Therefore pay attention and use the proper precautions, above all in the presence of children, elderly or disabled persons, and animals.
Assembly must be performed by qualified personnel.
- Diagrams and drawings are furnished for the purpose of illustration; the manufacturer, with the intent of pursuing a policy of constant development and renewal of the product can, without any notice, make any modifications that are believed opportune.
- When the stove is working at its maximum speed, it is strongly suggested to wear gloves while handling with the door for pellets loading and the door handle.
- Installation is not recommended in a bedroom.

Never cover the body of the stove in any way or obstruct the openings placed on the upper side when the device is operating. All our stoves are trial lighted on the construction line.

In the event of a fire, disconnect the power supply, use an extinguisher and call the fire fighters if necessary. After that contact the Authorised Assistance Centre.

1.0 Norms and declarations of conformity

• Our company declares that the stove conforms to the following norms for EC European Directive marking.
  2014/30/EU, Electromagnetic Compatibility Directive (EMCD)
  2014/35/EU, Low Voltage Directive (LVD)
• 2011/65/EU, Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (RoHS Directive)
  Regulation of the CPR (EU 305/2011).
• For installation in Italy refer to the UNI 10683/98 or successive modifications; the technician installing the hydrothermal sanitary system will issue the declaration of conformity according to L. 37/2008. The installation of appliance has to be in accordance with local and national laws and with European norms.
  EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3; EN 60335-1; EN 60335-2-102; EN 62233; EN 50581; EN14785

1.1 Safety Information

Please carefully read this use and maintenance manual before installing and operating the stove!

• The pellet stove must only be operated in living environments. This stove, being controlled by an electronic board, permits a completely automatic and controlled combustion; the exchange, in fact, regulates the lighting phase, 5 power levels and the shut down stage, guaranteeing the safe operation of the stove.

• The basket used for combustion allows most of the ash produced by the combustion of the pellets to fall into the collection compartment. Nevertheless, check the basket daily, given that not all pellets have high quality standards (use only quality pellets recommended by the manufacturer).

• The glass is equipped with a special circulation of air for self-cleaning, but still, it is not possible, after several hours of operation, to keep a light grey patina from forming on the glass. This also depends on the type of pellets used. Some pellets deposit more ash than others.

1.2 Responsibility

With the delivery of the present manual, we decline all responsibility, both civil and penal, for accidents deriving from the partial or total lack of observance of the instructions contained herein. We decline every responsibility derived from improper use of the stove, from incorrect use by the user, from unauthorized modifications and/or repairs, from the use of replacement parts that are not original for this model.

The manufacturer declines every civil or penal, direct or indirect responsibility due to:

• Lack of maintenance;
• Failure to observe the instructions contained in the manual;
• Use in non-conformity with the safety directives;
• Installation in non-conformity with the norms in force in the country;
• Installation by unqualified or untrained personnel;
• Modifications and repairs not authorized by the manufacturer;
• Use of non-original replacement parts;
• Exceptional events.

• The stove must only be fed with quality 6mm diameter pellets of the type recommended by the manufacturer;
• Before making the electrical connection of the stove the discharge tubes must be connected with the flue;
• The protective grill placed inside the pellet container must never be removed;
• The environment where the stove is installed must have a sufficient exchange of air;
• Never open the door of the stove while it is operating;
• When the stove is operating, the surfaces, glass, handle and tubes become very hot: during operation do not touch these parts without adequate protection;
• Keep/store the pellets in a cool dry place;
• Keep the fuel and other inflammable materials off the stove.
• Failure to carry out maintenance or maintenance not carried out as stated in this manual may cause danger and harm to persons or property.

2.0 Stove Panel and remote control

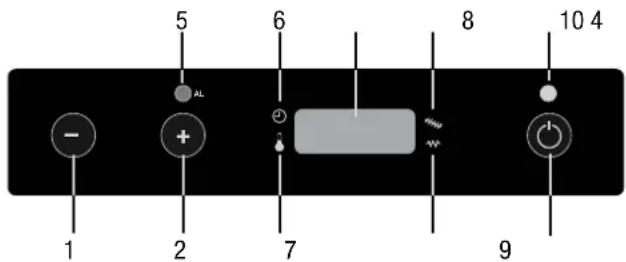

1) Temperature / working power decrease: Using the key on the menu Set temperature, you can decrease the temperature from a max. value of 40^ to a min. value of 7^ . With the key on the menu Set power, you can decrease the working power from a max. value of 5 to a min. value of 1.
2) Temperature / working power increase: Using the key on the menu Set temperature, you can increase the temperature from a min. value of 7^ to a max. value of 40^ . With the key on the menu Set power, you can increase the working power from a min. value of 1 to a max. value of 5.
3) Key On/Off: Keep the key pressed for 2 seconds to switch the stove on or off.
4) LED ON/OFF: This led indicates the different phases of the stove:

• it is on if the stove is switched on and working
• it is off if the stove is switched off
• it blinks if the stove is switching off

5) LED AL F: The led blinks in the event of a malfunction or alarm.
6) LED chrono-thermostat: This means the automatic single or daily programming of the switching on or off of the stove is on. The automatic programming can be set with the remote control (optional) or with the control board.
7) LED temperature ok: This is on when the stove reaches the set temperature. In this case you will read the word "Eco" and the set temperature on the display.
8) LED pellets loading: This led blinks every time the stove is loading pellets.
9) LED resistance: This led is on only while the stove is lighting up in order to indicate that the resistance is warming the air which will fire the pellets.
10) Display LED 7 segments: On the display you can read the different working functions of the stove, the room temperature and the set working power. In the event of a malfunction, the display shows the relative error codes (see paragraph on alarm codes).

11) PROG: Allows to decrease/increase the power from 1 to 5.
12) ON/OFF: Press and hold to turn on/ off the stove
13) TEMP: Allows to decrease and increase temperature from a maximum value of 40^ to a minimum value of 7^

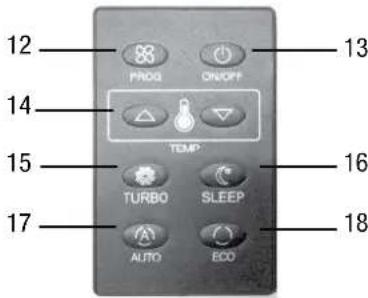

14) TURBO Function: Pressing the TURBO button on the remote control during the heating phase the stove is brought to the maximum speed and the temperature to 30^ C for a time of 30 minutes. At the end of a fixed period the stove restarts to operate to the preset power and temperature. During the stove heating phase, the word "Turb" is displayed on the screen, alternated to other displays, to indicate that the function is operating.
15) SLEEP Function: Pressing the SLEEP button on the remote control, after 60 minutes operating time the stove reduces the temperature of 1^ allowing a reduction of consumption. During the stove heating phase the word "Slee" is displayed on the screen, alternated to other displays, to indicate that the function is operating.
16) AUTO Function: Pressing the AUTO button on the remote control during the heating phase, the stove modulates the heating power in proportion to the preset temperature. During the stove heating phase, the word "Auto" is displayed on the screen, alternated to other displays, to indicate that the function is operating.
17) ECO Function: Pressing the ECO button on the remote control during the heating phase, the stove lowers the heating power, every 10 minutes, until the minimum power is reached. During the stove heating phase the word "Eco" is displayed on the screen, alternated to other displays, to indicate that the function is operating.

2.1 Stove setting

How to change the wished room temperature

Join the following procedure to change the wished temperature: Press the key (1) once to enter the menu and set temperature.

You will read the word "Set" and the wished temperature on the display. Use the keys (1) e (2) to increase or reduce the wished value.

The stove will leave the menu Set temperature automatically as soon as you do not work on it for some seconds.

How to change the working power

Join the following procedure to change the working power: Press the key (2) once to enter the menu and set the working power. You will read the word "Pot" and the range of 5 possible powers on the display.

Use the keys (1) and (2) to increase or reduce the wished value.

The stove will leave the menu Set working power automatically as soon as you do not use it for some seconds.

2.2 Suggestions

• Do not continuously turn the stove on and off as this could provoke sparks that could shorten the life of the electrical components.
• Do not touch the stove with wet hands: the stove has electrical components that could produce sparks if handled incorrectly. Only authorized technicians can resolve possible problems.
• Do not remove any screws from the fire chamber without first lubricating them well.
• Never open the glass door of the pellet stove while the stove is in operation.
• Be sure that the brazier basket is positioned correctly.
• The flue system must be suitable for inspection. If it cannot be removed, it must have some holes for inspection and cleaning.

2.3 How to load pellets in the tank

You can load pellets in the tank through the door on the upper part of the stove. Join the following procedure to load pellets:

• Open the door on the upper part of the stove;
• Load the wished pellets quantity with caution (load enough pellets to grant a sufficient functioning of the stove);
• Close the door.

3.0 First Lighting of the Stove

WARNING: it is necessary to clean the brazer and clean the ash box every day and before every use. The cleaning should consist of the complete removal of every residual. Failure to clean or incorrect cleaning may cause danger and harm. Do not re-use the pellet possibly remained in the brazier due to no starting-up.

3.1 Lighting the stove

• Fill the container 3/4 full with the pellets recommended by the manufacturer;
• Connect the stove to an electrical outlet with the cable that has been supplied;
• Press the lighting switch located on the back part of the stove;
  The upper display will read "OFF";
• Press the button for 2 seconds. After a few moments the smoke extractor and the lighting resistor will start and the display will read "ACC"; the led resistance is switched on.
• After 1 minute the display will read "LOAD PELL", the stove will load the pellets and continue lighting the resistor;
• Once the appropriate temperature has been reached the display will read "FIRE ON": this means that the stove has begun the last phase in lighting, at the end of which the stove will be completely operational; the led resistance is switched off.
• After several minutes of ventilation the display will read "ON 1-2-3-4-5" and the room temperature, according to the power that has been programmed;
• Once the programmed temperature is reached the display will read "ECO" and the room temperature;
• The temperature led lights when the programmed temperature is reached;

3.2 Stove switching off

To switch off the stove, press the key on the control board until you read "COOL" on the display. After the stove has been switched off, the fan continues working for a set time in order to grant a fast smokes exhaust from the combustion chamber. If you have a model with remote control, you just need to switch the remote control off keeping the key ON/OFF pressed for 2 seconds pushing T + and + simultaneously.

During the switching off phase, you will read the word "COOL" and the led above the key On/Off will continue blinking. If you try to switch the stove on during this phase, you will read the word "At:te" (Attention) on the display. This warns you that the stove is running a switching off phase. Wait until the phase is completed and the key On/Off stops blinking before starting up the stove again.

4.0 User menu

The board comes with a user/technician menu, accessible from the control panel. The menu is used for the modification of technical parameters and for the functions of automatic on/off (MN05 - MN06 - MN07 - MN08 - MN09 - MN10) are available only by remote control.

The menu is divided as follows:

Menu Description Available for
MN01 Current day User
MN02 Current hour User
MN03 Current minutes User
MN04 Access technical parameters Technician (*)
MN05 Timer ON 1		Schedule 1	User
MN06 Timer OFF 1 User
MN07 Enabling TIMER1 ON/OFF User
MN08 Timer ON 2		Schedule 2	User
MN09 Timer OFF 2			User
MN10 Enabling TIMER2 ON/OFF

(*) See corresponding section

123

To enter the menu You must press key 1 and then the key 3 repeatedly.

Each time You press the button 3, the board changes by one position.

If you do not touch any key for at least 60 seconds, there is an automatic exit from menu.

4.1 Setting the time - MN01

SETTING the current day

• Press key 1 and then key 3 until the code MN01 is on display.
• Press key 1 and key 2 to change the day (key 1 for decrease, key 2 for increase).
• Set the desired days by referring the below table:

Abbreviation Day
DAY1 Monday
DAY2 Tuesday
DAY3 Wednesday
DAY4 Thursday
DAY5 Friday
DAY6 Saturday
DAY7 Sunday
OFF

4.2 How to set current hour - MN02

• Press key 1 and then key 3 repeatedly until the code MN02 appears on the display.
• Press keys 1 and 2 to select the minutes. Hold the buttons to scroll faster.

4.3 How to set the current minutes - MN03

The chronothermostat FUNCTION enables to programming automatic starts and stops of the stove.

4.4 How to programm

Referring to the program 1

• Press key 1 and repeatedly key 3 until the code MN05 appears.
• Press the keys 1 and 2 to vary in steps of 10 minutes the time of automatic turn on. Press and hold the buttons to scroll faster.
• Press key 1 and repeatedly key 3 until the code MN06 appears.
• Press the keys 1 and 2 to vary in steps of 10 minutes the time of automatic turn off. Press and hold the buttons to scroll faster.
• Press key 1 and repeatedly key 3 until the code MN07 appears.
• To enable the function TIMER1 set MN07 "ON" by pressing key 2 the Timer LED and this will light.
• To disable the function TIMER1 set MN07 "OFF" by pressing the key 2 the LED Timer, in case the Timer 2 is not enabled, it will turn off.

Same procedure with the program 2, but You'll only use the codes MN08 - MN09 - MN10.

5.0 Alarm codes

BLAC OUT: In the event of an even very short lack of current, the stove switches off.

As soon as the power supply is back, the stove will start a cooling cycle and the display will show the words "BLAC OUT". After completing the cooling cycle, the stove will start up again.

SERV: The signal "SERV" on the display means that the stove has reached 900 hours working. Please contact an authorised technical service to arrange a supplementary maintenance.

ALAR/ FAN/ ACC: This alarm occurs when the time foreseen for a light up (around

15 minutes) passes and the smokes temperature is still too low. This can occur also when there is not enough pellets flow to light up the unit. Press the key On/Off on the control board to reset the alarm. Wait until the cooling phase is completed, clean the brazier and start up with a new switching on.

ALAR/ NO/ FIRE: This alarm occurs in the event the stove switches off during its

working phase (for example if there is no pellets left in the pellets tank). You will read the words "ALAR/NO/FIRE" on the display. Press the key On/Off on the control board to reset the alarm. Wait until the cooling phase is completed, clean the brazier and start up with a new switching on.

ALAR/ FAN/ FAIL: This alarm occurs in the event the smokes ejector is broken or the pcb cannot detect the speed of the smokes exhaust fan. In this case press the key On/Off to reset the alarm and contact the technical assistance.

ALAR/ SOND/ FUMI: This alarm occurs in the event the sensor for smokes temperature is broken or not connected. You will read the words ALAR SOND FUMI on the display. In this case press the key On/Off to reset the alarm and contact the technical assistance.

ALAR/ DEP/ SIC/ FAIL: This alarm is signalised by the Led ALC blinking on the

control board. It indicates two different possibilities: an obstruction in the flue or a possible overheating of the stove. In both cases the motor reducer to load the endless screw stops working and the stove switches off. Press the key On/Off to reset the alarm. Check

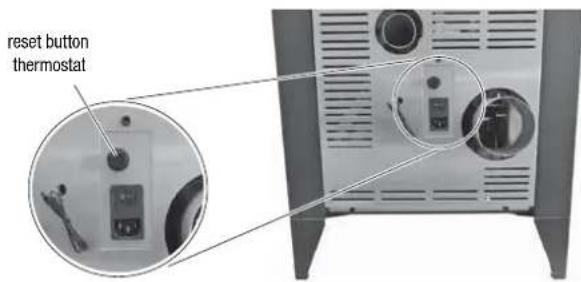

the possible activation of the manual reset thermostat on the back of the stove (4). Un-screw the safety cap and press the key.

In the event you have the same problem more than once, please contact the technical assistance.

ALAR/ HOT FUMI: If the Smoke temperature goes over 280^ then: the PCB begins the SHUTDOWN procedure. The display will show "ALAR/HOT/FUMI". The alarm is still on the display until the user doesn't reset the allarm press the key 3 (on/off) for 2 seconds.

6.0 Cleaning and maintenance

Before effecting any maintenance operation or cleaning on the stove, take the following precautions:

• Be sure that all parts of the stove are cold.
• Be sure that the ashes are completely cold.
• Be sure that the general switch is in the "OFF" position.
• Be sure that the plug is pulled out of the socket to avoid accidental contact.
• Once the maintenance phase is completed check that everything is in order as per before the intervention (the brazier is placed correctly).

Follow carefully the following cleaning instructions. Failure to follow these instructions could create problems with the operation of the stove.

6.1 Cleaning of the combustion chamber (once a month)

When the stove is off and cold:

• Open the stove front door, remove the grate, the ashes-pan and the bottom of the combustion chamber (Pic. 1-2)
• Extraction of the fire protection: push the fire protection upward to remove it from the slot (Pic. 3). Unscrew and remove the upper bulkhead (Pic. 4-5).
• Unscrew and remove the central bulkhead of the combustion chamber (Pic. 6-7).
• Now using a brush and a vacuum cleaner, clean top and bottom of the combustion chamber by removing all ash which has built up inside the combustion chamber (Pic. 8-9).
• Reassemble everything in reverse order.

Pict. 1

Pict. 2

Pict. 3

Pict. 4

Pict. 5

Pict. 6

Pict. 7 Pict. 8 Pict. 9

6.2 Cleaning the surfaces

To clean the surfaces, use a rag dampened with water or with water and a neutral detergent.

The use of aggressive detergents or thinners can damage the surfaces of the stove. Before using any detergent it is advisable to try it on a small section out of sight or contact the Authorized Assistance Centre for information regarding the product.

6.3 Cleaning the metal parts

To clean the metal parts of the stove, use a soft cloth dampened with water.

Never clean the metal parts with alcohol, thinners, petrol, acetone or other degreasing substances. If such substances are used, our company declines any responsibility.

Eventual variations in the colour of the metal parts can be caused by an incorrect use of the stove.

WARNING: it is necessary to clean the brazer and clean the ash box every day and before every use. The cleaning should consist of the complete removal of every residual, Periodically remove and empty the cap of the inspection "T"pipe located behind the stove (pict.10 and 11). The lack of cleanliness can prevent the starting of the stove, causing damages to the stove itself and to the environment (possible emission of unbrunt material and soot). Do not re-use the pellet possibly remained in the brazer due to no starting-up.

Pict.10 Pict.11

6.4 Cleaning the brazier and brazier support

When the flame assumes a red colour or seems weak, and is accompanied by black smoke, this means that there are ash deposits or incrustations that do not permit the correct functioning of the stove and that must be removed (Pict. 12).

Remove the brazier every day by simply raising it from its slot; then clean out the ashes and eventual incrustations that may have formed, paying particular attention to liberating the holes by using a pointed tool (not included with the stove)

This operation is made particularly necessary before every lighting the first several times and above all if using pellets that differ from those supplied by our company. The frequency of this operation is determined by how frequently the stove is used and the choice of pellets. It is also a good idea to check the brazier support, vacuuming the eventual ash present.

Pict.12

6.5 Daily cleaning

• Open the stove front door, remove the grate, the ashes-pan and the bottom of the combustion chamber (Pic. 13-14)
• Extraction of the fire protection: push the fire protection upward to remove it from the slot (Pic. 15).
• Now using a brush and a vacuum cleaner, clean top and bottom of the combustion chamber by removing all ash which has built up inside the combustion chamber (Pic. 16).
• Reassemble everything in reverse order.

Pict. 13 Pict.14

Pict. 15 Pict. 16

6.6 Cleaning the glass

The glass is a self cleaning type, therefore, while the stove is working, a veil of air is blown across its surface to remove ash and dirt; nevertheless over a period of several hours, a greyish patina tends to form which should be cleaned when the stove is next shut down. How dirty the glass becomes also depends on the quality and quantity of pellets used. Cleaning the glass should be done when the stove is cold with products recommended and tested by our company.

When performing this operation, always check that the grey seal around the glass is in a good state; failure to check the efficiency of this gasket can compromise the function of the stove. Poor quality pellets can, in any case, cause the glass to become dirty.

WARNING!

If the glass is broken, do not attempt to light the stove.

6.7 Cleaning the clearing system

Until a reasonable experience is acquired regarding the operating conditions, it is advisable to perform this maintenance on at least a monthly basis.

• Remove the electrical feed cable;
• Remove the cap from the T-joint and proceed with the cleaning of the ducts. If necessary, at least for the first few times, call in qualified personnel;
• Carefully clean the smoke discharge system: for this, contact a professional chimney sweep;
• Once a year clean the dust, cobwebs, etc. from the zone behind the internal covering panels, paying particular attention to the fans.

6.8 Cleaning the fans

The stove is furnished with fans (environmental and smoke) positioned at the rear and below the stove. Eventual deposits of dust or ash on the blades of the fan can cause an imbalance in the fans leading to noisy performance.

It is, therefore, necessary to clean the fans at least once a year.

Since said operation requires dismantling several parts of the stove, have the fans cleaned only by our Technical Assistance Centre.

6.9 Season end cleaning

At the end of the season, when the stove will not be used for some time, it is advisable to perform a thorough and general cleaning:

• Remove all the pellets from the container and the screw feeder;
• Carefully clean the brazier, the brazier support, the combustion chamber and the ash box.

Once the preceding points have been observed, it only means that the state of the stove has been verified. It is necessary to thoroughly clean the smoke discharge tube or flue and check the condition of the basket. If necessary, order a new one from our Authorized Assistance Centre. If necessary, lubricate the hinges of the door and the handle. Also check the ceramic fibre cord near the glass, on the internal wall of the door; if it is worn or too dry, order a new one from the Authorized Assistance Centre.

7.0 Annual maintenance performed by qualified personnel

The following operations are to be programmed annually and are necessary to insure that the product remains efficient and guarantee safe operation.

• Careful cleaning of the combustion chamber;
• Cleaning and inspection of the smoke clearing ducts;
• Checking the seal of the gaskets;
• Cleaning the mechanisms and moving parts (motors and fans);
• Checking the electrical parts and the electronic components.

7.1 Operations to perform every season before the list lighting

A general cleaning inside and outside;
A careful cleaning of the exchange tubes;
- A careful cleaning and disincrustation of the crucible and the relative cavity;
- Clean the motors, checking the play and fastenings of the mechanisms;
- Clean the smoke channel (substitute the tube gaskets) and smoke extractor fan cavity;
- Clean silicone tube connected to the pressure switch;
- Clean, inspect and disincrust the lighting resistor cavity, replacing it if necessary;
Clean/check the synoptic panel;
- Visually inspect the electrical cables, the connections and the electrical power cable;
- Clean the pellet container and verify the play with the screw feeder gear motor;
- Replace the door seals;
- Functional assessment, loading the screw feeder, lighting, 10 minutes of operation and shut down.

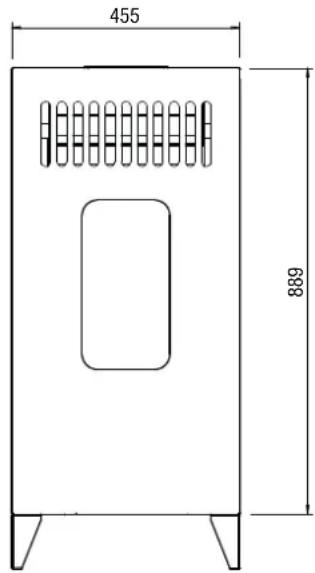

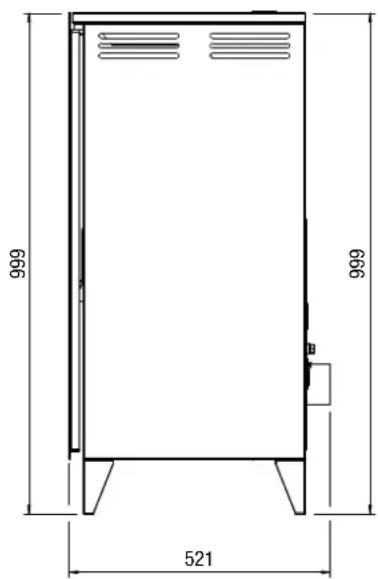

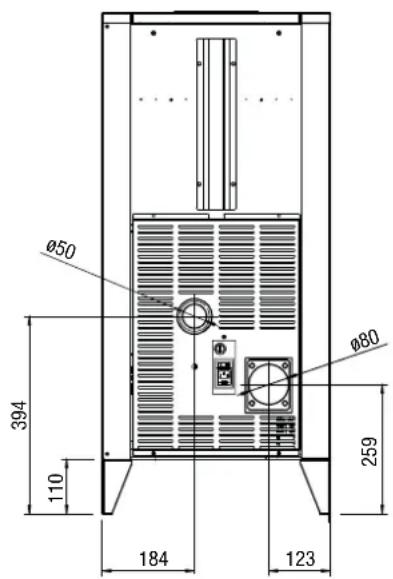

Model: MIA 2 - 7.5

Heating input (min-max): 3,38 kW -7,29 kW
Nominal heat output: 6,66 kW
Reduced heat output: 3,11 kW
CO emissions at 13% 02 (nominal heat): 0,016 %
CO emissions at 13% 02 (reduced heat): 0,032 %
Efficiency at nominal heat output: 91,26%
Efficiency at reduced heat output: 91,86%
Flue gas temperature at nominal heat output: 142,5 °C
Flue gas temperature at reduced heat output: 87,2 °C
Draught (min-max): 10-12 Pa
Voltage: 230 V
Frequency:	50 Hz
Electrical consumption (ignition):	280 W
Electrical consumption (working):	100 W
Weight (with door):	73 kg
Exhaust gas flow (at rated power)	5,0 g/s
Exhaust gas flow (reduced power)	4,0 g/s

The indicative heatable surface is 229m^3

WARNING! In case of fire inside the chimney, immediately contact the firefighters.

MIA 2-7.5
