USER MANUAL Dolceclima Compact OLIMPIA SPLENDID

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE

1. The appliance contains R290 gas (A3 ammability classication)

2. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as

specied for operation. The appliance must be installed, used and stored in a room with a oor surface in compliance with the minimum sizes indicated in the chart at page 10. This appliance contains a quantity of refrigerant gas R290 equal to the one indicated in the data label located on the appliance.

3. This appliance can be used by children aged from 8 years and above and person with reduced physical, sensory

or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. (be applicable for the European Countries).

4. This appliance is not intended for use by persons (including childern) with reduced physical, sensory or mental

capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (be applicable for other countries except the European Countries).

5. If the power cable is damaged, it must be replaced by the manufacturer or by its technical support service or

by similarly qualied personnel, to prevent any risk to the user.

6. To prevent any electrocution risk, it is essential to disconnect the plug from the power socket before performing

any maintenance operation on the appliance.

7. For the correct operation of the appliance, observe the minimum distances and the indications written in this

manual (see gure 1). 8. For the correct electrical connection of the appliance, follow the indications in paragraph 2.5.AVERTISSEMENTSWARNHINWEISE

First of all, we would like to thank you for choosing our appliance.

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

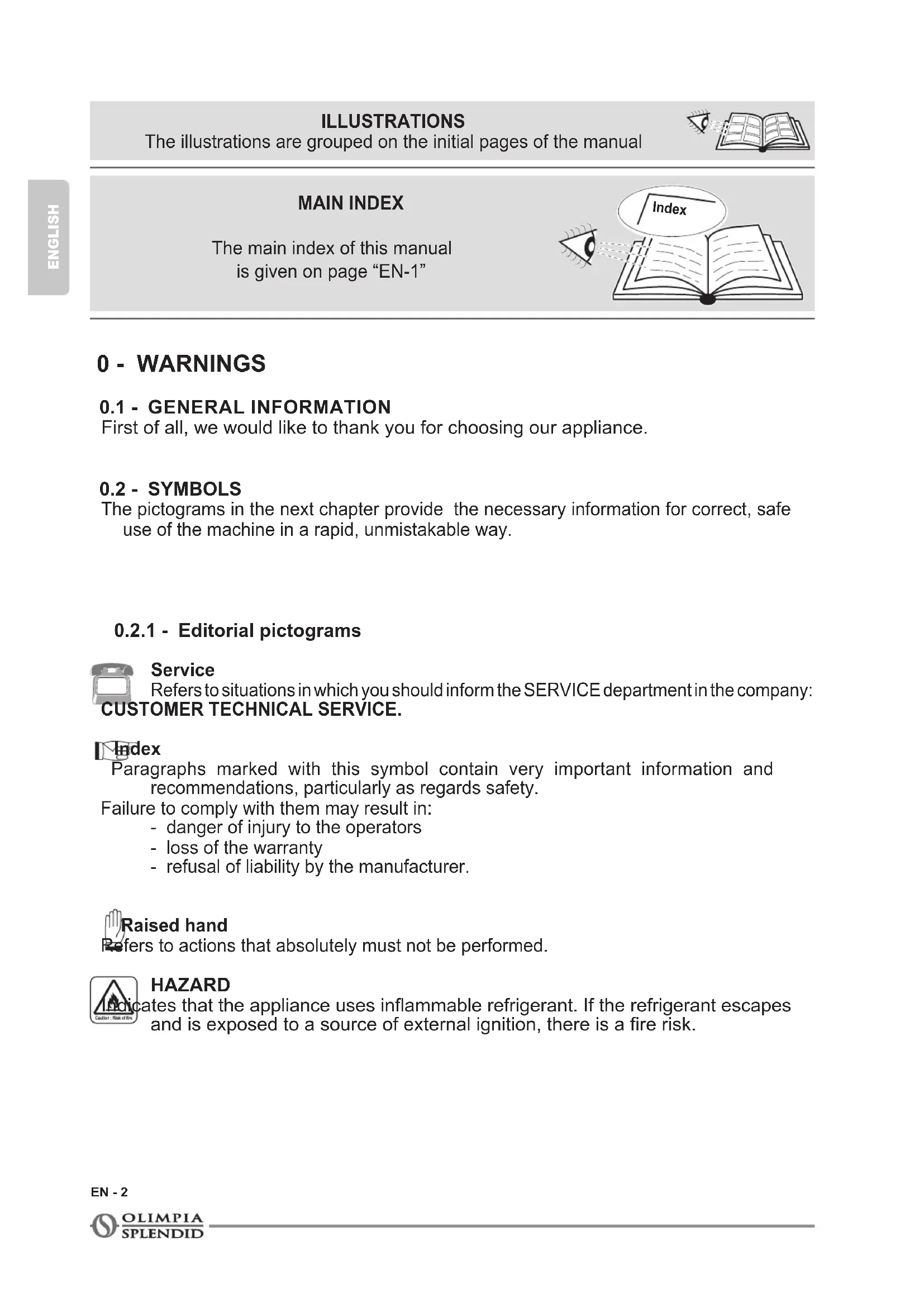

0.2.1 - Editorial pictograms

Service Refers to situations in which you should inform the SERVICE department in the company: CUSTOMER TECHNICAL SERVICE. Index Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety. Failure to comply with them may result in: - danger of injury to the operators - loss of the warranty - refusal of liability by the manufacturer. Raised hand Refers to actions that absolutely must not be performed. HAZARD Indicates that the appliance uses inammable refrigerant. If the refrigerant escapes and is exposed to a source of external ignition, there is a re risk. Index MAIN INDEX The main index of this manual is given on page “EN-1” ILLUSTRATIONS The illustrations are grouped on the initial pages of the manualDOLCECLIMA COMPACT EN - 3 ENGLISH

DANGER OF HIGH VOLTAGE

Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

Indicates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating. ATTENTION

• Indicates that this document must be read carefully before installing and/or using the appliance.

• Indicates that the assistance personnel must handle the appliance following the installation manual. ATTENTION

• Indicates that there may be additional information in attached manuals.

• Indicates that information is available in the user manual or in the installation manual.

ATTENTION Indicates that the assistance personnel must handle the appliance following the installation manual.EN - 4 ENGLISH

0.3 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING: To prevent possible damages to the compressor, each start is delayed by 3 minutes with respect to the last switching o󰀨.

1. This document is restricted in use to the terms of the law and may not be

copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID. Our machines are subject to change and some parts may appear di󰀨erent from the ones shown here, without this a󰀨ecting the text of the manual in any way.

2. Read this manual carefully before performing any operation (installation,

maintenance, use) and follow the instructions contained in each chapter.

3. Keep the manual carefully for future reference.

4. After removing the packaging, check that the appliance is in perfect

condition. The packaging materials must not be left within reach of children as they can be dangerous.

5. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS

OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

6. The manufacturer reserves the right to make any changes it deems

advisable to its models, although the essential features described in this manual remain the same.

7. The maintenance of equipment for conditioning such as this one may result

dangerous since inside this appliance a refrigerant gas under pressure and live electrical components are present. For this reason, possible maintenance interventions (with the exception of lters cleaning) must be performed exclusively by authorized and qualied personnel.

8. Failing to comply with the instructions contained in this manual, and using

the unit with temperatures exceeding the permissible temperature range will invalidate the warranty.

9. Routine maintenance of the lters and general external cleaning can be

done by the user as these operations are not di󰀩cult or dangerous.DOLCECLIMA COMPACT EN - 5 ENGLISH

10. During assembly and at each maintenance operation, it is necessary to

respect the precautions indicated in this manual and on the labels located inside or on the appliance, as well as to take all the precautions suggested by common sense and by the Safety Regulations in force in the country of installation.

11. In case of replacement of parts, use only original OLIMPIA SPLENDID parts.

12. If the unit is unused for a long period, or no-one uses the climate-controlled

room, it is recommended to disconnect the electric power supply in order to prevent accidents.

13. Do not use liquid or corrosive detergents to clean the unit, do not spray

water or other liquids onto the unit, since they could damage the plastic components or even cause electric shocks.

14. Do not wet the indoor unit and the remote control.

15. In case of functioning anomalies (for example: abnormal noise, bad smell,

smoke, abnormal increase in temperature, electrical dispersions, etc.), immediately switch o󰀨 the appliance and disconnect the plug from the power socket. For repair work contact solely the technical service centres authorised by the manufacturer and ask for original spare parts to be used. Failure to do this can a󰀨ect the safety of the appliance.

16. Do not let the air conditioner run for a long time when the humidity is very

high and a door or a windows is left open. Moisture may condense and wet or damage furniture.

17. Do not disconnect the power plug during functioning.

Fire or electrical shocks hazard.

18. Do not place heavy or hot objects on top of the appliance.

19. Before electrically connecting the appliance, make sure the plate data

correspond to those of the distribution network. The power socket must be equipped with a Ground System. The plate (20) is located on the sides of the appliance (Fig.2).

20. Install the appliance according to the manufacturer’s instructions. An

incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

21. If the appliance’s plug is incompatible with the socket, have the socket

replaced with a suitable one by a qualied technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.EN - 6 ENGLISH

22. This appliance is not intended to be run via an external timer or with a

separate remote control system.

23. Always and only use the appliance in a vertical position.

24. Do not obstruct the air inlet and outlet grids in any manner.

25. Do not insert extraneous items in the air inlet and outlet grids as this will

create the risk of electrical shocks, re or damages to the appliance.

26. Do not use the appliance:

- with wet or damp hands; - barefoot.

27. Do not pull the power cable or the appliance itself to remove the plug from

28. Do not use this product under direct sunlight or near a heat source such as

a stove, heater or radiator (Fig.3).

29. Do not use the appliance near gas equipment (Fig.3).

30. Always place the appliance on a stable, plane and levelled surface.

31. Leave at least 30cm of free space on both sides and behind the appliance

and leave at least 30cm of free space above it (Fig.1).

32. Do not place the appliance near a power socket (Fig.4).

33. The socket must be easily accessible so that the plug can be removed

easily in an emergency.

34. Do not handle the plug with wet hands.

35. Do not excessively bend, twist, pull or damage the power cord.

36. Do not run the cord under carpeting, throw rugs or runners etc. Arrange

cord away from tra󰀩c areas so that it will not be tripped over.

37. Unplug the cord when unit is not in use for an extended period of time and/

or when no one is home.

38. Do not use the appliance in particularly moist environments (bathroom,

39. Do not use the appliance outdoors or on wet surfaces. Avoid dropping

liquids on the appliance. Do not use the appliance near sinks and taps.

40. Do not immerse the appliance in water or in other liquids.DOLCECLIMA COMPACT

41. Clean the appliance with a damp cloth; do not use abrasive products or

materials. See the appropriate paragraph for the lters cleaning.

42. The most common cause of overheating is dust or lint deposit in the

appliance. Regularly remove these accumulations by disconnecting the appliance from the power socket and vacuuming the grids.

43. Do not use the appliance in environments subject to signicant temperature

changes as condensation could form inside the appliance itself.

44. Install the appliance at at least 2 meters from other electronic devices (TV,

radio, computer, dvd player, etc.) in order to avoid disturbances (Fig.6).

45. Do not use the appliance if insecticide gas has just been sprayed in the

room or in the presence of burning incenses, chemical vapours or oily residues.

46. Do not use the appliance if the lters are not positioned correctly.

47. Disassembly, repair or reconversion performed by an unauthorized person

could cause heavy damages and will cancel the manufacturer warranty.

48. Do not use the appliance in case of malfunctioning or faults, if the cord or

plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance o󰀨, disconnect the plug from the socket and let it be checked by professionally qualied personnel.

49. Neither disassemble nor modify the appliance.

50. Repairing the appliance by yourself is extremely dangerous.

51. If you no longer wish to use this appliance, it must be made inoperative

by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.

52. Do not use tools di󰀨erent from those recommended by the manufacturer

for the defrosting process and for the appliance cleaning.

53. The appliance is equipped with a thermal protector which preserves the

circuit board in case of over-temperature. If this safety device intervenes, disconnect the plug from the power socket and wait for the appliance to completely cool down (at least 20÷30 minutes) and then reconnect the plug to the power socket and restart the appliance. If the appliance doesn’t restart, disconnect the plug from the power socket and contact an Assistance Centre.EN - 8 ENGLISH

• The air conditioner must be used exclusively to produce warm* or cold air or to dehumidify air (upon choice) with the only purpose to make the environment temperature comfortable.

• This appliance is only intended for a domestic use or similar.

• An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

0.5 - HAZARDOUS ZONES

• The climate controllers must not be installed in environments with the presence of inammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat source, in proximity of a sources of salt water or sulphurous water.

• DO NOT use gas, gasoline or other inammable liquids near to the climate controller.

• Only use supplied components (see paragraph 1.1). The use of non-standard parts may cause water leaks, electric shocks, res and injuries or damages to things.

This product must be used exclusively according to the specications indicated in this manual. Use di󰀨erent to that specied, could cause serious injuries. THE MANUFACTURER IS NOT LIABLE FOR INJURY/DAMAGE TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

• Only for version with heat pumpDOLCECLIMA COMPACT EN - 9 ENGLISH

THE APPLIANCE MUST BE INSTALLED, USED AND STORED IN A ROOM WITH A FLOOR SURFACE HIGHER THAN THE ONE INDICATED IN THE CHART. Quantity of R290 gas in Kg

see data label on the appliance

Minimum size of the site for use and storage

7. Be aware that the refrigerants may not contain an odour.

8. R290 is a refrigerant gas in compliance with the European directives on

environment. Do not pierce any part of the refrigerant circuit.

9. Do not use means to accelerate the defrosting process or to clean, other

than those recommended by the manufacturer.

10. Do not use tools di󰀨erent from those recommended by the manufacturer

when defrosting and cleaning the appliance.

11. If the appliance is installed, used or stored in a non-ventilated area, the room

must be designed to prevent the accumulation of refrigerant leaks with the consequent re or explosion hazard due to the refrigerant combustion caused by electrical heaters, stoves or others sources of ignition.EN - 10 ENGLISH

12. Compliance with national gas regulations shall be observed.

13. Keep ventilation openings clear of obstruction.

14. The appliance shall be stored so as to prevent mechanical damage from

15. Any person who is involved with working on or breaking into a refrigerant

circuit should hold a current valid certicate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specication.

16. Servicing shall only be performed as recommended by the equipment

manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of ammable refrigerants.

17. TRANSPORT OF EQUIPMENT CONTAINING FLAMMABLE REFRIGERANTS

See transport regulations.

18. MARKING OF EQUIPMENT USING SIGNS

See local regulations.

19. DISPOSAL OF EQUIPMENT USING FLAMMABLE REFRIGERANTS

See national regulations.

20. STORAGE OF EQUIPMENT/APPLIANCES

The storage of equipment should be in accordance with the manufacturer’s instructions.

21. STORAGE OF PACKED (UNSOLD) EQUIPMENT

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

22. INFORMATION ON SERVICING

a) Checks to the area Prior to beginning work on systems containing ammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. b) Work procedure Work shall be undertaken under a controlled procedure so as to minimise the risk of a ammable gas or vapour being present while the work is being performed. c) General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in conned spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of ammable material.DOLCECLIMA COMPACT EN - 11 ENGLISH d) Checking for presence of refrigerant The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially ammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with ammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe. e) Presence of re extinguisher If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate re extinguishing equipment shall be available at hand. Have a dry powder or CO2 re extinguisher adjacent to the charging area. f) No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained ammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of re or explosion. All possible ignition sources, including cigarette smoking, should be kept sufciently far away from the site of installation, repairing, removing and disposal, during which ammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no ammable hazards or ignition risks. No Smoking signs shall be displayed. g) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere. h) Checks to the refrigeration equipment Where electrical components are being changed, they shall be t for the purpose and to the correct specication. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for assistance. The following checks shall be applied to installations using ammable refrigerants: The charge size is in accordance with the room size within which the refrigerant containing parts are installed; The ventilation machinery and outlets are operating adequately and are not obstructed; If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.EN - 12 ENGLISH

i) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

23. REPAIRS TO SEALED COMPONENTS

a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. b) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specication, damage to seals, incorrect tting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of ammable atmospheres. Replacement parts shall be in accordance with the manufacturer’s specications. The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

24. REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a ammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specied by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.DOLCECLIMA COMPACT EN - 13 ENGLISH

26. DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked ame) shall not be used.

27. LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing ammable refrigerants. Electronic leak detectors shall be used to detect ammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is conrmed. Leak detection uids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked ames shall be removed/ extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

28. REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since ammability is a consideration. The following procedure shall be adhered to:

• Purge the circuit with inert gas;

• Purge again with inert gas;

• Open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be ushed with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to ll until the working pressure is achieved, then venting to atmosphere, and nally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the nal OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.EN - 14 ENGLISH

29. CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already). Extreme care shall be taken not to overll the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders;

• All personal protective equipment is available and being used correctly;

• The recovery process is supervised at all times by a competent person;

• Recovery equipment and cylinders conform to the appropriate standards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer’s instructions. h) Do not overll cylinders. (No more than 80 % volume liquid charge).

i) Do not exceed the maximum working pressure of the cylinder, even

temporarily. j) When the cylinders have been lled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.DOLCECLIMA COMPACT EN - 15 ENGLISH

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains ammable refrigerant.

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of ammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.22

The appliance is packaged singularly in a cardboard packaging. The packaging can be transported by hand by two operators or loaded on a forklift. Store the packaging singularly; do not stack it.

1. Flexible hose for air expulsion (cooling and

2. Terminal for exible hose machine side

3. Terminal for exible hose for xed / slider

4. SLIDER for installation on sliding / roller window

5. Terminal for slider / window installation

6. Flange for xed installation

8. Seal for Slider installation

9. Seal for Slider installation

10. Plugs for xed installation ange

24. Plug for draining condensation water (in case

of transport, maintenance or excessive build- up of water)

29. IR remote control receiverDOLCECLIMA COMPACT

• Transport and handling of the appliance must be carried out in vertical position. If it is transported in a horizontal position, wait at least one hour before starting it.

• Before moving or transporting the appliance, completely drain condensation by working as described in paragraph 4.2.a CAUTION Movingtheairconditionerondelicateooring(e.g.woodenooring):

• Completely drain condensation.

• Take great care when moving the conditioner as the wheels could mark the ooring.Althoughthewheelsaremadefromarigidmaterialandareswivelling, they could get damaged by use or excessive dirt. It is recommended to check that the wheels are clean and that they can move freely.

WARNINGS A failure to respect what follows may cause damages to the appliance.

Install the air conditioner on at and stable surfaces and on the oor. b. Only connect the air conditioner to power sockets equipped with a ground system. c. Make sure that curtains or other objects do not obstruct the air suction lters (Fig.7). d. Make sure to keep a minimum distance of 30 cm (Fig.1) between the air conditioner and the adjacent gures. e. The appliance must always be activated paying attention that there are no obstacles for air suction and output. f. The air conditioner must not be used in laundries. g. The air conditioner must be installed in a dry place only. h. The air conditioner must not be started in presence of dangerous materials, steams or liquids.

i. Clean the air lters at least once a week.EN - 18

The air conditioner must be installed in a suitable environment. It is recommended to reduce solar radiation through curtains, Venetian blinds and to keep doors and windows closed. a. Position the air conditioner in front of a window or French window. b. Position the machine side terminal (2) on the exible hose (1) as shown by Fig.8. c. Position the terminal (3) on the opposite side of the exible hose (1) (Fig.8). d. Insert the machine side terminal (2) on the air outlet grid of the appliance (26) as shown in gure 9. e. Position the terminal (3) in such a way as to make air exit to the exterior (Fig.10) f. If you possess a sliding window (vertical or horizontal) or a shutter, it is possible to use the supplied “SLIDER KIT” (4) which allows a more efcient installation. For the installation with KIT SLIDER, proceed as shown in gures 11 and 12. g. Apply the adhesive seal (8) (Fig.12) h. Position the “SLIDER KIT” (4) and adapt it (Fig.12)

i. Position the exible hose (1) and apply the seal (9) (Fig.12)

Extend the pipe only to the necessary extent, so that the air conveyor remains closed between the xture shutters.

2.4 - FIXED INSTALLATION

The air conditioner can also be installed with xed holes in windows or walls. Air ow must not be obstructed by protective mesh or similar. Any forms of protection must have a total cross-section for air ow of not less than 140 cm

a. Position the machine side terminal (2) on the exible hose (1) as shown by Fig.8. b. Drill a 127 mm hole in the glass or in the wall at a height above the oor included between 300 and 1200 mm (Fig.13). c. Position the terminal (6) in the wall hole and mark the drilling points (Fig. 14-a, 14-b). d. Remove the terminal (6) and drill 6 mm holes (Fig. 14-c, 14-d). e. Insert the supplied wallplugs (10) in the holes (Fig. 14-e). f. Position the terminal (6) in the hole of the wall and x it with the supplied screws (10) (Fig. 14-f, 14-g). g. Insert the machine side terminal (2) on the air outlet grid of the appliance (26) as shown in gure 9. h. Connect the other extremity of the exible hose (1) on the terminal (6) (Fig.14-i).

i. Close the cap (6a) when the appliance is not running (Fig.14-h).

2.5 - ELECTRICAL CONNECTION

The appliance is tted with a power cable with plug. Before connecting the air conditioner ensure that:

• The voltage and power frequency values match those specied on the appliance plate data.

• The power line is equipped with an effective earth connection and is correctly sized for maximum power consumption of the air conditioner.DOLCECLIMA COMPACT SW1SW3

• The appliance’s power network must be equipped with a suitable omnipolar disconnection device com- pliant with national installation regulations.

• The appliance is powered solely through a socket compatible with the plug provided. CAUTION Any replacement of the power cable must be carried out solely by Olimpia Splen- didtechnicalsupportorbysimilarlyqualiedpersonnel.

Depending on the modality of use of the appliance, it is necessary to connect the condensation discharge pipe.

2.6.a - Use as dehumidier

For the correct use of the appliance, work as follows (gures 15 and 16): a. Remove the cap (28). b. Insert the supplied pipe (7) in the connector. Make sure the end of the discharge pipe (7) is positioned on a drain well or in a container. Make sure the pipe (7) is not clogged.

3 - USE OF THE APPLIANCE

The functioning modes if the air conditioner can be selected both through the remote control and through the control panel located on board of the air conditioner. The reception of the selected function is conrmed by the emission of a “beep” by the buzzer.

3.1 - CONTROL PANEL SYMBOLS AND KEYS (Fig.B)

• SW1: Running / Stand-by;

• SW2: Working mode selection cooling =˃ =˃ automatic =˃ =˃ fan only =˃ =˃ dehumidication =˃ =˃ cooling =˃...

• SW3: Temperature/delay set increase;

• SW4: Temperature/delay set decrease;

• B1: Functioning (1 symbol turned on) / Standby

• B2: Working mode selection automatic (2 symbol turned on) =˃ =˃ cooling (3 symbol turned on) =˃ =˃ dehumidication (4 symbol turned on) =˃ =˃fan only (5 symbol turned on) =˃

• B3: Activate/deactivate display on machine control panel

• B4: Temperature set increase

• B5: Temperature set decrease

• B6: Fan speed selection max speed =˃ =˃ AUTO =˃ =˃ min speed =˃ =˃ max speed =˃...

• B7: Unit programmed switch-on setting

• B8: Unit switch OFF delay setting

• B10: Sleep mode activation (7 symbol turned on)DOLCECLIMA COMPACT EN - 21 ENGLISH

3.3 - USE OF THE REMOTE CONTROL

The remote control supplied with the air conditioner is the tool which allows You to use the appliance in the most comfortable manner. It should be handled with care and in particular:

• Keep it dry (do not clean it with water or leave it outdoors in bad weather).

• Avoid dropping or bumping it.

• Keep it out of direct sunlight.

• The remote control operates by means of an infrared beam.

• During use, there must not be any obstacle between the remote control and the air-conditioner.

• Ifotherappliancesintheroomhaveremotecontrols(TV,stereo,etc...),theremaybeinterference.

• Electronicanduorescentlightsmayalsointerferewithtransmissionsbetweenremotecontrol and air-conditioner.

• Remove the batteries in case of prolonged disuse of the remote control.

3.3.a - Insertion of batteries

The batteries are supplied with the machine. To insert the batteries correctly: a. Remove the batteries compartment cover (gure 17). b. Insert the batteries into the relevant compartment (gure 17). Check the polarity indicated on the bottom of the compartment . c. Close the compartment correctly (gure 18).

3.3.b - Replacement of batteries

The batteries must be replaced when the icon appears on the display. Always use new batteries. The use of old or different batteries could generate malfunctioning of the remote control. The remote control uses two dry alkaline 1.5V batteries (AAA.) (Fig.17).~8m

When replacing batteries, replace both and dispose of the dead batteries in the appropriate collection centres and as required by law.

• If the remote control is not used for several weeks or longer, remove the batteries. Any leaks from the batteries could damage the remote control.

Donotre-chargeordisassemblethebatteries.Donotthrowthebatteriesintothere. They can burn and explode.

If the battery liquid falls onto the skin or clothes, wash well with clean water. Do not use the remote control with batteries that have leaked. The chemical products contained in the batteries can cause burns or other risks to health.

3.3.c - Location of the remote control

• Keep the remote control in a position from which the signal can reach the receiver (29) of the appli- ance (maximum distance is approx. 8 metres - with charged batteries) (gure 19). The presence of obstacles (furniture, curtains, walls, etc.) between the remote control and the appliance reduces the remote control range.

3.4 - USE OF THE APPLIANCE

Work as follows in order to use the appliance.

To prevent possible damages to the compressor, each start is delayed by 3 minutes with respect to the last switching off.

3.4.a - Preliminary operations

• Place the appliance on a stable and not inclined base, at at least 30 cm. from the wall or from any other object, in order to ensure the correct air circulation. Place it on a water-resistant surface since the possible water leakage could damagefurnitureortheoor.

• Do not place the appliance directly on carpets, towels, blankets or other absor- bent surfaces.

• Insert the plug in the power socket; the appliance emits a “beep”, on the display appears the icon and the environment temperature in °C.

Before electrically connecting the appliance, make sure the plate data correspond to those of the electricity distribution network.DOLCECLIMA COMPACT EN - 23 ENGLISH

3.4.b - Appliance switching on/o󰀨

a. The appliance can be switched ON or OFF for short periods by pressing B1 on the remote control or SW1 on the control panel (if the appliance is switched off for a long period then it should be deactivated by removing the plug from the mains supply. b. The corresponding LED L2 lights up to indicate that the appliance is switched off. c. In this condition, press B1 again on the remote control (or SW1 on the control panel) to restore all the formerly selected functions. When the appliance is OFF all the working timers are ‘reset’.

3.5 - VENTILATION MODE (FAN)

a. When this operating mode is used the appliance has no effect on the temperature or humidity of the en- vironment, it merely circulates the air. b. This mode can be selected by pressing B2 or SW2 until the fan only symbol ( ) is activated on the remote control and on the control panel display. c. In this operating mode the internal fan is always on and the required fan speed can be selected at any time by pressing key B6 (only from the remote control) (symbol 6 on the remote control).

3.6 - COOLING MODE (COOL)

a. In this mode the appliance cools and dehumidies the environment. This mode can be selected by pressing B2 or SW2 until the cooling only symbol ( ) is activated on the remote control and on the control panel display. b. The internal fan is always on at automatic speed or (only from the remote control) at the selected speed. c. The temperature set-point (Tset) can be adjusted from 17°C to 30°C (from 61 F to 86 F if present) in 1°C steps by means of B4/B5 or SW3/SW4, and its value is shown both on remote and local interfaces. d. Three minutes (maximum) after the activation of this operating mode the compressor starts and the ap- pliance starts to distribute cold air.

3.7 - DEHUMIDIFICATION MODE (DRY)

a. This mode can be selected by pressing B2 or SW2 until the dehumidication only symbol ( ) is activated on the remote control and on the control panel display. b. This mode is similar to cooling mode, except that: fan speed selection not active (Set temperature) set equal to “Tamb” (ambient temperature). c. In dehumidication mode only, the appliance can operate with only the condensate drain pipe connected (12) and without the exible air expulsion hose.>>>>> EN - 24 ENGLISH

3.8 - AUTO MODE (Automatic)

a. This mode can be selected by pressing B2 or SW2 until the automatic symbol (AUTO) is displayed on the remote control. b. In this mode, the COOLING and FAN functions are selected automatically depending on the continuously monitored room temperature value to ensure that there is a perfect comfort-level in the conditioned room.

3.9 - NIGHT FUNCTION

a. This mode can only be selected from the remote control (by pressing B11) and can only be used in con- junction with cooling and automatic modes. b. When this mode is enabled, the internal fan is forced to run at automatic speed and the set room temper- ature is automatically increased by 1°C after 1/2 hour and by another 1°C again after 1/2 hour (starting from function activation and consequent modication of the set temperature). c. After 7 hours the initial temperature is automatically restored. d. When the set temperature is modied from the remote control, when the appliance is placed in standby, or when the power supply is disconnected, the night function is disabled. e. To deactivate the function press the B11 button again.

a. This mode allows to program the switching on or the switching off of the appliance. b. The delay time can be set by the remote control.

3.10.a Programmed switching on

Select the operating mode, the desired temperature and the ventilation speed with which the unit will activate automatically as programmed. a. By pressing B7, set the desired time delay (from 0.5 to 24 hours) after which the unit will switch ON (starting from timer conrmation). If no button is pressed within 5 seconds the timer setting function will terminate automatically. b. When the delay time set has elapsed, the unit switches ON with latest selected settings. c. To cancel the delayed power-on, press button B7 again until a value of 0 is set. d. When the timer is active, symbol S2 is activated on the machine and symbol 7 on the remote control.

3.10.b Programmed switching o󰀨

a. With the unit in any working mode, press B8 to set the desired time delay (from 0.5 to 24 hours) after which the unit will switch OFF (starting from timer conrmation). Each following B8 key operation increases the delay time value by 1 hour. b. If no button is pressed within 5 seconds the timer setting function will terminate automatically.DOLCECLIMA COMPACTEN - 25ENGLISH When the delay time set has elapsed, the overall unit switches OFF.c. To cancel the delayed shutdown, press button B8 again until a value of 0 is set. d. When the timer is active, symbol S2 is activated on the machine and symbol 8 on the remote control.

3.11 - SETTING THE UNIT OF MEASUREMENT OF TEMPERATURE

On pressing buttons SW3 SW4 simultaneously for 3 seconds you can change the temperature unit of measure indicated on the machine display from CELSIUS (°C) to FAHRENHEIT (F) and vice versa.

In case a black-out occurs, the appliance stores the former function mode and start up again when re-pow- ered by recovering all previous settings.

4 - MAINTENANCE AND CLEANING

Before proceeding with any maintenance and cleaning intervention, always make sure you disconnected the power plug from the power socket.

Do not touch the metal parts of the appliance when you removethelter. There is a risk of injury due to the sharp metal edges.

Do not use water to clean the internal parts of the air conditioner. Exposure to water can ruin the isolation, with the risk of electric shocks.

4.1.a - Cleaning the appliance and the remote control

a. Use a dry cloth to clean the appliance and the remote control. b. It is possible to use a cloth moistened with cold water to clean the appliance in case it’s very dirty.

Do not use a chemically treated or antistatic cloth to clean the appliance.

Do not use gasoline, solvent, polish or similar solvents. These products could cause the breakage or deformation of the plastic surface.EN - 26 ENGLISH

4.1.b - Cleaning the suction lter

To ensure the indoor air is ltered correctly and to guarantee that your air conditioner runs efciently, it is vital to clean the air lters regularly (Fig.20). After a certain amount of time this important maintenance operation must be carried out. It is indicated when the Fi alarm message appears on the control panel display. a. Switch off the conditioner and then remove the lters from the conditioner as indicated in gure 20. b. Wash the lter with a water jet aimed at the side opposite the accumulation of dust. c. If the dirt is particularly difcult to remove (such as grease or other types of deposit), rst immerge the lter in a solution of water and a neutral detergent. d. Shake off any water before reinserting the lter. Provideforthelter(23)replacementifitisdamaged. e. Make sure the lter (23) has dried completely. f. Correctly reposition the lter (23) in its specic seat. g. Suck possible uff from the grille (Fig. 21).

Below nd simple recommendations for reducing consumption:

• Always and constantly keep the lters clean (see maintenance and cleaning chapter).

• Keep the doors and windows of the rooms to be climate controlled closed.

• Do not let sun rays penetrate freely into the room (we recommend using curtains or lowering blinds or closing the shutters).

Do not obstruct the air ow path (input and output) of the appliance; this, in addition to obtaining a non-op- timal yield, also affects the correct operation of the appliance and the possibility of irreparable damages to the appliance itself.

If you do not intend to use the appliance for a long period of time, work as follows:

Activate the fan only mode for a few hours (approximately 1÷2 hours) to dry the interior of the appliance. b. Stop the air conditioner and disconnect the power supply. c. Clean the air lter. d. Completely discharge condensation. e. Remove the batteries from the remote control. Checks before resuming use of the air conditioner: a. Clean the lters after a long period of inactivity of the air conditioner. b. Check that the air outlet or inlet are not obstructed (especially after a long period of inactivity of the air conditioner).DOLCECLIMA COMPACTEN - 27ENGLISH

4.2.a - Discharging condensation

When condensation in the lower tray reaches the predetermined level, the appliance emits beeps.In this case:a. Disconnect the plug from the power socket.b. Carefully move the appliance in position suitable to unload water.c. Remove the drain cap (24) and the rubber cap (24a) (Fig.22).

During the appliance functioning, a few anomalies which stop its functioning could appear.In these cases, some error codes appear on the control panel.• P1 Lower tray full. -------------------------------------------------------------------• F1 Filters cleaning. -------------------------------------------------------------------

• E1 • E2 • E3 • E4 In these cases:a. electrically disconnect the applianceb. wait a few minutesc. connect the plug to the power socketd. restart the appliance. If the inconvenience persists and the error code doesn’t turn off, electrically disconnect the appliance and refer to an Assistance Centre.

For the technical data, please consult the data plate applied to the product (Fig.2).• Dimensions (W x H x D) 345 x 703 x 355 mm• Weight (without packing) 24 Kg• Maximum operating temperature in cooling modeDB 35°C - WB 24°C * / DB 43°C - WB 32°C **• Minimum operating temperature in cooling mode17°C * / 16°C *** Internal ambient temp.** Outside ambient temp.EN - 28 ENGLISH

6 - INCONVENIENCES AND POSSIBLE REMEDIES

Do not try to repair the appliance by yourself. If the problem has not been solved, please contact your local retailer or the closest assistance service. Supply detailed information about the malfunction and the equipment version. CAUSE

• The plug has not been inserted.

• The temperature set is too close to ambient temperature.

• Suction of outside air is obstructed.

• Some source of heat is operating in the room (burner, lamps, etc.) or the room is crowded.

• The temperature set is too high.

• The power of the conditioner is not suitable for ambient conditions or dimensions.

• The conditioner has been tilted or laid at.

• Excessive build-up of water inside the conditioner

• Ambient temperature too low WHAT DO I DO?

• Plug in the conditioner.

• Switch off the timer

• Lower the temperature set.

• Remove the obstructions.

• Call the Service Center.

• Eliminate sources of heat.

• Lower the temperature set.

• Remove the plug (g.2 ref. n°4) and drain the water before moving the conditioner.

• Dain the water contained by removing the plug (g.2 ref. n°4). If this alarm is displayed too frequently, call the Service Centre.

• Air conditioner behaviour is normal. MALFUNCTION

• The conditioner does not work.

• The conditioner works only for a short period.

• The conditioner works but does not refresh the room.

• Water leaks from the conditioner during transport.

• The conditioner switches off, the controls on the remote control and the control panel do not respond and alarm signal “E1” ashes on the control panel display.

• The conditioner switches off, the controls on the remote control and the control panel do not respond and alarm signal “E2” ashes on the control panel display.

• The conditioner switches off, the controls on the remote control and the control panel do not respond and alarm signal “E4” ashes on the control panel display.

• The conditioner switches off, the controls on the remote control and the control panel do not respond and alarm signal “P1” ashes on the control panel display.

3.5 - MODE VENTILATION (FAN)

3.5 - TRYB WENTYLACJI (FAN)

ALLMÄN INNEHÅLLSFÖRTECKNING

ALLMÄN INNEHÅLLSFÖRTECKNING

3.5 - VENTILATIONSLÄGE (FAN)
