USER MANUAL VSZ4GA33CH SIEMENS

Theorem 1.2. The set of all real-valued functions on ^n is closed.

圆糟糟糟糟糟糟

Sauoos
A. N 型的二元一次方程组
of 2016-2017
1.000000000000

---

de Sicherheitshinweise 2
Gebrauchsanleitung 22
en Safety information 3
Instructions for use 25
fr Consignes de sécurité 5
Mode d'emploi 28
n1 Veiligheidsvoorschriften 7
Gebruiksaanwijzing 31
da Sikkerhedsanvisninger 8
Brugsanvisning 34
no Sikkershetsanvisninger 10
Bruksanvisning 37
sv Sakerhetsanvisningar 11
Bruksanvisning 40
fi Turvaohjeet 13
Kayttöohje 42
pt Indicações de segurança 14
Manual de instruções 45
el Ynoδεiξειc aσφαλειac 16
O8nyiec XpnoonC 48
tr Güvenlik bilgileri 18
Kullanma kilavuzu .51

1. 21

57 1

de

Please keep this instruction manual. When passing the vacuum cleaner on to a third party, please also pass on this instruction manual.

Intended use

This appliance is intended for domestic use only. This appliance is intended for use up to a maximum height of 2000 metres above sea level. Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

In order to prevent injuries and damage, the vacuum cleaner must not be used for:

Vacuum-cleaning persons or animals
Vacuuming up:

• hazardous, sharp-edged, hot or glowing substances.
  -damp or liquid substances.
• highly flammable or explosive substances and gases.
• ash, soot from tiled stoves and central heating systems.
• toner dust from printers and copiers.

Spare parts, accessories, dust bags

Our original spare parts, original (special) accessories and original dust bags are designed to work with the features and requirements of our vacuum cleaners. We therefore recommend that you only use our original spare parts, original (special) accessories and original dust bags. This will ensure that your vacuum cleaner has a long service life and that the quality of its cleaning performance will remain consistently high throughout.

Please note:

Using unsuitable or inferior-quality spare parts, (special) accessories and dust bags can damage your vacuum cleaner. Damage caused by the use of such products is not covered by our guarantee.

Safety information

This vacuum cleaner complies with the recognised rules of technology and the relevant safety regulations.

The appliance may be used by children over the age of 8 years and by persons with reduced physical, sensory or mental capacity or by persons with a lack of experience or knowledge if they are supervised or have been instructed on the safe use of the appliance and the have understood the potential dangers of using the appliance.

Children must never play with the appliance.
- Cleaning and user maintenance must never be carried out by children without supervision.
- Plastic bags and films must be kept out of the reach of children before disposal.

=> Risk of suffocation.

Proper use

• Only connect and use the vacuum cleaner in accordance with the specifications on the rating plate.
• Never vacuum without the dust bag or dust container, motor protection or exhaust filter.

This may damage the vacuum cleaner.

Always keep the vacuum cleaner away from your head when using nozzles and tubes.
This could cause injury!
- When vacuuming stairs, the appliance must always be positioned below the user.
- Do not use the power cord or the hose to carry or transport the vacuum cleaner.
For safety reasons, if this appliance's mains power cable becomes damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified person.
If using the appliance for longer than 30 minutes, pull out the power cord completely.
- When disconnecting the appliance from the mains, pull on the plug itself to remove it; do not pull on the power cord.
- Do not pull the power cord over sharp edges or allow it to be-come trapped.
- When the cable is being automatically rewound, ensure that the mains plug is not thrown towards persons, body parts, animals or objects.

Use the mains plug to guide the power cord.

Pull out the mains plug before carrying out any work on the vacuum cleaner.
- Do not operate the vacuum cleaner if it is damaged. Unplug the appliance from the mains if a fault is detected.
- For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
- Protect the vacuum cleaner from the weather, moisture and sources of heat.
- Do not pour flammable substances or substances containing alcohol onto the filters (dust bag, motor protection filter, exhaust filter, etc.).
The vacuum cleaner is not suitable for use on construction sites.

=> Vacuuming up building rubble could damage the appliance.

• When not in use, switch off the appliance and pull out the mains plug.
  At the end of its life, the appliance should immediately be rendered unusable, then disposed of in an appropriate manner.

Please note

The mains socket must be protected by at least a 16 amp circuit breaker.

If a circuit breaker is tripped when you switch on the vacuum cleaner, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

Disposal information

■ Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can therefore be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

Old appliance

Old appliances still contain many valuable materials. Therefore, please take appliances that have reached the end of their service life to your retailer or recycling centre so that they can be recycled. For current disposal methods, please enquire at a retailer or your local council.

Disposal of filters and dust bags

Filters and dust bags are manufactured from environmentally friendly materials. Provided they do not contain substances that are not permitted in household waste, you can dispose of them with your normal household waste.

Notes on the energy label

This vacuum cleaner is a general purpose vacuum cleaner with a primary hose.

To achieve the declared energy efficiency and cleaning performance class on carpet and hard floor, please use the interchangeable universal nozzle.

These calculations are based on the Commission Delegated Regulation (EU) No. 665/2013 of 3rd May 2013 supplementing Directive 2010/30/EU.

Unless otherwise stated, all the procedures referred to in these instructions were carried out in accordance with the EN 60312-1:2017* standard.

*As the motor service test is carried out with the dust collector empty, the stated motor service life must be increased by 10% for tests with the dust collector half filled.

fr

aalalalalalalalalalalalal

*1:2017-EN 60312

g 1

100 2

.10 111111111111111

pI 1

ar

aallll llll l aag gaiu uaiall uusg lae

aJssial jIJIaIi 1 aIyU uIjIgUgU

aill a 1

ylogal

a

aalalalall, aulalal lalalag aalal li jie bai

alil 1yaiy elaii elliy li aaiy ylll llll b

1. a. 121 a. 121 0. 121. li

aill 152 yjauuyl aille o g, ygb1 jae jaiia ayjball

:

j_4 = 1

aI aI all Joc 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a 100

Lgio JlilgJglio

a1 = 2,an + 1 = 2( 3n + 1) ( 3n + 2) > 2( 3n + 3) ( 3n + 4)

de

Please keep this instruction manual. When passing the vacuum cleaner on to another person, please also hand over this instruction manual.

Fold out the picture pages.

Your vacuum cleaner

1 Adjustable floor tool (with locking collar)
2 Hard-floor brush (with locking collar)
3 Hose hand grip
4 Flexible hose
5 Telescopic tube with sliding switch (and locking collar)
6 Telescopic tube with adjusting sleeve (and locking collar)
7 Power cord
8 Parking aid
9 Locking lever
10 Exhaust grille
11 Dust bag
12 Exhaust filter
13 Motor protection filter, washable
14 Carrying handle
15 Dust bag compartment lid
16 Dust bag change indicator
17 Storage aid (on underside of appliance)
18 On/off button and power controller
19 Accessories holder for multi-purpose nozzle
20 Multi-purpose nozzle
21 Drill dust nozzle*

Replacement parts and special accessories

A Replacement filter pack

To get the most out of your appliance, we recommend using PowerProtect genuine replacement bags. Contents:

• 4 dust bags with fasteners
• 1 micro-hygiene filter

We therefore recommend that you only use our original dust bags.

Your appliance is a highly efficient vacuum cleaner that achieves excellent cleaning results when used with high-quality dust bags.

Only by using high-quality dust bags (such as Siemens original dust bags) can you ensure that your vacuum cleaner is working at the energy efficiency class, dust pick-up rate and dust retention capacity listed on its EU energy label.

The use of inferior-quality dust bags (e.g. paper bags) can have a negative effect on the service life and performance of your appliance.

Using unsuitable or inferior-quality dust bags can also damage your vacuum cleaner.

Such damage is not covered by our guarantee." You can find more information about this at www.siemens-home.bsh-group.com/dust-bag. You can order our original vacuum cleaner bags here.

B Hard floor brush VZ123HD

For vacuuming hard floors (parquet, tiles, terracotta, etc.)

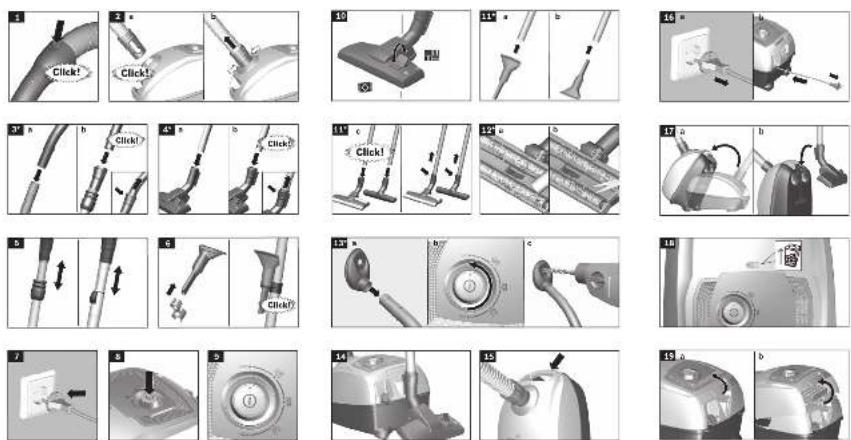

Initial use

Figure 1

• Push the handle onto the flexible hose and lock it in place.

Figure 2

a)Push the flexible hose adapter into the air intake opening in the vacuum cleaner lid until it locks in place.
b)To remove the flexible hose, press the two catches together and pull out the hose.

Figure 3\*

a)Push the hand grip into the telescopic tube. To remove it, turn the hand grip slightly and pull it out of the tube.
b)Push the hand grip into the telescopic tube until it engages. To release the connection, squeeze the collar sleeve and pull the handle out.

Figure 4\*

a)Insert the telescopic tube into the connecting piece of the floor tool. To release the connection, turn the tube slightly and pull it out of the floor tool.
b)Push the telescopic tube into the connecting piece of the floor tool until it locks in place. To release the connection, press on the locking collar and pull out the telescopic tube.

Figure 5

• Move the adjusting sleeve/slider button in the direction of the arrow to unlock the telescopic tube and adjust it to the length required.

Figure 6\*

• Attach the accessories holder to the multi-purpose nozzle and clip it onto the suction pipe/telescopic tube.

Figure 7

Holding the power cord by the plug, pull out to the required length and insert the plug into the mains socket.

Figure 8 itching on and off

• Press the ON/OFF button in the direction of the arrow to switch your vacuum cleaner on.

Figure 9htrolling the suction level

The suction level can be infinitely adjusted to the level required by turning the control knob in the direction of the arrow.

Low power range

For vacuuming delicate materials, e.g. upholstery, curtains, etc.

Medium power range

For the daily vacuuming of light dirt deposits.

High power range

For vacuuming durable floor coverings, hard floors and heavily soiled surfaces.

Vacuuming

Please note:

• Floor tools are subject to a certain amount of wear, depending on the type of hard floor you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools.

Figure 10

Set the adjustable floor tool:

Rugs and carpets

Hard floors

If you are vacuuming up relatively large particles, make sure that you vacuum them up successively and carefully to ensure that the vacuum channel of the floor tool does not become blocked. If necessary, you should raise the nozzle in order to better vacuum up the dirt particles.

Figure 11uuming with accessories

Attach the nozzles to the suction pipe or hand grip as required:

a) Crevice nozzle for vacuuming crevices and corners, etc.
b)Upholstery nozzle for vacuuming upholstered furniture,curtains,etc.
c)Hard-floor tool

For vacuuming hard floor coverings (tiles, parquet flooring, etc.)

• Push the telescopic tube into the connecting piece of the hard floor tool until it locks in place.
• To release the connection, press the locking collar and pull out the telescopic tube.

Figure 12a ning the hard-floor tool

a)Vacuum the tool from below to clean it.
b) Use scissors to cut through threads and hairs wound round the rollers and then vacuum them away.

Drill dust nozzle

Figure 13\*

a) Secure the drill dust nozzle to the handle and then place against the wall, so that the nozzle drill hole opening sits directly over the hole to be drilled.
b)Select the lowest power setting and then switch on the vacuum cleaner.

Suction holds the drill dust nozzle in the required position.

c)Depending on the surface of the wall to be drilled it may be necessary to readjust the power to a higher setting to ensure the drill dust nozzle is firmly attached.

Any fine particles are automatically vacuumed up.

Figure 14

You can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time.

• Once you have switched off the appliance, slide the hook on the floor tool into the recess on the rear of the appliance.

Figure 15

To overcome obstacles, e.g. steps, the appliance can also be carried by the handle on the appliance body.

When the work is done

Figure 16

a)Pull out the mains plug.
b) Briefly pull on the power cord and then release it (the power cord retracts automatically).

Figure 17

To store/transport the appliance, you can use the storage aid on the underside of the appliance.

a) Stand the appliance upright on its end.
b)Slide the hook on the floor tool into the recess on the underside of the appliance.

Changing the filter

Please note: Always switch off the appliance before changing the filter.

Replacing the dust bag

Figure 18

• If the dust bag change indicator in the lid is filled completely when the floor tool is lifted from the floor with the highest suction level selected, the dust bag must be changed, even though it may not yet be full. Even if the dust bag is not full, it may still need changing, due to the type of dust which has been vacuumed. First check that the nozzle, suction pipe and flexible hose are not blocked, as this would also lead to the dust bag change indicator being triggered.

Figure 19:ening the lid

a)Unlock the lid by pulling on the locking lever in the direction of the arrow.
b) Open the lid in the direction of the arrow.

Figure 20

a) Close the dust bag by pulling on the locking tab.
b)Take out the dust bag.
c)Insert a new dust bag.
d)Push the dust bag fully into the holder.

Please note: the lid will only close if a dust bag has

been inserted.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing.

Figure 21

• Open the dust bag compartment lid. Figure 19
  a) Release the motor protection filter from the catch by pulling it sideways, and pull it out in the direction of the arrow.
  b)Clean the motor protection filter by tapping out the dirt.
  c) If it is very dirty, the motor protection filter should be rinsed.
  The filter must then be left to dry for at least 24 hours.
  d)After cleaning, refit the motor protection filter into the appliance, lock it in place and close the dust bag compartment lid.

Replacing the exhaust filter

Vacuum cleaner with micro-hygiene filter

This should be replaced with every replacement filter pack

Figure 22\*

• Open the dust bag compartment lid. Figure 19
  a)Release the filter holder by moving the locking lever in the direction of the arrow.
  b)Remove the micro-hygiene filter.

c)The micro-hygiene filter can be rinsed out.
The filter must then be left to dry for at least 24 hours.
d) Remove the micro-hygiene filter. Insert the new micro-hygiene filter into the appliance.
e)Insert the filter holder into the appliance and lock it in place.

Vacuum cleaner with HEPA filter

If your vacuum cleaner is equipped with a HEPA filter, this must be replaced once a year.

Figure 23*

• Open the dust bag compartment lidFigure 19
  a)Unlock the HEPA filter by moving the locking lever in the direction of the arrow and remove the filter from the appliance.
  b)Insert the new HEPA filter and lock it in place.

After vacuuming fine dust particles, clean the motor protection filter and, if necessary, replace the microhygiene filter or HEPA filter.

Care

Always switch off the vacuum cleaner and disconnect it from the mains before cleaning the vacuum cleaner.

The vacuum cleaner and plastic accessories can be cleaned with ordinary plastic cleaner.

Do not use abrasive materials, glass-cleaning

• agents or all-purpose cleaning products. Never immerse the vacuum cleaner in water.

If required, the dust compartment can be vacuumed out with a second vacuum cleaner or simply with a dry duster/ dusting brush.

Subject to technical modifications.

fr

www.siemens-home.bsh-group.com/dust-bag.

Du hittar mer information pa www.siemens-home.bsh-group.com/dust-bag.

aaii jia iiaiia 1jie aaiy

21

19

a

Aaii Dla no aal ayas jil 1 (b

11 1111111111111111111111111111111

JyIgEeLwYsod jillljilllds

aai jaii ejiie le biically jilal Jala Jaa a (a

aall jla glaal c

aall jll jll Jc Jc (c

i 1

aill jll jll jll jll jll jll jll jll d

a aaiiie 1

Hepa jiey odjgai

Hepa jilb 0jg

23

19 a

a aal oai jai jai baiHepa jia

iiisall 124 jai

Hepa jie b

iie 1

. Hepa jilil gail jilil gail jilil

a

16

a

（L）

17 0

glalll lally s gall slilll Jiaaiuui iisay auiuai jaijai

a

i 10

jiall

1

jss

18

Lai Lao jil 11 bally jilal y nnnn l 12

jiall gai gali yai jy ai all aie jol 1

0

aill 1 aaii i 1 1 1 1 1 1 1 1

.

cui

19

a

aill olil s clll l (b

20

glal jbi jxj jilai (a

jill jilal wS wol (b

j# j#S uS uS a (c

Aaill Jdall jll 5 dai (d

aolal

11

a 1 baiil o rla lal - aalll w - aaiill w

（a

Jitilwglc icg yagc hagc gagc

a 1

（c

aaii

( a + b) ( a - b) = 0

a 1

a 1

a

12*

a

(1)

13*

gagaaaal g aaii jaiy iay y

.

p pi 150 g jgmo Jgl qisallb

1.4.2.3

gagall gagall gagall gagall

jnnnnaaannn n nn nnnnnaa aee

aagaae aae aee aee aee aee aee

6

aal l aai 1

7

J 1

8

y/1j 1 jie baiuai aikai al yj y

biulj 6g biu

9

1

jiaiia 0jai jbi

a 1

a

a yj 8 jbi

aaiiie

.

bi

4

www.siemens-home.bsh-group.com/dust-bag

Caaalldg Cagglall

VZ123HD

Cullall

( )

#

1

A

2

bally gall biall aie biall p jie cy (a

.

3

a

i jswdall jai jai jai jai jai jai

aagll Jd y Sswll swrall aal (b

aiee aee

4 5

a

J 1

（b）

oJalall yjaiill aie bial alagll J.

C. 1,2,3,4,5,6,·s

jg j

1

2

= x

bi = bj 4

* ( 12,13,14,15)

* ( x,y( 0) ) = 45 可以 ( 0,13) ( 0,13)

S BCD = S COD + S BDO - S BOC

令 x ≤ 1 u ≤ 1

www.siemens-home.bsh-group.de

AE United Arab Emirates,

BSH Home Appliances FZE
Round About 13, Plot Nr MO-0532A
Jebel Ali Free Zone - Dubai
Tel.: [phone]

mailto:[e-mail] www.siemens-home.bsh-group.com/ae

www.siemens-home.bsh-group.at

www.siemens-home. bsh-group.com/au

• Mo-Fr: 24 hours

BA Bosnia-Herzegovina, Bosna i Hercegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

BE Belgique,Belgié,Belgium

BSH Home Appliances S.A. - N.V.

www.siemens-home.bsh-group.com/be

BH Bahrain

Khalaifat Est.

P.O.Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

BY Belarus, Benaapycb

OOO“BCX BbITOBaTExHnka"

TeA.: 495 737 2962

mailto:[e-mail]

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

www.siemens-home.bsh-group.com/ch

CY Cyprus, KUnpoC

BSH Ikiakes Syskeves-Service

39, Arh. Makaariou III Str.

2407 Egomi/Nikosia (Lefkosia)

Tel.: [phone]

Fax: [phone]

mailto:bsh.service.cyprus@

cytanet.com.cy

CZ Ceska Republika, Czech Republic

www.siemens-home.bsh-group.com/cz

DK Danmark, Denmark

BSH Hvidevarer A/S

Telegrafvej 4

2750 Ballerup

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/dk

ES España, Spain

BSH Electrodomesticos Espana S.A.

www.siemens-home.bsh-group.es

FI Suomi, Finland

BSH Kodinkoneet Oy

Italahdenkatu 18 A

PL 123

00201 Helsinki

Tel.: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/fi

siemens-home.bsh-group.com

www.siemens-home.bsh-group.fr

GB Great Britain

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton

Milton Keynes MK12 5PT

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit

www.siemens-home.bsh-group.com/uk Or call

Tel.: [phone]*

• Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GRH Greece, EAA

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

TnAeΦwvo:2104277701

TnAePwvo:18182

mailto: [e-mail]

www.siemens-home.bsh-group.com/gr

HK Hong Kong, 香港

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor, North Block, Skyway House, 3 Sham Mong Road

Tai Kok Tsui, Kowloon, Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/hk

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.siemens-home.bsh-group.ie

• Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

IL Israel,

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/ill

IN India, Bharat,

BSH Household Appliances Mfg. Pvt. Ltd.
Arena House,

Main Bldg, 2nd Floor

Plot No. 103,

Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 209 1850*

www.siemens-home.bsh-group.com/in

• Mo-Sa: 8.00 am to 8.00 pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.siemens-home.bsh-group.com/it

LB Lebanon

Tehaco s.a.r.l

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh, 1202 2040

Tel.: [phone]

mailto:[e-mail]

LU Luxembourg

www.siemens-home.bsh-group.com/lu

MKH Macedonia,Makeonna

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Aplan Limited

The Atrium

Mriehel by Pass

BKR3000 Birkirkara

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

NL Nederlande, Netherlands

www.siemens-home.bsh-group.nl

NO Norge, Norway

www.siemens-home.bsh-group.com/no

PL Polska, Poland

www.siemens-home.bsh-group.pl

PT Portugal

BSHP Electrodomésticos,

www.siemens-home.bsh-group.com/pt

RO Romania, Romania

BSH Electrocasnice srl.

Sos. Bucuresti-Ploiesti, nr. 19-21, sect.1

13682 Bucaresti

Tel.: [phone]

Fax: [phone]

newsletter:[e-mail]

www.siemens-home.bsh-group.com/ro

RU Russia, Pocsn

OOO"BCX BbITOBbIe Pn6OpbI"

CepBnC OT npOn3BODnteIa

Mana KaIyckKa, 15

119071 MockBa

Tei.: 8 (800) 200 29 62

mailto:[e-mail]

www.siemens-home.bsh-group.ru

SE Sverige, Sweden

BSH Home Appliances AB

Landsvagen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.siemens-home.bsh-group.com/se

SK Slovensko, Slovakia

BSH domaci spotbrebe s.r.o.

www.siemens-home.bsh-group.com/tr

• Cagli merkezini sabit hatlardan

aramanin bedeli sehir ici ücretlendirme,

Cep telefonlarindan isekullanlan

www.siemens-home.bsh-group.com/ua

XK Kosovo

SERVICE-GENERAL SH.P.K.

Rruga Mag Prishtei-Ferizaj

70000 Ferizaj

Tel.: [phone]

Tel.: [phone]

mailto:a_SERVICE@

gama-electronics.com

XS Srbija, Serbia

BSH Kuconi aparati d.o.o.

Milutina Milankovica br. 9ž

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand-Johannesburg

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

www.siemens-home.bsh-group.com/za

de

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

fr

((waste electrical and electronic equipment - WEEE

ωωCωSωSOJω。

SsSg|bSsoSsSω|ωSlgu|Sεω,Sω,Scol,Se

SUsSg0sUjwssJgUsSgUjsluSsSloSols

SooosJusgssuSSUs.

DE Garantie

GB Conditions of guarantee

For this appliance the guarantee conditions as set out by our representatives in the country of sale apply. Details regarding same may be obtained from the dealer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced.

FR Conditions de garantie

www.siemens-home.com/tr

www siemens-yetkiliservisi.com

Bandrol ve Seri No. :

ELEKTRIK SÜPÜRGESİ

GARANTI

BELGESI

BSH Group is a Trademark Licensee of Siemens AG

Carl-Wery-StraBe 34

81739 Munchen, GERMANY
