USER MANUAL VS07GP1269 SIEMENS

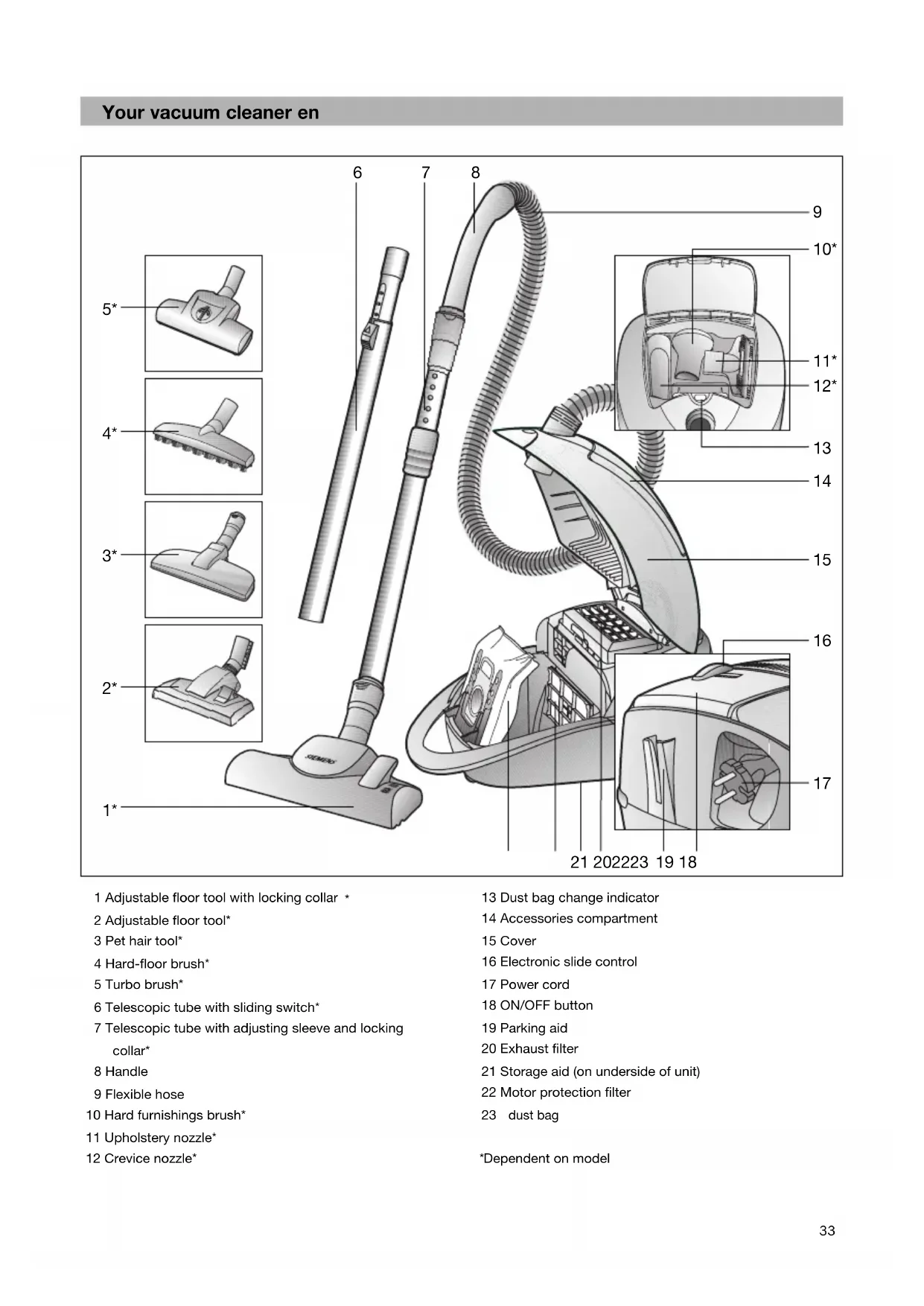

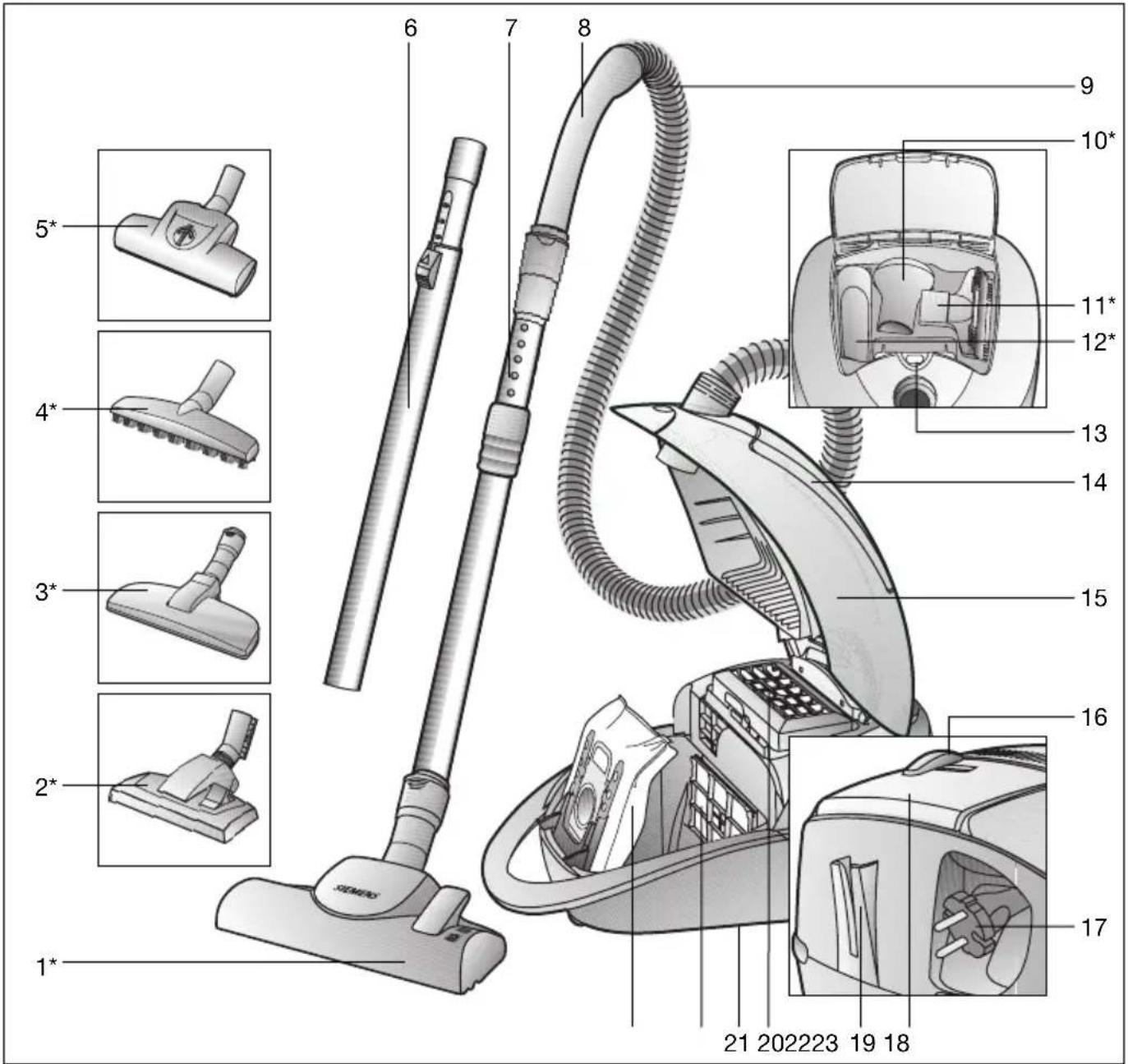

Your vacuum cleaner en 1 Adjustable floor tool with locking collar

2 Adjustable floor tool* 3 Pet hair tool* 4 Hard-floor brush* 5 Turbo brush* 6 Telescopic tube with sliding switch* 7 Telescopic tube with adjusting sleeve and locking collar* 8 Handle 9 Flexible hose 10 Hard furnishings brush* 11 Upholstery nozzle* 12 Crevice nozzle* 13 Dust bag change indicator 14 Accessories compartment 15 Cover 16 Electronic slide control 17 Power cord 18 ON/OFF button 19 Parking aid 20 Exhaust filter 21 Storage aid (on underside of unit) 22 Motor protection filter

Congratulations on your purchase of a Siemens VS07 vacuum cleaner. This instruction manual describes various VS07 models, which means that some of the equipment features and functions described may not be available on your model. You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results. Fold out picture pages. Before using for the first time Figure Push the handle onto the flexible hose until it engages. Setting up Figure a) Push the flexible hose adapter into the opening on the vacuum cleaner until it engages. b To remove the flexible hose, press the release button and pull the hose out. Figure a) Connect the handle and the telescopic tube together. b) Push the handle into the telescopic tube until it engages. To release the connection, squeeze the locking collar and pull the telescopic tube out. Figure a) Connect the floor tool and the telescopic tube together. b) Push the telescopic tube straight into the connecting piece of the floor tool until it engages. To release the connection, squeeze the locking collar and pull the telescopic tube out. Figure To adjust the length of the telescopic tube, adjust the adjusting sleeve/sliding switch in the direction of the arrow and adjust the tube to the required length. Figure Take the mains plug, pull the mains cable to the required length and insert the plug into a socket. Figure Press the ON/OFF button in the direction of the arrow to switch your vacuum cleaner on.

Vacuuming Figure The required suction power can be selected infinitely variably by adjusting the slide control. 䡲 Lowest suction range: For vacuuming delicate fabrics, e.g. curtains. 䡲 Low suction range: For daily vacuuming of lightly soiled floors. 䡲 Medium suction range: For vacuuming durable floor coverings, hard floors and for heavily soiled surfaces. 䡲 High suction range: For vacuuming stubborn dirt and very heavily soiled surfaces. Figure Adjusting the floor tool: a) For vacuuming rugs and carpets => b For vacuuming hard floors => Caution! Floor tools are subject to a certain amount of wear, depending on the type of hard floors you have (e.g. rough, rustic tiles). Therefore, you must check the underside of the floor tool at regular intervals. Worn undersides of floor tools may have sharp edges that can damage sensitive hard floors, such as parquet or linoleum. The manufacturer does not accept any responsibility for damage caused by worn floor tools. Turbo brush If your vacuum cleaner is equipped with a turbo brush, please consult the accompanying instruction manual for notes on its use and maintenance. Figure Vacuuming with accessories (attach to handle or suction pipe as required). a) Crevice nozzle For cleaning crevices and corners. b) Upholstery nozzle For cleaning upholstered furniture, curtains, etc. c) Hard furnishings brush For vacuuming picture frames, books, furniture requiring particular care, etc. Figure Other accessories that you do not need can be stored easily in the accessories compartment of the vacuum cleaner lid.

Figure Pet hair tool 䡲 Floor tool for easy and thorough vacuuming of pet hair. 䡲 Push the telescopic tube into the connecting piece of the pet hair tool until it engages. Press on the locking collar and pull out the telescopic tube to disconnect. 䡲 To clean, simply vacuum the tool using the suction pipe/telescopic tube. Figure Hard-floor brush 䡲 For cleaning hard floor coverings (tiles, parquet flooring, etc.) 䡲 Connect the floor tool and the telescopic tube together. Figure Once you have switched off the vacuum cleaner, you can use the parking aid on the back of the vacuum cleaner if you wish to stop vacuuming for a short time. To do this, slide the catch on the floor tool into the groove on the back of the vacuum cleaner. When the work is done Figure 䡲 Unplug the vacuum cleaner. 䡲 Briefly pull the power cord and release. The cord rewinds automatically. Figure To store or transport the vacuum cleaner, use the storage aid on the underside of the vacuum cleaner. Stand the vacuum cleaner up on its end. Slide the catch on the floor tool into the groove on the underside of the vacuum cleaner. Changing the dust bag and filters Replacing the dust bag Figure If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even though it may not yet be full. In this case it is essential to change the dust bag due to the type of material it contains. First check that the nozzle, suction pipe and flexible hose are not blocked, as this would also lead to the dust bag change indicator being triggered. Figure Open the lid by moving the locking lever in the direction of the arrow.

13* 12* Figure a) Seal the dust bag by pulling the sealing strip and then remove it. b) Insert a new dust bag into the holder and close the dust bag compartment lid.

Caution: the lid will only close when the dust bag is inserted. Cleaning the motor protection filter The motor protection filter should be cleaned regularly by knocking out the dirt and rinsing. Figure

Open the dust bag compartment lid (see Figure 18).

Pull out the motor protection filter in the direction of the arrow.

Clean the motor protection filter by tapping it.

If it is very dirty, the motor protection filter should be rinsed. The filter must then be left to dry for at least 24 hours.

After cleaning, slide the motor protection filter into the vacuum cleaner and close the dust bag compartment lid. Replacing the exhaust filter You must replace the exhaust filter in your vacuum cleaner once a year. Replacing the micro-hygiene filter Figure

Open the dust bag compartment lid (see Figure 18).

Release the filter holder by pressing the locking tab in the direction of the arrow

Remove the foam filter and micro-hygiene filter. Insert the new micro-hygiene filter and foam filter into the filter holder.

Insert the filter holder into the vacuum cleaner and clip into place. Replacing the micro active carbon filter Figure 䡲 Open the dust bag compartment lid (see Figure 18). 䡲 Release the filter holder by moving the locking lever in the direction of the arrow. 䡲 Remove the micro active carbon filter. 䡲 Insert the new micro active carbon filter into the vacuum cleaner and clip into place. 22* 21*

Replacing the HEPA filter Figure 䡲 Open the dust bag compartment lid (see Figure 18). 䡲 Release the HEPA filter by pressing the locking tab in the direction of the arrow and remove it from the vacuum cleaner (see Figure 21). 䡲 Insert the new HEPA filter and clip into place. If you have used the vacuum cleaner for fine dust particles, clean the motor protection filter by knocking out the dirt and, if necessary, replace the micro hygiene filter, active carbon filter or HEPA filter. Care Always switch off the vacuum cleaner and disconnect the power cord from the mains before cleaning the vacuum cleaner. The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

Do not use a scourer, glass-cleaning agent or all- purpose cleaning product. Never immerse the vacuum cleaner in water. The dust compartment can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or dusting brush. Subject to technical modifications. 23*

Optional accessories Replacement filter pack Filter type GXXL (VZ41AFGXXL) For best performance: GXXLplus (VZ41GXXLP) Contents: 4 filter bags with seal 1 micro-hygiene filter http://www .dust-bag-siemens.com Textile filter (permanent filter) VZ10TFG Reusable bag with Velcro fastener. HEPA filter (class H12) VZ152HFB Recommended for allergy sufferers. Ensures very clean exhaust air. Replace annually (see Figure 30). Micro active carbon filter VZ193MAF Combination of micro filter and active carbon filter. Combats unpleasant odours. Replace annually. TURBO UNIVERSAL

brush VZ102TBB All in one brushing and vacuuming of short-pile pile rugs and carpets and all hard floor cover- ings. Especially suitable for picking up pet hair. The brush roller is driven by the air flow through the vacuum cleaner. No separate electrical connection is needed. Hard-floor brush VZ123HD For vacuuming hard floors (parquet flooring, tiles, laminate, etc.) Washing brush VZ103WD Suitable for use on all hard floors, such as parquet, laminate, stone, wooden floorboards, tiles, etc. (test the moist cleaning cloths on an inconspicuous area before using on hard floors which require particular care).Removes large particles of dirt while the moist cleaning cloth cleans the floor at the same time.38
