USER MANUAL VS07G1466 SIEMENS

Congratulations on your purchase of a Siemens VS07 vacuum cleaner. This instruction manual describes various VS07 models, which means that some of the equipment features and functions described may not be available on your model. You should only use original Siemens accessories, which have been specially developed for your vacuum cleaner to achieve the best possible vacuuming results.

Please keep this instruction manual in a safe place. If you pass the vacuum cleaner on to someone else, please also pass on this instruction manual.

Intended use

This vacuum cleaner is intended for domestic use only, not for commercial use.

Only use this vacuum cleaner in accordance with the instructions in this instruction manual.

The manufacturer will not accept any responsibility for damage caused by improper use or incorrect operation.

Therefore, you must note the following points.

The vacuum cleaner must only be operated with:

Manufacturer's original dust bags
Manufacturer's original replacement parts, accessories or special accessories

Safety information

This vacuum cleaner complies with the generally accepted standards of technology and relevant safety regulations.
Always observe the information on

the rating plate when using the vacuum cleaner and connecting to the power supply.

• Never use the vacuum cleaner without a dust bag fitted. This can damage the appliance.
  Only allow children to use the vacuum cleaner under supervision.
  This appliance must not be used by children or persons with limited physical, sensory or mental abilities or with a lack of experience and knowledge (including children) unless they have been instructed in the use of the appliance by a responsible person.

The vacuum cleaner may not be used for:

■ cleaning persons or animals
vacuuming up:

• hazardous, sharp-edged, hot or red hot substances.

-damp or liquid substances
- highly flammable or explosive substances and gases
- ash, soot from tiled stoves and central heating systems
- toner dust from printers and copiers.

• Keep suction away from your head when using the handle, nozzles or pipe.

= > Risk of injury.

• Stand the appliance on a firm, secure surface when vacuuming.

• When vacuuming stairs, the appliance must always be lower down than you.
  In the following cases, stop using the appliance immediately and contact the after-sales service:

• if the mains connection cable is damaged.

• if you have accidentally vacuumed up some liquid or liquid has entered the inside of the appliance

• if the appliance has been dropped.

• Do not use the power cord to carry the vacuum cleaner.
  Fully extend the power cord when using the vacuum cleaner continuously for several hours.

• When disconnecting the appliance from the mains, pull on the plug, not the power cord.
• Do not pull the power cord around sharp corners or allow it to become trapped.
• Unplug the power cord from the mains before carrying out any work on the vacuum cleaner or its accessories.
• Do not use the vacuum cleaner if it is damaged. Unplug the power cord from the mains if a fault is detected.
• For safety reasons, only authorised after-sales service personnel are permitted to carry out repairs and fit replacement parts to the vacuum cleaner.
• Protect the vacuum cleaner from outside weather conditions, moisture and sources of heat.
  The vacuum cleaner is not suitable for use on building sites. Vacuuming up building rubble could damage the appliance.
• Switch off the appliance when it is not in use.
  At the end of its life, the appliance should be rendered unusable, then disposed of in an appropriate manner.
• Plastic bags and films must be kept out of the reach of children before disposal (risk of suffocation).
  do not pour any flammable substances or substances containing alcohol onto the filters (filter bag, motor protective filter, exhaust filter, etc.).

Disposal information

■ Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

Used vacuum cleaners

Used vacuum cleaners still contain many valuable materials. Therefore, please take your used vacuum cleaner to your retailer or recycling centre to be recycled. For current disposal methods, please enquire at your retailer or your local council.

Disposal of filters and dust bags

Filters and dust bags are made from environmentally friendly materials. As long as they do not contain substances that are not permitted to be disposed of in the household rubbish, you can dispose of them with your normal household rubbish.

Please note

The mains socket must be protected by at least a 10 amp fuse. If a fuse should blow when you switch on the appliance, this may be because other electrical appliances which have a high current draw are connected to the same power circuit.

To prevent the fuse from blowing, select the lowest power setting before switching the appliance on, and increase the power only once it is running.

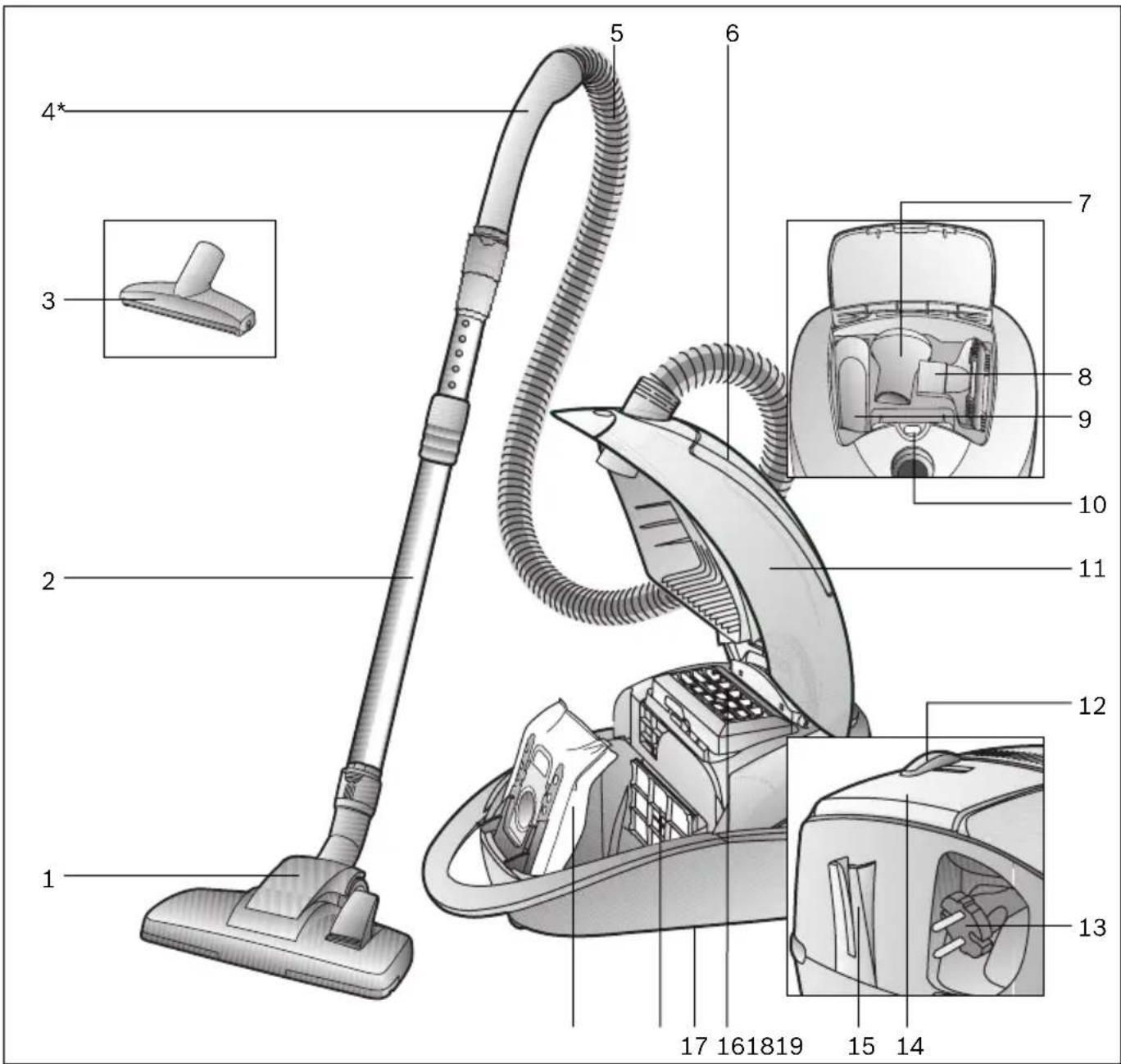

1 Adjustable floor tool with locking collar
2 Telescopic tube with adjusting sleeve and locking collar
3 Professional upholstery nozzle
4 Handle*
5 Flexible hose
6 Accessory compartment
7 Furniture brush
8Upholstery nozzle
9 Crevice nozzle
10 Dust bag change indicator

11 Cover
12 Electronic slide control
13 Power cord
14 ON/OFF button
15 Parking aid
16 Exhaust filter
17 Parking aid (on underside of unit)
18 Motor protection filter
19 Dust bag

*Depending on equipment

Before using for the first time

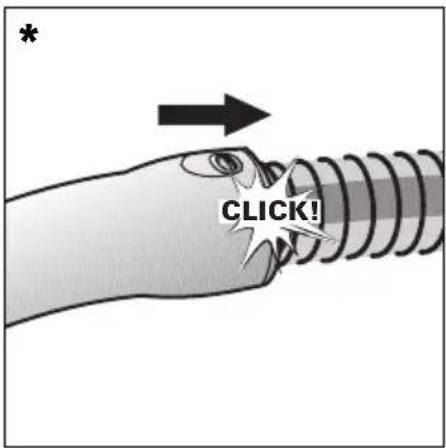

Push the handle onto the flexible hose until it engages.

*dependent on model

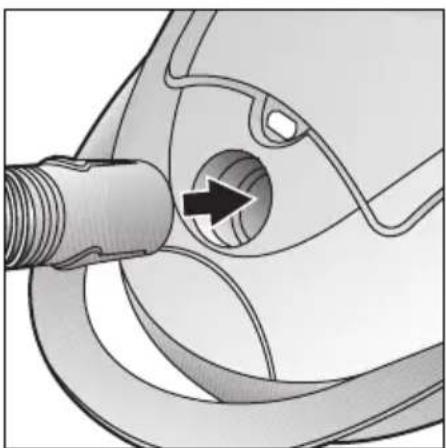

Insert the flexible hose connector into the opening on the vacuum cleaner until it engages.

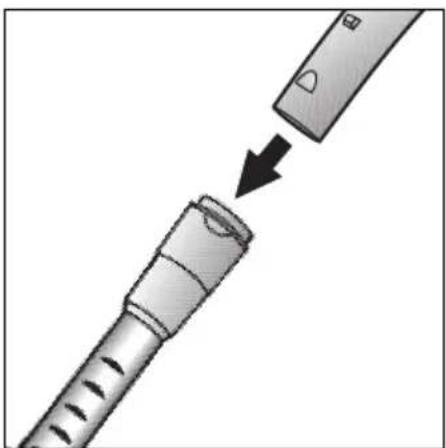

Push the handle into the telescopic tube until it engages.

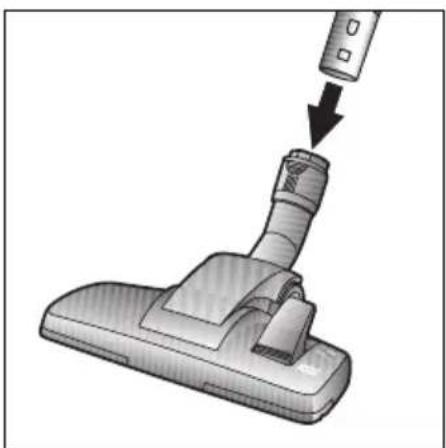

Push the telescopic tube straight into the connecting piece of the floor tool until it engages.

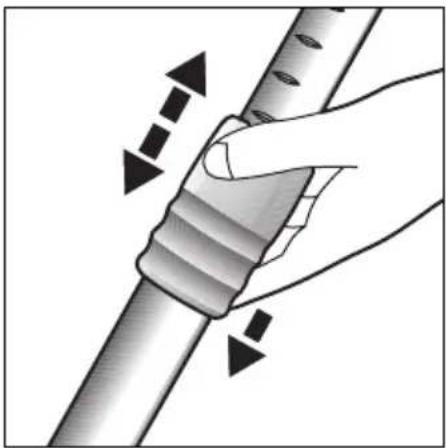

Move the adjusting sleeve in the direction of the arrow to release the telescopic tube and adjust it to the length required.

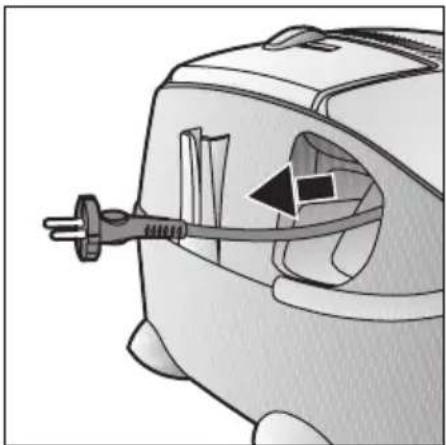

Take the mains plug, pull the power cord to the required length and insert the plug into a socket.

After continuous use of

30 minutes or more, completely disconnect the power cord from the power supply.

Risk of overheating and subsequent damage.

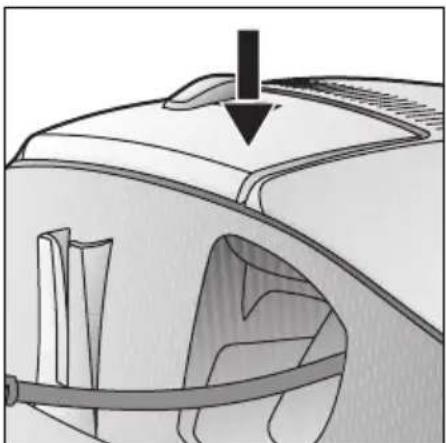

To switch your vacuum cleaner on, press the On/Off button in direction of arrow.

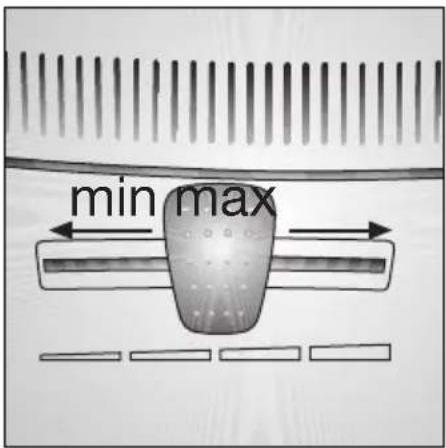

The required suction power can be selected infinitely variably by adjusting the slide control.

Lowest suction range: For vacuuming delicate fabrics, e.g. curtains.
Low suction range: For cleaning carpets and when there is little dirt.
Medium suction range: For vacuuming durable floor coverings, hard floors and for heavily soiled surfaces.
High suction range: : For vacuuming stubborn dirt and very heavily soiled surfaces.

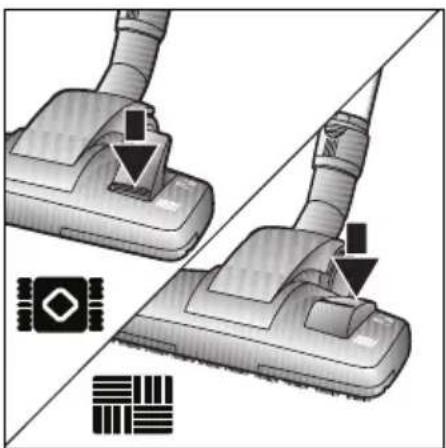

Adjusting the floor tool:

For vacuuming rugs and carpets
For vacuuming hard floors

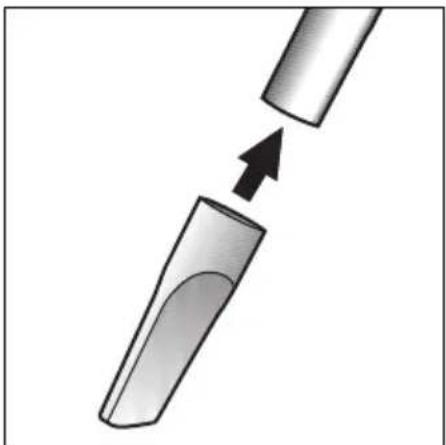

Vacuuming with accessories

(attach to handle or suction tube as required).

Please set your appliance to the medium suction range.

Crevicenozzle

For cleaning crevices and corners.

Upholstery nozzle

For cleaning upholstered furniture, curtains, etc.

When cleaning delicate materials, such as curtains, set the power to the lowest suction range.

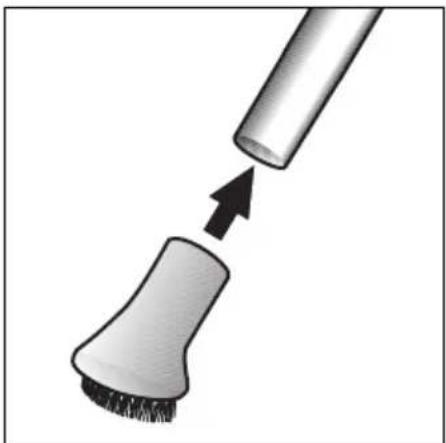

Furniture brush

For vacuuming picture frames, books, delicate furniture, etc.

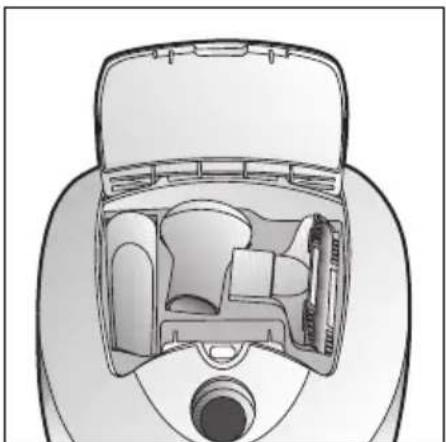

Small accessories that you do not need can be stored in the vacuum cleaner lid.

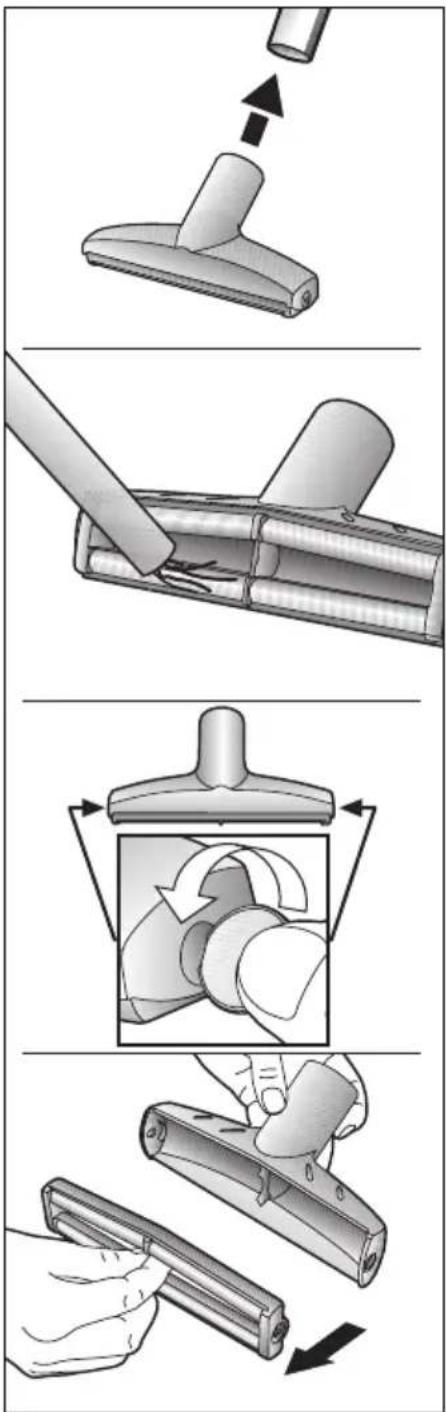

Professional upholstery nozzle

• For intensive cleaning of upholstered furniture (attach to the handle or suction tube as required).
  To clean the professional upholstery nozzle, simply vacuum it using the handle.
  If it is very dirty, the professional upholstery nozzle can also be opened up. To do this, turn the two screws on the sides of the nozzle (e.g. using a coin) and remove the inner part from the nozzle.
  After cleaning, replace the inner part (make sure it is correctly seated) and screw to the housing.

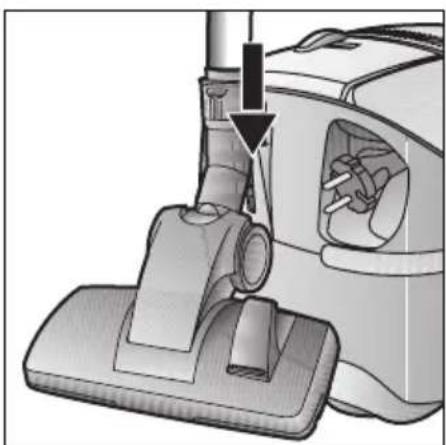

You can use the parking aid on the back of the appliance during short pauses in vacuuming after switching off the vacuum cleaner. To do this, slide the catch on the floor tool into the groove on the back of the appliance.

Unplug the vacuum cleaner.

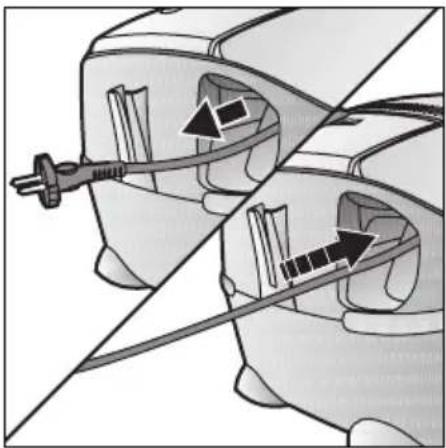

Tug the power cord briefly and then let go (the power cord retracts automatically).

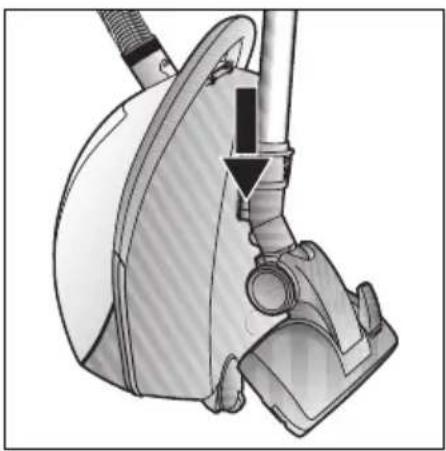

To store or transport the appliance, use the storage aid on the underside.

Stand the appliance up on its end. Slide the catch on the floor tool into the groove on the underside of the appliance.

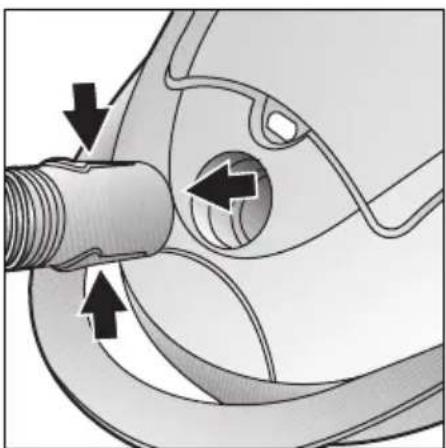

To remove the flexible hose, press the release button and pull the hose out.

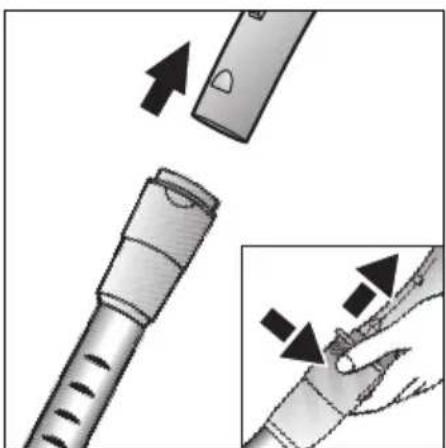

To release the connection, push on the locking collar and pull the handle out.

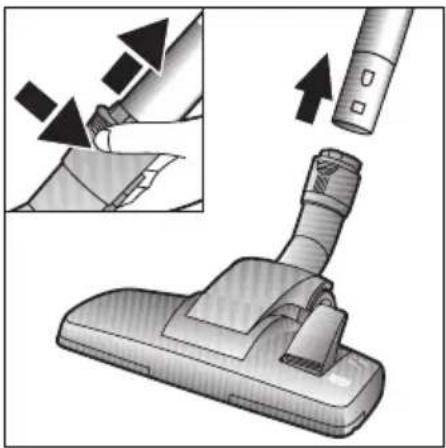

Push on the locking collar and pull out the telescopic tube to disconnect.

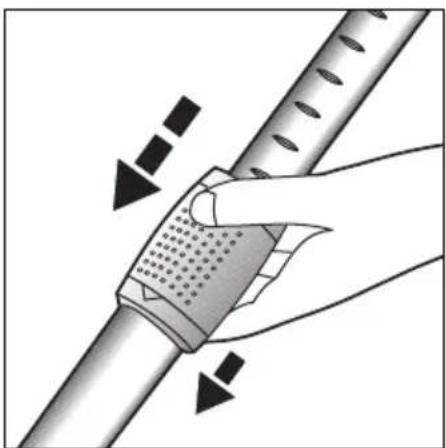

Press the adjusting sleeve in the direction of the arrow to release the telescopic tube and slide it together.

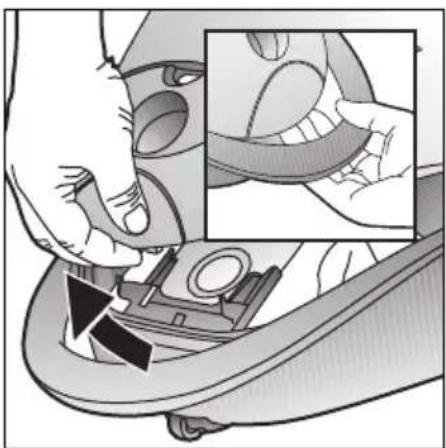

Replacing the dust bag

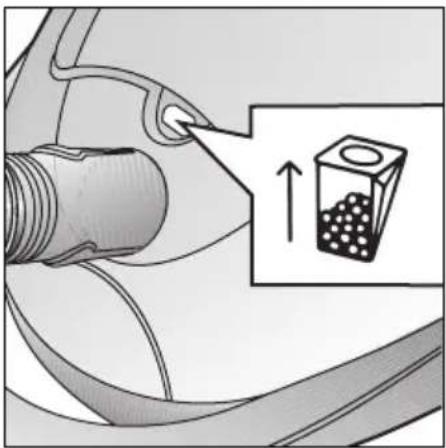

If the dust bag change indicator is completely yellow when the floor tool is lifted from the floor and the highest suction power is selected, the dust bag must be changed, even if it is not yet full. In this case it is essential to change the dust bag due to the type of material it contains.

First check that the nozzle, suction pipe and flexible hose are not blocked, as this would also lead to the dust bag change indicator being triggered.

Open the lid by moving the locking lever in the direction of the arrow.

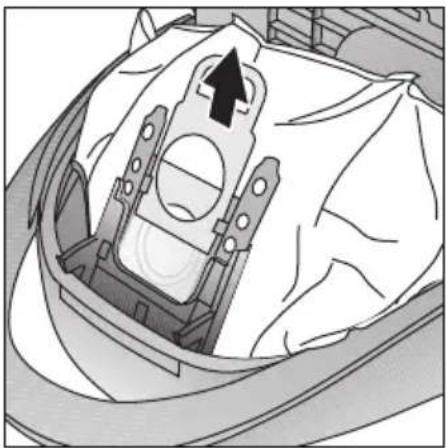

• Seal the dust bag by pulling the sealing strip and then remove it.

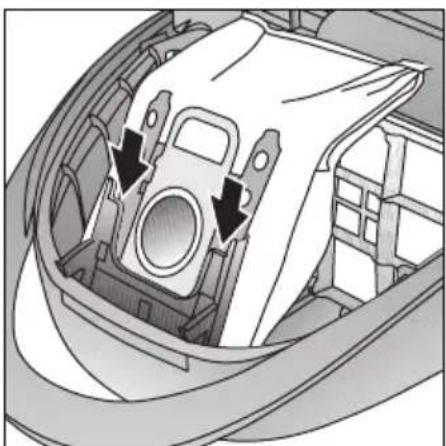

• Insert the new dust bag into the holder as far as the stop. As you do this, leave it folded up, as it is when removed from its packaging. Unfold the dust bag in the dust bag compartment as far as possible. When closing the dust bag compartment lid, make sure that the dust bag is not trapped.

Caution: the dust bag compartment lid will only close when the dust bag or textile dust bag is inserted.

If the dust bag change indicator is still lit after the dust bag has been changed, please check whether the nozzle, tube or flexible hose are blocked.

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly by tapping out the dirt or rinsing it out.

For hygiene reasons, however, we recommend that you replace the motor protection filter.

You can order a new filter from our after-sales service using the following replacement part number: 616268

• Open the dust bag compartment lid.

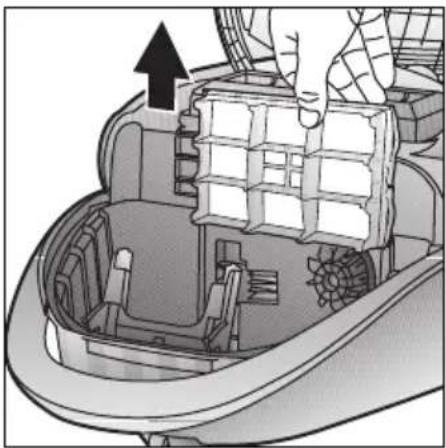

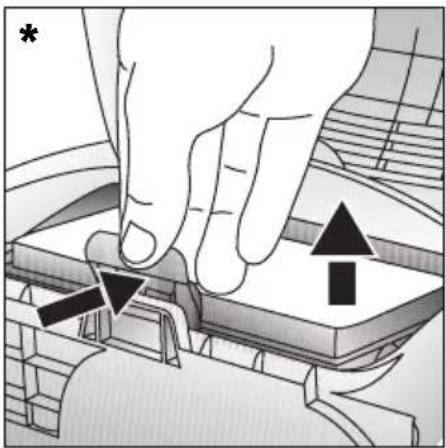

• Release the motor protection filter from the catch and pull it out in the direction of the arrow.

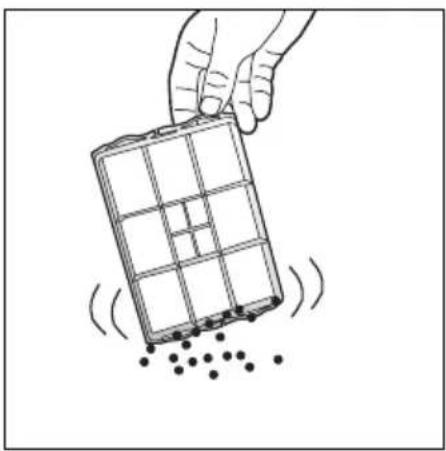

Clean the motor protection filter by tapping out the dirt.

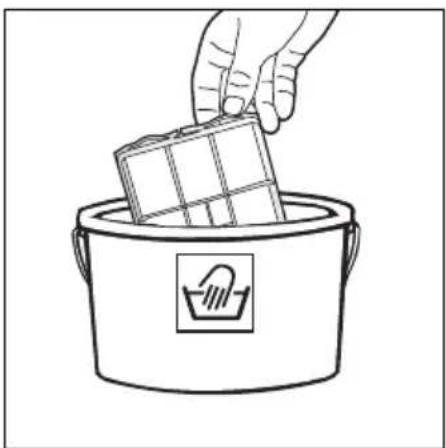

If it is very dirty, the motor protection filter should be rinsed.

The filter must then be left to dry for at least 24 hours.

After cleaning, refit the motor protection filter, clip into place and close the dust bag compartment lid.

Replacing the exhaust filter

You must replace the exhaust filter in your vacuum cleaner once a year.

Replacing the micro active carbon filter

• Open the dust bag compartment lid.
• Release the filter holder by moving the locking lever in the direction of the arrow.

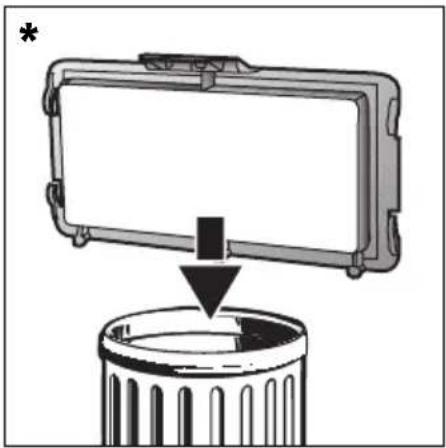

• Remove the micro active carbon filter.
• Insert the new micro active carbon filter into the vacuum cleaner and clip into place.

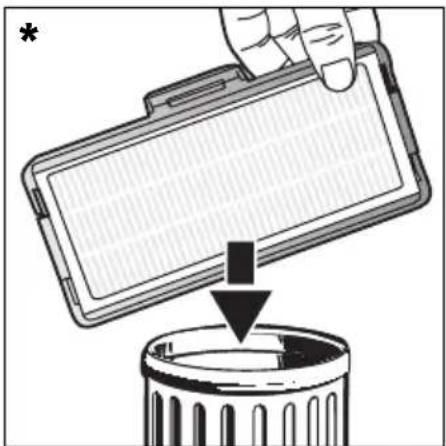

Replacing the HEPA filter

If your vacuum cleaner is equipped with a HEPA filter, this should be replaced once a year.

• Open the dust bag compartment lid.
• Unlock the HEPA filter by pushing the locking tab in the direction of the arrow and remove it from the vacuum cleaner.

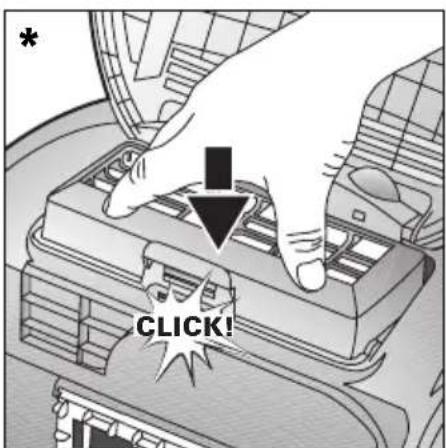

Insert the new HEPA filter and clip in place.

If you have used the vacuum cleaner to vacuum up fine dust particles, clean the motor protection filter by tapping out the dirt and, if necessary, replace the HEPA filter.

*dependent on model

• Always switch off the vacuum cleaner and disconnect from the mains before cleaning the appliance.
• The vacuum cleaner and plastic accessories can be cleaned with a commercial plastic cleaner.

- Do not use abrasive cleaning materials, glass cleaners or all-purpose cleaning agents. Never immerse the vacuum cleaner in water.

• The dust container can, if necessary, be cleaned with a second vacuum cleaner or simply wiped with a dry cloth or duster.

Subject to technical modifications.

Optional extra en

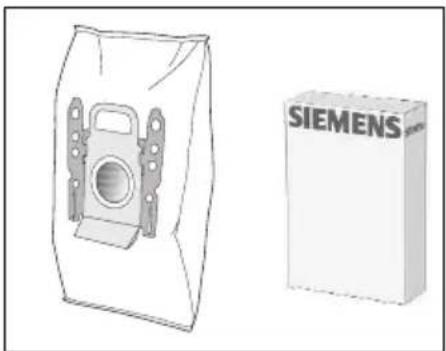

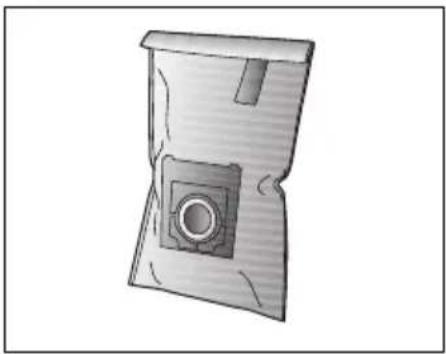

Replacement filter pack

Filter type GXXL (VZ41AFGXXL)
For best performance: GXXLplus (VZ41GXXLP)

Contents: 4 filter bags with seal

1 micro-hygiene filter

http://www.dust-bag-siemens.com

Textile bag (permanent bag) VZ10TFG

Reusable bag with Velcro(R) fastener.

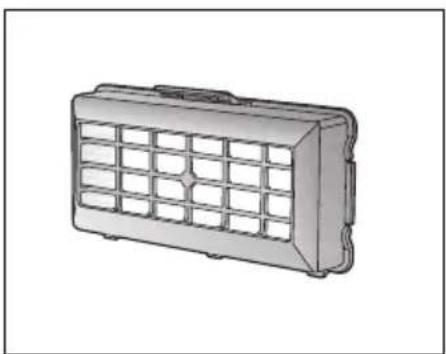

HEPA filter (Class H12) VZ152HFB

Recommended for allergy sufferers. Ensures very clean exhaust air.

Replace annually.

Micro active carbon filter VZ193MAF

Combination of micro filter and active carbon filter. Combats unpleasant odours. Replace annually.

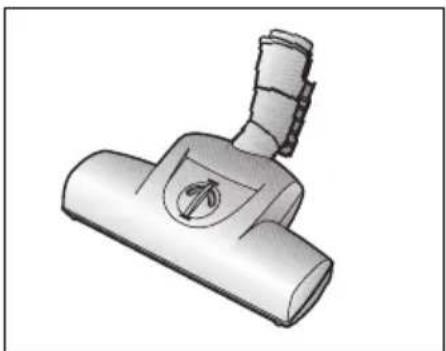

TURBO-UNIVERSAL brush VZ102TBB

All in one brushing and vacuuming of shallow pile rugs and carpets and all hard floor coverings. Especially suitable for picking up pet hair. The brush roller is driven by the suction of the air flow. No separate electrical connection is needed.

Sac textile (permanent) VZ10TFG
