USER MANUAL Fun Executive Zipy

Auquel se réfère cette déclaration sous les normes suivantes : EN55022:2006+A1:2007 EN55013:2001+A1:2003+A2:2006 EN61000-3-2:2006+A1:2009+A2:209 EN61000-3-3:2008 EN55024:1998+A1:2001+A2:2003 EN55020:2007 EN300 328 V1,7,1:2006 EN301-489-1 V1,8,1:2008 EN301-489-7 V1,3,1:2005 EN301-489-24 V1,5,1:2010 EN62311:2008 EN60950-1:2006+A11:2009 En accord avec les dispositions de la Directive 99/05/CE, du Parlement Européen et du Conseil du 9 mars 1999, transposéàla législation espagnole àtravers le Décret Royal 1890/2000 du 20 novembre Lieu et date d’émission Signépar : Miguel Fauro 13 avril 2011Ú«² Û¨»½«¬·ª» ß²¼®±·¼ Ì¿¾´»¬1 Safety Precautions Do not subject the device to severe impact or drop it from heights. Do not use the device in extreme hot or cold, dusty or damp conditions. Do not expose it to direct sunlight. Avoid using the device near strong magnetic fields. Keep the device away from water and other liquids. In the event that water or other liquids enter the device, power off the product immediately and clean the device. Do not use chemicals to clean the device in order to av oid corrosion. Clean it with a dry cloth. We are not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement. Do not attempt to disassemble, repair or modify the product. This will invalidate the warranty. If the device will not be used for an extended period of time, please charge the batte ry at lea st once per month to maintain batte ry life. Charge the battery if: a) The battery level icon displays (An empty batter y) b) The device powers off automatically when restarted. c) There is no response when pressing keys with keys unlocked and battery full. When the device is being formatted or transferring a file, do not interrupt the connection. Otherwise, data may be corrupted of lost. When the device is used as a portable HD, please use only per the instructions. Otherwise, permanent data loss could occur. Please use and install data using the attachme nts/accessories provided and only according to the manufacturer’s instruction. Please refer to the information on the bottom of the device for electrical and safety information before installing data or operating the device. To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device should not be exposed to dripping or splashing. Never place objects filled with liquids, such as vases, on the device. There is danger of explosion if the batte ry is replaced incorrectly. Replac e only with the same or equivalent type. The battery (battery or batteries or battery pack) should not be exposed to excessive heat such as sunlight, fire or the like. Please follow responsible procedures for battery disposal. If the power adaptor is disconnected f rom the device, the device will remain2 operable as long as the battery has sufficient charge. The power adaptor is a CLASS II apparatus with double insulation, and no exter nal ground is provided. Safety symbol explanation: -The lightning flas h with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -To reduce the risk of electric shock, do not remove the cover (or back) as there are no user-servic eable parts inside. Refer servicing to qualified personnel. -The exclamation point within an equilateral tri angle is int ended to alert the user to the presence of important operating and maintenance instructions in the literature accom panying the device.

• Correct Disposal of this pro duct. This marking indicates that this product should not be dispo sed of with other household waste in the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To dispose of your used device, please use the return and collection systems available in your area or contact the retailer where the product was purchased. They c an take t his product for safe environmental recycling. Do not leave the d evice on in a confined s pace such as a book case or similar. The ventilation should not be impeded by covering the venti lation openings with items such as newspaper, table-cloths, curtains, etc. No open flames, such as lighted candles, should be plac ed on the device. Use the device in moderate climates.3 Listening Cautions Do not listen to your earph ones or headphon es at a high volume. Hearing expert advice against continuous extended play. Excess ive volume through earphones and headphones can cause hearing loss. If you experience a ringing in your ears, reduce volume or discontinue use. Do not use while operating a motorized vehicle. It may create a traffic hazard and is illegal in many areas. You should use extreme caution or temporarily discontinue use in potentially hazardous situations create d by obstructed hearing. Even if your headphones or earphones are the open-air type designed to let you hear outside sounds, don’t turn up the volume so high that you can’t hear what’s around you. Sound can be deceiving. Over t ime your hearing “comfort level” adapts to higher volume s of sound. What sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting the volume of your device at a safe level BEFORE your hearing adapts. To establish a safe volume level: a. Start your volume control at a low setting. b. Slowly increase the sound until you can hear it comfortab ly and clearly, and without distortion. Once you have established a comf ortable so und level, leave it there. This m anual may not reflect your actual device’s operation. All information is subject to change without prior notification. Please follow your actual device’s operational procedures.4 Table of Content Safety Precautions p. 1
• Listening Cautions p. 3
• Feature Summary p. 5
• Accessories p. 5
• Buttons & Ports p. 5
• Charging Battery p. 6
• Transferring Files p. 6
• Turning On/Off p. 7
• Home Screen p. 7
• Accessing Internet p. 9

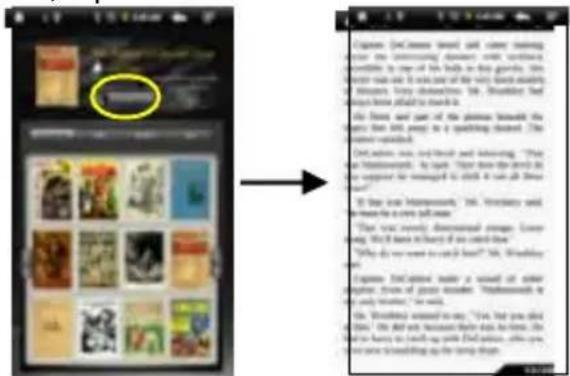

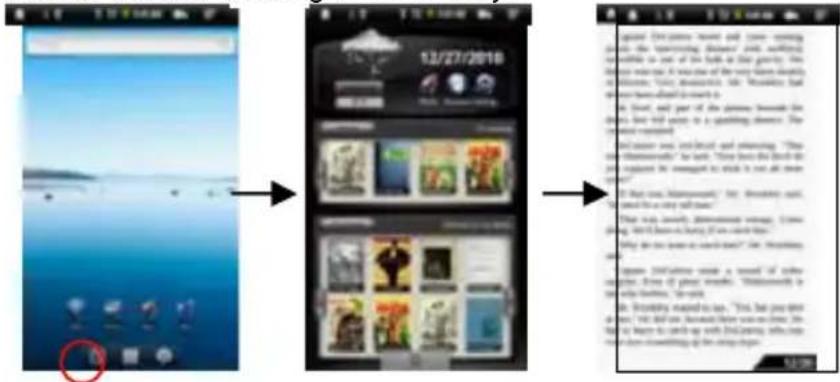

• Reading E-Books p. 12
• Playing Music p. 15

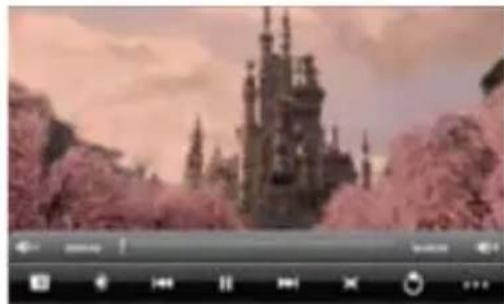

• Playing Video p. 18

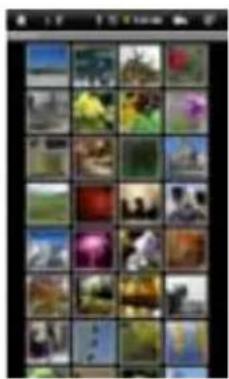

• Viewing Photos p. 20
• Take Handwritten Notes p. 20
• File Explorer p. 24
• Voice Recording p. 26
• Sending/receiving E-mails p. 26
• Manage Third-party Applications p. 28
• System Settings p. 29
• Troubleshooting p. 31
• Specifications Feature Summary 7.0” Touch Screen Touch or sl ide your finger on the screen, the screen responds instantly. Wi-Fi /3G Connectivity With the built-in Wi-Fi technology or an external 3G card, this device can connect you to the Internet wherever you are. Ink Compatibility With the built-in ultrasound and infrared technologies and a digital pen, you can take handwritten notes or drawings on the device. Third-party Application Support With the built-in Android p. 315

OS, you can install a lar ge n umber of third-party applications in the device. Built-in G-sensor The screen changes to landscape or portrait automatically when the device rotates . Entertainment You ca n enjoy music, movies, pictures and e-books with the Mobile Tablet. Accessories USB Cable Ink Refill Notebook Buttons & Ports Front View Top View

a. Charge indicator b. Touch Screen c. Home – Go to the Home Screen. d. Menu – Display menu options. e. ESC – Return to the previous screen or directory. f. Built-in Speakers g. Power Button – press and hold to turn on or off the device; briefly press to turn the screen on or off. h. USB Port – connects to a comp uter through the USB cable.

i. DC-IN port – connects to any standard electric

source through the provided AC adaptor.

Power Adaptor User Manual Refill Extractor Pen Batteries (2)6 Rear View Charging Battery The device has a built-in rechargeable battery. No extra battery installation is required. Just charge the device when it indicates low battery. You are strongly recommended to charge the battery immediately when the device indicates the battery is lower than 15%! To charge the battery, connect the device to any standard wall outlet via the DC-IN port through the power adaptor. It takes about 5 hours to fully charge the battery. Note: a. You can operate the device even when it is being charged. But for extended battery life, it is suggested NOT to use the device when it is charging. b. It is recommended to charge the battery before you use the device for the first time. c. For maximum performance, lithium-ion batteries need to be used often. If you don’t use the device often, be sure to recharge the battery at least once per month. Transferring Files Before reading or playing files, you need to transfer media files from a computer to the device. (1) Connect the device to a computer with the supplied USB cable. (2) Once connected, two removable disk drives will show on your computer. One represents the internal memory of the device, and the other represents the memory card inserted into the device. Now you can copy files from or to these disk drives just as you would on your hard drive. (3) Once the data transfer completes, drag from the top bar downwards to display the USB notification message as shown. (4) Choose “Turn off USB Storage”and then tap “Turn Off”to disconnect the device Drag downwards

j.Ultrasound and Infrared Sensor – capture handwritten notes or drawings. k.Reset pin hole –reset your device if the device freezes. l.SD /3G Card Slot –accommodates SD memory card. m.Earphone Port – connects to stereo earphones.

from computer. (5) Disconnect the device from the PC safely. a)Left-click the icon at the right bottom corner of the computer desktop. b)Click the pop-up mini-window message of “Stop the USB Mass Storage Device –Drive (X).” c)Disconnect the device from the computer. Note: The pre-installed applications and Android OS occupy a considerable part of capacity – nearly more than 1GB, it is normal that you see huge difference between available memory space and total capacity. Turning On/Off To turn on the device, press and hold the Power button on the unit until you see the boot-up screen then release. It may take a few minutes to start up the system, please wait before you proceed. To turn off the device, press and hold the Power button until you see the option “Power Off”, tap on “Power Off”and then tap on “OK”. Tip: This device will sleep with the screen off if it stays inactive for a few seconds. You can briefly press the Power button to turn on the screen and wake it up. Home Screen a b c d e f g

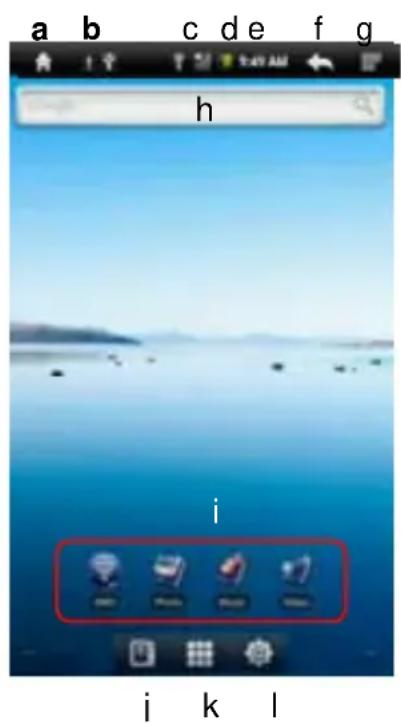

Music Player, Video Player j. EbookReader –Shortcut to Ebook Reader Page. k. Applications –Shortcut to Application Page. l. System –Shortcut to System Settings.8 How to use the Touch Screen When watching a video or listening to music, you can tap the progression bar to go direc tly to a different location in the video or song. In the fi le explorer (File, Music, Video, Photo, etc.), you can drag your finger up and down to scroll the file list up and down. Customize the Home Screen You can cust omize the Home Screen by adding/removing shortcuts and wi dgets, changing the wallpaper. To add a Home Screen item (shortcuts, widg ets, folders etc.), tap on the Menu icon and then select “Add” . You can also hold your finger on the screen and then choose an item from t he list. You can add a folder onto the Home Screen by holding your finger on the screen and then choose Folders New Folder. You can drag shortcuts or widgets to the folder. To rename the folder, a) tap to open the folder, b) hold your fi nger on the title bar of the opened folder unti l the Rename window pops up, c) input folder name. To move a Home Screen item, hold your finger onto it until it is highlighted, then drag it to the desired location, and release it. To remove a Home Screen item, hold your f inger onto it until it is highlighted, drag it to the recycl e bin which turns from the Application Tab, and then release your finger. To change the wallpaper, from the Home Screen, tap on the Menu icon , a list of options appears. Tap on “Wallpaper” and then choose a picture as the desktop wallpaper. To change the System Settings, from the Home Screen, tap on the Menu icon , and then tap on “Settings” . Choose a category: “Wireless & Networks”, “Sound & Display”, “Date & Time”, etc. For more i nformation on the different settings, see the System Settings section. Display all Applications The device supports most of popular third-party applications. It has many useful applications pre-installed, such as mus ic player, video player, photo viewer, alarm clock,calculator,etc.Furthermore,youcanaddmoreapplicationstothedevicebyinstal ling them manually. To display all app lications installed on your device, tap the Application Tab

Accessing Internet Your Tablet features built-in Wi-Fi/3G(optional) technology that allows you to access Internet. First of all, you need to configure a Wi -Fi/3G(optional) network. For the Wi-Fi configuration procedure to work, you need to be in a Wi-Fi zone that will allow you t o connect to it. Every time your Tablet is in range of a network that you have already configured once, it will attem pt to make a connection. Making WIFI Connection (1) In the Home screen, tap on the WiFi icon. (2) Tap on the “Wi-Fi” setting to turn on the Wi-Fi. (3) Tap the “Wi-Fi settings”, your Tablet will scan automatically for available WiFi networks and display them. The list of availab le networks shows all the wireless net works in range of your device. Note:a) The available network list is constantly refreshed automatically.b) When the Wi-Fi is enabled, your Tablet will connect automatically to your configured networkswhen they are in range. c) If your Tablet finds a network that has never been configured, it will display a notification icon. (4) Tap on the network you want to connect to, enter the required network information (password) and then tap on “Connect”. Your Tablet will now attempt to establish a connection to that WiFi hot spot with the network param eters you entered. If the connection is succ essful, the message Connected to XXX will appear under the WIFI setting. Advanced Connection To manually scan for available Wi-Fi networks, in the “Wi-Fi settings” screen, tap the Menu icon , and then tap “Scan.”10 If the Wi-Fi network you want to connect to does not appear in the list, scroll down the screen, and then tap “Add a Wi-Fi network.” Enter the required information, and then tap “Save.” To set up IP address manually, tap the Menu icon , tap “Advanced” and then input all required network parameters (“Regulatory domain,” “IP address,” etc). You can obtain these parameters from the network administrat or. Mak ing 3G Network Co nnection (1) Go on the Home screen, tap on the Menu icon and then select “Settin gs”. (2) In the “Settings” screen, select “Wireless & Networks”. (3) If the 3G network is off, tap on “Mobile Network” to turn it on. (4) Optionally, you can set up the Access P oint manually by a) selecting “Mobile network Settings”; b) selecting “Access Point Names”; c) pressing MENU button to edit the APN; d) selecting “New APN”; e) filling in all required parameters. APN, MCC, MNC, Dial-up and APN type are neces sary; f) tapp ing to save your settings. Launching the Web browser Tap the Applications icon to d isplay all applications, and then tap the Browser icon to launch the Web browser. If you are already connected to a network, the Web browser will simply open and you can start browsing the Web. To access a new websit e, tap the Menu icon to display the menu, and then select “Go” to input another address. Note:Not allwirelessnetworks offeracces s totheInternet.SomeWi-Finetworksonlylinkseveral computers together, without any Internet connection. Using the Virtual Keyboard Tapping on any t ext input field can open the virtual board. With the virtual keyboard, you can enter a website add ress or any text required. Indications Selecting Input Method If y ou have installed more than one input method in this device, you can select one meth od by a) holding t he button until the Android keyboard settings appear; b) choosing “Input Method” and then choosing your desi red one. a. Caps Lock b. Backspace. c. Number and Characters /Letter Keyboard Switch . d. Space e. Enter

e11 Using the Web Browser You can scroll the screen up and down by tapping on the page and dragging it up or down (be careful not to tap a link until you are ready!). To open a link, simply tap it. You can open several web pages at a time, view them all at once on the screen, and then tap one of them to view it in full screen. To go back to the previous page that you browsed, tap the Back icon . To display the available menu items, tap the Menu icon . To go back directly to the Home screen, tap the Home icon . Depending on where you are in the web browser, holding down on an item will give you access to more options. To fill in a text field, tap in the field, then use the virtual keyboard to type in the required text. Web Browser Menu Items When you are viewing a page, you can tap the menu icon to display the menu items. New window Allows you to open new windows. Bookmarks Will open the “Bookmarks”manager. You will see three tabs: “Bookmarks,”“Most visited,”and “History.” “Bookmarks”shows you a list of bookmarks. Just tap one of them to open it in the current window. Holding down a bookmark will give you access to several options (you will be able to edit it, rename it, delete it, etc.). You can also use the Menu icon which will allow you to bookmark the last-viewed page. “Most visited”and “History”allow you to access your “Most visited” sites and your visit history. In the “History”tab, the Menu icon allows you to clear the history. Refresh/ Stop “Stop”willstoploadingthewebpage,ifitiscurrentlyloading.“Refresh” will refresh the current web page, if it has stopped loading. Windows When youhave several windowscurrentlyopened, tap“Windows”to displaythemallatonceonthescreen.Justtaponeofthesmallwindows toviewitinfullscreen,ortaptheCloseiconinthesmallwindowtoclose the window. Forward Will go to the next page that you browsed. More Willgiveyouaccesstootheroptions(“Findonpage,”“Selecttext,”“Page info,”“Downloads,”“Settings”etc.).12 Reading E-Books Start Reading (1)In the Home Screen, tap the E-book Reader shortcut to enter the e-book reader mode. (2)Tap an e-book to start reading immediately. Tip: Tapping on the Left Arrow or Right Arrow can scroll left or right though the e-books. Note: a. Make sure your e-books are in format of PDF, EPUB, TXT, FB2, RTF or PDB supported by the device. b. E-book cover will show as defaulted cover by the device if the e-book has no cover data. That’s why you see some e-book covers are the same. History and My Library You can tap “History”to view your reading history or tap “My Library”to enter the e-book library. “History”shows all of the e-books that you have read by date. “My Library”shows all of e-books stored in the device. View e-book Information In the history or e-book library, you can view information about an e-book before you start reading it. Tap an e-book, and the book name; author or publication year of the e-book should display at the top screen.13 Sort e-books In the history or e-book library, you can sort e-books by title, author or file size by tapping on Title, Author or Size. Start Reading To start reading an e-book, tap “Continue Read”. Page Up/Down When you are reading the e-book, you can slide your finger on the screen left and right OR press the PREVIOUS/NEXT buttons on the device to page up or down. Increase Font Size (1)When you are reading, tap the Menu icon to display e-book settings. (2)Tap “Font Size”to adjust the font size. (3)Tap a size that you want, and then tap “OK”to confirm. Jump to a Page You can directly go to a page that you have specified. (1)When you are reading, tap the Menu icon to display e-book settings. (2)Tap “Go to”. (3)Tap the page number input field to display the virtual keyboard. (4)Tap the numbers to input the page number. (5)Once you finish inputting the page number, tap “OK”to jump to the specified page.14 Use Bookmarks You can add, delete or load bookmarks on the page. (1 )When you are reading, tap the Menu icon to display e-book settings. (2 )Tap “Bookmarks” to display a bookmark menu .Use the menu to add, delete or display bookmarks. Show Outline of the e-book You can view the outline of the e-book and then choose your desired chapter or section to read. (1 )When you are reading, tap on the Menu icon to display e-book settings. (2 )Tap on “TOC” to display the outline of the e-book, and then tap the chapter that you want to read. Downl oad ebooks with the Adobe Digital Edition Once you have purc hased ebooks online, you need to transfer them to your Tablet using the Adobe Digital Editions software which allows you to view and manage e-books protected by DRM license. To transfer DRM-protected e-books,

1. Access the website http://www.adobe.com/products/digitaleditions/, and then

install the Adobe Digital Edition soft ware following the instructions online.

2. Authorize your computer with your Adobe ID and Password.

3. Activate your Tablet.

Connect your Tablet to computer with the USB cable and start up the Adobe Digital Edit ions. Click “Authorize Device” to authorize your Tablet. The Adobe ID can be used only for six times. It should expire after 6 tries of authorizing device. Later on, yo u need to delete the expired ID by pressing CTRL+SHIFT+D on t he computer keyboard or using the Erase Activation Record setting on the device and15 the n get a new one. The device remembers the ebooks downloaded with the latest Adobe ID only, and will overwrite the eBooks downloaded with the previous Adobe ID.

4. Download DRM-protected PDF files to your computer.

Access the In ternet and search for e-books, choose your favorite e-books and download them. If the e-book is protected by DRM, you should be prompted by DRM license information. Click “Open” to start downloading the DRM-protected e-book.

5. Click “Purchase”, and then you should see your downloaded e-book at the right

pane l of the Adobe Digital Editions user interface.

6. Connect your Tablet to the computer with the USB cable, and the Adobe Digital

Editions should recognize your Tablet.

7. Click “Purchase” to see your downloaded e-book and t hen drag it to your Tablet.

Playing Music In the Home Screen, tap the Music icon to enter the music player mode. Optionally, you can tap the Applications shortcut to display all applications and then tap the Music icon to enter the music mode.16 Music Library You should enter the music library once you start the music player. The Music Library shows your music files sorted by categories (Artist, Album, Genre, etc.) if your music files contain these song information tags. If some of your music files do not contain information tags, they will be classified as (Unknown) in the Music Library. When new music is copied to the device, the Music Library will be updated automatically. You can drag your finger up and down on the file list to scroll through the list. Tap a track to play a track. To return to the Home Screen, tap / / . Music Library Menu Once you enter the music library, you should see the toolbar at the bottom of the screen. Tap and hold your finger on the icon and you should see its name. All Music List all music files. Internet Search Allows you to search for a specific song on the Internet byenteringafewlettersorawordanddownloadthesong from the Internet. Artist List music files by artist. Album List music files by album. Genre List music files by genre. Playlist Display playlists. Directory Browsing Navigate through music files and folders stored in the internal memory and memory card. Enter Play Interface Go to the Now Playing screen. Return Return to Home Screen. Search for Tracks You can search for tracks in the internal memory or memory card by inputting a few key words. (1)In the music library, tap the Directory Browsing icon in the menu. (2)Choose the memory where you want to search for tracks. (3)Tap the Search icon , and then input a few key words of the track. (4)Tap to start searching. The track should be listed if found.17 Sort Tracks/Folders You can sort all tracks/folders by their leading letters in order from A to Z, the creation time of the track/folder, the file size or the file type. (1)In the music library, tap the Directory Browsing icon in the menu. (2)Choose the memory device to be sorted. (3)Tap the Sort icon (by file size) / (by file type) / (by leading letter)/ (by creation time) to sort the tracks/folders stored in the selected memory device. Set EQ Mode Manually When you are listening to the music, tap the Menu icon which allows you to customize your equalizer setting. This device features a 7-band equalizer. (1)Select a band and then drag your finger up/ down on the band to change the gain level for the frequency range. (2)Tap “Save Effect”to confirm or tap to return. Playback Screen Slideyourfingerverticallyonthescreenor rolltheSCROLL button to browse through the music list. Tap on the track or press the SCROLL button to play it. To pause/resume the song, tap on the Pause / Play icon. To play the previous/next song, tap on / . Youcantapontheprogressionbartogodirectlytoadifferent location in the song. You can also drag the cursor in the progression bar to another location in the song. Tap on / to adjust the volume. To change the EQ mode, tap on “EQ”. To play the specified section from A to B, tap on “A-B”. To change the repeat mode, tap on . To add current track to playlist, tap on . To display lyric/ID3 information, tap on . To define the equalizer mode manually, tap on . Tapping continuously on the ID3 information tag will search for the information about the track from the Internet. To go back to the music library, tap on . To go back directly to the Home screen, tap on the Home icon or Return icon .18 Playlist A playlist is a lis t of audio tracks that the music player will autom atically play one after the other. On your Tablet, you can play, create and edit as many playlists as you want. Create a Playlist (1 ) Whil e you are in the music l ist, select the Playlist menu item “ ”, a playlist panel will o pen. You can now start modifying the playlist. (2 ) Tap on the New Playlist icon to create a new playlist. (3 ) Tap on the Edit icon beside the playlist name to add songs to the playlist. (4 ) Tap on the songs you would like to add to your playlist. A check m ark “ ”should appe ar before the song if select ed. (5) When you are satisfied with your new playlist, tap on the “ ” icon to save the playlist. Edit a Playlist You can add track to or delete track from the playlist. (1) I n the Music Library, tap on the Playlist icon to dis play the playlists. (2) Tap on the icon beside the playlist that y ou want to edit. You can now add tracks to or delete tracks from the playlist. (3) Tap on the son gs you would like to add or delete, a check mark should appear or disappear before the song. The song with check mark will be added to the playl ist, while the song without check mark will be deleted from the playlist. (4) When you are satisfied with your playlist, tap on the icon t o sav e the playlist. Delete a Playlist To delete an existing playlist, (1) I n the Music Library, tap on the Playlist icon to dis play the playlists. (2) Tap on the icon beside the playlist that you want to delete, and then the playlist will be delete d. Note: You can not delete the Recently Played playlist since a track is playing. Playing a Playlist (1) I n the Music Library, tap on the Playlist icon to dis play the playlists. (2) Tap on a playlist to open it. A panel showing the conte nts of the playlist will open. (3) Tap on the first item in the playlist to start playing from t he first track. Playing Video Tap on the Application Tab to display all applications, and then select “Video Player” to enter the video mode.19 Navigate through Video Files You should see the video list when you enter the video player. You can drag your finger up and down on the video list to scroll the video list up and down. Tap on a video to start playing. You can go back directly to the Home screen by tapping on the Return icon or Home icon . Playback Screen Tap on the / icon to pause/resume the video, Tap on “ ”to display the menu items. Tap on the progression bar to go directly to adifferentlocationinthevideo.Youcanalso use your finger to drag the cursor in the progression bar to another location in the video. Tap on / to adjust the volume. Tapon “ ”toseta bookmarkatthecurrentspotinthevideo. Please note only one bookmark can be set for one video, and the new bookmark should cover the old one. To resume playing a video from the bookmark, go to the Home Screen, enter theVideoPlayer,andtaponthebookmarkedvideo.Youshouldbepromptedto“Play frombeginning”and“Playfrom bookmark”.Select“Playfrom bookmark”.Indefault, the video plays from beginning. To remove the bookmark, tap on “ ”to display the menu, and then choose “Delete Bookmark”. Tap on to adjust the brightness of screen. Tap on / to play the previous or next video. Tap on to change the aspect ratio of screen. Tap on to stop playing and return the video list. Video Playback Settings Tap on the icon to display the video settings. Play from beginning(this will delete bookmark) Delete bookmark and play from beginning. Delete Bookmark Delete the video bookmark. Help Get instructions on playing video. Play Mode Single –plays the current video and then stops after playing. Repeat One –Repeat the current video.20 Repeat All –Repeat all videos. Return Return Exit from the menu. Viewing Photos Tap on the Application Tab to display all applications, and then select “Photo Browser”to enter the photo mode. Photo Thumbnails The first screen of the Photo mode shows all the photos and subfolders located in your Tablet or memory card in thumbnails. To view a photo, tap on its thumbnail to open it. If a photo is in a subfolder, open the subfolder, and you will see your photo. Viewing Photo When you are viewing picture, you can tap on the screen to show a floating toolbar atthebottomofthe screen. Tostart/pauseaslideshow,tapontheSlideshow icon . To display the previous/next picture, tap on the left / right arrow beside the picture. To rotate the picture 90°counterclockwise, tap on the Rotate Lefticon . To rotate the picture 90°clockwise, tap on the Rotate Right icon . To magnify the current picture, tap on the Zoom In icon . When the picture is enlarged, you can drag the picture vertically or horizontally to move the picture. To decrease the picture size, tap on the Zoom Out icon . To set brightness of the screen, tap on . To display the available menu items, tap on the Setting icon . To go back to the photo browser, tap on the Back icon . Take Handwritten Notes The Tablet consists of a digital pen and a built-in receiving unit which combines ultrasound and infrared technologies to enable an accurate tracking and positioning system that tracks the movement of the pen tip on any surface and converts the movement into a vector image of the user’s handwriting, so that you can write notes or make drawings directly on the device.21 Installing Pen Batteries a. Remove the battery compartment cover. b. Install two SR41 batteries, with the positive poles facing up as shown (Use the enclosed SR41 batteries). c. Replace battery compartment cover.

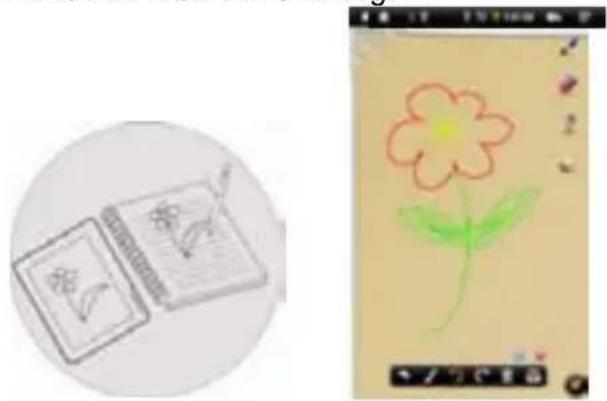

Do not attempt to open the pen. This may cause the pen to malfunction. Installing Ink Refill 1.Slide the new refill into the tip of the pen. 2.Gently press the new refill until it is lodged securely in place. Note: Be sure to use the provided ink refill or refill with similar standard. To replace the ink refill, 1.Detach the cap from the digital pen. 2.Clamp the ink refill with the refill extractor. Hold the pen firmly, and apply pressure with the extractor against it. 3.Pull the used refill out. Writing Correctly When you pick up the pen, find a position that is comfortable for you. Hold the pen firmly and write normally. When you are writing with the pen, make sure its inclination to the paper surface is between 45°and 90°. Note: Be careful to hold the pen in a way that does not block the signals sent from the tip of the pen to the Tablet. Create New Note (1)Choose the iNote icon from applications to run the application. (2)Tap the Pen icon to open the drawing board and start drawing or writing.22 (3)Tap the Pen icon , and then set up the pen width and color. (4)Lay out the Tablet flat on the surface, pick up the pen and find a position that is comfortable for you, and then start writing on the notepad. Also, you can slide your finger on the screen to make drawings. Be careful NOT to block signals sent from the tip of the pen to the Tablet. Tapping can undo or redo the drawing. (5)After you have done, click to exit and save your note. Select “SD Card”to save your note to memory card or select “Internal Memory”to save your note the internal memory of the device. View Note You should see a list of notes when you start up the iNote application. You can tap a note to view it. To view notes stored in the memory card, tap .23 To view notes stored in the internal memory, tap . Search for Note To search for a note by its name, input t he key words in the “Search” filed. Add/Delete Note You can work on multi ple pictures/notes at the same time. Click the Add icon to open a new pa ge for another picture. You can add up to 5 pages. When mul tiple pages are opening, you can cl ick the white dot to go to the corresponding page. To de lete one page, click the Minus icon . Change Pen Width / Color Before you start drawing, you can change the pen width or pen color by tapping the pen icon , sliding the dot icon to adjust the width and selecting a color from the color matrix. Erase Sketches You can erase the sketches you have added. (1)Select the “Eraser” tool

(2)Use your finger to wipe the location you want to erase, or use your Digital Pen to hover to the location and then erase it. Clear Sketches You can clear all sketches from the palette by clicking th e icon. Change Background You can change the background of the palett e. (1)Select the icon. (2)Click the Left and Right Arrow to change the background. Hide/Display the Toolbar You can hide or display the tools (Pen, Eraser and Color Picker etc.) by c licking the icon. Save Note When you are satis fied with your picture, you can click the icon and then choose “save picture” to save the picture. Annotate/Sketch on Picture24 You can edit an existing picture by adding annotations or sketching on the picture. (1)Make sure you have notes or pictures in the “iNote”folder. You can check it using the Explorer. If not, create or transfer pictures/notes to the folder (see “Transfer Notes”section as below). Note: a. Pictures must be in format of JPG, BMP, GIF and PNG; b. Picture resolution should not exceed 778*1102. (2)Click the Open icon on the bottom toolbar. (3)Choose memory device by tapping . A list of notes and drawings should display. (4)Choose a note or drawing file from the list and open it. (5)Tap the Pen icon , and then sketch on the picture or add annotations. (6)After you have done, click to exit and save the picture. Transfer Notes Your notes are saved as JPEG files to the iNote folder. You can locate the folder with the Explorer. You can transfer these notes to or from your computer. (1)Connect your device to computer through USB cable. (2)Locate the removable disk drive for the device and double click to open it. (3)Double click the “iNote”folder. (4)Copy notes from the “iNote”folder from or to your computer. Send Note You can send your pictures or notes with your friends by e-mail. (1)After you finished your picture, click the icon. (2)Input the e-mail address you’d like to send to. (3)Click “Send”. Note: Be sure to turn on the Wi-Fi/3G and open your e-mail box before you send picture. File Explorer The file browser gives you the possibility to navigate the file system of your Tablet internal memory and memory card. Tap on the Application Tab to display all applications, and then select “Explorer”to enter the file explorer mode. Navigate through Files and Folders You can drag your finger up and down to scroll the file list up and down. To open a file or folder, tap on the file/folder. Tap on the menu icon , you can manage the applications (see details in the “Manage Application”section).25 You can go back or forward one level in the interface by tapping on the Back icon or Next icon . You can go back one level in the directory by tapping on the LevelUp button . Wherever you are in the interface, you can go back directly to the Home screen by tapping on the Return icon or Home icon . Tap on the Home icon to go to the root directory. Using the Toolbar You can use the toolbar to navigate through your device’s internal memory/ memory card, delete or copy files. Home Go to the Home Screen. LevelUp Go back one level in the directory. Multi Select more than one file together. Editor Copy, delete, move, paste or rename the file or folder. Back Go back one level in the interface. Next Go forward one level in the interface. Copy/Move Files and Folders (1) In the file list, scroll up and down by sliding your finger to select the file/folder that you want to copy or move. (2) Hold your tap on the selected file/folder until a pop-up menu appears. (3) Select “Copy”or “Move”from the pop-up menu. (4) Navigate to the location where you wish to copy or move the file/folder to. (5) Select the Editor icon from the toolbar and then choose “Paste”. Delete Files and Folders (1)In the file list, scroll up and down the list by sliding finger to select the file/folder that you want to delete. (2)Hold your tap on the selected file/folder until a pop-up menu appears. (3)Select “Delete”from the pop-up menu, then select “Delete”to confirm or “Cancel”to quit. Rename Files and Folders Tapping on t he grey area can hide /display the toolbar.26 (1)In the file list, scroll up and down the list by sliding finger to select the file/folder that you want to renam e. (2)Hold your tap on the selected fi le/folder until a pop-up menu appears. (3)Selec t “Rename” from the pop-up m enu. (4)Tap on the inputting field to display the virtual keyboard, and then choose letters from the virtual keyboard to rename the file/folders. (5)Tap on “OK” to confirm the new name. Select Multiple Items You can select more than one file or folder together. (1 )In the top toolbar, tap on the Multi icon “

(2 )Tap the files/folders you want to choose. The file/folder name turns red when selected. Tapping it again can cancel the selection. Once you fin ished selection, you can delete, copy or move the selected files together by tapping on the Editor icon

Voice Recording Record (1) In the Home Screen, tap on the Application Tap to reveal all applications. (2) Tap on the “Sound Recorder” icon to enter the recorder mode. (3) Tap on the “ ” icon to start recording. (4) Tap on the “ ”icon to stop recording. (5) Tap to preview the recording if you want to. (6) Tap on “Use this recording” and then use the Audio Player to play the recording. To discard the recording, tap on “Discard”. (7) Tap on to go back to the Home Screen. Sendi ng/receiving E-mails This device has an E-mail application pre-installed. You can send or receive e-mails from the Internet at any time with this device. Make sure you have an I nternet connection before using the email service. In the Home Screen, tap the Applications shortcut to display all applications and then tap the Email icon to launch the e-mail application. Setup Email Account First you need to setup an E-mail account for receiving or sending emails. (1) Start up the email application by tapping the Email application icon and you are27 prompted to setup an account. (2 ) Input y our email address and login password. You can set the account as default by selecting the option “Send email from this account by default”. (3 ) Tap “Manual Setup” to set the email server i nformation. (4 ) Choose the server type from POP3, IMAP or Exchange for inc oming emails. To know what type of your email server is, you can consult the service provider, network administrator or s earch for information in the Internet. Input required information (server, port etc.). (5 ) Choose the server type for outgoing emails, and input required server information. (6 ) Click “Next” to continue. Your Tablet wi ll check the serv er settings. When i t prompts you t hat “Your account is set up, and email is on its way”, your account is set up successfully. (7 ) Input y our name and then tap on “Done” to finish. Note: If you have more than one account, every time when you start up the email application, you enter the default email account. Manage Accounts You can setup more than one account and manage these accounts by checking information about the account, adding another account or deleting an account. Add another Account Foll owing these steps to add another account if you want. (1 ) Launch the ema il application and then tap on the Menu icon to display the menu item. Choose “Accounts” to display accounts . (2 ) Tap on the Menu icon to display the menu item, and then choose “Add account”. (3 ) Follow the steps of setting up a Email Account to add an account. Delete an Email Account (1 ) When you are in the em ail box, tap on the Menu icon to display the menu items. (2 ) Tap on “Accounts” to display all email accounts. (3 ) Hold y our tap on the account that you want to delete until a menu pop up. (4 ) Tap on “Remove Account” and then tap on “OK” to confirm. Check the Account Setting (1) When you are in the email box, tap on the Menu icon to display the menu items. (2) Tap on “Accounts” to display all email accounts. (3) Hold your tap on the account that you want to check until a menu pop up. (4) Tap “Account settings” and then you should see all setting information about the28 account. You can edit these settings as you want. View Emails You should enter your mailbox when you start up the email application. In the mailbox, you can slide your finger up and down to scroll through the email list. Tap on an email to open it. Holding your tap on the email can display a menu. With the menu, you can open, reply, forward or delete the email. Email Menu Items In the email list, tap on the Menu icon to display the menu. Refresh Refresh the emails. Compose Compose a new email. Folders Go back to email box. Accounts View all email accounts. Account Settings Check your account settings. Manage Third-party Applications Your Tablet provides support to many useful third-party applications. You can purchase the applications to add more functions to your device. They are available online at the Internet or directly on your product. Pre-installed Applications The device has pre-installed applications when it was manufactured. You can see them by tapping Application Tab. They are video player, audio player, photo browser, alarm clock, calculator etc. Install Applications You can install applications manually following these steps: (1) Download the installation file from your computer or directly from the application library (e.g. SLIDE ME) or Internet. Make sure the file is in format of .apk which is supported by your Tablet system. (2) Connect your Tablet to computer with the USB cable. (3) Copy the installation file to your Tablet. (4) Disconnect your Tablet form the computer. (5) Turn on your Tablet and enter the file explorer mode with the Explorer. (6) Locate the installation file and open it. (7) Follow the on-screen instructions to install the application. (8) Once the application is installed successfully, you can find it in the application tab. Uninstall Applications29 (1 ) Tap the Set tings shortcut in the Home Screen to display all system settings. (2 ) Select “Applications”. (3 ) Select “Manage Applications”. (4 ) Tab on the application that you want to uninstall. (5 ) Tab on “Uninstall” to unins tall the application. Note: You cannot uninstall th e pre-installed applications. Due to hardware or software incompatibility, some of the applications developed for Android mobile might not run properly in the Tablet. Please consult the respective software developer for further information. Man aging Tasks Your Tablet can handle multiple tasks at the same time. For example, you c an view photos while listening to music. Multitasking is helpful but inefficient if too many t asks are running. In order to save system memory and enhance system performance, you can e nd some tasks that you don’t use for now. (1)Tap “Advanced Task Killer” application. (2)Tap the task that you want to end. (3)Tap “KILL selected apps” to end the task. System Settings In the Home screen , tap “Sett ings” and choose a category: “Wireless & Networks,” “Sound & Display,” “Date & Time,” etc. When a down arrow appears on the right of a parameter, this means that this setting includes sub-parameters. Tap it to display the list of sub-parameters. When a check box appea rs on the right of a parameter, tap it to enable or disable this option. When it is possible, you can use your finger to scroll the screen up and down to reveal settings that you don’t initially see. When you have finished adjusting your settings, t ap the Back icon to go back to the list of settings, or tap the Home icon to go di rectly t o the Home screen. Your se ttings are saved instantly.30 Wireless & networks Wi-Fi – tap on this line to enable or disable the Wi-Fi connection. Wi-Fi settings – allows you to set up and manage your Wi-Fi net works. Mobile network – turn on mobile network like 3G. Mobile network setti ngs - allows you to set up and manage your mobile network(3G). Sound & Display Sound settings: Media volume –Sets the volume for music and videos. You can also adjust the sound by using the Volume buttons, on the top of the devi ce. Notification Ringtone –Set your default notification ringtone. Audible selection –enables/disables the touch screen click sound. SD card notifications –Disable SD card notification sounds. Display settings: Orientation – switch the screen orientation automatically when the device r otates. Animation –enables/disables th e display of animations when opening and closing applications. Brightness –allows y ou to adjust the brightness of the screen. Screen timeout –allows you to adjust the delay before the screen aut omat ically turns off and locks itself. To turn the screen back on, press the Power button once, and press it again to unlock the screen. Location & Security This screen gives you the possibility to allow certain Android applications to determine your current location. You can also define a screen unlock pattern and other security parameters. Applications This screen allows you to manage your Andr oid applications. You can view information about all the applications installed on your device. Privacy This setting allows you back up or restore your system settings or data. SD card & device Storage This setting allo ws you un-mount the SD card or check SD card and internal storage space. USB Mode Select Enable or disable the USB host function which allows you to mount USB flash drive. Language & keyboard Set your preferred language and region, and configure te xt settings for faster and more accurate text input. Date & Time This setting allows you set up the date, time, time zone and formats. Touch Panel calibration If the touch-screen is not responding properly, use this setting and follow the instructi ons on the screen. Update Media Library Update the media library of your Tablet manually. Erase activation record Used to erase record of DRM activations. About Device Display information about yo ur Tablet system.31 Troub leshoo ting Reset this device In the event that the device freezes, you can force the devic e to shut down by holding the Power button for 15 seconds. If the Po wer button does not reset yo ur device, use the “pinhole reset” button, located on the back the device. Touch-screen Problems If the touch-screen is not responding properly, try using the “Touch-Screen Calibration” settings screen. Specifications Item Description CPU Based on ARM926EJ (CPU+DPS) Main CPU frequency: 600MHz Auxiliary CPU Frequency(DSP digital command control): 560MHz Built-in operating system Android OS 2.1 Hardware IBM PC or compatible PC, Note-book or Macintosh with USB port Internal Memory 4GB(256MB for apps installation, 1.2GB for internal system use) or above Memory Card type SD card: 1GB, 2GB, 4GB (SDHC), 8GB (SDHC) Operation System Windows2000/XP/Vista/windows 7and MAC OS 10.4 or above USB Interface USB2.0 High speed Output Port 3.5mm earphone port, built-in speakers USB2.0 High speed SD (compatible SDHC) Interface 3.5mm Earphone Connection Agreement WiFi (802.11 b/g) / 3G G-sensor 360 rotation File Format PDF/EPUB/TXT/FB2/RTF/PDB PDF / E PUB Format: .Open; .Adobe DRM (For License) E-Book Coding Format TXT / FB2/PDB/RTF Format: .Open JPEG(Baseline) : Max BMP Photo Format GIF(Static) File Format MP3/W MA/WAV/OGG/FLAC/APE/AAC MP3 MPEG1/2/2.5 Audio Layer 1/2/3 8~48KHZ/8~320Kbps,CBR and VBR WMA Version 4, 4.1, 7, 8, 9 8~48KHZ/8~320Kbps

AID, in compliance with the Customer Protection Law (Ley 23/2003, July 10th, of Warranty in the Sale of Consumer Goods, BOE no. 165, 11/07/2003), offers Direct Warranty to Spain and Portugal customers for all our brands’products: ZIPY, MUSE, NEW ONE, AC-RAYAN, TNB, BARKAN, BRASFORMA, THE COMPLEMENTS, and GO BY ZIPY, under the following conditions: A –Our products have a two year warranty. During the first year original defects that may be detected are repaired. In those cases stipulated by law, the buyer will be entitled to the replacement of the device by a new one, provided that the defects are not due to the negligence or exclusive fault of the buyer in handling the device. During the second year the buyer will need to prove that the malfunctioning of the device is due to a manufacturing defect. In both cases the warranty will apply provided that:

1. The product has been used for its destined purpose alone.

2. It was not opened, manipulated or altered in any way by someone other than the

Official Technical Service.

3. It has not undergone shock, flood, overheating, electric overcharge or any other

external circumstance that may constitute a possible reason of INVALIDATING the warranty.

4. The product will be returned to AID in proper packaging together with the receipt

where the brand and type of product, the date of the purchase, the name and address of the shop that sold it and the reason for the malfunctioning should be clearly stated. Any of the following circumstances invalidates the present warranty:

1. Breaking the ports, the screen or the glass.

2. Loss of liquid from the screen.

3. Wearing out, obvious marks of incorrect manipulation, unappropiate use,

ill-treatment, shock, falls, dirt, and so on.

4. The data contained in the products are under no circumstances covered by any

warranty whatsoever, nor are they to be considered during the physical repairing34 process of the products. AID guarantees absolute confiden tiality of the data.

5. AID does not cover the incorrect configuration or instalation of the software /

hardware on the part of the client, neither as a component nor as a peripheric, included prives / controllers included.

6. The legislat ion on guaran tees sets certain limits. “the guarantee does not cover

additional components such as batteries, nor any elements that are subject to maintenance due to its use s uch as earphones”. These accessories have a 6 months guarantee.

7. Waterproof bags have a 48-hour trial period, such as indicated on the product itself,

therefore once this time period is elapsed they will no longer be covered by any guarantee.

8. Final users do not need to send us the device accessories, especially if they are not

the original ones, since we will not be held responsible for them. CASES:

1. If the product is out our guarantee , the AID technical department will facilita te a

budget for the repair by fax or e-mail. Said budget will need to be authorized in writing, sealed and signed, and the user will have to satisfy the repair fee as well as the freight.

2. If the budget is not accepted a diagnosis fee will be c harged. (6

3. Repairs have a 90 days guarantee, provided that the breakdown is under the same

concept and in the case of budgeted breakdowns alone. B – All the freight costs for the product will be covered b y AID using only the transportation company designed by AID following the authorization procedure. The expenses derived from incorrect or unjustified returns on the part of the client will be covered by the client alone . C – Any incidence detected at the moment of the reception of the merchandise must be immediately notified at the AID Post-Sales Department: maria@accesoriosdigital.com in compliance with Article 366 from the Code of Commerce, AID will not consider complaints about breakages, shocks or absence of boxes or pieces 24 hours after the delivery of the merchandise. In the case of shipments originated in Canarias, Ceuta and Melilla, AID will not pay the custom s tax nor any kind of reimbursable expenses.35

DECLARATION OF CONFORMITY

ACCESORIOS INTELIGENTES DIGITAL S.A. C/CARPINTEROS, 6, OF-13 VILLAVICIOSA DE ODÓN. 28670 MADRID We declare under our sole responsibility that the product: MID WIFI : ZIPY EXECUTIVE which belongs to the brand Zipy, made in China
