USER MANUAL VeroBar AromaPro 300 TES71555DE BOSCH

Register your new Bosch now: www.bosch-home.com/welcome

TES712/.TES715..

BOSCH

Included in delivery (see page 31)

Congratulations on purchasing this fully automatic espresso machine from Bosch.

These operating instructions describe various appliance designs, which differ in detail. Each appliance is assigned an E-number, e.g. TES712. The E-No. of the respective appliance can be found on the packaging or rating label 25.

Please also refer to the quick reference guide. This can be kept in a special storage compartment 22 until the appliance is used again.

Contents

Safety instructions 29

Included in delivery. 31

At a glance. 31

Before using for the first time. 32

Controls 33

Displays 35

Display settings 36

Customising 37

Child-proof lock. 38

Menu settings 39

Preparation using coffee beans. 41

Preparation using ground coffee 42

Preparing milk froth and warm milk 43

Dispensing hot water. 43

Maintenance and daily cleaning 44

Service Programmes 46

Tips on energy saving 50

Frost protection 50

Storing accessories 51

Accessories 51

Disposal 51

Guarantee 51

Technical specifications. 51

Simple troubleshooting. 52

Safety instructions

Please read and follow the operating instructions carefully and keep them for later reference. Enclose these instructions when you give this appliance to someone else. This appliance is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offi ces, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.

Danger of electric shock!

Connect and operate the appliance only according to the type plate specifications. To avoid potential hazards, repairs such as replacing a damaged cable must only be carried out by our customer service personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children under 8 years of age away from the appliance and connecting cable and do not allow them to use the appliance. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Never immerse the appliance or mains cable in water. Use only if power cord and appliance show no signs of damage. Should a fault occur, pull the plug or disconnect from the mains immediately.

en

The appliance contains permanent magnets that may influence electronic implants such as pacemakers or insulin pumps. Persons with electronic implants should keep a minimum of 10 cm away from the front of the appliance.

Risk of suffocation!

Do not allow children to play with packaging material.

Store small parts safely as they can be easily swallowed.

Risk of injury!

Do not reach into the grinding unit. A misuse of the appliance can potentially lead to injury.

Risk of burns!

The milk system becomes extremely hot. After use, allow to cool down first before touching. After the use the heating element surfaces and warming plate can be subjected to residual heat.

Included in delivery

(Figure A on the fold-out pages)

Fully automatic espresso machine TES712/TES715
Instruction manual
Quick reference guide
Milk frother
Water hardness testing strip
Measuring spoon

ONLY TES715

Milk container

At a glance

(Figures B, C, D, E and F on the fold-out pages)

1 Power on/off switch O/I
2 Customising button
3 Service programmes button
4Selectionbuttons
5 Display

a) Status line
b) Selection line
c) Navigation line

6 Rotary knob for display settings
7 Info menu button i
8 start button (drinks/programmes)

9Coffeeoutlet, height-adjustable and swivelling

10Milksystem, height-adjustable and removable (milk/hot water)
a) Upper part
b) Lower part
c) Suction hose
d) Suction pipe

11 Removable water tank
12 Lid for water tank
13 Storage compartments (measuring spoon and milk frother accessories)

14Measuringspoon (insertion aid for water filter)

15 Bean container

16 Aroma cover

17 Selector for grind setting

18Powdercompartment (ground coffee/cleaning tablet)

19 Door to brewing unit

20 Brewing unit

a) Lock
b) Cover

21 Sliding button
22 Storage compartment for quick referenceguide

23 Drip tray

a) Panel
b) Grade
c) Coffee grounds container

24 Cable storage compartment
25 Rating label (E-No.; FD)

ONLY TES715

26 Milk container
27 Cup warming function
28 Button for cup warming function, illuminated

Before using for the first time

General

Fill the water tank with pure, cold, uncarbonated water only and preferably use only beans or coffee blends suitable for fully automatic espresso and coffee machines. Do not use coffee beans that have been glazed, caramelised or treated with other additives containing sugar, since they will block the brewing unit.

The water hardness setting can be adjusted on this appliance. The factory setting for the water hardness is 4. Check the hardness of the water you use with the enclosed test strip. If a value other than water hardness 4 is displayed, change the setting on the appliance accordingly after switching on (see "Menu settings - WATER HARDNESS").

Setting up the appliance

• Place the fully automatic espresso machine on a flat, water-resistant surface that can take its weight.

Important: Only use the appliance in frost-free rooms. If the appliance has been transported or stored at temperatures below 0^ , wait at least 3 hours before operation.

• Pull out the mains plug from the cable compartment 24 and plug it in. Adjust the length of the cable by pushing it back in and pulling it out. To do this, place the appliance with its back flush with the edge of the work surface and either pull the cable downwards or push it upwards.

• Lift the lid of the water tank 12.

• Remove and rinse the water tank 11 and fill it with fresh, cold water. Do not fill above the "max" mark.

• Replace the water tank 11 and push it firmly downwards into place.
• Close the water tank lid 12 again.

• Fill the bean container 15 with coffee beans.

• Press the power switch 1 O/I. The start button 8 lights up and the different languages appear in the display 5. The following languages can be selected:

TES7.. DE

DEUTsCH ENGLISH

FRANCAIS ITALIANO

TES7.. RW

ENGLISH Pycckn

NEDERLANDS FRANCAIS

ITALIANO SVENSKA

ESPANOL POLSKI

YKPAIHcbkA MAGyar

TURKCE DANSK

NORSK SUOMI

PORTUGUES CESTINA

EMAHNIKA

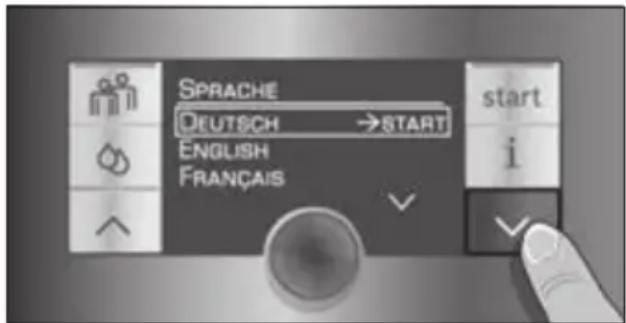

• Use the buttons and 4 to select the language in which you want the display texts to appear.

The selected language is highlighted.
- Press the start button 8. The language you selected is saved.
- The brand logo lights up in the display 5. The appliance now heats up and rinses. Some water will run out of the coffee outlet 9.

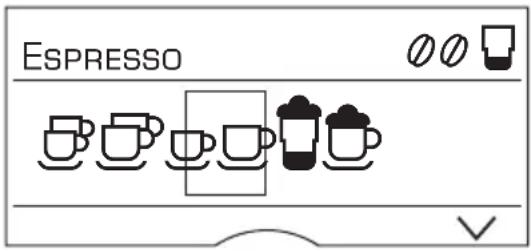

• The appliance is ready for use when the symbols for the drink selection and the start button 8 light up in the display 5.

Info: The factory settings of the fully automatic espresso machine are programmed for optimal performance. The appliance switches off automatically after a specific time (see "Menu settings - AUTO OFF AFTER").

Note: If the appliance is being used for the first time, the service programme has been run, or the appliance has not been operated for a long period, the first beverage will not have the full Aroma and should not be consumed.

When the fully automatic espresso machine is first used, you will achieve a suitably thick and stable "crema" only after the first few cups have been dispensed.

Controls

Power on/off switch O / I

The power on/off switch 1 O/I is used to switch the appliance on or off. The appliance rinses automatically when it is switched on and off.

The appliance will not rinse if:

• it is still warm when switched on.
• there was no coffee drawn before switchingoff.

The appliance is ready for use when the symbols for the drink selection and the start button 8 light up in the display 5.

Customising button

The appliance provides the option of saving and calling up customised settings for coffee drinks. Please refer to the section "Customising" for information on how to save and call up these settings.

Service programmes button

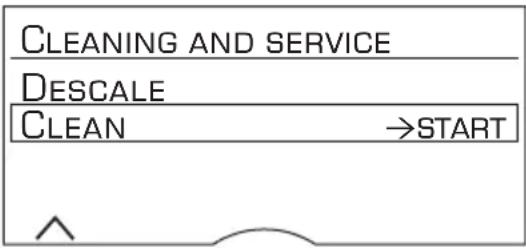

Press the button 3 briefly to call up the selection of service programmes. Please run the programme as described in "Service Programmes".

Press and hold to activate or deactivate the child-proof lock, see "Child-proof lock".

Rotary knob

Turn the rotary knob 6 to the left or right to navigate through the display 5, or to adjust parameters in the menu.

Selection buttons and

Press the selection buttons 4 and to navigate up and down through the menu levels (navigation line 5c).

en

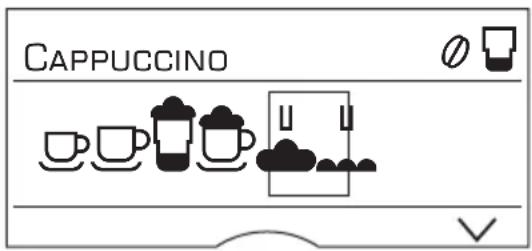

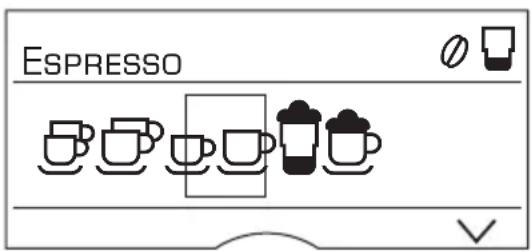

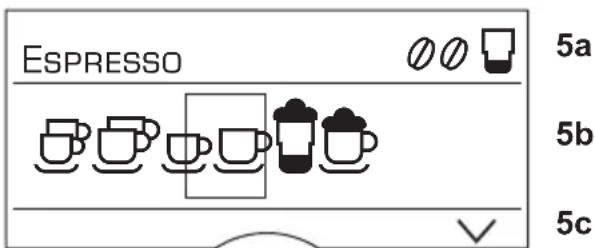

Display

The display 5 uses symbols to indicate the selection options, coffee strength and per-cup quantity, and uses text to indicate settings, ongoing processes and messages. The rotary knob 6 and selection buttons 4 can be used to change settings. The selected setting is highlighted by a frame.

Example:

The status line 5a shows the name of the type of drink, along with the strength setting and per-cup quantity.

The selection line 5b shows symbols for drink selection.

The arrows in the navigation line 5c indicate the direction in which more menu levels can be found.

Please refer to "Displays" for more detailed information.

Start button

Press the start button 8 to begin drink preparation or to start a service programme. Press the start button 8 again during drink preparation to stop the dispensing process prematurely.

i button and settings

Use the i button 7 to display information (press briefly) and adjust settings (hold down for at least 3 seconds).

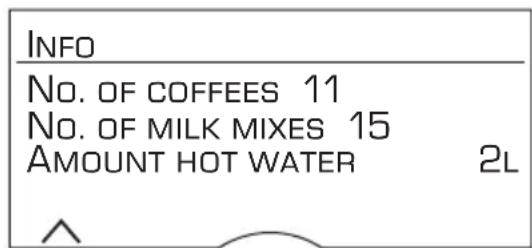

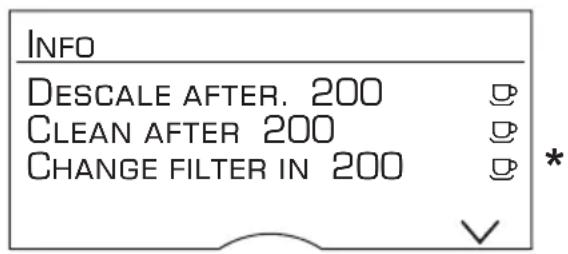

Displaying information

The following information can be displayed in the Info menu:

• when should the next service be completed.

• how many drinks have been dispensed since the espresso machine was switched on.

• Press the i button 7 briefly and navigate with the and buttons 4.

*appears only if the filter is activated.

Press the i button 7 briefly to return to the drink selection. If no button is pressed for about 10 seconds, the appliance automatically switches back to drink selection mode.

Adjusting settings

See "Menu settings".

Adjusting the grinding unit

The rotary selector 17 adjusts the grind settings from coarse to fine.

Warning!

Adjust the grinding unit only while it is running! Otherwise the appliance may be damaged. Do not reach into the grinding unit.

• While the grinding unit is running, adjust the rotary selector 17 from fine (a: Turn anticlockwise) to coarse (b: Turn clockwise).

a

b

Info: The new setting will not become apparent until after the second cup of coffee.

Note: If the message PLEASE ADJUST GRINDING UNIT TO COARSER SETTING! appears in the display, the grind setting for the coffee beans is too fine. Adjust the grinding unit to a coarser setting.

Tip: For dark roast coffee beans, choose a finer grind; for lighter beans a coarser grind.

ONLY TES715

Cup warming function

Warning!

The cup warmer 27 gets very hot!

The fully automatic espresso machine has a cup warmer 27 that can be switched on or off manually with button 28. When the cup warmer 27 is on, button 28 lights up.

Tip: For optimal cup warming, place the base of the cups on the cup warmer 27.

Displays

Display messages

Various messages are shown in the display 5.

Information (only TES715)

For example:

ESPRESSO

WATER TANK ALMOST EMPTY

Prompts

For example:

ESPRESSO

REFILL WATER TANK

en

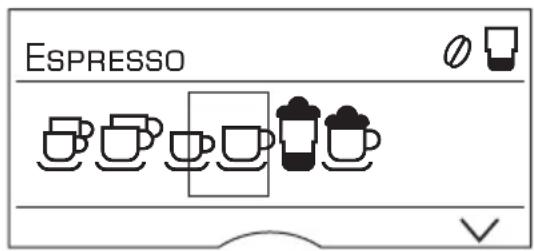

Display settings

Press the selection buttons and 4 to select the following selection menus in the menu levels:

Drink selection

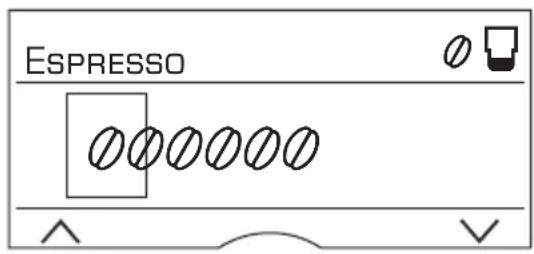

Coffee strength (only for coffee drinks)

Per-cup quantity

Select your personal per-cup quantity

My coffee (only TES715)

Turn the rotary knob 6 to adjust the following parameters within the menus:

Settings - Drink selection:

2x ESPRESSO

2xCOFFEE

ESPRESSO

COFFEE

CAFFE LATTE (only TES715)

MACCHIATO

CAPPUCCINO

^+ MY COFFEE (only TES715)

MILK FROTH

WARM MILK

HOT WATER

Settings - Coffee strength:

Very mild

Mild

Normal

Strong

000 Very strong

2x 0 AromaDouble Shot strong

2x 000 AromaDouble Shot strong +

2xOoO AromaDouble Shot strong ++

AromaDouble Shot:

The longer the coffee is brewed, the more bitter substances and undesired Aromas are released. This has a negative effect on the taste and makes the coffee less easily digestible. So for extra strong coffee, the TES7... has a special AromaDouble Shot function. When half the quantity has been prepared, coffee is ground and brewed again so that only the pleasant, Aromatic scents are released. The AromaDouble Shot function can be selected for all coffee drinks except for ESPRESSO with a small per-cup quantity, 2 x ESPRESSO and 2 x COFFEE

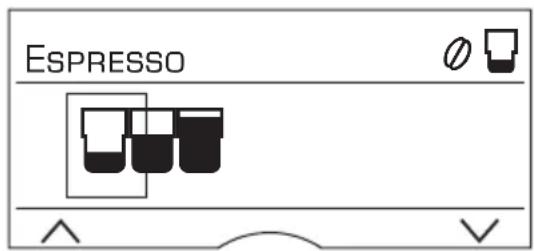

Settings - Per-cup quantity

small

medium

large

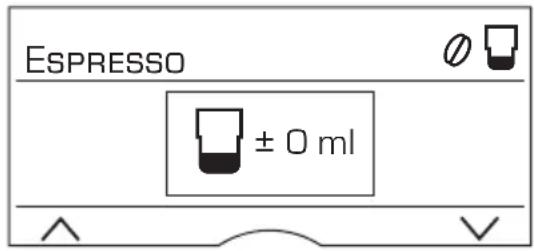

Settings - Personal per-cup quantity

The preset per-cup quantity, or can be individually adjusted to the size of the cup in use by turning the rotary knob 6. The per-cup quantity can be adjusted according to the drink selected. An arrow in the symbol in the top right-hand corner of the display indicates whether the per-cup quantity was increased or decreased. If you set for example COFFEE, the adjustment of the per-cup quantity in ml, and in the case of a milk-based coffee drink, for example CAPPUCINO, the adjustment of the per-cup quantity including the volume of milk (froth) in ml, is indicated.

Important: The selected amount in ml is an approximate value and can vary significantly as a result of crema forming, the grind setting or the type of milk used, etc.

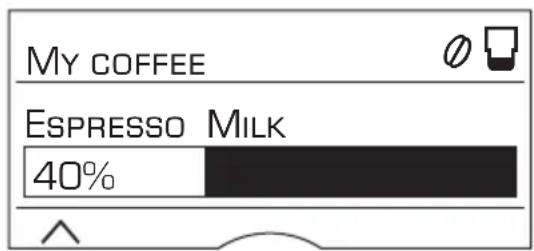

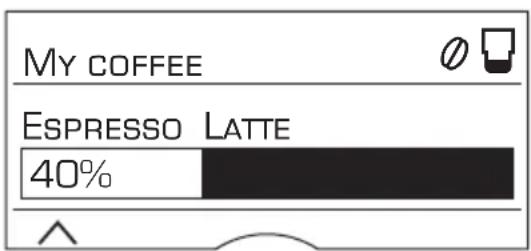

Settings - My coffee (only TES715)

In addition to selecting coffee strength and per-cup quantity, you can choose the exact mix of espresso and milk for your own coffee setting My COFFEE ^+ :

• The setting can be defined in 20% steps by turning the rotary knob 6.

Customising

You can store up to 6 user profiles in the USER SETTINGS menu. The required coffee and hot water temperatures are saved in the user profiles.

Important: The "Customising" settings (button 2) are not identical to those under "Menu settings" (i button 7) and vice versa.

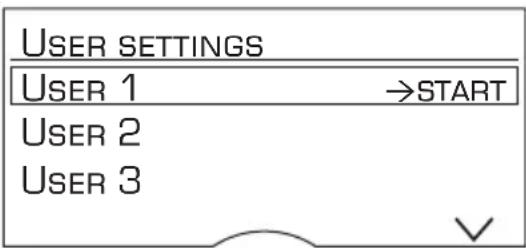

Storing or changing the user

• Hold down the button 2 for at least

3 seconds.

The menu appears:

• Select the required user using the selection button and press the start button 8.

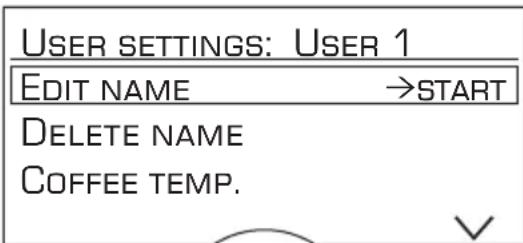

The following selection appears in the display:

• To change the user name, use the selection button to go to EDIT NAME START and press the start button 8.

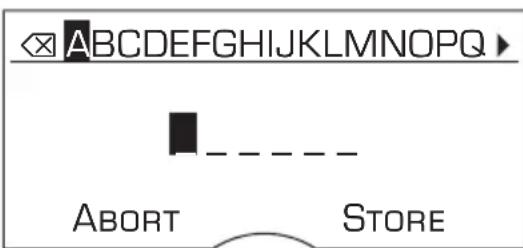

The input field appears in the display:

• Turn the rotary knob 6 to select a letter or number.
• Confirm by pressing the start button 8.

There are 6 characters available for the user name.

To delete entries made, select the symbol

and press the start button 8.

Note:

Press the selection button to save your entry. Press the selection button to cut the process short.

Info: The entry can be overwritten at any time.

en

To delete the user, use the selection button DELETE NAME START and press the start button 8.

Saving temperatures

• Use the selection button to select COFFEE TEMP. or HOT WATER TEMP..
• Turn the rotary knob 6 to select the required setting.
• Press the button 2. The settings are saved.

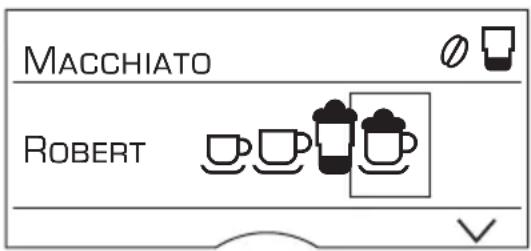

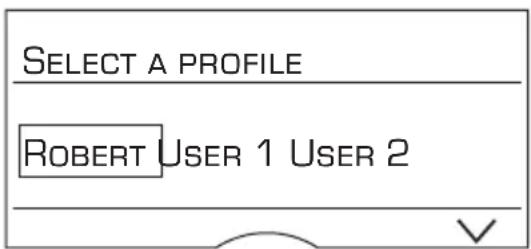

Calling up a user profile

• Press then button 2 briefly.

The user profile menu appears:

• Turn the rotary knob 6 to select a user profile and press the start button 8. The drink selection menu appears:

• Set the drink, coffee strength, etc. (see "Display settings").
• Dispense a drink (see "Preparation using coffee beans").

• The selected settings are saved.

• Press the button 2 to exit the customised menu.

Info: If you wish the appliance to exit the menu automatically, you can set this as described under "Menu settings - Exit PROFILE".

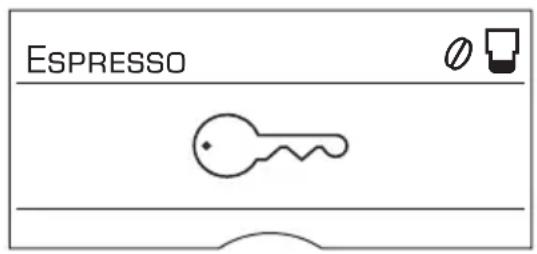

Child-proof lock

The appliance can be locked to protect children from scalding and burning.

• Hold down the button 3 for at least 3 seconds.

The display 5 shows a key; the child-proof lock is activated.

It is no longer possible to operate the appliance.

ONLY TES715

The cup warmer 27 is switched off.

• To deactivate the child-proof lock, hold down the button 3 for at least 3 seconds. The key disappears from the display 5.

Menu settings

• Hold down the i button 7 for at least 3 seconds.

The different setting options are now displayed.

SETTINGS

COFFEE TEMP.

HOT WATER TEMP. <85°C

EXIT PROFILE

The different setting options can be selected with the selection buttons and 4

Note: The changes you have made are saved automatically. It is not necessary to confirm them additionally. If no entry is made after approx. 2 minutes, the menu will close automatically.

The following settings can be selected:

LANGUAGE

• Turn the rotary knob 6 to select the required language.

COFFEE TEMP.

• Turn the rotary knob 6 to set the coffee temperature. The setting applies to all types of preparation, except the customised settings under "Customising".

HOT WATER TEMP.

• Turn the rotary knob 6 to set the temperature. The setting applies to all types of preparation except the customised settings under "Customising".

EXIT PROFILE

• Here you can set whether the appliance should exit the customising function automatically AUTOMATIC or manually MANUALLY.

AUTO OFF AFTER

• Turn the rotary knob 6 to enter the time span after which the appliance should automatically switch off following the last drink preparation.

A time between 5 minutes and 8 hours can be set.

CUP WARM. OFF IN (only TES715)

Here you can set the time span after which the cup warmer 27 switches off again automatically.

• Set the required time by turning the rotary knob 6.

CONTRAST

The display 5 contrast can be set from -10 to +10. The factory setting is +0.

• Turn the rotary knob 6 to select the required setting.

WATER HARDNESS

• Turn the rotary knob 6 to select the required water hardness 1, 2, 3 or 4.

Info: It is important to set the water hardness correctly, so that the appliance indicates accurately when the descending programme should be run. The factory setting for the water hardness is 4.

You can check the water hardness using the enclosed test strip or by asking your local water supplier.

• Dip the test strip briefly in water and check the result after one minute.

Level	Water hardness
	German (°dH)	French (°fH)
1	1-7	1-13
2	8-14	14-25
3	15-21	26-38
4	22-30	39-54

en

WATER FILTER

A new water filter must be rinsed before it can be used.

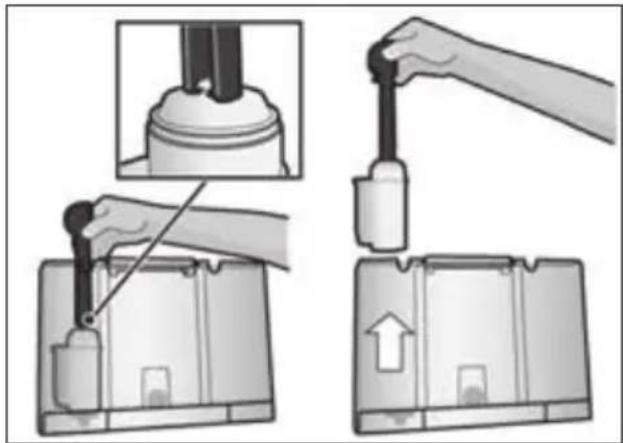

• To do this, press the water filter firmly into the water tank 11 with the aid of the measuring spoon 14. Fill the water tank with water up to the "max" mark.

• Turn the rotary knob 6 to select START and press the start button 8.

PLACE 1 L CONTAINER

PLACE SUCTION PIPE IN CONTAINER START

• Place a container with a capacity of 1 litre under the milk frother 10.
• Place the end of the suction pipe 10d in the container.
• Press the start button 8. Water will now flow through the filter to rinse it.
• Next, empty the container.

The appliance is ready for use again.

Info: Rinsing the filter simultaneously activates the setting for the "change filter" display.

You can find detailed information about the water filter in the enclosed filter instructions.

The filter is no longer effective when the SERVICE - CHANGE FILTER display appears, or at the latest after two months. It needs to be replaced for reasons of hygiene and so that there is no build-up of limescale (this could damage the appliance).

Replacement filters can be obtained from retailers (TCZ7003) or from customer service (575491).

If no new filter is used, turn the

WATER FILTER setting to NO.

Info: If the appliance has not been used for a prolonged period (for example, when you are on vacation), the existing filter should be rinsed before the appliance is used again. To do this, simply dispense a cup of hot water.

TRANSPORT. LOCK

• To avoid damage caused by frost during transport and storage, the appliance must be completely emptied first.

Info: The appliance must be ready for use and the water tank 11 filled.

• Press the start button 8. The appliance automatically empties the pipe system and switches off.
• Empty the water tank 11 and the drip tray 23.

FACTORY RESET

You can cancel your own settings and reset the factory settings.

To activate the factory settings, press the start button 8.

Info: The appliance can also be reset to the factory settings using a combination of buttons. The appliance must be switched off fully.

• Hold down the selection buttons and 4 and the on/off switch 1 O/I at the same time for at least 5 seconds. Press the start button 8. The factory settings are now reactivated.

Preparation using coffee beans

This fully automatic espresso machine grinds beans freshly for each brew. If possible, use only beans for fully automatic coffee and espresso machines. For optimal quality, deep-freeze the beans or store in a cool place in sealed containers. Coffee beans can be ground while frozen.

Important: Fill the water tank 11 with cold, fresh water every day. The water tank 11 should always contain sufficient water for operating the appliance.

Tip (only TES715): Pre-warm cups, especially small, thick espresso cups, on the cup warmer 27.

Different coffee drinks can be prepared quite simply at the press of a button.

Note: With some settings, the coffee is prepared in two stages (see "AromaDouble Shot"). Wait until the procedure is fully completed.

Drink preparation without milk

The appliance must be ready for use.

• Place the pre-warmed cup(s) under the coffee outlet 9.
• Select the required 2 × ESPRESSO, 2 × COFFEE, ESPRESSO or COFFEE by turning the rotary knob 6.

The display 5 shows the selected drink along with the setting for coffee strength and per-cup quantity for this drink.

You can change the settings (see "Display settings") or call up and customise settings (see "Customising").

• Press the start button 8.

The coffee is brewed and then dispensed into the cup(s).

Drink preparation with milk

The appliance must be ready for use.

• Place the suction pipe 10d of the milk frother 10 deep in the milk container 26.

• Swivel the coffee outlet 9 to the right until it clicks into place.

• Place the pre-warmed cup or glass under the coffee outlet 9 and milk frother 10.
• Select the required CAFFE LATTE (only TES715), MACCHIATO, CAPPUCCINO or My COFFEE ^+ (only TES715) by turning the rotary knob 6.

The display 5 shows the selected drink along with the setting for coffee strength and per-cup quantity for this drink.

You can change the settings (see "Display settings") or call up and customise settings (see "Customising").

• Press the start button 8.

First milk is delivered into the cup or glass. Then the coffee is brewed and dispensed into the cup or glass.

Important: Dried milk residue is difficult to remove, so the milk frother 10 must be cleaned with lukewarm water immediately after use (see "Cleaning the milk system").

Preparation using ground coffee

This fully automatic espresso machine can also be operated using ground coffee (not instant coffee powder).

Note: The AromaDouble Shot function cannot be used when coffee is prepared using ground coffee.

Drink preparation without milk

The appliance must be ready for use.

• Place the pre-warmed cup(s) under the coffee outlet 9.

• Select the required ESPRESSO or COFFEE by turning the rotary knob 6.

• Open the powder compartment 18.
• Pour in no more than 2 level measuring spoons 14 of ground coffee.

Warning!

Do not use whole beans or instant coffee.

• Close the powder compartment 18.
• Press the start button 8.

The coffee is brewed and then dispensed into the cup(s).

Note: Repeat the procedure for another cup of coffee. If coffee is not dispensed within 90 seconds, the brewing chamber empties automatically to avoid an overflow. The appliance rinses.

Drink preparation with milk

The appliance must be ready for use.

• Place the suction pipe 10d of the milk frother 10 deep in the milk container 26.

• Swivel the coffee outlet 9 to the right until it clicks into place.

• Place the pre-warmed cup or glass under the coffee outlet 9 and milk frother 10.

• Select the required CAFFE LATTE (only TES715), MACCHIATO, CAPPUCCINO or My COFFEE ^+ (only TES715) by turning the rotary knob 6.

• Open the powder compartment 18.
• Pour in no more than 2 level measuring spoons 14 of ground coffee.

Warning!

Do not use whole beans or instant coffee.

• Close the powder compartment 18.

• Press the start button 8.

First milk is delivered into the cup or glass.

Then the coffee is brewed and dispensed into the cup or glass.

Important: Dried milk residue is difficult to remove, so the milk frother 10 must be cleaned with lukewarm water immediately after use (see "Cleaning the milk system").

Note: Repeat the procedure for another cup of coffee / milk drink. If coffee is not dispensed within 90 seconds, the brewing chamber empties automatically to avoid an overflow. The appliance rinses.

Preparing milk froth and warm milk

Risk of burns!

The milk frother 10 gets very hot. After use, allow to cool down first before touching.

The appliance must be ready for use.

• Place the suction pipe 10d of the milk frother 10 deep in the milk container 26.
• Place the pre-warmed cup or glass under the outlet of the milk frother 10.
• Select the required setting MILK FROTH or WARM MILK by turning the rotary knob 6.
• Press the start button 8.
  Milk froth or warm milk flows from the outlet of the milk frother 10.

Press the start button 8 again to cut the process short.

Info: When preparing warm milk, you may hear a whistling sound. This is caused by the milk frother 10 for technical reasons.

Tip: For optimal milk froth quality, use cold milk with a fat content of at least 1.5% if possible.

Important: Dried milk residue is difficult to remove, so the milk frother 10 must be cleaned with lukewarm water immediately after use (see "Cleaning the milk system").

Dispensing hot water

Risk of burns!

The milk frother 10 gets very hot. After use, allow to cool down first before touching.

The milk frother must be cleaned before drawing hot water.

The appliance must be ready for use.

• Place the pre-warmed cup or glass under the outlet of the milk frother 10.

• Select the required setting for Hot WATER by turning the rotary knob 6.

• Press the start button 8.

PLEASE REMOVE SUCTION HOSE START

• Remove the milk suction hose 10c and press the start button 8.

Hot water runs out of the milk frother outlet 10.

Press the start button 8 again to cut the process short.

Note: It is possible to set the temperature of the hot water (see "Menu settings").

Maintenance and daily cleaning

Danger of electric shock!

Unplug the appliance before cleaning it. Never submerse the appliance in water. Do not use a steam cleaner.

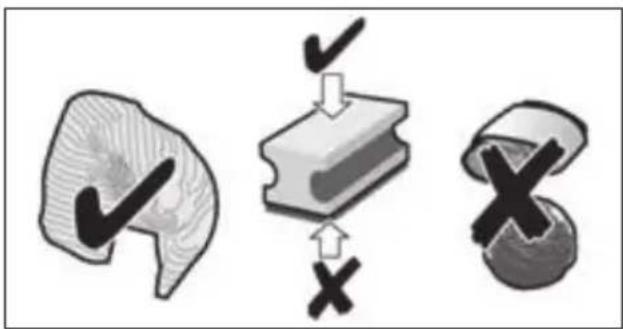

• Wipe the outside of the appliance with a soft, damp cloth.
• Do not use any cleaning agents that contain alcohol or spirits.
• Do not use abrasive cloths or cleaning agents.

• Always remove any limescale, coffee, milk, cleaning or descaling fluid residue immediately. Such residue can cause corrosion. New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.

• Pull the drip tray 23 with the coffee grounds container 23c forwards and out. Remove the panel 23a and grate 23b. Empty and clean the drip tray and coffee grounds container.

Do not put the following items in the dishwasher: Panel of drip tray 23a, powder compartment 18, brewing unit 20, water tank 11, Aroma cover 16 and milk container cover (onlyTES715).

The following parts may be cleaned in the dishwasher: Drip tray 23, grate 23b, coffee grounds container 23c, measuring spoon 14 and milk container(onlyTES715).

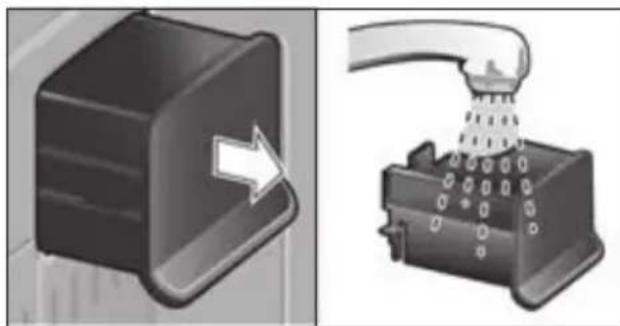

• Remove powder compartment 18 and rinse under running water.

• Wipe out the inside of the tray holders.

Important: Drip tray 23 and coffee grounds container 23c should be emptied and cleaned daily to prevent mould from developing.

Note: If the appliance is cold when switched on, or if it is switched off after dispensing coffee, it rinses automatically. In other words, the system cleans itself.

Important: If the appliance has not been used for a prolonged period of time (e. g. after a vacation), clean the entire appliance thoroughly, including the milk system 10 and brewing unit 20.

Cleaning the milk system Important: The milk system 10 must be cleaned immediately after use!

The milk system 10 can be pre-cleaned automatically (see "Service programmes" or cleaned manually.

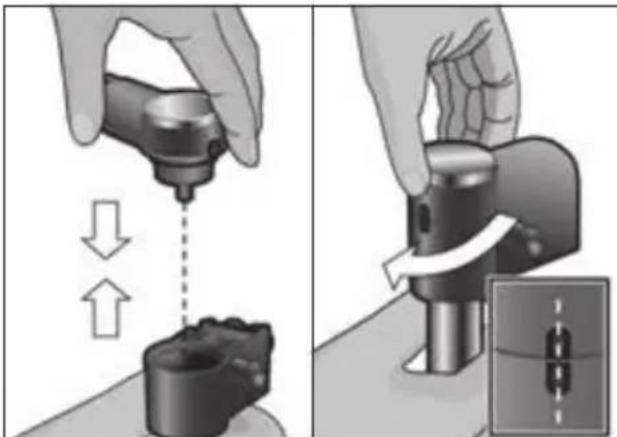

Dismantling the milk system 10 for cleaning:

• Pull the milk system 10 forward out of the appliance.

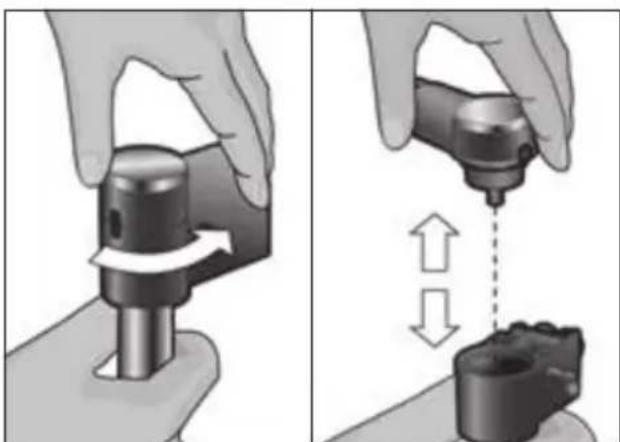

• Turn the upper part 10a in an anticlockwise direction and remove from the lower part 10b.

• Clean the individual parts with detergent solution and a soft cloth.

• Rinse all parts with clean water and dry.

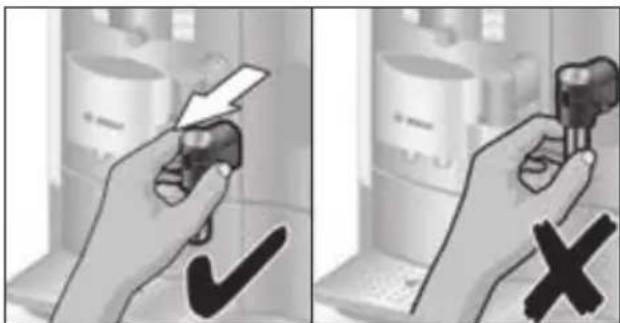

• Put all the parts back together. The milk frother can then be clicked back into place in the appliance.

Info: All parts of the milk frother 10 can also be put in the dishwasher.

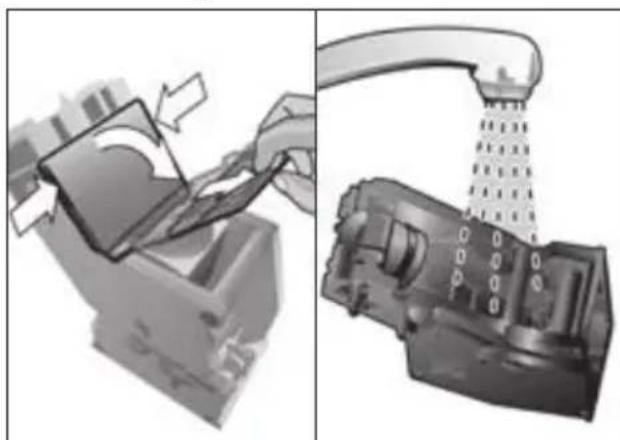

Cleaning the brewing unit (Fig. F) (refer also to the quick reference guide) In addition to the automatic cleaning programme, the brewing unit 20 should be removed regularly for cleaning.

• Switch the appliance off completely at the power on/off switch 10/1; no buttons are lit.

• Slide the door opener to the right and open the door 19 to the brewing unit.

• Slide the red lock 20a on the brewing unit 20 completely to the left.

• Press the red button 21, grasp the brewingunit20 by the recessed grips and remove carefully.

• Remove the cover 20b of the brewing unit and rinse the brewing unit 20 thoroughly under running water.

• Thoroughly clean the brewing unit sieve under the running water.

Important: Clean the brewing unit without detergent and do not put it in the dishwasher.

• Wipe out the inside of the appliance thoroughly with a damp cloth and remove any coffee residues.
• Allow the brewing unit 20 and the inside of the appliance to dry.
• Replace the cover 20b on the brewing unit and reinsert the brewing unit 20 fully into the appliance.
• Slide the red lock 20a fully to the right and close the door 19.

Service Programmes

Tip: Refer also to the quick reference guide in the storage compartment 22.

At regular intervals, the display 5 shows the following texts:

SHORT RINSE MILK SYSTEM or

SERVICE - DESCALE or

SERVICE - CLEAN or

SERVICE-CALC'NCLEAN.

The appliance should be cleaned or descaled immediately using the corresponding programme. You have the option of combining the processes DESCALING and CLEANING with the CALC'NCLEAN function (see

"Calc'nClean"). If the service programme is not run as instructed, the appliance may be damaged.

Warning!

Follow the instructions for using the descal- ing and cleaning agents for each service programme. Never interrupt the service programme!

Do not drink the liquids!

Never use vinegar, vinegar-based products, citric acid or citric acid-based products!

Never put descending tablets or other descending agents in the powder compartment 18!

Before starting the respective service programme (descaling, cleaning or

Calc'nClean), remove the brewing unit, clean as instructed and replace.

Specially developed and suitable descaling and cleaning tablets are available from retailers or customer service.

Accessories	Ordering number
	Retail Customer Service
Cleaning tablets	TCZ6001	$10575
Descaling tablets	TCZ6002	$10967

Cleaning the milk system

Duration: approx. 1 minute

CLEANING AND SERVICE

SHORT RINSE

MILK SYSTEM →START

CALC'NCLEAN

The milk system 10 can be pre-cleaned automatically.

• Press the button 3.

SHORT RINSE MILK SYSTEM START

• Press the start button 8.

PLACE GLASS UNDER FROther, PLACE SUCTION PIPE IN GLASS START

• Place an empty glass under the milk system 10 and put the end of the pipe 10d in the glass.

• Press the start button 8. The milk system is cleaned automatically.

• Now empty the glass and clean the suctionpipe10d.

In addition to this, clean the milk system thoroughly at regular intervals (by hand or in the dishwasher).

Dscaling

Duration: approx. 30 minutes.

CLEANING AND SERVICE

DESCALE →START

CLEAN

The start button 8 flashes while the different.
descaling processes are running.

The figures on the top right indicate the progress of the programme.

Important: If there is a water filter in the water tank 11, it needs to be removed before the service programme is run.

• Press the button 3.

DESCALE START

• Press the start button 8; the display 5 will guide you through the programme.

EMPTY DRIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it.

PLACE 1 L CONTAINER

PLACE SUCTION PIPE IN CONTAINER START

• Place a container with 1 litre capacity under the milk frother 10.

• Place the end of the suction pipe 10d in the container.

• Press the start button 8.

REMOVE FILTER START

Info: If the water filter is activated, the display will prompt you to remove the filter, then press the start button 8 again.

en

ADD 0.5 L WATER AND DESCALER START

• Pour lukewarm water into the empty water tank 11 up to the "0.5l" mark and then dissolve two Bosch descaling tablets in it.

• Press the start button 8. The descending programme will now run for about 20 minutes.

DESCALING

NOT ENOUGH DESCALING FLUID.

REFILL FLUID START

Info: If there is not enough descending solution in the water tank 11, the corresponding prompt is displayed. Pour in descending solution and press the start button 8 again.

CLEAN AND REFILL WATER TANK START

• Rinse the water tank 11 and refill it with fresh water up to the "max" mark.

• Press the start button 8. The descending programme now runs for about 1 minute and rinses the appliance.

DESCALING

EMPTY DBIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it.

Replace the filter if one is being used. The appliance is ready for use again.

Important: Wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. Such residue can cause corrosion. New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.

Thoroughly clean the suction pipe 10d of the milk frother.

Cleaning

Duration: approx. 8 minutes.

The start button 8 flashes while the different cleaning processes are running. The figures on the top right indicate the progress of the programme.

• Fill the water tank 11 up to the "max" mark.
• Press the button 3.

LEAN START

• Press the start button 8; the display 5 will guide you through the programme.

EMPTY DRIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it. The appliance rinses twice.

POSITION SWIVEL ARM

• Swivel the coffee outlet 9 to the left until it clicks into place.

CLEANING

OPEN POWDER COMPARTMENT

• Open the powder compartment 18.

INSERT BOSCH CLEANING TABLET

AND CLOSE DRAWER

• Drop a Bosch cleaning tablet into the drawer 18 and close it.

PRESS START

• Press the start button 8. The cleaning programme will now run for about 7 minutes.

CLEANING

EMPTY DRIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it.

The appliance is ready for use again.

Calc'nClean

Duration: approx. 36 minutes.

Calc'nClean combines the separate functions of descaling and cleaning. If both programmes are due to be run soon, the espresso machine automatically suggests this service programme.

CLEANING AND SERVICE

SHORT RINSE

MILK SYSTEM

CALC'NCLEAN →START

The start button 8 flashes while the different Calc'nClean processes are running. The figures on the top right indicate the progress of the programme.

Important: If there is a water filter in the water tank 11, it needs to be removed before the service programme is run.

• Press the button 3.

CALC'NCLEAN START

• Press the start button 8; the display 5 will guide you through the programme.

EMPTY DRIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it.

• Swivel the coffee outlet 9 to the right until it clicks into place.

PLACE 1 L CONTAINER

PLACE SUCTION PIPE IN CONTAINER START

• Place a container with a capacity of at least 1 l under the milk frother 10.

• Place the end of the suction pipe 10d in the container.

• Press the start button 8. The appliance rinses twice.

CLEANING

OPEN POWDER COMPARTMENT

• Open the powder compartment 18.

INSERT BOSCH CLEANING TABLET

AND CLOSE DRAWER

• Drop a Bosch cleaning tablet in the drawer 18 and close.

REMOVE FILTER START

Info: If the water filter is activated, the display will prompt you to remove the filter, then press the start button 8 again.

ADD 0.5 L WATER AND DESCALER START

• Pour lukewarm water into the empty water tank 11 up to the "0.5l" mark and then dissolve two Bosch descending tablets in it.

• Press the start button 8. The descending programme now runs for about 20 minutes.

DESCALING

NOT ENOUGH DESCALING FLUID.

REFILL FLUID START

Info: If there is not enough descending solution in the water tank 11, the corresponding prompt is displayed. Pour in descending solution and press the start button 8 again.

en

CLEAN AND REFILL WATER TANK

→ START

• Rinse the water tank 11 and refill it with fresh water up to the "max" mark.
• Press the start button 8. The descending programme now runs for about 1 minute more, followed by the cleaning programme for about 7 minutes, and rinses the appliance.

DESCALING

CLEANING

EMPTY DRIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it.

Replace the filter if one is being used. The appliance has completed descaling and cleaning and is ready for use again.

Important: Wipe down the appliance using a soft, damp cloth to immediately remove any descaler residue. Such residue can cause corrosion. New sponge cloths may contain salts. Salts can cause rust film on stainless steel and must therefore be washed out thoroughly before use.

Thoroughly clean the suction pipe 10d of the milk frother.

Note: If one of the service programmes is interrupted, e. g. by a power outage, proceed as follows:

• Rinse the water tank 11 and refill it with fresh water up to the "max" mark.
• Press the start button 8. The cleaning programme now runs for about 3 minutes, and rinses the appliance.

CLEANING

EMPTY DRIP TRAY

REPLACE DRIP TRAY

• Empty the drip tray 23 and reinsert it.

The appliance is ready for use again.

Tips on energy saving

• The display has a dimming function that switches on automatically when the appliance is not in use. The display is illuminated dimly. Press any button or the rotary knob to brighten the display illumination again.
• If the appliance is not being used, switch it off at the power on/off switch 1 O/I on the front.
• If possible, do not interrupt coffee or milk froth dispensing. Stopping a process prematurely results in higher energy consumption and the drip tray fills up more quickly.
• Descale the appliance regularly to avoid a build-up of limescale. Limescale residue results in higher energy consumption.

Frost protection

To avoid damage caused by frost during transport and storage, the appliance must be completely emptied first.

See "Menu settings - TRANSPORT. LOCK."

Storing accessories

The espresso machine has special compartments for storing the accessories and quick reference guide inside the appliance.

• To store the measuring spoon 14, remove the water tank 11 and insert the spoon in the shaped recess 13.
• To store the quick reference guide, open the door to the brewing unit 19 and stow away the quick reference guide in the storage compartment 22 provided for this purpose.

Accessories

The following accessories are available from retailers or from customer service:

Accessories Ordering number
	Retail Customer service
Cleaning tablets TCZ6001 310575
Descaling tablets TCZ6002 310967
Water filter TCZ7003 575491
Care set TCZ8004 576331
Milk container with “FreshLock” lid	TCZ8009N 576165

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposalfacilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Technical specifications

Power connection (voltage/frequency)	220-240 V / 50-60 Hz
Heater wattage	1600 W
Maximum static pump pressure	15 bar (TES712) 19 bar (TES715)
Maximum water tank capacity (without filter)	2.4 l
Maximum capacity of the coffee bean container	~300 g
Length of power cable	100 cm
Dimensions (H x W x D)	394 x 296 x 456 mm
Weight, empty	11–13 kg
Type of grinding unit	Ceramic

Simple troubleshooting

Problem Cause Solution
Display shows REFILL BEAN CONTAINER although the bean container 15 is full, or the grinding unit does not grind the beans.	Beans are not falling into the grinding unit (beans too oily).	Gently tap the bean container 15. Change the type of coffee if necessary. When the bean container 15 is empty, wipe it with a dry cloth.
No tea water dispensed. The milk frother 10 or its holder is soiled.	Clean the milk frother 10 or its holder (see “Cleaning the milk system”).
Too little or no milk froth, or the milk frother 10 does not draw the milk in.	The milk frother 10 or its holder is soiled.	Clean the milk frother 10 or its holder (see “Cleaning the milk system”).
	Milk unsuitable for frothing. Use low-fat milk (1.5 % fat).
	The milk frother 10 is not correctly assembled.	Moisten and assemble the milk frother parts.
	Build-up of limescale in the apppliance.	Descale the appliance using two descaling tablets, if necessary repeat the procedure.
The selected per-cup quantity is not reached. Coffee dispensing slows to a trickle or stops completely.	Coffee is ground too finely. Pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting. Use coarser pre-groundcoffee.
	Build-up of limescale in the apppliance.	Descale the appliance.
Coffee has no “crema”. Unsuitable type of coffee. Use a type of coffee with a higher proportion of robusta beans.
The beans are no longer fresh.	Use fresh beans.
The grinding setting is not suitable for the beans.	Adjust the grinding setting to fine.
Coffee is too “acidic”. The grinding setting is too coarse or the pre-ground coffee is too coarse.	Adjust the grinding unit to a finer setting or use finer pre-ground coffee.
Unsuitable type of coffee. Use a darker roast.
Coffee is too “bitter”. The grind setting is too fine or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
Unsuitable type of coffee. Change the type of coffee.
If you are unable to solve the problem, always call the hotline. You will find the telephone numbers at the back of these instructions.
Problem Cause Solution
The coffee tastes "burnt". Brewing temperature too high	Reduce the temperature, see "Menu settings - COFFEE TEMP."
	The grinding setting is too fine or the pre-ground coffee is too fine.	Adjust the grinding unit to a coarser setting or use coarser pre-ground coffee.
	Unsuitable type of coffee. Change the type of coffee.
Display shows ERROR PLEASE CONTACT HOTLINE	The appliance has a fault. Please contact the hotline.
The water filter does not stay in position in the water tank.	The water filter is not mounted correctly.	Firmly press the water filter straight down into the tank connection.
Display shows CHECK WATER TANK	Water tank has been incorrectly inserted or the new water filter has not been rinsed according to instructions.	Insert the water tank correctly or rinse the water filter according to instructions and then switch on.
The coffee grounds are not compact and are too wet.	The grinding setting is too fine or too coarse, or not enough ground coffee has been used.	Adjust the grinding unit to a coarser or finer setting, or use 2 level measuring spoons of ground coffee.
Display shows CLEAN BREWING UNIT	Brewing unit is soiled. Clean brewing unit.
	Too much pre-ground coffee in the brewing unit.	Clean brewing unit (pour in no more than 2 level measuring spoons of ground coffee).
	The brewing unit's mechanism is stiff.	Clean brewing unit (see "Mainte-nance and daily cleaning").
Coffee or milk froth quality varies considerably.	Build-up of limescale in the appliance.	Descale the appliance with two descaling tablets as described in the instructions.
Water dripped onto the inner floor of the appli-ance when the drip tray was removed.	Drip tray removed too early.	Wait a few seconds after the last drink was dispensed before removing the drip tray.
If you are unable to solve the problem, always call the hotline. You will find the telephone numbers at the back of these instructions.

fr

Chere amatrice de cafe,
cher amateur de cafe,

My coffee (solo TES715)

RISC.T. OFFTRA (solo TES715)

SVUOTARE RACCOGLIGOCCE

INSERIRE RACCOGLIGOCCE

SVUOTARE RACCOGLIGOCCE

INSERIRE RACCOGLIGOCCE

SVUOTARE RACCOGLIGOCCE

INSERIRE RACCOGLIGOCCE

SVUOTARE RACCOGLIGOCCE

INSERIRE RACCOGLIGOCCE

AE United Arab Emirates,

BSH Home Appliances FZE

Round About 13

Plot Nr MO-0532A

Jebel Ali Free Zone - Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.:[phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

BE Belgique, Belgie, Belgium

BSH Home Appliances S.A.

European Trade Center

Building, 5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

BH Bahrain,

Khalaifat Company

Manama

Tel.:[phone]

mailto:[e-mail]

BY Belarus, Bénapycb

OOO"BCX BbITOBaTExHnKa"

TeJ.: 495 737 2961

mailto:[e-mail]

CH Schweiz, Suisse, Svizzera, Switzerland

BSH Hausgeräte AG

Werkskundendienst

für Hausgeräte

Fahrweidstrasse 80

8954 Geroldswil

mailto:ch-info.hausgeraete@ bshg.com

Service Tel.: [phone]

Service Fax: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk or call

*Calls are charged at the basic rate, please check with your telephone service provider for exact charges

GR Greece, EAAa

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kučni uredaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests, Spares and

Accessories

Tel.: [phone]*

Fax: [phone]

www.bosch-home.cu.uk

*0.03 € per minute at peak.

Off peak 0.0088 € per minute

IL Israel,

C/S/B Home Appliance Ltd.

Uiel Building

1. Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bharat,

BSH Customer Service

Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road,

Andheri East

Mumbai 400 093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

KZ Kazakhstan, Ka3aKcTaH

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon.

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O.Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.it

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

MD Moldova

S.R.L. "Rialto-Studio"

yI. UyceBa 98

2012 KuniHHeB

TeJ./paKc: 022 23 81 80

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

UI.Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069324812

mailto:ekobosch.servis@

t-com.me

MK Macedonia, MaKeDoHnJa

GORENEC

Jane Sandanski 69 lok.3

1000 Skopje

Tel.: [phone]

Mobil: 070 697 463

mailto:[e-mail]

MT Malta

Oxford House Ltd.

Notabile Road

Mriehel BKR 14

Tel.: [phone]

Fax: [phone]

www.oxfordhouse.com.mt

MV Raajjeyge Jumhooriyyaa, Maledives

Lintel Investments

Ma. Maadheli, Majeedhee Magu Malé

Tel.: [phone]

mailto:mohamed.zuhuree@

lintel.com.mv

NL Nederland, Netherlands

Unit F2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax:[phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sverige, Sweden

BSH Hushallsapparater AB

Landsvagen 32

169 29 Solna

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore, 新加坡

BSH Home Appliances Pte. Ltd.

TECHPLACE I and

Mo Kio Avenue 10

Block 4012 #01-01

569628 Singapore

Tel.: [phone]

Fax: [phone]

mailto:bshsgp.service@

bshg.com

www.bosch-home.com.sg

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

www.bosch-home.com/tr

^* Cagrìmerkezini sabit hatlardan

aramanin bedeli sehir icl ucretlendirme,

4th floor, No. 112, Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, YkpaHa

TOB "BCX Nóbytoba Texhika"

TeJ.: 044 4902095

mailto:[e-mail]

gama-electronics.com

XS Srbija, Serbia

BSH Kučni aparati d.o.o.

Milutina Milankovica 11^a

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand-Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/zai

[e-mail]

Call rates depend on the network used

CZ 0251095546

DE 091170440040

DK 44898985

EE 06278730

ES 902 24 52 55

FI 0207510700

Lankapuhelimitsa 8,28 snt/puhelu + 7 snt/min (alv 24%

Calls charged at local or mobile rate

0.03 € per minute at peak. Off peak 0.0088 € per minute.

IL 089777222

IS 05203000

IT 800 829 120 (Line Verde)

LI 052741788

LT 052741788

LU 26349300

LV 067425232

ME 050432575

MK 022454600

NL 0884244010

NO 22660600

PL 801 191 534

PT 214250730

RO 021 203 9748

RU 88002002961

SE 0771 11 22 77 (local rate)

SK 0244452041

SL 012007017

TR 4446333
