USER MANUAL PL1395 UFESA

This appliance has been designed exclusively for domestic use and must not be used for industrial purposes.

Carefully read through the operating instructions for the appliance and safeguard them for future reference.

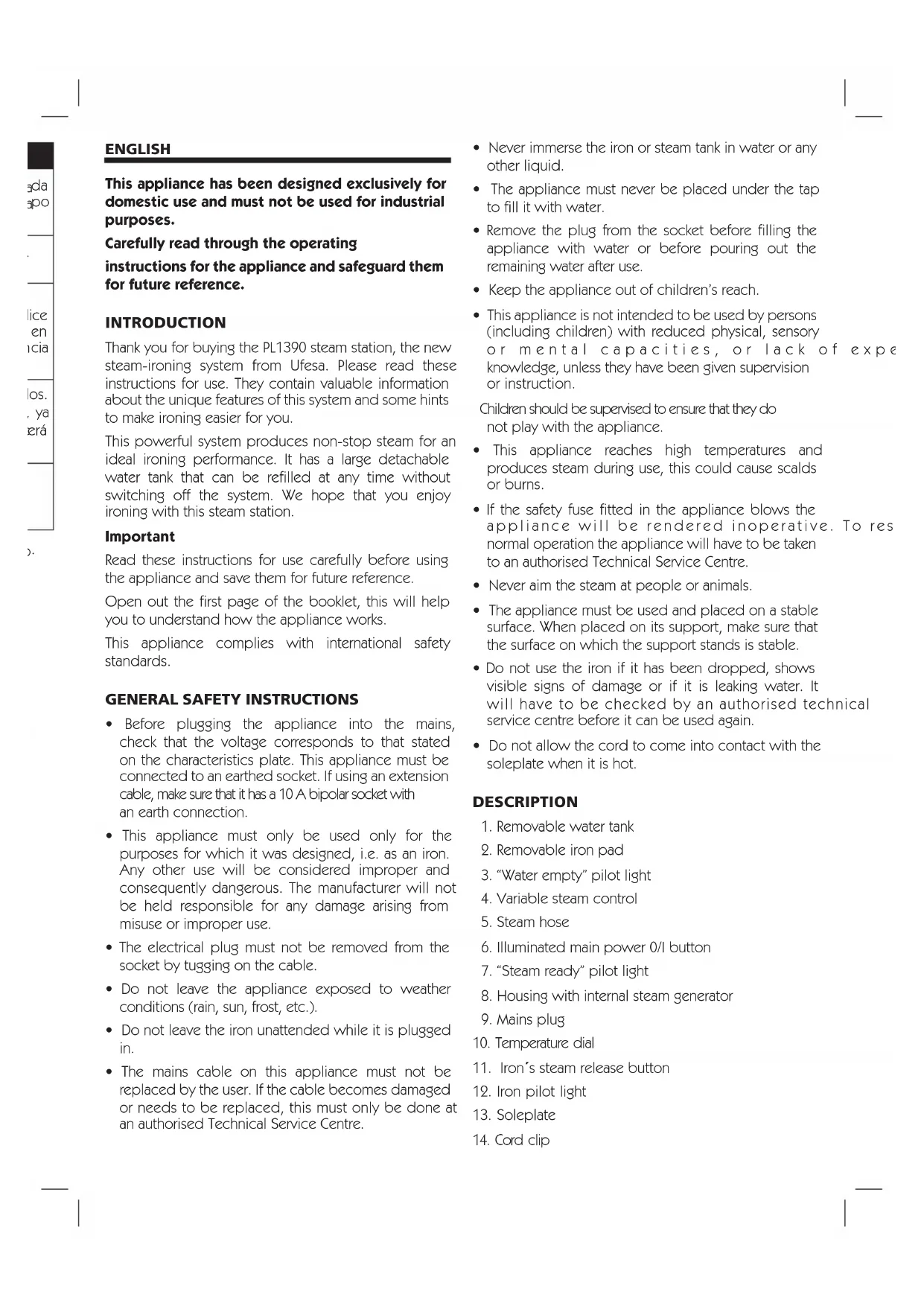

INTRODUCTION

Thank you for buying the PL1390 steam station, the new steam-ironing system from Ufesa. Please read these instructions for use. They contain valuable information about the unique features of this system and some hints to make ironing easier for you.

This powerful system produces non-stop steam for an ideal ironing performance. It has a large detachable water tank that can be refilled at any time without switching off the system. We hope that you enjoy ironing with this steam station.

Important

Read these instructions for use carefully before using the appliance and save them for future reference.

Open out the first page of the booklet, this will help you to understand how the appliance works.

This appliance complies with international safety standards.

GENERAL SAFETY INSTRUCTIONS

• Before plugging the appliance into the mains, check that the voltage corresponds to that stated on the characteristics plate. This appliance must be connected to an earthed socket. If using an extension cable, make sure that it has a 10 A bipolar socket with an earth connection.
• This appliance must only be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.
• The electrical plug must not be removed from the socket by tugging on the cable.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.).
• Do not leave the iron unattended while it is plugged in.

• The mains cable on this appliance must not be replaced by the user. If the cable becomes damaged or needs to be replaced, this must only be done at an authorised Technical Service Centre.

• Never immerse the iron or steam tank in water or any other liquid.

• The appliance must never be placed under the tap to fill it with water.
• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
• Keep the appliance out of children's reach.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capacities, or lack of experience, unless they have been given supervision or instruction.

Children should be supervised to ensure that they do not play with the appliance.

• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns.
• If the safety fuse fitted in the appliance blows the appliance will be rendered inoperative. To reset normal operation the appliance will have to be taken to an authorised Technical Service Centre.
• Never aim the steam at people or animals.
• The appliance must be used and placed on a stable surface. When placed on its support, make sure that the surface on which the support stands is stable.
• Do not use the iron if it has been dropped, shows visible signs of damage or if it is leaking water. It will have to be checked by an authorised technical service centre before it can be used again.
• Do not allow the cord to come into contact with the soleplate when it is hot.

DESCRIPTION

1. Removable water tank
2. Removable iron pad
3. "Water empty" pilot light
4. Variable steam control
5. Steam hose
6. Illuminated main power 0/1 button
7. "Steam ready" pilot light
8. Housing with internal steam generator

9. Mains plug

10. Temperature dial

11. Iron's steam release button

12. Iron pilot light
13. Soleplate
14. Cord clip

PREPARATIONS (A)

1. Remove any label or protective covering from the soleplate.
2. Place the appliance horizontally on a solid, stable surface. You may remove the iron pad from the appliance and place the iron on it on another solid, stable, horizontal surface.
3. Remove the detachable water tank (1) and fill it, making sure not to pass the level mark.
4. Fit the water tank back onto the steam tank.
5. Unwind the mains cable fully and plug it into an earthed socket.
6. Set the main power (6) button to the «I» position.
7. The "steam ready" indicator lamp (7) will light up after approximately 5 minutes, indicating that the appliance is ready to use.
8. This appliance has a built-in water level sensor. The "refill water tank" indicator (3) will light when the water tank is empty.

IMPORTANT:

Normal tap water can be used.

To prolong the optimum steam function, mix tap water with distilled water 1:1. If the tap water in your district is very hard, mix tap water with distilled water 1:2.

You can inquire about the water hardness with your local water supplier.

• The water tank can be filled at any time while using the appliance.
• To avoid damage and/or contamination of the water tank, do not put perfume, vinegar, starch, descaling agents, additives or any other type of chemical product into the water tank.
• The iron pad (2) can be placed into the specially designed recess on the appliance or somewhere suitable alongside the ironing area.

Never rest the iron on the appliance without the iron pad!.

• During it first use the iron may produce certain vapours and odours, along with white particles on the soleplate, this is normal and it will stop after a few minutes
• While the steam release button is pressed, the water tank may produce a pumping sound, this is normal, indicating that water is being pumped to the steam tank.

SETTING THE TEMPERATURE

1. Check the ironing instruction label on the garment to determine the correct ironing temperature.

2. Select the temperature (10)

Synthetics
Silk-Wool
Cotton-Linen

1. The indicator lamp (12) will remain lit while the iron is heating and go out as soon as the iron has reached the selected temperature.

TIPS:

• Sort your garments out based on their cleaning symbol labels, always starting with clothes that have to be ironed at the lowest temperatures.
• If you are not sure what the garment is made of then begin ironing at a low temperature and decide on the correct temperature by ironing a small section not usually seen when worn

IRONING WITH STEAM (B)

1. Make sure that there is enough water in the water tank
2. Turn the temperature selector (10) to the steam position, between «●» and «max».
3. Set the amount of steam to suit your needs, using the variable steam control (4)
4. Press the steam release button to release steam (11)

Important:

• The steam hose may get hot if you are ironing for long periods.

IRONING WITHOUT STEAM

1. Begin ironing but without pressing the steam release button (11).

VERTICAL STEAM (C)

1. Set the temperature control to the «●●» or «max» position.
2. You can steam iron curtains and hanging garments (jackets, suits, coats...) by placing the iron in a vertical position and pressing the steam release button (11).

CLEANING & MAINTENANCE

1. After ironing, pull out the plug and allow the appliance to cool down before cleaning.
2. Wipe the housing, handle and iron body with a damp cloth.
3. If the soleplate is soiled with dirt or scale, clean it with a damp cloth.
4. Never use abrasive products or solvents.

Important:

• Always unplug the appliance from the mains supply before carrying out any cleaning or maintenance operation on it.

STORING THE APPLIANCE (D)

1. Always allow the appliance to cool down before storing it.

2. Set the main power to the 0 position and disconnect the mains cable.

3. Place the iron on the iron pad, standing on the soleplate.
4. Empty the water tank and store the mains cable on the cord rewind facility. Tidy the steam hose on the handle of the iron using the cord clip provided (14). Do not wrap the cords too tight.

TROUBLE SHOOTING

Problem Possible causes Solution
The steam generator does not come on.	There is a connection problemThe main power button is not switched on.	Check the mains cable, the plug and the socket.Set the main power (6) button to the «I» position.
The iron does not heat up.	The main power button is not switched on.The temperature control knob is set to the «min» position.	Set the main power (6) button to the «I» position.Set the temperature control knob (10) to the desired position.
The iron begins to smoke when switched on.	During first use: Certain components on the appliance have been lightly greased at the factory and may produce a little smoke when initially heated.During later use: the soleplate may be soiled.	This is completely normal and will stop after a short while.Clean the soleplate according to the cleaning instructions in this manual.
Water flows through the holes on the sole plate.	The steam function is being used before it has reached temperature.The water is condensing inside the pipes because steam is being used for the first time or has not been used for a long time.	Reduce the steam flow when ironing at low temperatures (Variable steam control (4)).Point the iron away from the ironing area and press the steam release button (11) until steam is produced.
Dirt comes out through the sole plate.	There is a build-up of scale or minerals in the steam tank.Chemical products or additives have been used.	Use tap water mixed 50% with distilled or demineralised water. If the tap water in your district is very hard, mix tap water with distilled water 1:2.Clean the sole plate with a damp cloth.Never add products to the boiler water.
The iron does not produce any steam.	The boiler is not switched on or the water tank is empty.The water tank is not fitted onto the housing correctly.The steam regulator is set to the minimum position.	Set the main power (6) button to the «I» position and/or fill the water tank.Fit the water tank back onto the housing correctly (you will hear a click).Increase the steam flow by turning the steam control (4).
The ironed garment turns dark and/or sticks to the soleplate.	The selected temperature is too high and has damaged the garment.	Select a suitable temperature for the material being and clean the sole plate with a damp cloth.
The soleplate turns brown.	This is a regular consequence of usage.	Clean the soleplate regularly with a damp cloth.
The appliance makes a pumping sound.	Water is being pumped into the steam tank. The sound will not stop.	This is normal. If the sound will not stop, do not use the steam generator and contact an authorised technical service centre.
Loss of pressure during ironing.	Steam release button activated during a long period of time.	Use the steam release button (11) with intervals. This improves the ironing result as the textiles will be dried and stay smooth better.
Water leakage from the boiler	Drainage plug located at the bottom of the appliance is loose.	Tight up boiler drain coin

If the above does not solve the problem, get in touch with authorized technical service.

ADVICE ON DISPOSAL:

Our goods come in optimized packaging. This

basically consists in using non-contaminating

materials which should be handed over to the

local waste disposal service as secondary raw materials.

Before throwing a used appliance away, you should first make it noticeably inoperable and be certain to dispose of it in accordance with current national law

Your Retailer, Town Hall or Local Council can give you detailed information about this.

This appliance is labelled in accordance with

European Directive 2002/96/EC -concerning

used electrical and electronic appliances (waste

electrical and electronic equipment - WEEE).

The guideline determines the framework for the

return and recycling of used appliances as applicable throughout the EU.

Please ask your dealer about current means of disposal.
