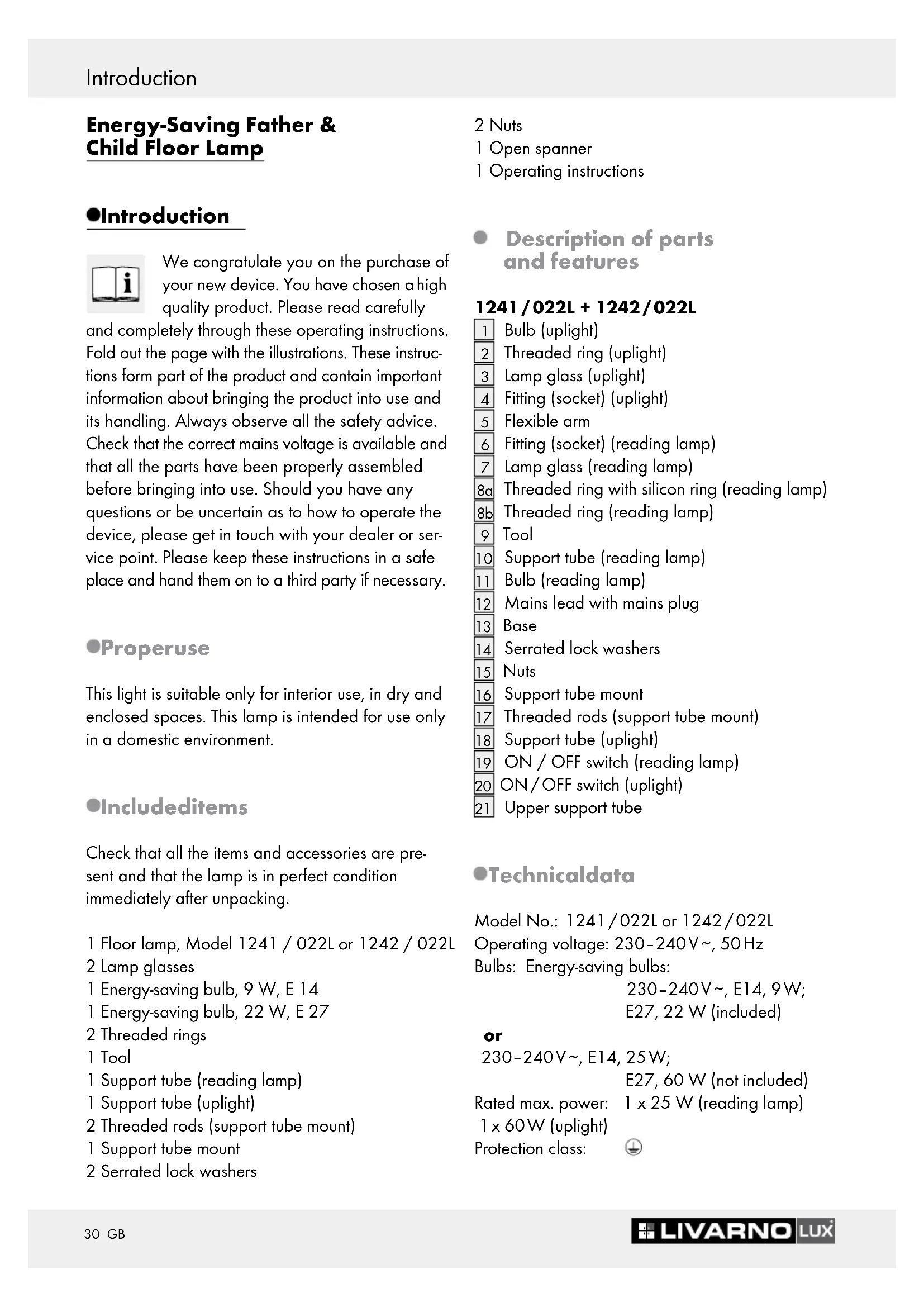

USER MANUAL 1241022L+1242022L Livarno Lux

Schraubring (Deckenfluter)

Threaded ring (uplight)

Lamp glass (uplight)

Fitting (socket) (reading lamp)

Lamp glass (reading lamp)

Threaded ring with silicon ring (reading lamp)

Threaded ring (reading lamp)

Support tube (reading lamp)

Mains lead with mains plug

Serrated lock washers

Threaded rods (support tube mount)

Support tube (uplight)

ON / OFF switch (reading lamp)

Upper support tube Technical data Model No.: 1241 / 022L or 1242 / 022L Operating voltage: 230–240 V ∼, 50 Hz Bulbs: Energy-saving bulbs: 230–240 V ∼, E14, 9 W; E27, 22 W (included)

230–240 V ∼, E14, 25 W; E27, 60 W (not included) Rated max. power: 1 x 25 W (reading lamp) 1 x 60 W (uplight) Protection class:31 GB Safety Safety Safety advice The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non- observance of the safety advice! To avoid danger to life from electric shock Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way. CAUTION! A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician. In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service representative of the manufacturer or a similar specialist! Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (230–240 V ∼). Never let the lamp come into contact with water or other liquids. Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock. To avoid danger of fire and injury CAUTION! RISK OF INJURY! Check bulbs for damage immediately after unpacking. Do not fit defective bulbs into the light. If they are, contact the service point for a replacement.

CAUTION! RISK OF INJURY FROM

BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp.

RISK OF FIRE! Install the light so that it is at least 0.5 m from any illuminated materials. Fire can result from the development of too much heat. Immediately replace the faulty light bulb with a new one. Remove the lamp from the socket before changing the light bulb. Do not allow any objects to cover the lamp. Fire can result from the development of too much heat. Never leave the lamp operating unattended. Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. Working safely Use only 230–240 volt ∼ energy-saving bulbs with an E14 fitting and a maximum power output of 9 watts for the reading lamp. Use only 230–240 volt ∼ energy-saving bulbs with an E27 fitting and a maximum power output of 22 watts for the uplight.

Use only 230–240 volt ∼ bulbs with an E14 fitting and a maximum power output of 25 watts for the reading lamp. Use only 230–240 volt ∼ bulbs with an E27 fitting and a maximum power output of 60 watts for the uplight. Install the light so that it is protected from moisture and dirt. Prepare carefully before assembly and allow yourself enough time. Lay out all the individual components and additional tools or materials required so that you can see and reach them. Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell.32 GB Preparing the product for use / Care and cleaning Preparing the product for use Assembling the lamp Note: You will require a second person to help with the assembly of the product. Note: Assembly is identical for both models (1241 / 022L or 1242 / 022L). Note: One threaded rod is already fitted. Note: Please ensure that you pull the cable during fitting slowly through the foot. Before installation, remove the two black plastic rings on the end of the support tube

to allow the components to be screwed together properly. Note: Ensure that the mains lead does not become trapped when it is fed through the support tubes

First screw the support tube

clockwise into the upper support tube

Then screw the support tube

clockwise into the flexible arm

Note: Ensure that the threaded rods

are screwed in as far as possible so that the lamp is stable when standing up. Screw the two threaded rods

clockwise into the support tubes

and push the support tube mount

on to the threaded rods

Insert the floor lamp with the threaded rods

into the preformed holes in the base

Place the serrated lock washers

at the underside of the support tube

on to the threaded rods

clockwise on to the threaded rods

to fix the floor lamp to the base

Note: Ensure that you hold the support tubes

firmly in place when you are tightening the nuts

Push the lamp glasses

. Fix the lamp glasses in place with the threaded rings

and secure it using the threaded ring

and tool. Note: Use a dry, fluff-free cloth for inserting the bulbs. Screw the bulbs

clockwise into the fittings

into a properly installed socket. Your lamp is now ready for operation. Switching the lamp on / off Use the ON / OFF switch

to switch the uplight on or off. Use the ON / OFF switch

to switch the reading lamp on or off. Directing the lamp Bend the flexible arm

to bring the reading lamp into the desired position. Replacing a bulb RISK OF ELECTRIC SHOCK! First pull the mains plug

out of the mains socket. CAUTION! RISK OF BURNS! First allow the lamp to cool completely. Unscrew the defective bulb

Then screw a new bulb clockwise into the fitting. Note: Use only 230–240 volt ∼ energy-saving bulbs with an E14 fitting and a maximum power output of 9 watts for the reading lamp. Use only 230–240 volt ∼ energy-saving bulbs with an E27 fitting and a maximum power output of 22 watts for the uplight.

Use only 230–240 volt ∼ bulbs with an E14 fitting and a maximum power output of 25 watts for the reading lamp. Use only 230–240 volt ∼ bulbs with an E27 fitting and a maximum power output of 60 watts for the uplight. Care and cleaning RISK OF ELECTRIC SHOCK! First pull the mains plug

out of the mains socket.33 GB Care and cleaning / Disposal / Warranty and Service CAUTION! RISK OF BURNS! First allow the lamp to cool completely. RISK OF ELECTRIC SHOCK! For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water. Do not use any solvents, petrol or similar. This would cause damage to the light. Always use a dry, fluff-free cloth for cleaning. Disposal The packaging and ancillary packing consist entirely of environmentally-friendly materials. They can be disposed of at your local recycling facility. The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this way may not be disposed of along with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and to ease the burden on the environment. Warranty and Service Warranty Declaration This product has a 3-year warranty from the date of purchase; the warranty is only valid for the origi- nal purchaser and is not transferable. Please keep your receipt as proof of purchase. The warranty applies to material or manufacturing defects only. It does not cover wear parts or damage caused by improper use. The guarantee lapses in cases of un- authorized tampering. Your statutory rights are not restricted in any way by this warranty. Please con- tact the service centre by telephone. In the event of any claims under the warranty. This is the only way to ensure that your instrument can be returned free of charge. Service address Briloner Leuchten GmbH Im Kissen 2, 59929 Brilon, Germany Tel.: +49 (0) 29 61 / 97 12–0 Fax: +49 (0) 29 61 / 97 12–1 99 E-Mail: Info@briloner.de www.briloner.de IAN 91032 Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase. Declaration of Conformity This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004 / 108 / EC, Low Voltage Directive 2006 / 95 / EC, Ecodesign Directive 2009 / 125 / EC, RoHS Directive 2011/ 65 / EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer. Manufacturer Briloner Leuchten GmbH Im Kissen 2 59929 Brilon Germany34 343536Briloner Leuchten GmbH Im Kissen 2 59929 Brilon (Germany)
