Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions.

Your CR3X Acid Etched will serve you for many years if you handle it and care for it properly.

We wish you a lot of pleasure in using it!

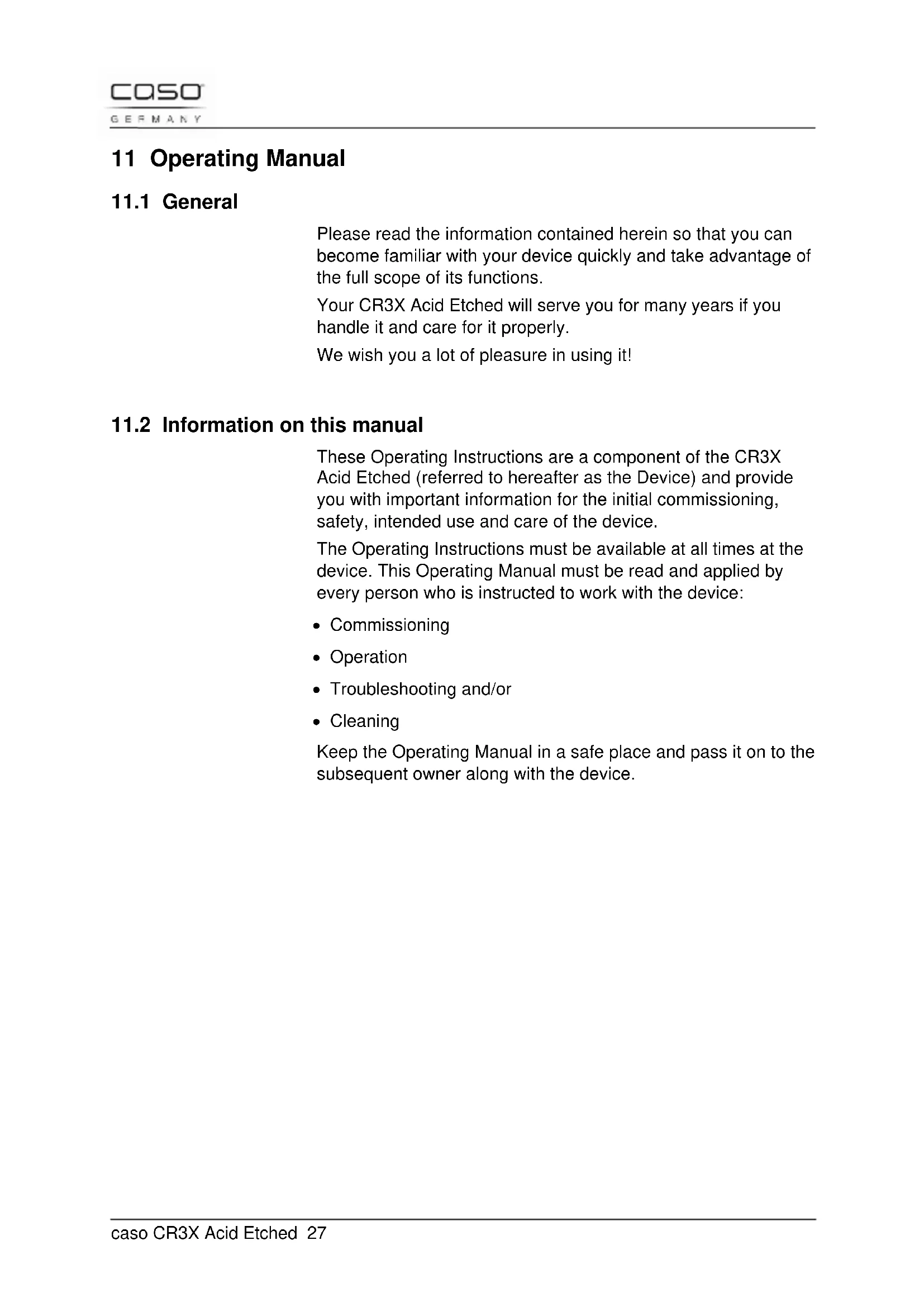

11.2 Information on this manual

These Operating Instructions are a component of the CR3X Acid Etched (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device.

The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

Commissioning
Operation
- Troubleshooting and/or
- Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

WARNING WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

VORSICH

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages or injuries arising as a result of the following:

Non-observation of the manual
Uses for non-intended purposes
- Improper repairs
Technical alterations
- Use of unauthorized spare parts
- Use of unauthorized attachments.

All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected.

Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially.

Subject to content and technical changes.

12 Safety

This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

12.1 Intended use

IMPORTANT: This appliance is intended for HOUSEHOLD USE ONLY. It is designed for home use and is not suitable for commercial application.

This device is only intended for use in households in enclosed spaces for

• cutting
• grating
• rasping

foods. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

Do not chop very hard ingredients such as coffee beans or ice.

WARNUNG Warning
Danger due to unintended use!
Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. Use the device exclusively for its intended use.
Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded.

The User bears the sole risk.

12.2 General Safety information

HINWEIS Please note

Please observe the following general safety notices with regard to the safe handling of the device.

Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
If the connection lead is damaged, you will need to have a new connection lead installed by an authorized electrician.
- Persons, who are not able to operate the device because of any physical, mental or motor disabilities may only use the device under the supervision or under the instructions of a responsible person.
This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
Do not leave the device unsupervised when it is in operation.
- Do not operate the appliance with wet hands and do not run at no-load.
- Do not permit children to use the device, unless they are supervised.
Children should be supervised to ensure that they do not play with the appliance.
Make sure that the mains connection cable does not come into contact with sharp edges and/or hot surfaces.
- Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user.
- Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages.
Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

12.3 Sources of danger

12.3.1 Danger of injury

▲WARNING

Warning

Personal and property damages can occur during commissioning of or handling the device!

Observe the following safety notices to avoid such dangers:

Drums are sharp. Handle them carefully.
Never feed food by hand. Always use food pusher.
Avoid contacting moving parts.
- Keep loose clothing, long hair and power cord away from moving parts.
Make sure appliance is off and the motor and blades have completely stopped when not in use, before putting on or taking off parts or removing food chamber.

12.3.2 Dangers due to electrical power

▲GEFAHR

Danger

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

If the connection lead is damaged, you will need to have a special connection lead installed by an authorized electrician.
Do not operate this device if its power cable or plug is damaged, if it does not work properly or if it is damaged or has been dropped. If the power cable is damaged, it will need to be replaced by the manufacturer or his service agency or a similar qualified person, to avoid any dangers.
Do not let cord hang over edge of table or counter, or touch hot surfaces (like stove, e.g.)
Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.
Do not immerse the appliance in water or other liquids, and do not put it in the dishwasher.

13 Commissioning

This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

WARNING

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

• Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

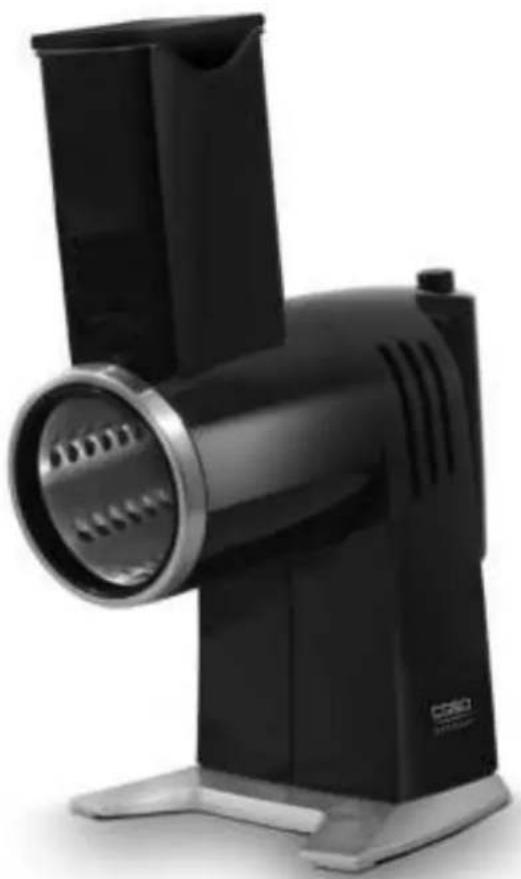

As a rule, the CR3X Acid Etched is delivered with the following components:

• CR3X Acid Etched
  3 high-quality acid etched graters
• Operating Instructions

HINWEIS

Please note

Examine the shipment for its completeness and for any visible damages.
- Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

13.3 Unpacking

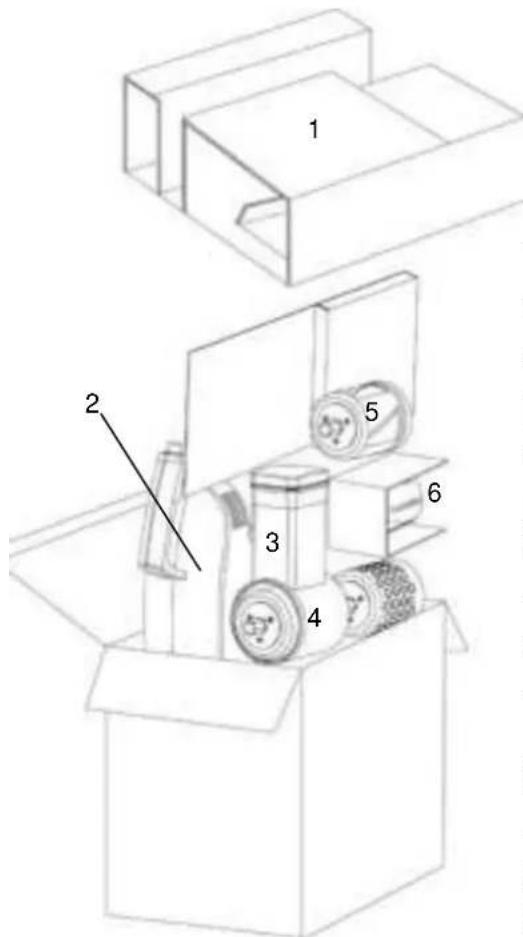

To unpack the device, proceed as follows:

Remove the device out of the carton and remove the packaging material.

Place the box on a table or kitchen counter. Be sure the box is right side up.

Remove the top cardboard insert (1). Then remove the housing base (2).

The food chamber and pusher (3) are located in a bag in one corner of the box. Remove these next.

The slicing drum is located inside the food chamber (4). Remove it WITH GREAT CARE; THE BLADES ARE VERY SHARP.

The other drums are located in the corner of the box in separate bubble bags (5-6). Remove them one at a time, WITH GREAT CARE; THE BLADES ARE VERY SHARP.

WARNING

Warning

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

The drums have very sharp edges. To avoid injury when unpacking parts, please follow these instructions.

13.4 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

HINWEIS Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

13.5 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device If in doubt, ask your qualified electrician.
• The electrical outlet must be protected by a 16A safety cutout switch.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the device or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.
• The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

14 Design and Function

This chapter provides you with important safety notices on the design and function of the device.

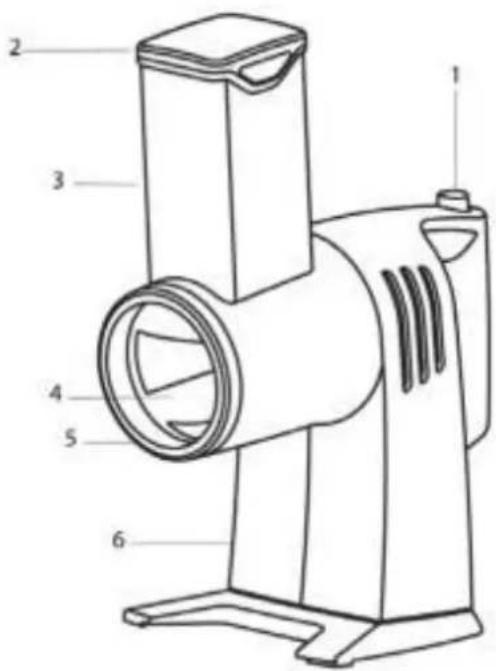

14.1 Complete overview

1. On/Off switch
2. Pusher
3. Feed tube
   4.Drum
4. Food chamber
5. Housing base

1. Slicing Drum

1. Shredding Drum (Julienne wide)

1. Fine Shredding Drum (Julienne slim)

14.2 Assembly/Usage instructions

Select the drum that will be used and insert it into the chute opening. The exterior metal portions of the drums are sharp. Handle them carefully. Insert drum into food chamber.

WARNING Warning

Personal and property damages can occur during commissioning of or handling the device!

Observe the following safety notices to avoid such dangers:

Drums are sharp. Handle them carefully.

Attach the food chamber assembly to the housing base. With the handle in your right hand and holding the food chamber at a 15^ angle, aline the food chamber with the corresponding shaft recess on the housing base. The driving end of the assembly must be fully inserted into the socket of the motorized base. Next, while pushing the food chamber assembly firmly in toward the handle, rotate the assembly counterclockwise until it is upright and it is centered with the handle.

WARNING Warning

Personal and property damages can occur during commissioning of or handling the device!

Observe the following safety notices to avoid such dangers:

Make sure appliance is off when not in use, before putting on or taking off parts.

14.3 Safety equipment

Safety switches prevent the machine from operating when the drum and feed tube are not locked into position.

The motor stops within seconds when the motor is turned off.

14.4 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

15 Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages.

Plug cord in and load the food chamber. Place a bowl in front of the device.

HINWEIS Please note

For best results, it is important that the food be prepared and properly placed in the food chamber as follows:

Cut food so that it will easily fit into the feed tube.
- Stack food upright into the feed tube for short pieces or vertically for longer pieces.

Begin processing by pushing down the switch and evenly pushing the food down, using the pusher.

WARNING Warning

Personal and property damages can occur during commissioning of or handling the device!

Observe the following safety notices to avoid such dangers:

Never feed food by hand. Always use food pusher.
Avoid contacting moving parts.
Make sure appliance is off when not in use, before putting on or taking off parts.

The processed food will be released from the front of the unit, directly into your bowl or platter.

WARNING Warning

Personal and property damages can occur during commissioning of or handling the device!

Observe the following safety notices to avoid such dangers: The exterior of the drums are sharp. Store the drums, as you would sharp knives, out of the reach of children.

15.1 Tips for cutting food

Drum Food Quantity Operating time
Slicing	Carrot	500 g	Ca. 30 sec.
	Cheese	300 g	Ca. 30 sec.
	Onions	500 g	Ca. 40 sec.
	Cabbage	800 g	Ca. 40 sec.
	Apple	500 g	Ca. 20 sec.
Julienne small	Carrot	500 g	Ca. 1 min.
	Cheese	200 g	Ca. 40 sec.
Julienne wide	Carrot	500 g	Ca. 1 min.
	Potatoes	500 g	Ca. 1 min.
	Cheese	200 g	Ca. 40 sec.

16 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.
- Switch the appliance off prior to cleaning it and unplug the plug from the wall power outlet.
Clean the device directly after use. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.
If dampness penetrates into the device, this can damage the electronic components.
- Do not use any aggressive or abrasive cleaning agents or solvents.
- Do not scrape off stubborn dirt with hard items.

16.2 Cleaning

Drums, food chamber, feed tube, pusher

• All parts except the housing base are dishwasher-safe, and we recommend washing them in the top rack of the dishwasher only.

• Remember to unload the dishwasher carefully where the sharp drums are located.

• To simplify cleaning, rinse the pusher, drums, and food chamber immediately after use, so food won't dry on them.

If you wash drums by hand, do it carefully.

• Avoid leaving them in soapy water where they may disappear from sight. Use of a spray attachment is also effective. If necessary, use a brush.

• Dry completely and store, as you would like other sharp knives, keep out of reach for children. Always leave it unplugged.

Housing base

• The housing base is made of a tough plastic with high impact resistance. Its smooth surface will look new for years. Keep a sponge handy as you work, and wipe spills from the base.

• Dry completely and store, as you would like other sharp knives, keep out of reach for children. Always leave it unplugged.

HINWEIS

Please note

Make sure appliance is off when not in use, before putting on or taking off parts.

17 Troubleshooting

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

17.1 Safety notices

VORSICHT

Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
  Improperly performed repairs can cause considerable dangers for the user and damages to the device.

18 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety.

If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the nonrecyclable waste under any circumstances.

HINWEIS

Please note

Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
- Ensure that your old device is stored safely away from children until it is taken away.

19 Guarantee

We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults.

Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this.

The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements.

This device is designed for use in domestic situations and has the appropriate performance levels.

Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use.

In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device.

Any pending faults must be reported within 14 days of delivery. All further claims are excluded.

To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).

20 Technical Data

Device	Electric food grater
Name	CR3X Acid Etched
Model	KR-502
Item No.:	1766
Mains data	220-240 V, 50 Hz
Power consumption	170 - 220 W
Net weight	1,2 kg
Measures (W/H/D)	140 x 300 x 230 mm

Maximum rating of 1,2 amperes is based on attachment that draws greatest current. Other recommended attachments may draw significantly less current.

Mode d'emploi

CR3X Acid Etched

21 Mode d'emploi

21.1 Généralités

Involucro
