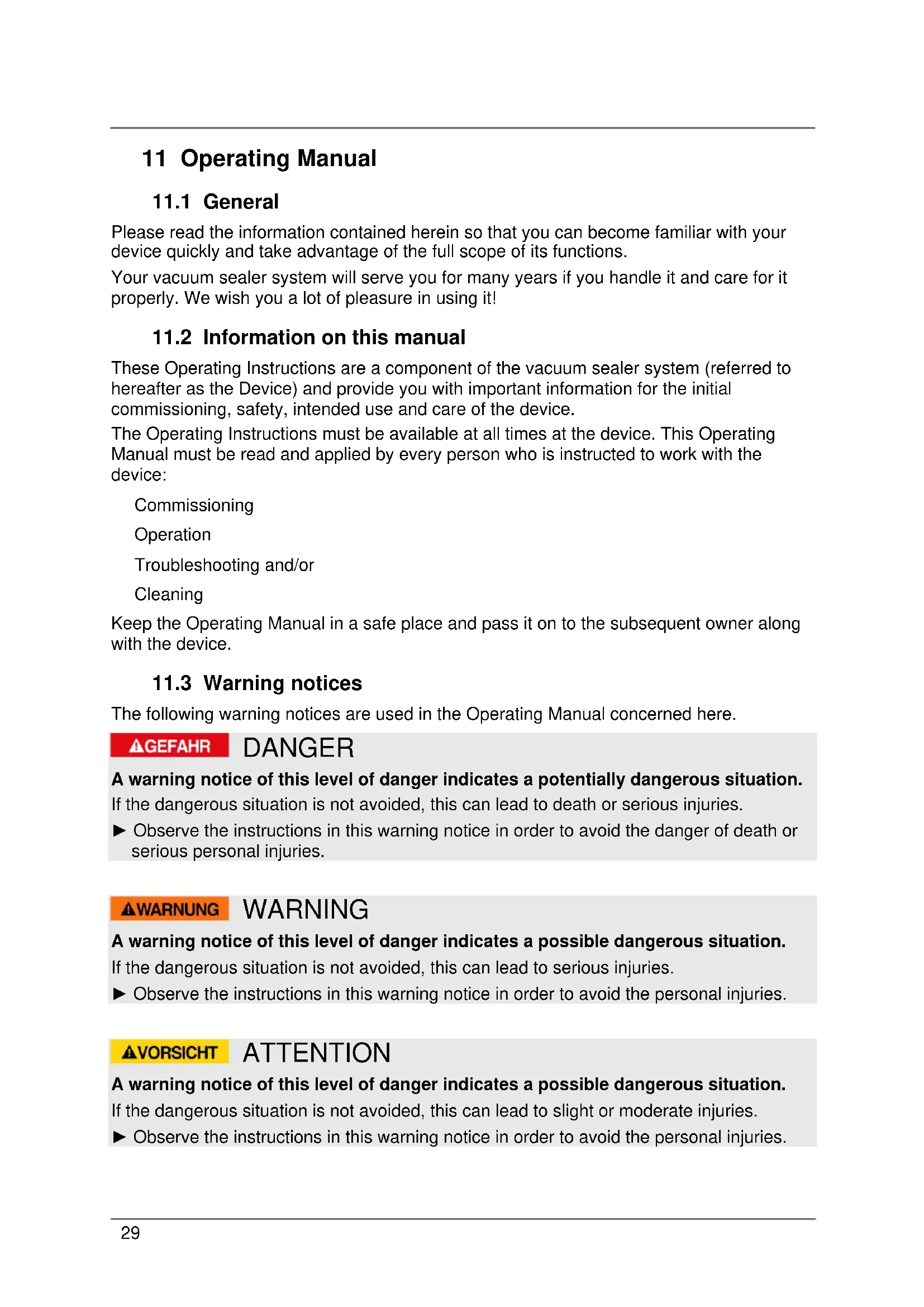

USER MANUAL VC9 CASO

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your vacuum sealer system will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

11.2 Information on this manual

These Operating Instructions are a component of the vacuum sealer system (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device: Commissioning Operation Troubleshooting and/or Cleaning Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

11.3 Warning notices

The following warning notices are used in the Operating Manual concerned here. DANGER A warning notice of this level of danger indicates a potentially dangerous situation. If the dangerous situation is not avoided, this can lead to death or serious injuries. ► Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries. WARNING A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to serious injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries. ATTENTION A warning notice of this level of danger indicates a possible dangerous situation. If the dangerous situation is not avoided, this can lead to slight or moderate injuries. ► Observe the instructions in this warning notice in order to avoid the personal injuries.30 PLEASE NOTE A notice of this kind indicates additional information, which will simplify the handling of the machine.

11.4 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual. The manufacturer does not assume any liability for damages arising as a result of the following: Non-observance of the manual Uses for non-intended purposes Improper repairs Technical alterations, modifications of the device Use of unauthorized spare parts Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

11.5 Copyright protection

This document is copyright protected. Braukmann GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. 12 Safety This chapter provides you with important safety notices when handling the device. The device corresponds with the required safety regulations. Improper use can result in personal or property damages.

This device is only intended for use in households in enclosed spaces for vacuuming and sealing bags. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.31 Warning Danger due to unintended use! Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use. ► Use the device exclusively for its intended use. ► Observe the procedural methods described in this Operating Manual. Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

12.2 General Safety information

Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ► If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards. ► Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device. The device and its connecting cable must be kept away from children who are less than 8 years old. ► The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.32 Please note ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs that may be needed. Improperly performed repairs can cause considerable dangers for the user. ► Only customer service departments authorized by the manufacturer may carry out repairs on the device during the guarantee period, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. ► Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled. ► Do not leave the device unsupervised when it is in operation. ► When disconnect, please unplug by grasp the plug and not the cord, to avoid any injury. ► Never immerse the device in water or other liquids and do not place it in the dishwasher. ► For the correct storage, please slightly close the cover, do not lock, it will deform the gaskets and affect the machine function.

12.3 Sources of danger

12.3.1 Danger of burns

Warning The sealing bar gets very hot. Please observe the following safety notice in order not to burn yourself or others. ► To avoid getting burned, never touch the sealing bar directly after sealing process.33

12.3.2 Danger of fire

Warning There is a danger of fire due to the event the device is not used properly. Observe the following safety notices to avoid dangers of fire: ► Do not set up the device near flammable material. ► Keep this appliance away from sources of heat (gas, electric, burner, heated oven).

12.3.3 Dangers due to electrical power

Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard. ► Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur. ► Before plugging the appliance in or when you operate it, make sure your hands are dry. ► Do not insert objects into the openings of the device.34

12.4 Food storage safety information

This vacuum preservation system will change the way you purchase and store foods. Once you are accustomed to vacuum packing, it will become an indispensable part of your food preparation. Please follow certain procedures when using this appliance to ensure food quality and safety. Please note ► If perishable foods have been heated, defrosted or un-refrigerated, consume them immediately. ► Before vacuum sealing, it’s necessary to clean your hands, and all utensils and surfaces to be used for cutting and vacuum sealing foods. ► Refrigerate or freeze the perishable foods immediately, if you have vacuum-sealed them, and do not leave them sitting at room temperature. ► The shelf life of dry foods such as nuts, coconut or cereals will be extended in vacuum- sealed package, while storing them in dark place. Oxygen and warm temperature will cause high-fat content foods fat to rancidity. ► Before vacuum sealing some fruit and vegetables, such as apples, bananas, potatoes and root vegetables, peel them, this will extend their shelf lives. ► When vacuum seal some vegetables such as broccoli, cauliflower and cabbage fresh for refrigeration, they will emit gases, so it’s need to blanch and freeze these foods before vacuum sealing. 13 Commissioning This chapter provides you with important safety notices during the initial commissioning of the device. Observe the following notices to avoid dangers and damages:

13.1 Safety information

Warning Personal and property damages can occur during commissioning of the device! Observe the following safety notices to avoid such dangers: ► Packaging materials may not be used for playing. There is a danger of suffocation.

13.2 Delivery scope and transport inspection

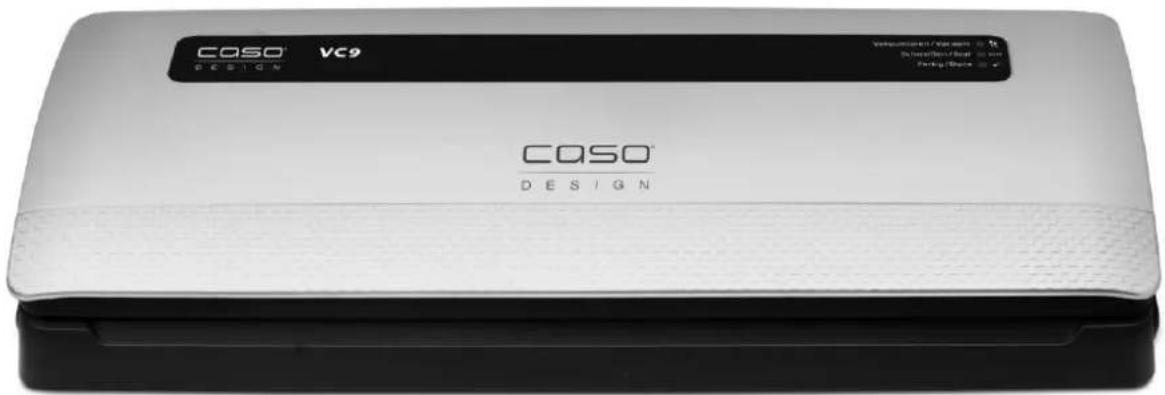

As a rule, the vakuum sealer system is delivered with the following components: Vacuum sealer system VC9 silver 10 top-quality bags Operating Instructions Please note ► Examine the shipment for its completeness and for any visible damages. ► Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.35

The main function of this appliance is to store a wide kind of foods for freshness, longer shelf life, flavor and convenience. In general, vacuum packaging keeps food fresh up to eight times as long as other traditional food storage methods. Once this appliance will be an indispensable part of your life, you will have less food spoilage and it will save your money. Cook in advance to vacuum seal and store individual portions or entire meals. Prepare foods in advance for picnics and camping trips or barbecues. Eliminate freezer burn. Package foods, such as meat, fish, poultry, seafood and vegetables to freeze or refrigerate. Package dry foods, such as beans, nuts, and cereals to store longer. There are many non-food uses for vacuum packing. Keep camping supplies such as matches, first aid kits and clothing clean and dry. Keep flares for auto emergencies ready. Keep silver and collectibles untarnished.

To unpack the device, proceed as follows: Remove the device out of the carton and remove the packaging material.

13.5 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling- related points of view and can therefore be recycled. Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. Take any packaging materials that are no longer required to “Green Dot” recycling collection points for disposal. Please note ► If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.36

13.6.1 Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites: The device must be set up on a firm, flat and horizontal surface with sufficient load- bearing capacity for the vacuum sealer system and the maximum weight of the food that should be vacuum-sealed. Choose the setup location in such a way that children cannot reach the hot sealing strip of the device. Do not set up the device in a hot, wet or extremely damp environment or near flammable material. The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 10 cm around the device. Do not move the vacuum sealer system when it is in operation. The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency. The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

13.7 Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician. The electrical outlet must be protected by a 16A safety cut-out switch. The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this. Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces. The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician. The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.37 14 Design and Function This chapter provides you with important safety notices on the design and function of the device.

14.1 Complete overview

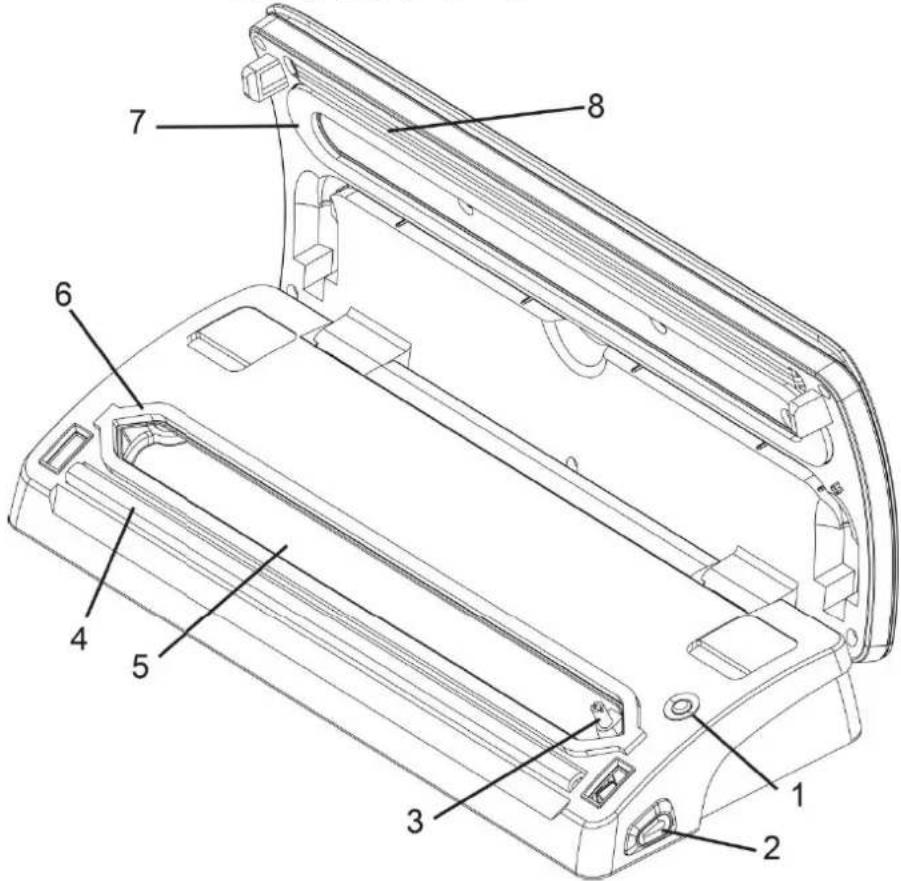

1 Safety switch: Is activated when the cover is closed. 2 Release button: Press both sides simultaneously to open the cover. And release the vacuum pressure inside the machine. 3 Air Intake: Connects the vacuum chamber to the pump. 4 Sealing profile Presses the bag tightly onto the sealing element. 5 Vacuum chamber: Position the open end of the bag inside the chamber, draws air out of bag and catches any liquid overflow from the bag. 6 Lower gasket: Seals the vacuum chamber from below 7 Upper gasket: Seals the vacuum chamber from above 8 Sealing bar: Contains a heating wire covered with Teflon which allows the bag to seal but not to stick to the wire. Warning ► Attention When you press the safety-switch (1) the motor of the device starts to withdraw air. After this the sealing bar (8) turns hot. The sealing bar gets very hot. Please observe the following safety notice in order not to burn yourself or others. ► To avoid getting burned, never touch the sealing bar directly after sealing process. Please note ► Do not remove the Teflon tape (T).38 9 Vacuum: This LED light which to show you that the machine is under vacuum process. 10 Seal: This LED light which to show you that the machine is under the Seal function. 11 Done: This LED light which to show you that the vacuuming and/or sealing work is already done.

The rating plate with the connection and performance data can be founded on the back of the device. 15 Operation and Handing This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

15.1 Operating Instructions

After each sealing session and before starting up, check to make sure the unit and all accessories that come in contact with the foodstuff are thoroughly clean. Follow the cleaning instructions on the description page.

Please only use specified bags and rolls designed for vacuum sealing. Do not use other materials such as plastic wrap. All vacuum rolls and bags delivered by CASO are appropriate for cooking under vacuum (sous vide). Furthermore the vacuum rolls and bags can be used for defrosting and heating in the microwave at up to 70° C. Please make sure when vacuum rolls and bags of other producers are used, whether they are also microwaveable and suitable for cooking under vacuum. Please note that a bar vacuumsealer as this device can only be used with structured bags. You can buy a wide range of different bags and rolls from CASO.

15.2 Vacuum packaging with a bag

Place the unit on a dry place. Make sure the working area in front of the unit is free of obstacles and wide enough to accommodate the food bags.

1. Put the items inside the bag.

2. Clean and straighten the open end of the bag, make sure no dust, wrinkle or ripples.39

3. Place the open end of the bag as seen on the

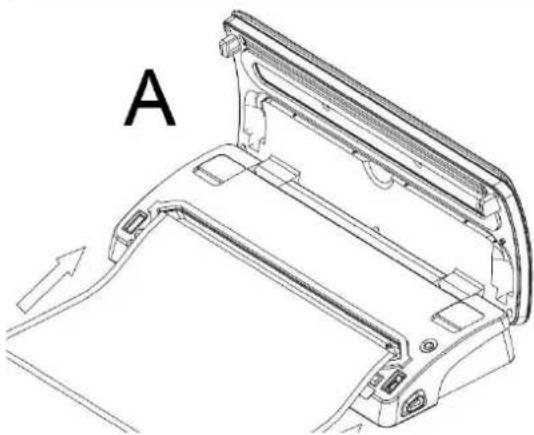

image (A) within the vacuum chamber are. Make sure the air intake (3) is not covered by the bag, otherwise the vacuum can not be generated correctly.

4. Close the upper lid and press tightly the cover

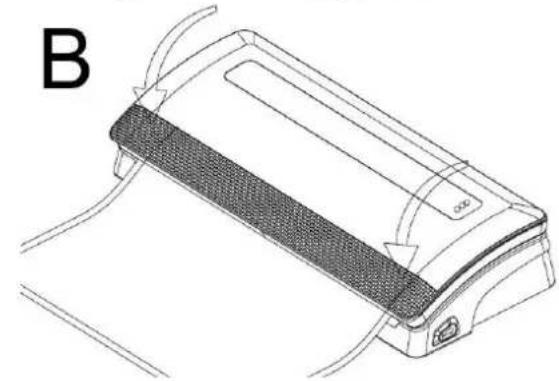

first on left side, then on right side, until the cover latches, (image B). You can hear the motor working and the device now is vacuuming the bag (LED 9), and will seal the bag (LED 10), then stop when it is done fully automatically.

5. The vacuum packaging is done (LED 11).

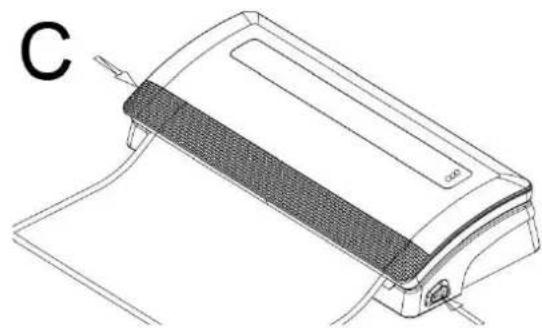

Press the Release button (2) (image C) to open the cover and take out the packed bags.

Please note ► Do not put too much food inside the bag; leave enough empty length in the open end of the bag so that the bag can be placed in the vacuuming plate more positively. ► Do not wet the open end of the bag. Wet bags may be difficult to seal tightly. ► Clean and straighten the open end of the bag before sealing the bag. Make sure nothing is leaving on the open area of the bag. Foreign objects or creased bags may cause difficulty to seal tightly. ► Do not leave too much air inside the bag. Press the bag to allow extra air to escape from the bag before vacuuming it. Too much air inside the bag increases the vacuum pump loading and may cause that the motor works insufficient to draw away all the air out of the bag. ► If the foods you’re sealing have sharp edges, such as bones, spaghetti or shellfish, pack the edges with kitchen paper to avoid tearing the bag ► Suggest to vacuum seal one bag within 1 minute to let the appliance cool down enough.40 Please note ► In order to vacuum seal liquid-based foods, such as soups, casseroles or stew, freeze them first in a baking pan or tempered dish, vacuum seal them, label and stack them in your freezer as soon as they are in frozen solid. ► Blanch the vegetables by cooking briefly in boiling water or microwave oven, cool them down , then vacuum seal them in convenient portions. ► To vacuum seal the foods not frozen, two extra inches are required for bag length to allow for expansion while freezing. Place the meat or fish on a paper towel and vacuum seal with the paper towel in the bag, this way will help to absorb moisture from the foods. ► Before storing the foods such as tortillas, crepes or hamburger, use wax or parchment paper between them to stack the pieces, this will be easier to remove some of the food, reseal the rest and immediately replace in the freezer. ► The vacuum preservation system can’t be directly used for the vacuum sealing of canisters or canning jars.

15.3 Making a bag from a bag roll

Place the unit on a dry place. Make sure the working area in front of the unit is free of obstacles and wide enough to accommodate the food bags. Plug the unit into a power source.

1. Use scissors to cut a bag from the bag rolls to

the length which you want (image A).

2. Put one end of the bag on top of the sealing

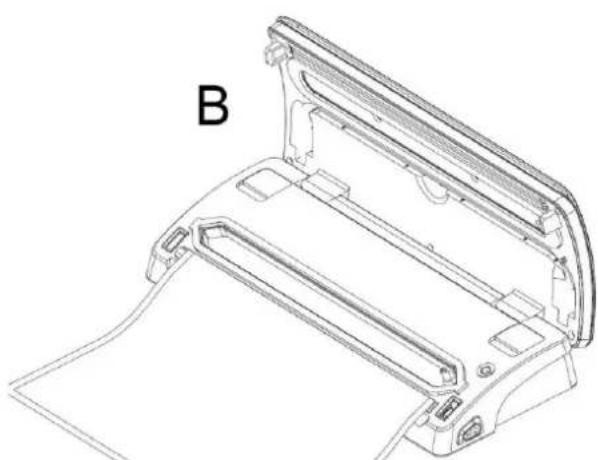

profile (4) and the lower gasket (6) The open end of bag must not enter the vacuum chamber (5) (image B).

3. Close the upper lid and hold it down tightly on both

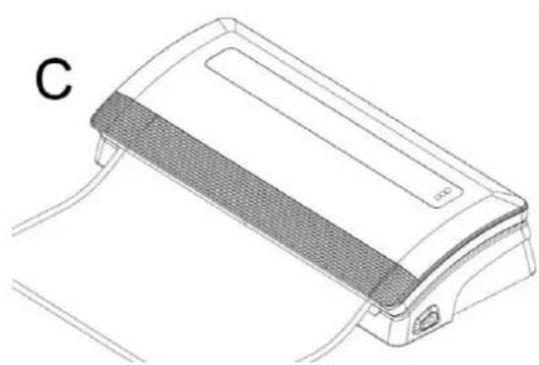

side of the machine by two hands till you hear motor working and keep it for a few seconds (image C) . The machine will then suck the cover down tightly and seal this bag, and automatically stop when the bag is sealed.41

4. When the sealing process has finished press the release buttons (2) to open the cover

and take the bag out of the machine.

5. Now you have a custom-sized bag.

Please note ► Make sure that the bag you want to use is at least 8cm/3.1in. longer than the food. Add another 2 cm/0.8in. each time the bag is re-used.

15.4 Open a sealed bag

Cut the bag straight across with scissors, just inside the seal.

15.5 Storing your vacuum sealing system

Keep the unit in a flat and safe place, out of the reach of children. Please note ► For the correct storage, please slightly close the cover, do not lock, it will deform the gaskets and affect the machine function. ► To disconnect remove the plug from the outlet. ► Always unplug this appliance from the electrical outlet immediately after using and before cleaning. 16 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

16.1 Safety information

Attention Please observe the following safety notices, before you commence with cleaning the device: ► The device must be cleaned and food residues must be removed at regular intervals. If the device is not maintained in a clean condition, this will have a detrimental effect on the service life of the device and can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria. ► Unplug the device prior to cleaning it. ► The sealing bar is hot after it is used. There is a danger of burns! Wait until the device has cooled down. ► Clean the device after use as soon as it has cooled down. Extended waiting unnecessarily complicates cleaning and can make it impossible in extreme cases. Excessive accumulations of dirt can even damage the device under certain circumstances.42 Attention ► Never immerse the device in water or other liquids and do not place in the dishwasher. ► If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device. ► Do not use any aggressive or abrasive cleaning agents or solvents. ► Do not scrape off stubborn dirt with hard items. ► Dry thoroughly before using again.

Outside of the unit Wipe the outside of the unit with a damp cloth or sponge and mild dish soap. Inside of the device To clean the inside of the unit wipe away any food or liquids with a paper towel. Preservation bags Washing the bagging material in warm water with a mild dishwashing soap, then rinse the bags well and allow drying thoroughly before reusing. Attention ► Bags used to store raw meats, fish or greasy foods can’t be reused. Sealing profile (which presses the bag against the sealing bar) Remove the sealing profile and clean it in warm soapy water. Please note ► The sealing profile should be cleaned thoroughly before installing it again. ► Be careful during re-installation, so that nothing will be damaged and sealing profile is placed well so that the device can work properly. 17 Troubleshooting This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device.43

17.2 Cause and Action

The table below helps to locate and resolve minor faults. Error Possible cause Rectification Vacuum unit is not functioning Power plug is not plugged in Plug in mains plug! Defective power cable or plug Send device to Customer Service Defective electrical socket Select another electrical socket The first weld on the cut off piece of the roll is not being carried out. Roll is not positioned correctly Follow the steps in the chapter “Vacuum packaging in a bag originating on the roll” A complete vacuum is not being created in the bag. The open end of the bag is not completely inside the vacuum chamber Position the bag correctly The bag is defective Select another bag There is dirt on the welding and the normal seals Clean the seals and retry correctly once they are dry The bag is not being welded correctly The welding bar is overheating so that the bag melts Open the cover on the unit and let it cool down for a few minutes The bag does not hold the vacuum after it has been welded shut The bag is defective Select another bag; wrap paper serviettes around any sharp edges on the content There are leaks along the welding seam as a result of creases, crumbs, grease or liquids. Open the bag again and clean the upper internal part of the bag and remove any foreign matter that might be on the welding bar before you weld the bag shut again. The bag melts. The sealing bar overheats and melts the bag. Open the lid of the device and allow the sealing bar to cool down a few minutes. Please note ► If you are unable to solve the problem with the steps shown above, please contact Customer Service.44 18 Disposal of the Old Device Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances. Please note ► Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information. ► Ensure that your old device is stored safely away from children until it is taken away. 19 Guarantee We provide a 24 month guarantee for this product, commencing from the date of sale, for faults which are attributable to production or material faults. Your legal guarantee entitlements in accordance with § 439 ff. BGB-E remain unaffected by this. The guarantee does not include damages, which were incurred as a result of improper handling or use, as well as malfunctions which only have a minor effect on the function or the value of the device. Consumables, transit damages, inasmuch as we are not responsible for these, as well as damages, which were incurred as a result of any repairs that were not performed by us, are also excluded from the guarantee entitlements. This device is designed for use in domestic situations and has the appropriate performance levels. Any use in commercial situations is only covered under the guarantee to the extent that it would be comparable with the stresses of being used in a domestic situation. It is not intended for any additional, commercial use. In the event of justified complaints, we will repair the faulty device at our discretion or replace it with a trouble-free device. Any pending faults must be reported within 14 days of delivery. All further claims are excluded. To enforce a guarantee claim, please contact us prior to returning the device (always provide us with proof of purchase).45 20 Technical Data Device Vacuum sealer system Name VC9 Item No.:
