T800ORAB - Toaster GORENJE - Free user manual and instructions

Product type	Toaster
Brand	Gorenje
Model	T800ORAB
Capacity	2 slices
Controls	Electronic buttons (Cancel, Reheat, Defrost, browning levels 1-6)
Functions	Toasting, Defrosting, Reheating, Cancel
Browning levels	6 (1: lightly toasted, 6: well toasted)
Reheat rack	Yes, for rolls and pastries
Crumb tray	Removable, empty regularly
Automatic shut-off	Yes, bread ejection at end of cycle
Safety	Automatic ejection, unplug recommended if problem, do not immerse
Power supply	Mains, 220-240 V ~ 50/60 Hz
Exterior material	Plastic and metal
Care and cleaning	Damp cloth, do not use abrasive cleaners, empty crumb tray
Usage	Indoor, household use only
Weight (approx)	Approx 1.5 kg
Dimensions (approx)	Approx 28 x 18 x 20 cm

Frequently Asked Questions - T800ORAB GORENJE

How to use the toaster for the first time?

Unpack the appliance and clean it with a damp cloth. Then run it empty three times on the maximum browning setting in a well-ventilated room to remove dust and odors.

How to clean the toaster?

Always unplug the appliance and allow it to cool. Use a damp cloth for the exterior. Never immerse the appliance in water. Regularly empty the crumb tray by pulling it out. Do not use abrasive cleaners.

How to use the defrost function?

Insert frozen bread into the slots, lower the lever, then press the Defrost button. You can set the browning from 1 to 6. Toasting frozen bread takes longer than normal bread.

How to use the reheat function for already toasted bread?

Insert one or two slices of toasted bread, lower the lever, then press the Reheat button. Set the reheat level from 1 to 6. The bread is ejected automatically.

How to set the browning level?

Use the numbered buttons from 1 to 6. Setting 1 gives lightly toasted bread, 6 gives well toasted bread. The level 3 indicator is lit by default.

What to do if a slice of bread gets stuck?

Immediately unplug the appliance from the mains and allow it to cool completely. Then carefully remove the bread without using metal or sharp objects to avoid damaging the heating elements.

Can I use the toaster with an external timer?

No, use with an external timer, night timer, or separate remote control is prohibited for safety reasons.

How to use the reheat rack for pastries?

Lower the Reheat lever to bring out the rack. Place rolls or croissants on the rack (maximum two). Start the appliance by lowering the main lever. To heat both sides, turn the pastries after the cycle stops.

What to do in case of smoke or flames?

Immediately unplug the appliance from the mains. Do not use water. Do not cover the appliance. Ensure the crumb tray is empty and the appliance is not obstructed.

Can I toast something other than bread?

No, this appliance is intended only for toasting bread. Do not place any other food or ingredients, as this could cause fire or electric shock.

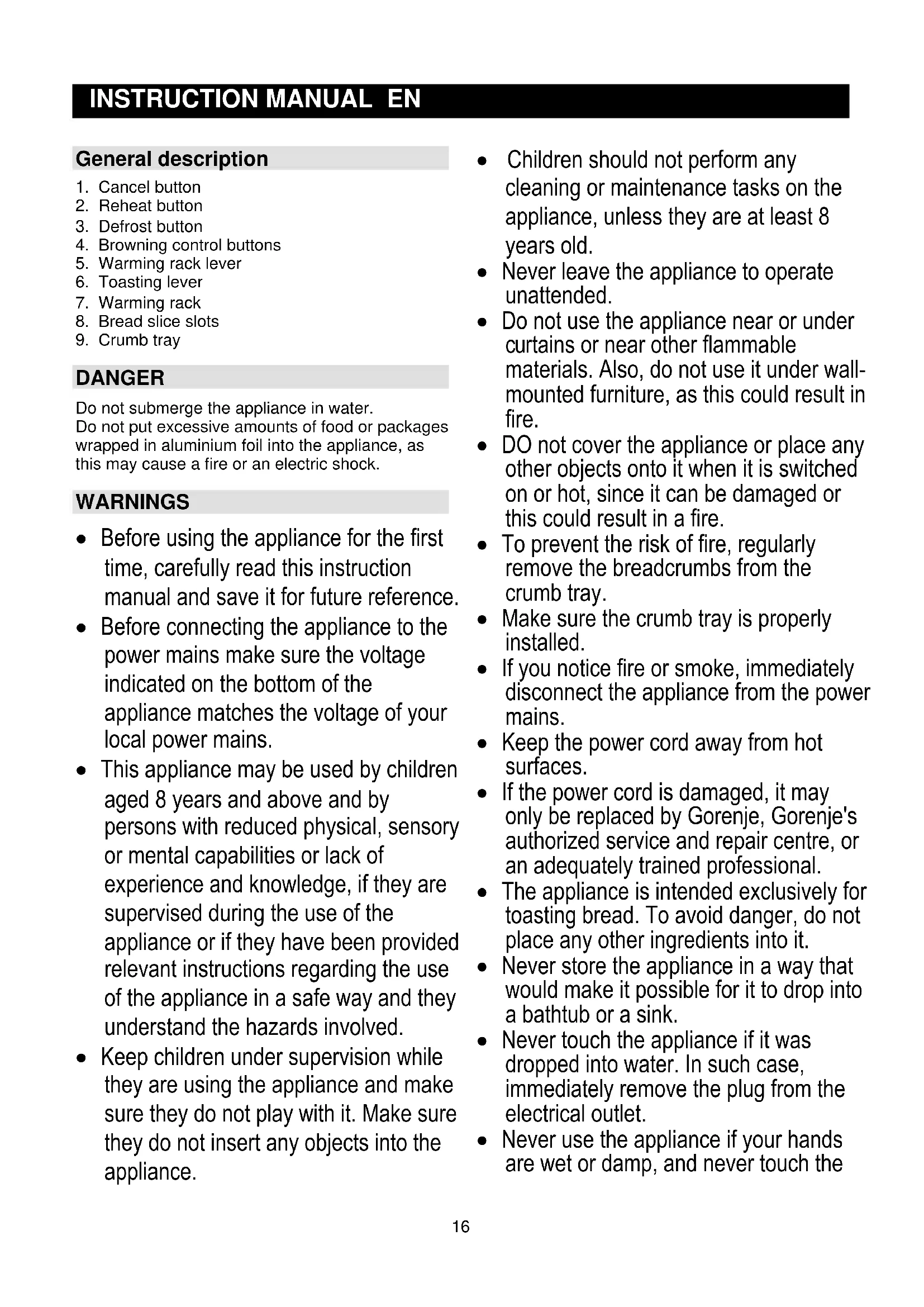

USER MANUAL T800ORAB GORENJE

1. Cancel button
2. Reheat button
3. Defrost button
4. Browning control buttons
5. Warming rack lever
6. Toasting lever
7. Warming rack
8. Bread slice slots
9. Crumb tray

DANGER

Do not submerge the appliance in water.

Do not put excessive amounts of food or packages wrapped in aluminium foil into the appliance, as this may cause a fire or an electric shock.

WARNING

• Before using the appliance for the first time, carefully read this instruction manual and save it for future reference.
• Before connecting the appliance to the power mains make sure the voltage indicated on the bottom of the appliance matches the voltage of your local power mains.
• This appliance may be used by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way and they understand the hazards involved.
• Keep children under supervision while they are using the appliance and make sure they do not play with it. Make sure they do not insert any objects into the appliance.

Children should not perform any cleaning or maintenance tasks on the appliance, unless they are at least 8 years old. - Never leave the appliance to operate unattended. - Do not use the appliance near or under curtains or near other flammable materials. Also, do not use it under wall-mounted furniture, as this could result in fire. Do not cover the appliance or place any other objects onto it when it is switched on or hot, since it can be damaged or this could result in a fire. - To prevent the risk of fire, regularly remove the breadcrumbs from the crumb tray. - Make sure the crumb tray is properly installed. - If you notice fire or smoke, immediately disconnect the appliance from the power mains. - Keep the power cord away from hot surfaces. - If the power cord is damaged, it may only be replaced by Gorenje, Gorenje's authorized service and repair centre, or an adequately trained professional. - The appliance is intended exclusively for toasting bread. To avoid danger, do not place any other ingredients into it. - Never store the appliance in a way that would make it possible for it to drop into a bathtub or a sink. - Never touch the appliance if it was dropped into water. In such case, immediately remove the plug from the electrical outlet. - Never use the appliance if your hands are wet or damp, and never touch the

power cord plug with wet or damp hands.

• Do not use the appliance with an external timer, a night-time timer, or a separate remote-control system.
• Make sure the power cord does not hang over the edge of the table or worktop onto which the appliance is placed.
• Metal parts of the toaster may become very hot during use; therefore, do not touch them. Only touch the control buttons.
• Do not place the appliance on a hot surface.
• Only connect the appliance to a grounded power outlet.
• The appliance is intended exclusively for use in households, and it may only be used indoors. It is not intended for any industrial use or application, such as commercial/business use, any application similar to household use, such as in employee kitchens at shops, offices and other commercial premises, agricultural business, or for use by guests at hotels, motels, bed and breakfast type environments, or any other similar establishments offering accommodation.
• Only use the appliance as described in these instructions for use. Any other use is not in compliance with the appliance's purpose and may lead to damage or even physical injury. The appliance is not a children's toy.
• If a slice of bread is stuck inside the appliance, disconnect the appliance from the power mains and wait for it to cool down completely before attempting to remove the slice. Do not use knives or sharp objects as these could damage the heaters.
• The reheating rack is only intended for reheating bread rolls or croissants. To

avoid danger, do not place any other food into it.

• Unplug the appliance (remove the power cord plug from the electrical outlet) when the appliance is not in use, after each use, before cleaning the appliance or setting it aside, in case of an evident failure during operation, and during a thunderstorm. Only connect the appliance to an easily accessible power outlet so that it can be quickly disconnected from the power mains in case of failure.

This equipment is labelled in compliance with the European Directive 2012/19/EC on waste electric and electronic equipment – WEEE. The Directive specifies the requirements for collection and management of waste electric and electronic equipment effective in the entire European Union.

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Take the appliance from its packaging and clean it with a damp cloth.

Before using the appliance for the first time, we recommend running it at the highest browning level without any bread slices in it, in an adequately ventilated room. Repeat the process three times. Each time, wait for the appliance to switch off and cool down somewhat. This will remove any dust from the heaters and prevent any unpleasant odours during use of the appliance.

USING THE APPLIANCE

1. Place the appliance on a level and stable surface, away from curtains and other flammable objects or substances. Insert the plug into an electrical outlet.
2. Before each use, unwind the power cord completely.

Toasting bread

Never leave the appliance to operate unattended.

1. Insert one or two slices of bread into the slots.
2. Start the toasting process by pushing the toasting lever downwards.

The lever will only stay in a lowered position if the appliance is connected to the power mains.

All control lights will light up for a brief moment; then, only the control light on browning level 3 will be lit.

1. Use the browning control buttons 1-6 to adjust the level of browning. Setting 1 means lightly toasted, and setting 6 means thoroughly toasted bread. Metal parts of the toaster will become very hot during use; therefore, do not touch them.
2. When the toasted bread is ready, it will be ejected from the slot and the appliance will switch off automatically. The toasting process can be stopped and cancelled at any time by pressing the cancel button (X). When the cancel button is pressed, the bread will be ejected from the appliance. If the bread is stuck inside the appliance, unplug the power cord, wait for the appliance to cool down completely, and then carefully remove the bread. Do not use a knife or other metal objects to do so and do not touch the metal parts in the appliance interior.

Baking frozen bread

Note: Baking frozen bread takes longer than baking defrosted bread.

1. Insert one or two slices of frozen bread into the appliance.
2. Press the toasting lever down. All control lights will light up for a brief moment; then, only the control light on browning level 3 will be lit. Press the defrost button.
3. Browning level can be adjusted by pressing the browning control buttons 1-6.
4. When the toasted bread is ready, it will be ejected from the slot and the appliance will switch off automatically.

Reheating toasted bread

1. Insert one or two slices of toasted bread into the appliance.
2. Press the toasting lever down. All control lights will light up for a brief moment; then, only the control light on reheating level 3 will be lit. Then, press the reheating button.
3. Reheating level can be adjusted by pressing the control buttons 1-6.
4. When the toasted bread is ready, it will be ejected from the slot and the appliance will switch off automatically.

Reheating bread rolls and croissants

1. Press the reheating rack lever down to lift up the reheating rack. Never place the bread rolls or croissants to be reheated directly onto the bread slots on the appliance, without raising the reheating racks first, as this may damage the appliance.
2. Place the bread rolls or croissants on the reheating rack. Do not reheat more than two pieces at a time.
3. Switch on the appliance by pushing the toasting lever downwards. All control lights will light up for a brief moment; then, only the control light on reheating level 3 will be lit.
4. Reheating level can be adjusted by pressing the control buttons 1-6.
5. To reheat bread rolls or croissants on both sides, turn them around when the appliance switches off. To switch the appliance back on, press the toasting lever down.

CLEANING

1. Unplug the appliance from the power mains.
2. Wait for the appliance to cool down completely.
3. Only use a damp cloth to clean it. Do not clean the appliance with scouring pads, caustic or corrosive cleaners or aggressive liquids like gasoline, or acetone. Do not immerse the appliance in water.
4. To remove any crumbs from the appliance, pull out the crumb tray and empty it. Never attempt to remove the crumbs from the appliance by turning it upside down and shaking it.

ENVIRONMENT

After the expiry of its useful life, do not discard the appliance with common household waste. Rather, take it to an authorized recycling centre. This will help preserve the environment.

WARRANTY AND REPAIR

For more information or in case of problems, please contact the Gorenje Call Centre in your country (phone number listed in the International Warranty Sheet). If there is no such centre in your country, please contact the local Gorenje dealer or Gorenje's small domestic appliance department.

We reserve the right to modifications.

GORENJE WISHES YOU A LOT OF PLEASURE IN USING YOUR APPLIANCE.

INSTRUCTIONS FOR USE

General description

1. Appliance for ironing
2. Appliance for ironing
3. Appliance for ironing
4. Appliance for ironing
5. Access to the power supply
6. Access to the iron
7. Table 3a 3atOnJIrHe
8. OTBOPn 3a qunntTe xJra6 9.ПоДлбЖka 3aТрoxn

DANGER

Do not immerse the device in water.

Do not place large quantities of food or food packaged in aluminum foil in the device, as this may cause fire or electric shock.

WARNING

• Before using the device for the first time, carefully read the instructions for use and the safety warnings.
• Before connecting the device to the electrical mains, make sure that the voltage indicated on its rating plate corresponds to the voltage of the electrical mains in your home. This device may be used by children aged 8 and above, and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Children must not clean or maintain the device unless they are over 8 years old.

Do not leave the device running unattended. Do not use the device near curtains or other flammable materials. Also, do not use it under cabinets mounted on the wall, as this may cause fire. Do not cover the device and do not place objects on it when it is switched on or hot, as this may damage it or cause fire. To prevent the risk of fire, regularly remove crumbs from the crumb tray. - Make sure the crumb tray is correctly positioned. - If you notice fire or smoke, immediately unplug the device from the power supply. - Keep the power cord away from hot surfaces. If the power cord is damaged, it must be replaced only by Gorenje, Gorenje service, or another qualified person. - The device is intended solely for toasting bread. To avoid danger, do not put other foodstuffs in it. Do not store the device in places where it could fall into a bathtub or sink. Do not touch the device if it has fallen into water. In such a case, immediately unplug the device from the socket. Do not use the device if your hands are wet or damp. Never touch the power cord with wet or damp hands. Do not use the device with an external timer, remote timer, or separate remote control system.

• Make sure the power cord does not hang over the edge of the table or work surface on which the device is placed.
• The metal parts of the toaster can become very hot during use, so do not touch them. Touch only the control buttons. Do not place the device on hot surfaces. Connect the device only to a properly grounded electrical outlet.
• This appliance is intended for household use only and can only be used indoors. It is not intended for industrial use or for use as a commercial/business application, such as in a shop, office, or other commercial premises, agricultural business, or for use by guests in hotels, motels, and other similar establishments, or for bed and breakfast accommodations.
• Use the device only as described in these instructions for use. Any other use is not in accordance with the intended use of the device and may lead to damage or personal injury. This device is not a toy. If the device is damaged, disconnect it from the electrical outlet and let it cool down completely before attempting to remove the filter. Do not use knives or sharp objects, as they may damage the heating element.
• The supplied food is intended only for cooking. Threads and cross-stitch. To avoid danger, do not place other food on top of it.
• Disconnect the device (remove the plug from the electrical outlet) when not in use, before each use, before

Carrying or lifting the device, in case of accidental damage during operation, and during thunderstorms. Connect the device only to a properly installed outlet, so that it can be quickly disconnected from the power supply in case of malfunction.

This device is marked in accordance with European Directive 2012/19/EU regarding the disposal of used electrical and electronic equipment (WEEE). The directive sets the requirements for the collection and management of waste electrical and electronic equipment in force in the European Union.

BEFORE USING THE DEVICE FOR THE FIRST TIME

Remove the device from the packaging and wipe it with a damp cloth.

Before using the device for the first time, we recommend that you turn it on to the highest level of heating without food in it in a well-ventilated area. Repeat the process three times. Each time, let the device cool down to room temperature. This will remove any dust from the heating elements and prevent any unpleasant odor during use of the device.

USING THE DEVICE

1. Place the device on a flat and stable surface, away from curtains and other flammable objects or substances. Plug the device into an electrical outlet. 2. Before each use, unwind the power cord completely.

HEATING BREAD

Do not leave the device running unattended.

1. Place one or two slices of bread in the slots. 2. Make sure to toast by pressing the toasting lever down.

The lever will stay in the pressed position only if the device is connected to the electrical outlet. All indicator lights will light up for a moment, after which only the indicator for the third level of toasting will light up.

3. Use the toaster control buttons to set the desired degree of toasting. The higher the setting, the more toasted the bread will be. The metal parts of the toaster may become very hot during use, so do not touch them. 4. When the toasted bread is ready, it will be ejected from the slot and the toaster will turn off automatically. The toasting process can be

stopped at any time by pressing the cancel button (X). When the cancel button is pressed, the bread will be ejected immediately.

If the bread gets stuck in the toaster, unplug the appliance, let it cool down completely, and then carefully remove the bread. Do not use a knife or other metal objects to pry it out, and do not touch the metal parts inside the toaster.

Toasting frozen bread

Note: Toasting frozen bread takes longer than toasting fresh bread.

1. Place one or two slices of frozen bread into the toaster.
2. Press the toasting lever down. All the indicator lights will turn on for a moment, then only the indicator for the selected toasting level will remain lit. Press the defrost button.
3. The toasting level can be set using the toasting control buttons from 1 to 6.
4. When the toasted bread is ready, it will be ejected from the slot and the toaster will turn off automatically.

Reheating toasted bread

1. Place one or two slices of toasted bread into the toaster.
2. Press the toasting lever down. All the indicator lights will turn on for a moment, then only the indicator for the selected toasting level will remain lit. Then press the reheat button.
3. The toasting level can be set using the control buttons from 1 to 6.
4. When the toasted bread is ready, it will be ejected from the slot and the toaster will turn off automatically.

Reheating pastries and croissants

1. Press the button for the supply of water, to start the supply. Do not place the needles or the crochet hooks, which you want to use for knitting, directly on the opening for the bread of the device, without first having started the supply for knitting, as this could damage the device.
2. Place the needles or the crochet hooks on the supply for knitting. Do not knit more than two threads at the same time.
3. Turn on the device by pressing the button for starting the supply. All the light indicators will light up for a moment, then only the indicator for the third knitting level will light up.
4. The knitting level can be set using the control buttons from 1 to 6.
5. Knit the needles or the crochet hooks from both sides, then finish when the device turns off. Then turn on the device again, press the button for starting the supply.

MAINTENANCE

1. Unplug the device from the electrical outlet. 2. Wait for the device to cool down completely. 3. For cleaning the device, use only a damp cloth. Do not clean the device with abrasive cleaners, solvents, or corrosive cleaning agents such as benzene or acetone. Do not immerse the device in water. 4. To remove any crumbs from the device, remove the crumb tray and empty it. Do not attempt to remove crumbs from the device by turning it upside down and shaking it.

ENVIRONMENT

After the end of the device's service life, do not dispose of it with regular household waste. Take the device to a recycling center. This way you will help protect the environment.

WARRANTY AND SERVICE

For any malfunctions or in case of problems, you can contact the Gorenje authorized service center in your country (the phone numbers are listed in the international warranty). If your country does not have such a center, you can contact the local Gorenje representative or the Gorenje department for small household appliances.

We reserve the right to make changes.

GORENJE WISHES YOU PLEASANT USE OF YOUR DEVICE.

Baking frozen bread

Note: Baking frozen bread takes longer than baking thawed bread.

Baking frozen bread

1. Place one or two slices of frozen bread into the appliance.
2. Press the toaster lever. All control buttons light up briefly, then only the browning control button 3 remains lit. Then press the browning button.
3. Use control buttons 1-6 to select the desired browning level.
4. When the bread is toasted, it pops up automatically and the appliance turns off automatically.
