COOL Max. 32 23 43 26 Min. 16 11 -15 - HEAT Max. 30 - 24 18 Min. 16 - -15 - Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached. Before operating the unit, read these operating instructions thoroughly and keep them for future reference. The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.3 English Quick guide Remote control preparation OFF

Open the cover to use the buttons

Press SET to confi rm

Repeat steps 2 and 3 to set the current time Basic operation OFF

Start/stop the operation POWER

• Please note that the OFF indication is as follows: To start: To stop:

Select the desired temperature

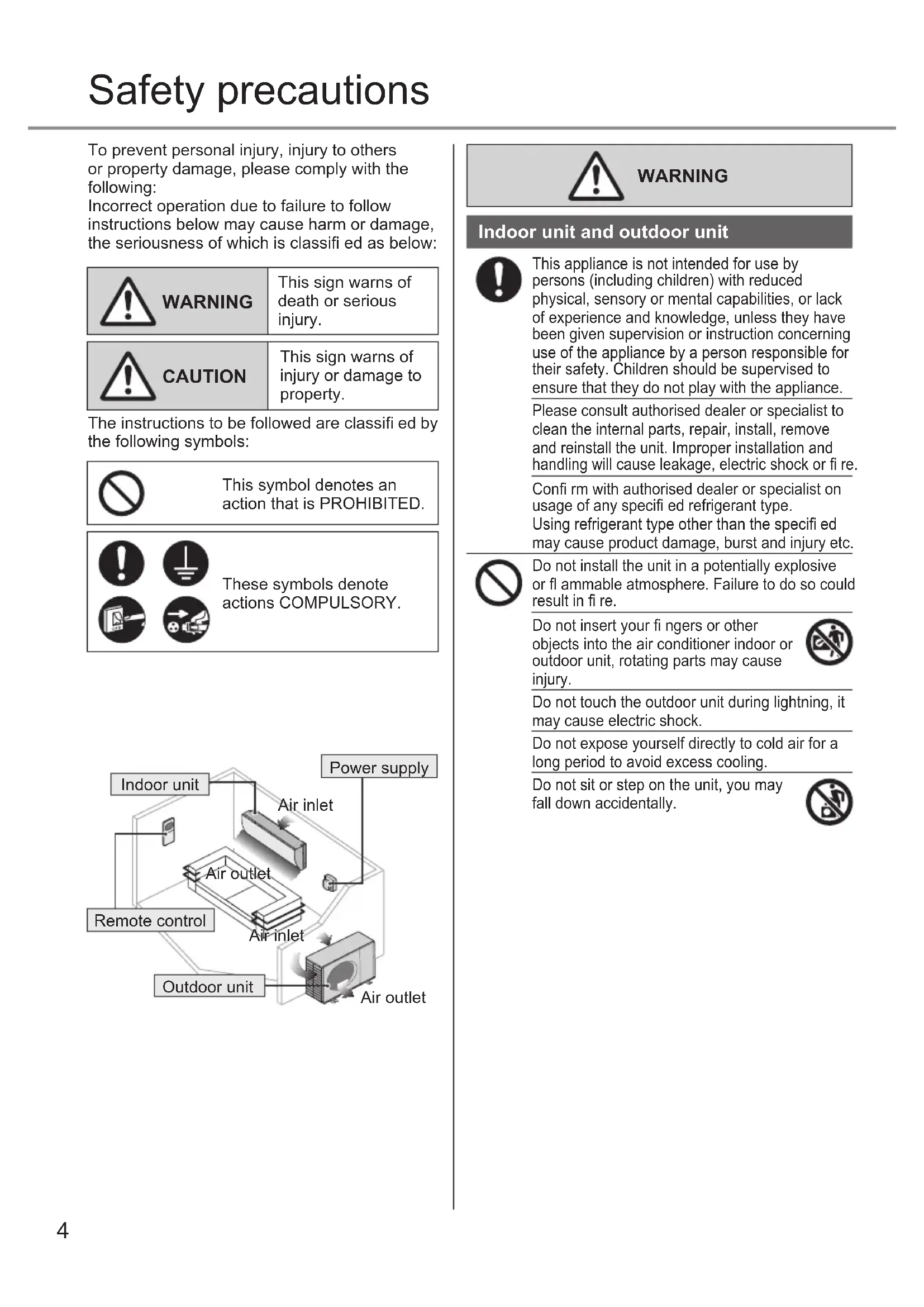

• Selection range: 16 °C ~ 30 °C. Table of contents Safety precautions ...................4-5 How to use...............................6-7 To set the timer ........................7-8 Cleaning instructions ..................9 Troubleshooting ...................10-11 Information................................ 114 Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classifi ed as below: WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classifi ed by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY. WARNING Indoor unit and outdoor unit This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fi re. Confi rm with authorised dealer or specialist on usage of any specifi ed refrigerant type. Using refrigerant type other than the specifi ed may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re. Do not insert your fi ngers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally. Indoor unit Outdoor unit Power supply Remote control Air inlet Air inlet Air inlet Air inlet Air outlet Air outlet Air outlet Air outlet5 English Power supply Do not use a modifi ed cord, joint cord, extension cord or unspecifi ed cord to prevent overheating and fi re. To prevent overheating, fi re or electric shock:

Do not share the same power outlet with other equipment.

Do not operate with wet hands.

Do not over bend the power supply cord.

Do not operate or stop the unit by inserting or pulling out the power plug. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualifi ed persons in order to avoid a hazard. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fi re. To prevent overheating, fi re or electric shock:

Insert the power plug properly.

Dust on the power plug should be periodically wiped with a dry cloth. Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fi re/electric shock) Examples of abnormality/failure

The ELCB trips frequently.

Burning smell is observed.

Abnormal noise or vibration of the unit is observed.

Water leaks from the indoor unit.

Power cord or plug becomes abnormally hot.

Fan speed cannot be controlled.

The unit stops running immediately even if it is switched on for operation.

The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/repair. This equipment must be earthed to prevent electrical shock or fi re. Prevent electric shock by switching off the power supply and unplug: - Before cleaning or servicing, - When extended non-use, or - During abnormally strong lightning activity. CAUTION Indoor unit and outdoor unit Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airfl ow outlet to avoid fi re propagation. Do not expose plants or pet directly to airfl ow to avoid injury, etc. Do not touch the sharp aluminium fi n, sharp parts may cause injury. Do not switch ON the indoor unit when waxing the fl oor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during COOL/DRY mode operation. Prevent water leakage by ensuring drainage pipe is: - Connected properly, - Kept clear of gutters and containers, or - Not immersed in water After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock. Safety precautions6 OFF

SET SELECTUP DOWN AC RC Remote control display Press to restore the remote control to default setting. Not used in normal operations. Press and hold for approximately 10 seconds to show temperature setting in °C or °F. FAN SPEED To select fan speed (Remote control display)

• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode. AIR SWING To adjust vertical airfl ow direction (Remote control display)

• Keeps the room ventilated.

• In COOL/DRY mode, if AUTO is set, the louver swings up/down automatically.

• In HEAT mode, if AUTO is set, the horizontal louver is fi xed at the predetermined position.

• Do not adjust the louver by hand. How to use Auto OFF/ON button AUTO OFF/ON Use when remote control is a malfunction occurs. Raise the front panel:

1. Press the button once to use in AUTO mode.

2. Press and hold the button until you hear 1 beep, then release to use in forced

3. Repeat step 2. Press and hold the button until you hear 2 beeps, then release to

use in normal COOL mode.

4. Repeat step 3. Press and hold the button until you hear 3 beeps, then release to

use in forced HEAT mode.

• Press the button again to turn off. TIMER POWER (Green) These indicators are not used. (Orange) Indicator7 English To set the timer Daily timer setting To turn ON or OFF the unit at a preset time. TIMER/CLOCKCANCELCLOCKSELECT

• Press once to change the display from clock to timer or vice-versa.

• Press for 4 seconds to change the display from daily timer to weekly timer or vice- versa.

• When ON timer is set, the unit may start early before the actual set time in order to achieve the desired temperature on time.

• Timer operation is based on the clock set in the remote control and repeats daily once set.

• The timer closest to the current time will be activated fi rst.

• If timer is cancelled manually or due to power failure, you can restore the previous setting by pressing SET

Note After timer is set, the TIMER indicator at indoor unit does not turn on, it does not indicate malfunction. MODE To select operation mode AUTO : For your convenience

• Unit selects operation mode every 10 minutes according to setting temperature and room temperature. HEAT : To enjoy warm air

• Unit takes a while to warm up. COOL : To enjoy cool air

• Use curtains to screen off sunlight and outdoor heat to reduce power consumption during COOL mode. DRY : To dehumidify the environment

• Unit operates at low fan speed to give a gentle cooling operation. QUIET/POWERFU

To switch between quiet & powerful

QUIET POWERFUL NORMAL

QUIET: To enjoy quiet operation

• This operation reduces airfl ow noise. POWERFUL: To reach temperature quickly

• This operation will stop automatically after 20 minutes.

• Can be activated in all modes and can be cancelled by pressing the respective button again. How to use / To set the timer To adjust horizontal airfl ow direction

• Manually adjustable.8 To set the timer Weekly timer setting Promotes energy saving by allowing you to set up to 6 programmes in any given day. TIMER/CLOCKCANCELCLOCKSELECT

Lights up if Timer operation is selected Programme number in a day (1 ~ 6) Time to be selected (10 minutes step) ON Timer OFF Timer Day to be selected Indicates the selected day Indicates the next timer operation day

MODE for 4 seconds to change display to weekly timer.

DOWN to select your desired day.

SELECT to confi rm your selection.

4. “1” will be blinking, press

SELECT to set programme 1.

DOWN to select your desired time. If you want to set the timer together with your desired temperature, press TEMP

SET to confi rm programme 1. The selected day will be highlighted with .

• After 2 seconds, the display will move to the next programme. Repeat steps 4 to 7 to set programmes 2 to 6.

• During timer setup, if no button is pressed within 30 seconds, or if the SET button is pressed, the setting at that moment is confi rmed and timer setup is ended. To check current timer programme

MODE to enter timer mode and press SELECT to enter day setting.

DOWN until your desired day is shown, press SELECT to confi rm your selection.

MODE to enter timer mode and press SELECT to enter day setting.

DOWN until your desired day is shown.

3. Perform steps 4 to 7 of “Weekly timer setting”

SELECT to enter day.

DOWN until your desired day is shown, press SELECT to enter programme setting.

DOWN until your desired day is shown. Press CANCE

to cancel the programme and will disappear. To disable/enable Weekly Timer

• Daily timer and weekly timer could not be set at the same time.

• Same timer programme cannot be set in the same day.

• After timer is set, the TIMER indicator at indoor unit does not turn on, it does not indicate malfunction.9 EnglishTo set the timer / Cleaning instructions Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code “H99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.

• Do not touch the aluminium fi n, sharp parts may cause injury.

• Do not use benzine, thinner or scouring powder.

• Use only soap ( pH 7) or neutral household detergent.

• Do not use water hotter than 40 °C. Indoor unit Wipe the unit gently with a soft, dry cloth. Front panel Wash gently and dry. Remove the front panel Raise Pull out

Close it securely For CS-E18PKEA: Press at centre of the front panel

Insert at both sides

Press both ends of the front panel

Air fi lters Every 2 weeks

• Wash/rinse the fi lters gently with water to avoid damage to the fi lter surface.

• Dry the fi lters thoroughly under shade, away from fi re or direct sunlight.

• Replace any damaged fi lters. Remove air fi lter Attach air fi lter Insert into the unit For seasonal inspection after extended non-use

• No obstruction at air inlet and air outlet vents.

• Use Auto OFF/ON button to select COOL/ HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: COOL: ≥ 8 °C HEAT: ≥ 14 °C For extended non-use

Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly.

• Turn off the power supply and unplug. Aluminium fi nFront panel Air fi lters Indoor unit10 The following symptoms do not indicate malfunction. Symptom Cause Mist emerges from indoor unit. • Condensation effect due to cooling process. Water fl owing sound during operation. • Refrigerant fl ow inside the unit. The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic fan speed setting.

• This helps to remove the surrounding odour. Operation is delayed a few minutes after restarting.

• The delay is a protection to the unit’s compressor. Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes. TIMER indicator is always on. • The timer setting repeats daily once set. POWER indicator blinks during HEAT mode with no warm air supply (and louver is closed).

• The unit is in defrost mode (and AIR SWING is set to AUTO). Indoor fan stops occasionally during heating operation.

• To avoid unintended cooling effect. POWER indicator blinks before the unit is switched on.

• This is a preliminary step in preparation for the operation when the ON timer has been set. Cracking sound during operation. • Changes of temperature caused the expansion/ contraction of the unit. Check the following before calling for servicing. Symptom Check Operation in HEAT/COOL mode is not working effi ciently.

• Set the temperature correctly.

• Close all doors and windows.

Clear any obstruction at the air inlet and air outlet vents. Noisy during operation. • Check if the unit has been installed at an incline.

• Close the front panel properly. The unit does not work. • Check if the circuit breaker is tripped.

• Check if timers have been set. The following symptoms indicate malfunction. Symptom Check The unit stops and TIMER indicator blinks. At remote control, OFF indicator does not shown on remote control display but operation LED OFF.

Use remote control to retrieve error code as follows. OFF

SET SELECTUP DOWN AC RC OFF Indicator Operation LED 3/12 Ensure the operation LED is in OFF condition.

Press CHECK for 5 seconds

• If error code and abnormality can be identifi ed, the operation LED will be ON continuously, then jot down the error code.

Press CHECK again for 5 seconds to quit checking

then please consult authorised dealer under the following conditions:

• Abnormal noise during operation.

• Water/foreign particles have entered the remote control.

• Water leaks from Indoor unit.

• Circuit breaker switches off frequently.

• Power cord becomes unnaturally warm.

• Switches or buttons are not functioning properly. Information for Users on Collection and Disposal of Old Equipment These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Information

Daily timer and weekly timer could not be set at the same time.
