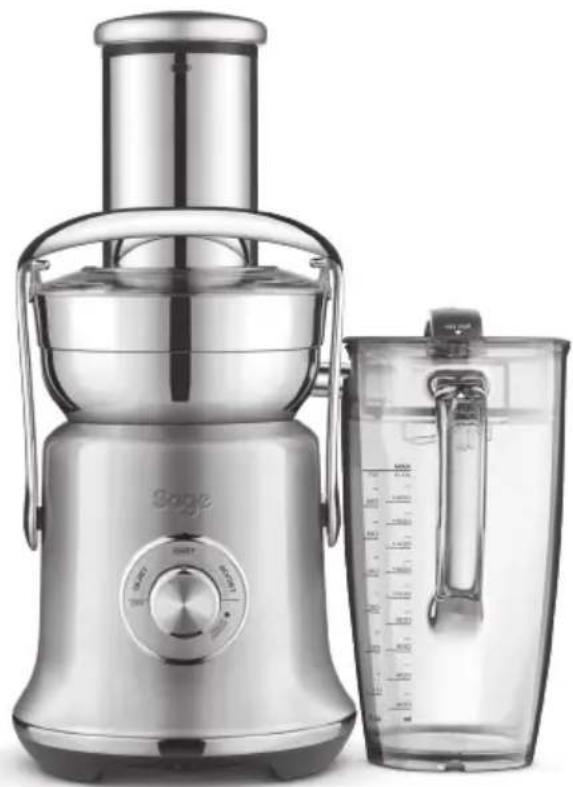

USER MANUAL The Nutri Juicer Cold XL SJE830 SAGE

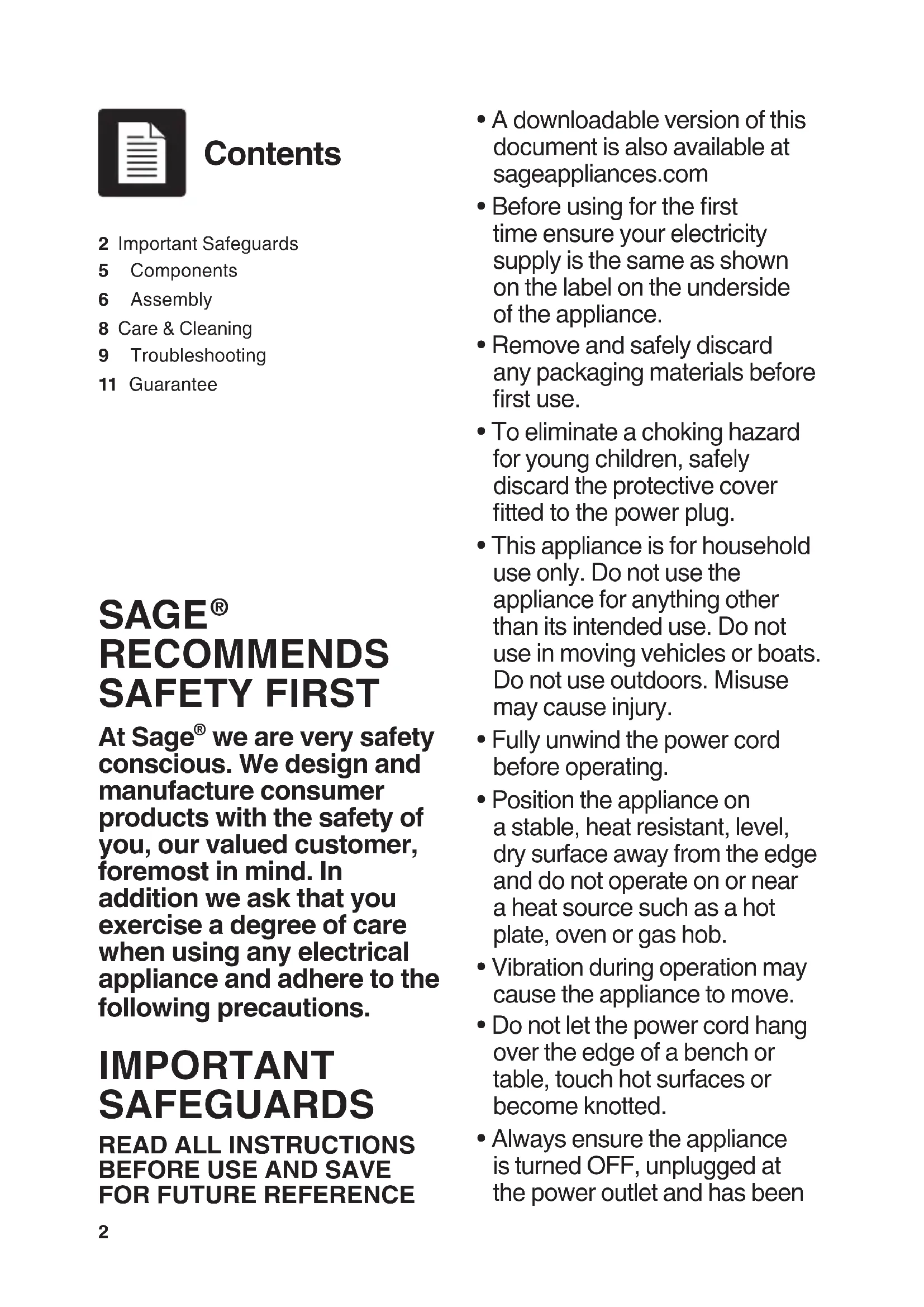

we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions. IMPORTANT SAFEGUARDS

• A downloadable version of this document is also available at sageappliances.com

• Before using for the rst time ensure your electricity supply is the same as shown on the label on the underside of the appliance.

• Remove and safely discard any packaging materials before rst use.

• To eliminate a choking hazard for young children, safely discard the protective cover tted to the power plug.

• This appliance is for household use only. Do not use the appliance for anything other than its intended use. Do not use in moving vehicles or boats. Do not use outdoors. Misuse may cause injury.

• Fully unwind the power cord before operating.

• Position the appliance on a stable, heat resistant, level, dry surface away from the edge and do not operate on or near a heat source such as a hot plate, oven or gas hob.

• Vibration during operation may cause the appliance to move.

• Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.

• Always ensure the appliance is turned OFF, unplugged at the power outlet and has been3

allowed to cool before cleaning, attempting to move or storing.

• Always turn the appliance to the OFF position, switch o at the power outlet and unplug at the power outlet when the appliance is not in use.

• Do not use the appliance if the power cord, plug, or appliance becomes damaged in any way. If damaged or maintenance other than cleaning is required, please contact Sage Customer Service or go to sageappliances.com

• Any maintenance other than cleaning should be performed by an authorised Sage

• Children should not play with the appliance.

• Cleaning of the appliance should not be carried out by children unless they are 8 years or older and supervised.

• The appliance and its cord should be kept out of reach of children aged 8 years and younger.

• The installation of a residual current safety switch is recommended to provide additional safety when using all electrical appliances. Safety switches with a rated operating current not more than 30mA are recommended. Consult an electrician for professional advice.

• Always ensure the appliance is properly assembled before use. The appliance will not operate unless properly assembled.

• Do not use the appliance on a sink drain board.

• Keep hands, ngers, hair, clothing as well as spatulas and other utensils away from moving or rotating parts during operation.

• Do not use the appliance for anything other than food and/or beverage preparation.

• In order to avoid the possible hazard of the appliance starting by itself due to inadvertent resetting of the overload protection, do not attach an external switching device (such as a timer) or connect the appliance to a circuit that can regularly switch the appliance on and o.

• Carefully read all instructions before operation and save for future reference.

• The appliance can be used by persons with reduced physical or mental capabilities or a lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• This appliance shall not be used by children.4

SAVE THESE INSTRUCTIONS

• Do not leave the appliance unattended when in use.

• Do not push food into the feed chute with your ngers or other utensils. Always use the food pusher provided. Do not place hand or ngers into the food chute when it is attached to the appliance.

• Do not juice stone fruit unless seeds and/or stones have been removed.

• Make sure the stainless steel lter basket has stopped rotating and the motor has completely stopped before releasing the safety locking arm and/or attempting to move the appliance, when the juicer is not in use, and before disassembling, cleaning and storing.

• Any signicant spillage onto the surface under or around the appliance, or onto the appliance itself, should be cleaned and dried before continuing to use the appliance.

• Be careful when handling the stainless steel lter basket as the small cutting blades at the base of the lter basket are very sharp. Mishandling may cause injury.

• Remove rind from all citrus fruit before juicing.

• Do not use the appliance if the rotating sieve (lter basket) or lid is damaged.

• Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten interlock arm while juicer is in operation.

• A representative example of the heaviest loading anticipated for use with this juicer is 5kg of beetroot, juiced continuously over a period of 2 minutes.

• Do not juice more than 3kg of carrot at a time. The symbol shown indicates that this appliance should not be disposed of in normal household waste. It should be taken to a local authority waste collection centre designated for this purpose or to a dealer providing this service. For more information, please contact your local council oce. To protect against electric shock, do not immerse the power plug, cord or appliance in water or any liquid.5

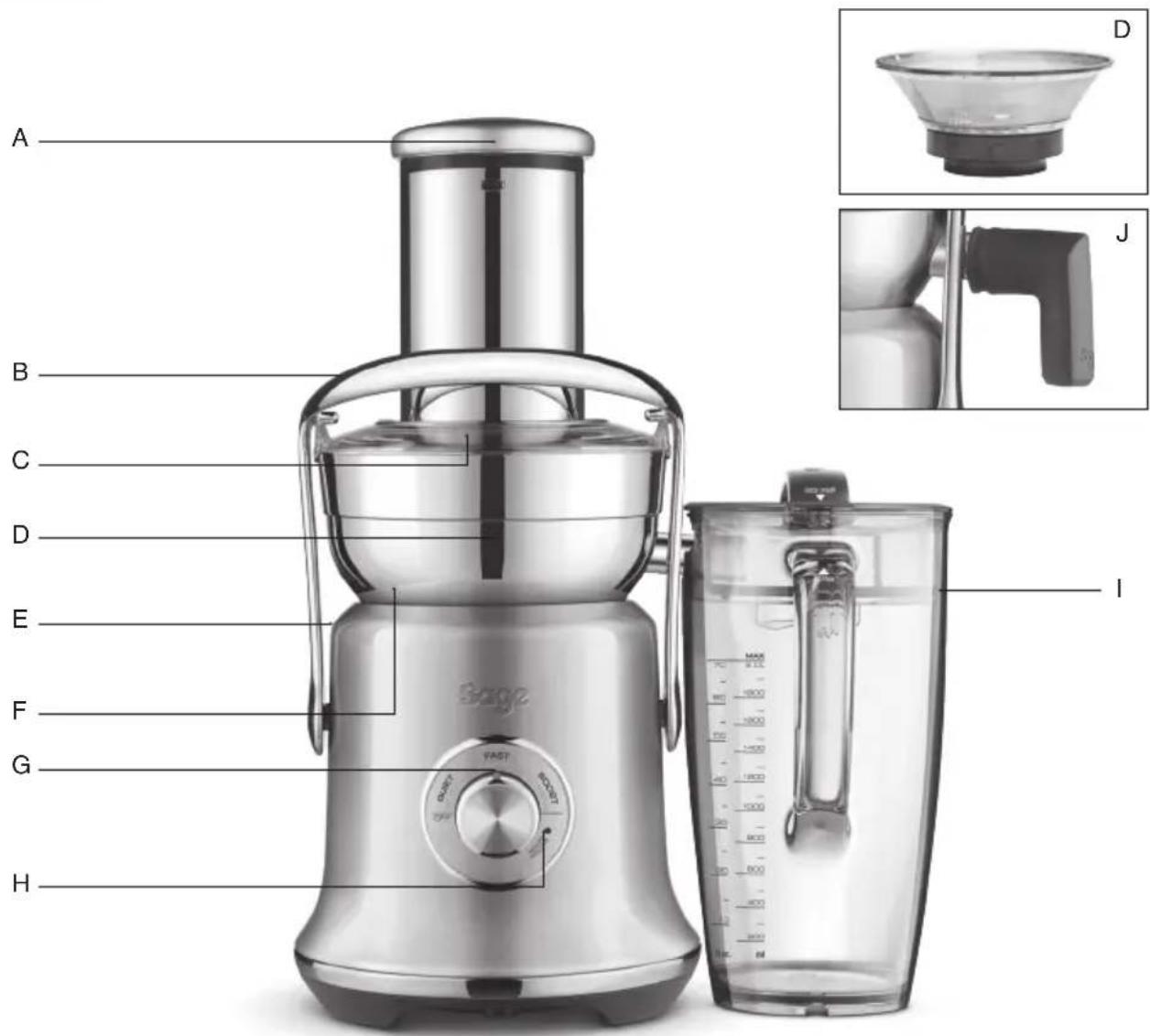

A. Food pusher (not dishwasher safe) B. Interlocking safety arm C. Juicer cover (dishwasher safe) D. Stainless steel lter basket (dishwasher safe) E. Pulp container (dishwasher safe) F. Filter bowl surround (dishwasher safe) G. Variable speed control and OFF dial H. Overload protection indicator light

I. 2 litre juice jug and sealing lid

with built in froth separator (dishwasher safe) J. Juicing Nozzle (dishwasher safe)

Before using your juicer for the rst time, remove and safely discard any packaging materials and promotional stickers and labels. Ensure the power cord is unplugged. Wash the lter bowl surround, lter basket, juicer cover, food pusher, pulp container and juice jug and lid in warm, soapy water with a soft cloth. Rinse and dry thoroughly.

1. Place motor base on a at, dry surface

such as a countertop. Ensure that the juicer is switched to OFF at the dial, and the power cord is unplugged.

2. Place lter bowl surround on top of the

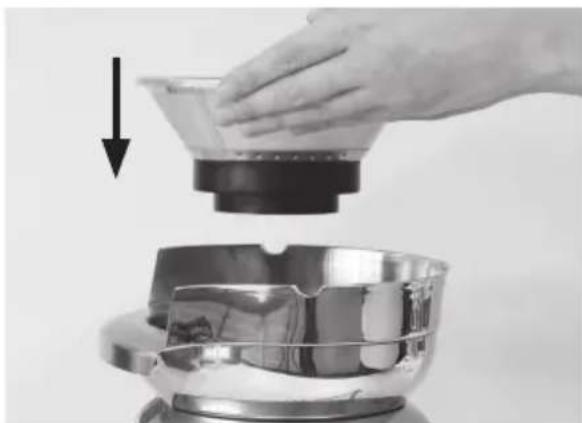

3. Align the arrows at the base of the

stainless steel lter basket with the arrows on the motor drive coupling and push down until it clicks into place to create a secure t with the motor base.

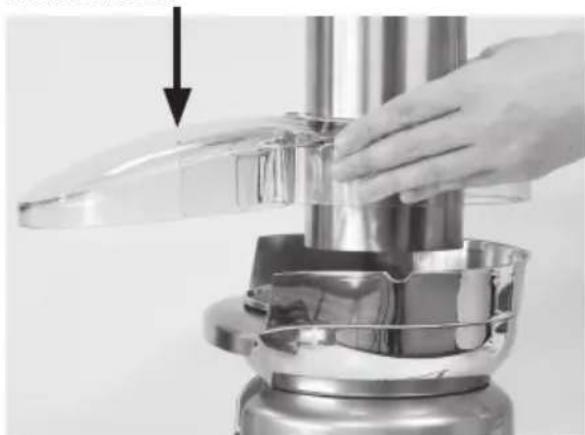

4. Place the juicer cover over the lter bowl

surround, positioning the lower part of the feed chute over the stainless steel lter basket.

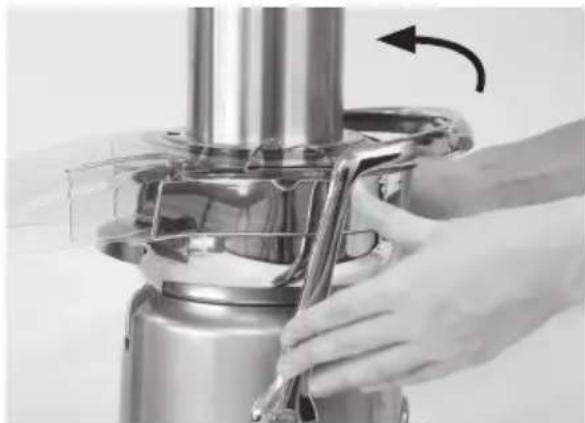

5. Raise the safety locking arm up and

locate into the two grooves on either side of the juicer cover.

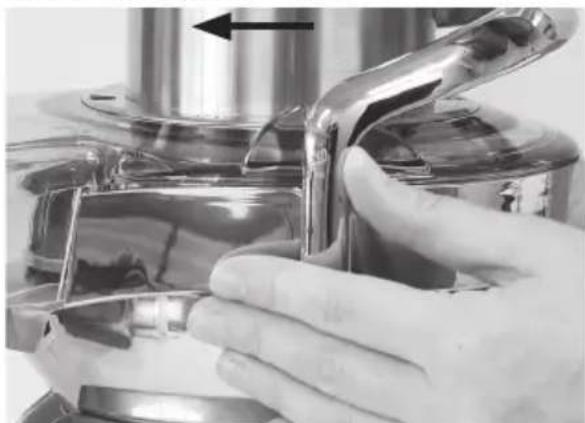

6. The safety locking arm should now be in

a vertical position and locked into place on top of the juicer cover. Assembly7

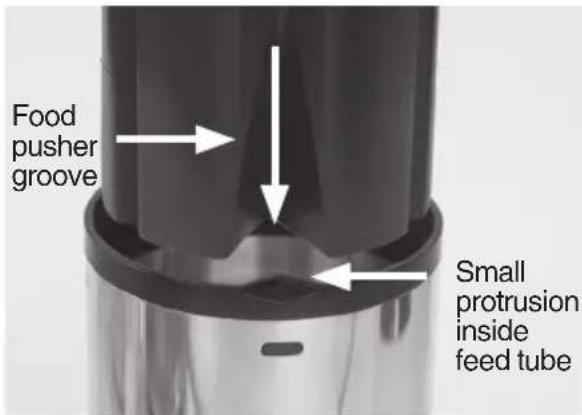

7. Slide the food pusher down the food chute

by aligning the groove in the food pusher, with the small protrusion on the inside of the top of the feed tube.

8. Place the pulp container into position by

tilting and lifting the motor base slightly. Insert the pulp container under the juicer cover on the back ensuring it is supported by the juicer cover and motor base.

9. Fit the lid to the juice jug and position jug

under juice spout. JUICE JUG Juice can be preserved in the juice jug for up to 3 days by following these steps.

3. Store juice in the fridge

NOTE Storage time depends on the ingredients being juiced and the freshness of the fruit prior to juicing. Juice must be stored in the refrigerator between 2°C to 4°C.

SPEED SELECTOR GUIDE

FOOD TYPE SPEED APPLES BOOST

BEETROOT BOOST PEPPER BOOST BLUEBERRIES BOOST BROCCOLI (stalk slightly trimmed ) BOOST CABBAGE BOOST CARROT BOOST CELERY Fast CITRUS FRUITS (peeled) Quiet CUCUMBER (green tip removed) Fast GINGER BOOST GRAPES (seedless) Fast HONEYDEW MELON (peeled) Fast KALE BOOST KIWI (peeled) Fast MANGO (peeled, pit removed) BOOST MINT BOOST PEACH (pit removed) BOOST PEARS Fast PINEAPPLE (peeled) BOOST RHUBARB BOOST SQUASH BOOST STRAWBERRIES Fast TOMATOES Fast WATERMELON (peeled) Fast COURGETTE Fast Food pusher groove Small protrusion inside feed tube8 Care & Cleaning Ensure the juicer is turned o by turning the juicer dial to the OFF position. Then unplug the power cord. CLEANING

Juice Collector Assembly and take to sink. Rinse all parts after use (except the motor base) under running water to clear away the majority of juice and pulp. Wash in warm soapy water with a soft cloth. To avoid food drying on to the blades, mesh or transparent parts, rinse and wash as soon as possible after use. PULP CONTAINER To minimize cleaning, you can line the pulp container with a biodegradable bag to collect the pulp. MOTOR BASE To clean the motor base, wipe with a soft, damp cloth then dry thoroughly. Wipe any excess food particles from the power cord. Do not immerse the motor base in liquids. CLEANING AGENTS Do not use abrasive scouring pads or cleaners on either the motor base or the jug, as they may scratch the surface. Use only warm soapy water with a soft cloth. DISHWASHER Wash all parts (except the motor base) in warm soapy water with a soft cloth. All parts except for the motor base and food pusher are dishwasher safe. However washing parts on a regular base in the dishwasher can shorten the life of them due to prolonged exposure to harsh detergents, hot water and pressure. Cleaning the parts in the dishwasher also may cause parts to deteriorate so inspect the parts regularly and stop using the product if any signs of damage is noticed. FILTER BASKET To ensure consistent juicing results, always clean the lter basket thoroughly immediately after use. If pulp is left to dry, it may clog the ne pores of the lter mesh, which can aect juicing performance. The lter basket can be soaked in hot soapy water for 10 minutes, if necessary. Hold the lter basket under running water and use brush (supplied with the juicer) in a circular motion to clear away pulp from the inside of the basket, including the blades. Turn over to brush away pulp from the outside of the basket, and repeat if necessary. After cleaning, hold up towards a light source to check that the ne mesh pores are not blocked. If blocked, soak the lter basket in hot water with 10% lemon juice to loosen, and brush under running water again. Do not soak the lter basket in bleach, harsh chemicals or abrasive cleansers. Always treat the lter basket with care, as it can be easily damaged. Do not use if there is any damage or deformation to the lter mesh. The centre of the lter basket has an array of small, sharp blades. Do not touch these blades when handling the lter basket.

STUBBORN FOOD STAINS

Discolouration of the plastic may occur with strongly coloured fruit and vegetables. To help prevent this, wash parts immediately after use. If discolouration does occur, the plastic parts can be soaked in water with 10% lemon juice or can be cleaned with a non-abrasive cleaner.9

Juicer will not work when switched ON

The safety locking arm may not be correctly engaged in the vertical operating position. Check the top cover is properly aligned and the locking arm is located rmly into the two grooves on either side of the juicer cover.

Motor overload protection may have operated (see below). Overheating with excessive loads

The juicer is equipped with an internal self-resetting overload to prevent the motor from damage under heavy or continuous loads. If the motor suddenly stops working, turn the dial to OFF, and unplug the unit from the power outlet. Allow the juicer to cool for at least 30 minutes before operating again. NOTE: The unit MUST be turned o in order for it to cool and be reset.

Despite this overload protector, we suggest juicing in smaller batches, without excessive pushing force, to avoid overheating and stalling and to maintain the life of the motor. Excess pulp building up in the stainless steel lter basket

Stop juicing, disassemble to scoop excess pulp o the juicer cover. Reassemble and continue juicing. Alternating soft and hard ingredients may help avoid this. Pulp too wet and reduced extracted juice

The cleaner the lter, the better the juice yield, and dryer the pulp. Be sure to thoroughly clean the juicer as soon as possible after each use. Remove the stainless steel lter basket and thoroughly clean mesh walls with a cleaning brush. Rinse the lter basket under hot water. If the ne mesh holes are blocked, soak the basket in a solution of hot water with 10% lemon juice to unblock the holes or wash in the dishwasher (top shelf). This will remove excess ber build up which could be inhibiting the ow. Juice leaks between the rim of the juicer and the juicer cover

Try a slower juicing speed and push the food pusher down the feed chute more slowly.

Also ensure there is no build up in the lter basket. Juice sprays out from spout

The juice is being extracted too fast; try a slower juicing speed (if possible) and push the food pusher down the feed chute more slowly. Troubleshooting10 Motor appears to stall when overload protection LED ashes

Wet pulp can build up under the juicer cover and stall the juicer if the juicer is used excessively without cleaning. If this occurs, disassemble and follow the cleaning instructions to clean the lter bowl surround, the stainless steel lter basket and the juicer cover. The juicer can also stall if excessive force is used to push produce down the feed chute. If this occurs, ensure that a more gentle pressure is used to push produce down the chute.

The juicer will automatically stop operating if too much food is being processed at one time. Try processing a smaller amount per batch. To continue juicing, reset the juicer by turning the juicer OFF and back ON.

Turn on the juicer before putting ingredients in the chute. Pressing ingredients down before the juicer reaches full speed can cause the motor to stall or overload. Use gentle to moderate pressure on the pusher. Lower pressure produces a better juice yield.

Hard fruit and vegetables will put excess strain onto the motor if a low speed is selected. Refer to the juicing guide to determine the correct speed for the fruit and vegetables selected for juicing. Overload protection LED light ashing during the use

This indicates the motor speed is slowed down to an inecient level. This may be caused by excessive pushing force on the pusher or too much pulp building up on the lid or in pulp pin. Use moderate pushing force on the food pusher and regularly clean the lid and pulp bin to ensure the juicer is operating at optimal speed. Overload Protection LED is on

This indicates motor overload protection is activated. To reset the unit, turn the dial to OFF, unplug the juicer and let the motor cool down for 25–30 minutes, then plug the juicer back in.

GUARANTEE Sage Appliances guarantees this product for domestic use in specied territories for 2 years for all parts of the product and 5 years for the product’s motor from the date of purchase against defects caused by faulty workmanship and materials. During this guarantee period Sage Appliances will repair, replace, or refund any defective product (at the sole discretion of Sage Appliances). All legal warranty rights under applicable national legislation will be respected and will not be impaired by our guarantee. For full terms and conditions on the guarantee, as well as instructions on how to make a claim, please visit www.sageappliances.com. Guaranteethe Nutri Juicer
