89017 Warmy - Bottle warmer Miniland - Free user manual and instructions

Type de produit	Bottle warmer
Marque	Miniland
Modèle	89017 Warmy
Mains power	220-230 V ~ 50 Hz
Car power	12 V DC
Mains power	320 W
Car power	100 W
Main functions	Heating bottles and jars, sterilization
Bottle capacity	Up to 330 ml
Jar capacity	Up to 250 g
Supplied accessories	Bottle basket, jar basket, graduated measuring cup, adjustable ring, cigarette lighter adapter
Safety	Automatic shut-off, audible signal, indicator light, steam lid
Maintenance	Clean exterior with damp cloth; accessories dishwasher safe (top rack) or wash with soapy water
Recommended descaling	Mixture of hot water (100 ml) and white vinegar (100 ml), let stand for 30 minutes
Standards	Compliant with European standards
Country of manufacture	China

Frequently Asked Questions - 89017 Warmy Miniland

How to use the bottle warmer for the first time?

Before first use, check that the mains voltage matches that of the appliance (220-230 V). Place the appliance on a flat, dry surface, out of reach of children. Plug it in, the green light turns on. Pour the amount of water indicated in the measuring cup according to the volume of the bottle or jar, then pour it into the heating tank.

How much water is needed to heat a 120 ml bottle at room temperature?

For a 120 ml bottle at room temperature (20°C), use 7 ml of water (one measure in the measuring cup). If the bottle is from the refrigerator (4°C), use 8 ml of water.

Can the bottle warmer be used in the car?

Yes, with the supplied cigarette lighter adapter. Make sure the engine is running to avoid draining the battery. Never use it while driving. Water amounts are reduced compared to home use (see table in the manual).

How to sterilize a bottle with this model?

Place the empty, clean bottle upside down in the tank (without basket). Pour 50 ml of water into the tank using the measuring cup. Put the steam lid on by inserting the wings into the slots. Plug in, press ON. The cycle stops automatically with an audible signal. Caution: steam is very hot.

Does the appliance turn off automatically?

Yes, the bottle warmer turns off automatically at the end of the heating or sterilization cycle. An audible signal sounds to alert you.

How to clean the bottle warmer?

Unplug the appliance and wait for it to cool down. Clean the inside and outside with a damp cloth. Never immerse the appliance in water. Accessories (baskets, adjustable ring, measuring cup) can be hand washed with a soapy sponge or in the dishwasher (top rack).

Is it necessary to descale the appliance?

Yes, regularly depending on water hardness. Pour 100 ml of hot water and 100 ml of white vinegar into the tank, let stand for 30 minutes, empty and wipe with a damp cloth. Do not use detergents.

Can I heat a jar without the lid?

Yes, remove the metal lid from the jar before placing it in the jar basket. Never heat a jar with its lid.

What to do if the bottle is not warm enough?

If the bottle (less than 210 ml) is not warm enough after the cycle, add an extra 8 ml of water to the tank before restarting a cycle. Always check the temperature by squirting a few drops on your wrist before feeding.

The power cable is damaged, what to do?

Do not use the appliance. The cable must be replaced by the manufacturer, its distributor, or a qualified person to avoid any danger. Contact Miniland after-sales service.

USER MANUAL 89017 Warmy Miniland

White baby bottle with black lid and brand logo (no visible text or symbols on body)

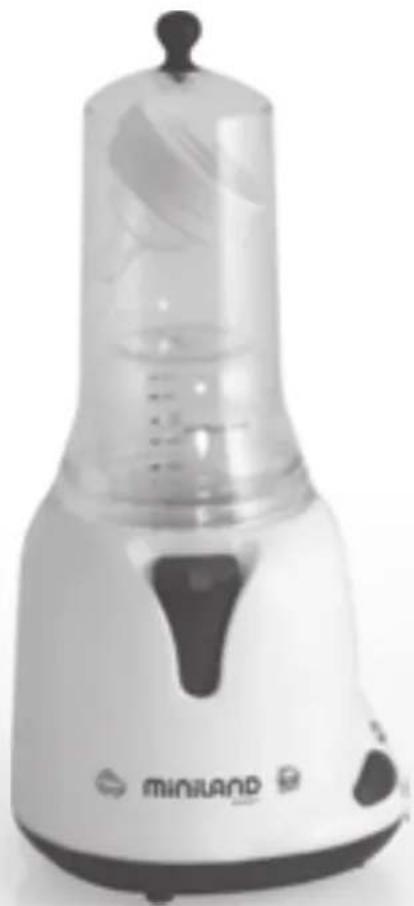

White minifund blender with clear glass lid and control buttons (no visible text or symbols on body)

89017 warmy 89034 warmy plus

manual instrucciones / instruction manual / manuel d'instructions gebrauchsanleitung / manual de instruções / manuale di istruzioni

Please read these instructions carefully before use. Keep them close at hand so that you can refer to them later.

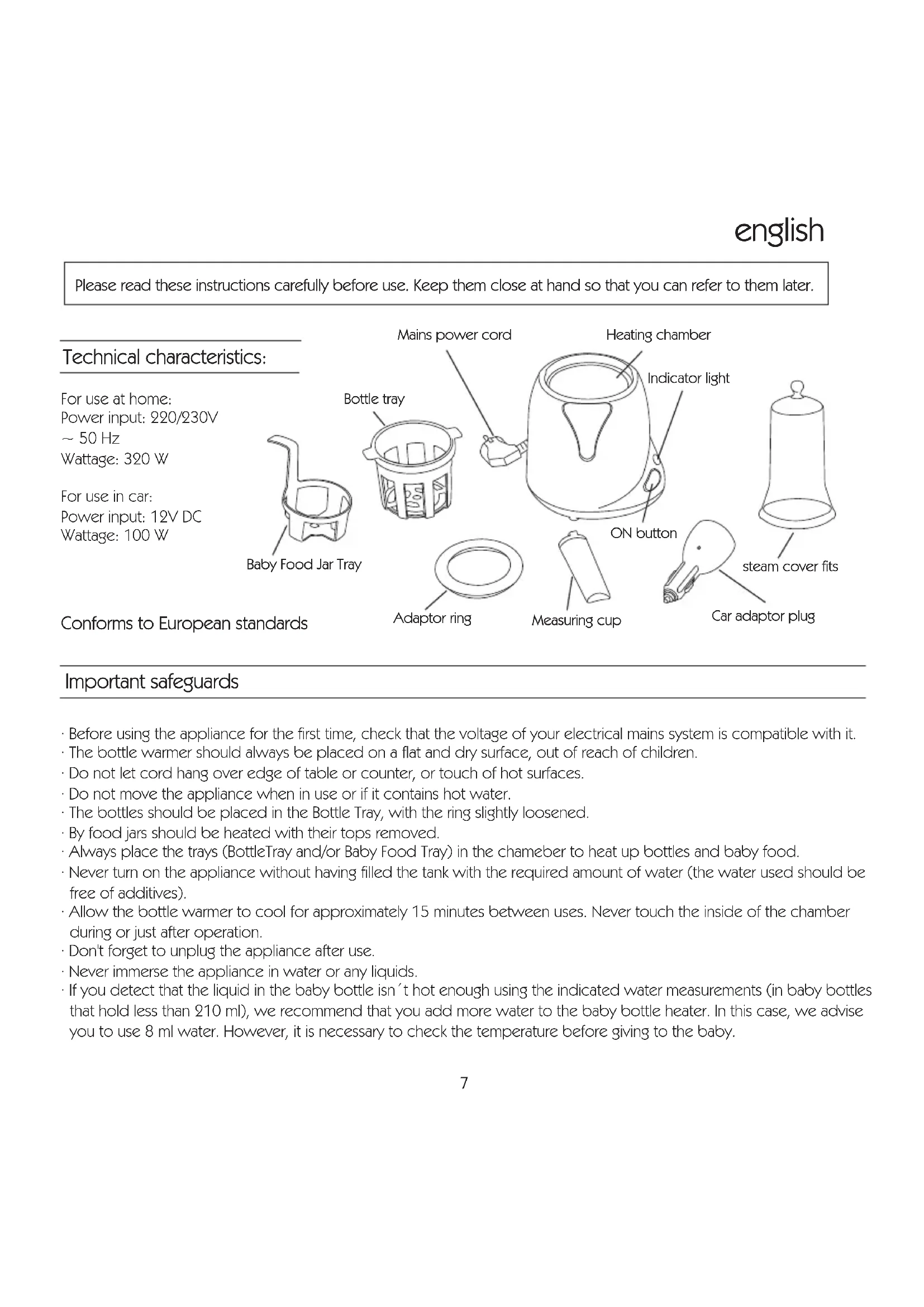

Technical characteristics:

For use at home:

Power input: 220/230V

\~ 50 Hz

Wattage: 320 W

For use in car:

Power input: 12V DC

Wattage: 100 W

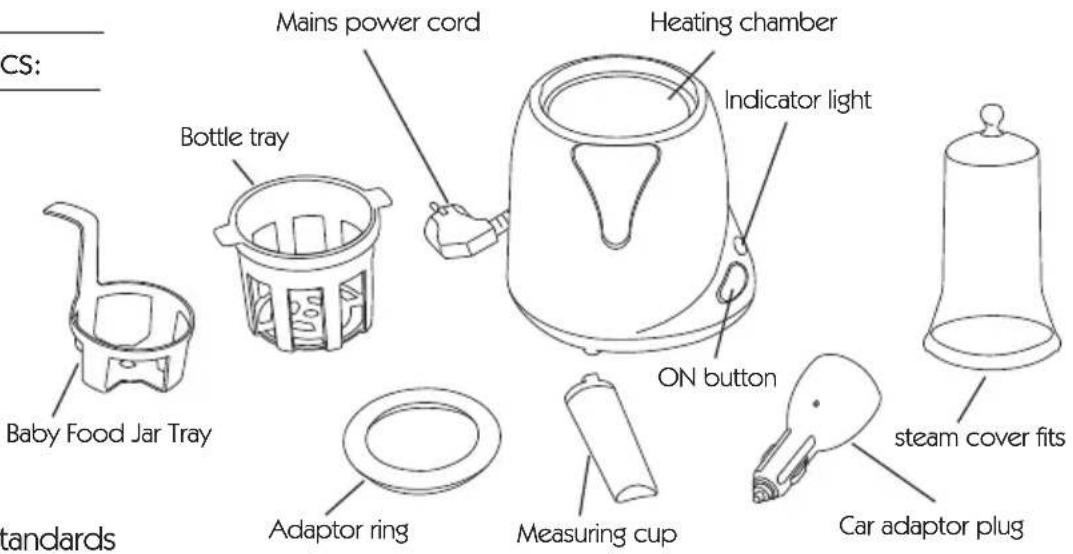

CS: Mains power cord Heating chamber Bottle tray Indicator light Baby Food Jar Tray ON button standards Adaptor ring Measuring cup steam cover fits Car adaptor plug

Conforms to European standards

Important safeguards

· Before using the appliance for the first time, check that the voltage of your electrical mains system is compatible with it.

· The bottle warmer should always be placed on a flat and dry surface, out of reach of children.

· Do not let cord hang over edge of table or counter, or touch of hot surfaces.

· Do not move the appliance when in use or if it contains hot water.

· The bottles should be placed in the Bottle Tray, with the ring slightly loosened.

- By food jars should be heated with their tops removed.

· Always place the trays (BottleTray and/or Baby Food Tray) in the chameber to heat up bottles and baby food.

- Never turn on the appliance without having filled the tank with the required amount of water (the water used should be free of additives).

- Allow the bottle warmer to cool for approximately 15 minutes between uses. Never touch the inside of the chamber during or just after operation.

· Don't forget to unplug the appliance after use.

· Never immerse the appliance in water or any liquids.

- If you detect that the liquid in the baby bottle isn't hot enough using the indicated water measurements (in baby bottles that hold less than 210 ml), we recommend that you add more water to the baby bottle heater. In this case, we advise you to use 8 ml water. However, it is necessary to check the temperature before giving to the baby.

• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  · Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  · The food should not be heated for too long.

For using in car:

• Never use the bottle warmer while the vehicle is in motion. Leave your engine running when using the bottle warmer to avoid draining your battery.
  · The car adapter cord is specially designed for this bottle warmer: never use it with other appliances.
  · Regularly check that the cigarette lighter socket in your car. Clean it if necessary.
• If you have just used your car's cigarette lighter, allow it to cool for five minutes in the open position before plugging in with the bottle warmer.

When using the bottle warmer at home:

AMOUNT OF CONTENT IN BOTTLE	Amount of water (ml) to be put in the measuring cup for BW for bottle content in room temperature (20°C)	Amount of water (ml) to be put in the measuring cup for BW for bottle content in fridge temperature (4°C)
60 ml	5	7
90 ml	6.5	7.5
120 ml	7	8
150 ml	7.5	8.5
180 ml	7.5	9
210 ml	8	9
240 ml	8	9.5
270 ml	8	10
300 ml	8	11
330 ml	8.5	11
	Amount of water (ml) to be put in the measuring cup for baby jar in room temperature (20°C)	Amount of water (ml) to be put in the measuring cup for baby jar in fridge temperature (4°C)
120 g	9	15
200 g	18	23
250 g	20	30

When using the bottle warmer in car:

AMOUNT OF CONTENT IN BOTTLE	Quantity of water to be put in the measuring cup
60 ml	2
90 ml	3
120 ml	3
150 ml	3
180 ml	3
210 ml	3.5
240 ml	3.5
270 ml	4
300 ml	4.5
330 ml	4.5

BABY JAR	Amount of water (ml) to be put in measuring cup for small jar in room temperature (20°C)
120 g	7
200 g	10
250 g	12

If you detect that the liquid in the baby bottle isn't hot enough using the indicated water measurements (in baby bottles that hold less than 210 ml), we recommend that you add more water to the baby bottle heater.

In this case, we advise you to use 8 ml water. However, it is necessary to check the temperature before giving to the baby.

OPERATING INSTRUCTIONS:

For using at home:

1- Place the Bottle Warmer on a flat and stable surface. Be sure the warmer and the cord are out of the reach of children.
2- Plug the power cord into wall outlet. You can see the indicator light illuminates in green color.
3- Fill the measuring cup with water, following the instructions shown above, then pour the water into the heating chamber. Your can then place the cup back to the holder.
4- Place the bottle tray into the heating chamber.
5- Place the bottle into the bottle tray. If you are using standard/small bottle, place the adaptor ring around the bottle for better warming result.
6- For warming baby food jar, remove the lid and place the jar in the Food Jar Tray and then put into the heating chamber. Please note the bottle tray should be placed inside the heating chamber first.
7- Press the ON button to start warming cycle. The indicator light illuminates in red color. CAUTION! The steam given off during the warming cycle is very hot. Keeps your hand off the appliance when operation.
8- When the heating cycle finished, bottle warmer will switch off automatically. At the same time, there will be a "beeping" sound to remind you the bottle is done.
9- Then you can take out the bottle. For baby food jar, use the handle of Food Jar Tray to take it out.
10- You can then unplug the unit.

For using in car:

1- Stop the car / vehicle and keep the engine running.
2- Place the Bottle Warmer on a flat and stable surface inside your car and vehicle. Connect the Car Adaptor Plug on to the power cord of the bottle warmer.
3- Plug the Car Adaptor Plug into the cigarette socket. You can see the indicator light illuminates in green color.
4- Fill the measuring cup with water, following the instructions shown above, then pour the water into the heating chamber. Your can then place the cup back to the holder.

Warning:

For bottle: tighten the ring and shake well to mix up the contents. Pour a few drops of liquid on the back of your hand to check the temperature before feeding.

For baby food jar: stir the contents and check the temperature before feeding.

Make sure that the appliance is cool before cleaning it or storage.

Cleaning the bottle warmer:

· Always unplug the appliance and wait until it is cool before cleaning it.
· Use a damp cloth to clean the inside and outside of the unit.
· Never immerse the unit in water for washing.
· Do not use abrasive products to clean.
- Adapter ring, trays and measuring cup can be washed using a sponge with soap and water or can be cleaned in the dishwasher in the top tray.

Descaling the tank:

According to the quality of the water used, a limescale deposit can build up on the bottom of the heating chamber over time. You should regularly descale your bottle warmer by pouring a mixture of 100 ml of hot water + 100 ml of white vinegar into the heating chamber.

Leave this to act for approximately 30 minutes before emptying the chamber and wipe with a damp cloth.

Do not use detergent to clean the unit.

BOTTLE WARMER

Sterilizing Instructions

steam cover fits

1. Place the bottle warmer on a flat surface where it is out of reach of children and it will not be knocked or moved during operation. Before placing items in the appliance it is important that the bottle is empty, cleaned and fully rinsed in fresh water.
2. Remove the bottle tray.
3. Pour 50ml of water into the heating chamber by using the measuring cup. You can then place the cup back to the holder.
4. Place the empty milk bottle upside down on the heating chamber.
5. Place the steam cover securely on the unit ensuring that the 2 wings of steam cover fits snugly onto the slots of the unit.
6. Plug the power cord into wall outlet. You can see the indicator light illuminates in green color.
7. Press the ON button to begin the sterilization cycle. The indicator light illuminates in red color. CAUTION! The steam given off during the sterilization cycle is very hot. Keep your hand off the appliance when operation.
8. When the sterilization cycle finished, the bottle warmer will finish automatically. At the same time, there will be a "beeping" sound to remind you the bottle is done.
9. You can then remove the steam cover, taking care to allow the milk bottle to cool for a moment. Then you can take out the bottle
10. You can then unplug the unit.

© Miniland, S.A. 2008

Selective pick-up. Protect the environment.
