USER MANUAL SBC RU 430 PHILIPS

Universal Remote Control

Let's make things better.

PHILIPS

You just made a great choice by buying this Philips universal remote control! It takes the place of as many as three separate remote controls and can operate the most-used functions of almost any brand of TV, VCR, satellite tuner and cable decoder.

Best of all, it's quick to setup and easy to use! Here's how...

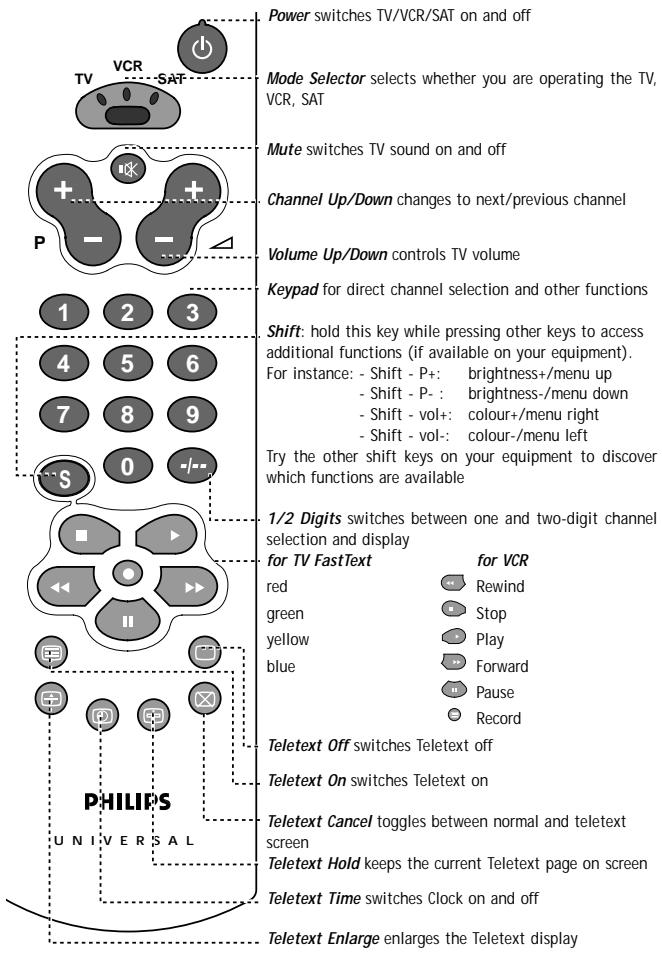

AT A GLANCE

Once you've installed the batteries, this remote is ready to work with any Philips TV, VCR or satellite tuner. Simply press the mode selector as indicated below - for the Philips device you wish to operate, and press to test. For other brands of equipment, it needs to be set up first-see Getting Started.

Choose TV, VCR, SAT. The remote has 3 operating modes: TV, VCR, and satellite tuner (SAT). The green indicator LEDs show which mode you're in. To switch between modes, press once to activate, then press it again to advance to the next mode.

Try it out! The easiest way to find out how your new remote works, is to try pressing the keys and see what happens - don't worry, you won't damage anything! Most of the keys work just like on your original remote control. Of course, if your TV or VCR does not offer a specific function, pressing that key will have no effect.

DON'T FORGET THE BATTERIES!

You'll need two 1.5V batteries, type R03, UM4 or AAA only. Put them in like this.

Remember to replace the batteries at least once a year. Don't leave the batteries out for longer than one hour, otherwise you will need to set the remote up again.

GETTING STARTED

This remote is ready to work with any Philips TV, VCR or satellite tuner. For other brands of equipment, it needs to be set up first. That only takes a couple of seconds, thanks to Philips' Simple System Setup!

Before you start, make sure you're in the right mode for the equipment you're setting up (TV, VCR, or SAT). The green indicator LEDs show which mode is selected. To switch between modes, press once to activate, then press it again to advance to the next mode. Also, make sure the equipment is switched on. Sit right in front of it.

If you know the brand of your equipment, look at the code list at the back of this booklet, and find the first 3-digit code for your equipment.

① Press and hold ① and ③ at the same time until the green LED lights up. (Release the keys, the green LED should stay on)
② Enter the 3-digit code using the keypad. The green LED blinks twice.

That's it! Now, press a few keys on the remote to check that the equipment responds correctly. If it doesn't, try again using the next code in the list. In the rare instance that none of the codes work, follow the instructions in the next section.

Tip: Make a note of the code inside the battery case, and in the back of this booklet in case you ever need to setup again.

If you don't know the brand of your equipment or if you can not find it in the coderlist, setup still won't take long. Philips' patented Handsfree autosearch tests all the codes one after another and finds the right one for you! The search time averages about 90 seconds. (Maximum search time is 5 minutes for TV; 2 minutes for VCR and 4 minutes for SAT.)

Make sure the TV, VCR etc. is switched on. If it's a VCR, insert a tape and start playback. You will know when the correct code has been found because the equipment will switch off or the VCR will stop playback.

① Press and hold ① and ③ at the same time until the green LED lights up.
② Press to start the search. Each time the green LED blinks, another code is sent. When the right code is found, the equipment switches off (the VCR will stop playing).

③ Immediately press to stop the search.
If you missed the correct code because the search went too far, switch the equipment back on, then press (down) to send the previous code again. Press (down) repeatedly until the equipment switches off again.
④ Once you've found the correct code, press to lock it in memory. The green LED blinks twice.

That's it! Now, switch the equipment manually on again, then press a few keys on the remote to check that the equipment responds correctly. In the rare instance that it doesn't, try again from step 1 to find a better code.

Note that code! To save time if you ever need to setup again, make a note of the correct code inside the battery case and in the back of this booklet. In case you have forgotten to note the code you can still 'read out' the code from the remote. Here's how:

① Make sure you've selected the right mode (with ②). Then press and release ① and ⑥ at the same time; the green LED lights up.
② Press . The green LED goes out.
③ Press 1 and count the number of times the green LED blinks. This is the first digit of the 3-digit code. (No blinks means the digit is zero.)

Press 2 and count the number of blinks for the second digit. Press 3 and count the number of blinks for the third digit.

ADVANCED TIPS AND TRICKS

TO CHANGE SAT MODE TO CONTROL A SECOND TV

The SAT mode on this remote is used to control additional equipment. It is factory preset to control a satellite receiver, but you can change it to control a second TV, for example.

Before you start, press to select SAT, and make sure the second TV is switched on.

① Press and hold 1 and 6 at the same time -for about 3 seconds until the green LED lights up.
(2) On the keypad, enter 992.
③ Press to select TV mode, then press any key except once more. That's it!

Don't forget you now need to setup the remote to operate this second TV - see Getting started.

TO CONTROL THE SECOND TV'S VOLUME

If you have installed a second TV under SAT mode, you can also control that TV's volume when you are in VCR mode.

Before you start, press to select VCR.

① Press and hold ① and ⑤ at the same time until the green LED lights up (about 3 seconds).

② On the keypad, enter 993.
③ Press to select SAT.
④ Press any key (except ). That's it!

Now, when you're in VCR mode, (up/down) control the volume of the second (SAT) TV.

NEED HELP?

If you have questions about your remote or if you are missing certain functions on your remote, call our free-phone helpline!

Before you call, please read the manual carefully. Most questions will clear themselves. If you don't find an answer to your questions, make a note of your equipment in the table below - this makes it easier for the operators to help you quickly. Look for model numbers in the equipment instruction manual, or on the back of the equipment. Be in front of the equipment, this way our operators can help you verify the functionality of your remote.

In the UK. call 0800 968 118. In Ireland, call 1 800 553 136.

The model number of your Philips universal remote control is:

SBC RU430

Date of purchase:

Day/month/year

Equipment	Brand	Model nr.	Used code
TV
VCR
SAT

As you add new components to your home entertainment system, Philips again offers a universal remote control that will fit your new needs. Look for below unique full range of universal remote controls from Philips at a retailer near you.

RU 110: Universal easy TV zapper
RU 410: 1 in 1 Universal TV Remote with digits and TXT
RU 422: 2 in 1 Universal Remote Control for TV and VCR
RU 440: 4 in 1 Universal Remote Control for TV, VCR, SAT/Cable and AUX for audio
RU 455: 4 in 1 Universal Remote Control for TV, VCR, SAT/Cable and AUX for second device
RU 460: 6 in 1 Universal Remote Control-Pre-programmed and Learnable

Another very nice product from Philips is the Philips SBC LI510 Remote Control Extender Set, the wireless extension of your infra-red (IR) remote control! This system allows you to operate every IR driven equipment (i.e. Sat-receivers, VCRs or Hi-Fi-sets) from anywhere in or around the house.

N'OUBLIEZ PAS LES PILES!

REGULERING AF LYDSTYRKEN PÅ DET ANDET TV

Alba .064,245,398,036,262

Allorga 321

Amplivison 244, 427

Amstrad. 398, 036, 381, 389, 396, 439, 460, 543

Anitech. 036

Arcam. 243, 244

ASA 114

Asuka 245

Atlantic. 233

Audiosonic .064,136

Autovox. 233, 114, 363

B

Baird 370,584

Bang & Olufsen 114

Barco. 407

Basic Line 245,036

Baur. .064,037,092 376,388,532,539,562

Beko. 397, 513

Beon. .064

Binatone 244

Bush. .064,245,401,398 321,036,309,376,382,546

C

Cascade 036

Cathay .064

Centurion .064

Century 114

CGE 274,333

Cimline .036

Clarivox. .064

Clatronic 397,274

Clayton 412

Condor. 397, 347

Contec. 243, 036

Continental Edison. 223, 360, 426

Crosley. 114

Crown. .064, 397, 445, 036, 606

Crystal 458

CS Electronics 243

CTC 274

Cybertron 245

D

Daewoo. .064, 401, 036, 526

Dainichi 245, 242

Dansai. .064

Dayton. 036

De Graaf. 235, 575

Decca .064,099,543

Dixi .064, 036

Doric. 033

Dual 363, 379, 546

Dual Tec. 244

Dumont. .097, 114

E

Elbe. 286

Elin .064,575

Elite 245,347

Elta .036

Emerson. 114, 388

Erres. 064, 039

Europhon. 543

Expert 233

F

Ferguson. .064, 136, 220 265, 314, 362, 370

Fidelity. 243, 220, 388

Finlandia 235, 373, 386

Finlux. .064,099,097 114,132,373,438,543

Firstline. 243, 244, 321, .036, 348, 274

Fisher. 397, 244, 235, 330

Flint 482

Forgestone 220

Frontech 291,458,475,190,274

Fujitsu. .099,233

Funai 321,291,330

G

GEC 064,244,099,543,584

Geloso. .036

Genexxa 245,190

GoldStar .064,244,136,317

Goodmans. .064, 244, 401, 398, .099, 262, 344, 370, 526

Gorenje 397

GPM 245

Graetz 190,388,584

Granada. 064,244,099,235 366,386,543

Grandin 309

Grundig.097,218,222,514,562

H

Hanseatic .064,347,388

Hantarex .543

HCM. 036, 309, 439

Hinari. 064, 245, 036

Hisawa 309,482,427

Hypson. .064, 309, 291

1

ICE 244, 291, 398

Imperial. 397, 445, 274

Indiana .064

Ingelen. 190, 584

Inno Hit .099,543

Interfunk. 064, 190, 274, 388, 539, 584

Intervention. 244, 291, 129

Isukai 245

ITS 398

ITT. 034, 190, 388, 575, 584

J

JVC 398,080,121

K

Kaisui 243, 244, 245, 036, 309

Kapsch 233,190,584

Kathrein .583

Kendo. .064,262,389

Kingsley 243

Kneissel 286,462

Korpel .064

Korting 114

Koyoda. 036

L

Leyco. .064,321,099,291

Liesenk & Tter. .064

Loewe. 114, 539

Luma 233

Luxor. 376, 388

M

M Electronic. 064, 244, 401, .036, 136, 132, 190, 314, 373, 507

Magnadyne 129, 114, 274, 543

Magnafon 129,543

Manesth 244,347,291,262

Marantz. .064

Marelli 114

Mark .064

Matsui .064,244,398 321,036,099,062,038 235,262,381,382,470 514,543,606

Mediator .064,039

Memorex. .036

Memphis 364

Metz. 114, 394, 562

Minerva .097,514,562

Minoka. 396, 439

Mitsubishi. 034, 114, 135, 177, 381, 539, 562

Mivar. 243, 317, 318, 319, 543

MTC 376,539

Multitech 243,036,129

N

Neckermann .064,114,218 376,532,583

NEI .064,458,364

Nikkai .064,243,245 099，291，062，364

Nobliko 129

Nokia 388,507,575

Nordmende 136,223,314,370

0

Oceanic 190,242,388

Onwa 460

Orion. .064, 321, 347

348,262,382,543

Osaki 244, 245, 099, 291, 439

0so. 245

Osume 099,184

Otake. 344

Otto Versand .064,244,347 037,218,370,376 532,539,562,583

P

Palladium 397

Panama 244, 291

Panasonic 277,153,190 253,394,584

Pathe Cinema 243, 347, 265

Pathe Marconi. 223, 360

Pausa .036

Perdio 347

Philco. 114, 274

Philips .064, 401, 033, 034, .039, 040, 114, 220, .320, 350, 359, 583

Phoenix. 114

Phonola .064, 039, 040, 114, 320

Pioneer. 136, 190, 314

Prandoni Prince. .543

Profex. 036, 388

Proline 348

Protech .064,244,445,036 291，129，458，274，364

Pye .034,039

0

Quelle .064,037,038,097 227,333,354,355 388,532,539,562

R

R-Line .064

Radiola. .064, 039, 350

Radiomarelli 114,543

RBM. .097

Rediffusion 388

Revox. .064

Rex. 233, 291, 190, 286

RFT 114

Roadstar 245,036,291

S

Saba 136, 114, 190, 223, 314, 362, 370, 584

Saccs 265

Saisho. 036, 291, 458, 038

262,381,543

Salora. 190, 376, 386, 388, 575

Sambers. 129, 543

Samsung. 064, 397, 244, 036, 291, 117, 317, 515, 583

Sandra 243

Sanyo .099, 038, 184, 235, 366

SBR. .064,033,034 039,040,220

Schaub Lorenz 388,584

Schneider .064,245,398,040 274,330,350,363,379,421

SEG 244, 291

SEI. 321, 129, 114

Sei-Sinudyne. 037, 543

Seleco. 233, 190, 286, 389, 438

Sentra .062

Sharp 120

Shorai 321

Siarem 129, 114, 543

Siemens. 064, 184, 218, 222, 227, 354, 355, 562

Singer 114

Sinudyne 321, 129, 114, 262

Solavox 190

Sonitron. 235

Sonoko .064,036

Sonolor. 190,235,242

Sontec .064

Sony .037,038,532

Soundwave .064, 445

Standard. 244, 245, 036

Stern. 233, 190, 286

Sunkai 321,348,382

Susumu 245

Sysline .064

T

Tandy. 244, 245, 099, 190

Tashiko 244,386

Tatung .064,244,099,543

Tec. 244, 274

Technema 347

Technics 277

Teleavia 360, 370

Telefunken 136,289,333 362,370,498,525

Telemeister 347

Teletech. 036

Teleton. 244, 233, 376

Tensai 245,321,347,344

Texet 243, 245

Thomson 136,223,314,360 370,376,426

Thorn. 064, 099, 062, 220, 388, 526, 532, 539, 562, 580

Thorn-Ferguson 370

Tomashi 309

Toshiba .062,097,270,580

Triumph 270,543

U

Uher 233,347,330

Ultravox 129

Universum. .064,397,291,132 373,448,519,562

V

Vestel .064

Videosat 274

Visa .036,190,584

Vision 347

Voxson 114, 190

W

Waltham 244

Watson .064,347

Watt Radio 129

Wega 114

White Westinghouse.....064,243,347

Y

Yoko .064,244,291,458

Z

Zanussi 233

A

Aiwa 027,334,375,379

Akai. 342,133,068,080

Akiba .099

Alba.099,047,305,236,342,379

Ambassador .047

Amstrad. .027,359

Anitech. .099

ASA. .064,108

Asuka .064

B

Baird. 027, 068, 131, 134

Basic Line. .099, 047, 305

Brandt Electronic. .068

Bush. .099,305,236,379

C

Catron. .047

CGE. .027

Cimline .099

Clatronic .047

Combitech 379

Condor .047

Crown. .099, 047, 305

D

Daewoo. .047,305

Dansai. 099

De Graaf. .069, 193

Decca .027,108

Dual. .068

Dumont .027,108,131

E

Elcatech. .099

ESC 305,26

7

F

Ferguson 347,068,134,348

Fidelity .027

Finlandia. 108, 131

Finlux .027,108,069,131

Firstline .099, 064, 236, 072, 070

Fisher. .073, 074, 081, 131

Frontech. .047

Funai .027

G

GEC 108

General .047

GoldHand .099

GoldStar. 064, 252

Goodmans .099,027,047,064,305,430

Graetz .068,131,267

Granada. 108, 073, 131

Grandin .099,027,064

Grundig. 099, 108, 061, 374, 253

222,030,033,034,234,376,430

H

Hanseatic .064

HCM .099

Hinari .099,031,267,379

Hitachi. 027, 031, 069, 068

193,262,267

Hypson .099

1

Imperial .027

Ingersol .031

Interfunk. 108

ITT. 133, 073, 411, 068, 131, 267

ITV. 064, 305

J

JVC 094,411,035,068,233,234

K

Kaisui .099

Kendo 236,133

Kenwood .068

Korpel .099

L

Lenco 305

Leyco .099

Loewe .064,031,108,033

Logik. 031, 267

Luxo. 133,075,073,070,131

M

M Electronic. .027

Manesth. .099, 072

Marantz 108,030,033

Matsui....236,031,063,115,375,379

Memorex. .027,064,073,131

Memphis .099

Metz.....374,222,030,033,189,254,486

Minerva. 222,033
Mitsubishi 108,094,070
Multitech .099, 027
Murphy . 027

N

NEC .094,065,068
Neckermann 108
Nesco. .099
Nokia.....133,075,073,068,131,267
Nordmende.....411,347,068,324,348

0

Oceanic .027, 068
Okano. 342, 375
Orion.....236,031,063,115,375,379
Osaki. .099, 027, 064
Otto Versand. 108

P

Palladium .099,064,033,068
Panasonic. 253, 189, 254, 486
Pathe Cinema. .063
Pathe Marconi .068
Pentax .069
Perdio .027
Philco .065
Philips....108, 411, 173, 430, 494, 510
Phonola. 108
Pioneer. 108, 094, 262
Portland .047
Profex 349
Profitronic 267
Proline .027
Pye 108

0

Scientific Atlanta .035, 304

T

Tele-1 .470

U

United Cable. 030

W

Westminster 132
