USER MANUAL CombiCool RC 1205 GC DOMETIC
Operating Instructions
Bedienungsanleitung

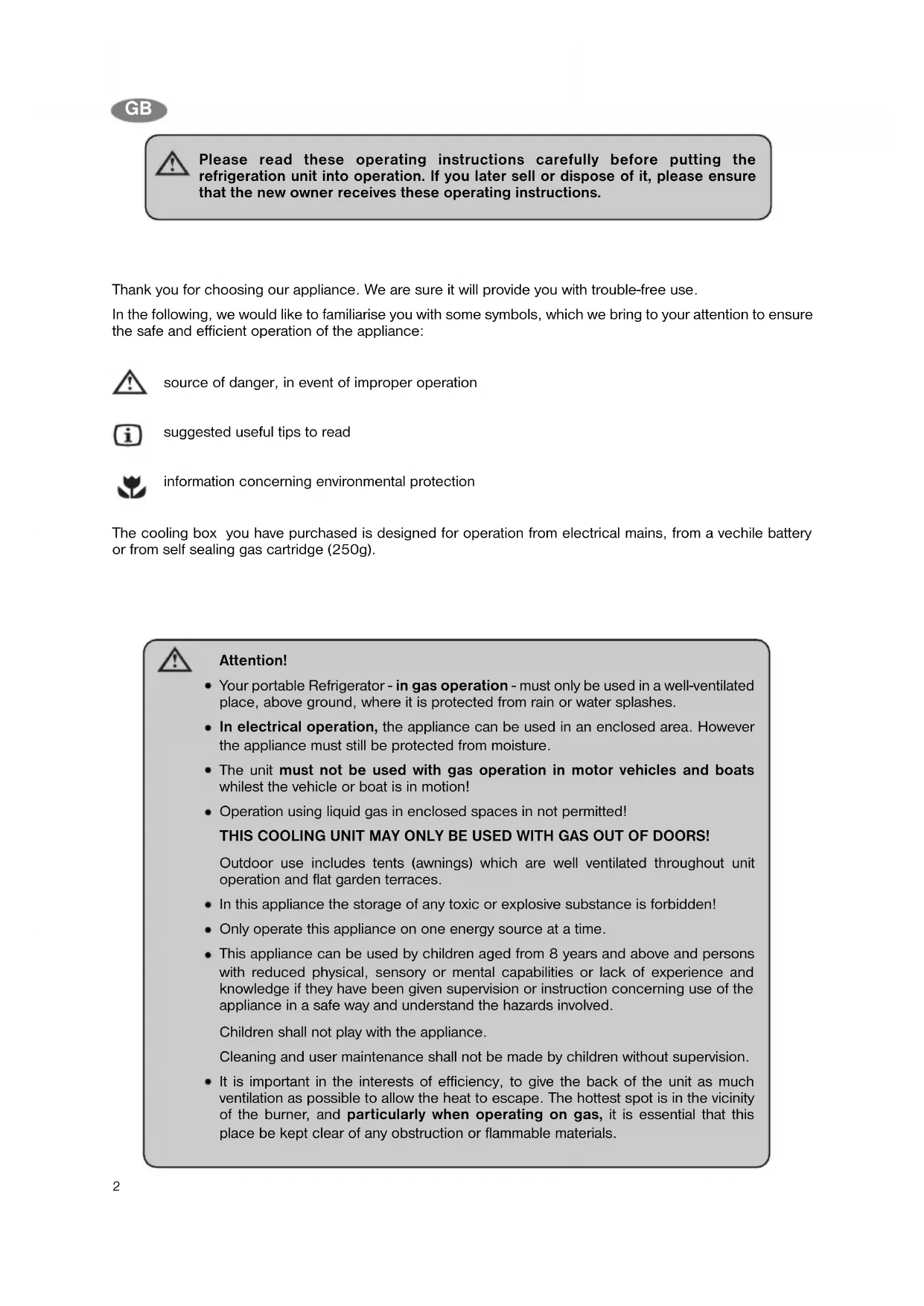

Please read these operating instructions carefully before putting the refrigeration unit into operation. If you later sell or dispose of it, please ensure that the new owner receives these operating instructions.
Thank you for choosing our appliance. We are sure it will provide you with trouble-free use.
In the following, we would like to familiarise you with some symbols, which we bring to your attention to ensure the safe and efficient operation of the appliance:
source of danger, in event of improper operation
suggested useful tips to read
information concerning environmental protection
The cooling box you have purchased is designed for operation from electrical mains, from a vechile battery or from self sealing gas cartridge (250g).
Attention!
- Your portable Refrigerator - in gas operation - must only be used in a well-ventilated place, above ground, where it is protected from rain or water splashes.
- In electrical operation, the appliance can be used in an enclosed area. However, the appliance must still be protected from moisture.
- The unit must not be used with gas operation in motor vehicles and boats whilst the vehicle or boat is in motion!
Operation using liquid gas in enclosed spaces in not permitted!
THIS COOLING UNIT MAY ONLY BE USED WITH GAS OUT OF DOORS!
Outdoor use includes tents (awnings) which are well ventilated throughout unit operation and flat garden terraces.
- In this appliance the storage of any toxic or explosive substance is forbidden!
- Only operate this appliance on one energy source at a time.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
- It is important in the interests of efficiency, to give the back of the unit as much ventilation as possible to allow the heat to escape. The hottest spot is in the vicinity of the burner, and particularly when operating on gas, it is essential that this place be kept clear of any obstruction or flammable materials.
CONTENTS
- Unpacking
- View of the appliance
- Cleaning
- Positioning the appliance
- Using the appliance
5.1. From electrical mains
5.2.From vehicle battery
5.3. From bottled gas
- Ice-making
- Useful suggestions
- Defrosting, cleaning and maintenance
-
Customer service
-
Putting into operation, technical data
10.1. Connecting to electrical mains
10.2. Connecting to vehicle battery
10.3. Connection and replacement of the gas cartridge
- Environmental protection information
- Recycling
ATTENTION!
Warranty arrangements are in accordance with EC Directive 44/19999/CE and the normal conditions applicable in the country concerned.
For warranty or other servicing, such as spare-parts, please contact our Dometic Service Network.
The warranty does not cover any damage due to improper use.
The warranty does not cover any modifications to the appliance or the use of nonoriginal Dometic spareparts.
The warranty does not apply if the installing and operating instructions are not adhered to.
When contacting Dometic Service Network, please state the model, product number and serial number.
You will find this information on the data plate on the rear cover of the refrigerator.
1. Unpacking
After removal from the cardboard packaging, make sure the appliance is not damaged. If you find damage to the appliance resulting from transport, report it immediately to the transportation firm.
2. View of the appliance

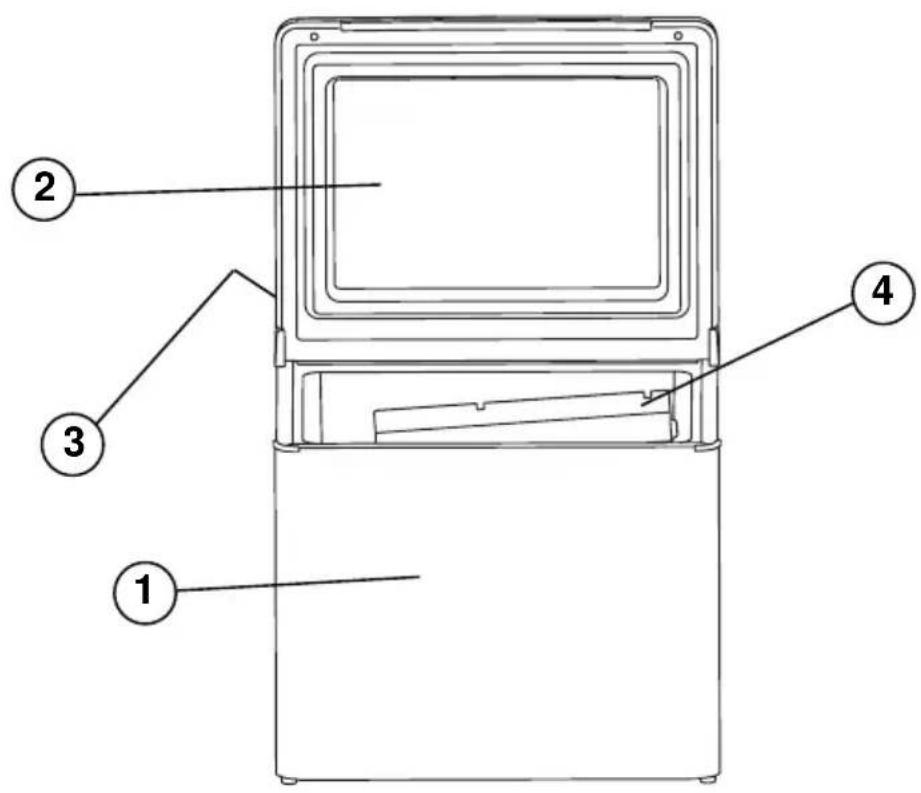

Figure 1.
-
insulated casing
-
control panel
-
insulated lid
-
evaporator panel
3. Cleaning
Clean both the inside and outside of the appliance before putting it into use.
- To do so, use a soft towel, lukewarm water and a non-abrasive detergent. Ensure water does not enter the rear cover grille or the control elements.
- Afterwards, wipe the appliance with a clean towel and cleanwater, and then wipe it dry.
- To avoid damage, do not use soap, soda or abrasive cleaners.
4. Positioning the appliance
During the refrigeration process, the appliance gives off heat from the condenser (under the upper part of the rear cover) into the surrounding air. The more ventilated the condenser is, the more effective the refrigeration will be.
- The other condition for satisfactory operation is that the appliance stands on a flat surface. This is best seen by placing a glass of water on top of the appliance.
It is important that the appliance is not directly exposed to radiated heat (sunlight, radiator, near an oven, etc.).
- In gas operation following clearances should be kept from the walls or other materials: from the back side of the appliance minimum 10cms, from both sidewalls 4cms each, from the top of the appliance minimum 30cms, from the bottom minimum 5cms.
- In the immediate vicinity of the appliance within the specified distances no inflammable matters (paper, wood, grass, textile etc.) should be met with.
5. Using the appliance
The cable for mains connection, the 12V connecting cable and the connector for the gas hook-up are located on the rear cover of the cooling box. (Figure 2).
5.1. Operating from electrical mains
Make sure the voltage shown on the data plate of the appliance matches that of the mains voltage to which you wish to connect the appliance. Pull out the mains connecting cable and connect it to a receptacle earthed socket for connection.
When connecting the appliance for the first time, set the thermostat (Figure 4. A), to maximum; then, after about five hours, set it back towards minimum according to your need of cooling.
NB: Plug is provided according to specific regulations in each country and may be different to that shown.

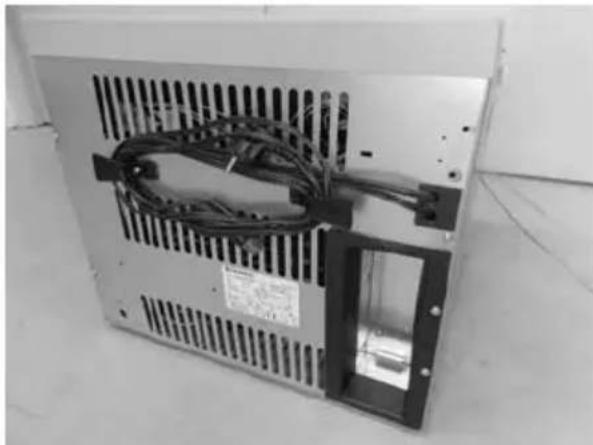

Figure 2.
GB
5.2. Operating from vehicle battery
Make sure the voltage shown on the data plate of the appliance matches the voltage of the vehicle battery (12V or 24V).
12V DC voltage appliances are equipped with connectors that can be plugged into cigarette lighters (Figure 3.). For some types of vehicles, you may need to remove the red plastic ring located on the end of the connector. To do so, turn the plastic ring anticlockwise and pull it off. The appliance can then be connected to the cigarette lighter. In 12V operation, the appliance runs uninterrupted without temperature control.
24V DC voltage appliances are shipped with bare wire ends. The wire ends must be connected to a terminal block, which is connected to the vehicle battery via a 5A fuse and 5A switch.
i Whenever the engine is not running, the appliance connector must be removed from the cigarette lighter (12V appliance) or the switch turned off (24V appliance). Otherwise, the appliance will discharge the vehicle battery rapidly.
5.3. Operating from bottled gas
Connection to the gas cartridge is described in sections 10.3.
After connecting the gas cartridge to the appliance and checking for gas leaks turn thermostat to maximum position (Figure 4.B), press down the gas safety valve hold it down for about 10 seconds and then, press the piezo-ignition button several times in quick succession (Figure 4.C). If the flame does not ignite, repeat the process. (Air in the appliance gas line prior to connection to the gas cylinder must be purged. Only then can the gas be lit.).

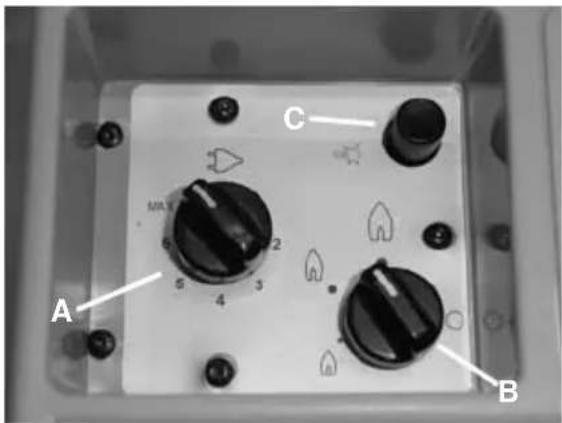

The control knob has 4 positions:
high flame (MAX) = gas supply maximum (high ambient temperature 32^ );
: medium flame (MID) = gas supply medium (normal ambient temperature 25^)
: low flame (MIN) = gas supply minimum (low ambient temperature 16^)
: off-position = gas supply to burner is shut off.

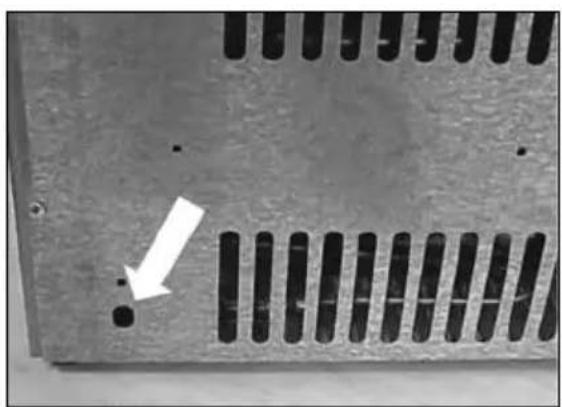

Ignition of the flame can be verified through the flameview opening (Figure 5). After you have the flame alight keep the safety gas valve pressed down for a further 20 seconds.
To stop the gas operation the safety valve is to close and disconnect the gas cartridge

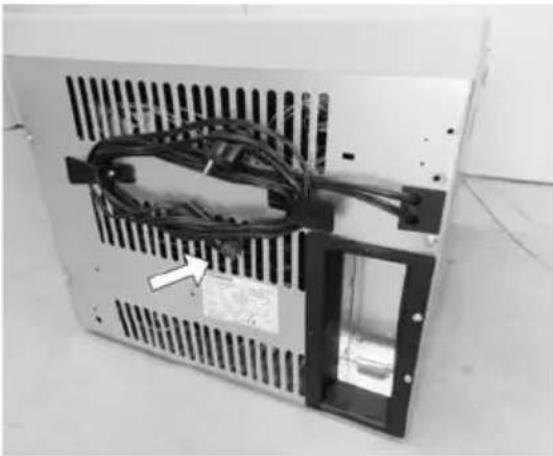

Figure 3.
Figure 4.
Figure 5.
6. Ice-making
Fill the ice-tray with drinking water to within 4/5 from the top and cover with lid. Wipe off any drops of water which may be on the tray and lid to prevent freezing together and place in the cooler on the refrigerating unit. Ice will be made more quickly when the thermostat knob (for electric operation) or regulating knob (for liquid gas operation) is set to MAX for a short time. (When ice has formed, do not forget to return the knob to its normal setting.)
To remove the ice, allow the ice-tray to defrost slightly for a while or run it under tap water at normal temperature before removing the lid from the tray. The ice cubes can now be removed easily from the tray.
7. Useful suggestions
- When setting out on a trip, run the appliance on 230V (in thermostat setting between "min" and "max") for 24 hours prior to departure. Place food in a precooled condition into the appliance.
- Frost forms on the evaporator panel when in operation. When opening the lid or putting in food, some of this frost melts and collects in the form of water on the bottom of the appliance. Wipe the water off occasionally using a sponge.
- Avoid putting foods with fragile packaging (such as glass) into the cooling box. Movements and shaking of the unit may cause these items to break.
- Once the coolong box is in its permanent position, make sure foods do not come into contact with the evaporator panel, as this can cause freezer-burn to the foods.
8. Defrosting, cleaning and maintenance
For defrosting, always unplug the appliance from an electrical power source to avoid the risk of shock.
Make sure no other power source is connected (gas or 12V/24V). Remove food from the refrigeration unit and leave the lid open. Depending on the temperature, frost melts in a short time from the evaporator panel, with water collecting at the bottom of the appliance.
Wipe it off using a towel. Afterwards, clean the appliance by following the instructions in section 3.
Leave the lid ajar to prevent any odours from forming.
The appliance does not require any further maintenance.
9. Customer service
Before notifying customer service, please check the following:
Are location and ventilation satisfactory?
Is the appliance level?
Is there a current in the wall socket and is the connection suitable for the appliance?
Is the mains power cable damaged?
-
For mains operation, is the electric thermostat switched on?
-
For gas operation, was the safety valve knob pressed down long enough?
Is the thermostat knob set towards the maximum position?
Is the gas cylinder or the pressure regulator valve open?
-
Is there any gas in cartridge (If by shaking, no liquid movement can be detected, then the cartridge is empty)?
-
Are by any chance two different power sources connected (such as gas or electricity)?
Was warm food placed in the unit?
Was a large quantity of food put in at one time?
If after checking the above, the appliance still does not operate properly, contact customer service.
When reporting the problem, state the type of problem, the type of appliance, and the product number and serial number from the data plate.
We assume the warranty in accordance with our warranty assumptions for the appliance.
www.dometic.com
10. Putting into operation
You must, in all instances, operate the appliance from a single energy source only. Connecting several energy sources at the same time will cause failure of the appliance.
Technical data:
| Model RC 1205 GC | |
| Type JCB - 01 | |
| Gross volume 41 litre | |
| Mains operation 220 - 240 V (AC) |
| Input 85W | |
| Energy consumption 1.38 kWh/24h |
| Battery operation 12V (DC) | |
| Input 85W | |
| Energy consumption 170Ah/24h |
| Gas pressure (p) 28-30/37 mbar |
| Gas classification | \( I_{3+} \) |
| Jet size | 2 |
| Rated thermal loading: butane | 134W - 9,8 g/h |
| Min. thermal loading: butane | 106W - 7,7g/h |
| Climate class | N |
| Refrigerant | \( 143\mathrm {g}\;{\mathrm {H}}_{2}\mathrm {O} + 67\mathrm {g}\;{\mathrm {NH}}_{3} \) |
10.1. Connecting to electrical mains
Make sure no other energy source is connected (gas, 12V).
The appliance may only be operated from nominal voltage mains as shown on the data plate. The appliance mains plug may be connected to a mains socket earthed in accordance with regulations.
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
The manufacturer declines any liability should these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance data plate.
Only for UK:

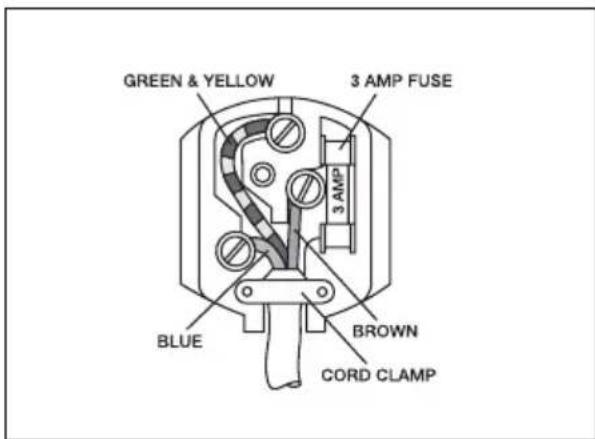

The appliance is supplied with a 3 amp plug fitted. In the event of having to change the fuse in the plug supplied, a 3 amp ASTA approved (BS 1362) fuse must be used. Should the plug need to be replaced for any reason, the wires in the mains lead are coloured in accordance with the following code:
Green and Yellow: Earth
Blue: Neutral
Brown: Live
The wire coloured green and yellow must be connected to the terminal marked with the letter E or by the earth symbol or coloured green and yellow.
The wire coloured blue must be connected to the terminal ,N" or coloured black.
The wire coloured brown must be connected to the terminal marked .L" or coloured red.
Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.
10.2. Connecting to vehicle power source
Make sure no other energy source is connected (gas, 230V).
A safety fuse must be installed in the electricity supply between battery and the cooling box in a duct.
12V appliances must be connected to a vehicle cigarette lighter, which is protected with a 10A fuse.
24V appliances must be connected by inserting a terminal block and switch and protected with a 5A fuse. The switch must be suitable for switching a 5A current.
It is not necessary to consider the polarity when connecting the unit.
In case you need a longer cable, please refer to the table below:
max. cable lengths
| Cable cross section | 12 V | 24 V |
| 2.5 mm² | until | 2.5 m 5 m |
| 4.0 mm² | until | 4.0 m 8 m |
| 6.0 mm² | until | 6.0 m 12 m |
Do not connect a cable thicker than 2.5mm^2 into the cigarette lighter plug! Please build a terminal block connection.
10.3. Connection and replacement of the gas cartridge
The correct connection of the fridge has to be carried out by a skilled specialist. Note the particularly valid national rules for usage of liquid gas driven appliances.
Make sure no other energy source is connected (230V, 12V).
The unit must not be connected to town or natural gas pipelines. It is suitable for use with self sealing gas cartridge (250g).
Before connecting the gas cartridge, please read the handling and storage instructions provided on the side of the cartridge. Check the proper fitting of the gas cartridge to the connecting port of the appliance. Before connecting the gas cartridge, check the cleanliness of the connecting port of the appliance to the gas cartridge.
Perform this operation in a well-ventilated area, free from ignition sources. Close the appliance valve. Put the lever on upper position. Place the cartridge in the appliance.
While transporting and handling the appliance, the gas cartridge may not be connected to the appliance.
For your safety:
Do not check for leaks with a naked flame! Do not smoke while checking for leaks!
Ammonia (natural hydrogen and nitrogen compound) is used as refrigerant agent in the cooling unit.
The ozone-friendly cyclopentane is used as a blowing agent for the PU foam insulation.
Sodium chromate is used for corrosion protection (less than 2 weight % of the coolant).
