IMPORTANT SAFETY PRECAUTIONS

Please read through this user manual thoroughly before using your Solis floor-standing fan "Breeze 360^ so that you become familiar with your appliance and can use it safely. We thoroughly recommend that you keep these instructions and, if you pass the appliance on, that you also hand these instructions to the new owner.

For your own safety, please observe the following safety measures when using electrical appliances:

1. To prevent electric shock, neither the appliance nor the power cord and the power plug must come into contact with water or other liquids. Danger of electric shock! Should the appliance resp. the power cord or the power plug come into contact with liquid, use dry rubber gloves to immediately pull the power plug out of the socket. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.
2. Do not operate the appliance resp. pull or connect the power plug with wet or moist hands or feet.
3. Before using the appliance, check that the voltage stated on the type plate of the appliance matches your mains voltage. Do not connect the power plug to a plug board to which other appliances are connected.
4. Lay the power cord in a way that makes it impossible to trip over it, the appliance might fall over and be damaged resp. cause personal damage. Please make sure that the power cord does not come into contact with hot surfaces like e.g. a stove top or a heater resp. with the appliance itself.
5. Keep the appliance away from hot gas, hot ovens and other heat-emitting appliances or heat sources. Never use the appliance on a hot or wet surface. Never place the appliance near moisture, heat and naked flames. Keep the appliance away from moving parts or appliances. Do not use the appliance in rooms that contain explosive resp. flammable substances or liq

uids. Do not use the fan in rooms with high levels of humidity, at room temperatures of over 40^ or in dusty rooms.

1. Always keep a minimum distance to walls or heat sensitive materials like fabrics, blinds or curtains. Make sure that the fan can gyrate freely on all sides. The area around the floor-standing fan must be kept open at all times and the floor-standing fan must never be covered. It is to be ensured that there are no objects in the operation radius of the fan which might get caught in the appliance and block it. The floor-standing fan must never be unsupervised during use.
2. During use, the appliance has to be placed on an even, clean, stable and dry surface. Do not use the appliance outdoors or in moving vehicles or boats.
3. Never carry the appliance by the power cord and do not place anything on the power cord. Never pull on the power cord to disconnect the appliance from the power mains. Only pull on the plug.
4. We recommend that you do not use an extension cable with this appliance. Do not place the appliance directly underneath a power socket.
5. Before disconnecting the power plug of the appliance from the power socket, please make sure that the appliance is not in use.
6. Always unplug the appliance if it is not in use or left unattended, and before cleaning. This also applies if you move, assemble, disassemble or store the appliance. We recommend the use of a residual current device (RCD safety switch) to provide additional protection during the use of electrical appliances. It is advisable to use a safety switch with a rated residual operating current of 30mA maximum. For professional advice consult an electrician.
7. Do not make any adjustments to the appliance, cable, plug or accessories.

8. Improper use creates the risk of injury! No liability is assumed in the case of potential damages or injuries.

9. Never take hold of an appliance that has fallen into water or another liquid. Always pull the power plug before removing it. Do not use the appliance again until you have had it's ability to function safely checked by Solis or a Solis approved service centre.

10. Never place the appliance in such a way that it might fall into water or come into contact with water or another liquid (e.g. next to a swimming pool).
11. Never submerge the appliance, power cord, power plug or remote control in water, or bring it into contact with water or other liquids.
12. Place the appliance so that it is never exposed to direct sunlight.
13. Never insert any objects or tools into the appliance openings or the fan grid or reach into it with hands / fingers. The appliance might be damaged resp. risk of electric shock and injuries! Pay special attention to children to prevent them from touching the fan.
14. Do not spray anything into the fan - not even insect spray.
15. Never move or lift the floor-standing fan while it is in use.
16. Only use the appliance as described in this manual. Only use with the provided accessories or accessories recommended by Solis, incorrect accessories can lead to damage of the appliance, resp. to fire, electric shock or personal damage.
17. Never use the appliance with an external timer switch or a different remote control.
18. This appliance is only for domestic use and is not suitable for commercial use.
19. Remove and discard all packaging materials and potential stickers or labels before using the appliance for the first time.
20. Check the appliance before each use and ensure that the appliance, power cord and plug are not damaged.
21. In order to avoid electric shock, do not use the appliance if the power cord or plug are damaged or the appliance is oth

erwise faulty, dropped or damaged. Never attempt repairs yourself but take your appliance to Solis or a Solis approved service centre in order to get it inspected or mechanically and electrically repaired.

1. People with limited physical, sensorial or mental capabilities as well as unknowing or inexperienced people and children must not use the appliance except when supervised or thoroughly instructed on how to use the appliance by a person responsible for their safety. Additionally, they must be aware of the dangers arising from the appliance and know how to operate it safely. Cleaning and maintenance of the appliance must not be done by unsupervised children. Under no circumstances must the appliance be used or cleaned by children under the age of 8.
2. Children must be supervised, so that they do not play with the appliance.
3. Always ensure the Solis fan is properly assembled before use.
4. Before moving or cleaning the appliance, switch it off and wait for the fan to come to a standstill. Remove the power plug from the socket. This also applies when the appliance is not in use.
5. You should take particular caution when children, elderly persons or animals are nearby to the fan.
6. The air flow from the fan should not be directed on elderly or sick people, resp. children or pets.
7. Never leave the fan while the appliance is in use.
8. Always keep the appliance and the accessories clean. Please refer to the notes given in the manual.
9. Do not place any objects on the appliance.
10. Unwind the power cord fully before plugging the plug into the socket.
11. Pull the plug after every use. Only then, the appliance is fully switched off.

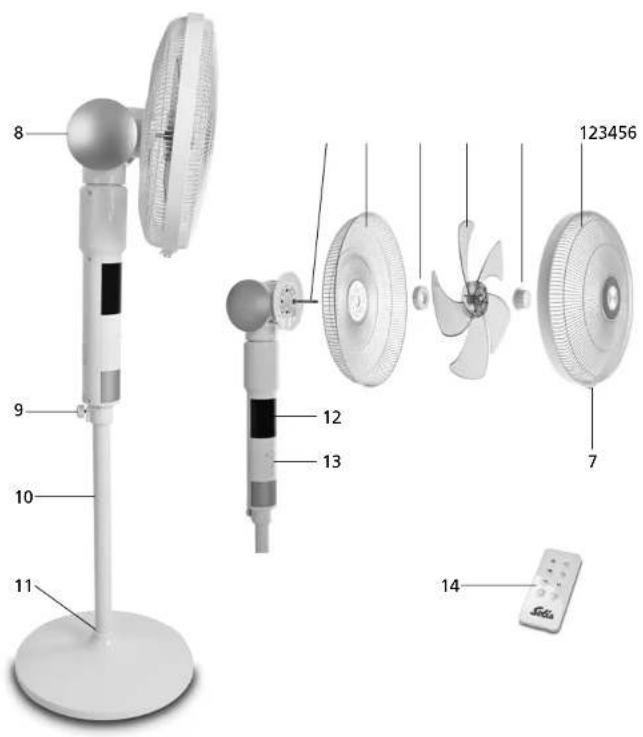

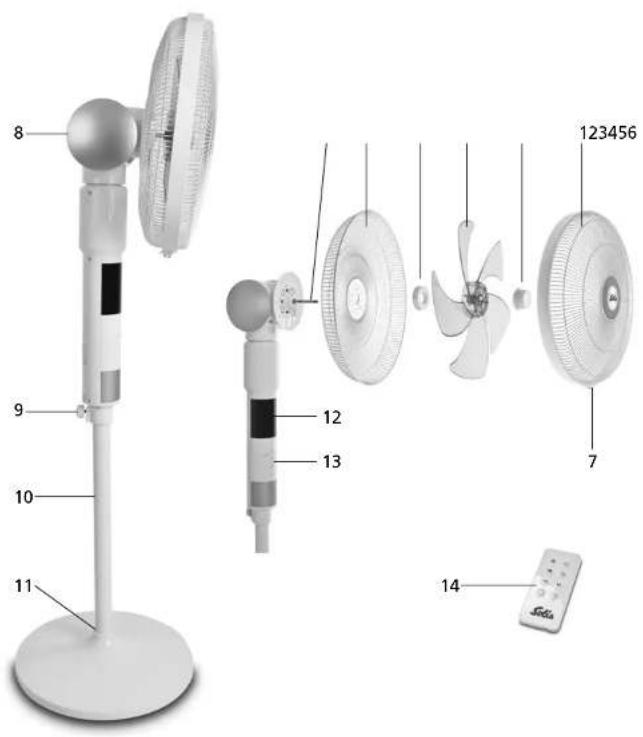

APPLIANCE DESCRIPTION

APPLIANCE DESCRIPTION

1. Front protection grid with frame ring
2. Rotor blade nut
   3.Rotor blade
3. Rear nut
4. Rear protection grid
5. Motor shaft on the motor chassis
6. Frame ring locking clip
7. Ventilator head
8. Blocking screw
9. Standing post
10. Base with angled screw
11. Display
12. Control panel with function buttons
13. Remote control

ASSEMBLY

1. Unpack all parts and dispose of the packaging material, especially the plastic bags (suffocation hazard for children!) as well as potential advertisement stickers and labels.
2. Spread all parts that need assembly out in front of you.
3. Place the base in front of you. Remove the angled screw (a) from the standing post. Insert the end of the standing post that previously held the screw into the hole in the base and connect both parts through the bottom side of the base with the angled screw (a). (Fig. 1)
4. Push the lower end of the ventilator chassis all the way onto the standing post and fasten both parts with the blocking screw (9). (Fig. 2)
5. Unscrew first the rotor blade nut (2) and then the rear nut (4) from the motor shaft (6). The rotor blade nut has to be unscrewed clock wisely (towards "Loosen"), the rear nut has to be unscrewed counter clock wisely (towards "Loosen").

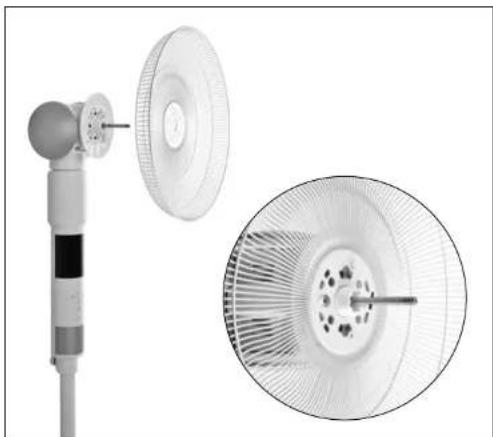

6. Push the rear protection grid onto the motor shaft over the thread and turn it so that the 3 positioning pins on the motor chassis hold the rear protection grid in position (tear shaped recess has to stand above the triangular positioning pin). (Fig. 3+4)

Fig. 1

Fig.2

Fig. 3+4

1. Fasten the rear protection grid using the rear nut (4). To do that, turn the rear nut clock wisely towards "Tighten". (Fig. 5)
2. Now, push the rotor blade onto the motor shaft as well. The 2 pins on the motor shaft have to glide into the two grooves in the rotor blade base (Fig. 6). Fasten the rotor blade with the rotor blade nut (2) by turning it counter clock wisely towards "Tighten". The rotor blade should be able to turn freely afterwards. (Fig. 7)
3. The frame ring connects the rear protection grid with the front protection grid. First, remove the screw on the locking clip with a screwdriver and open the clip. Place the frame ring on the rear protection grid (fig. 8), the guidance clip in the frame ring (opposite the clip) has to lock onto a wire of the rear protection grid (fig. 9). Then, each guidance jig on the frame ring has to lock onto the rear protection grid. Therefore, you should push the frames toward each other with your hand (fig. 10). At last, close the plastic clip (fig. 11) and fasten the screw with a screwdriver. (Fig. 12)
4. Once the fan is properly assembled you can start using the appliance. (Fig. 13)

Fig.5 Fig.6 Fig.7

Fig.8

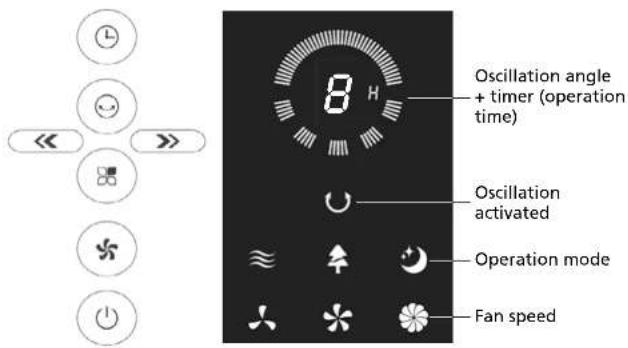

THE FUNCTION BUTTONS ON YOUR APPLIANCE

ON/OFF button

Once you connect the power plug to the power outlet, a double signal sound can be heard, indicating that the appliance is in standby mode. In standby mode, the appliance can only be activated with the ON/OFF button, all the other buttons are deactivated. If you press the button, the display lights up in the standard settings and the fan starts up.

Speed button

You can select one of three speed settings by pressing the speed button: low, medium and high. The high speed is followed by the low speed and then the sequence starts over. The corresponding LED lights up in the display.

low
medium
high

Direction buttons

The centre of the selected oscillation angle can be set with the buttons As long as you press the buttons or the fan head moves either to the left or the right. As soon as you release the button, the fan oscillates within the selected angle with the centre of the angle located where the direction button was released. Note: The centre of the oscillation angle can be set by hand to an angle between 0^ and 360^ .

The vertical inclination can be set by hand to the following angles: -8^, 0^, 10^, 20^, 30^, 40^, 50^, 60^, 70^, 80^, 90^ .

If the angle is set to 90^ , the fan head is completely horizontal, the air circulates upward without generating unpleasant, direct air draughts.

Oscillation button

Your fan can permanently swivel from the left to the right. At what angle this should happen has to be previously set by you.

The automatic, horizontal oscillation can be set to the following angles with the oscillation button: 0 (no lines on the display, the oscillation stops) - 60^ - 90^ - 180^ - 360^ - 0 (oscillation stops). By each press of the button, the setting jumps to the next angle. The setting can be read off the display by the beam shaped lines.

Oscillation at a 60^ angle

Oscillation at a 90^ angle

Oscillation at a 180^ angle

360^ rotation

Mode button

When you activate your fan, the appliance starts in Normal mode. You can choose from 3 different settings:

Normal mode	≈
Nature mode	▲
Sleep mode	●

By each press of the button the setting switches to the next position. The Sleep mode setting is followed by the Normal mode setting.

a) Normal mode ≈

In Normal mode, you can select the speed yourself using the button You can choose between low medium and high

b) Nature mode

In Nature mode, the fan switches between the high, medium and slow speed, thus imitating a natural wind. The sequence and duration of the particular speed is factory-set and also depends on the ventilation speed you have selected.

If you have selected the high speed in Nature mode, the fan works mainly at high and medium speeds and less often at low speed.

If you have selected the medium speed in Nature mode, the fan works mainly at medium and low speeds and never at high speed.

If you have selected the low speed in Nature mode, the fan works mainly at low speed, less often at medium speed and never at high speed.

Note: In Nature mode, the changing fan speed is not reported by different statements in the display.

c) Sleep mode

In Sleep mode, too, you can choose between high, medium and low speeds. In this function, the speed gradually decreases, based on the operation mode of the fan in Nature mode.

If you have selected the high speed in Sleep mode, the appliance works like it does in the Nature mode with the high speed setting for the first 30 minutes. For the next 30 minutes, it works like it does in the Nature mode with the medium speed setting and then in the Nature mode with the low speed setting for the remaining time.

If you have selected the medium speed in Sleep mode, the appliance works like it does in the Nature mode with the medium speed setting for the first 30 minutes and then in the Nature mode with the low speed setting for the remaining time.

If you have selected the low speed in Sleep mode, the appliance works like it does in the Nature mode with the low speed setting for the entire time: mainly at low speed and rarely at medium speed.

Note: In Sleep mode, the changing fan speed is not reported by different statements in the display.

Timer button

After switching on resp. as a standard setting, the appliance starts without a timer setting, a 0 lights up on the display. By pressing the Timer button (口) you can adjust fan operation time: 1 hour (1H), 2 hours (2H), 4 hours (4H) or 8 hours (8H). After 8 hours, the next press of the button deactivates the timer function, then it restarts with the next press at 1H (1 hour). The set time is shown in the display. The remaining operation time is counted down in the timer function, the appliance switches off automatically after it has elapsed.

Notes:

Memory function

In standby mode, if the power plug is not disconnected, the set fan speed and oscillation angle are saved. However, if the Timer function or the Sleep mode resp. the Nature mode were activated, this is not saved.

LED light

If none of the buttons were pressed within the last minute, the LED light is dimmed by 33% , meaning it decreases by 33% . Should another button be pushed, the LED light returns to its original brightness.

THE REMOTE CONTROL

Generally:

The function buttons on the remote control correspond to the function buttons on the control panel of the fan, however, the button can be used to choose the oscillation angle resp. the 360^ rotation. This button can only be found on the remote control. On the appliance itself, the oscillation angle resp. the 360^ rotation can be selected by repeatedly pressing the button
Open the battery compartment on the back of the remote control and insert a CR2032 (3V) battery. Please note the indicated polarity. Should you not use the remote control for extended periods of time, please remove the battery and store it separately. This increases battery lifetime.
The operating distance of the remote control is up to 3.5 meters. If you do not point the remote control directly towards the receiver, meaning the display of the fan, the operating distance is lower resp. the fan does not respond to the remote control signals.
- Please make sure that there are no obstacles between the remote control and the receiver.
- Please keep the remote control safe, it must not fall down or break.
Should the included battery run out of energy, insert a new CR2032 battery.

CLEANING AND MAINTENANCE

Before cleaning, moving and storing the appliance, please always switch the fan off with the button 品 and disconnect the power plug from the power socket.
- The outer parts of the ventilator should be cleaned once a month with a slightly moist towel. Take care to remove also the dust from the rear protection grid to ensure unimpeded air circulation.
- Never submerge the appliance in water or another liquid and do not spray any water or any other liquid into the appliance!
- Do not use any aggressive or chemical detergents resp. sharp or raw sponges and the like. They might damage the surface of the fan.
- Store the appliance safe from dust in a dry and dark place.

• Retighten the rotor blade nut (2) and the rear nut (4) once a year to make sure that the rotor blade is properly fastened.

TECHNICAL SPECIFICATIONS

Model no. DE-EF16910, type 7582

Product description Floor-standing fan with remote control

Voltage/Frequency 220-240V/50Hz

Output 65 Watt

Dimensions ca. 140 × 40 cm (H x Ø base)

Weight ca.8,6 kg

Technical changes reserved.

DISPOSAL

EU 2011/65/EU

Information for correct disposal of the product in accordance with the European Directive EU 2011/65/EU

At the end of its working life this equipment must not be disposed of as an household waste. It must be taken to special local community waste collection centres or to a dealer providing this service. Disposing of electrical and electronic equipment separately avoids possible negative effects on the environment and human health deriving from an inappropriate disposal and enables its components to be recovered and recycled to obtain significant savings in energy and resources. In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed-out dustbin.

Solis of Switzerland Ltd reserves the right to carry out technical and visual changes and modifications to improve the product at any time.

HELPLINE:

091 802 90 10

This item stands out due to its long-life cycle and reliability. Despite this though, if a malfunction over occurs, simply give us a call. Often a breakdown can be easily and quickly remedied with the right tip or technique without having to straight away send off the device for repair. We will give you all the advice and practical support you require.

Keep the original packaging in a safe place so that you may use it in the event that transportation or shipping of the product becomes necessary.
