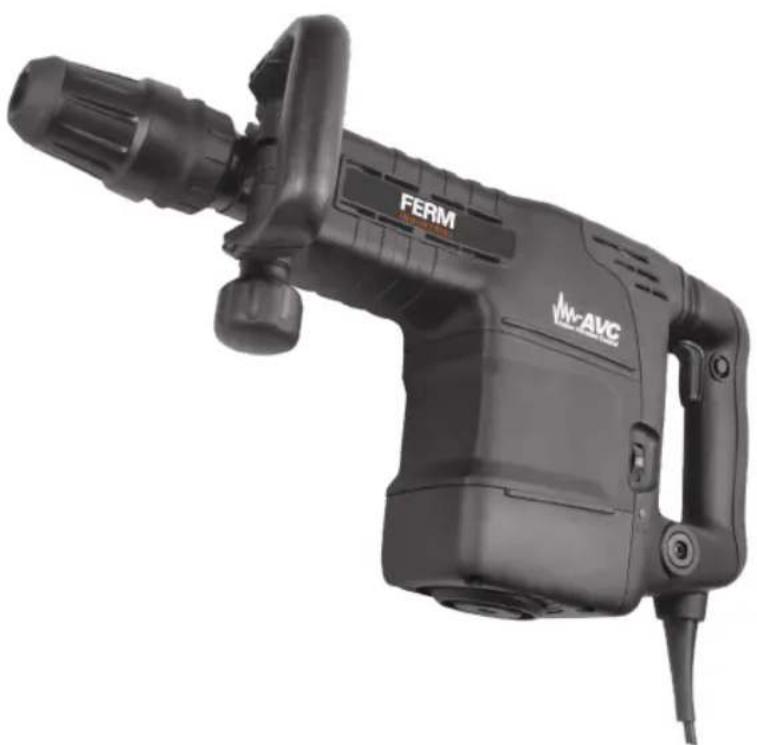

DEMOLITION HAMMER HDM1041P

Thank you for buying this FERM product. By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive warranty. We hope you will enjoy using this product for many years to come.

1.SAFETYWARNINGS

WARNING

Read the enclosed safety warnings, the additional safety warnings and

the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.

The following symbols are used in the user manual or on the product:

Read the user manual.

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Risk of electric shock

Immediately remove the mains plug from the mains if the mains cable becomes damaged and during cleaning and maintenance.

Always wear eye protection!

Wear hearing protection.

Wear a dust mask.

Wear safety gloves.

Do not dispose of the product in unsuitable containers.

The product is in accordance with the applicable safety standards in the European directives.

Additional safety warnings for demolition hammer

a) Wear ear protectors. Exposure to noise can cause hearing loss.

b) Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.

c) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Electrical safety

When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read the following safety instructions and also the enclosed safety instructions.

Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.

Class II machine - Double insulation - You don't need any earthed plug.

If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Replacement of power cords or plugs

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use of extension leads

Only ever use approved extension leads that are suitable for the power rating of the machine. The minimum core thickness is 1.5 mm^2 . Whenever using a reel extension lead, always fully unroll the lead.

Immediately switch off the machine when:

• Excessive sparking of the carbon brushes.
- Interruption of the mains plug, mains lead or mains lead damage.
- Defectswitch.
- Smoke or stench of scorched isolation.

2. MACHINE INFORMATION

Intended use

The demolition hammer is intended for demolishing concrete, chiseling off concrete, grooving and bar cutting.

SDS-max

This machine can only be used with SDS-Max chisels.

Technical specifications

Mains voltage 220-240 V ~

Mains frequency 50 Hz

Power input 1.500 W

Impact rate 1.000-1.900/min

Impact energy 6-25J

Weight 10.69 kg

Sound pressure (LPA) 102.13dB(A) K=3 dB(A)

Acoustic power (LWA) 105dB(A) K=3 dB(A)

Vibration

Main grip a_h,Cheq	20.38m/s ^2 K=1.5m/s ^2
Auxiliary grip a_h,Cheq	19.61 m/s ^2 K=1.5m/s ^2

Vibration level

The vibration emission level stated in this instruction manual has been measured in accordance with a standardized test given in EN60745. It may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned.

• Using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level.
• The times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level.

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm and organizing your work patterns.

Description

The numbers in the text refer to the diagrams on pages 2-3

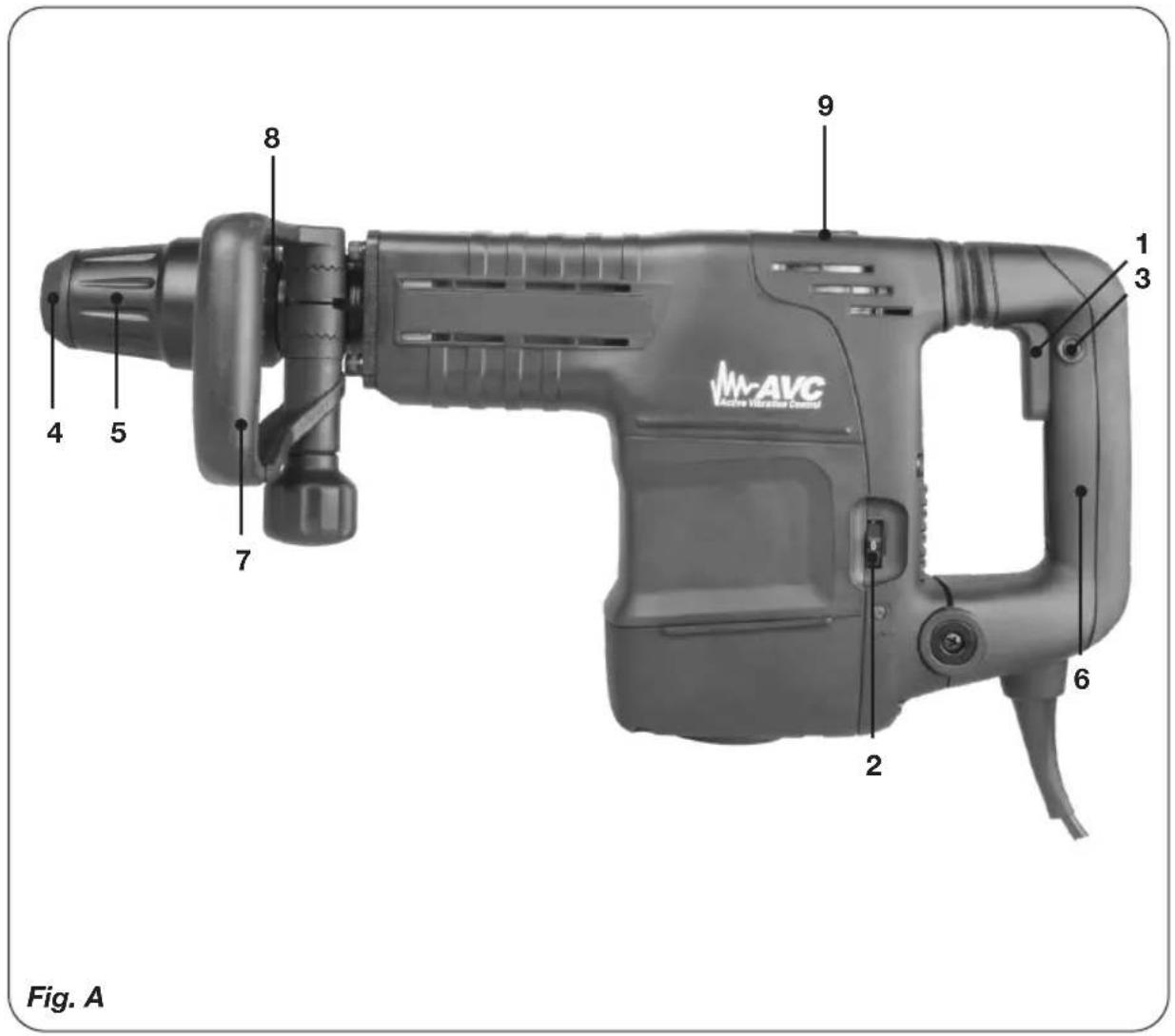

Fig. A

1. On/off switch
2. Speed adjustment wheel
3. Lock-onbutton
   4.Chuck
4. Lockingsleeve
   6.Maingrip
   7.Auxiliarygrip
5. Chisel position lock ring
6. Lubricationpoint

3. ASSEMBLY

Before assembly, always switch off the machine and remove the mains plug from the mains.

Mounting and removing the accessory

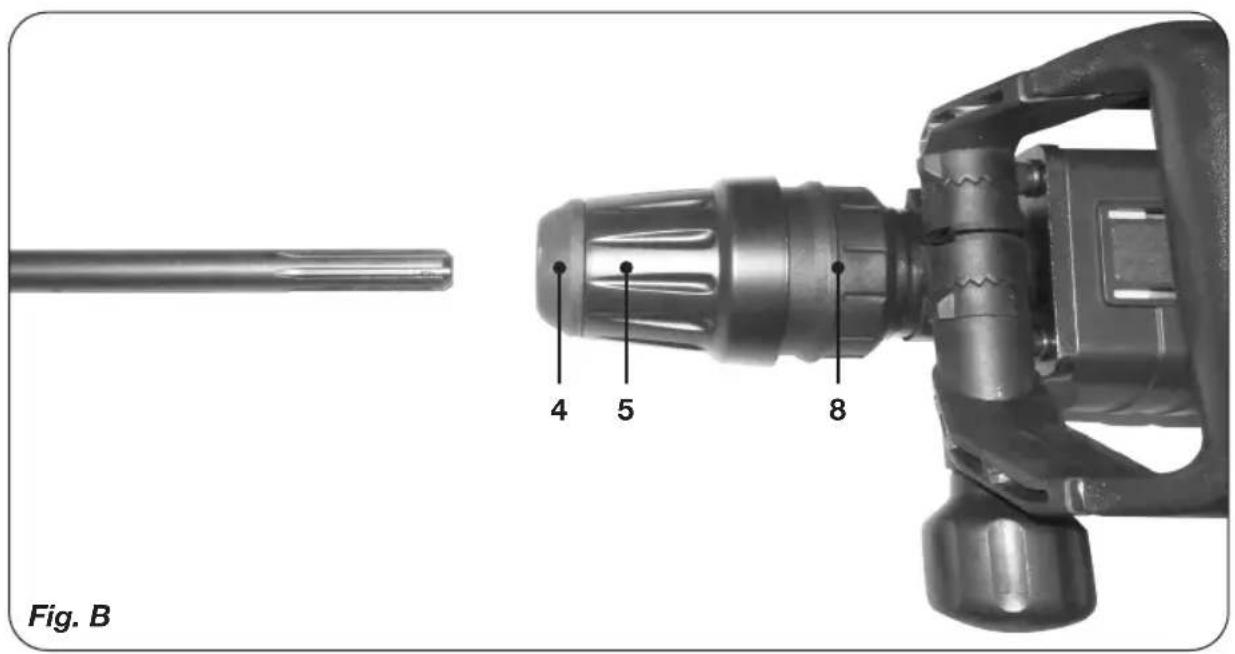

Fig. B

Do not use blunt drill bits or chisels. Immediately sharpen or replace blunt drill bits or chisels.

Mounting

• Apply a few drops of oil to the shaft of the accessory.
• Slide the locking sleeve (5) to the rear.
• Insert the accessory into the chuck (4).
• Release the locking sleeve (5).

Removing

• Slide the locking sleeve (5) to the rear.
• Remove the accessory from the chuck (4).
• Release the locking sleeve (5).

Changing chisel position

• Push the lock ring (8) forward and turn the chisel to the desired position.
• Make sure the ring locks back in place before using the machine.

Setting the auxiliary grip

Fig. A

Mounting

• Loosen the auxiliary grip (7) by turning the knob counterclockwise.
• Turn the auxiliary grip (7) to the desired position.
• Tighten the auxiliary grip (7) by turning the knob clockwise.

4. USE

Switching On/Off

Fig. A

- Switch the machine on by pressing the On/Off switch (1). When you release the On/Off switch (1) the machine will turn off.

Lock-on Button

Fig. A

• You can lock the On/Off switch (1) by pressing the On/Off switch (1) and then pressing the lock-on button (3).
• To release the switch-lock; shortly press the On/Off switch (1) again

Hints for optimum use

• Clamp the workpiece. Use a clamping device for small workpieces.
• Firmly hold the machine by the grip.
• Switch on the machine.
• Do not apply too much pressure on the machine. Let the machine do the work.
• Switch off the machine and wait for the machine to come to a complete standstill before putting the machine down.

5. CLEANING AND MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.

Clean the machine casings regularly with a soft cloth, preferably after each use. Make sure that the ventilation openings are free of dust and dirt. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia etc. Chemicals such as these will damage the synthetic components.

Defects

The machine should be regularly inspected for the following possible defects and repaired if necessary.

• Damage to power cord.
• Broken on/off trigger assembly.
• Shortcircuiting.
• Damaged moving parts.

Faults

Should a fault occur, e.g. after wear of a part, please contact your seller or the service address on the warranty card. Separate you find an exploded view showing the parts that can be ordered.

WARRANTY

The warranty conditions can be found on the separately enclosed warranty card.

ENVIRONMENT

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries

Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.

The product and the user manual are subject to change. Specifications can be changed without further notice.
